Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

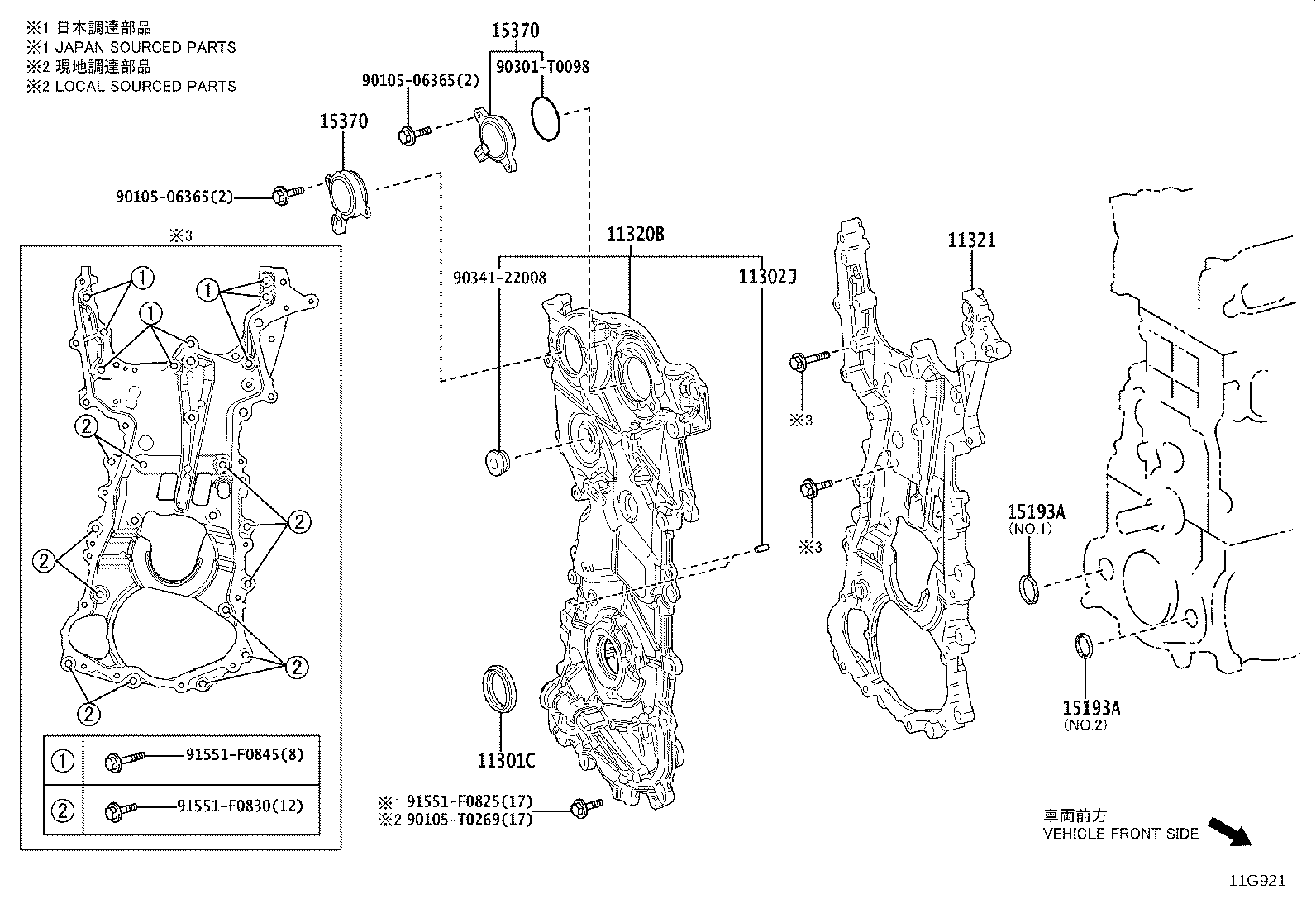

Timing Gear Cover & Rear End Plate
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302J | Pin, Straight(FOR TIMING CHAIN COVER) |
| 11320B | Cover Assy, Timing Chain, NO.2 |
| 11321 | Case, Timing Gear |
| 15193A | Gasket, Oil Pump |
| 15330 | Valve Assy, Cam Timing Oil Control |
| 15370 | Solenoid Assy, Cam Timing Oil Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
