Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

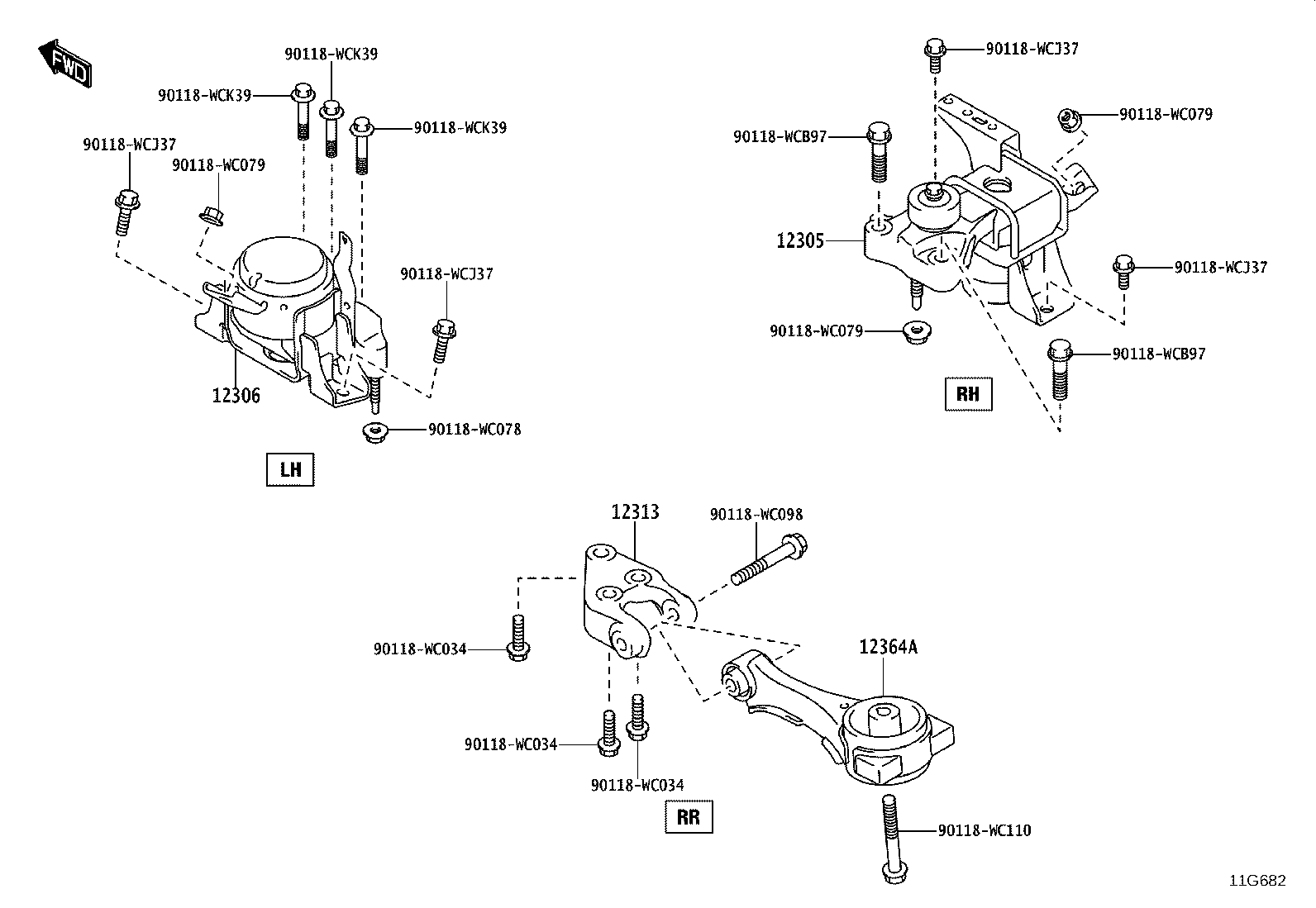

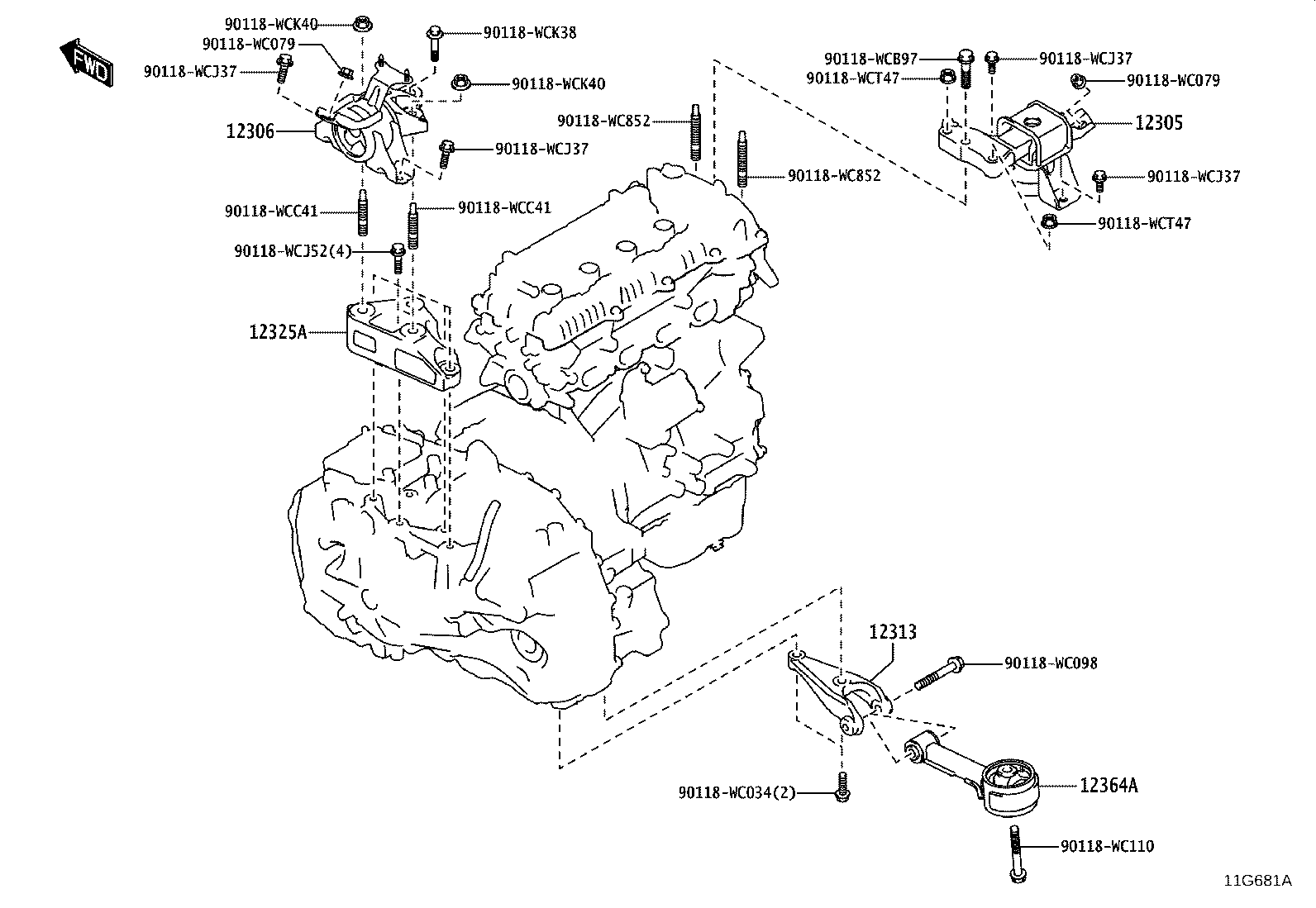

Figure 11G680A 11G680A 2024-01 → — Figure 11G681A 11G681A 2024-01 → — Figure 11G682 11G682 2024-01 → — Figure 11G922 11G922 2024-01 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12314 Bracket, Engine Lateral Control Rod
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12353 Cap, Engine Mounting Bracket
12364A Rod, Engine Lateral Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
