Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

14 part groups · 6 illustrations

Illustrations

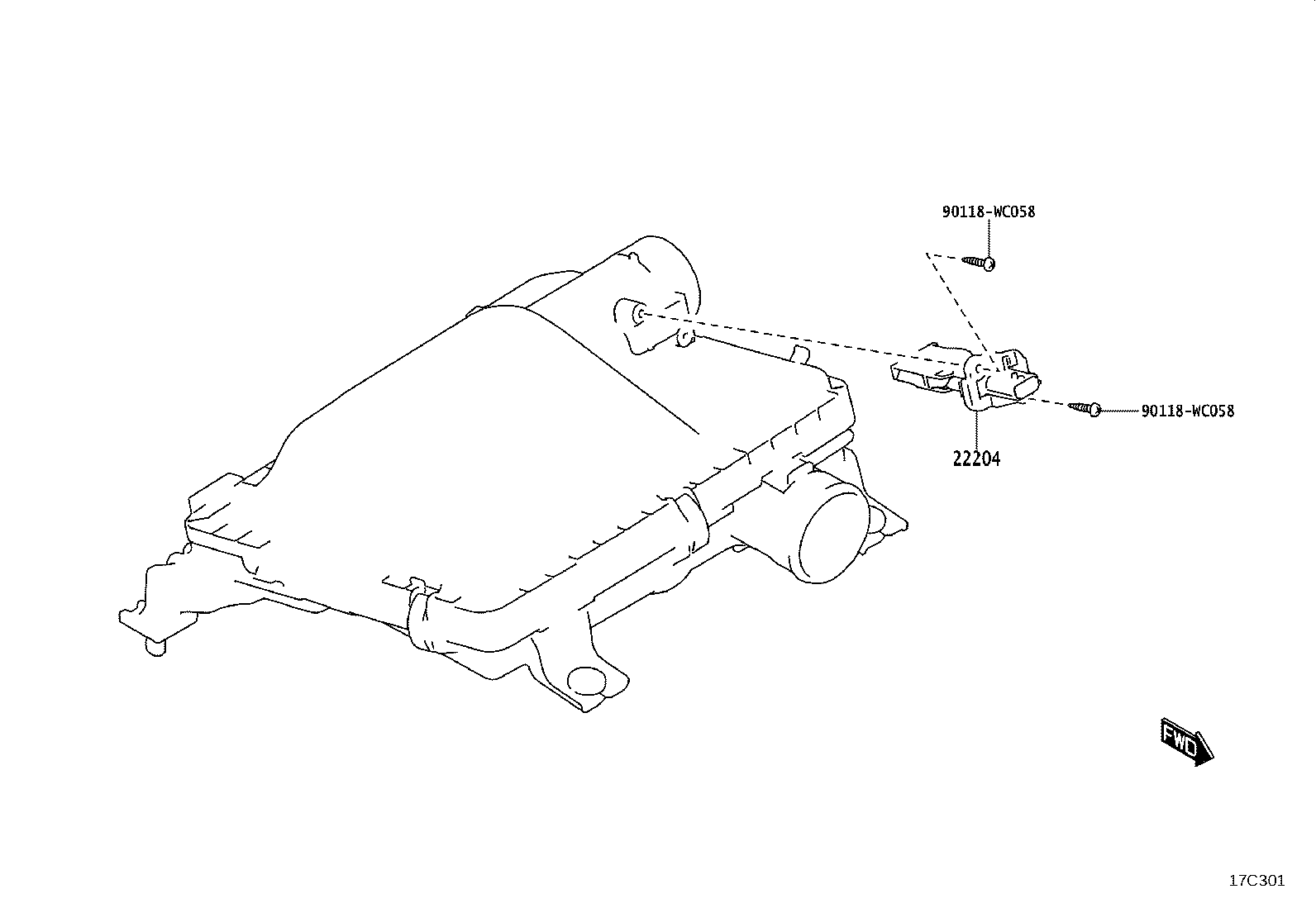

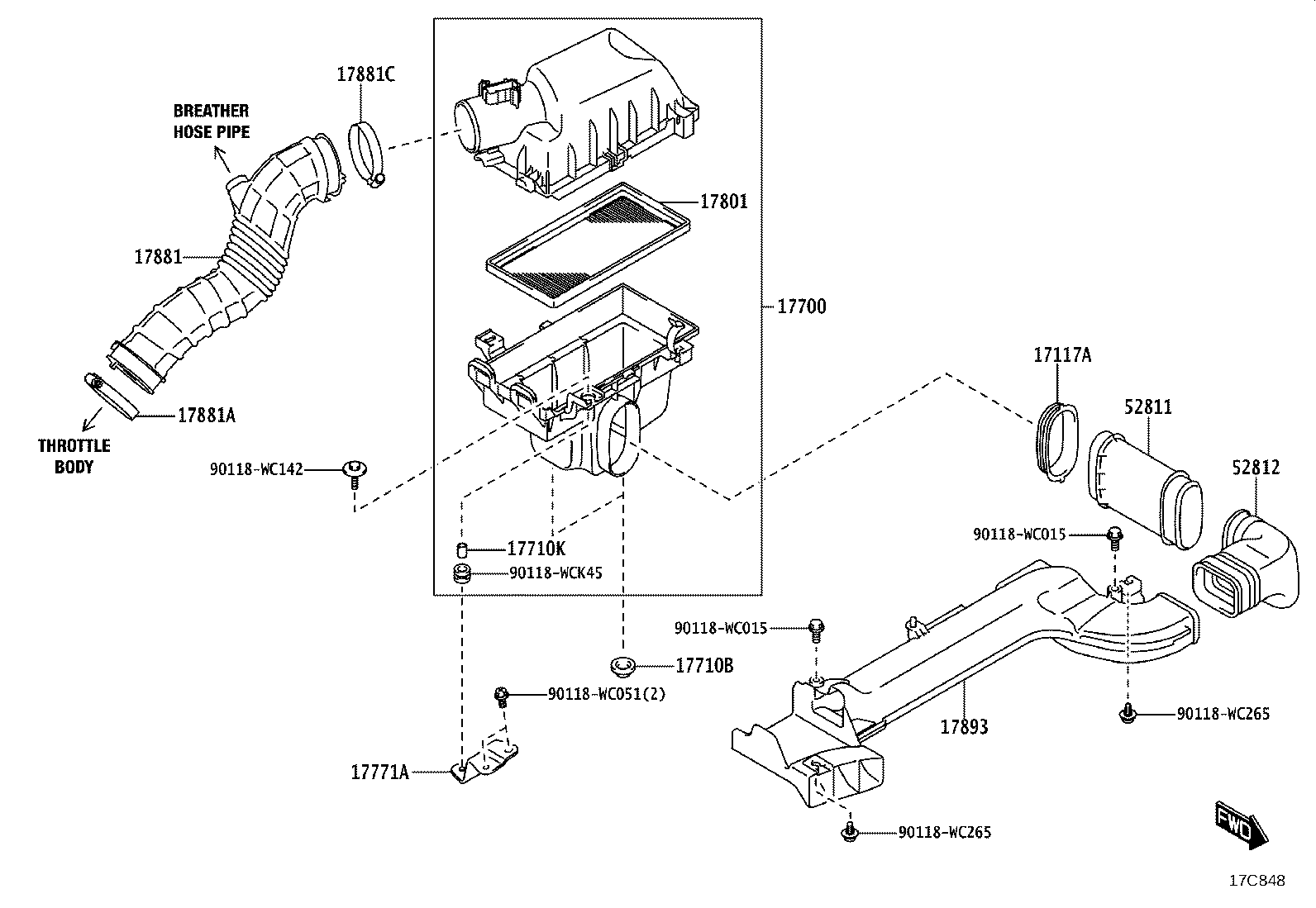

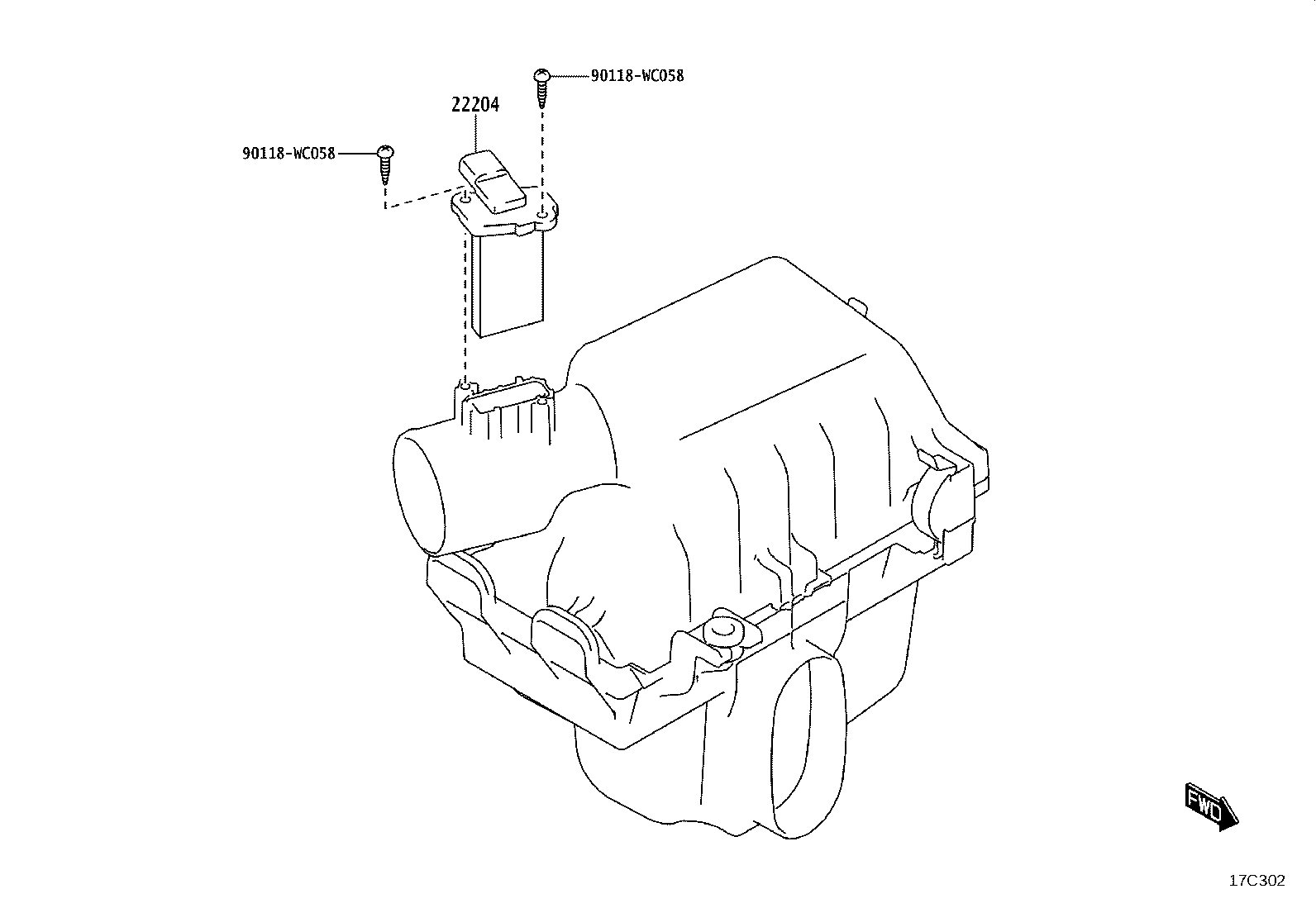

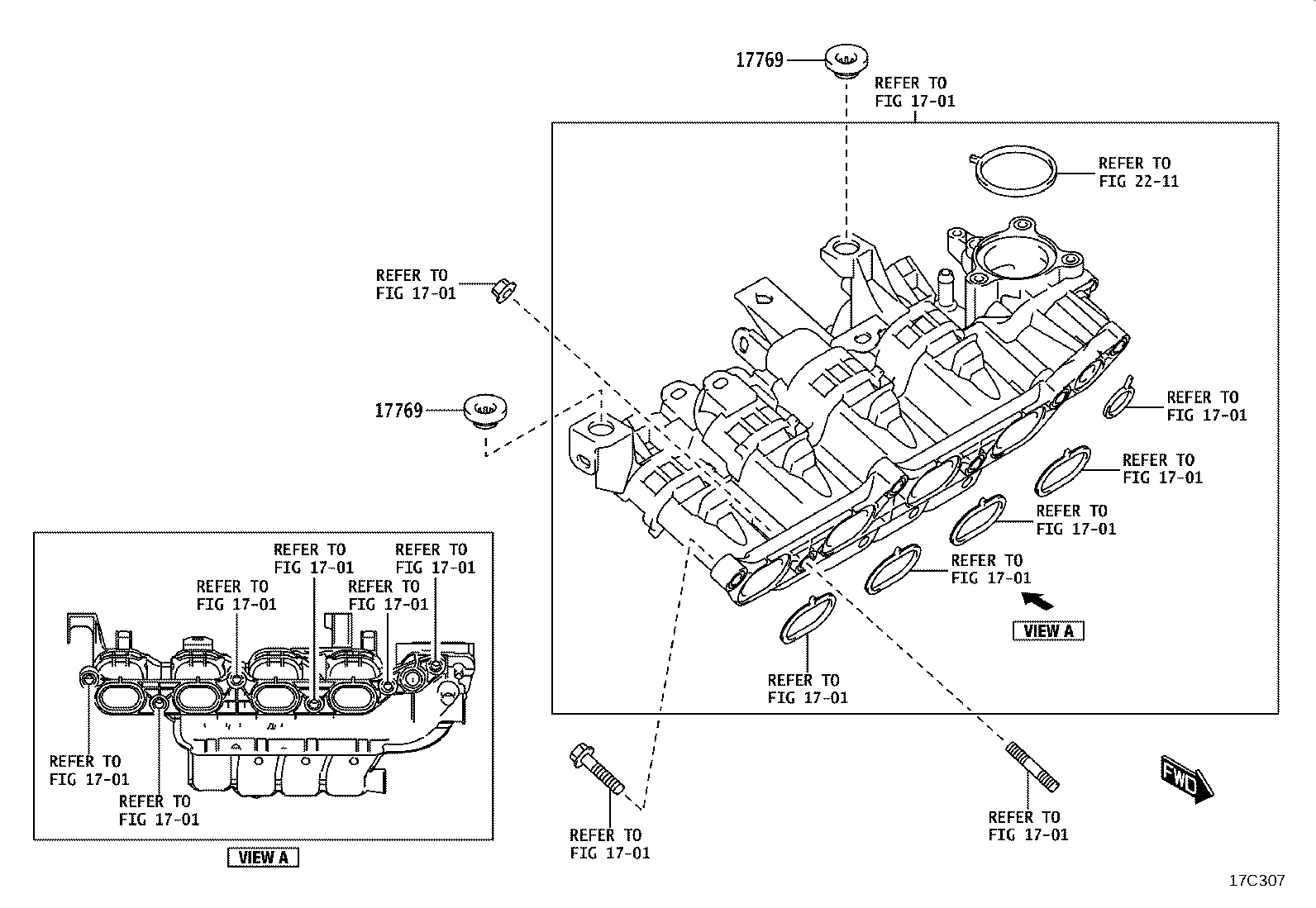

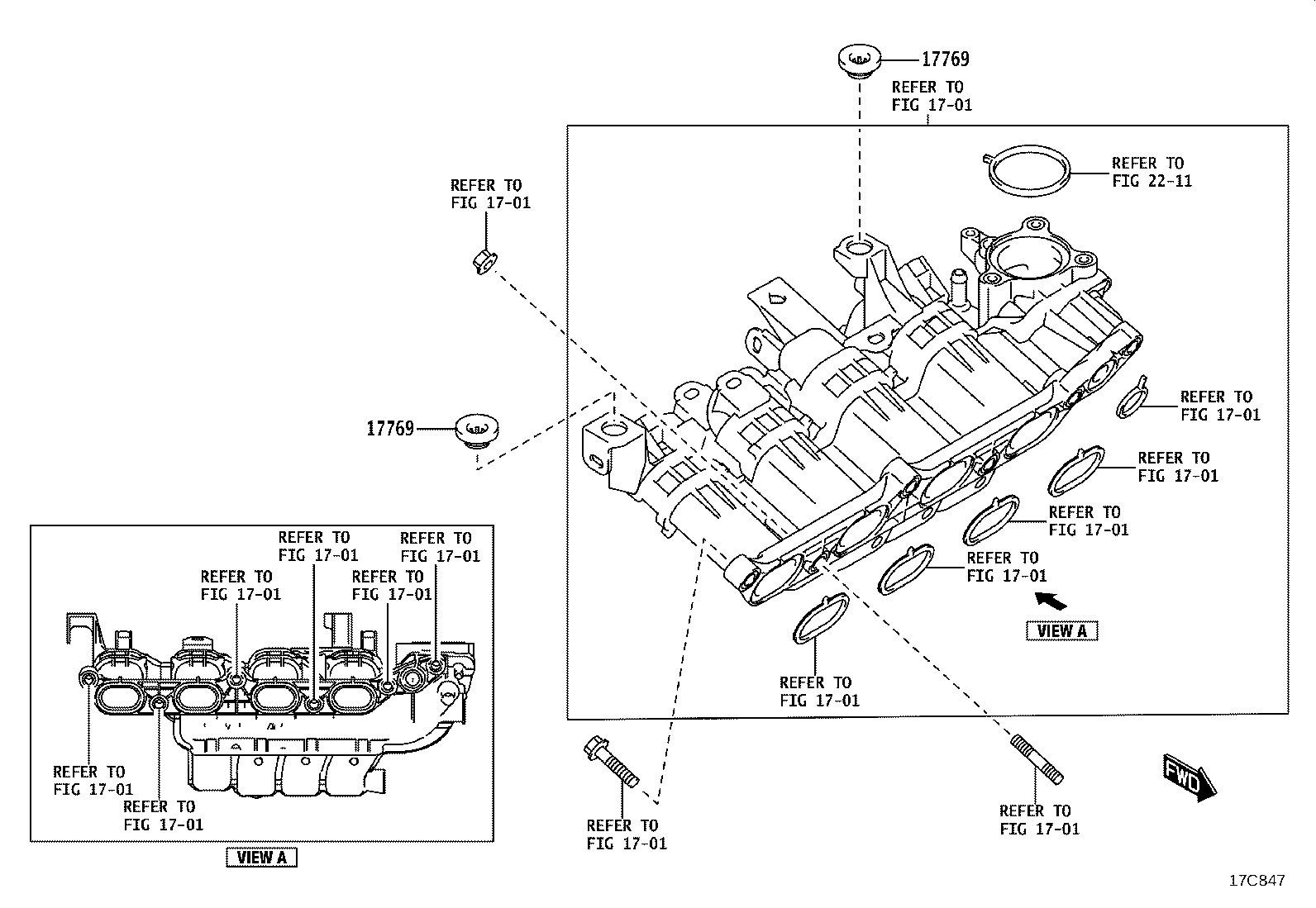

Figure 17C299 17C299 2024-01 → — Figure 17C301 17C301 2024-01 → — Figure 17C847 17C847 2024-01 → — Figure 17C307 17C307 2024-01 → — Figure 17C848 17C848 2024-01 → — Figure 17C302 17C302 2024-01 → —

Part groups

PNCDescription
17117A Insulator, Intake Pipe
17700 Cleaner Assy, Air
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17769 Support, Air Cleaner
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17893 Resonator, Intake Air
22204 Meter Sub-assy, Intake Air Flow
52811 Duct, Cool Air Intake, NO.1
52812 Duct, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
