Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

9 part groups · 9 illustrations

Illustrations

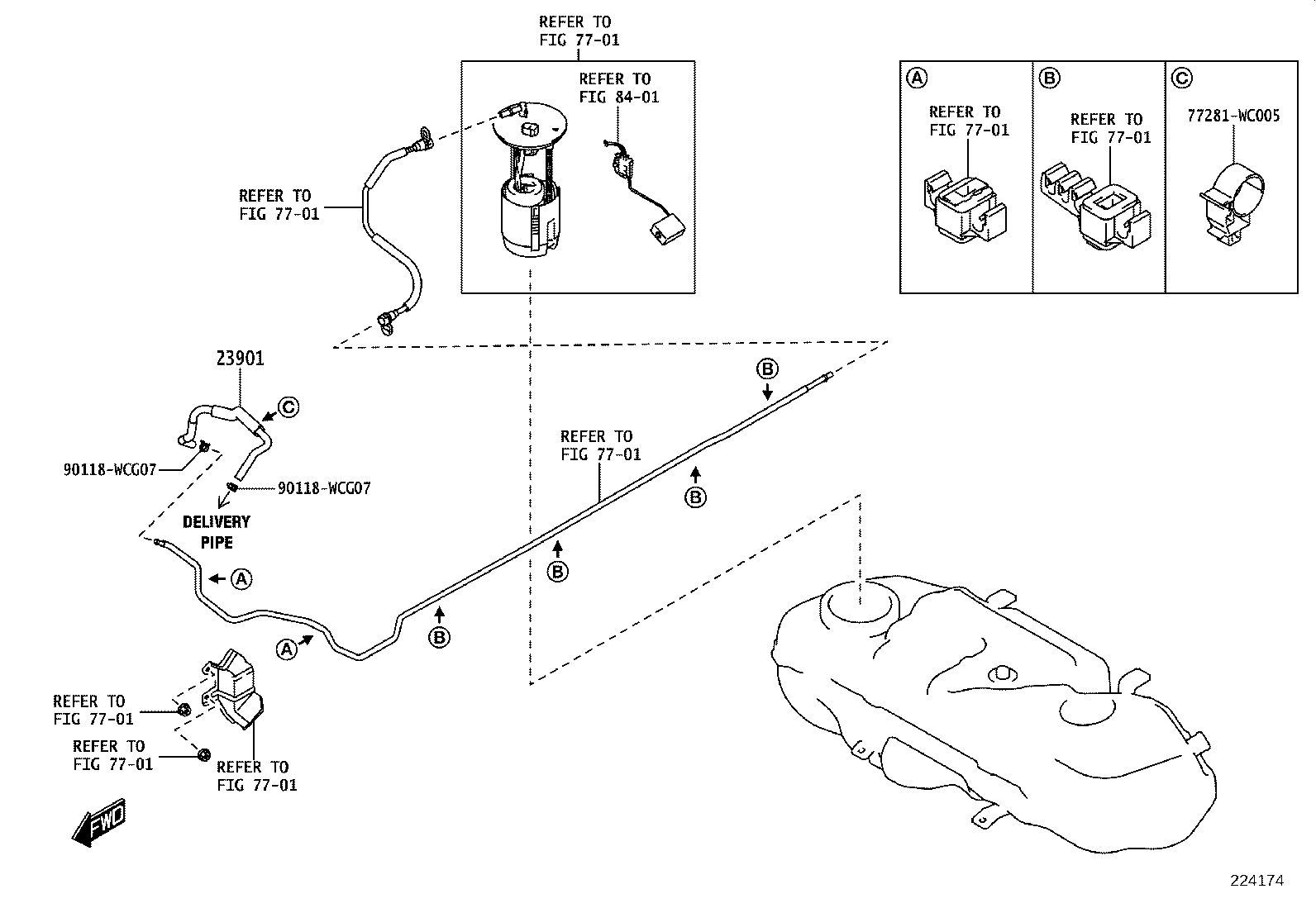

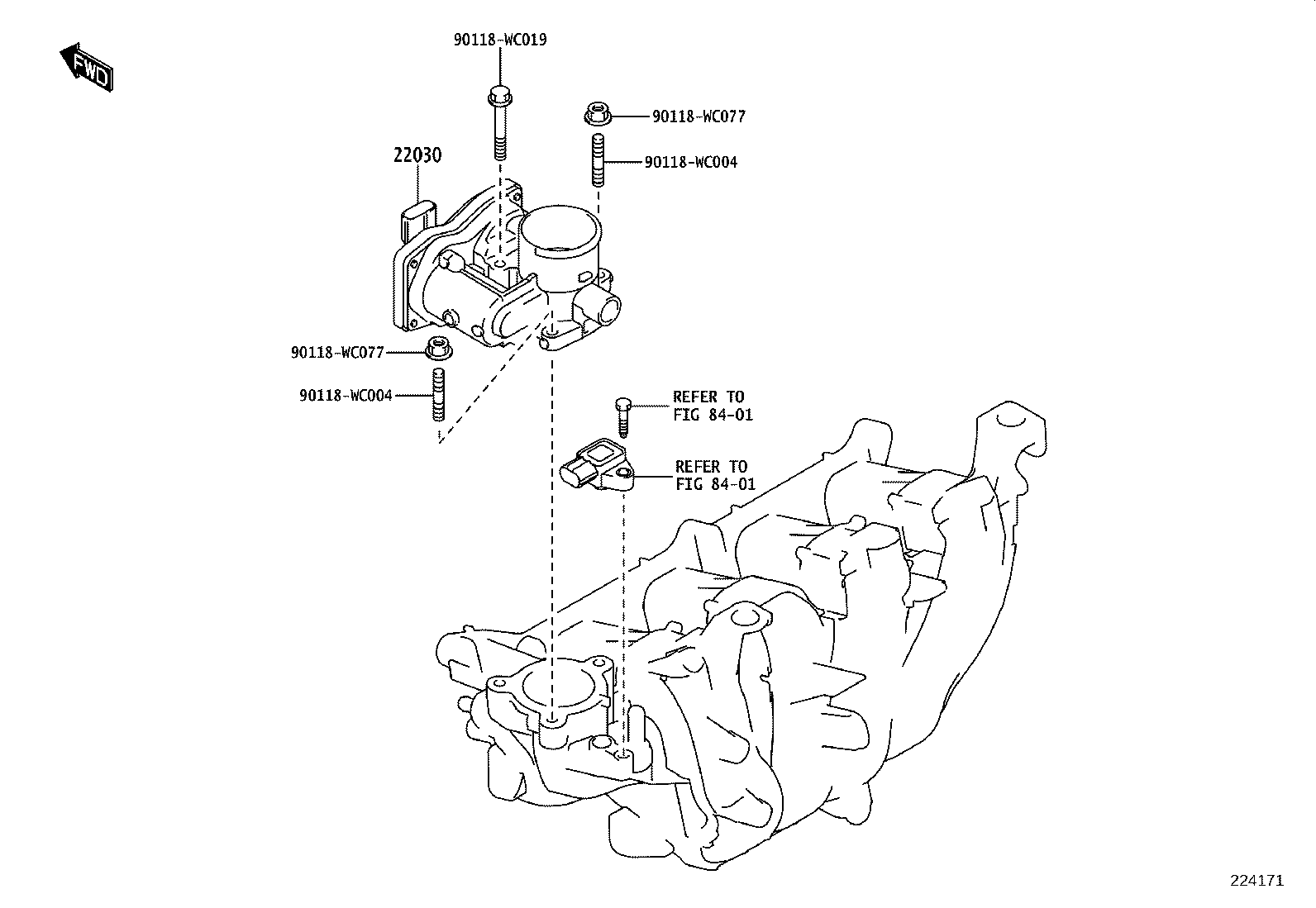

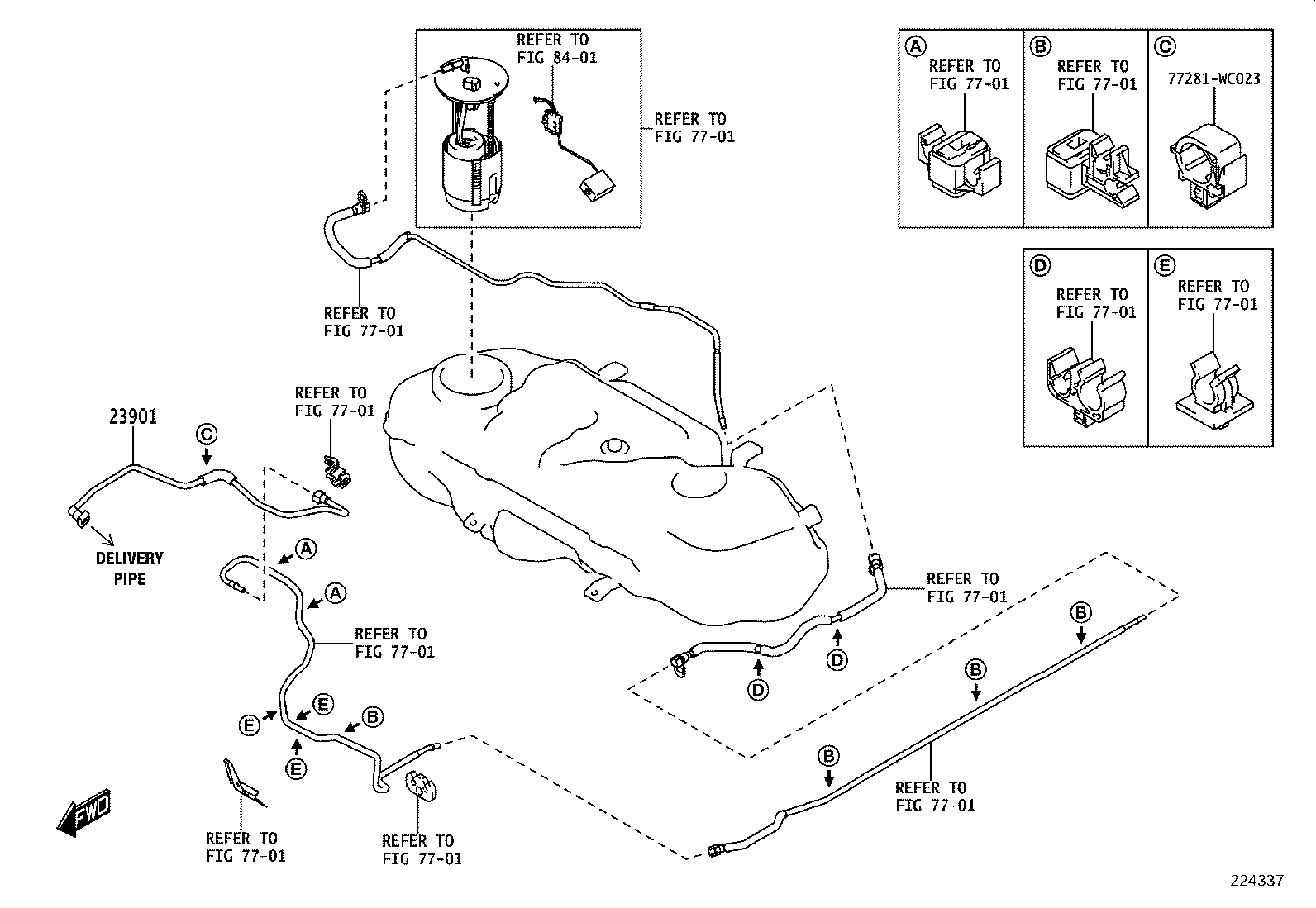

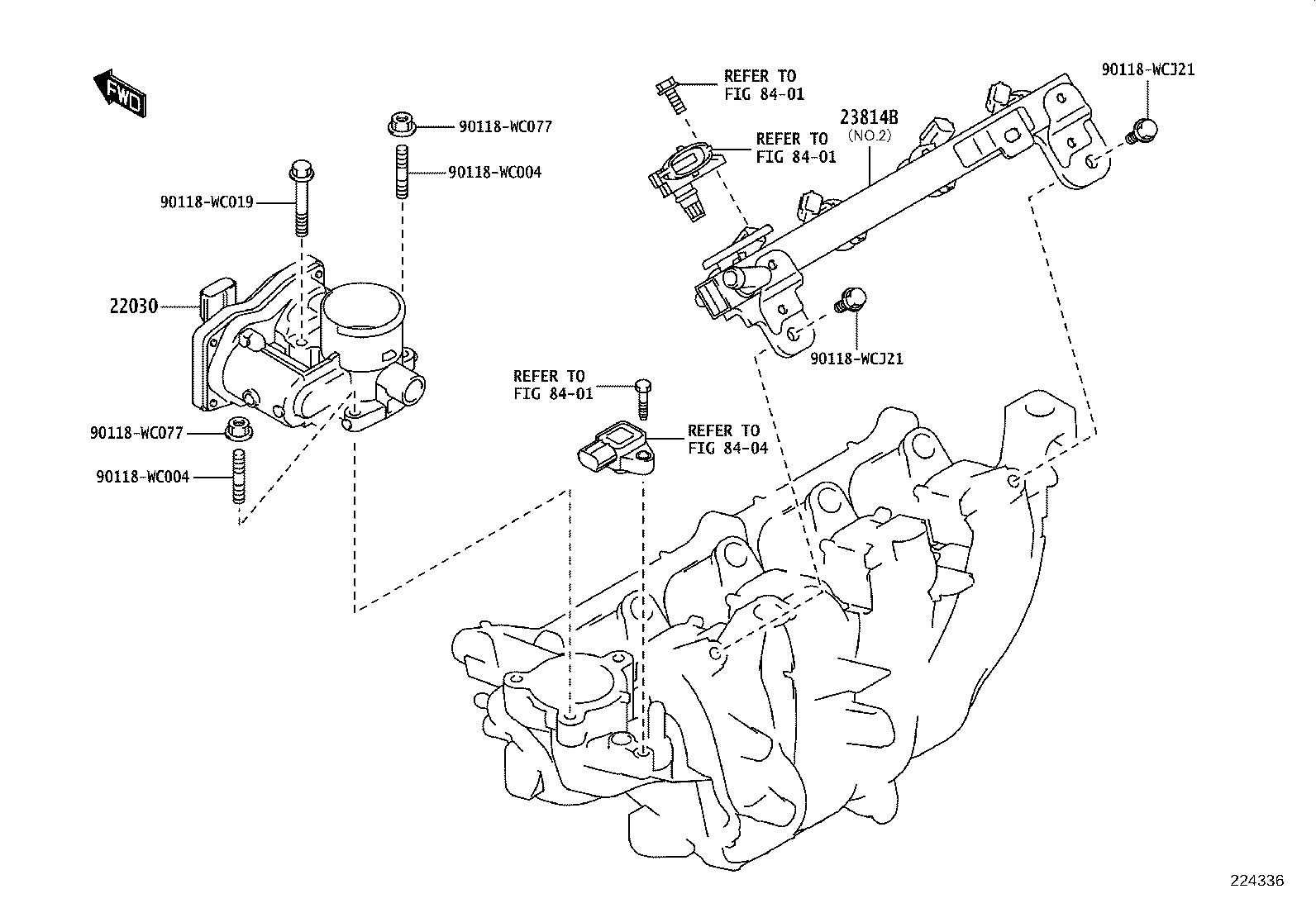

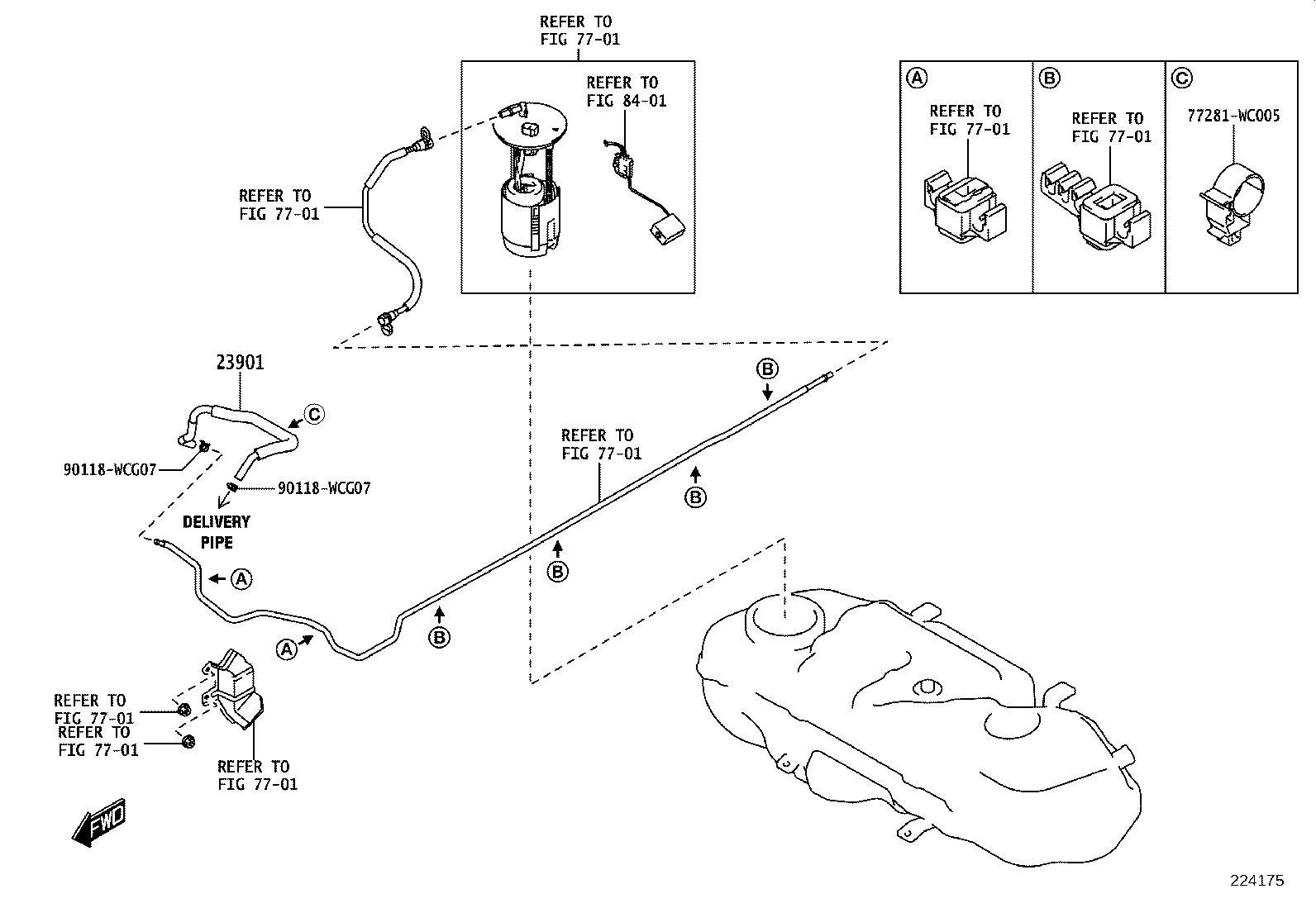

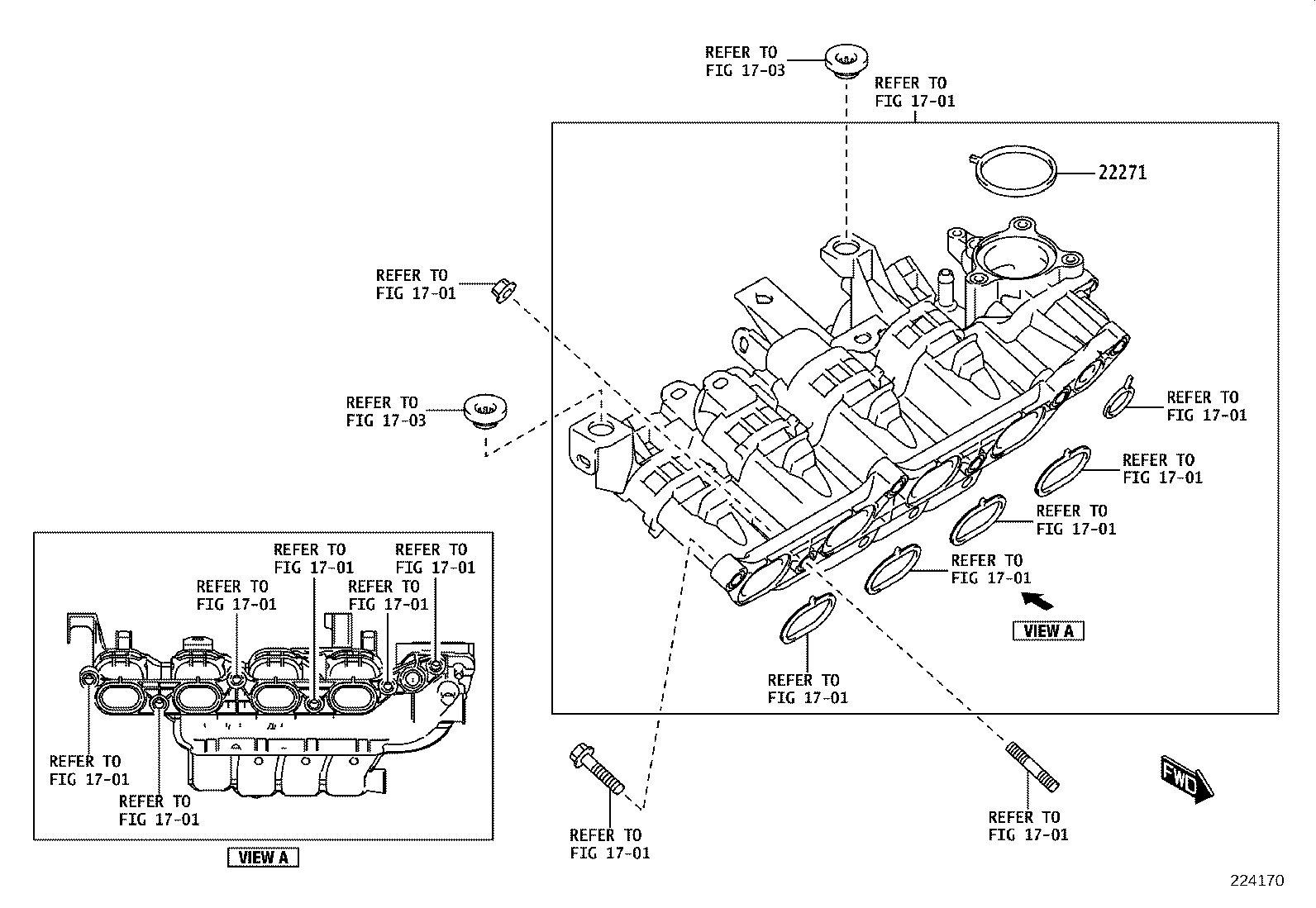

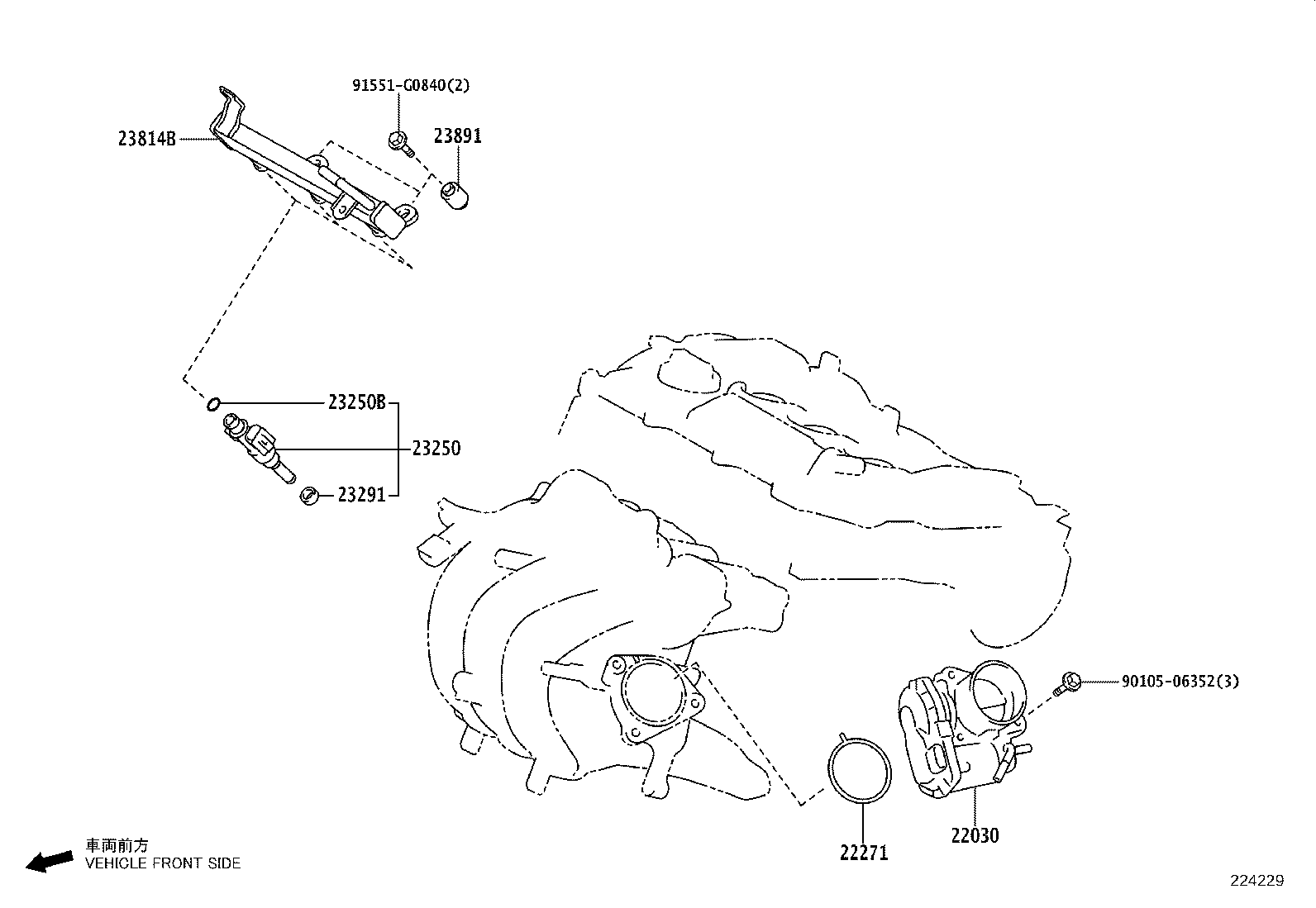

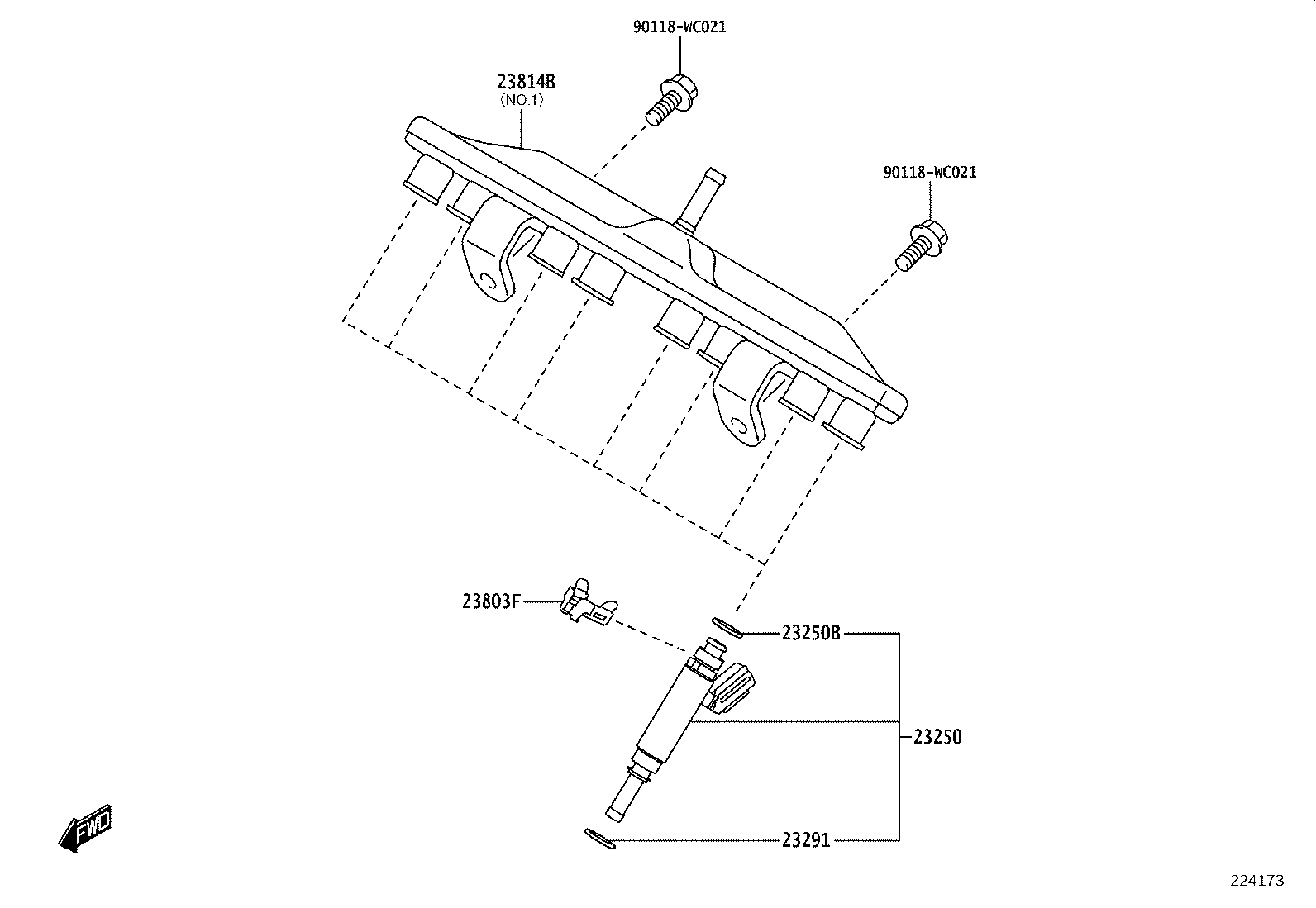

Figure 224335 224335 2024-01 → — Figure 224170 224170 2024-01 → — Figure 224171 224171 2024-01 → — Figure 224336 224336 2024-01 → — Figure 224173A 224173A 2024-01 → — Figure 224174 224174 2024-01 → — Figure 224175 224175 2024-01 → — Figure 224229 224229 2024-01 → — Figure 224337 224337 2024-01 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23803F Clip
23814B Pipe, Fuel Delivery
23891 Spacer, Fuel Delivery
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
