Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Band & Multiple Disc Clutch (ATM)

11 part groups · 3 illustrations

Illustrations

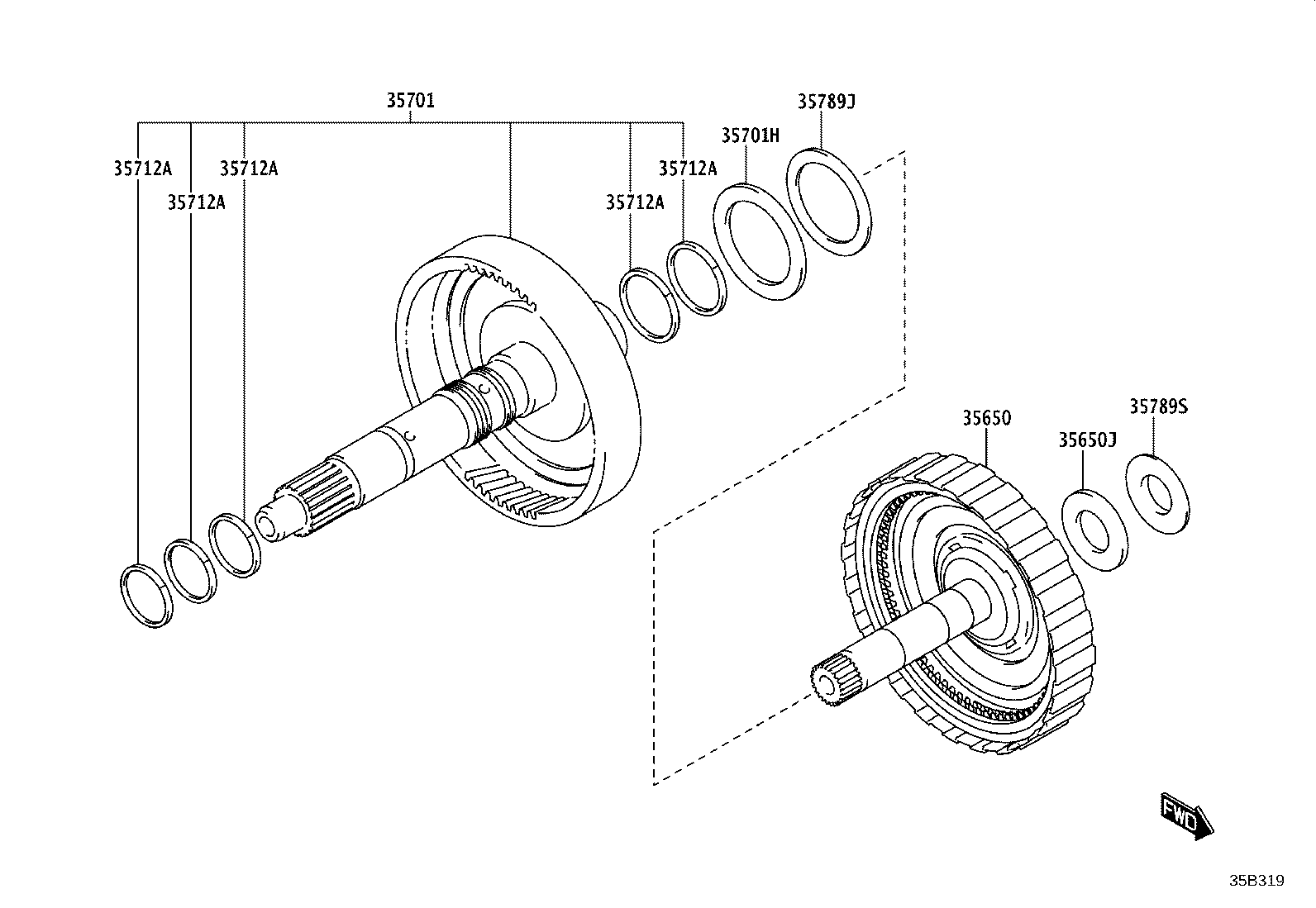

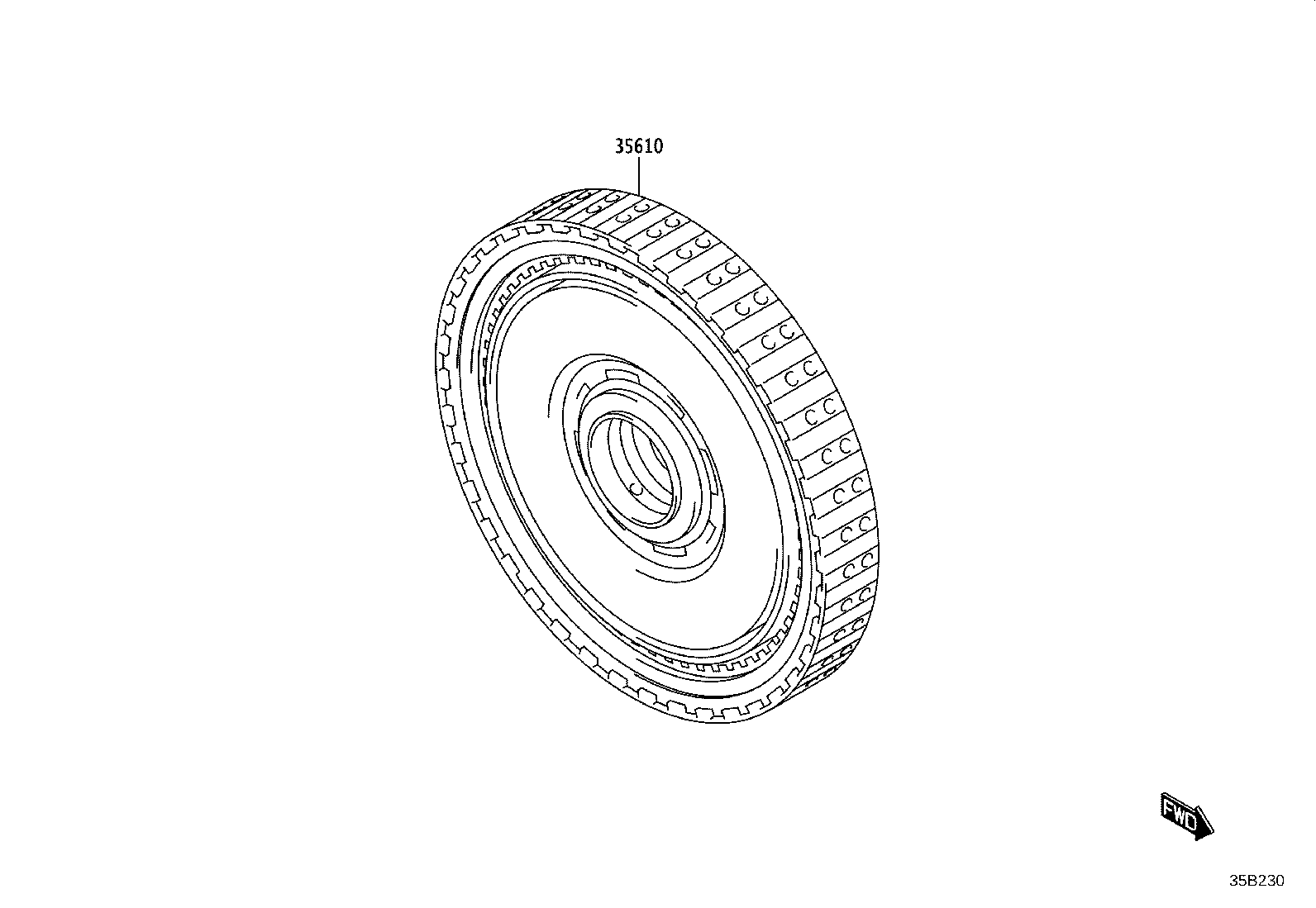

Figure 35B320 35B320 2024-01 → — Figure 35B319 35B319 2024-01 → — Figure 35B230 35B230 2024-01 → —

Part groups

PNCDescription
35610 Clutch Assy, Front Multiple Disc
35650 Clutch Assy, Rear Multiple Disc
35650J Bearing, Thrust Needle Roller (FOR DIRECT DISC CLUTCH)
35701 Shaft Sub-assy, Input
35701H Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35712A Ring, Input Shaft Oil Seal
35789J Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35789S Race, Thrust Bearing (FOR INPUT SHAFT REAR)
35815C Cover, Brake Piston
35821J Piston, B-1 Brake
35821L Ring, O(FOR B-1 BRAKE PISTON)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
