Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03
Transaxle Assy(HEV OR BEV OR FCEV)
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 30900 | Transaxle Assy, Hybrid Vehicle |
| 30900D | Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) |
| 30900L | Union(FOR TRANSAXLE HOUSING) |
| 30900N | Plug, Breather(FOR TRANSAXLE) |
| 30900Q | Plug, Filler(HEV) |
| 30900S | Gasket, Filler Plug(HEV) |
| 31270 | Damper Assy, Transmission Input |
| 31290A | Bolt(FOR TRANSMISSION INPUT DAMPER COVER & FLYWHEEL) |
| 35561A | Seal, Type T Oil(FOR PARKING LOCK SHAFT) |

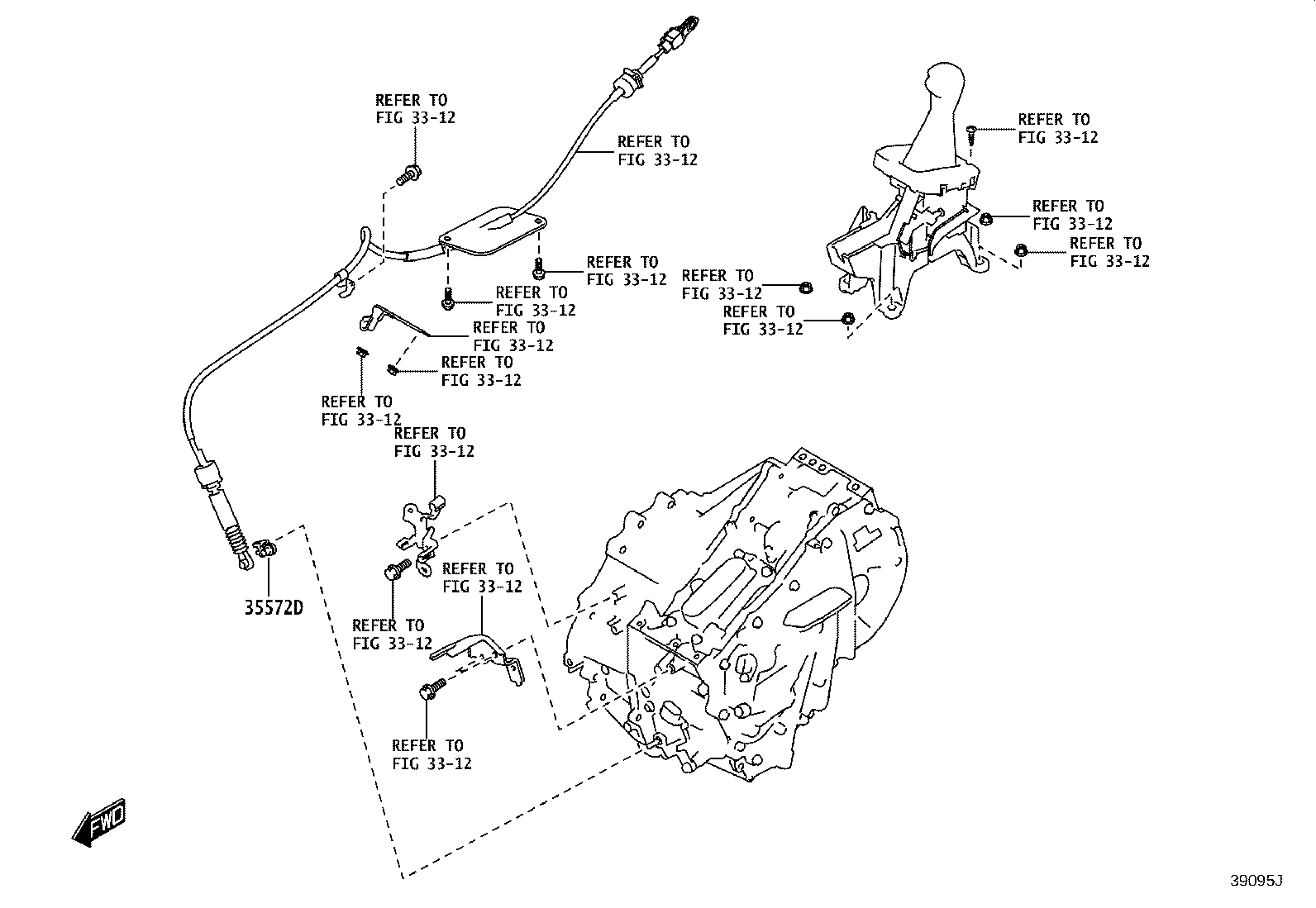

| 35572D | Lever, Transmission Control Shaft |
| 35710A | Seal, Type T Oil(FOR INPUT SHAFT) |
| 82821T | Cover, Connector |
| 82823M | Cap, Terminal |
| G1148 | Cable, Motor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
