Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

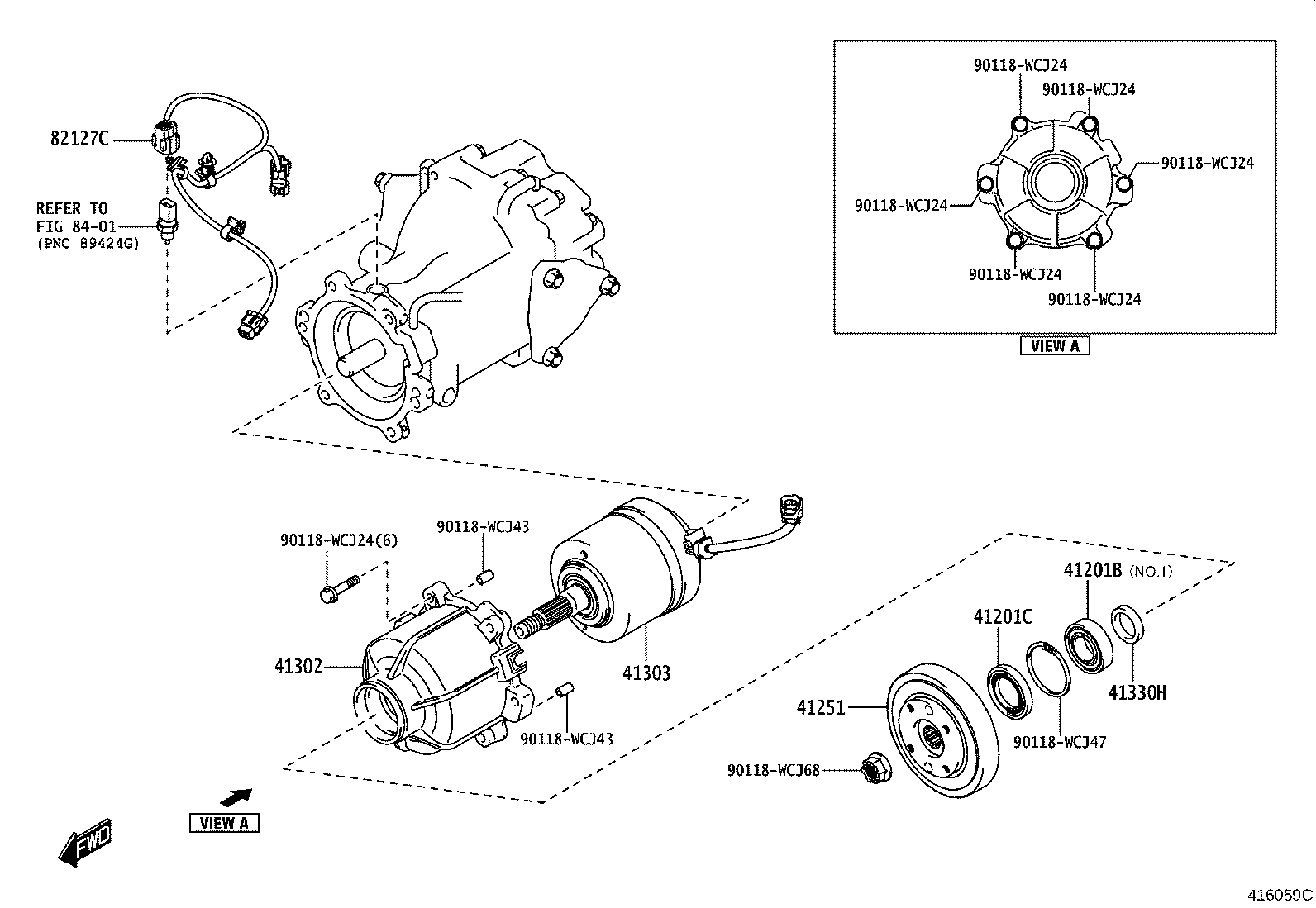

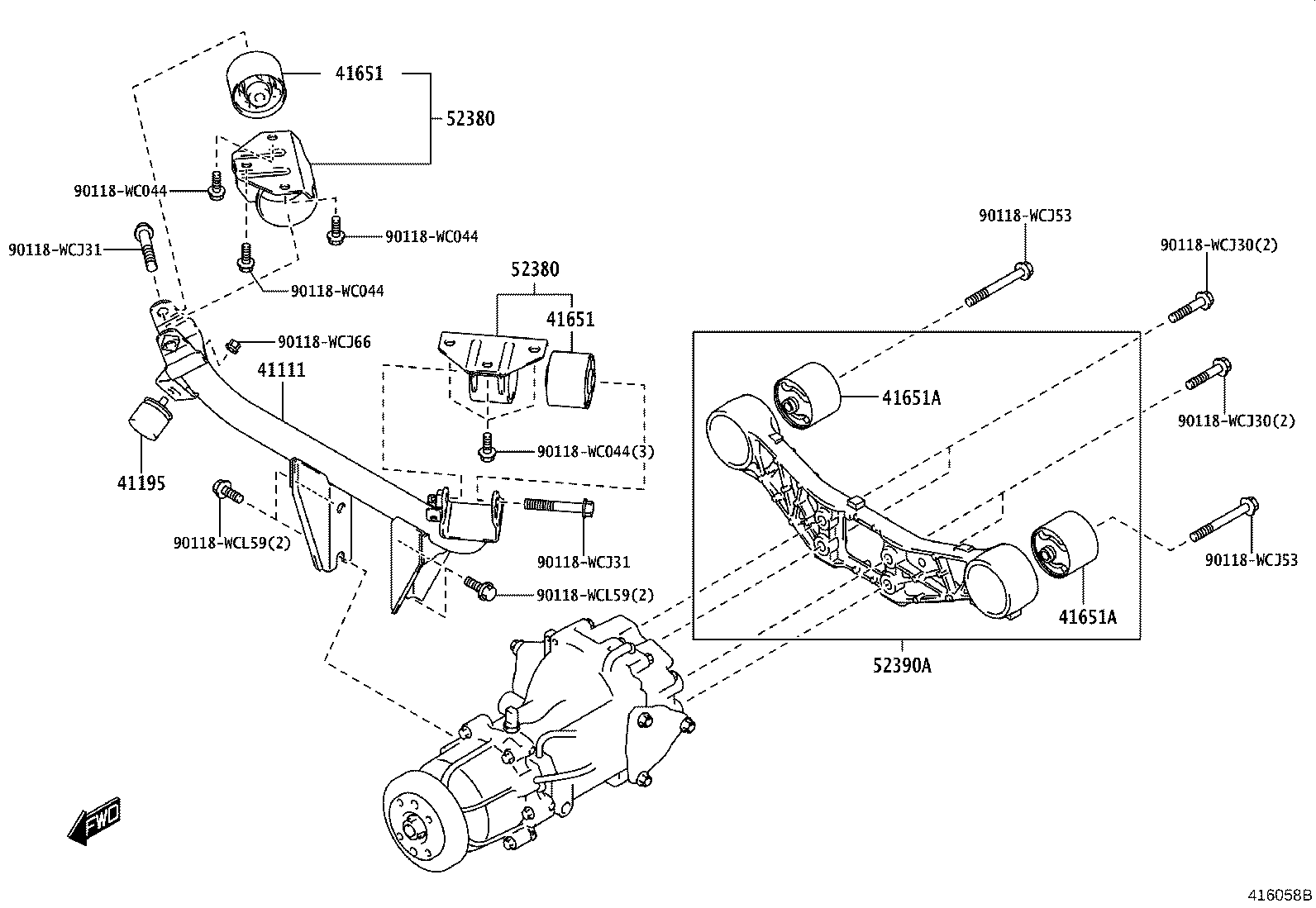

Rear Axle Housing & Differential
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 41108A | Plug (FOR REAR DIFFERENTIAL CARRIER COVER) |
| 41110 | Carrier Assy, Differential, Rear |
| 41110D | Plug (FOR REAR DIFFERENTIAL DRAIN) |
| 41110H | Plug (FOR REAR DIFFERENTIAL FILLER) |
| 41111 | Carrier, Rear Differential |
| 41111C | Seal, Oil (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41153 | Shim, Differential Drive Pinion Cage |
| 41195 | Damper, Differential Carrier Mass |
| 41201A | Bearing (FOR REAR DRIVE PINION REAR) |
| 41201B | Bearing (FOR REAR DRIVE PINION FRONT) |
| 41201C | Seal, Oil (FOR REAR DIFFERENTIAL CARRIER) |
| 41201D | Washer, Plate (FOR REAR DIFFERENTIAL DRIVE PINION) |
| 41204 | Flange Sub-assy, Rear Drive Pinion Companion, Rear |
| 41204B | Nut (FOR REAR DRIVE PINION) |
| 41231 | Spacer, Rear Differential Drive Pinion Bearing |
| 41251 | Flange, Drive Pinion Companion |
| 41301A | Bearing(FOR REAR DIFFERENTIAL CASE) |
| 41301F | Shim(FOR REAR DIFFERENTIAL CASE) |
| 41302 | Case Sub-assy, Rear Differential |
| 41302A | Bolt(FOR REAR DIFFERENTIAL CASE) |
| 41303 | Coupling Sub-assy, Electro Magnetic Control |
| 41311K | Case, Rear Differential |
| 41330H | Spacer (FOR TRANSMISSION COUPLING) |
| 41331 | Gear, Rear Differential Side |
| 41341 | Pinion, Rear Differential |
| 41342 | Shaft, Rear Differential Pinion |
| 41342B | Pin, Straight (FOR REAR DIFFERENTIAL PINION SHAFT) |
| 41351 | Washer, Rear Differential Pinion Thrust |
| 41362 | Washer, Rear Differential Side Gear Thrust, NO.2 |
| 41410D | Seal, Oil Diaphragm |
| 41531P | Hose, Rear Differential Vacuum |
| 41651 | Cushion, Rear Differential Mount, NO.1 |
| 41651A | Cushion, Rear Differential Mount, NO.2 |
| 52380 | Support, Rear Differential, NO.1 |
| 52390A | Support Assy, Differential, Rear |
| 82127C | Wire, Differential |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
