Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

9 part groups · 3 illustrations

Illustrations

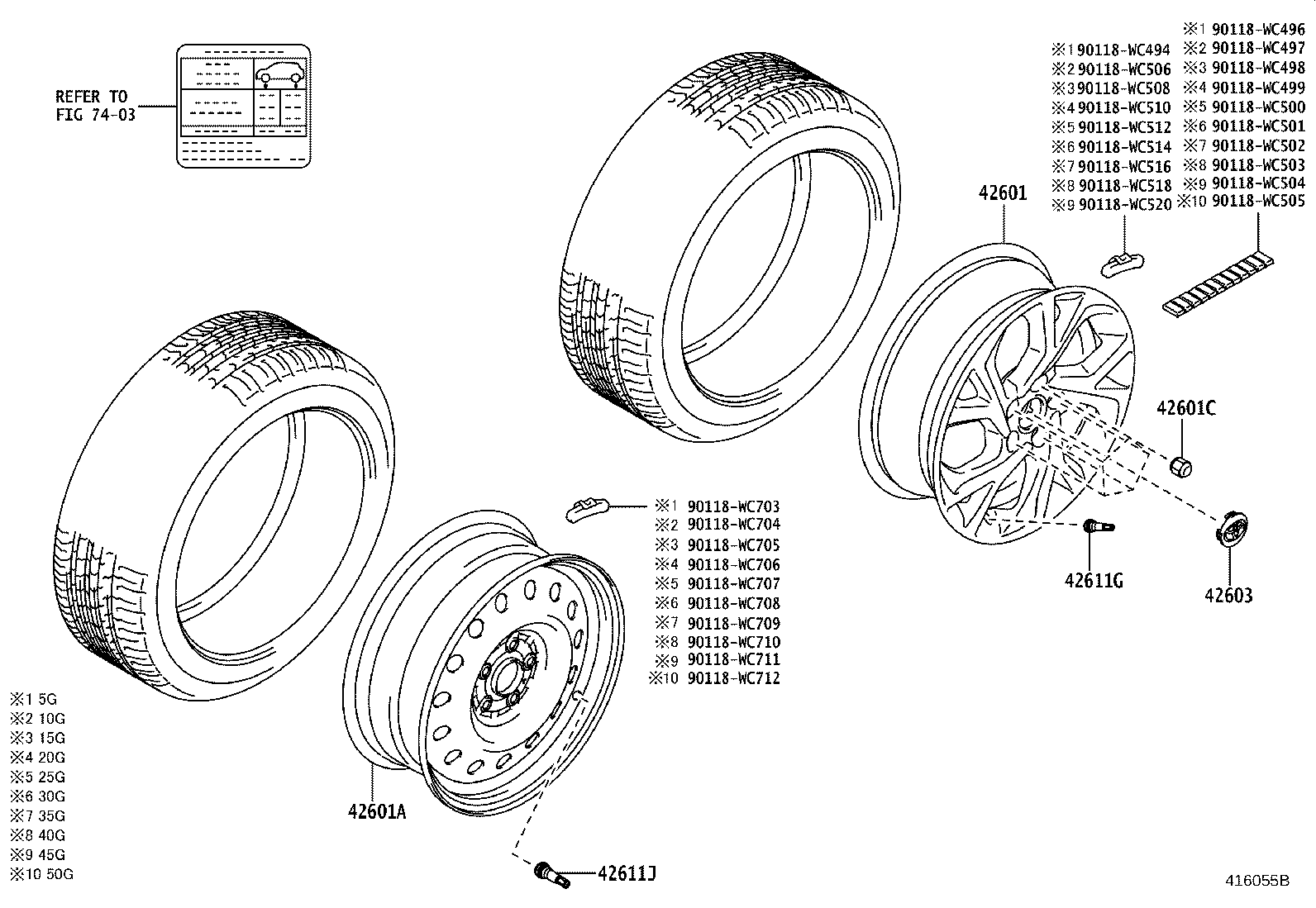

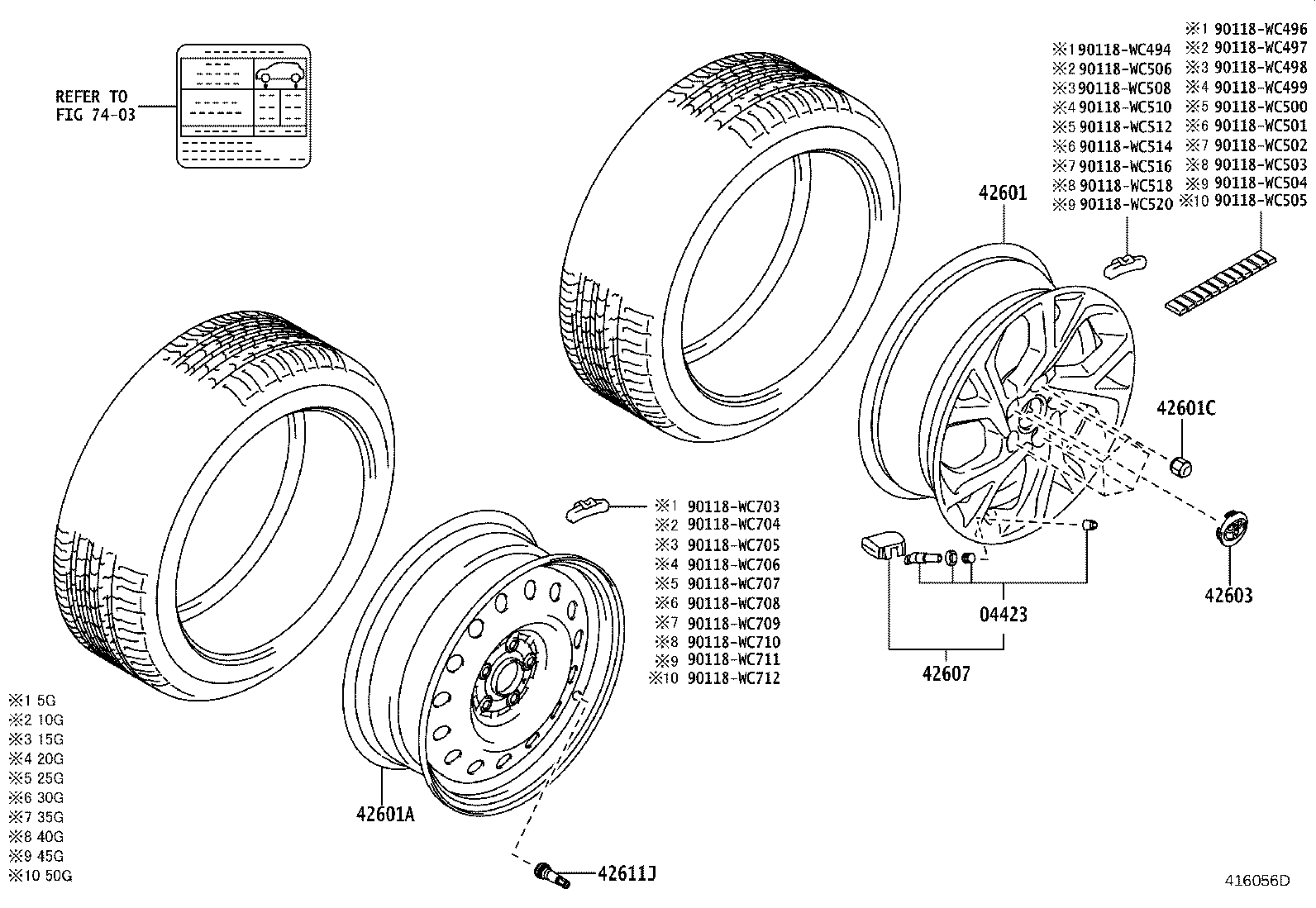

Figure 416054A 416054A 2024-01 → — Figure 416055B 416055B 2024-01 → — Figure 416056D 416056D 2024-01 → —

Part groups

PNCDescription
04423 Fitting Kit, Tire Pressure Monitor OR Balancer Valve
42601 Wheel, Disc
42601A Wheel, Disc (FOR SPARE)
42601C Nut, Hub (FOR AXLE)
42603 Ornament Sub-assy, Wheel Hub
42607 Valve Sub-assy, Tire Pressure Monitor
42611G Valve (FOR TUBELESS TIRE)
42611J Valve (FOR TUBELESS TIRE SPARE)
42621 Cap, Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
