Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03
Front Axle Housing & Differential
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

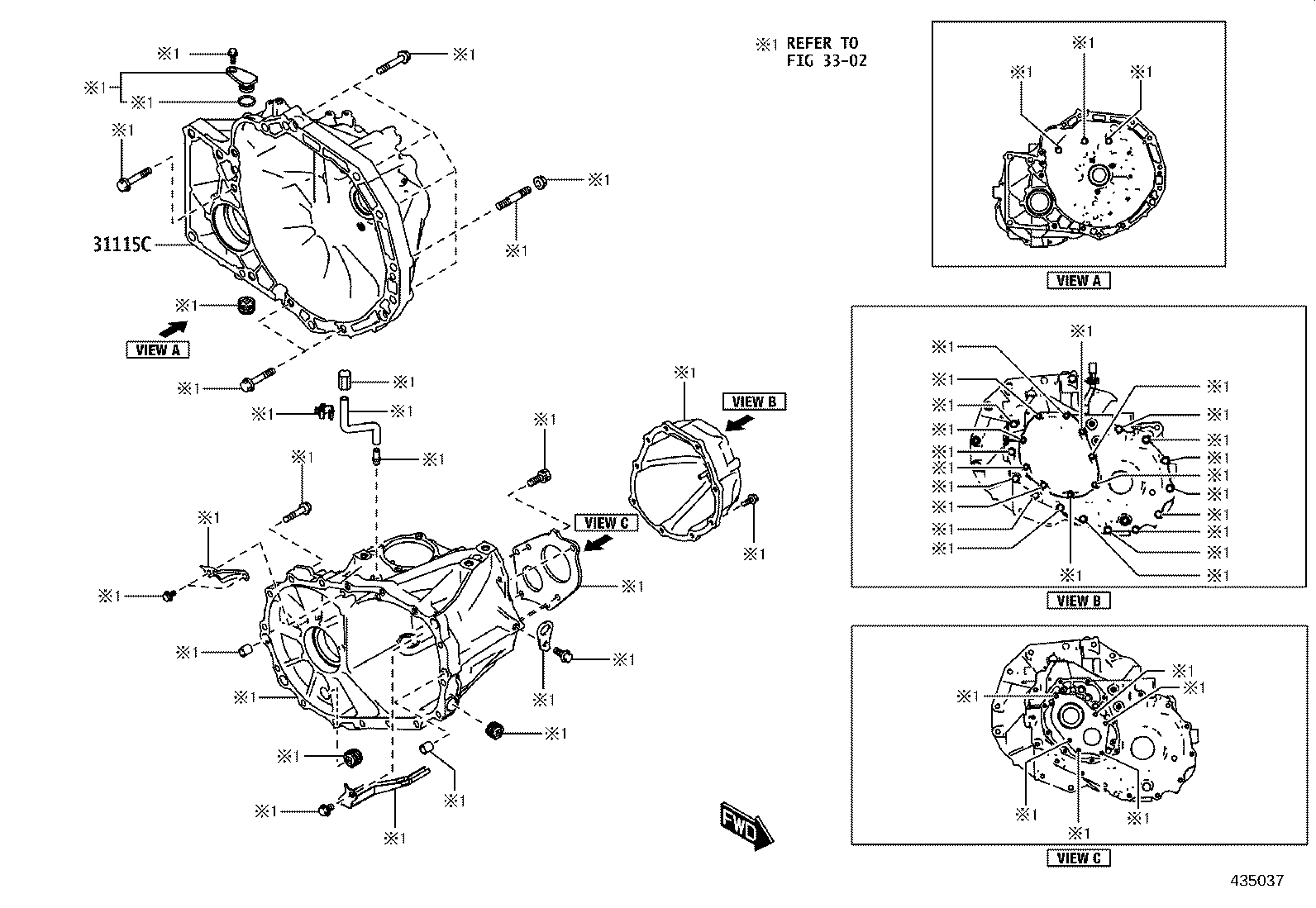

| 31115C | Case, Front Transaxle(MTM) |

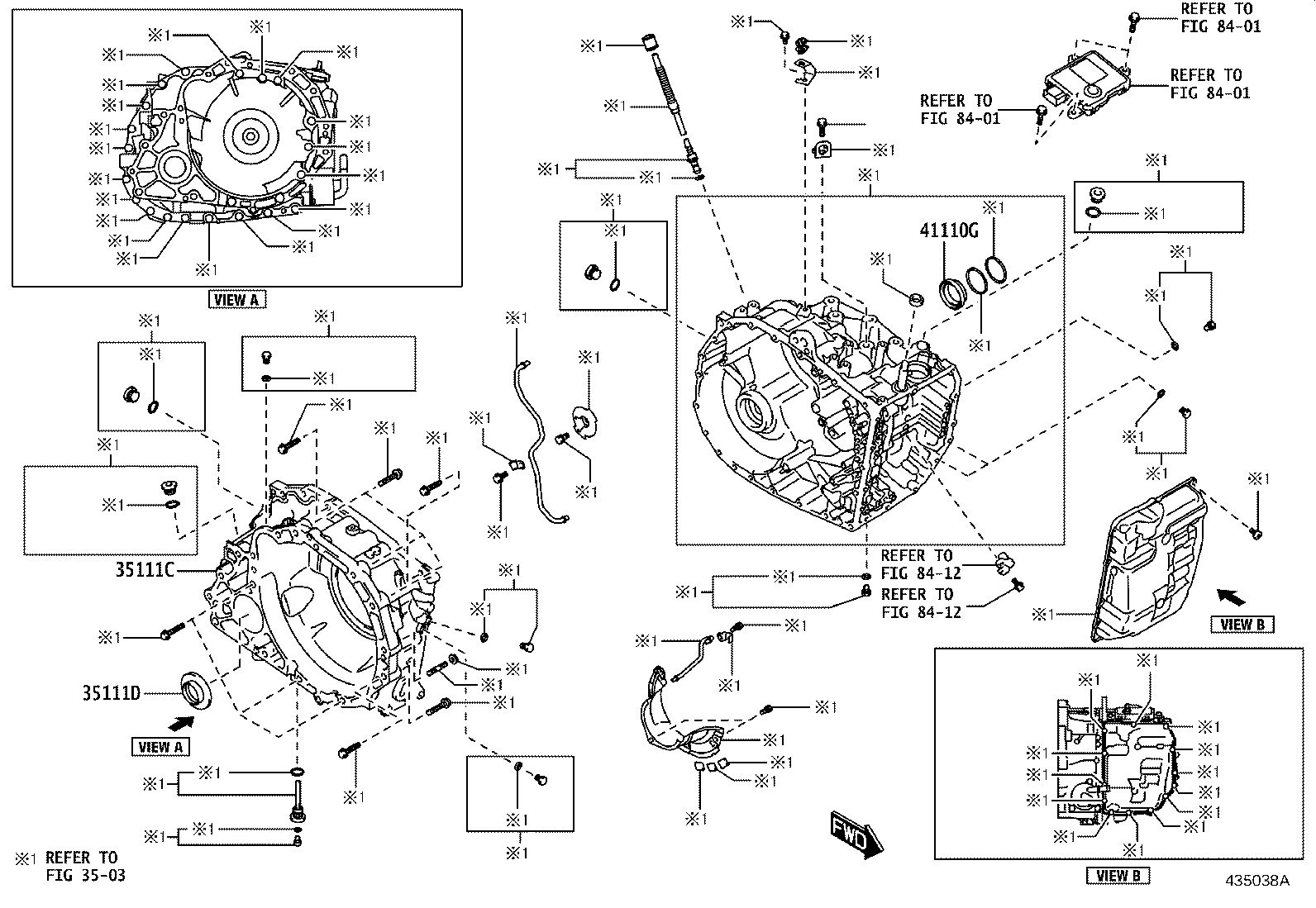

| 35111C | Housing, Transaxle |
| 35111D | Seal, Oil (FOR TRANSAXLE HOUSING) |
| 41110G | Seal, Oil (FOR DIFFERENTIAL SIDE) |
| 41206F | Outer Race, Tapered Roller Bearing RH |

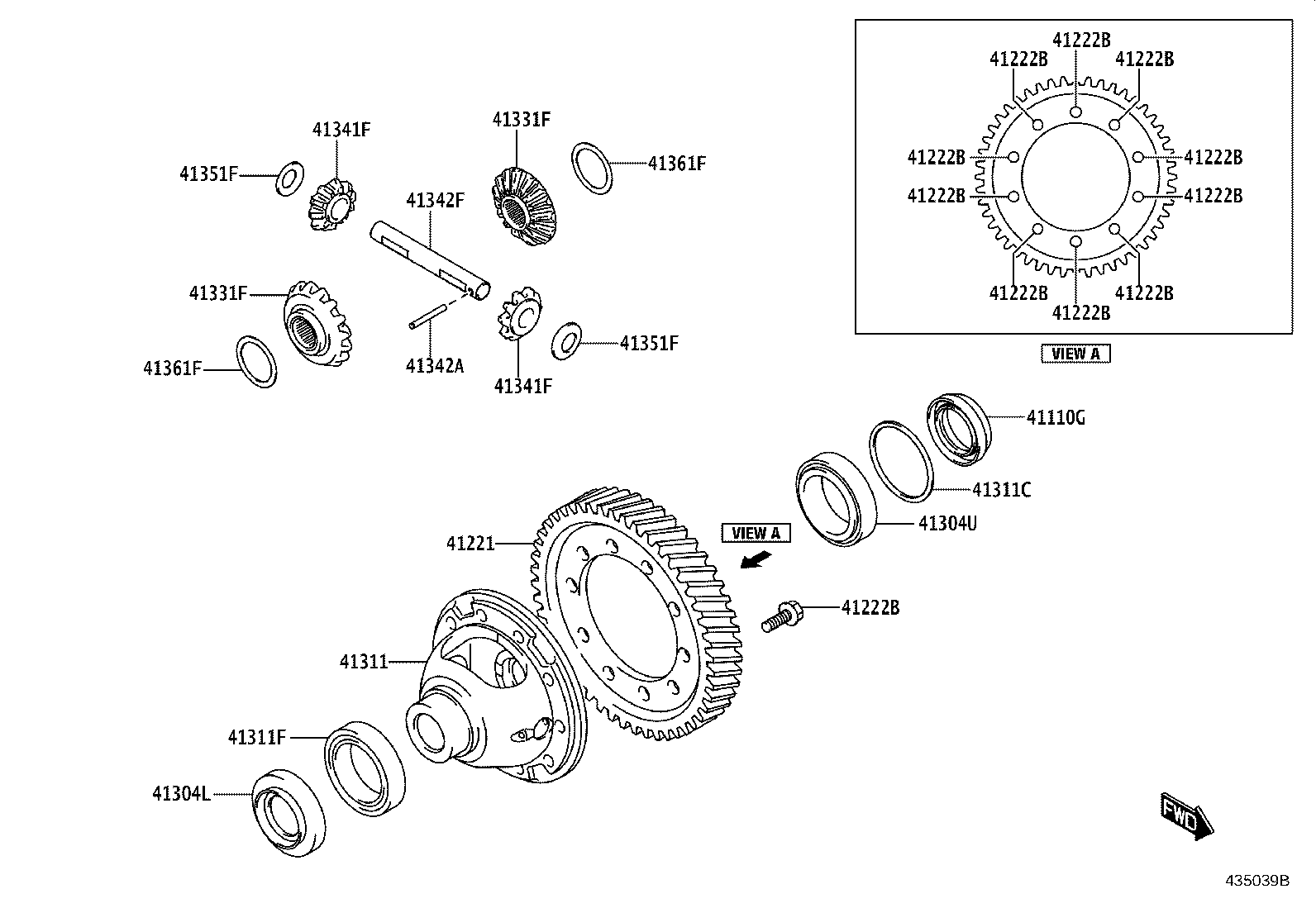

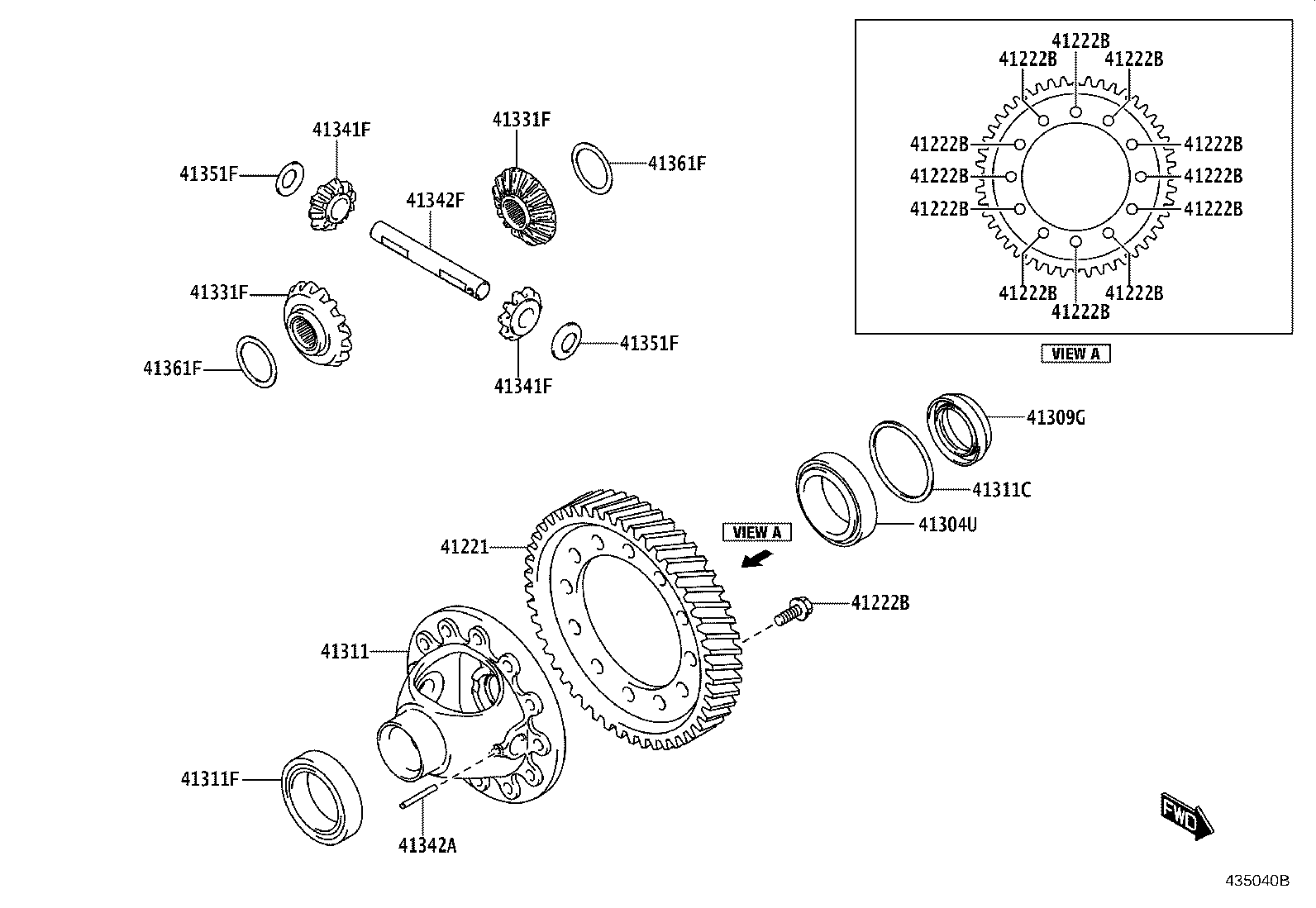

| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41304L | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304U | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT LH) |
| 41309G | Bearing (FOR DIFFERENTIAL SIDE GEAR SHAFT) |

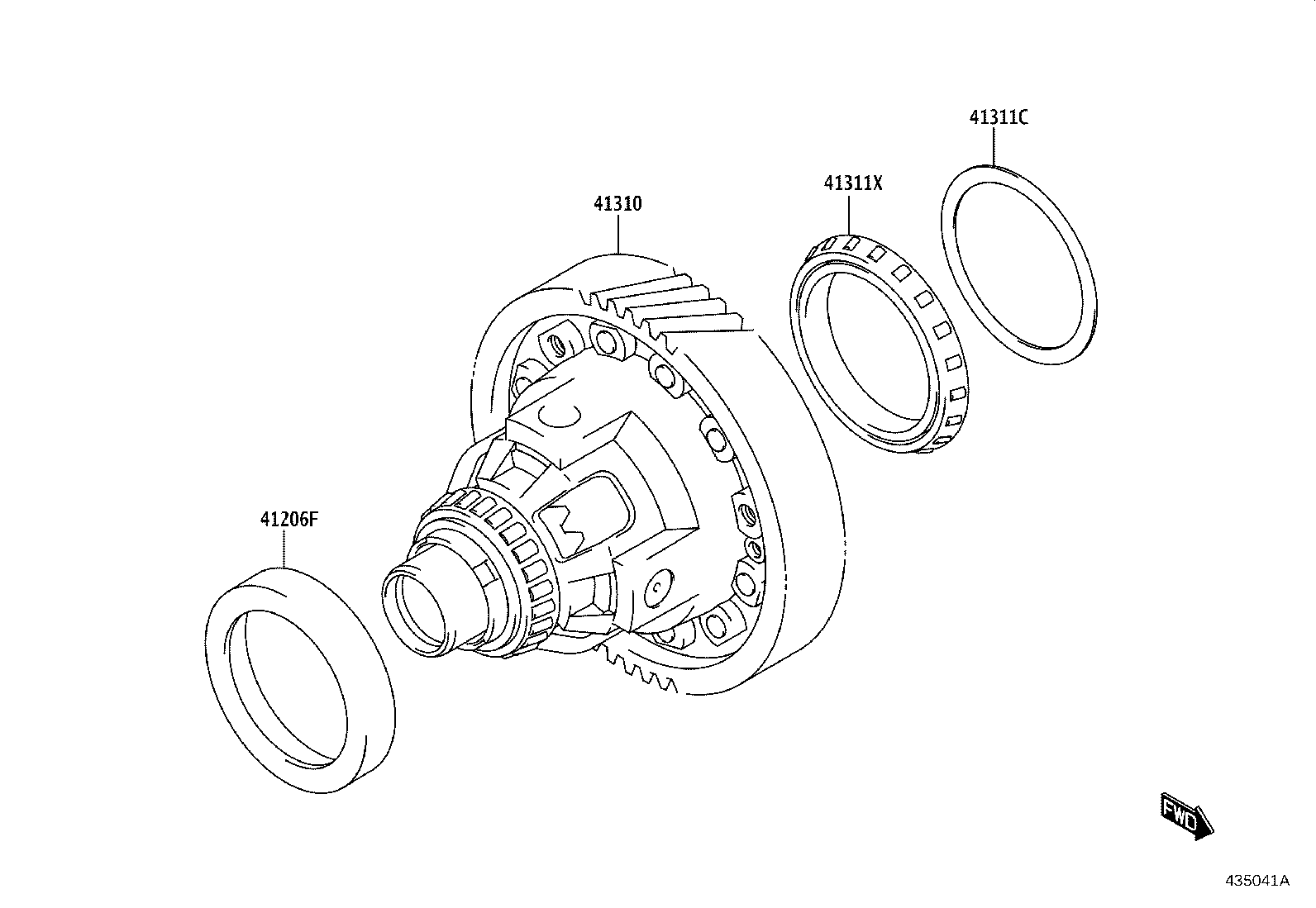

| 41310 | Case Assy, Differential |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311X | Outer Race, Tapered Roller Bearing (FOR DIFF. CASE FRONT) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
