Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

14 part groups · 2 illustrations

Illustrations

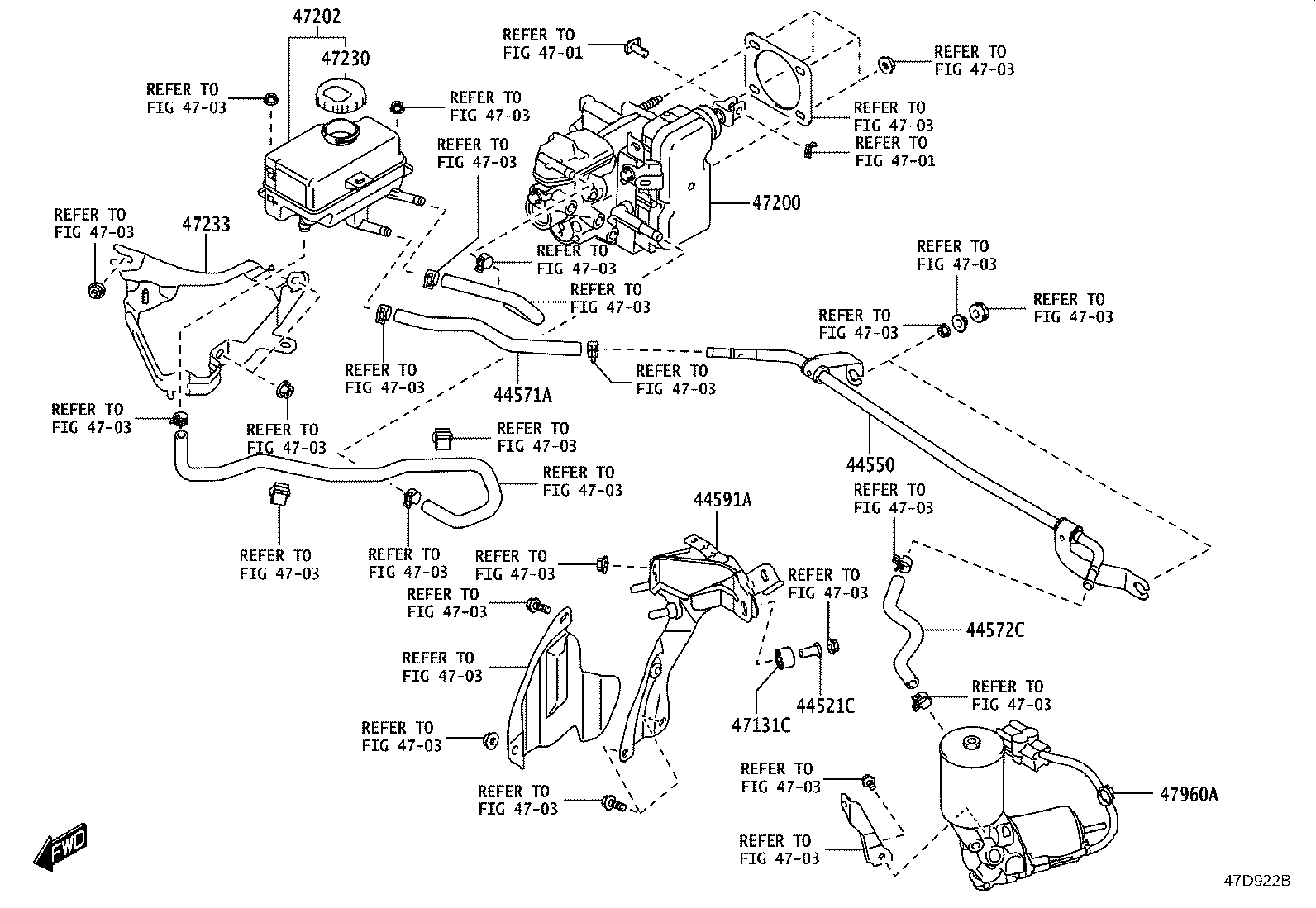

Figure 47D921 47D921 2024-01 → — Figure 47D922B 47D922B 2024-01 → —

Part groups

PNCDescription
44521C Collar, Brake Actuator Case
44550 Tube Assy, Brake Actuator
44571A Hose, Brake Actuator, NO.1
44572C Hose, Brake Actuator, NO.2
44591A Bracket, Brake Actuator, NO.1
47131C Cushion
47200 Cylinder Assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
47960A Pump Assy, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
