Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

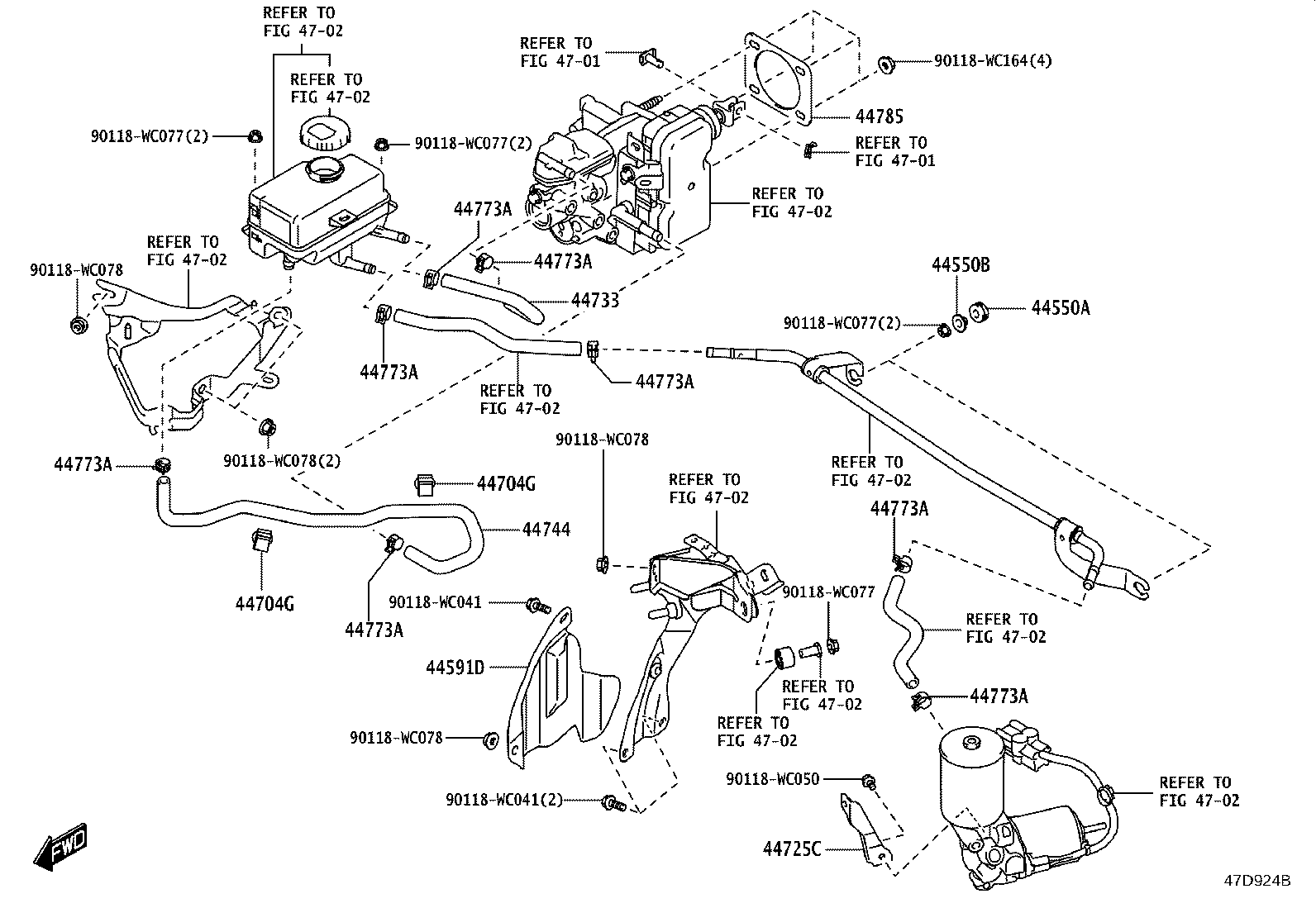

Brake Booster & Vacuum Tube
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44550A | Damper, Brake Actuator Tube |
| 44550B | Spacer, Brake Actuator Tube |
| 44591D | Cover, Brake Actuator Bracket, NO.1 |
| 44610 | Booster Assy, Brake |
| 44704G | Clamp(FOR BRAKE RESERVOIER HOSE) |
| 44725C | Bracket, Tube Clamp |
| 44733 | Bracket, Brake Booster, Front |
| 44744 | Protector, Vacuum Tank |
| 44763 | Tube, Booster Vacuum |
| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44774 | Hose, Union TO Connector Tube |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
