Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 9 illustrations

Illustrations

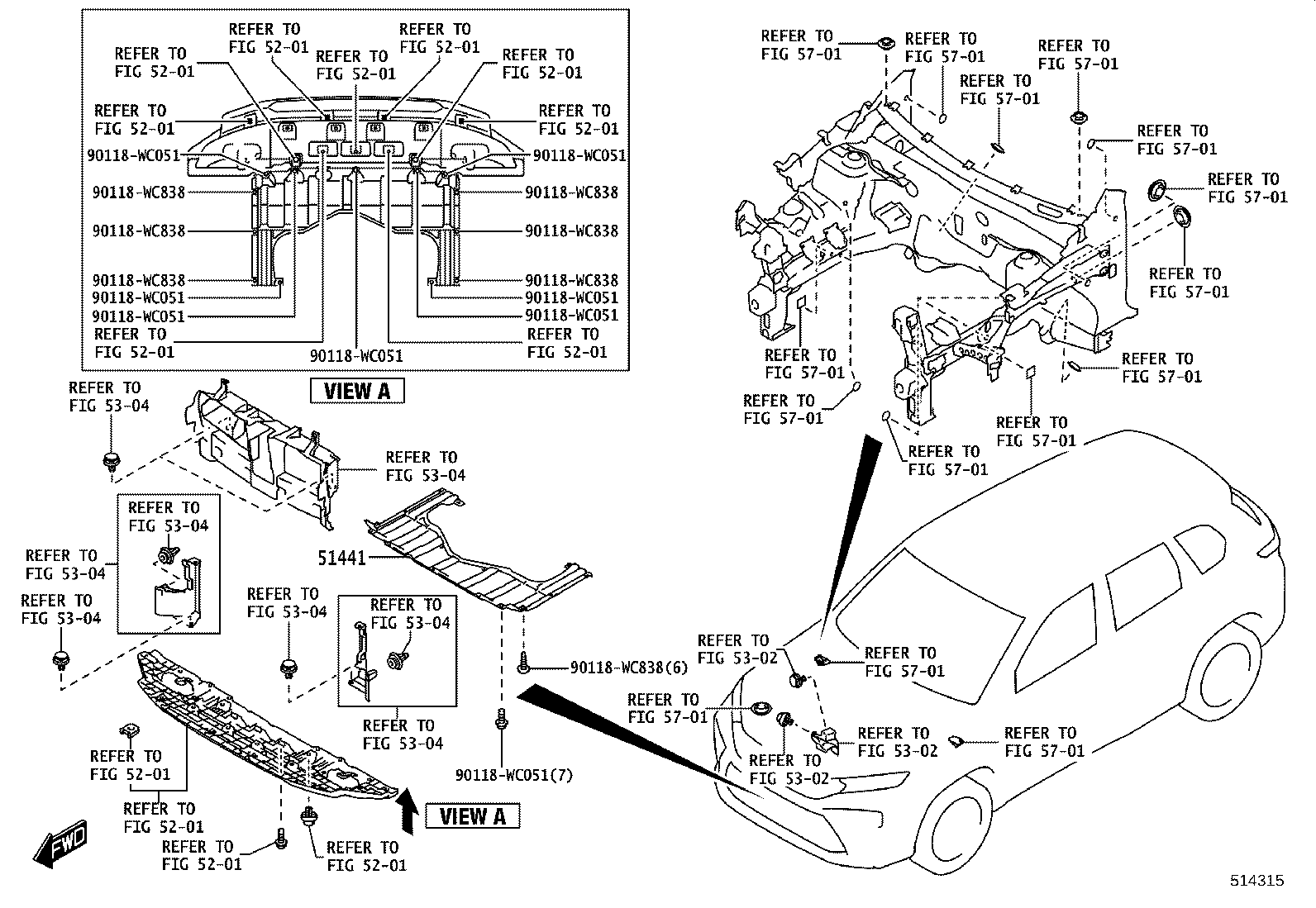

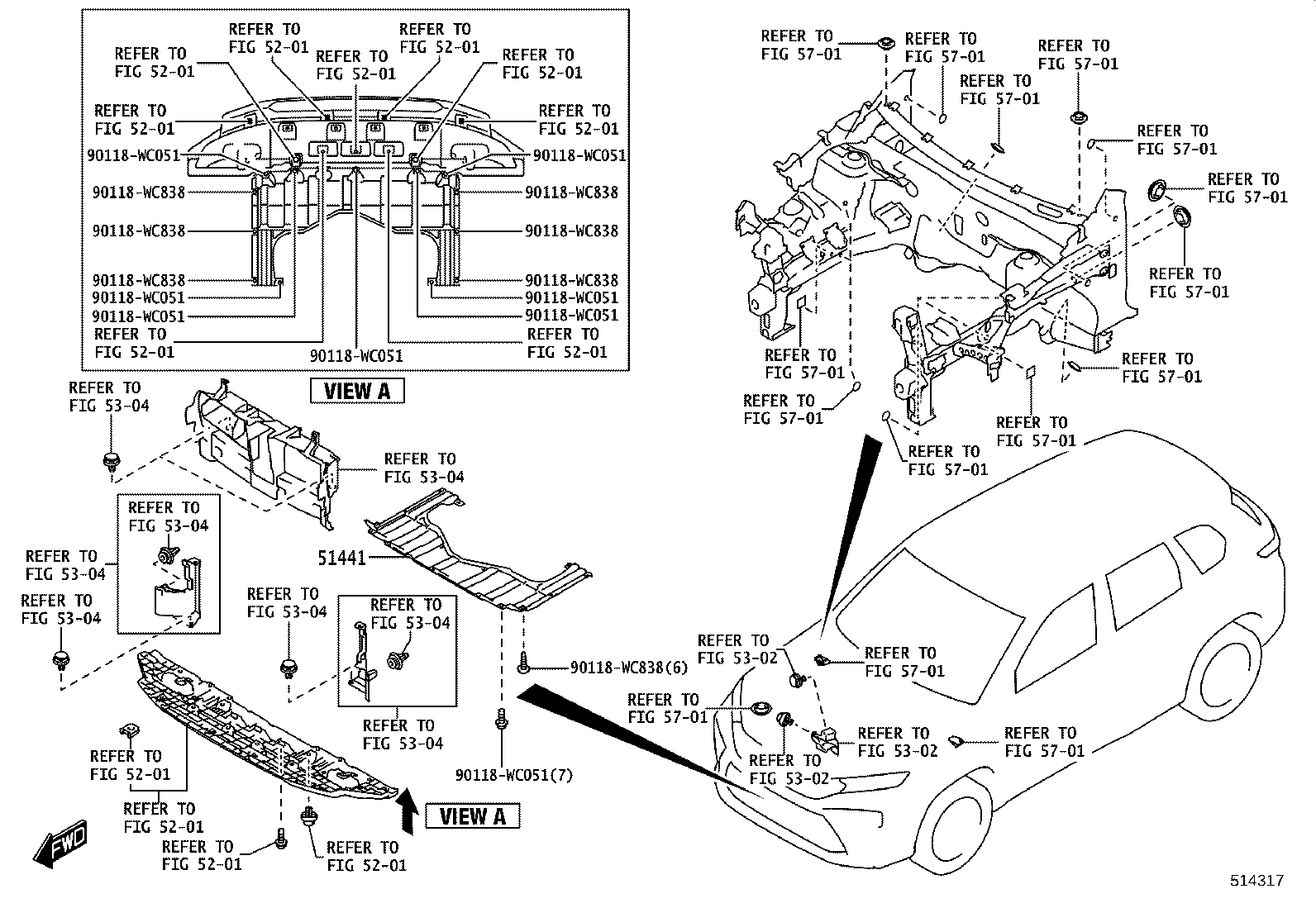

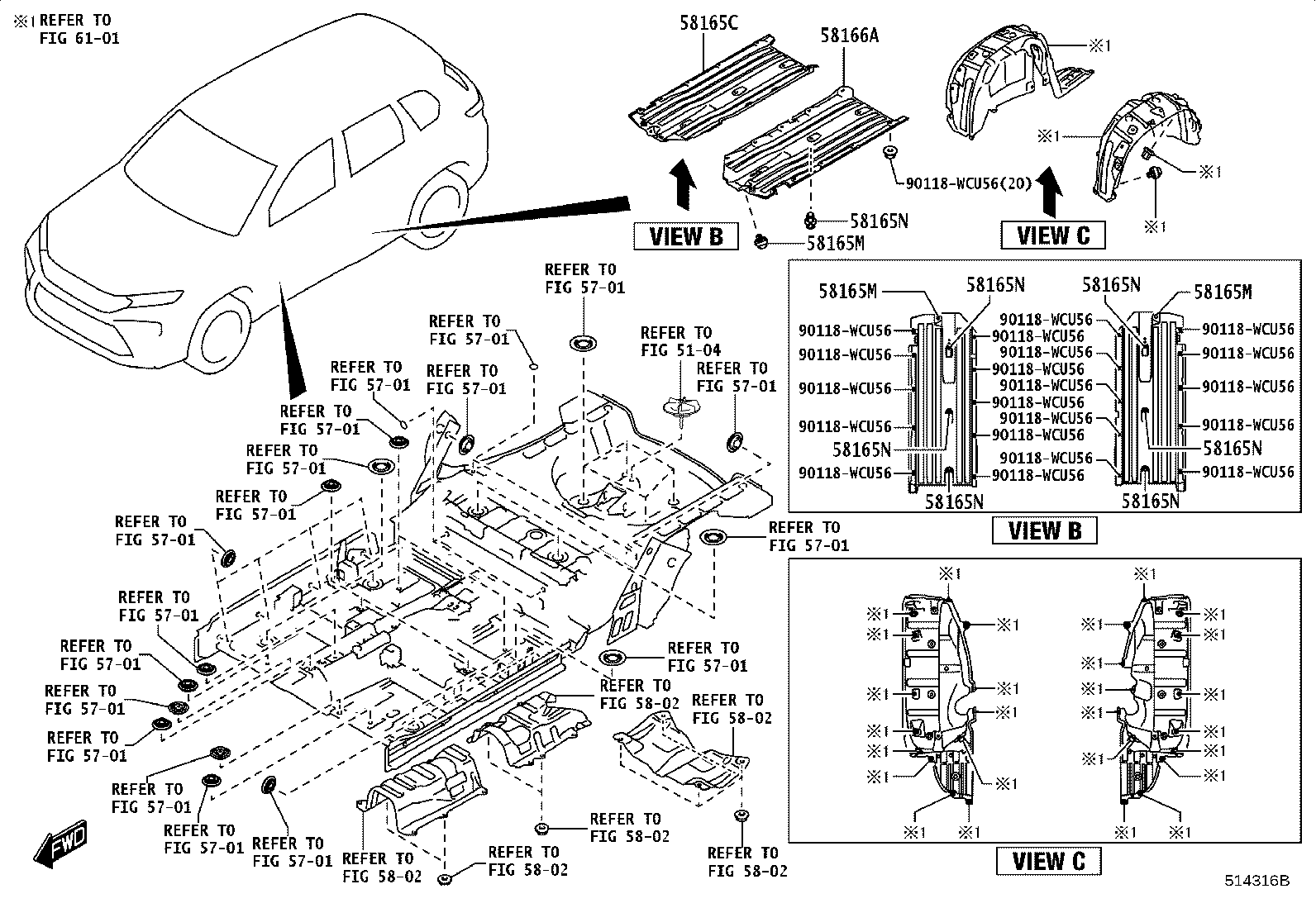

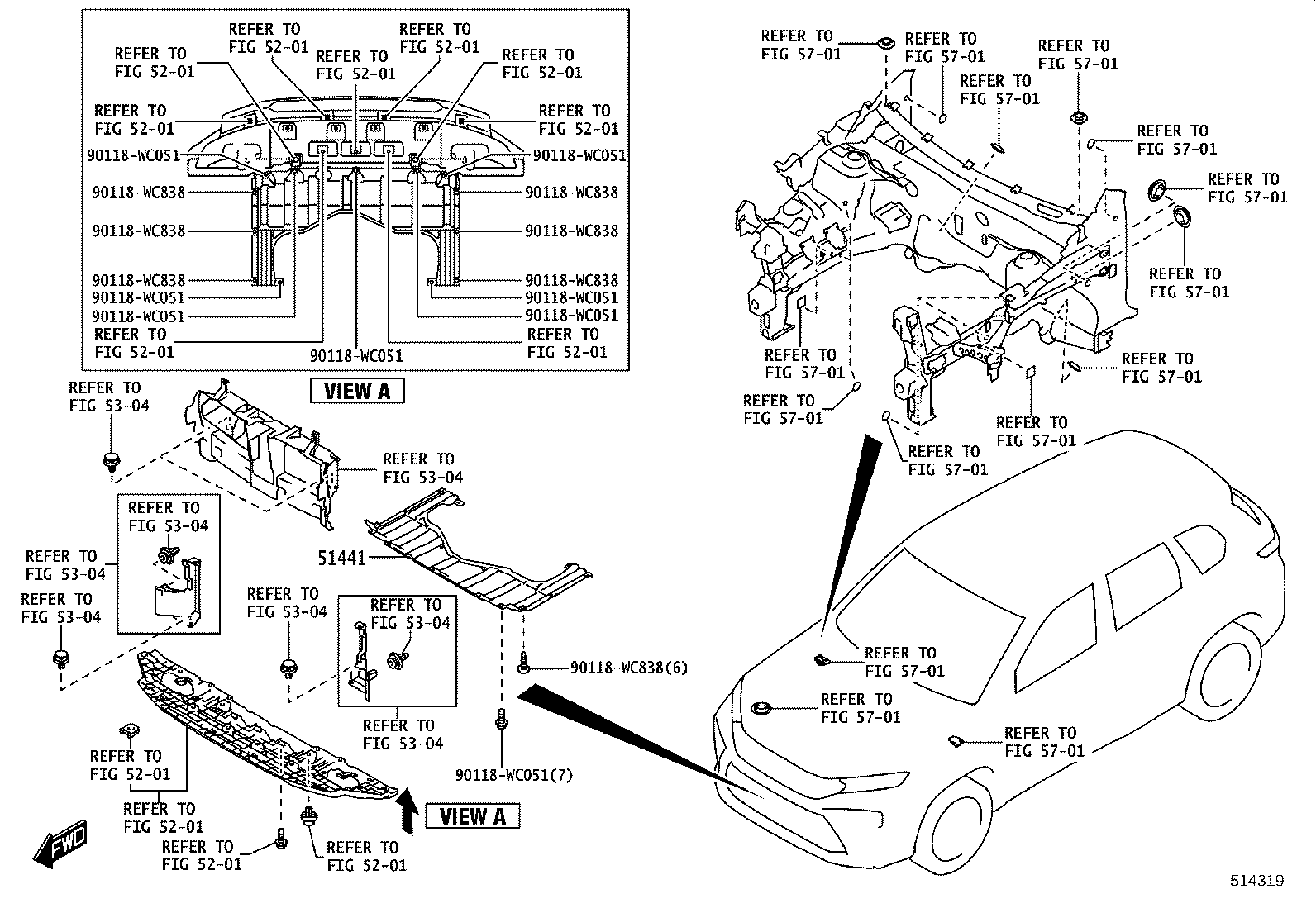

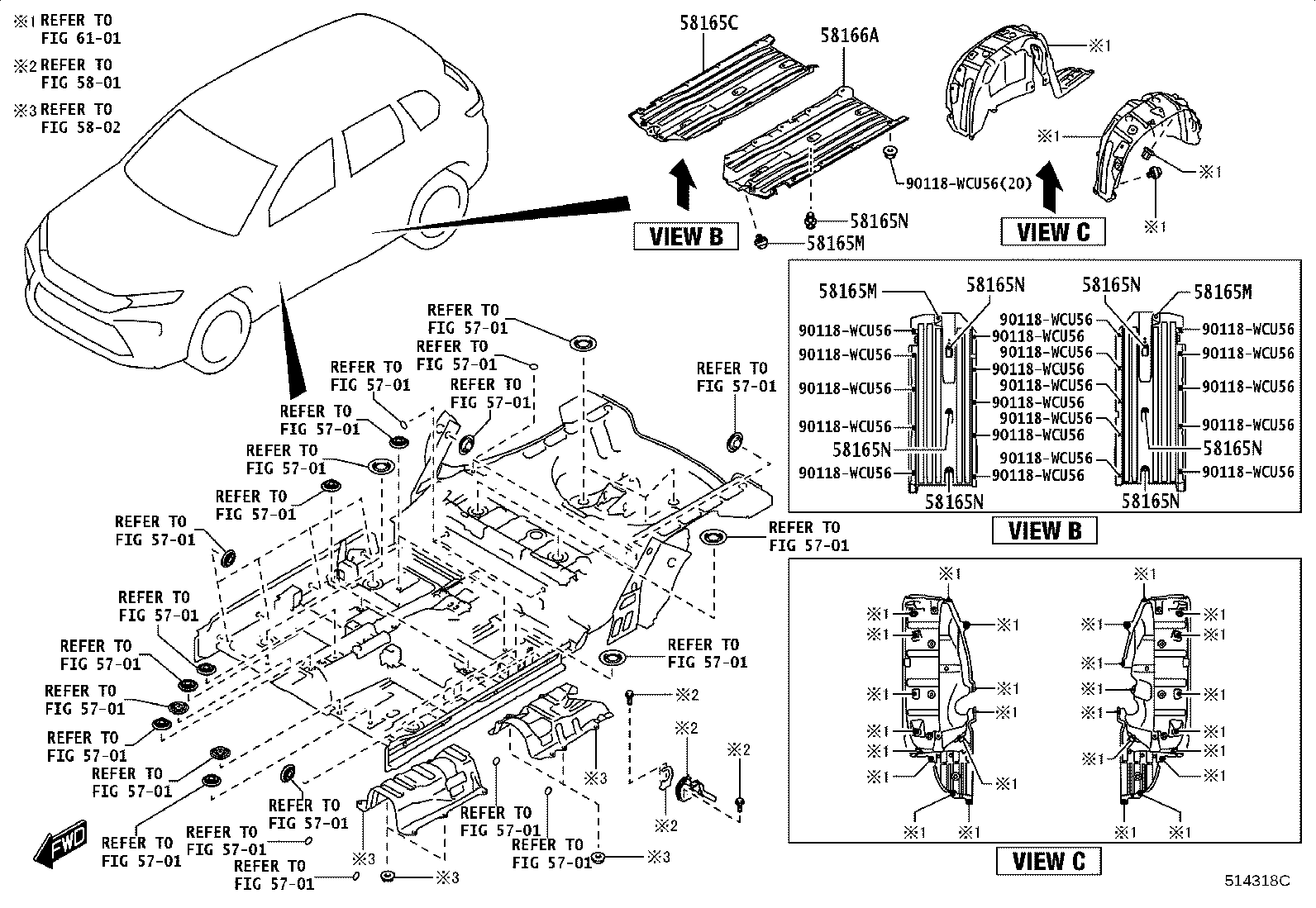

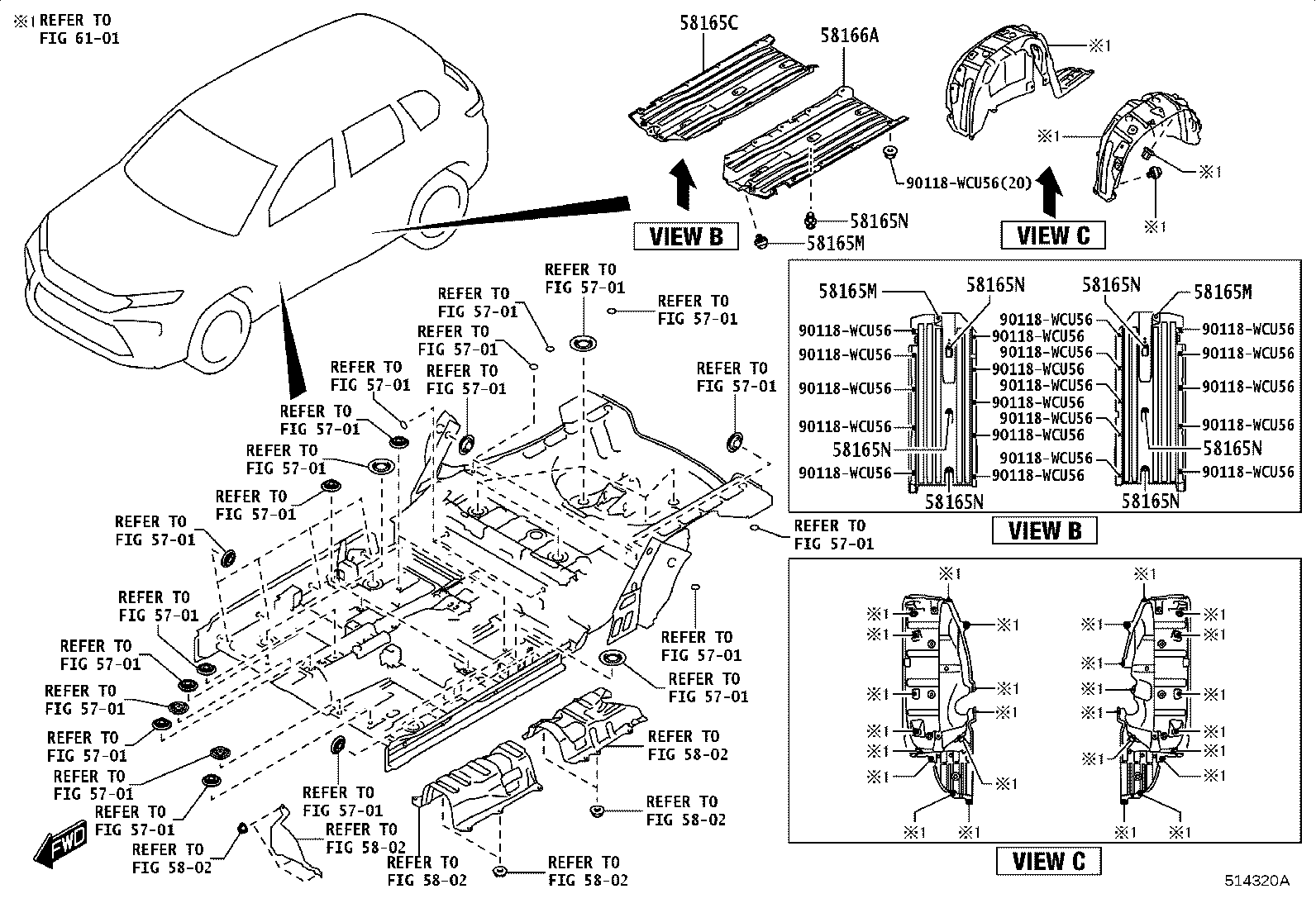

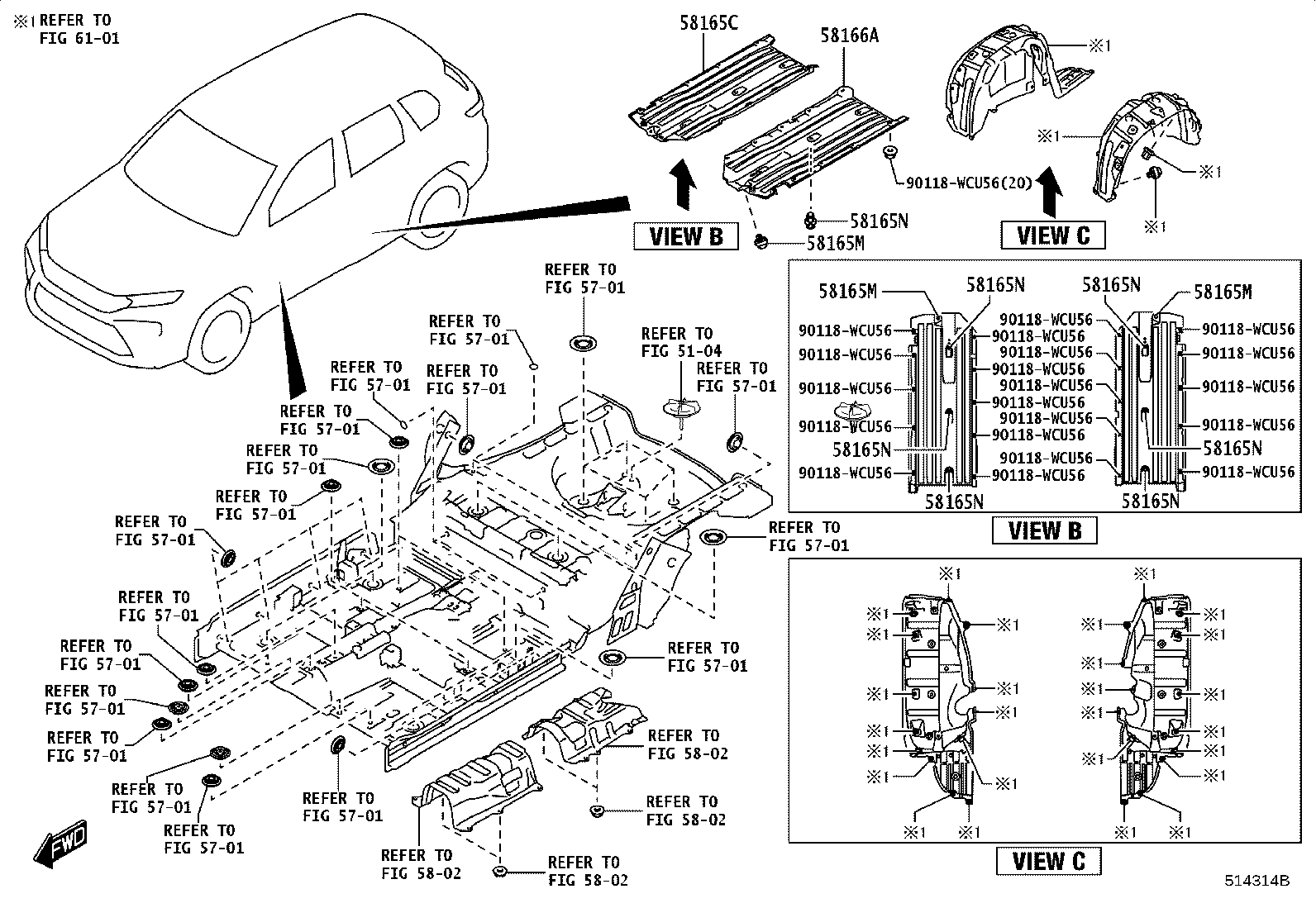

Figure 514312A 514312A 2024-01 → — Figure 514313 514313 2024-01 → — Figure 514315 514315 2024-01 → — Figure 514317 514317 2024-01 → — Figure 514319 514319 2024-01 → — Figure 514314B 514314B 2024-01 → — Figure 514316B 514316B 2024-01 → — Figure 514318C 514318C 2024-01 → — Figure 514320A 514320A 2024-01 → —

Part groups

PNCDescription
51201A Crossmember Sub-assy, Frame, Front
51441 Cover, Engine Under, NO.1
58165C Cover, Front Floor, RH
58165M Clip, Front Floor Cover, NO.1
58165N Clip, Front Floor Cover, NO.2
58166A Cover, Front Floor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
