Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

12 part groups · 12 illustrations

Illustrations

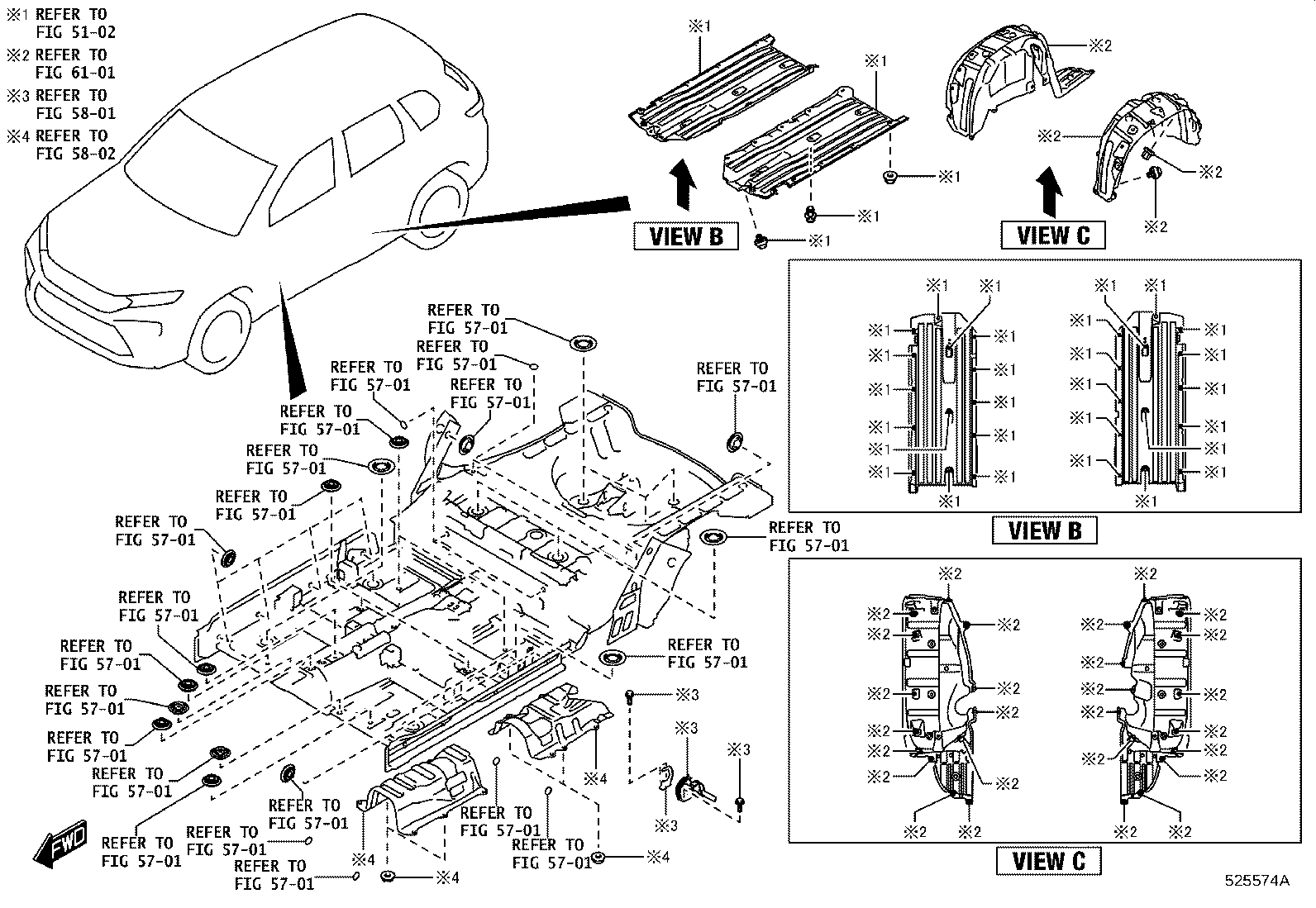

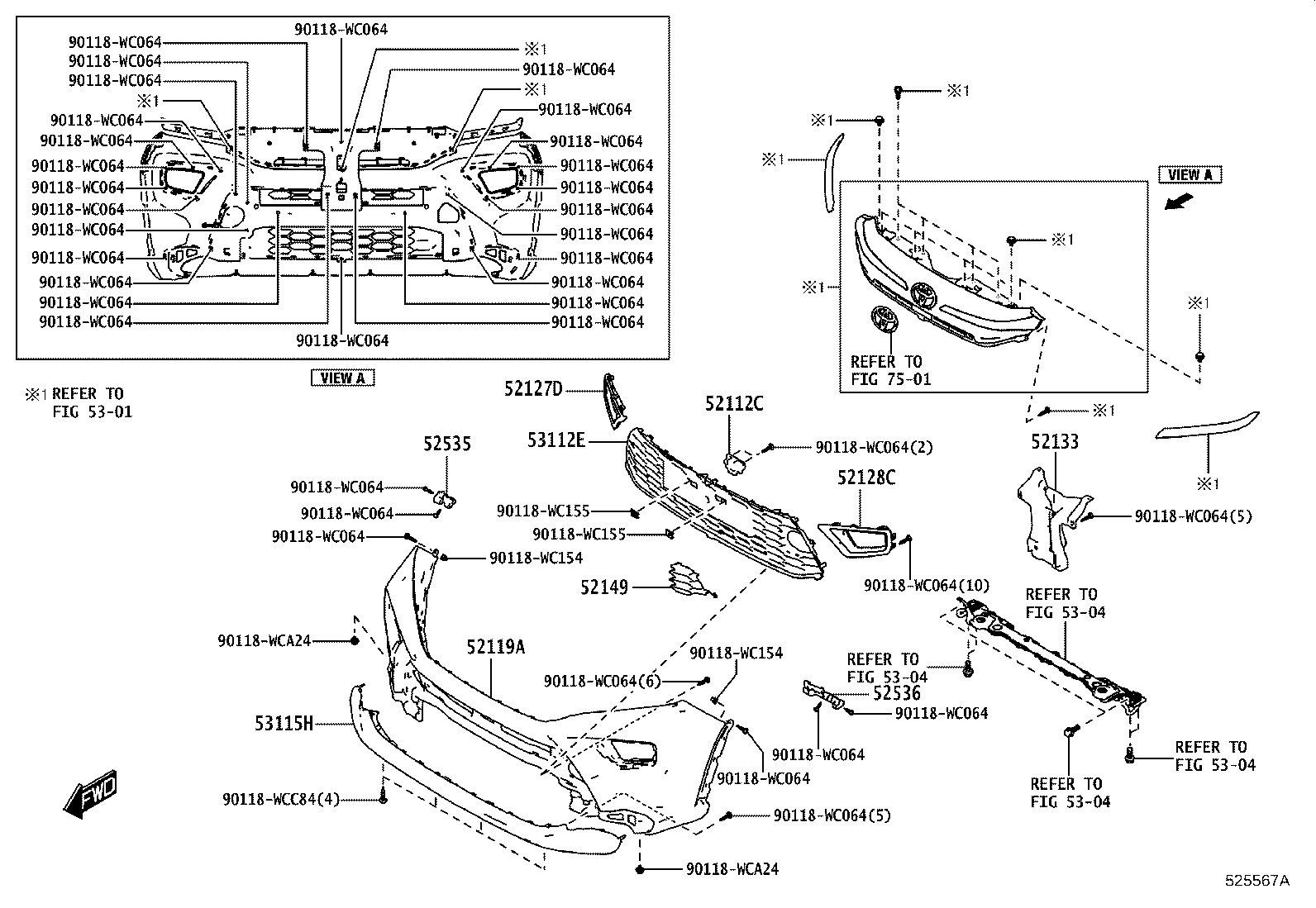

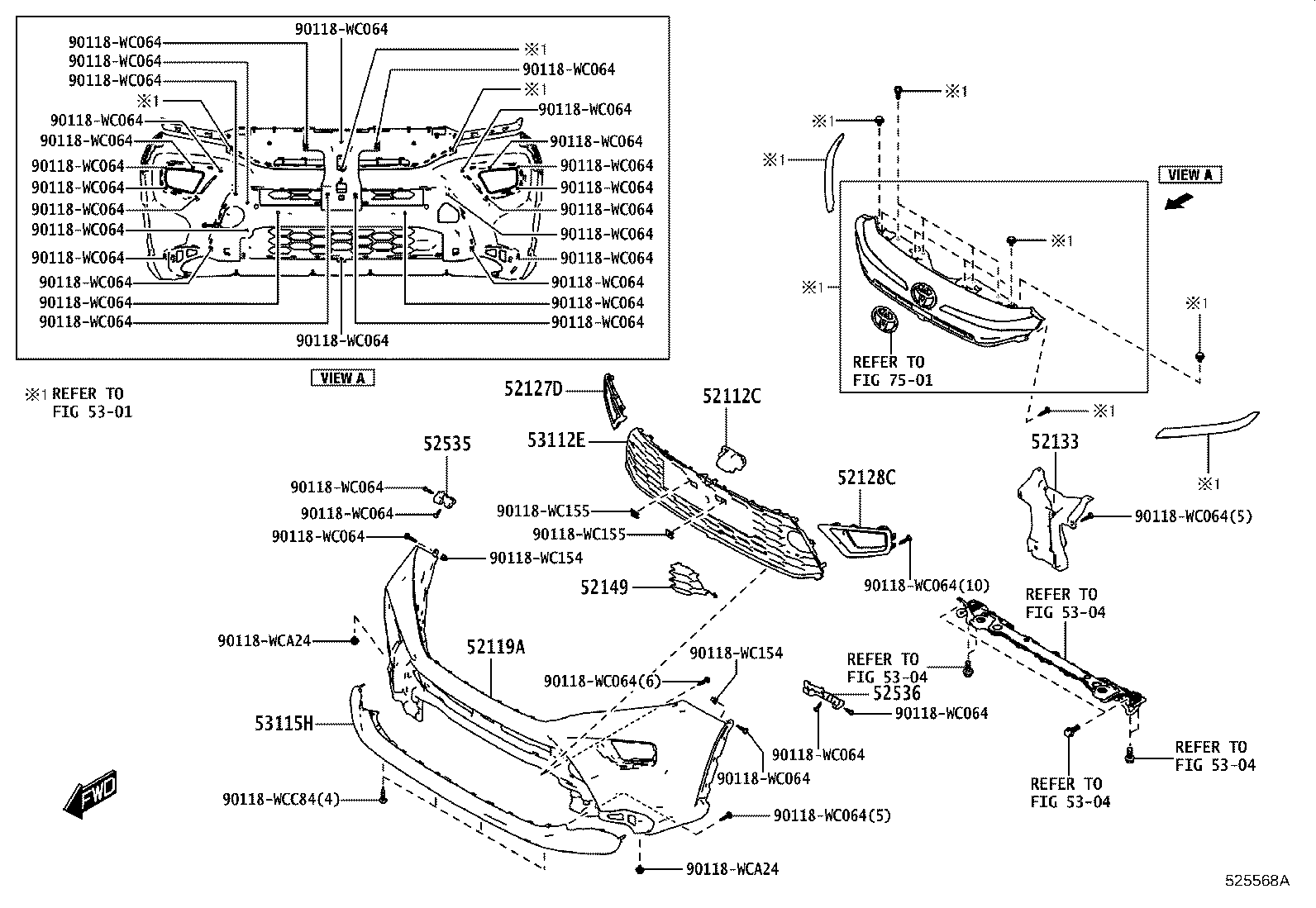

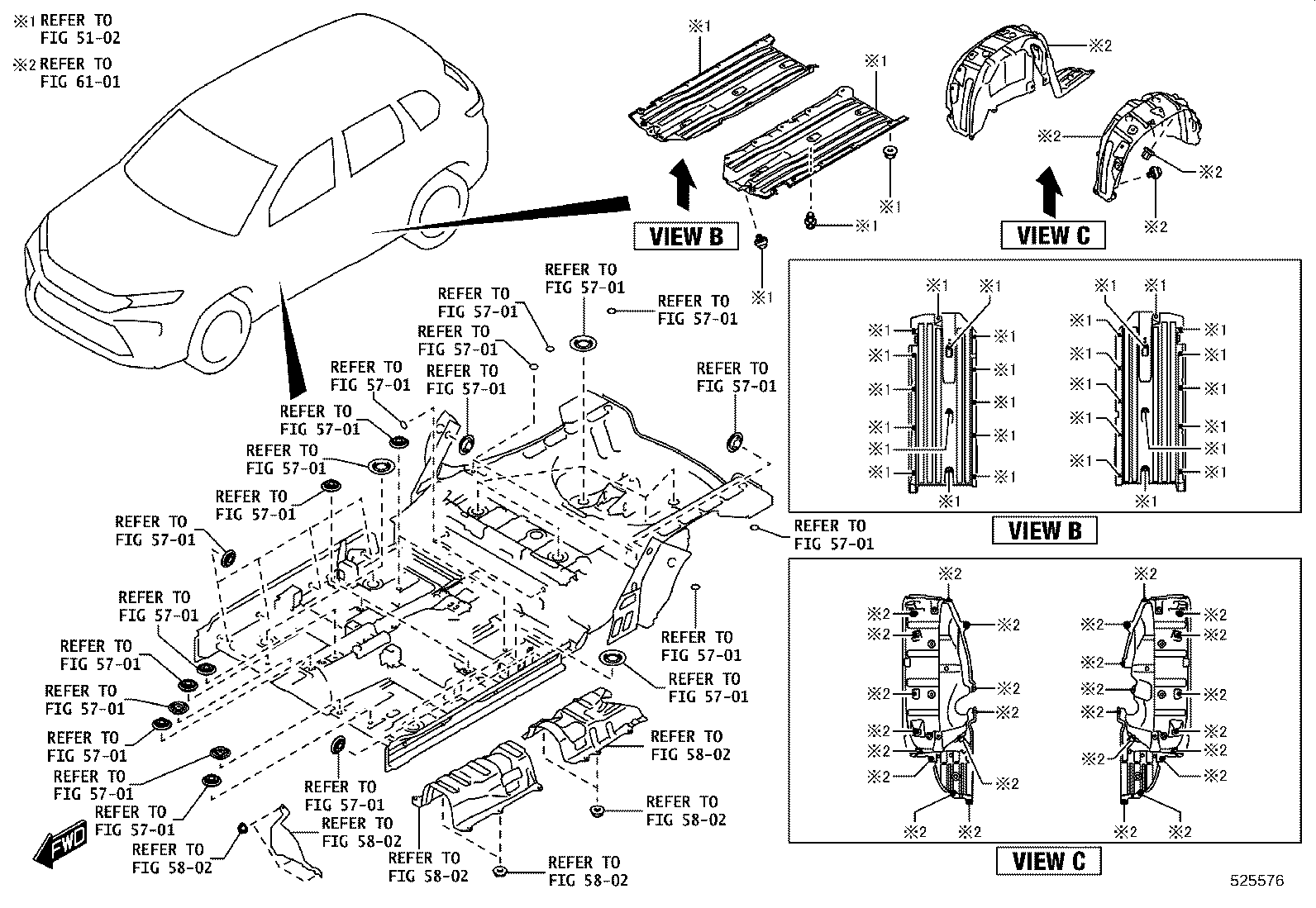

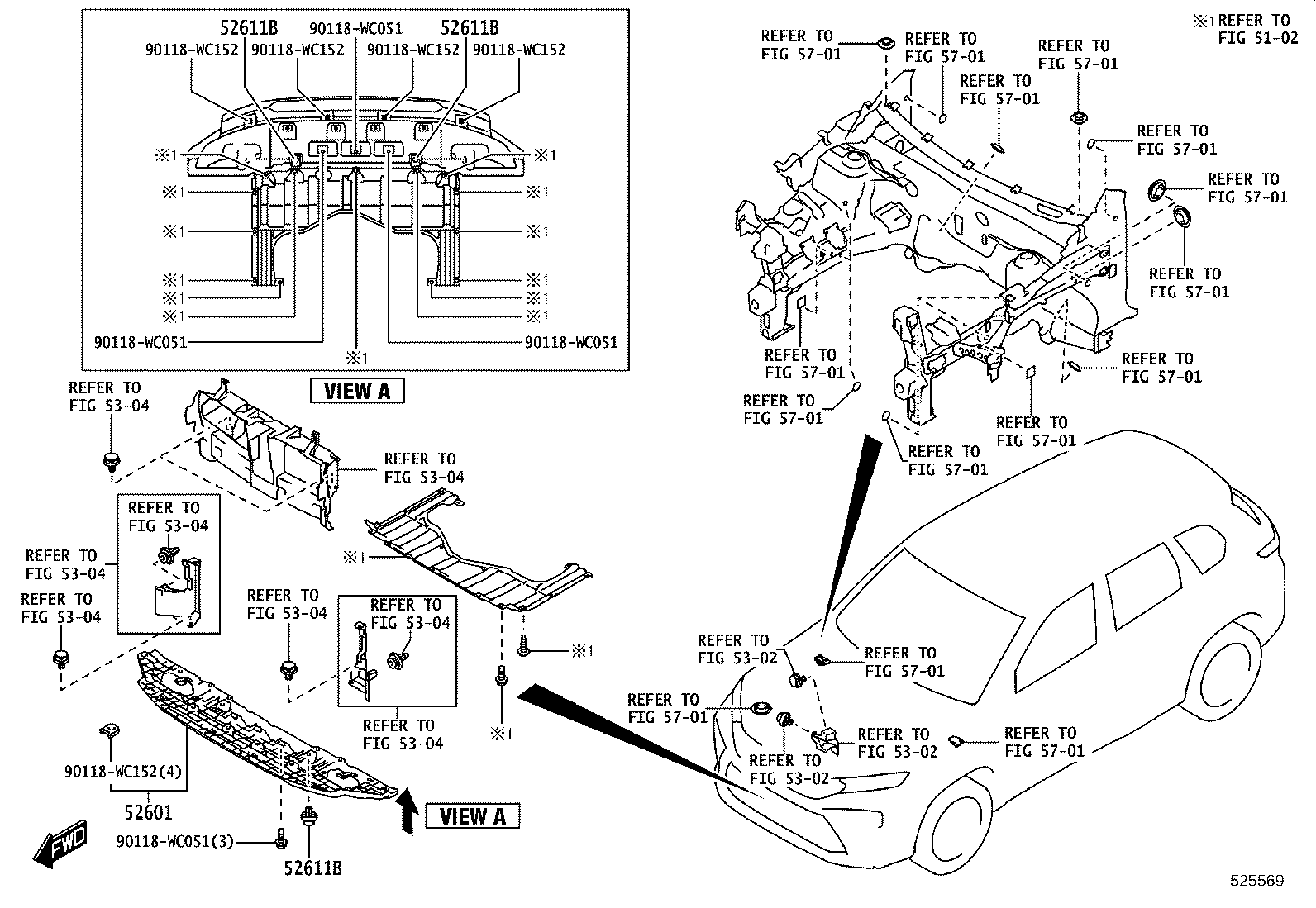

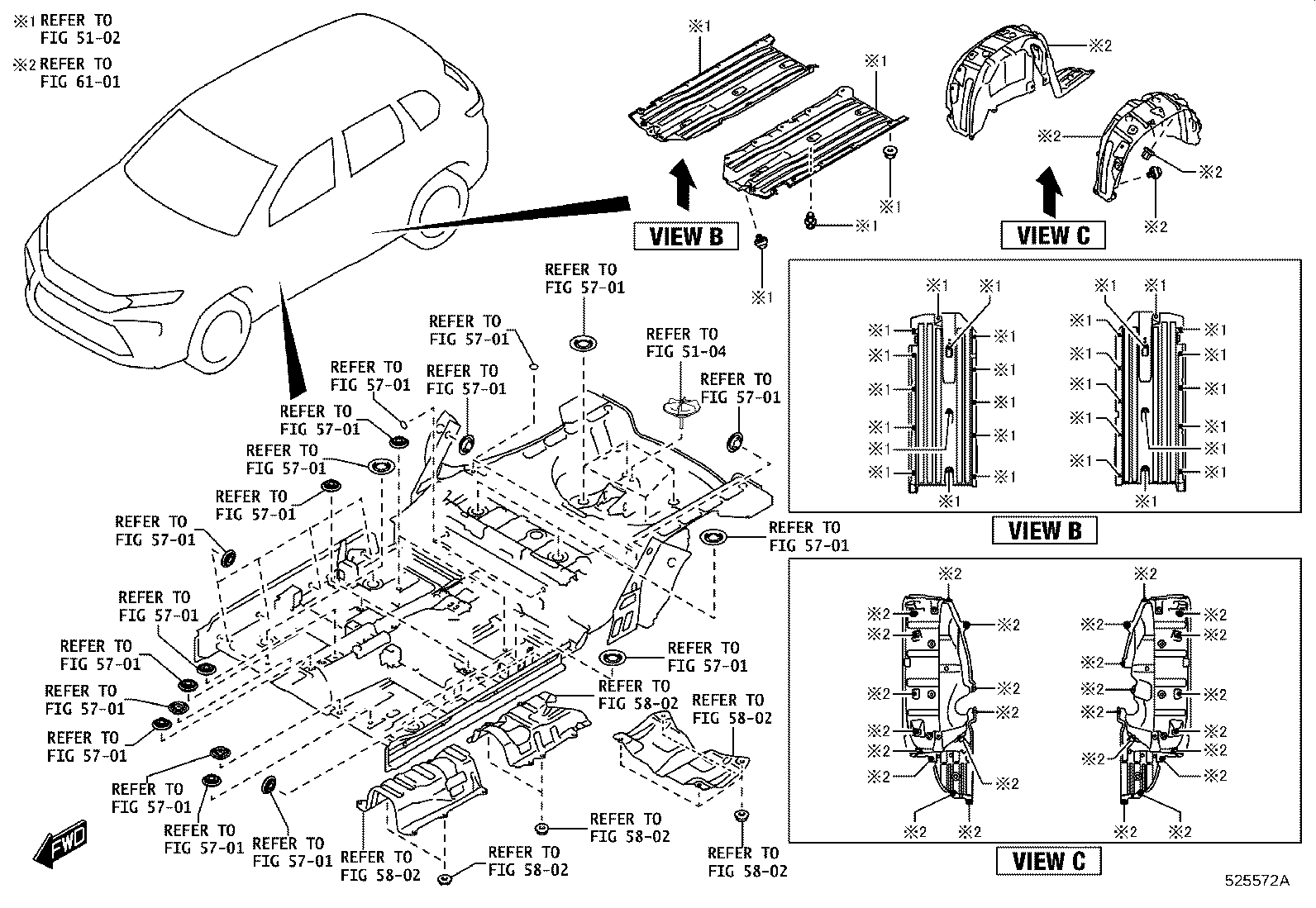

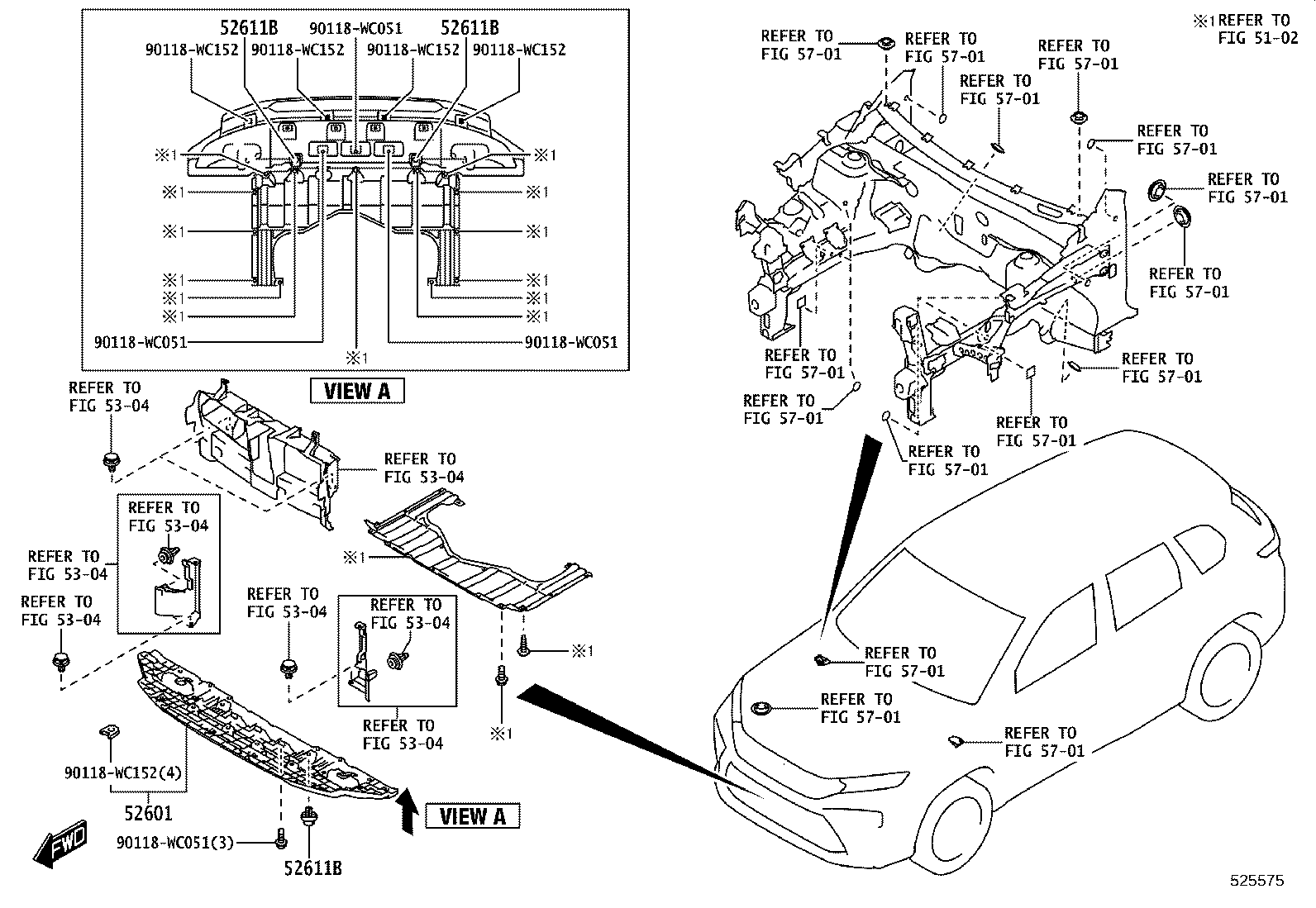

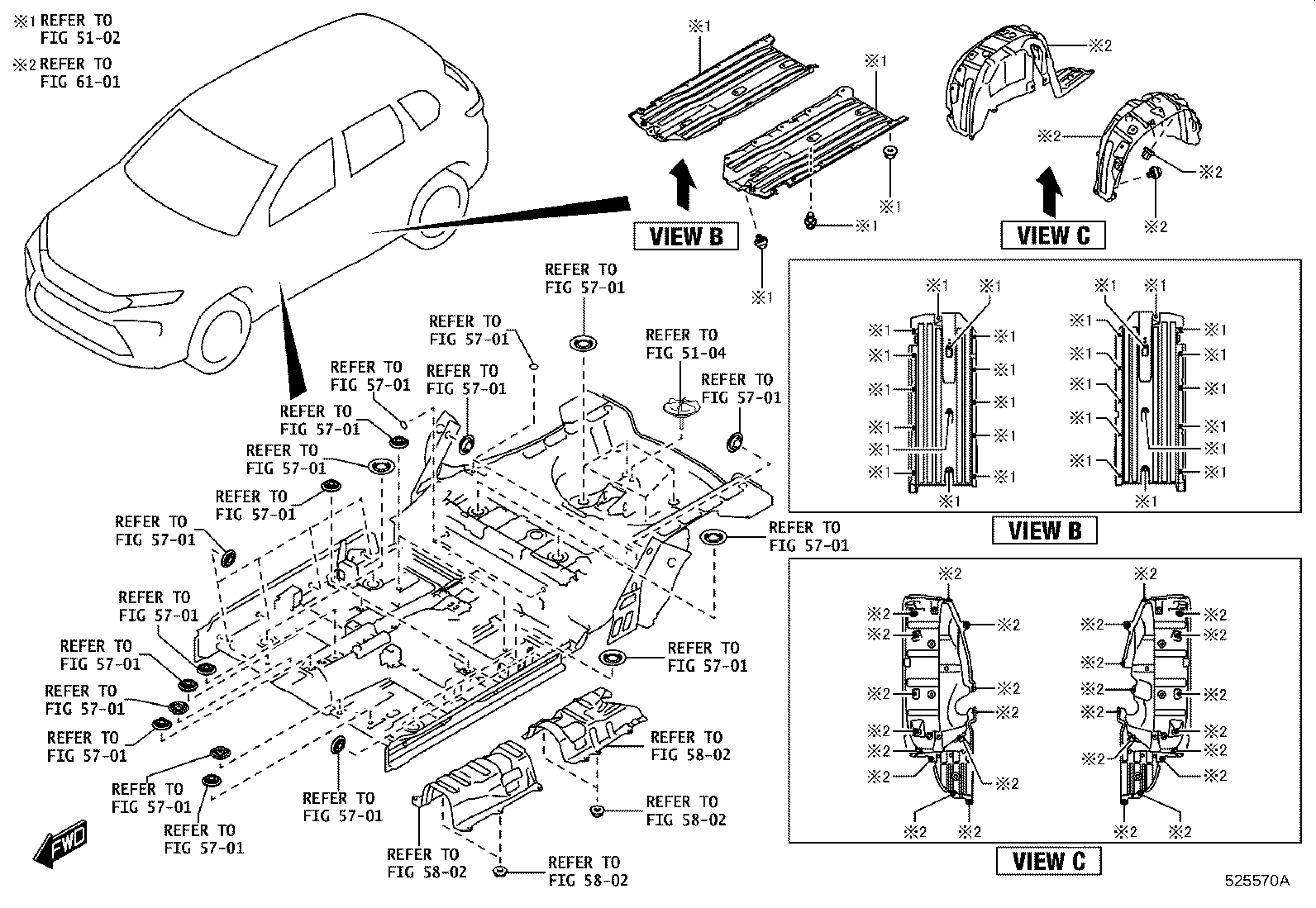

Figure 525565A 525565A 2024-01 → — Figure 525566A 525566A 2024-01 → — Figure 525567A 525567A 2024-01 → — Figure 525568A 525568A 2024-01 → — Figure 525569 525569 2024-01 → — Figure 525571 525571 2024-01 → — Figure 525573 525573 2024-01 → — Figure 525575 525575 2024-01 → — Figure 525570A 525570A 2024-01 → — Figure 525572A 525572A 2024-01 → — Figure 525574A 525574A 2024-01 → — Figure 525576 525576 2024-01 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52133 Reinforcement, Front Bumper
52149 Bracket, Front Bumper, Inner
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
52611B Clip, Front Bumper Energy Absorber
53112E Grille, Radiator, Lower NO.1
53115H Bracket, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
