Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

18 part groups · 9 illustrations

Illustrations

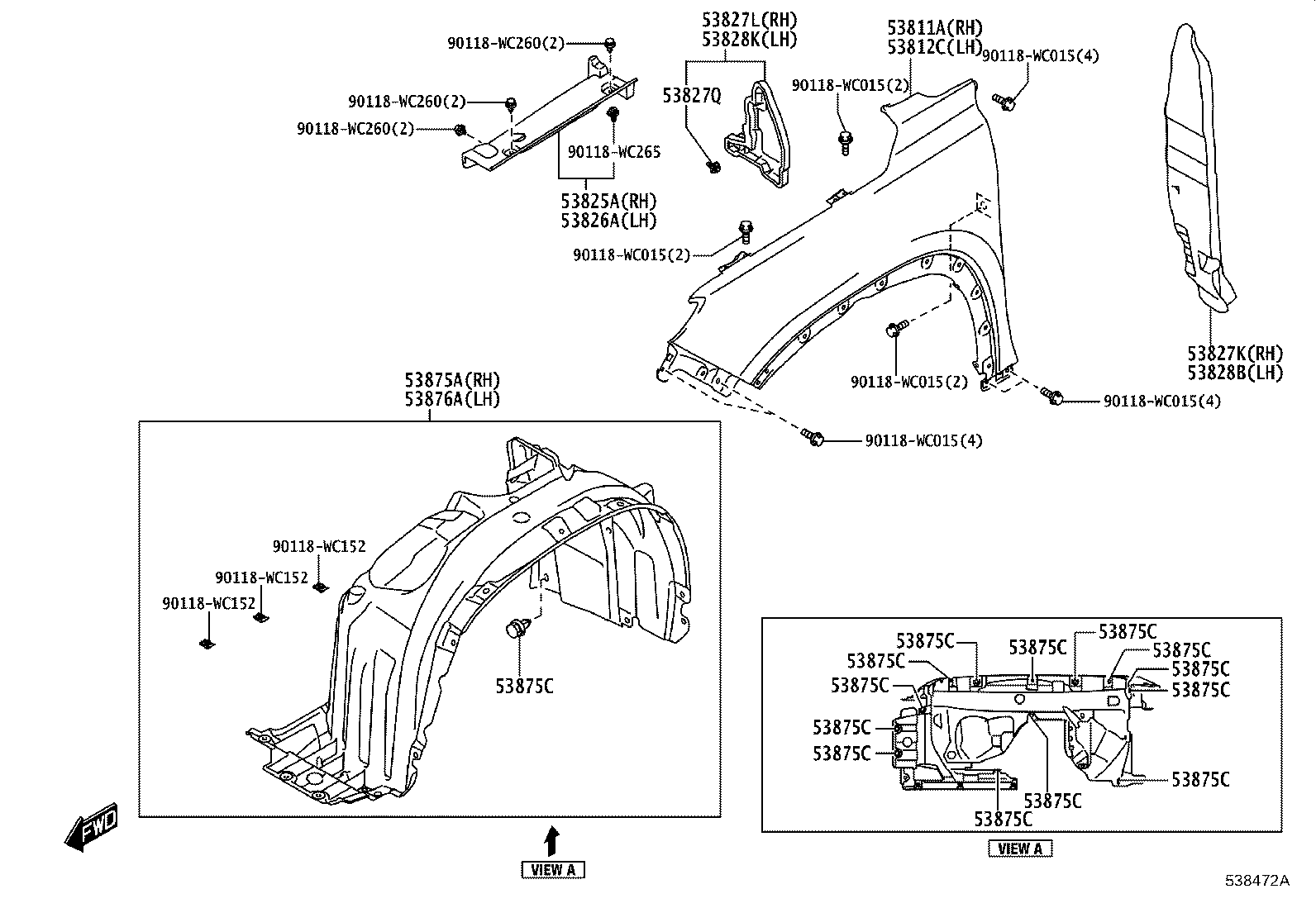

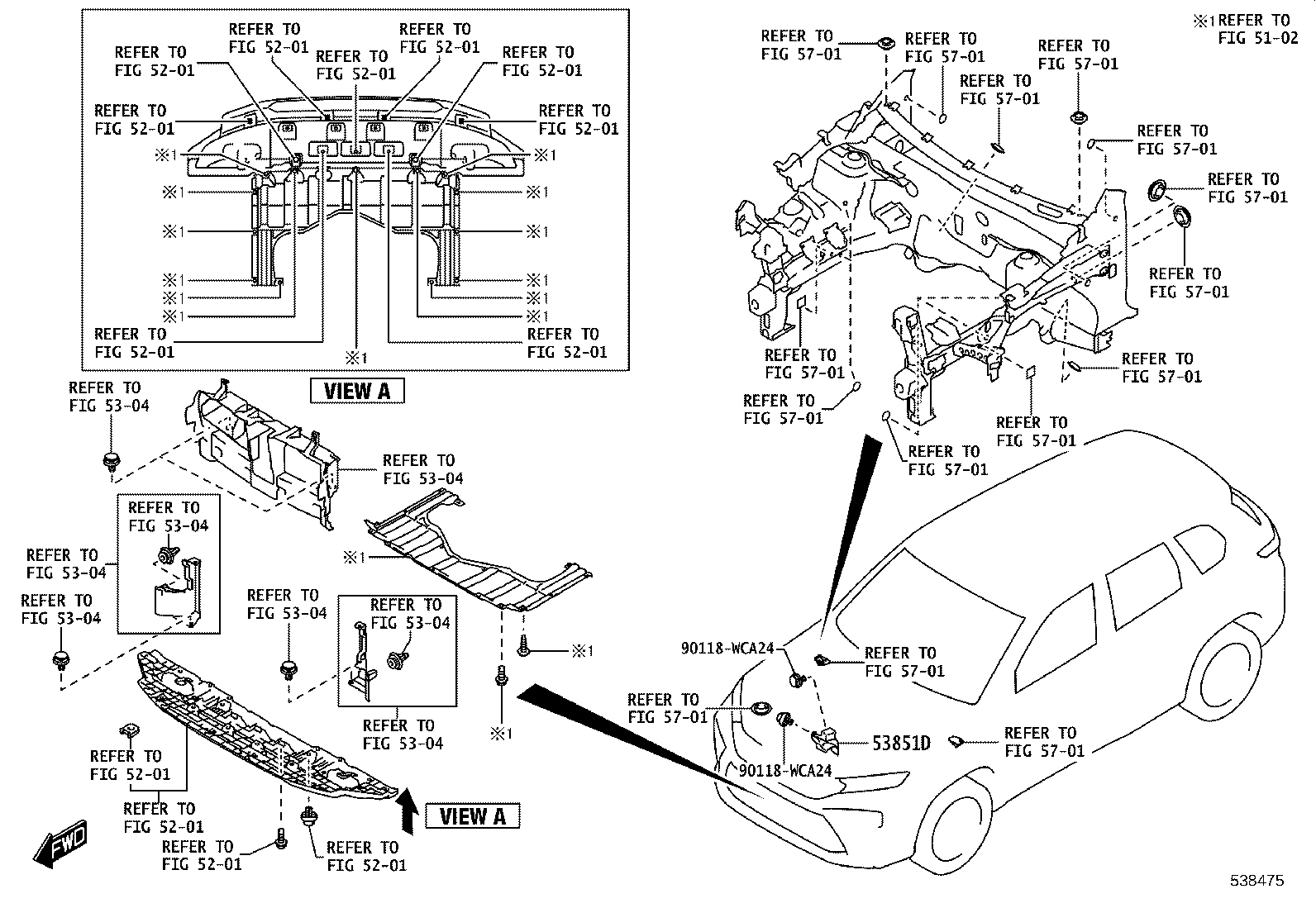

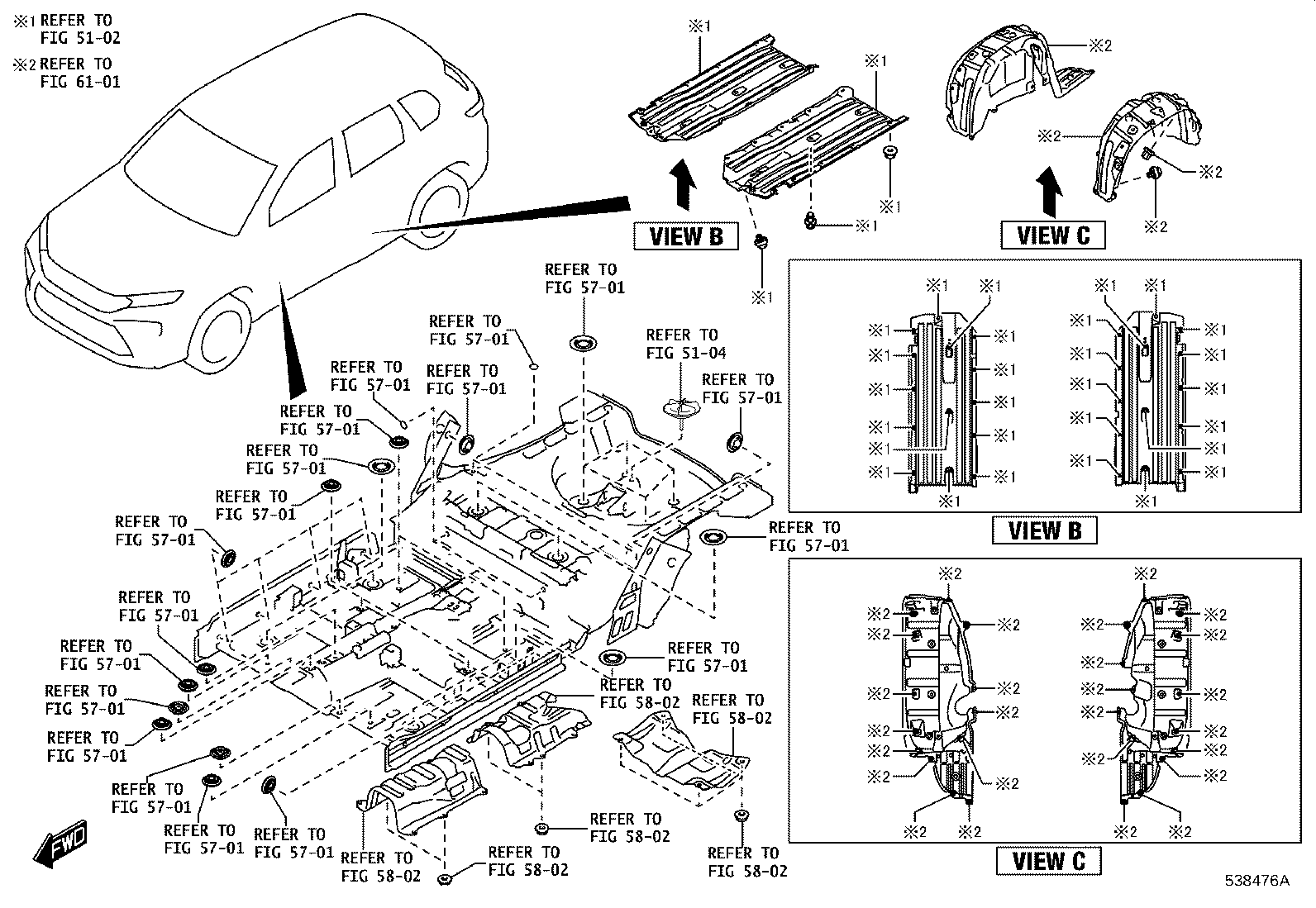

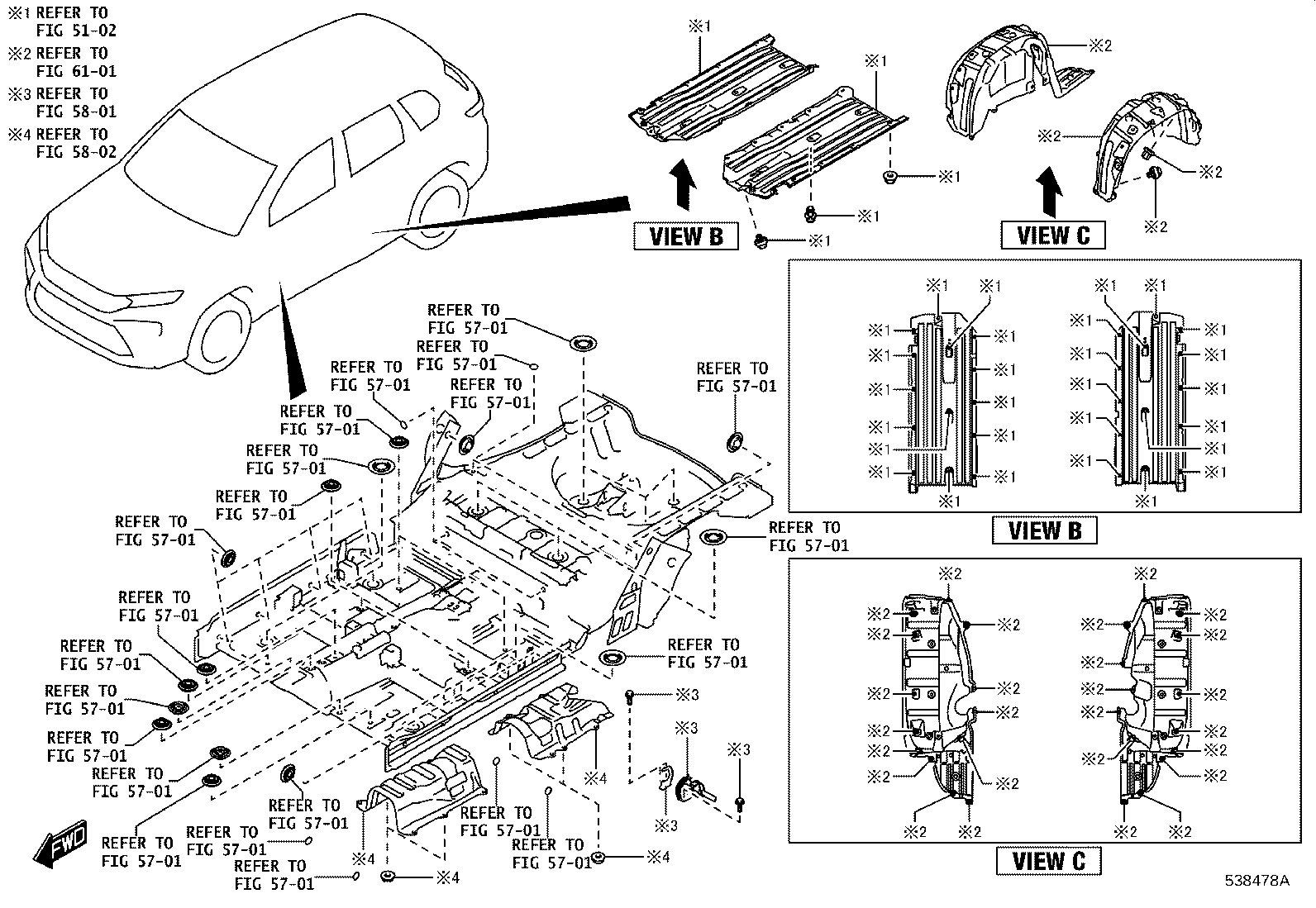

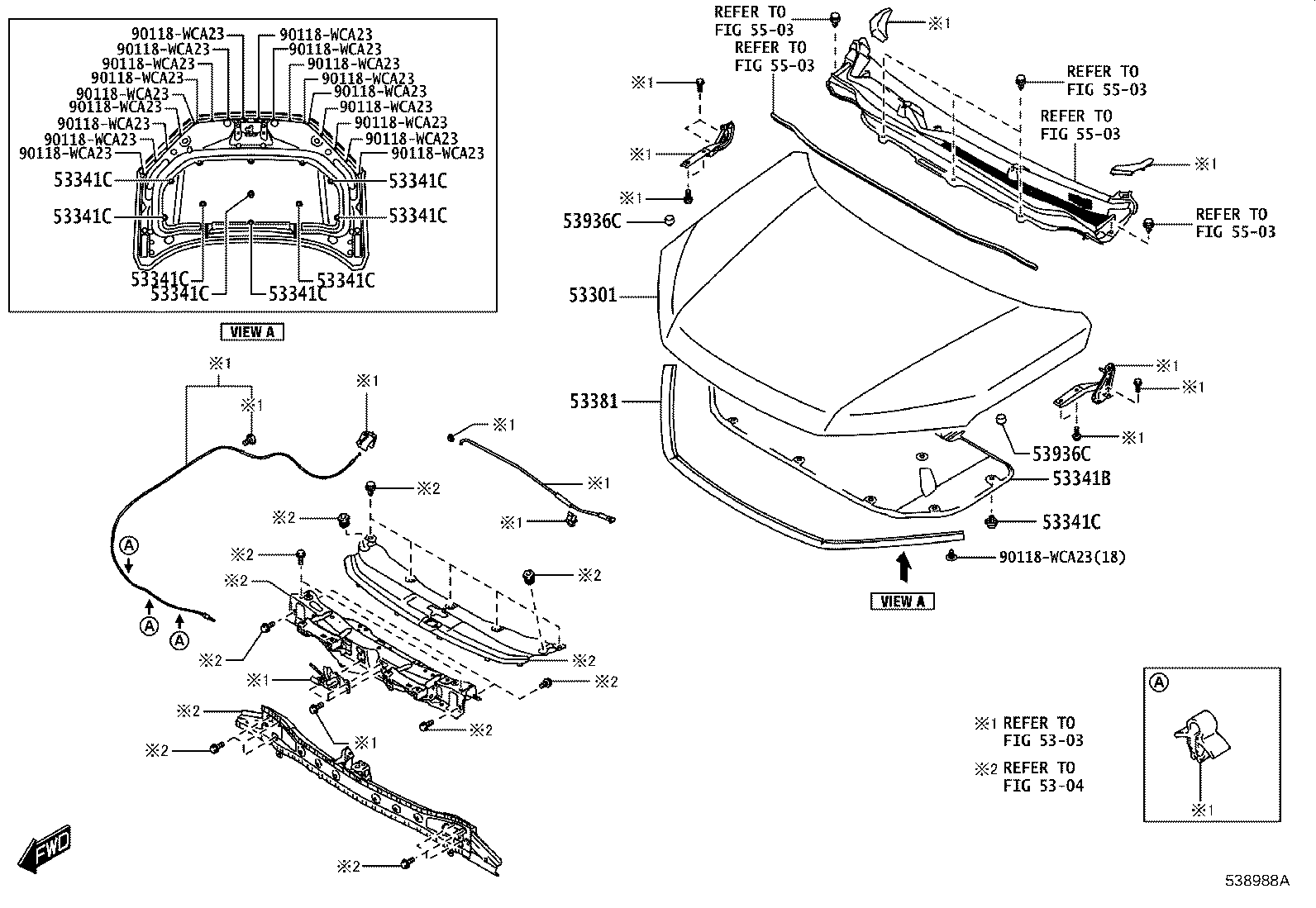

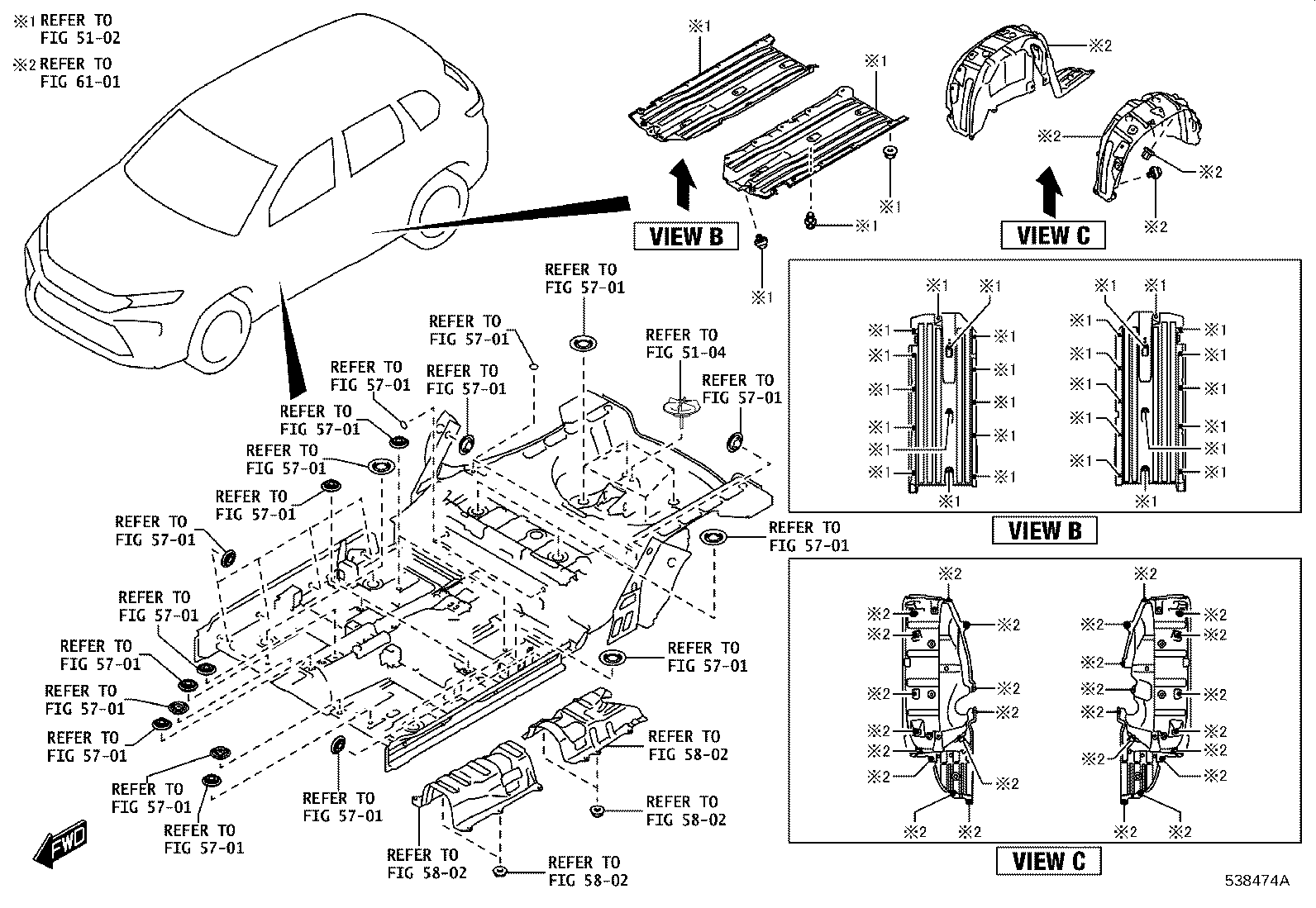

Figure 538471A 538471A 2024-01 → — Figure 538988A 538988A 2024-01 → — Figure 538472A 538472A 2024-01 → — Figure 538473 538473 2024-01 → — Figure 538475 538475 2024-01 → — Figure 538477 538477 2024-01 → — Figure 538474A 538474A 2024-01 → — Figure 538476A 538476A 2024-01 → — Figure 538478A 538478A 2024-01 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53811A Panel, Front Fender, RH
53812C Panel, Front Fender, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827K Protector, Front Fender Side Panel, RH
53827L Protector, Front Fender Side Panel, RH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53828B Protector, Front Fender Side Panel, LH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53876A Liner, Front Fender, LH
53936C Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
