Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 8 illustrations

Illustrations

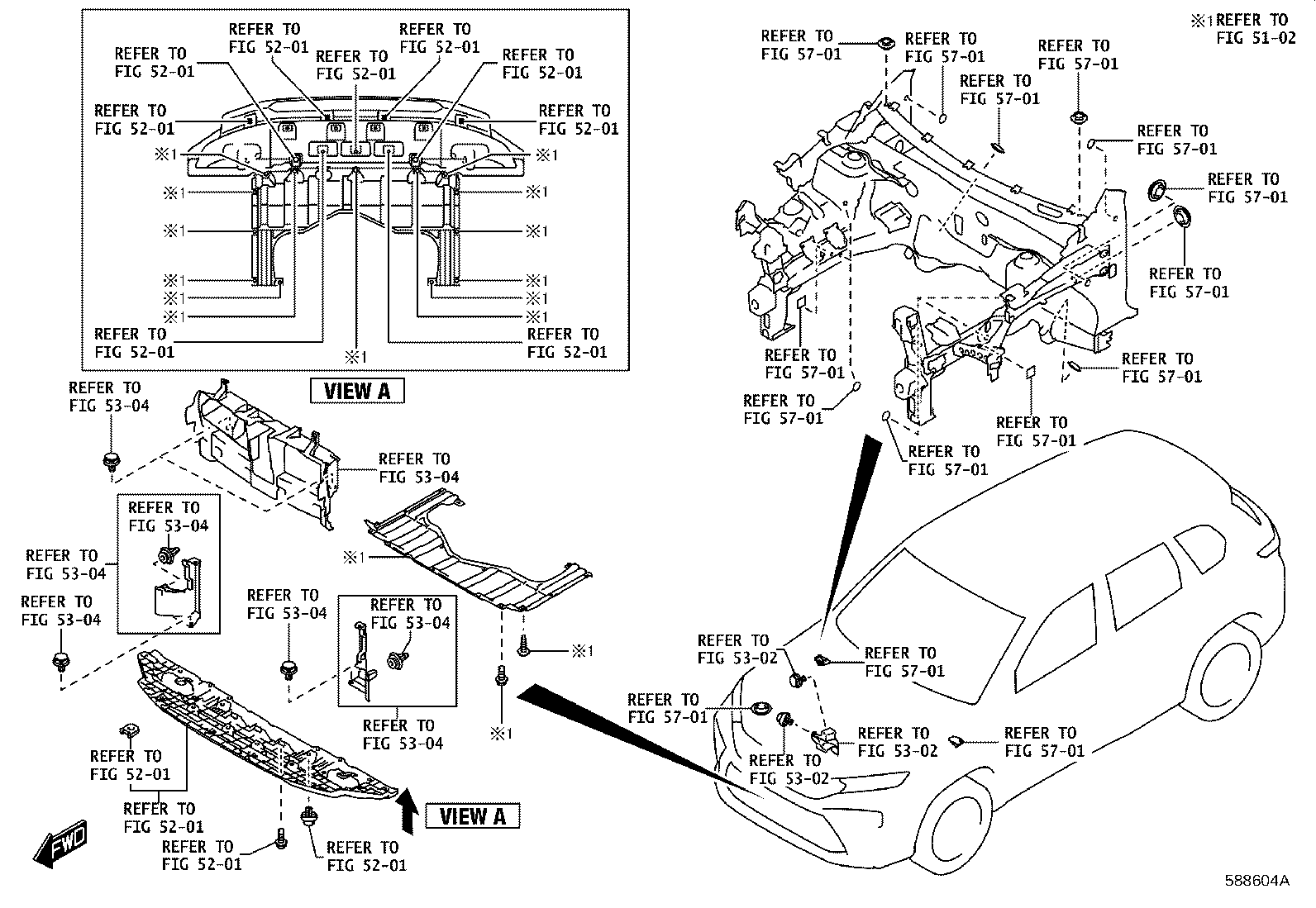

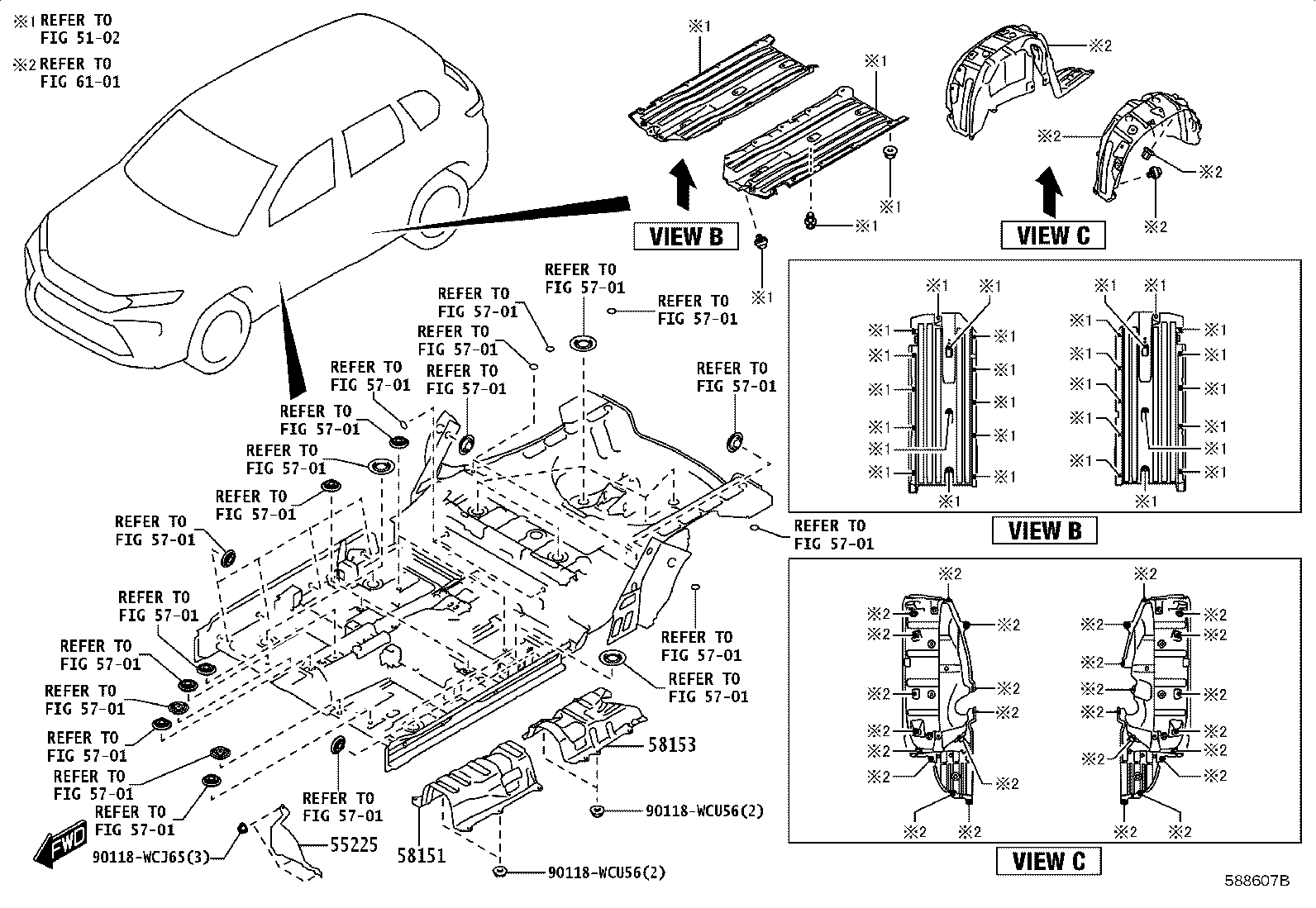

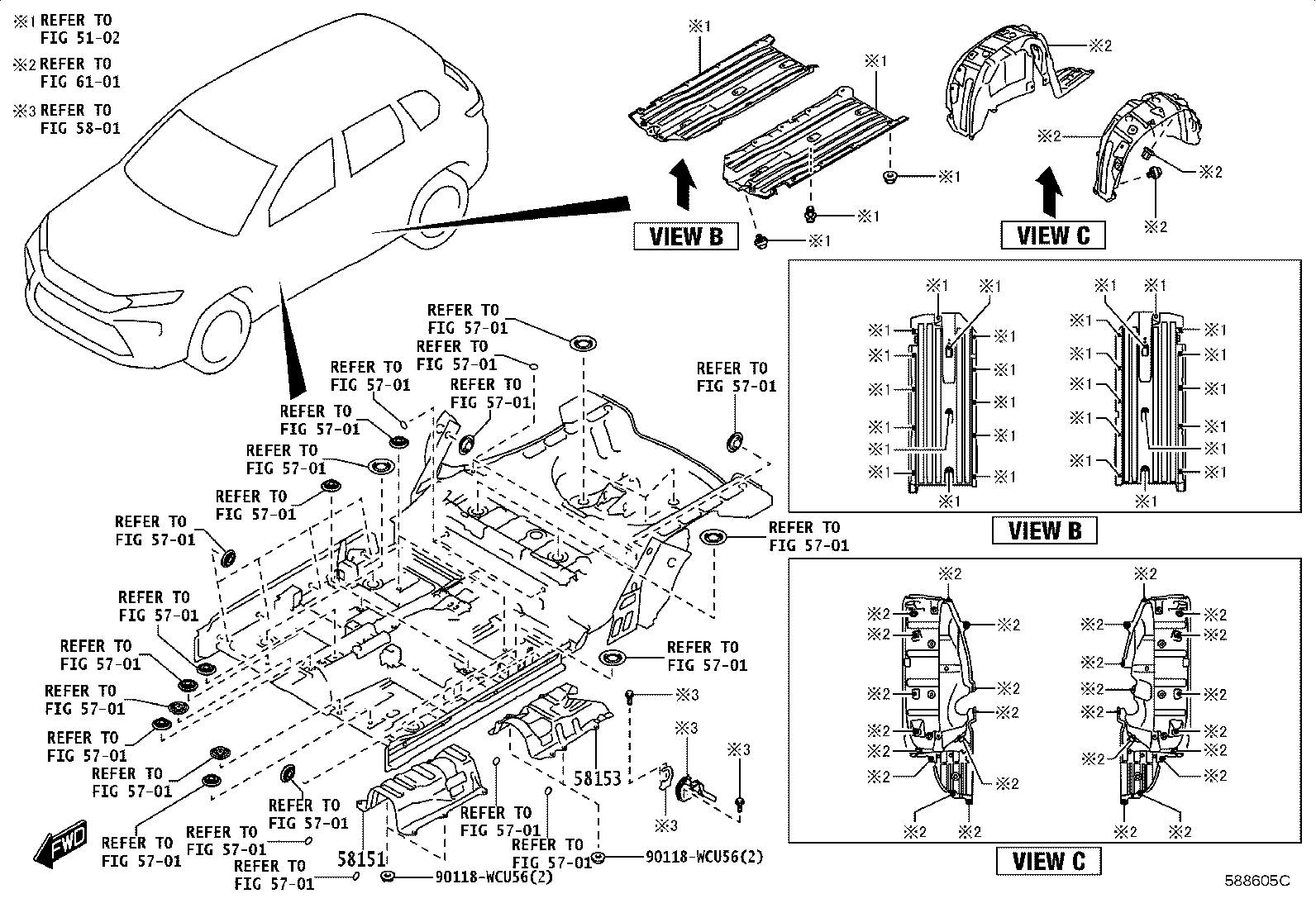

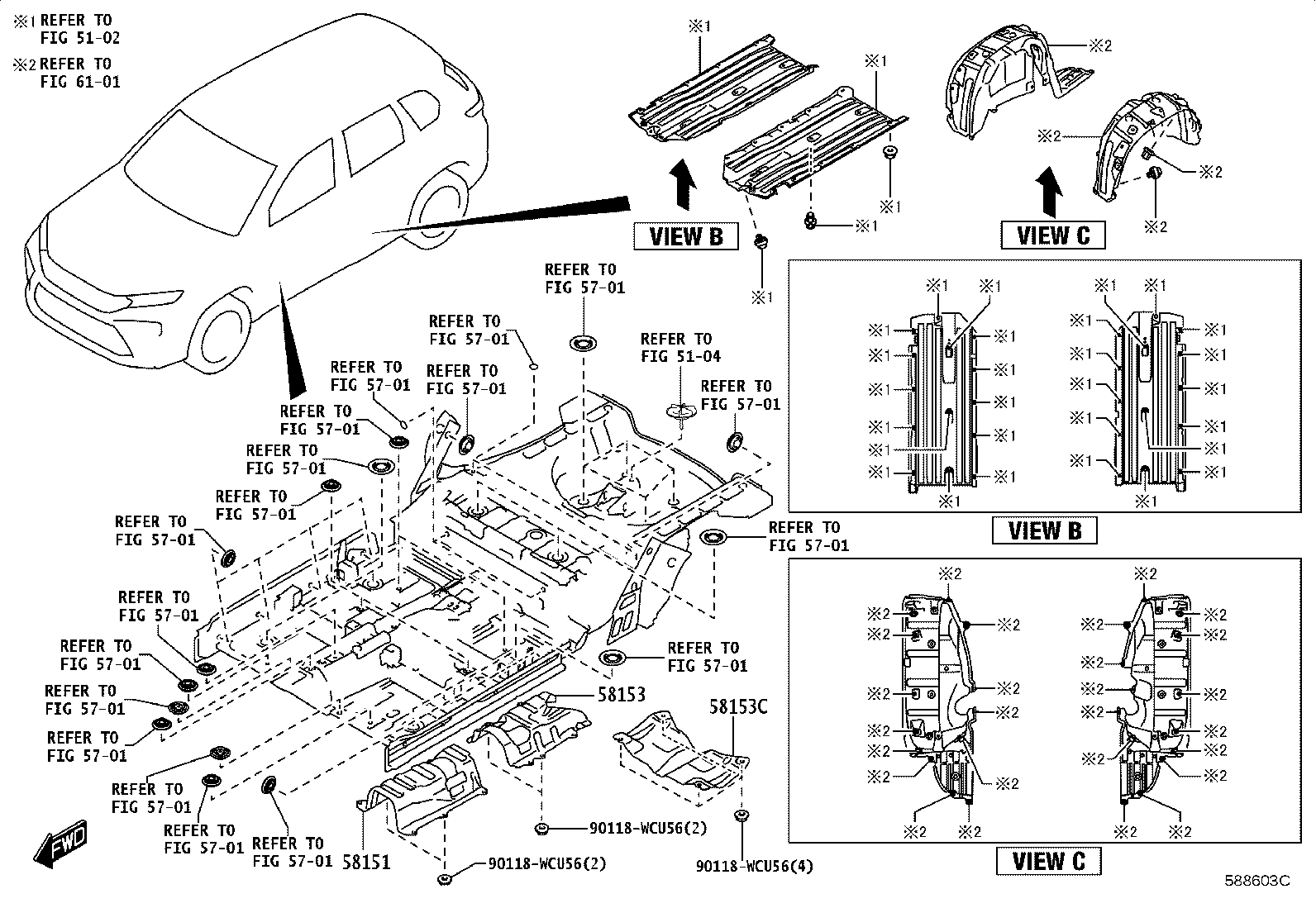

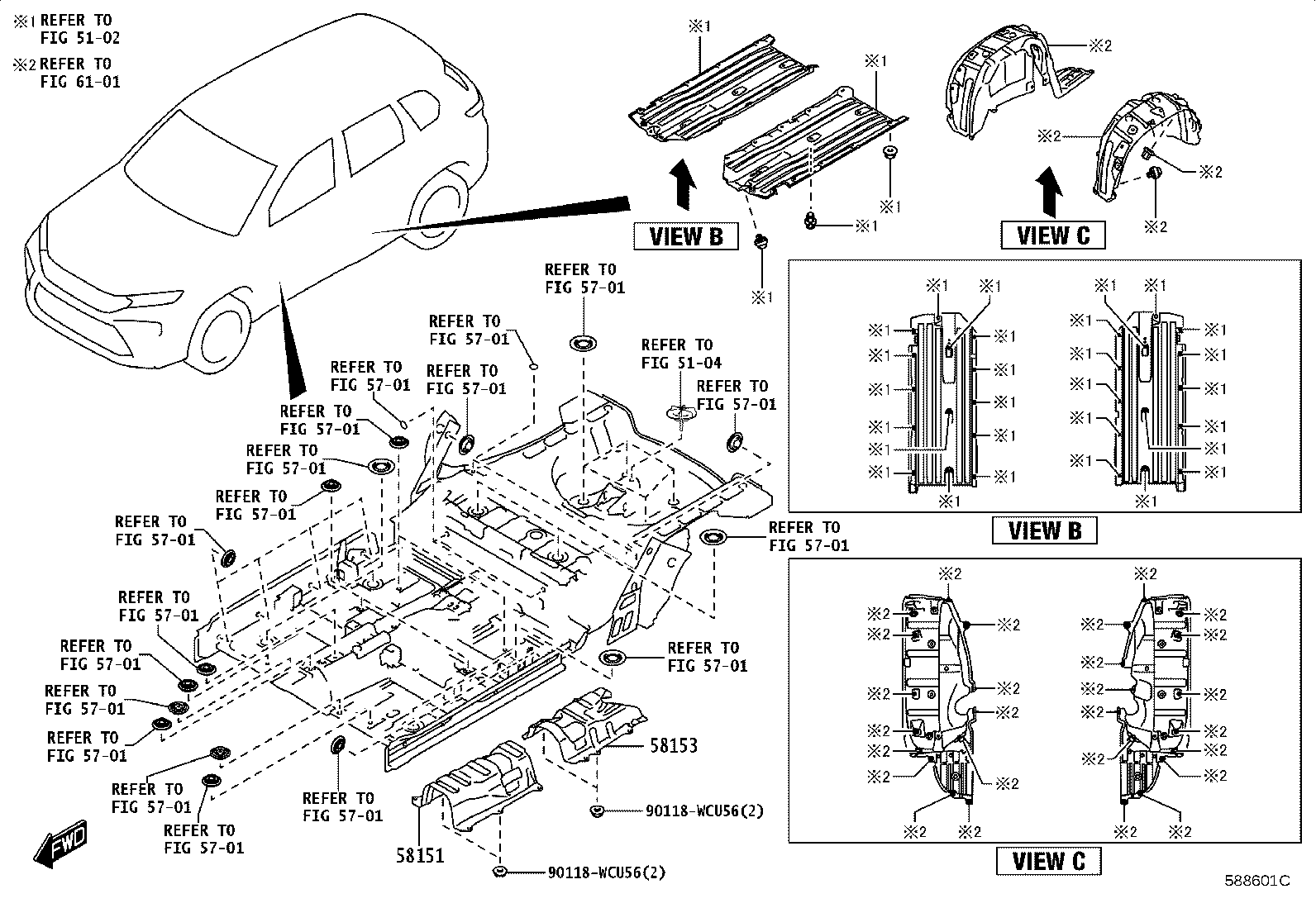

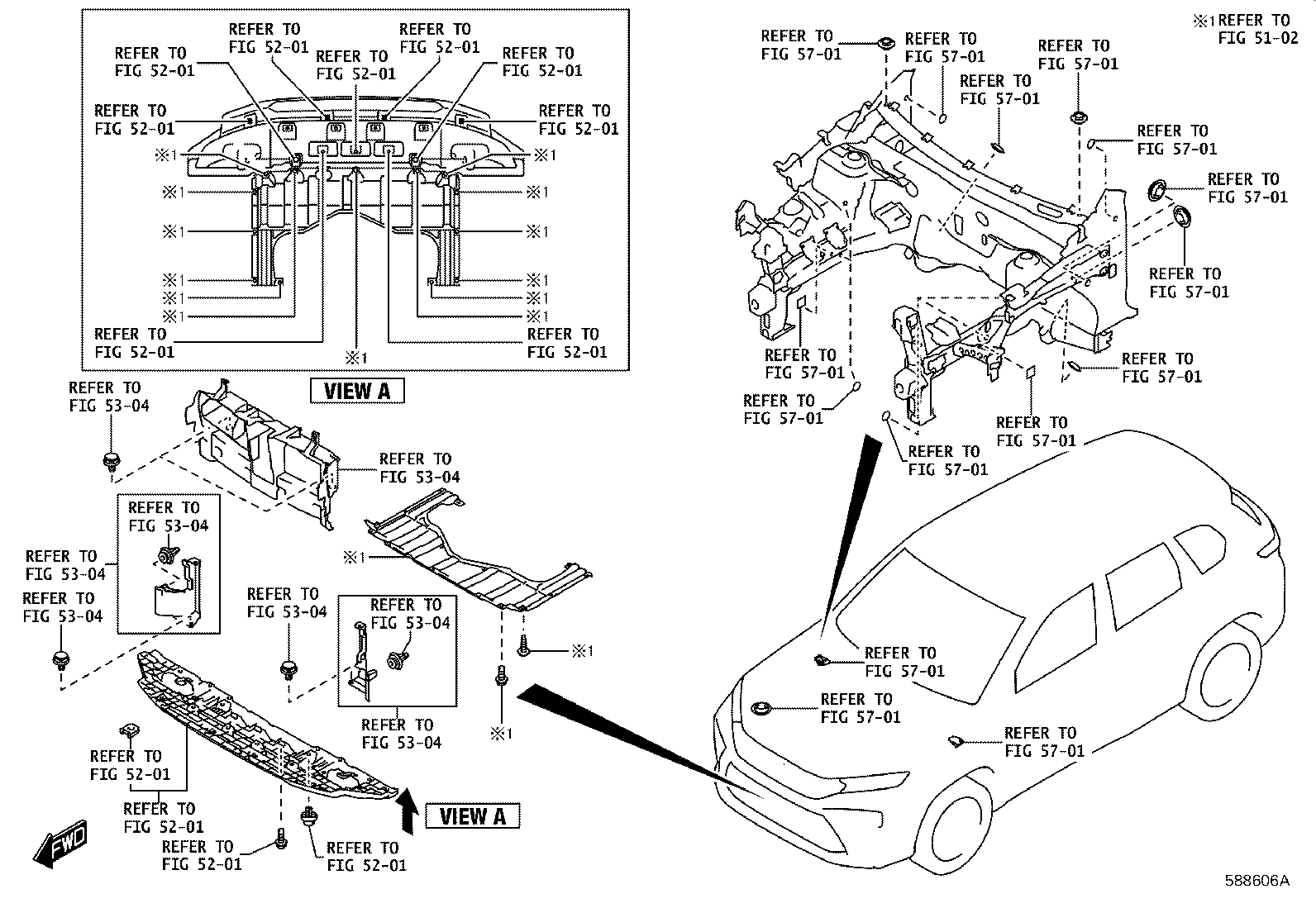

Figure 588600A 588600A 2024-01 → — Figure 588601C 588601C 2024-01 → — Figure 588602A 588602A 2024-01 → — Figure 588603C 588603C 2024-01 → — Figure 588604A 588604A 2024-01 → — Figure 588605C 588605C 2024-01 → — Figure 588606A 588606A 2024-01 → — Figure 588607B 588607B 2024-01 → —

Part groups

PNCDescription
55225 Insulator, Dash Panel Heat
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58153C Insulator, Floor Heat, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
