Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

5 part groups · 3 illustrations

Illustrations

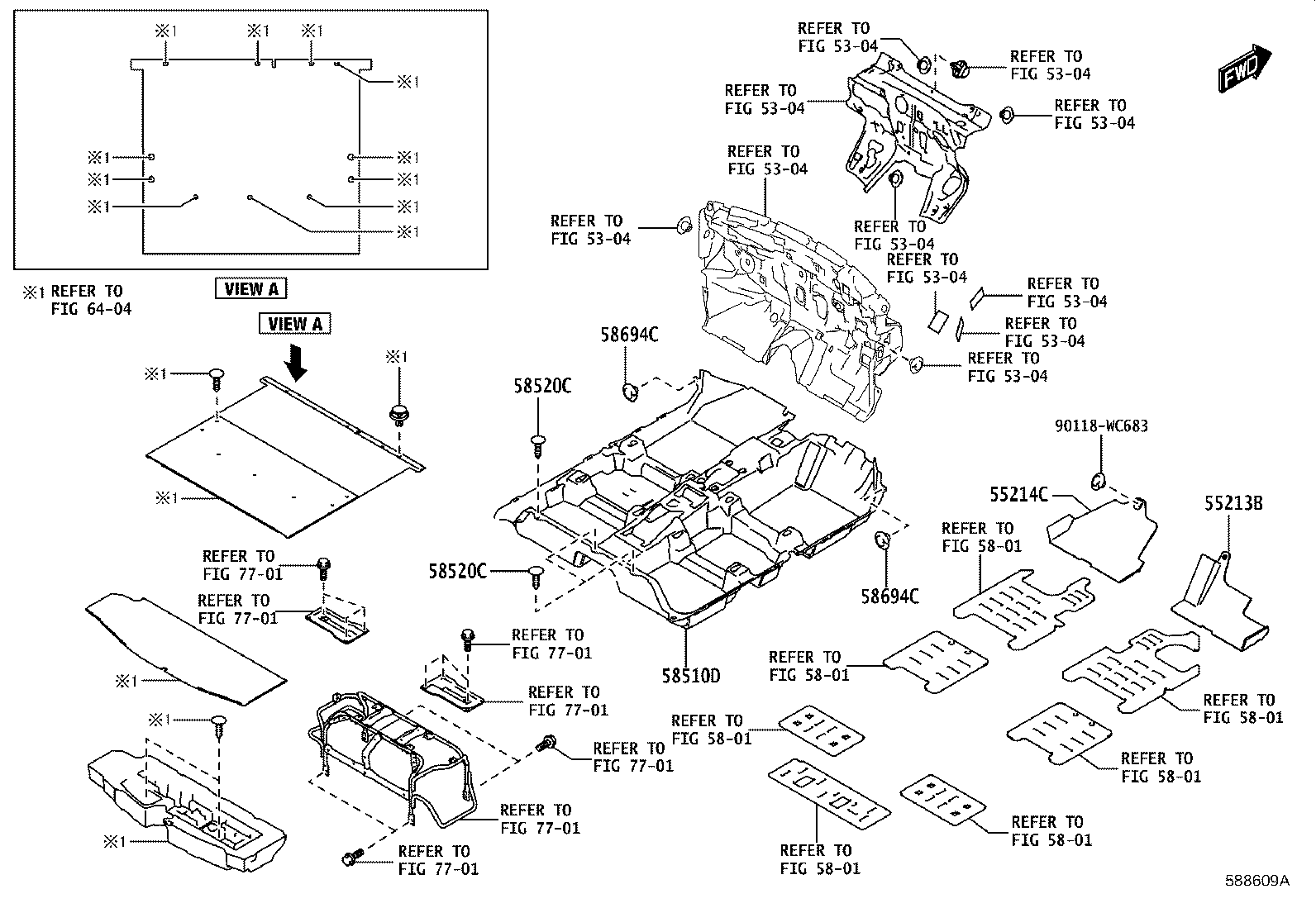

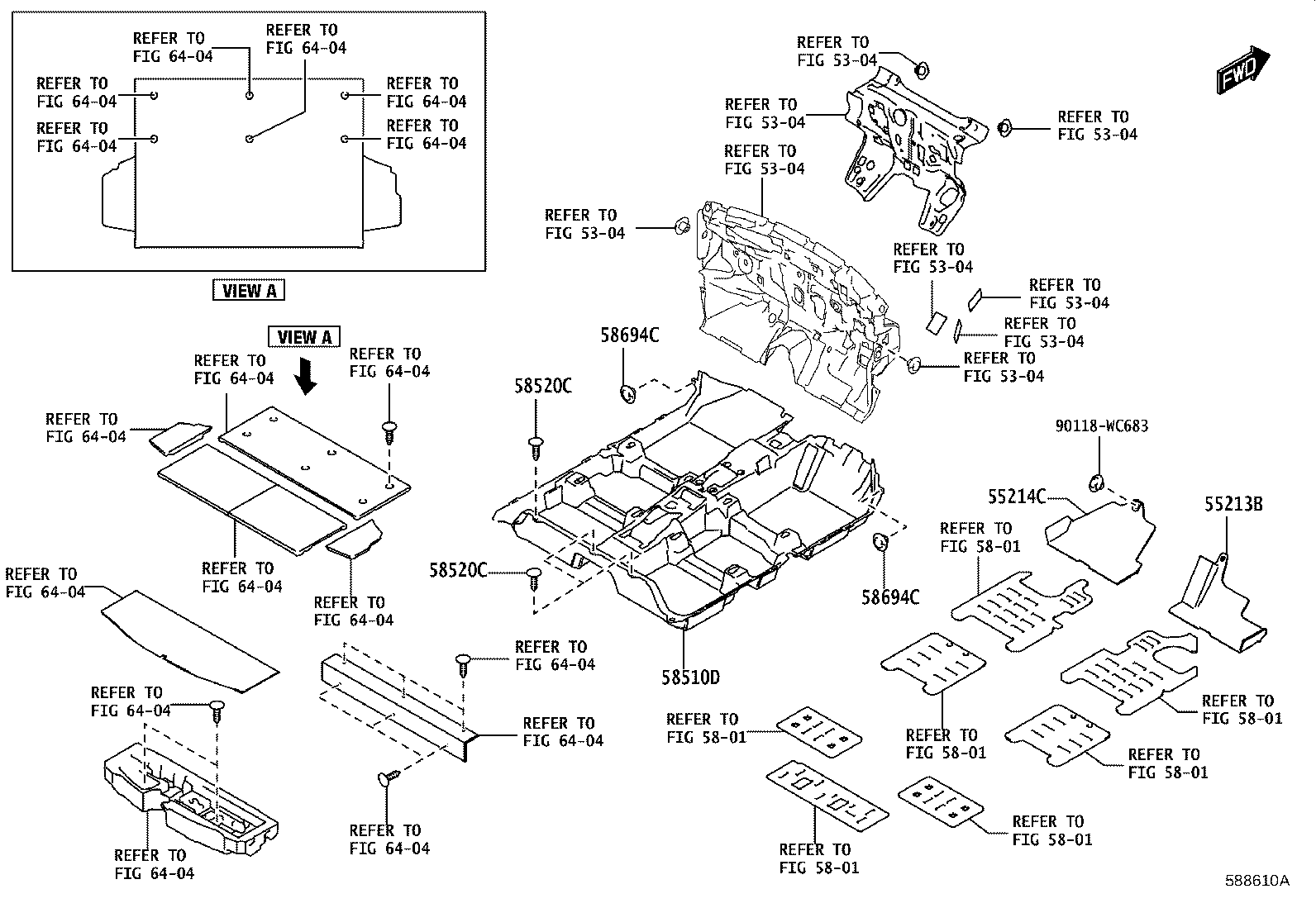

Figure 588608A 588608A 2024-01 → — Figure 588609A 588609A 2024-01 → — Figure 588610A 588610A 2024-01 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58694C Grommet(FOR MAT SET PLATE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
