Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 4 illustrations

Illustrations

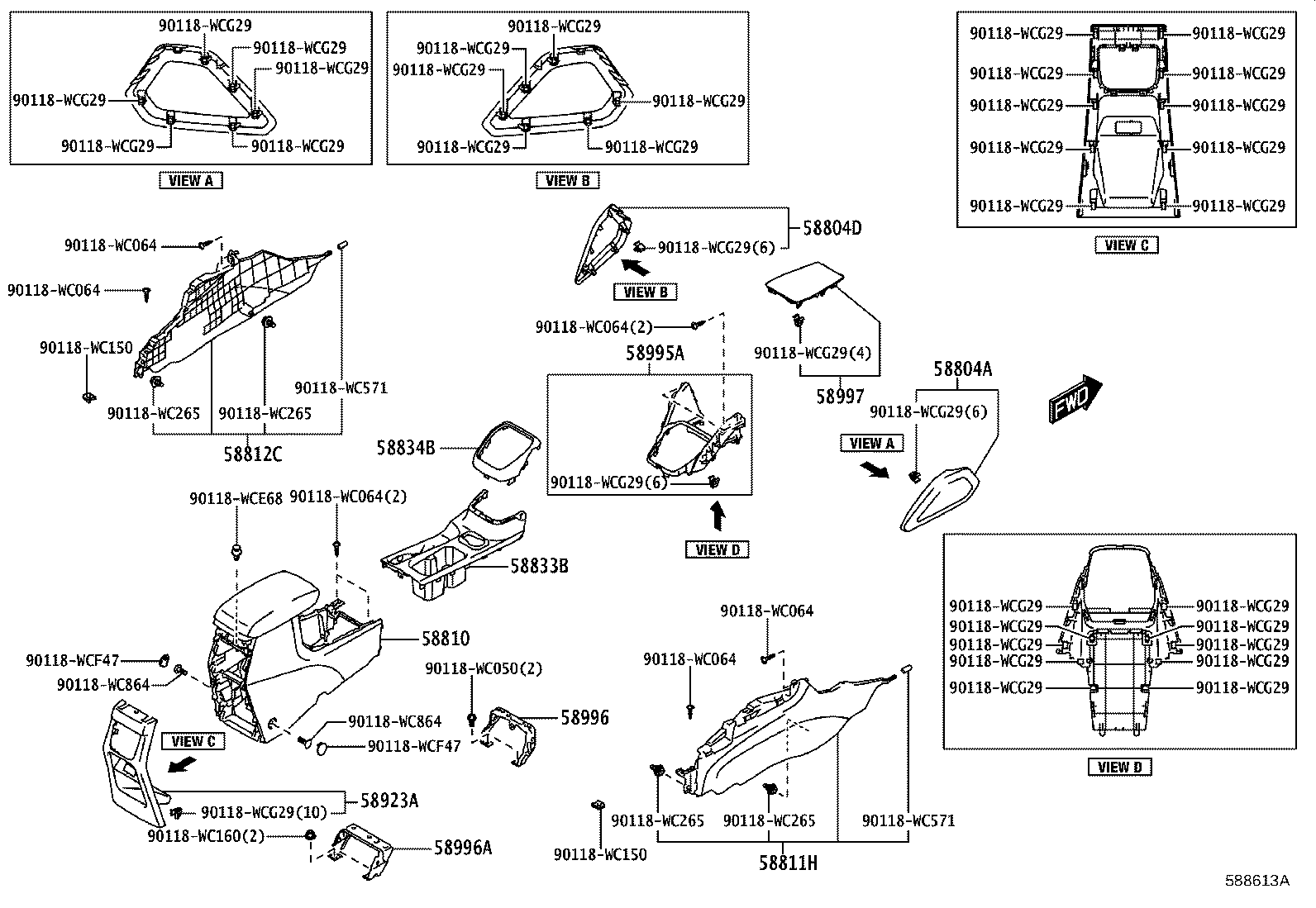

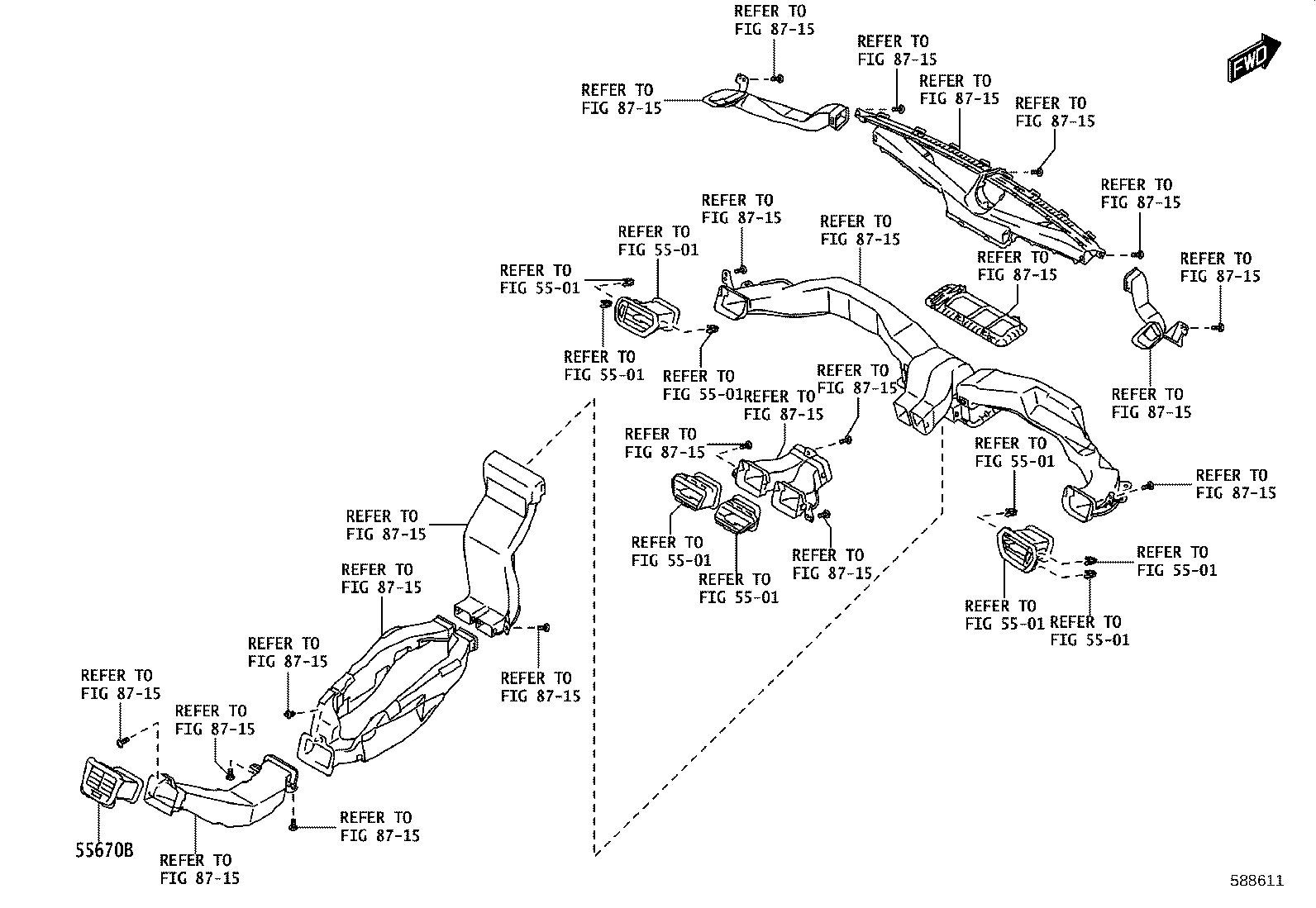

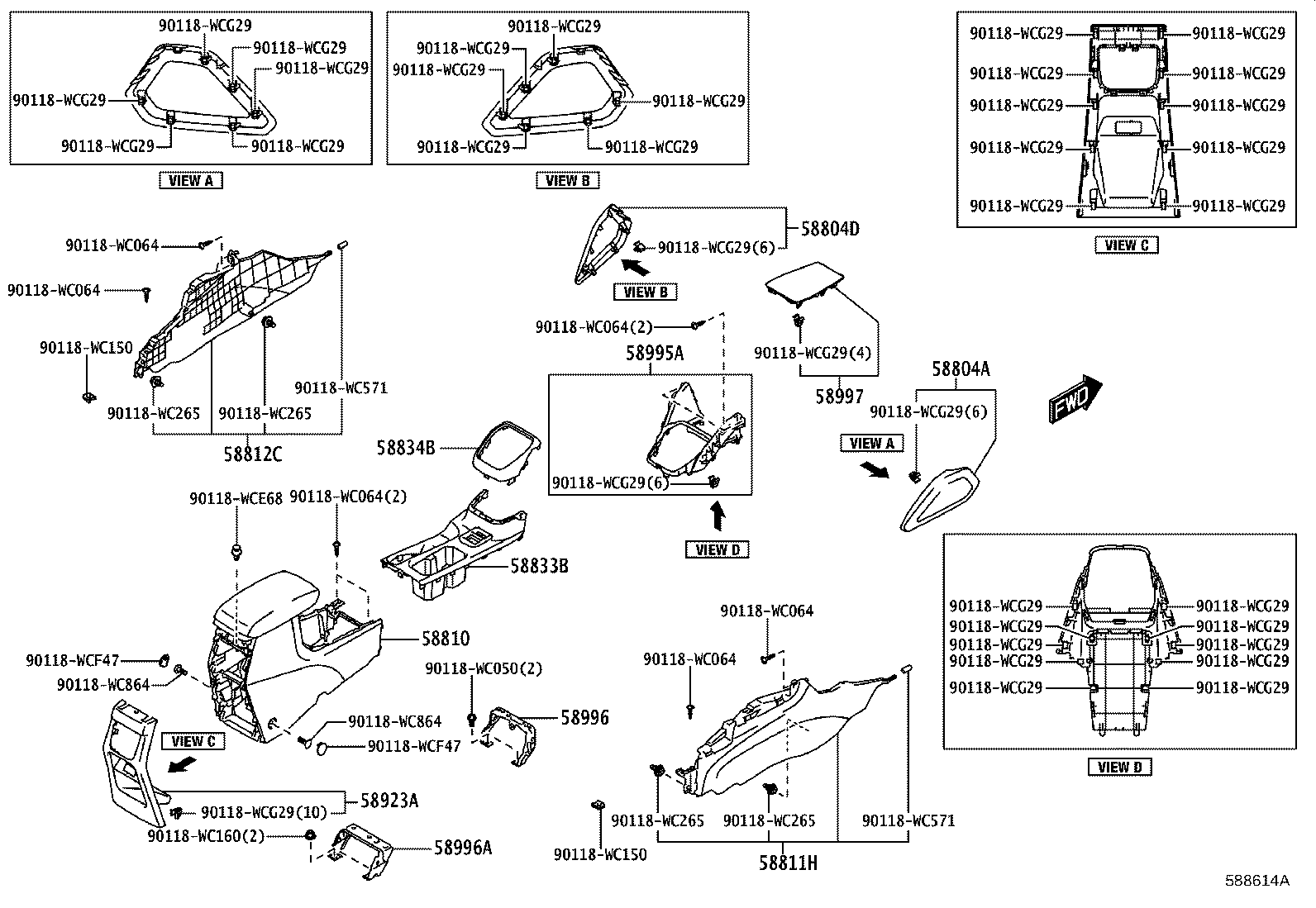

Figure 588612A 588612A 2024-01 → — Figure 588613A 588613A 2024-01 → — Figure 588614A 588614A 2024-01 → — Figure 588611 588611 2024-01 → —

Part groups

PNCDescription
55670B Register Assy, Instrument Panel, Center
58804A Panel Sub-assy, Console, Upper
58804D Panel Sub-assy, Console, Upper Front
58810 Console Assy
58811H Box, Console, RH
58812C Box, Console, LH
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58923A Panel, Console Rear End
58995A Bracket, Console Box Mounting, NO.1
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
