Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

22 part groups · 8 illustrations

Illustrations

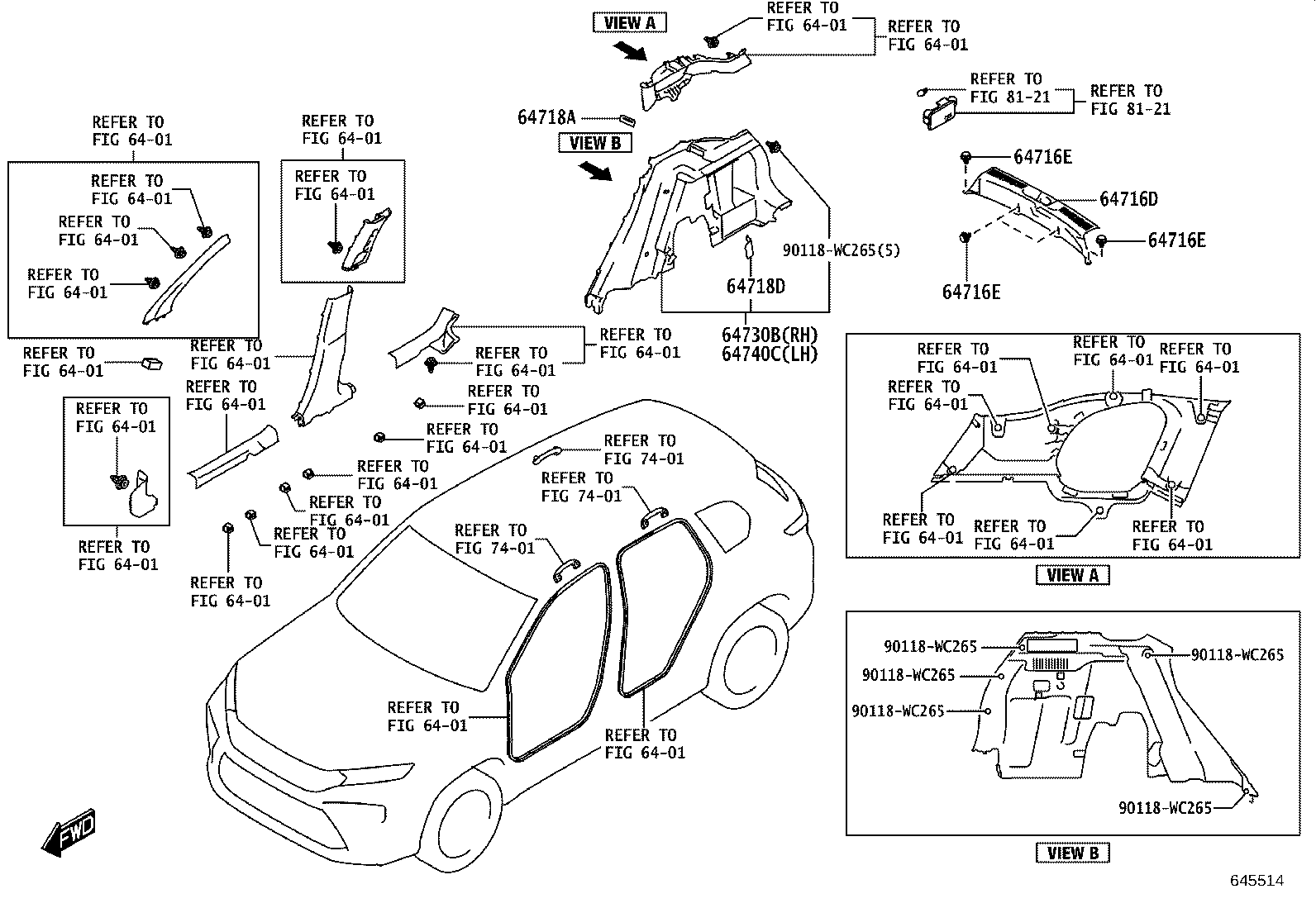

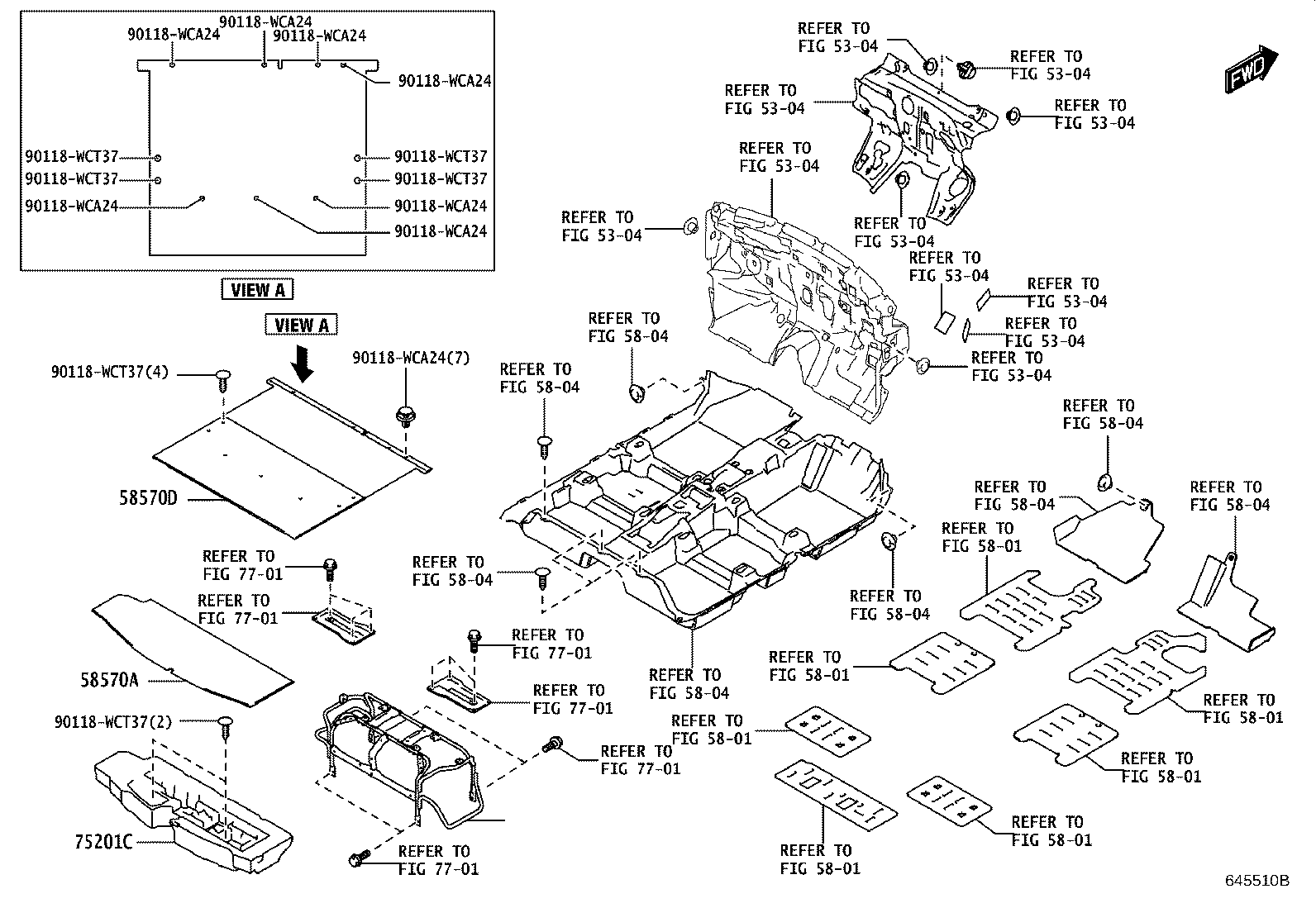

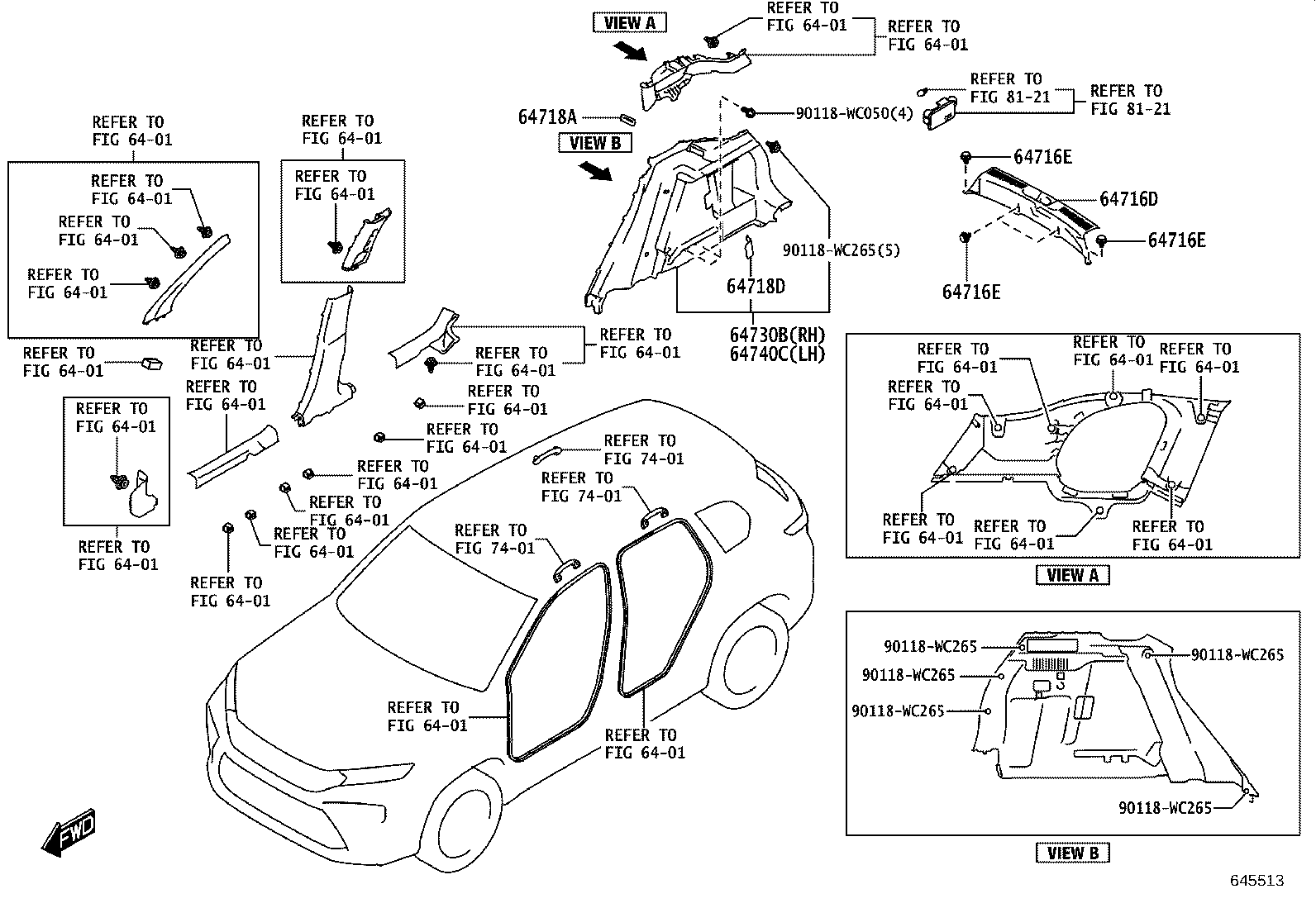

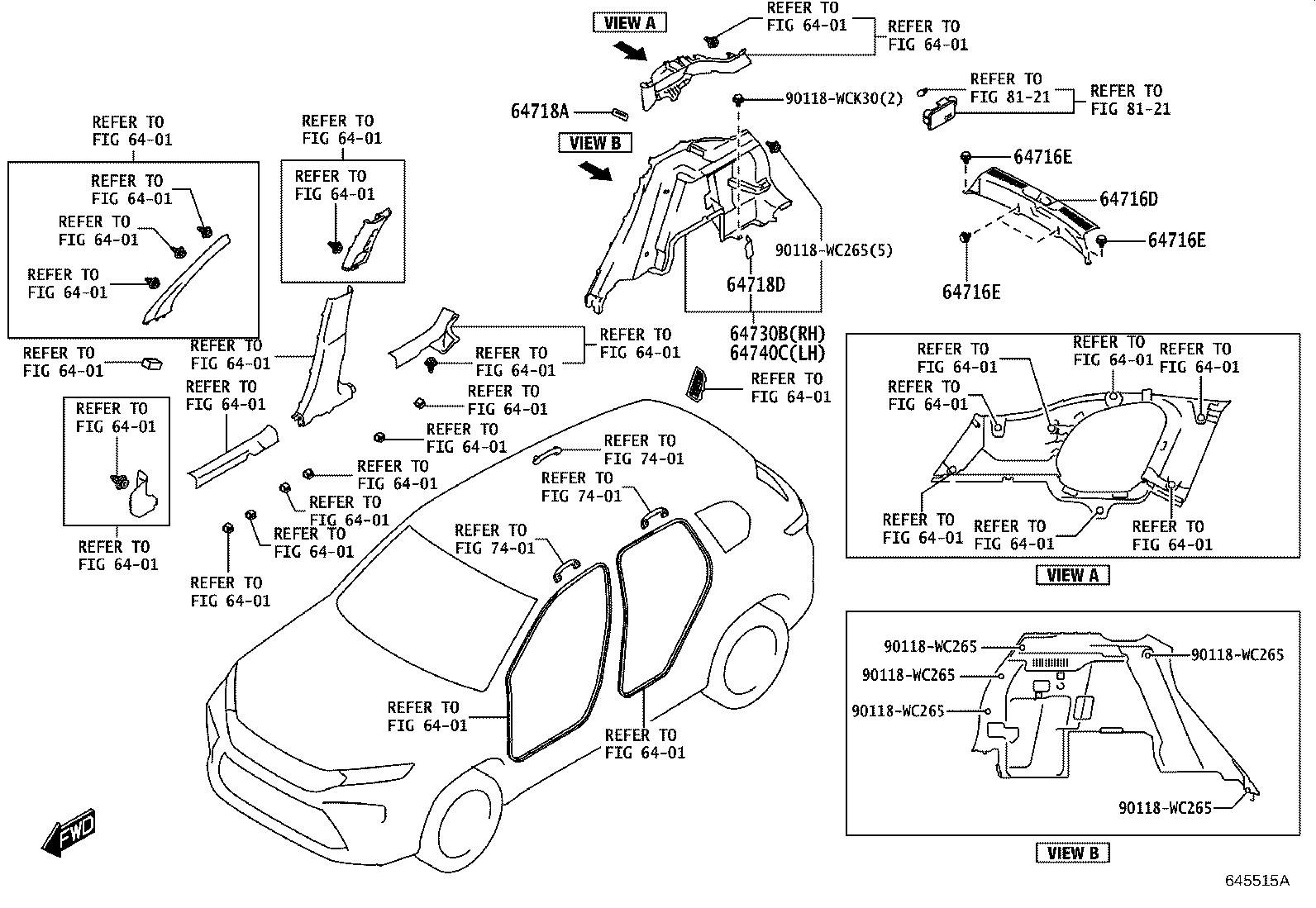

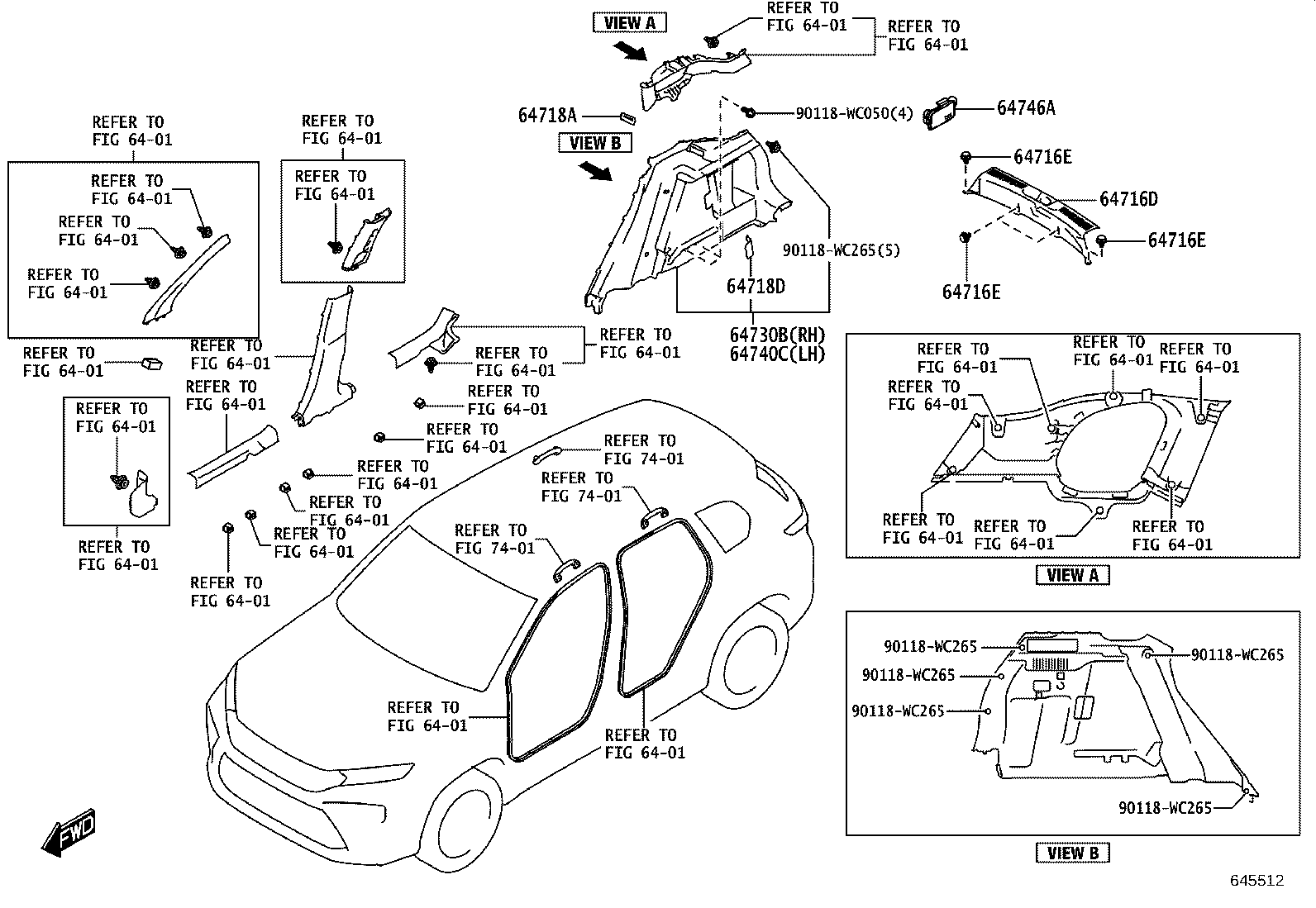

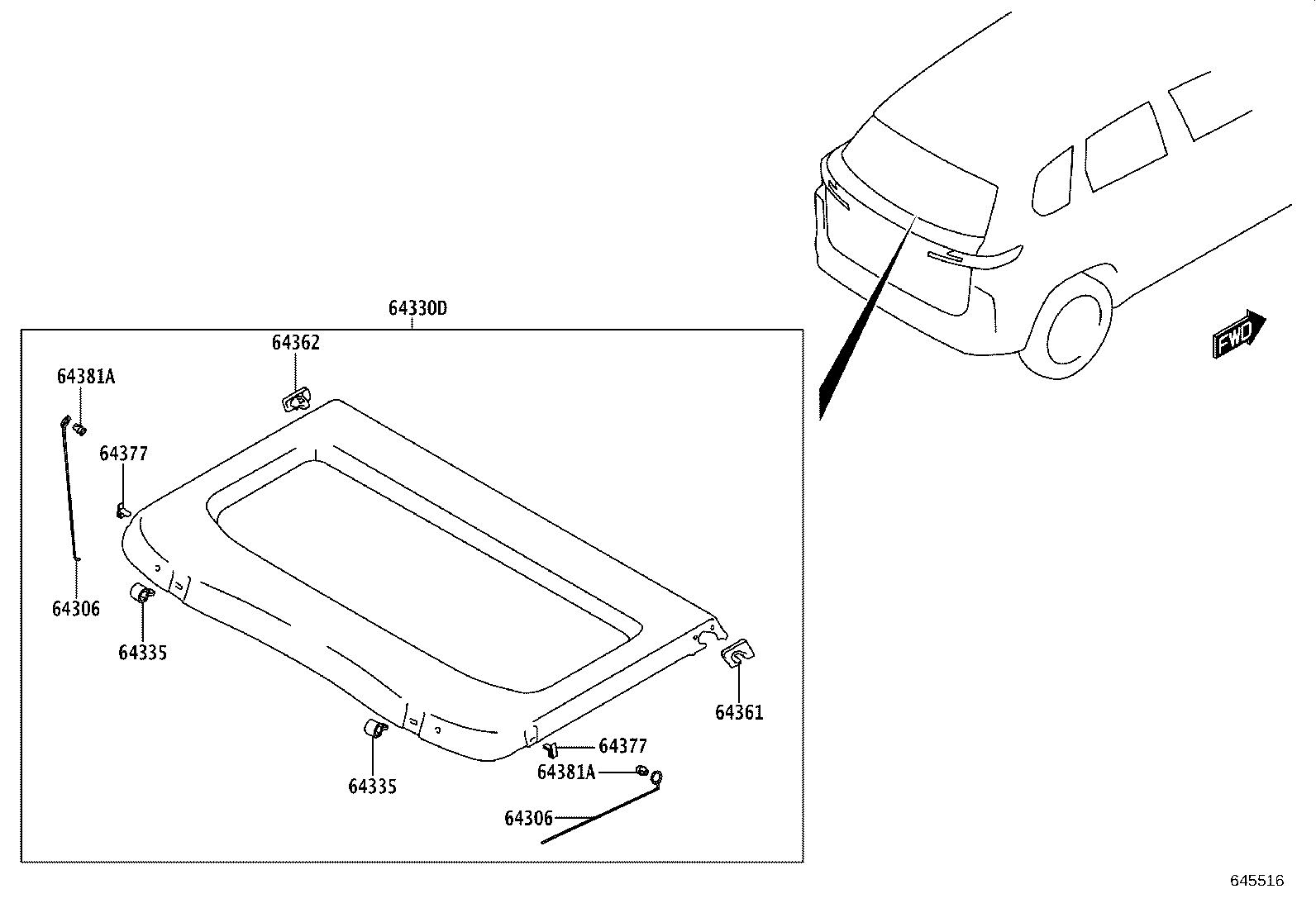

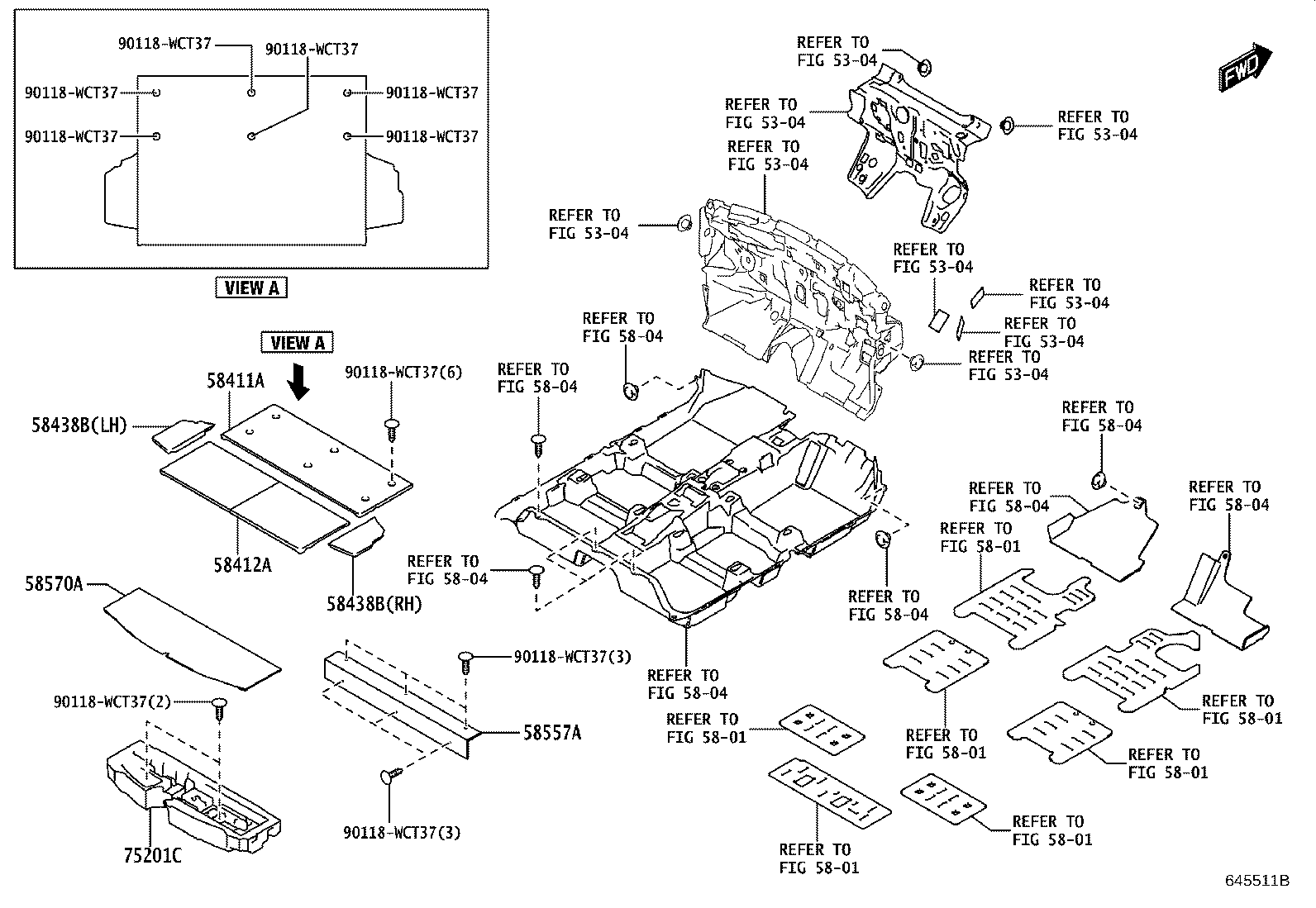

Figure 645509A 645509A 2024-01 → — Figure 645510B 645510B 2024-01 → — Figure 645511B 645511B 2024-01 → — Figure 645512 645512 2024-01 → — Figure 645513 645513 2024-01 → — Figure 645514 645514 2024-01 → — Figure 645515A 645515A 2024-01 → — Figure 645516 645516 2024-01 → —

Part groups

PNCDescription
58410B Board Assy, Deck
58411A Board, Deck, NO.1
58412A Board, Deck, NO.2
58438B Board, Deck, NO.3
58557A Mat, Rear
58570A Mat Assy, Rear Floor
58570D Carpet Assy, Rear Floor
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64335 Pad, Package Tray Trim Silencer, Rear
64361 Hinge, Package Tray Trim, RH
64362 Hinge, Package Tray Trim, LH
64377 Cushion, Package Tray Trim
64381A Hanger, Package Tray Trim
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64718A Cover, Deck Trim Service Hole
64718D Cover, Deck Trim Service Hole
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64746A Cover, Deck Trim Side Lamp Hole
75201C Box Sub-assy, Tool, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
