Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

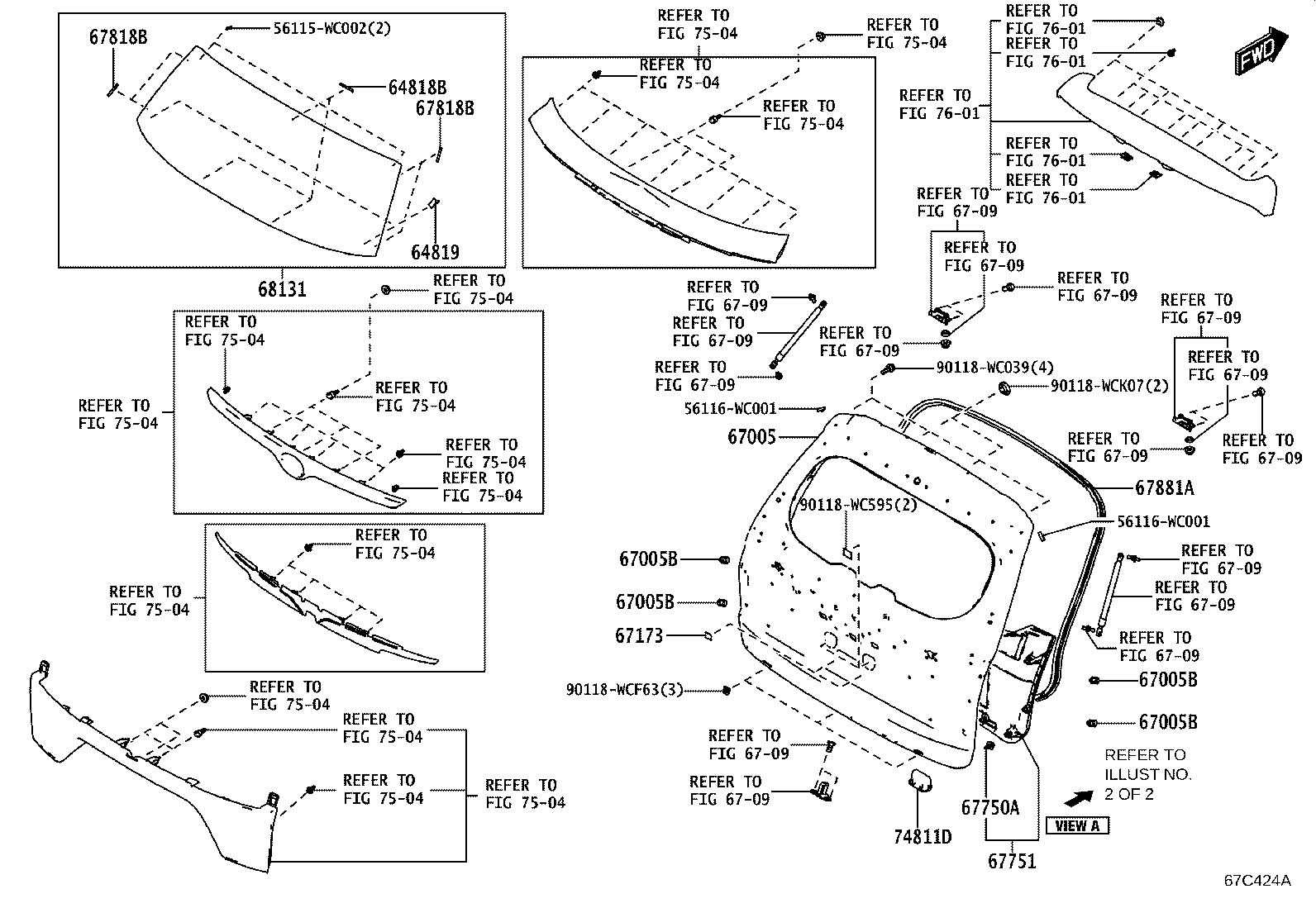

Back Door Panel & Glass
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67173 | Cushion, Back Door |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751 | Board, Back Door Trim |
| 67818B | Spacer, Back Window Glass |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
