Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

2 part groups · 5 illustrations

Illustrations

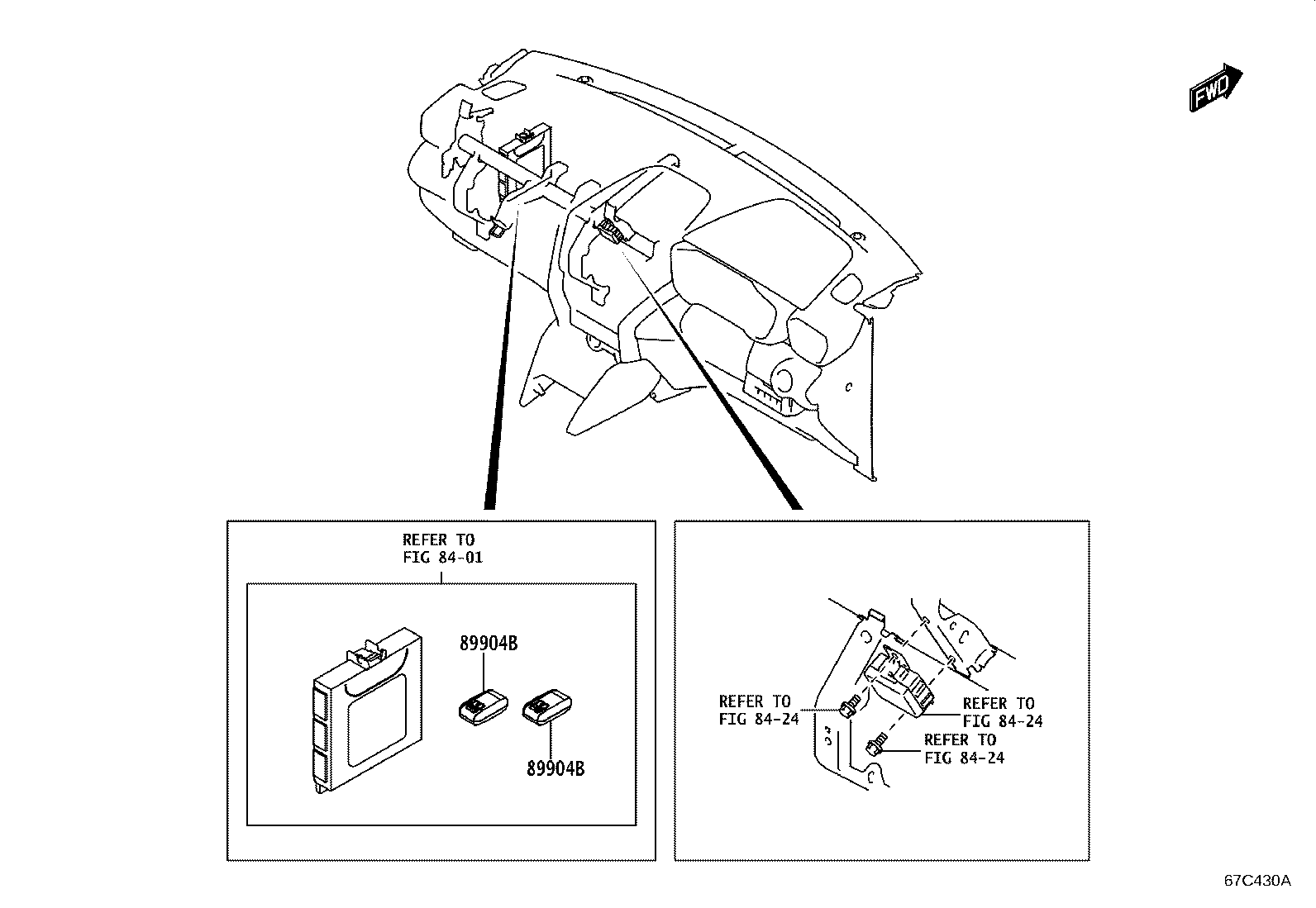

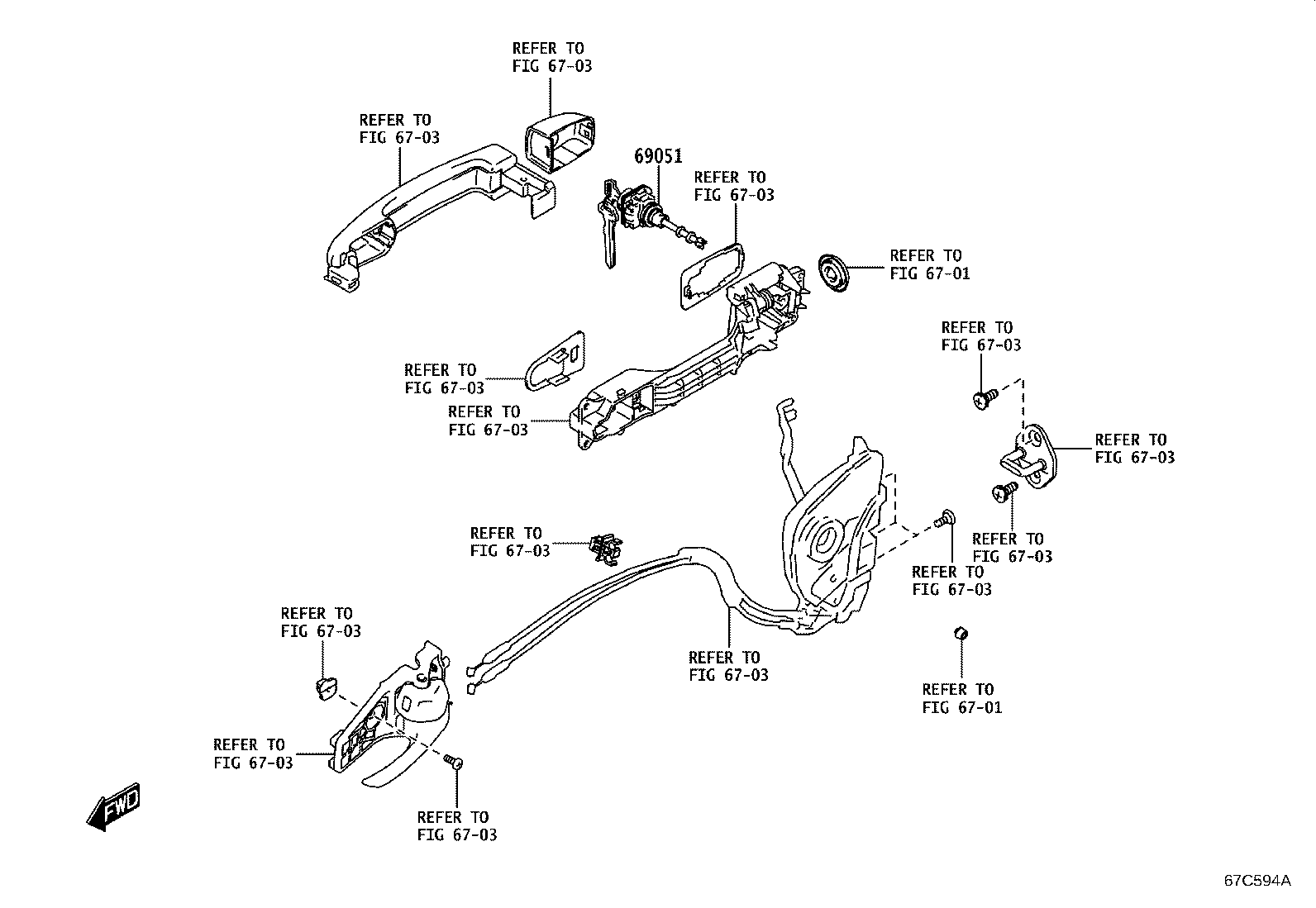

Figure 67C429A 67C429A 2024-01 → — Figure 67C430A 67C430A 2024-01 → — Figure 67C432A 67C432A 2024-01 → — Figure 67C651 67C651 2024-01 → — Figure 67C594A 67C594A 2024-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
