Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

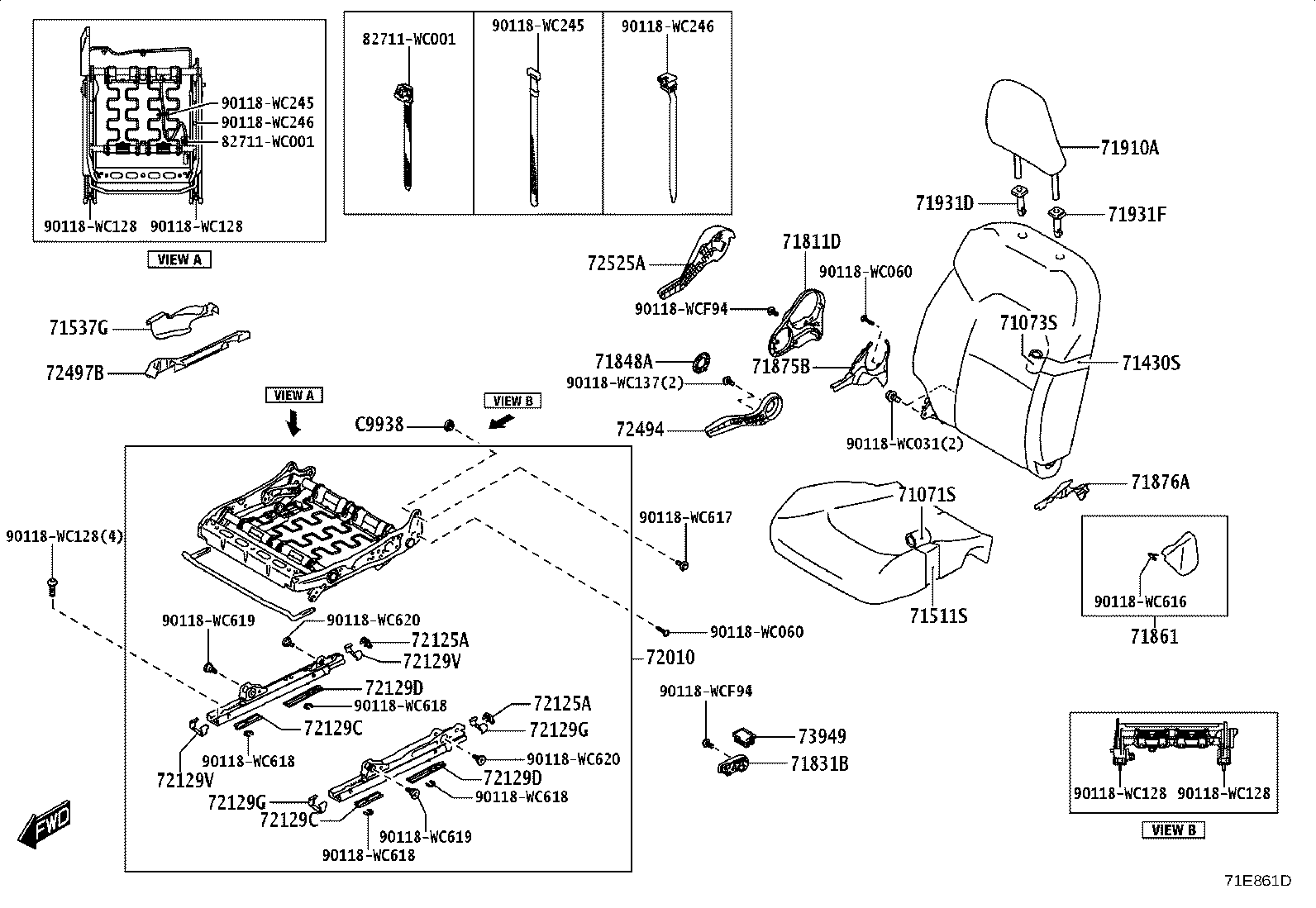

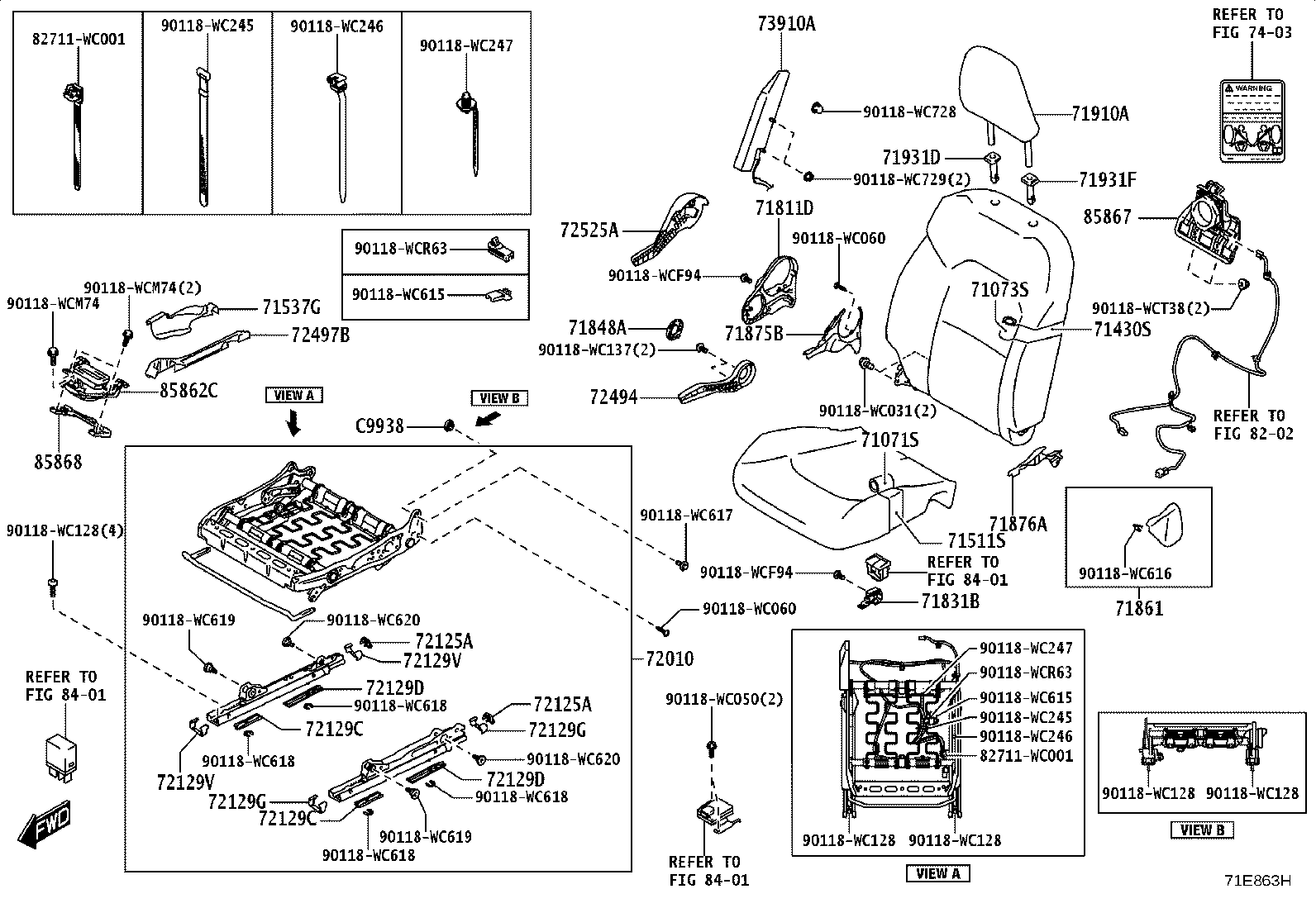

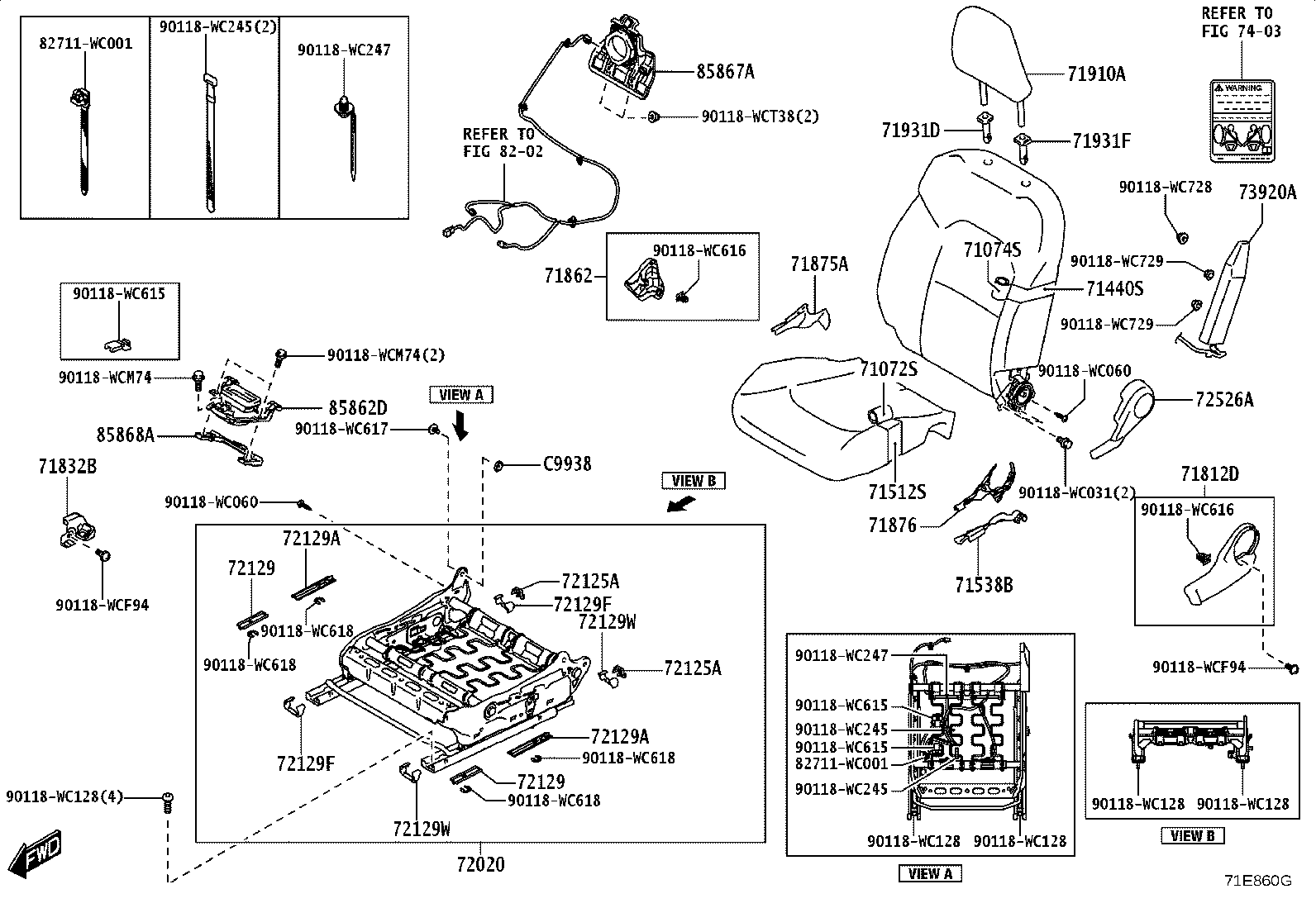

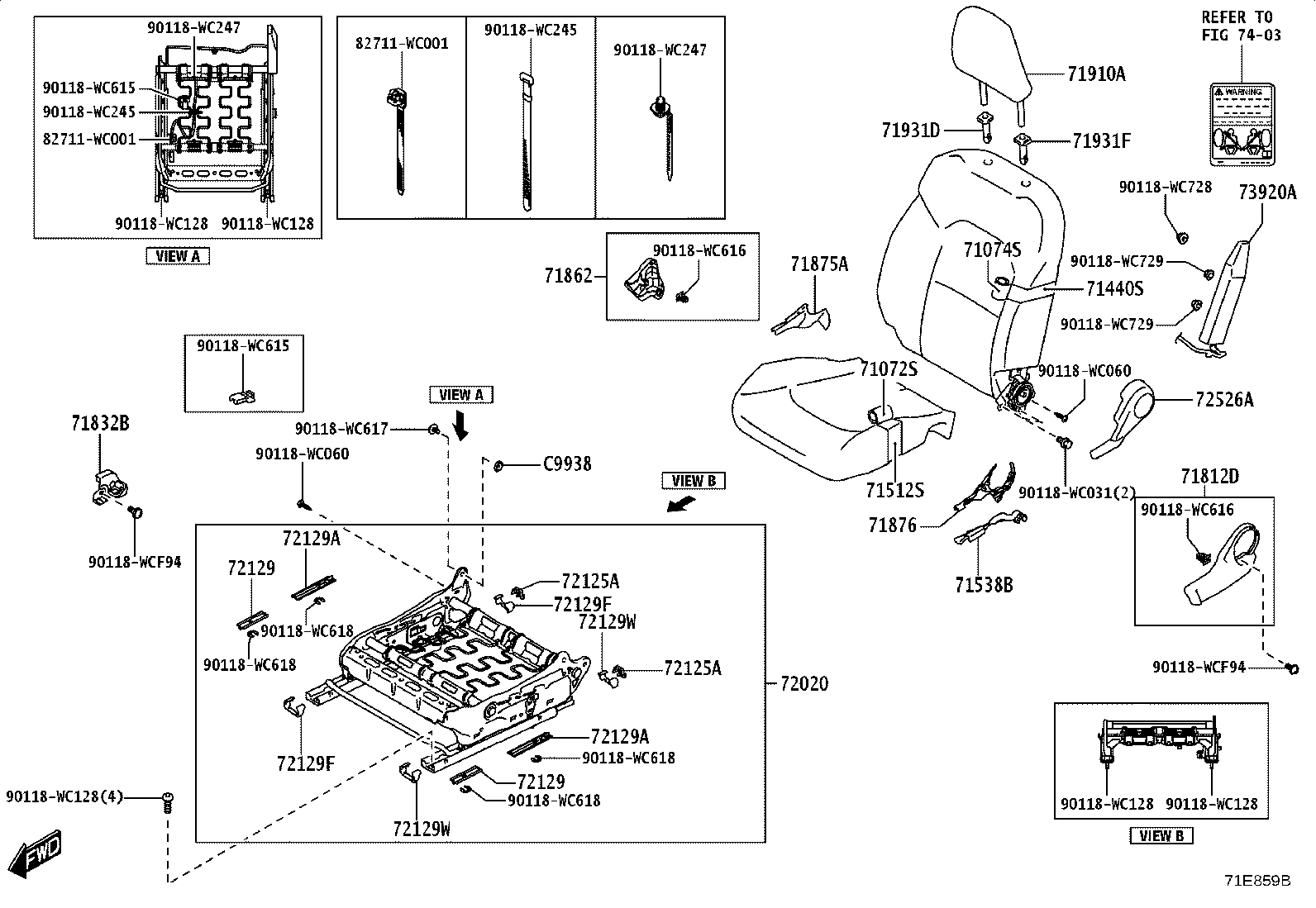

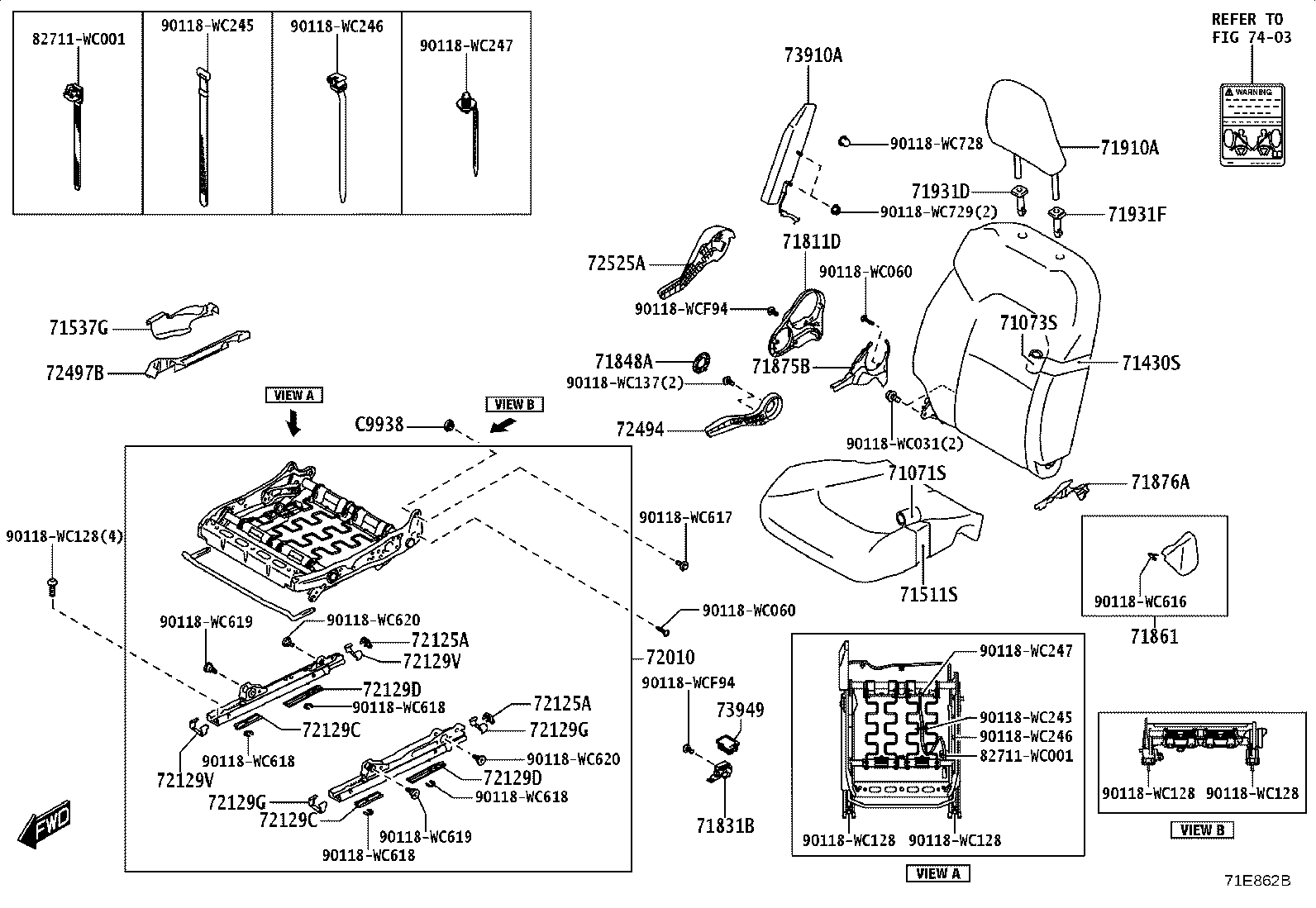

Front Seat & Seat Track
49 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71831B | Cover, Front Seat Hinge, RH |
| 71832B | Cover, Front Seat Hinge, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931D | Support, Front Seat Headrest, RH |
| 71931F | Support, Front Seat Headrest, LH |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72129C | Protector, Seat Track Lower Rail, NO.3 |
| 72129D | Protector, Seat Track Lower Rail, NO.4 |
| 72129F | Protector, Seat Track Lower Rail, NO.5 |
| 72129G | Protector, Seat Track Lower Rail, NO.6 |
| 72129V | Protector, Seat Track Lower Rail, RH |
| 72129W | Protector, Seat Track Lower Rail, LH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72497B | Cover, Vertical Adjuster Bracket, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 73949 | Cap |
| 85862C | Blower, Seat Cushion Climate Control, RH |
| 85862D | Blower, Seat Cushion Climate Control, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867A | Blower, Seatback Climate Control, LH |
| 85868 | Bracket, Seat Cushion Climate Control, RH |
| 85868A | Bracket, Seat Cushion Climate Control, LH |
| C9938 | Bush |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
