Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

6 part groups · 7 illustrations

Illustrations

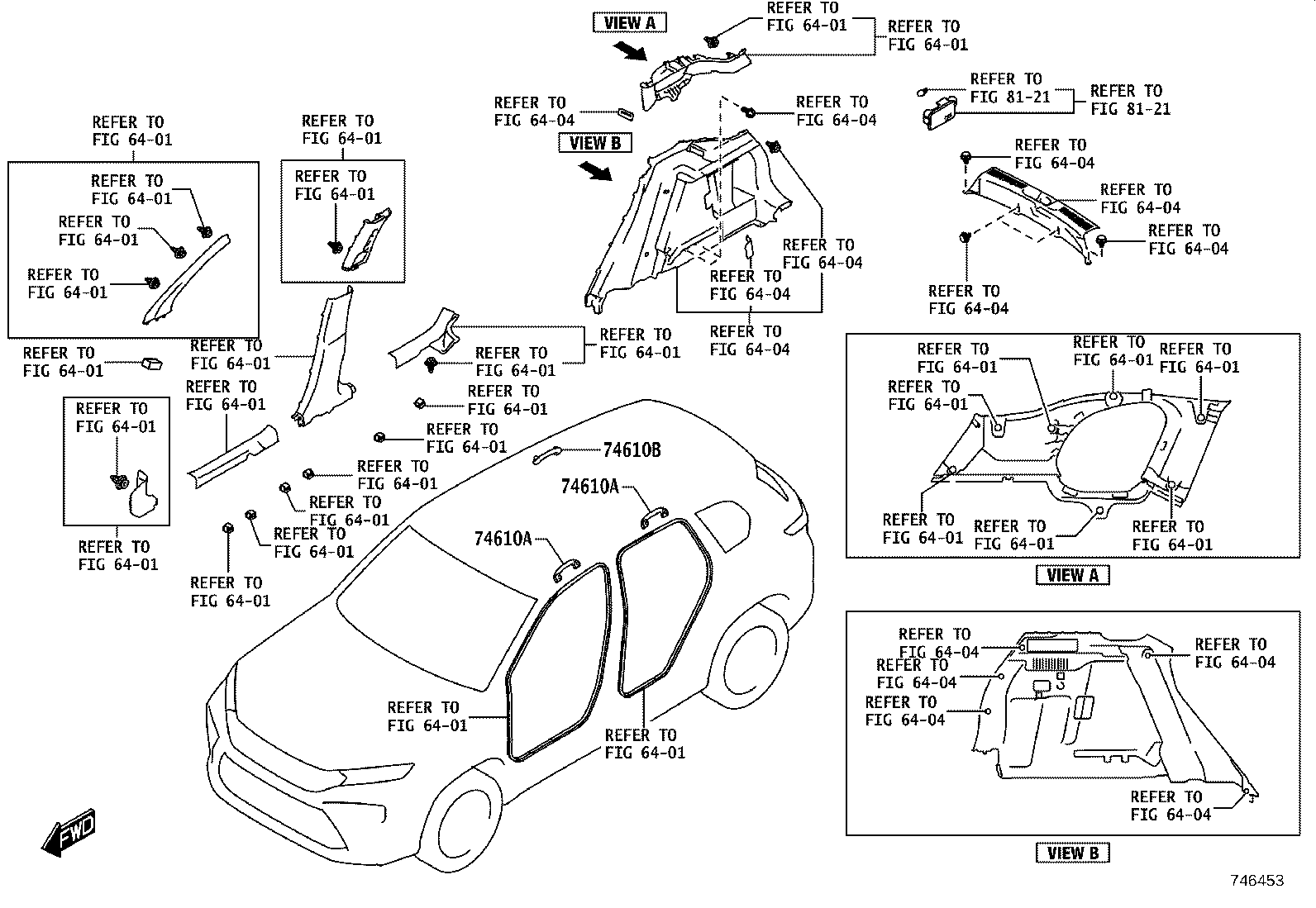

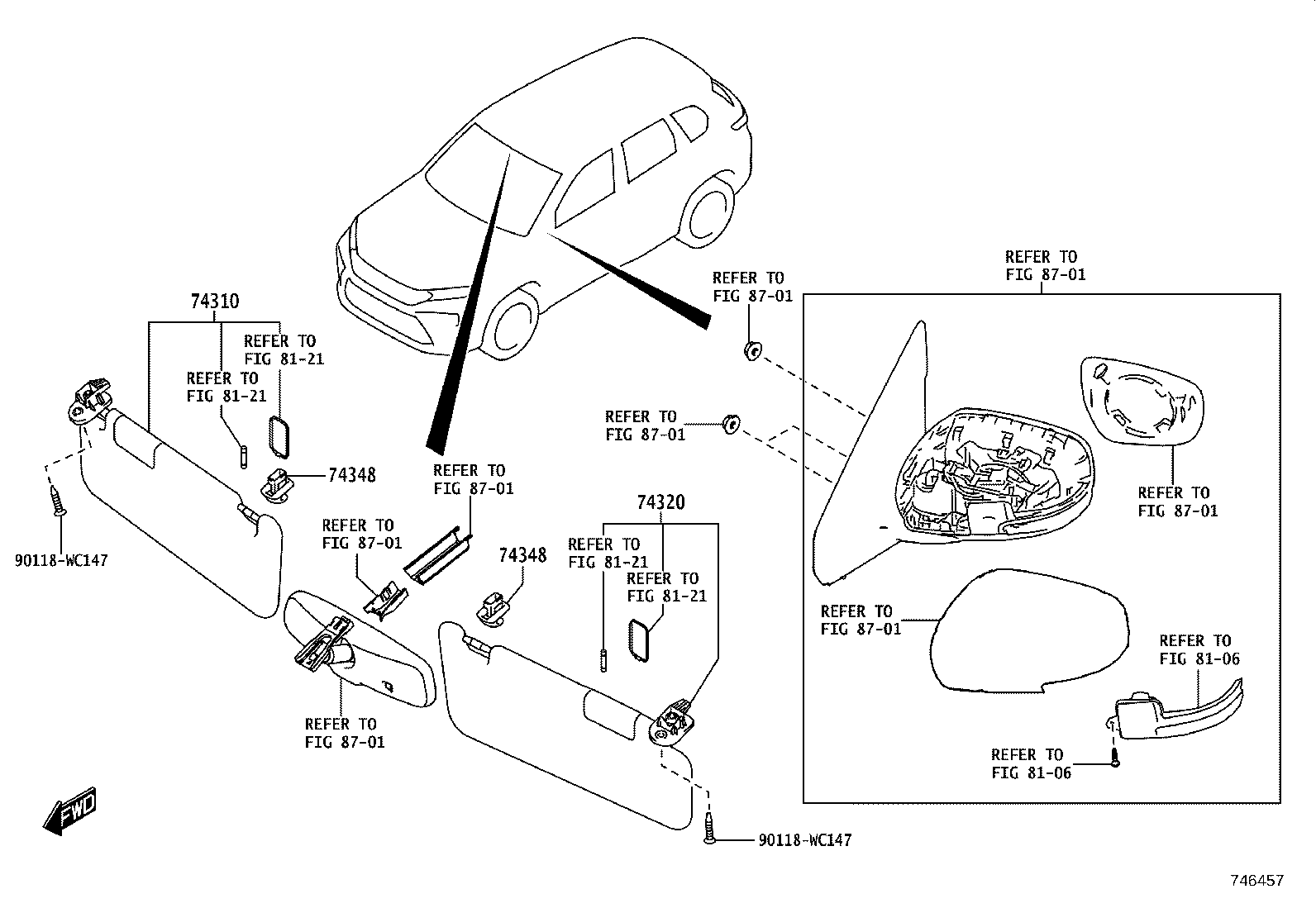

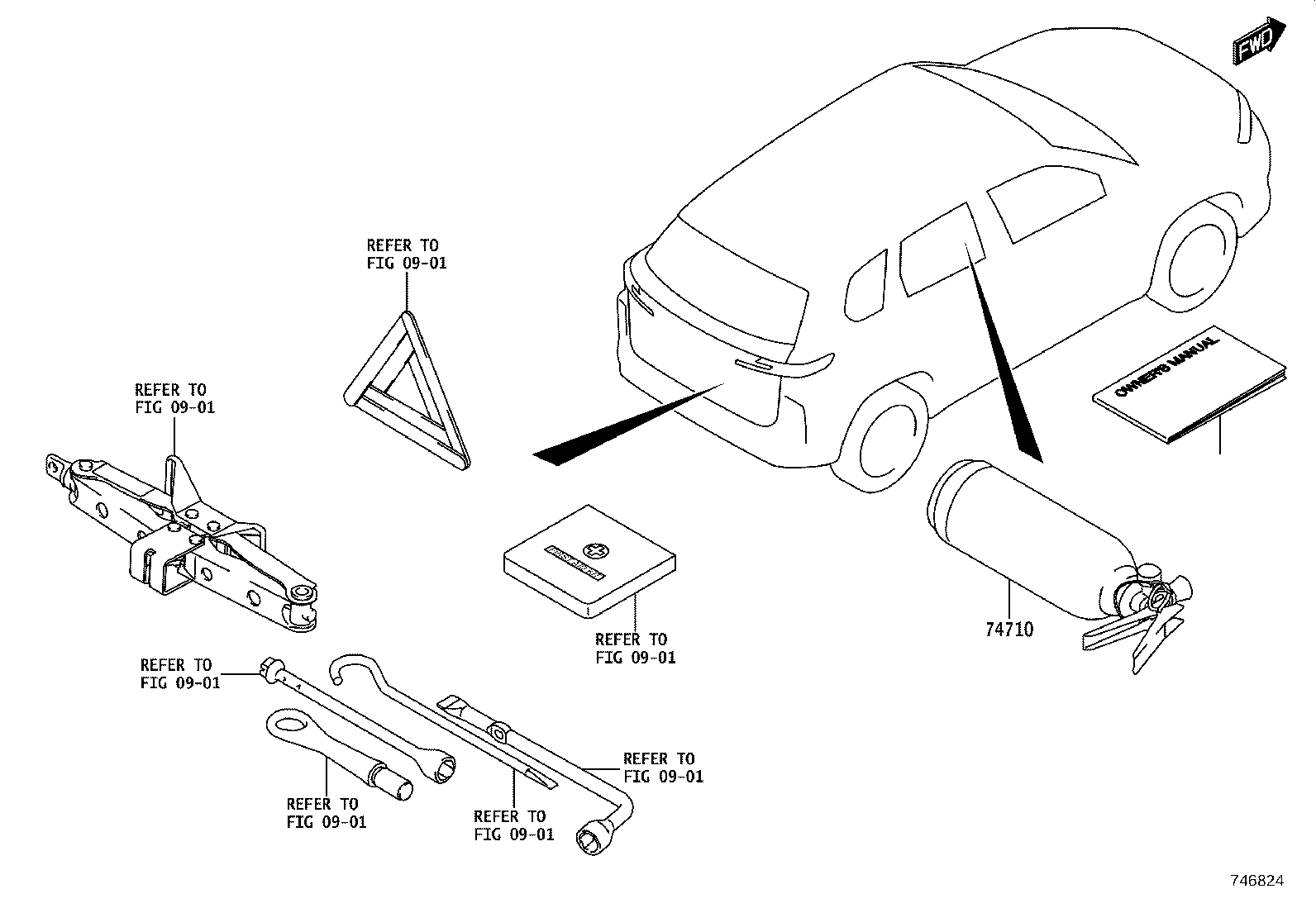

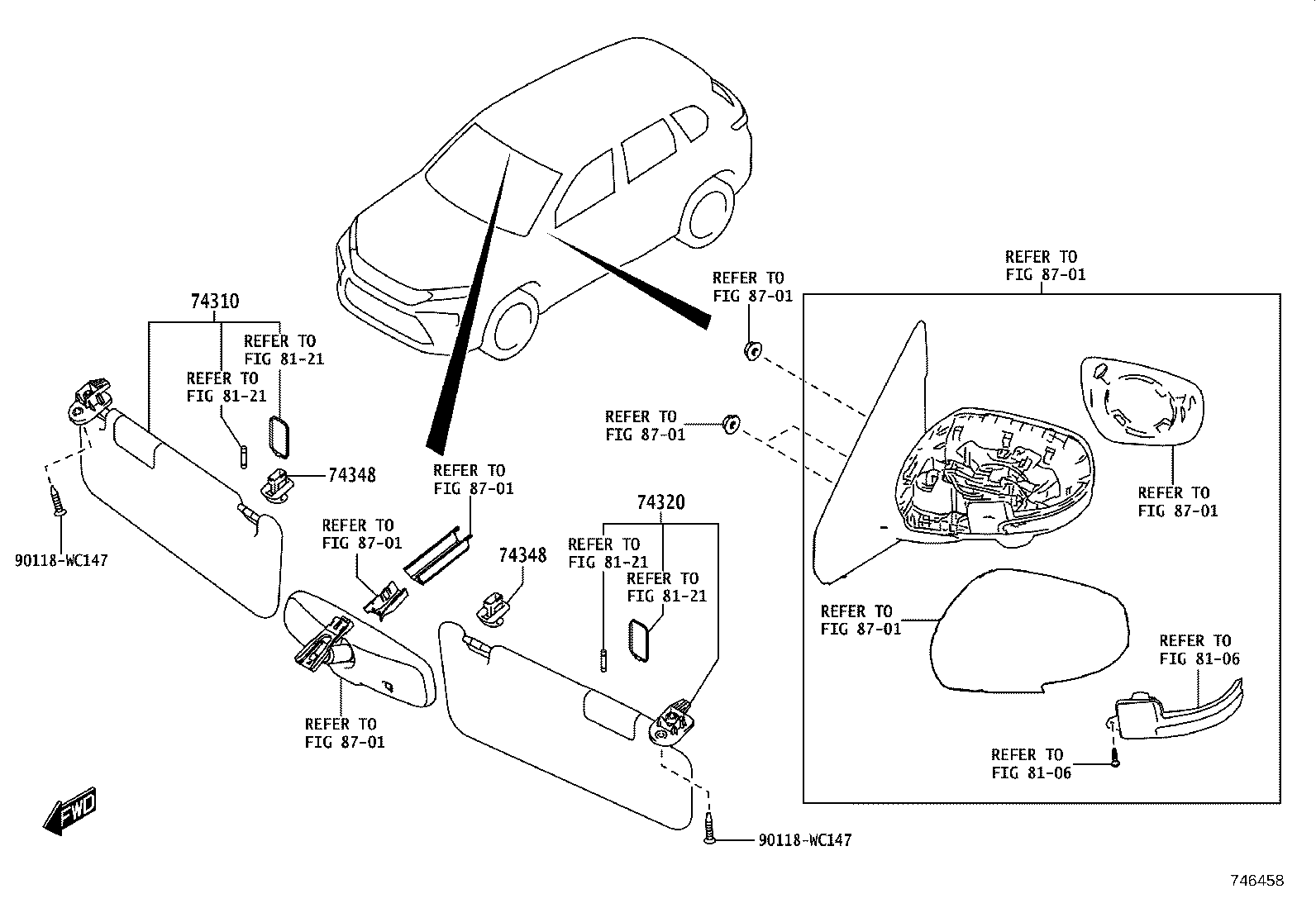

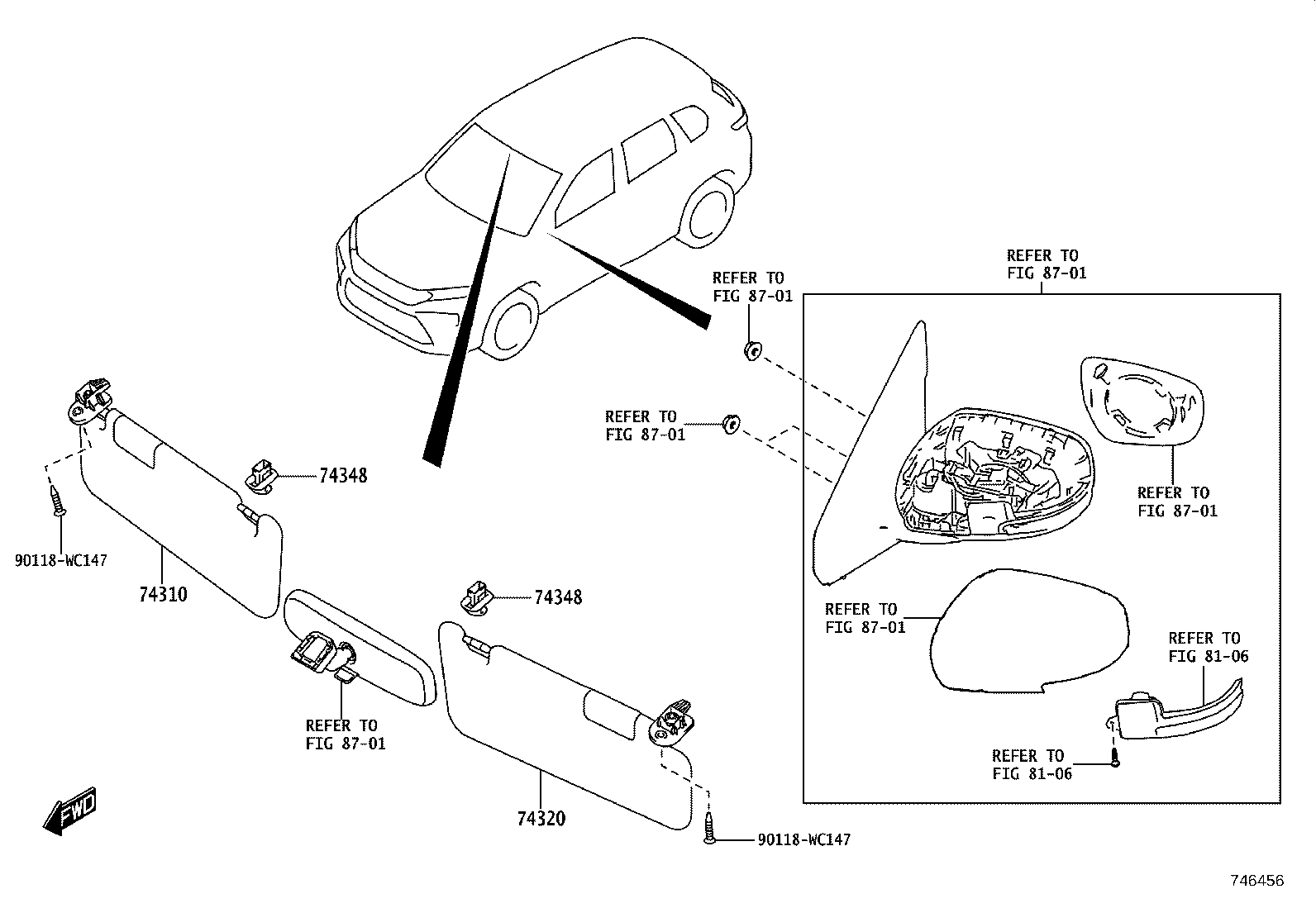

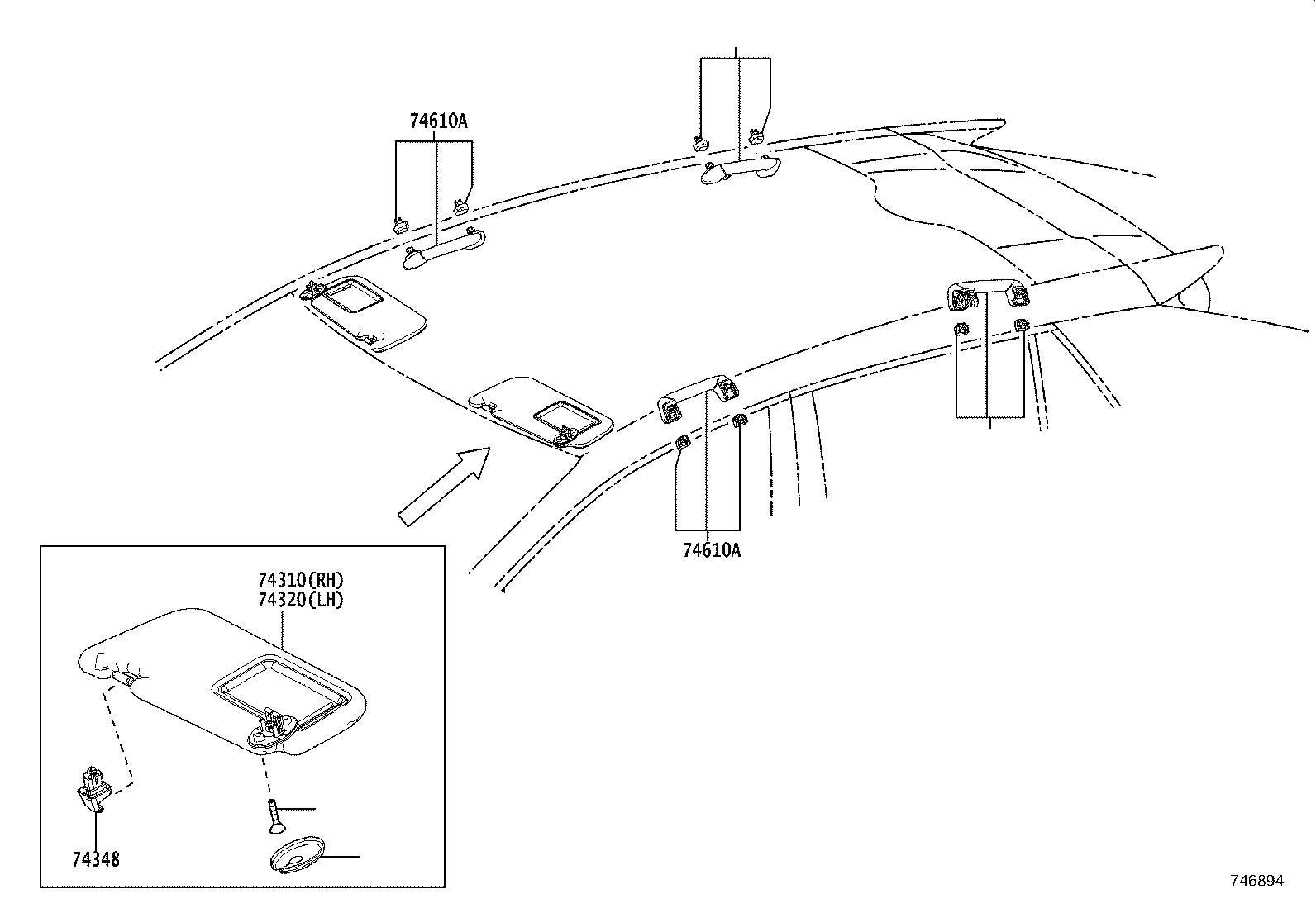

Figure 746452 746452 2024-01 → — Figure 746453 746453 2024-01 → — Figure 746894 746894 2024-01 → — Figure 746456 746456 2024-01 → — Figure 746457 746457 2024-01 → — Figure 746458 746458 2024-01 → — Figure 746824 746824 2024-01 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610B Grip Assy, Assist, NO.2 RH
74710 Extinguisher Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
