Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

5 part groups · 5 illustrations

Illustrations

746437 2024-01 → —

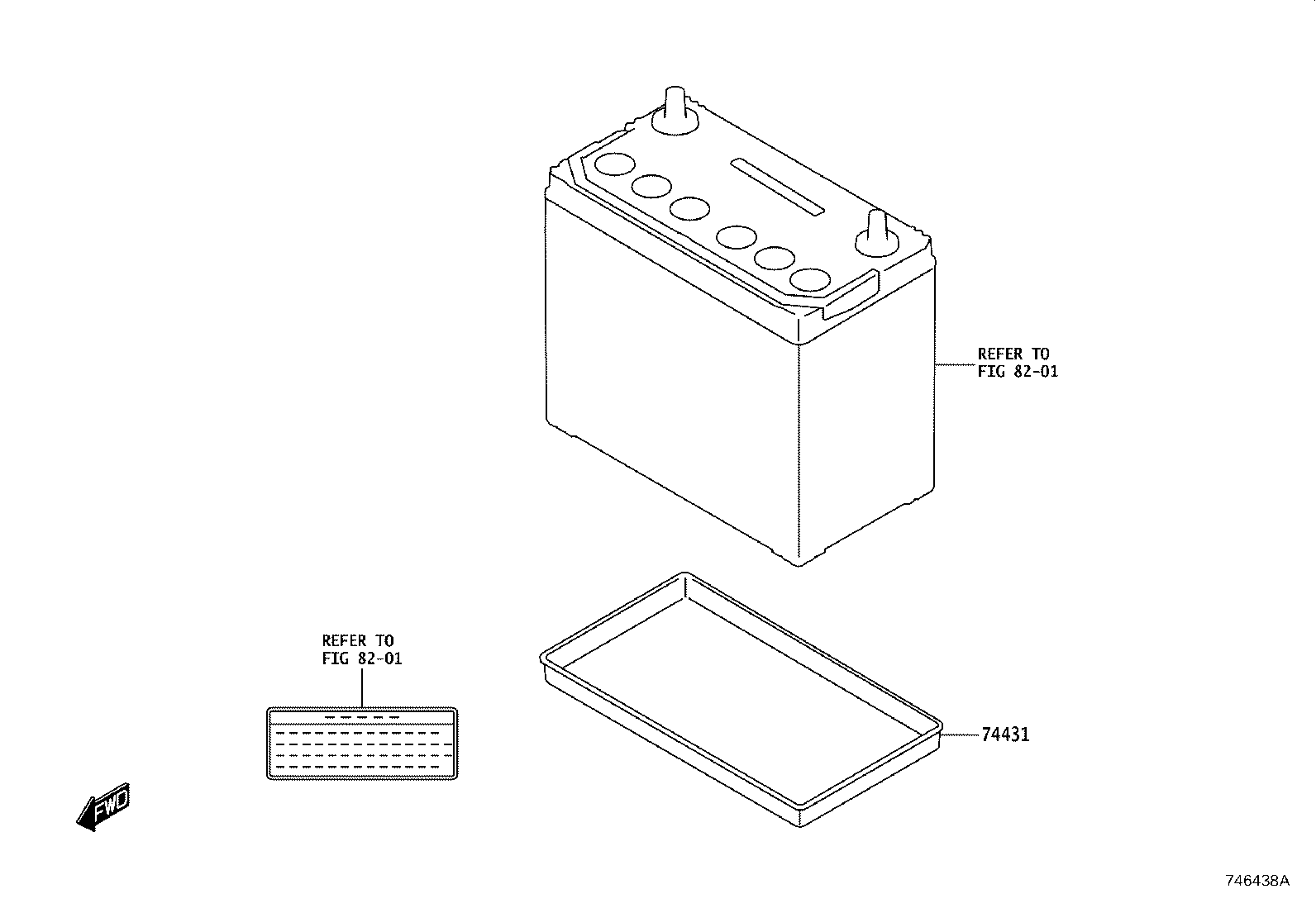

Figure 746438A

746438A 2024-01 → —

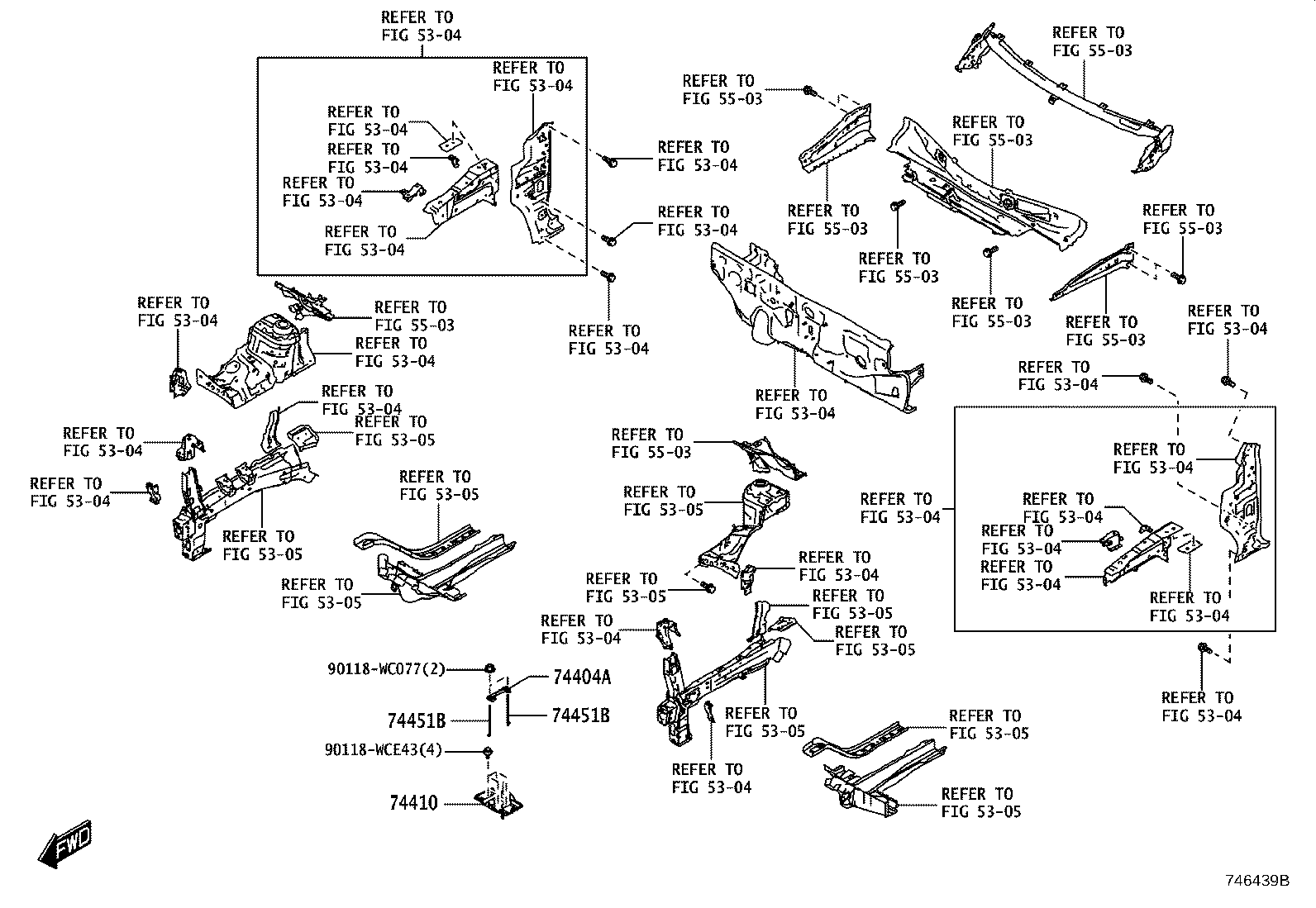

Figure 746439B

746439B 2024-01 → —

Figure 746440B

746440B 2024-01 → —

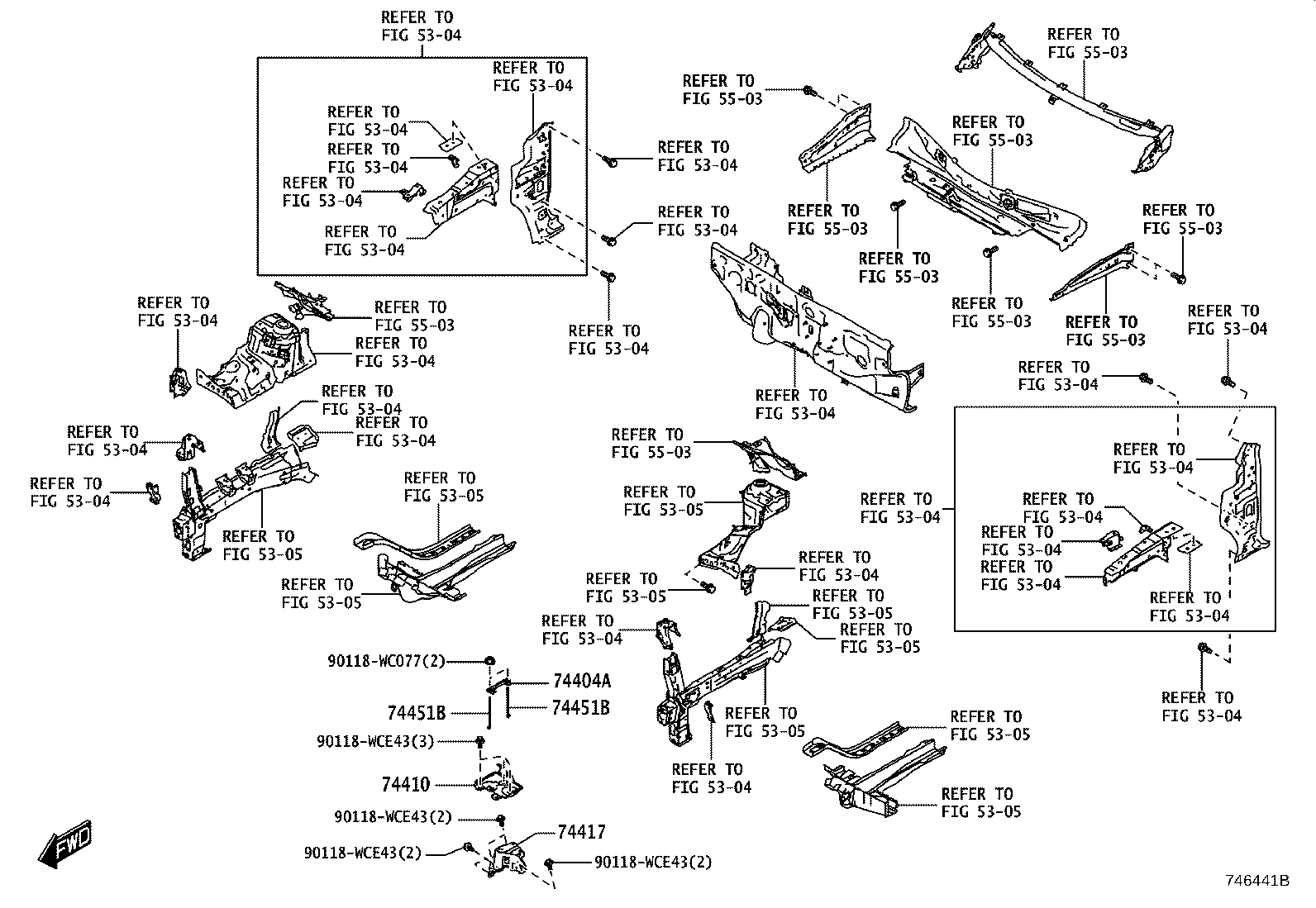

Figure 746441B

746441B 2024-01 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74410	Carrier Assy, Battery
74417	Bracket, Battery Carrier
74431	Tray, Battery
74451B	Bolt, Battery Clamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
