Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

10 part groups · 11 illustrations

Illustrations

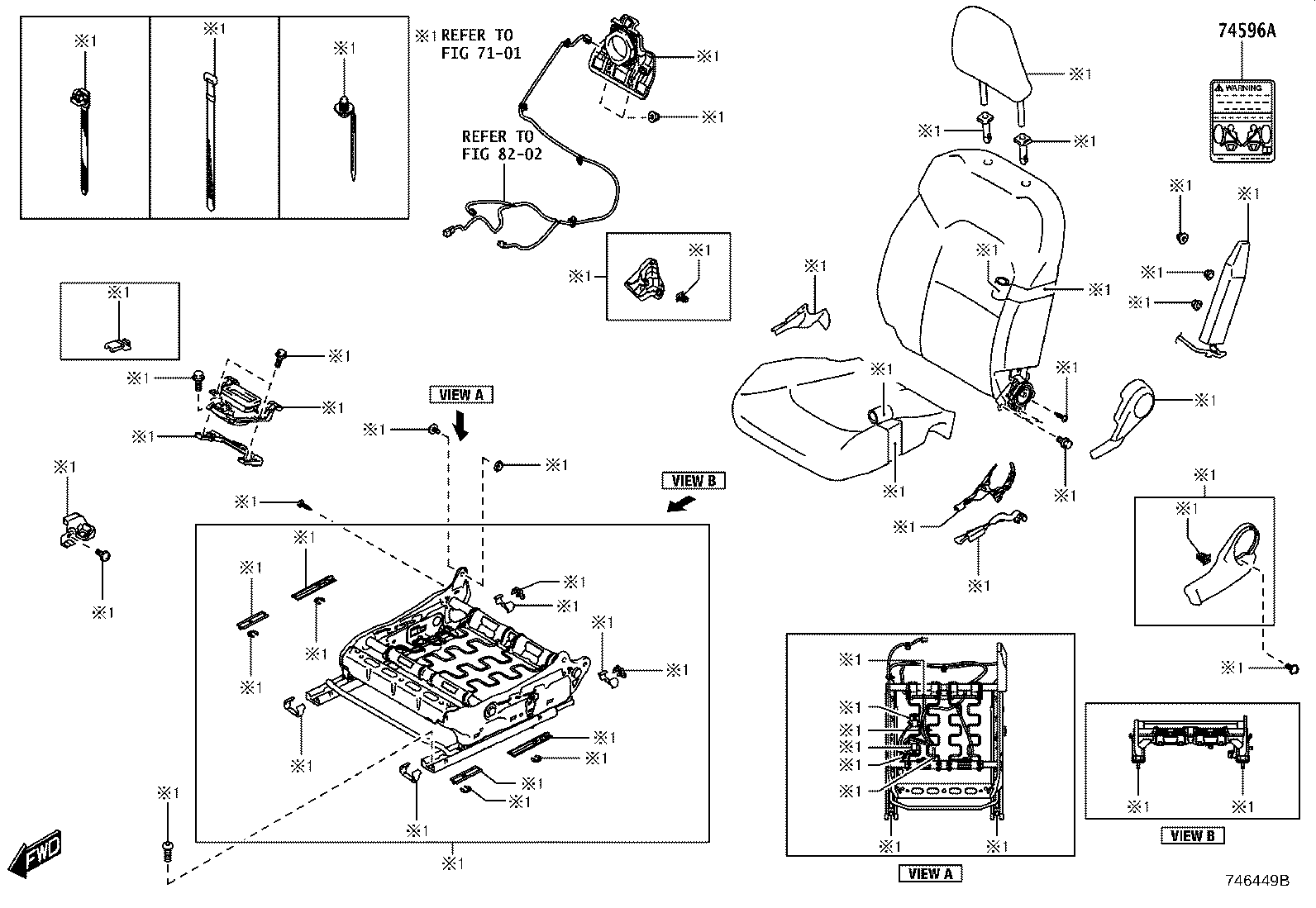

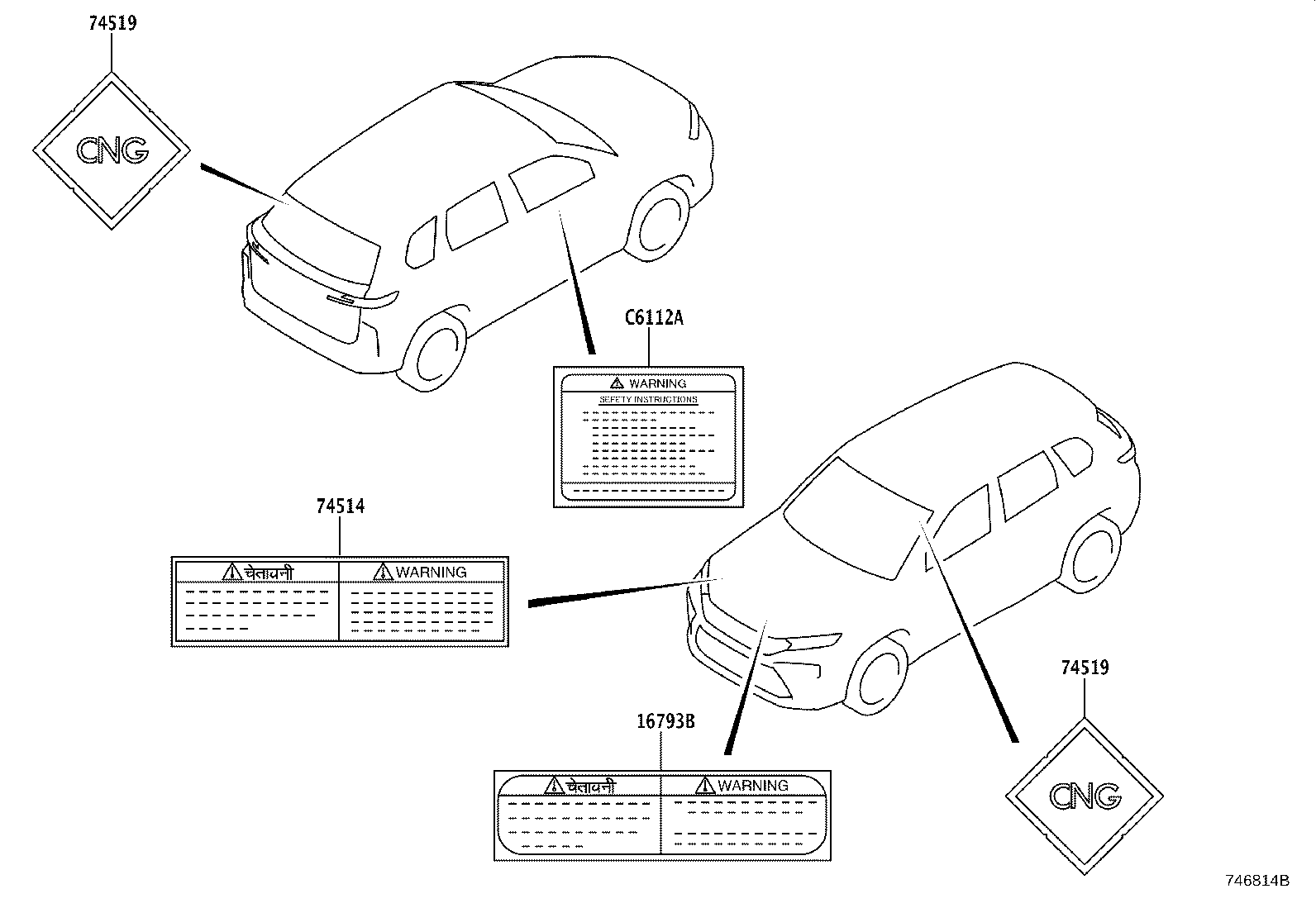

Figure 746813 746813 2024-01 → — Figure 746814B 746814B 2024-01 → — Figure 746443 746443 2024-01 → — Figure 746444A 746444A 2024-01 → — Figure 746445A 746445A 2024-01 → — Figure 746446B 746446B 2024-01 → — Figure 746447C 746447C 2024-01 → — Figure 746448A 746448A 2024-01 → — Figure 746449B 746449B 2024-01 → — Figure 746451B 746451B 2024-01 → — Figure 746450A 746450A 2024-01 → —

Part groups

PNCDescription
16793B Label, Cooling Fan Information
74514 Plate, Certification Regulation
74519 Plate, Fuel Caution
74559B Label, Fuel Information
74559C Label, Fuel Information, NO.2
74572A Label, Fuel Inlet Operational Information

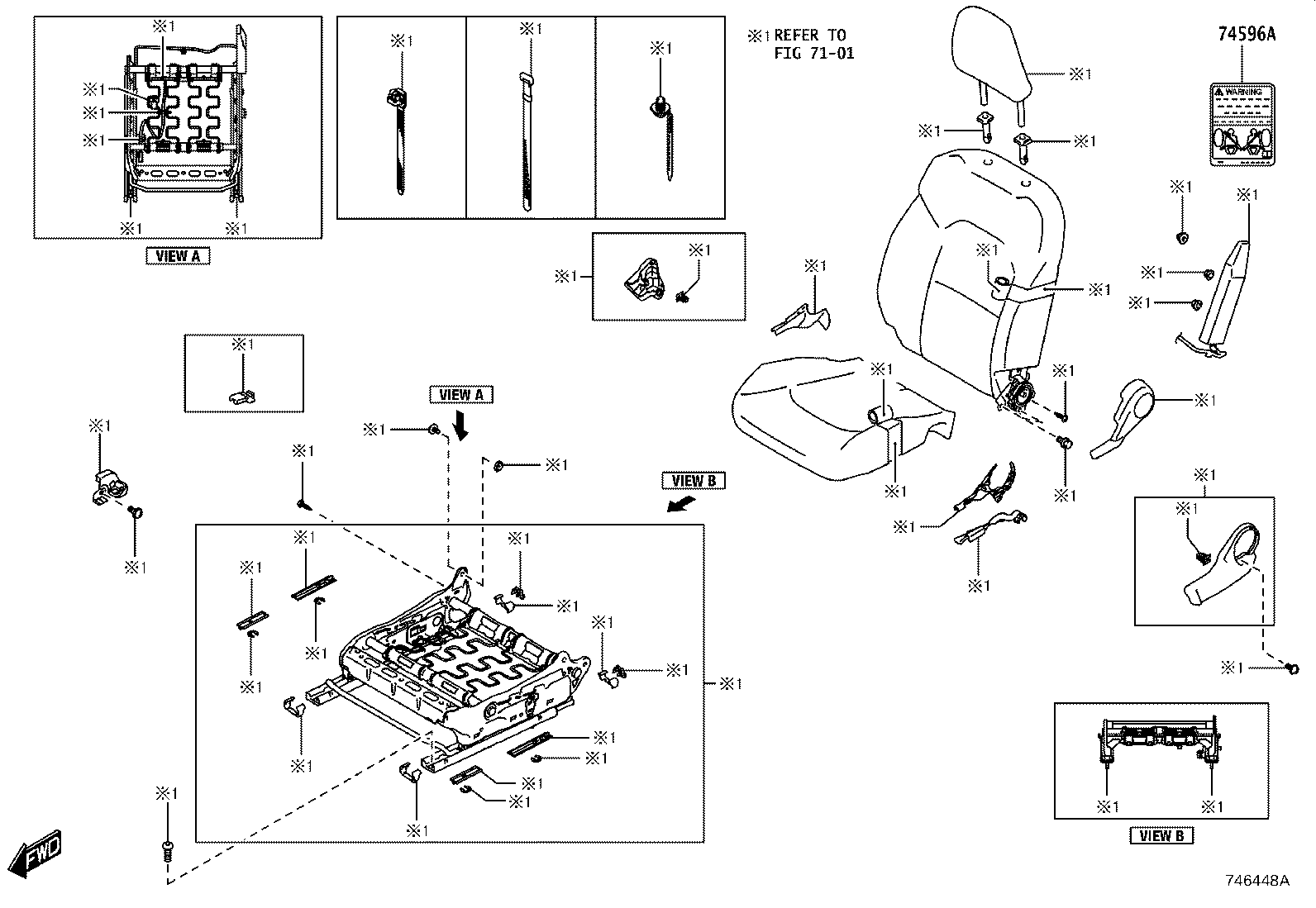

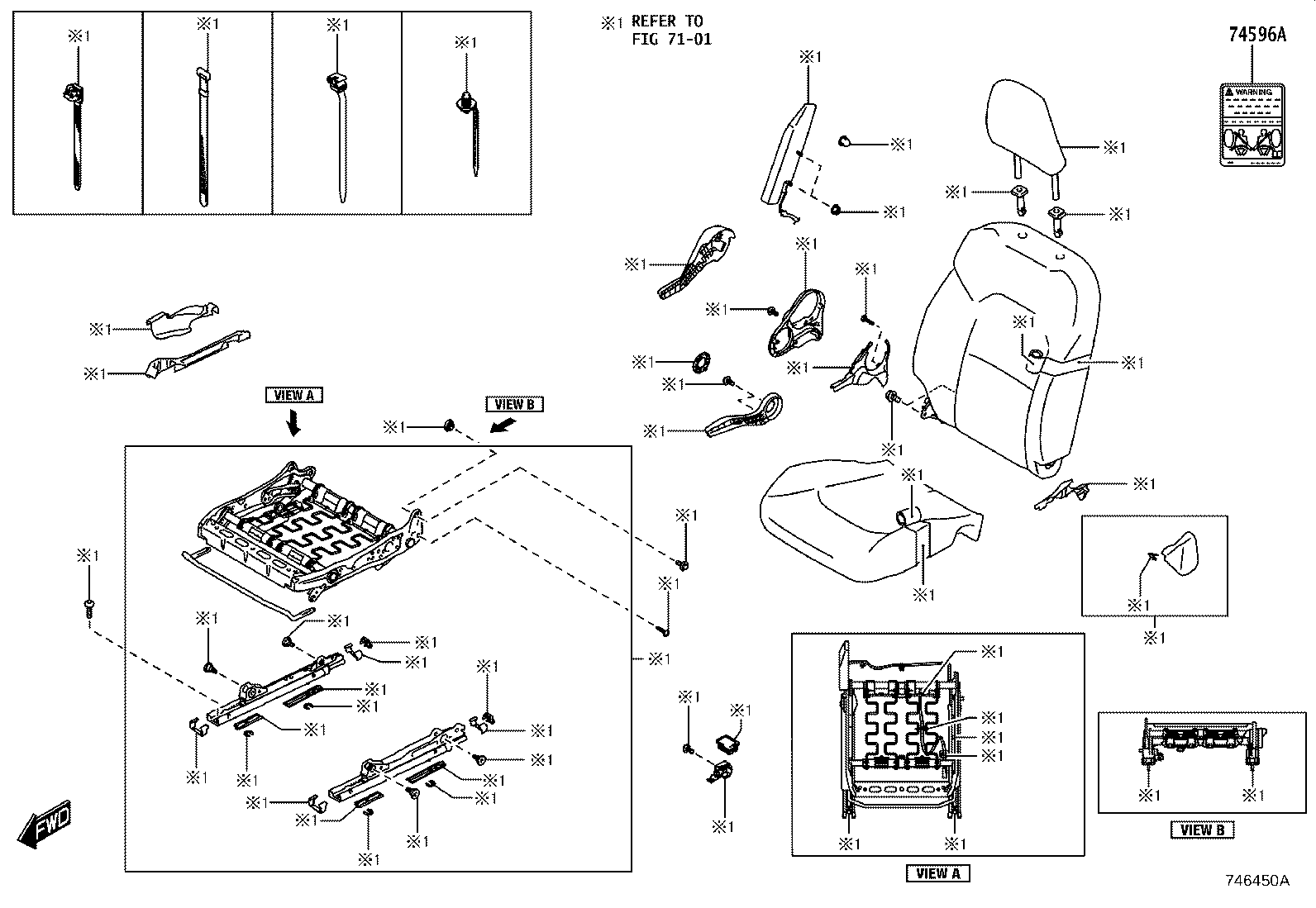

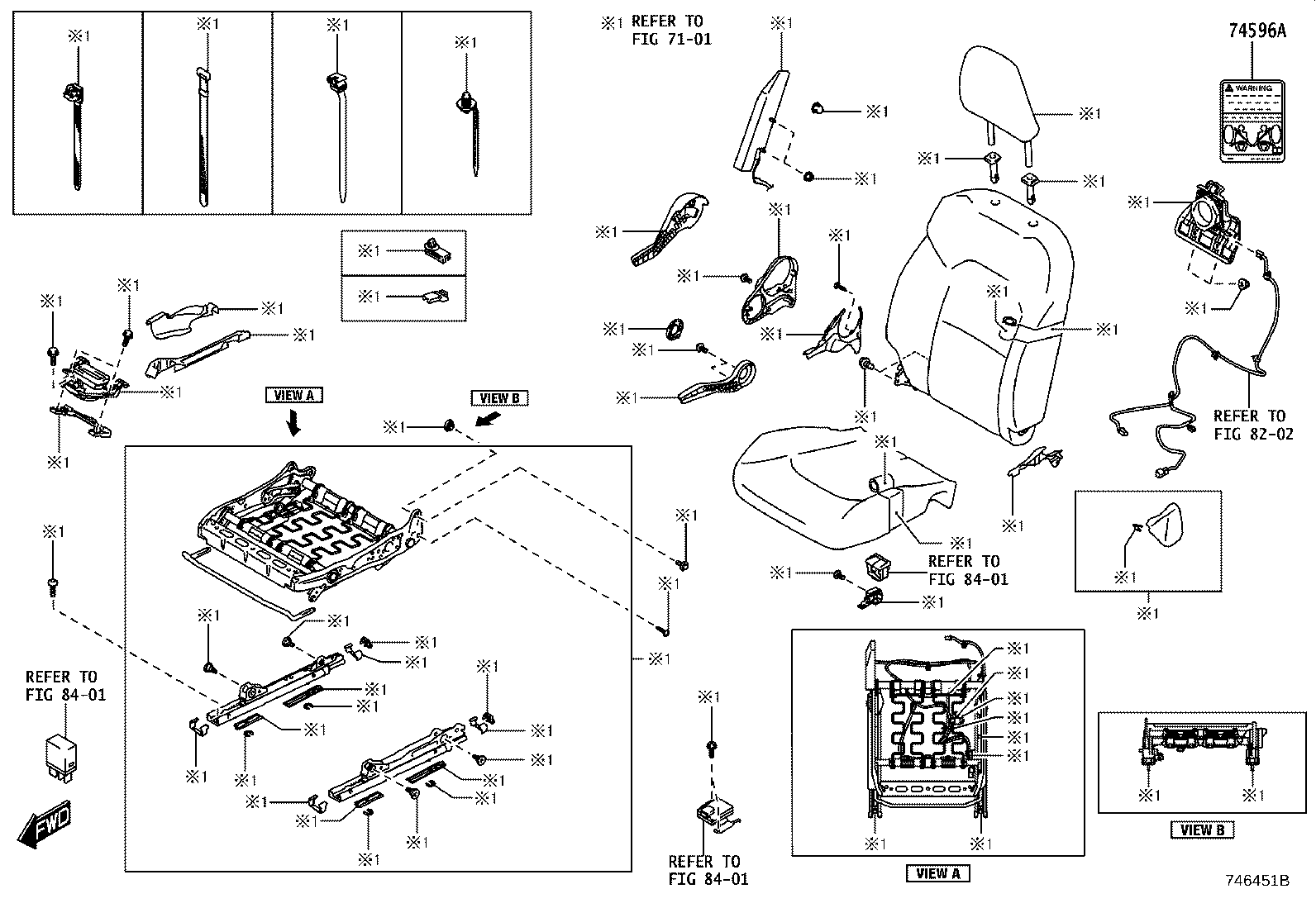

74596A Label, Side Airbag Caution

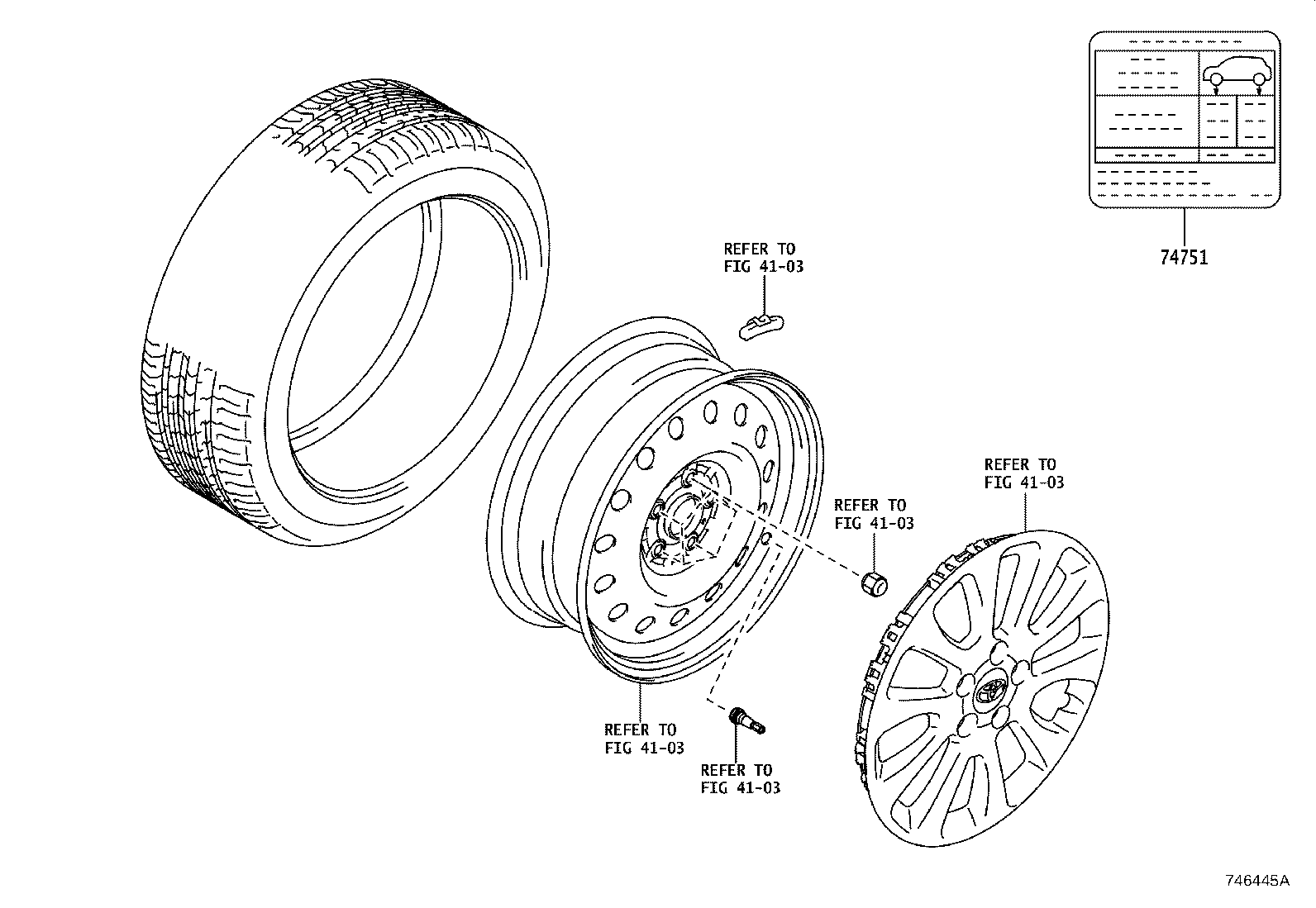

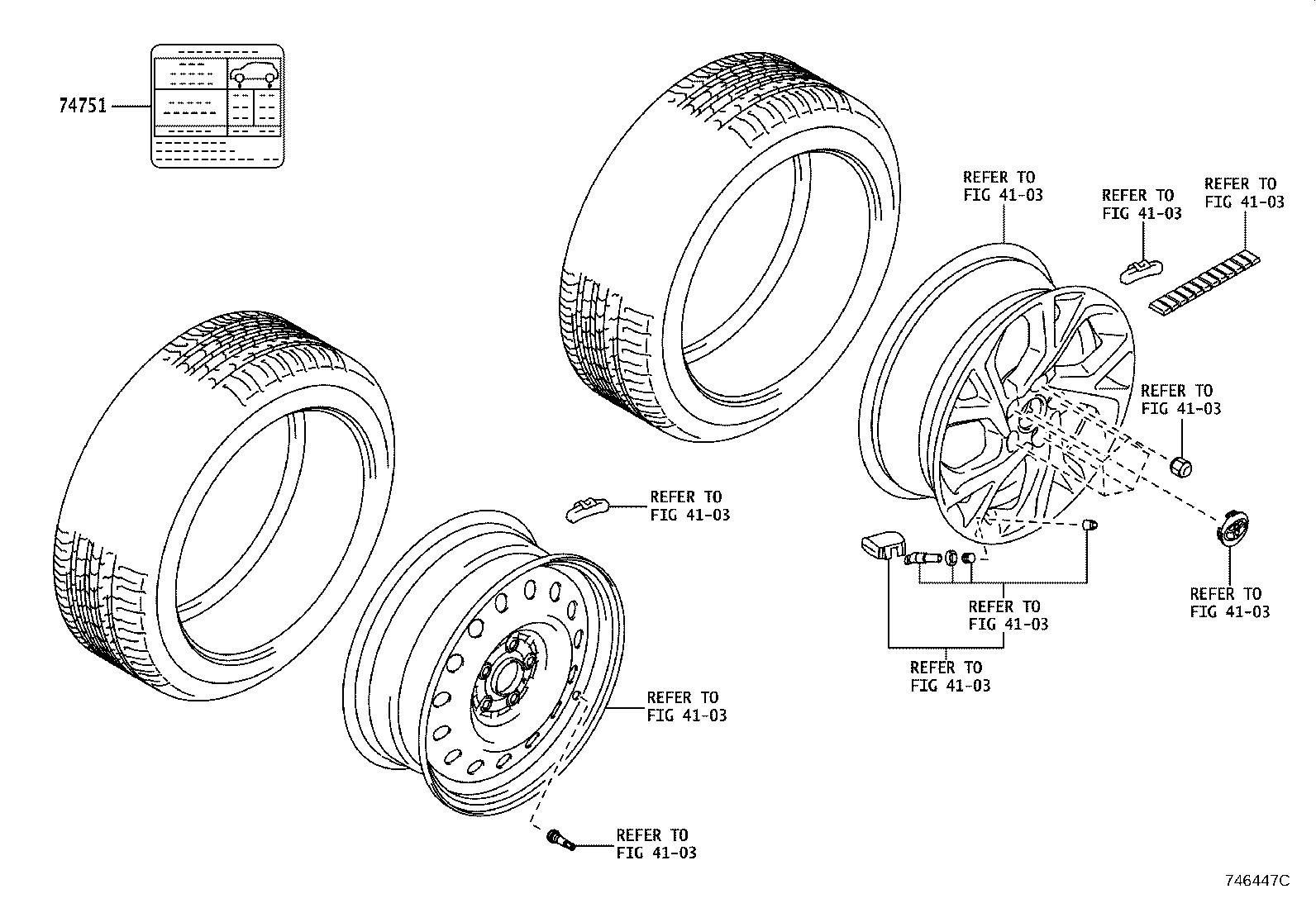

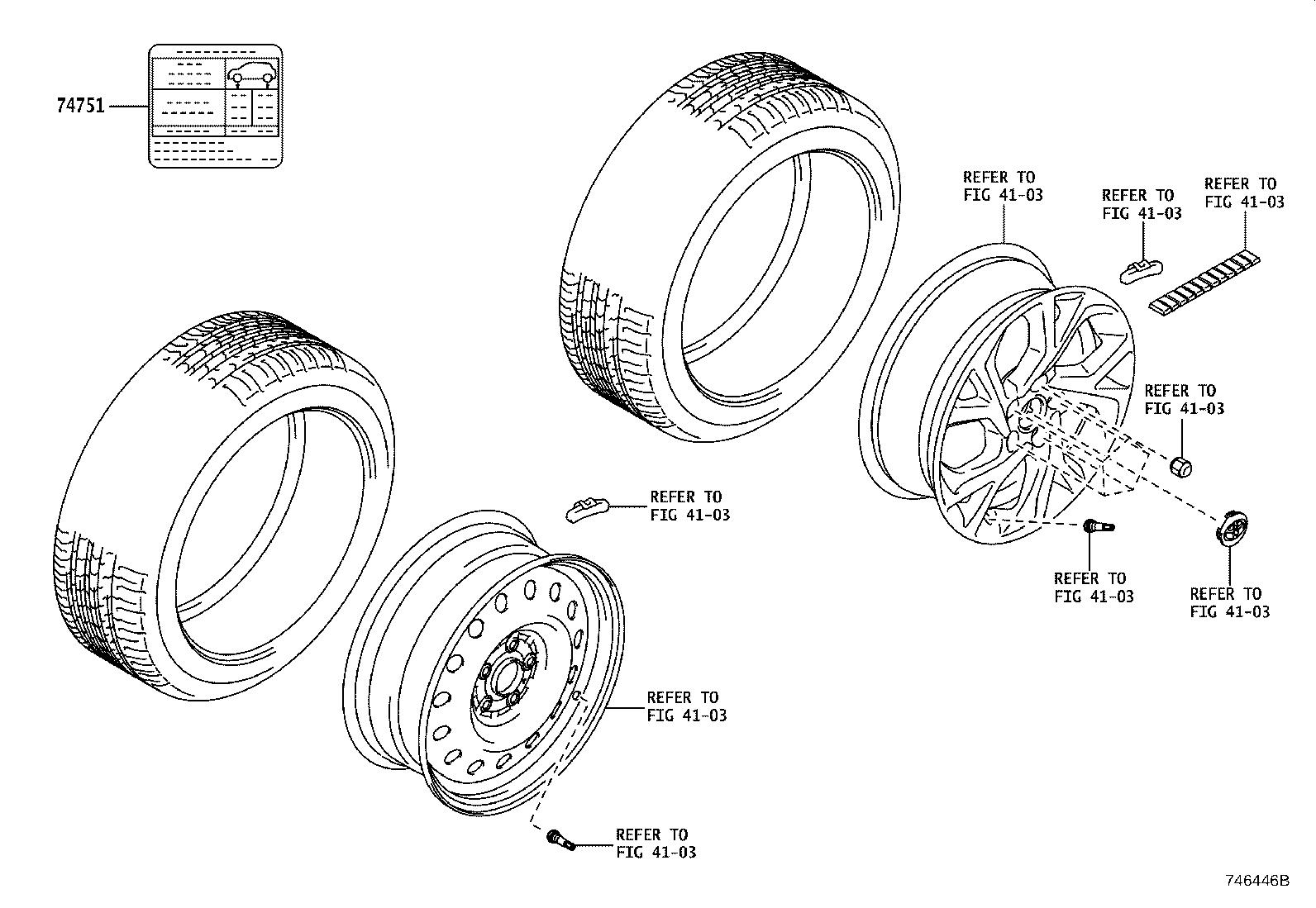

74751 Label, Tire Pressure Information

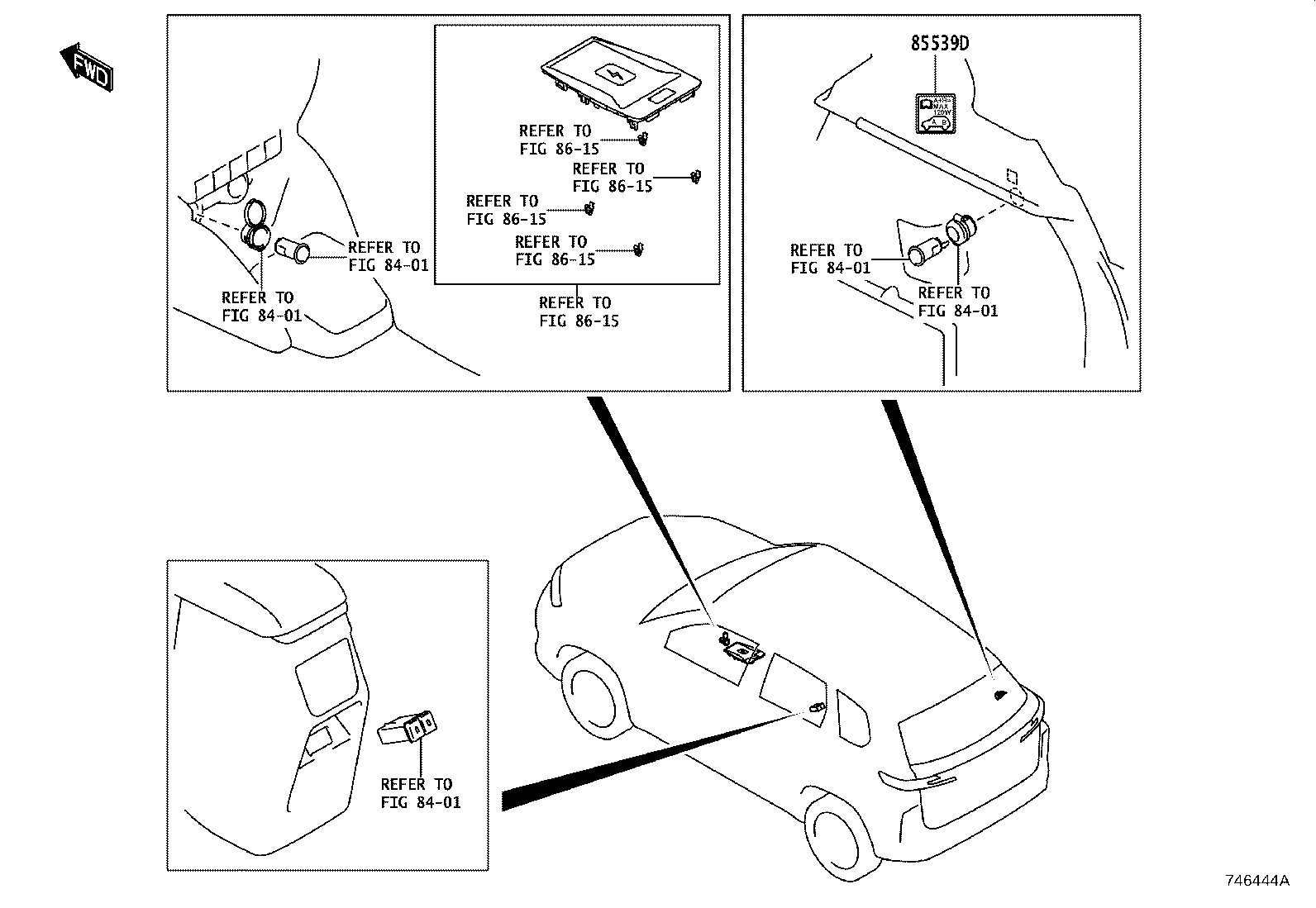

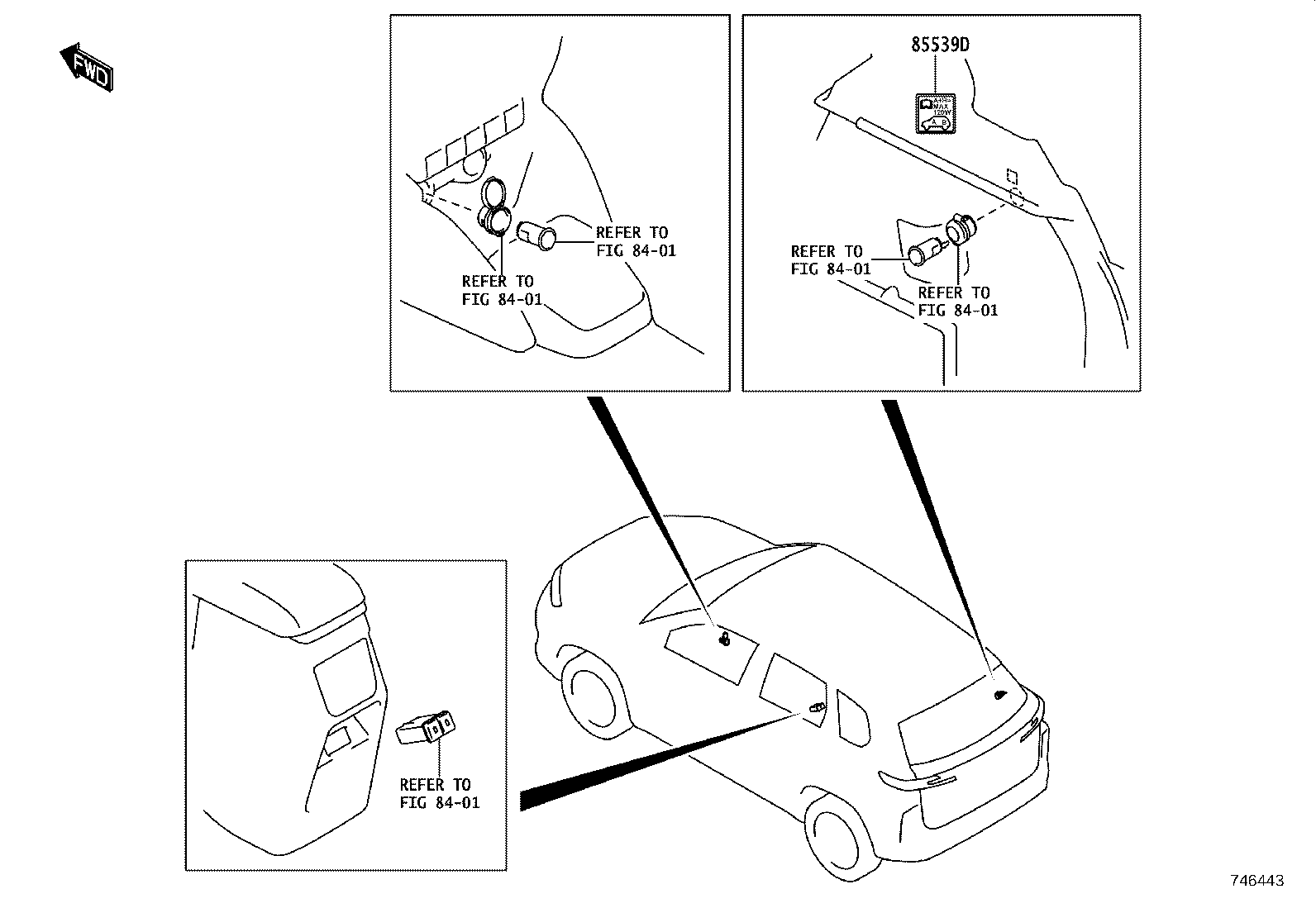

85539D Label, Power Outlet Notice
C6112A Label, Safety Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
