Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 5 illustrations

Illustrations

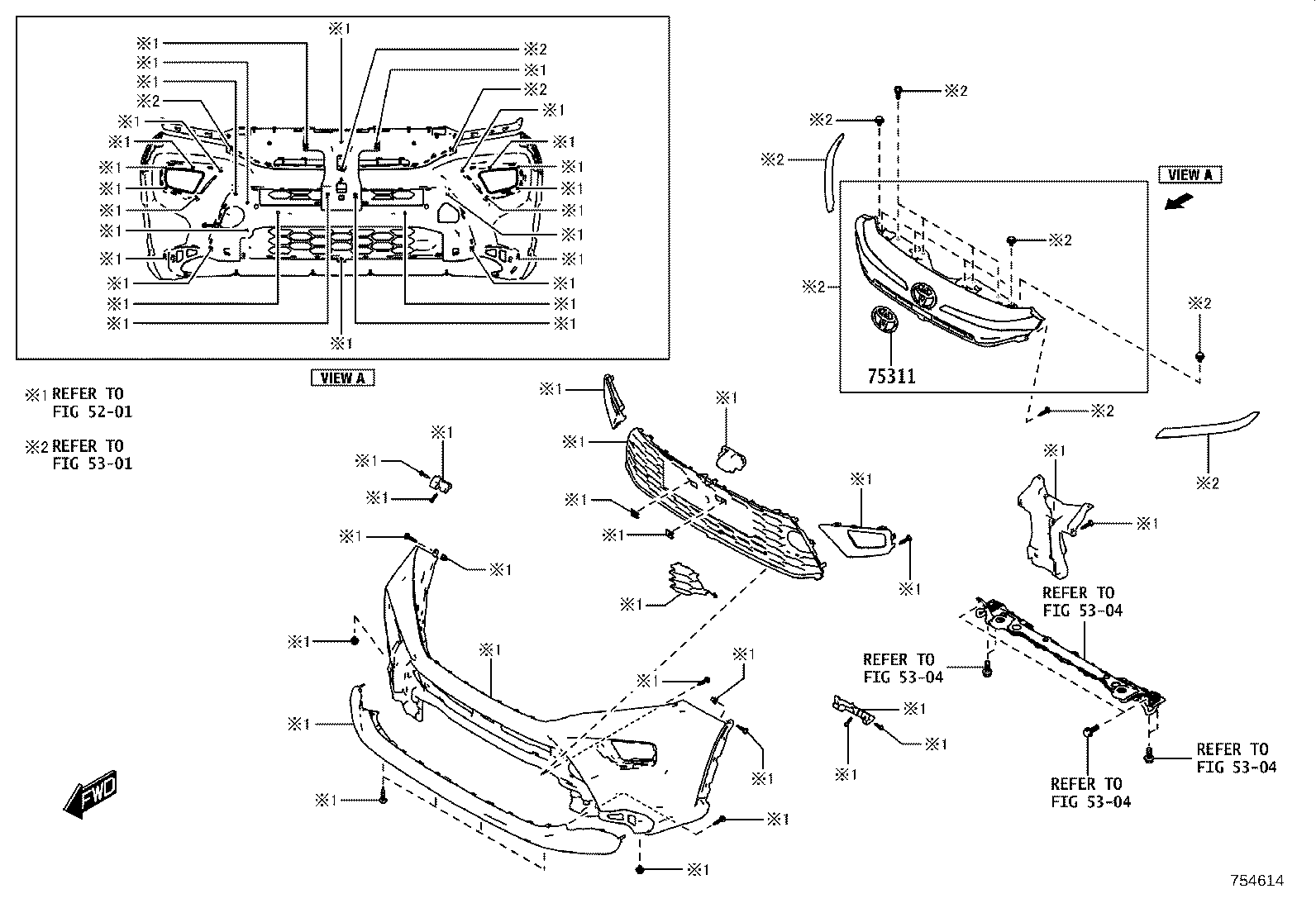

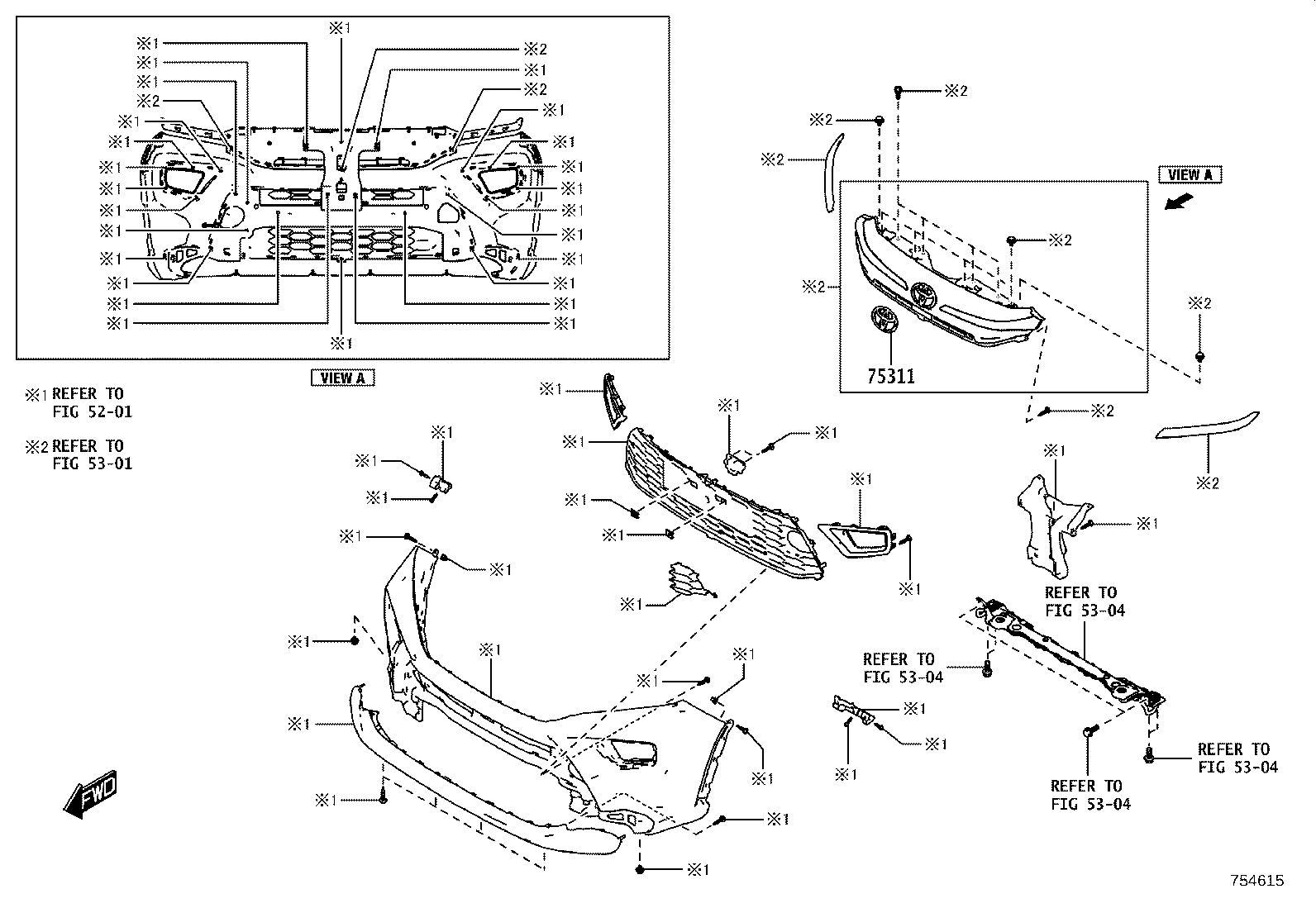

Figure 754545A 754545A 2024-01 → — Figure 754613 754613 2024-01 → — Figure 754614 754614 2024-01 → — Figure 754615 754615 2024-01 → — Figure 754616 754616 2024-01 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75351A Emblem, Front Fender
75374 Emblem, Side Panel
75431A Emblem, Back Door, NO.1
75441C Plate, Back Door Name
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
