Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03
Fuel Tank & Tube
68 part groups · 16 illustrations

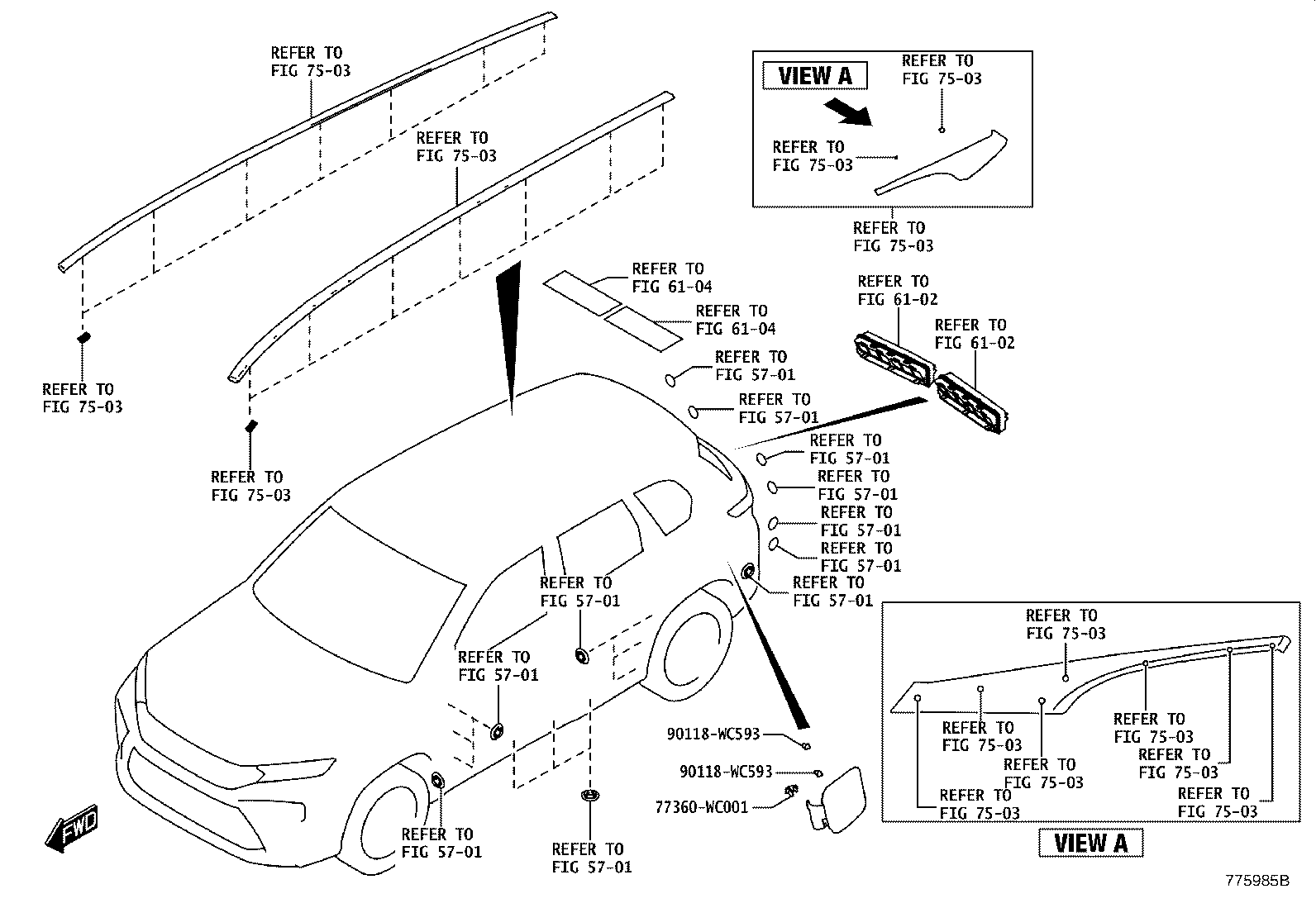

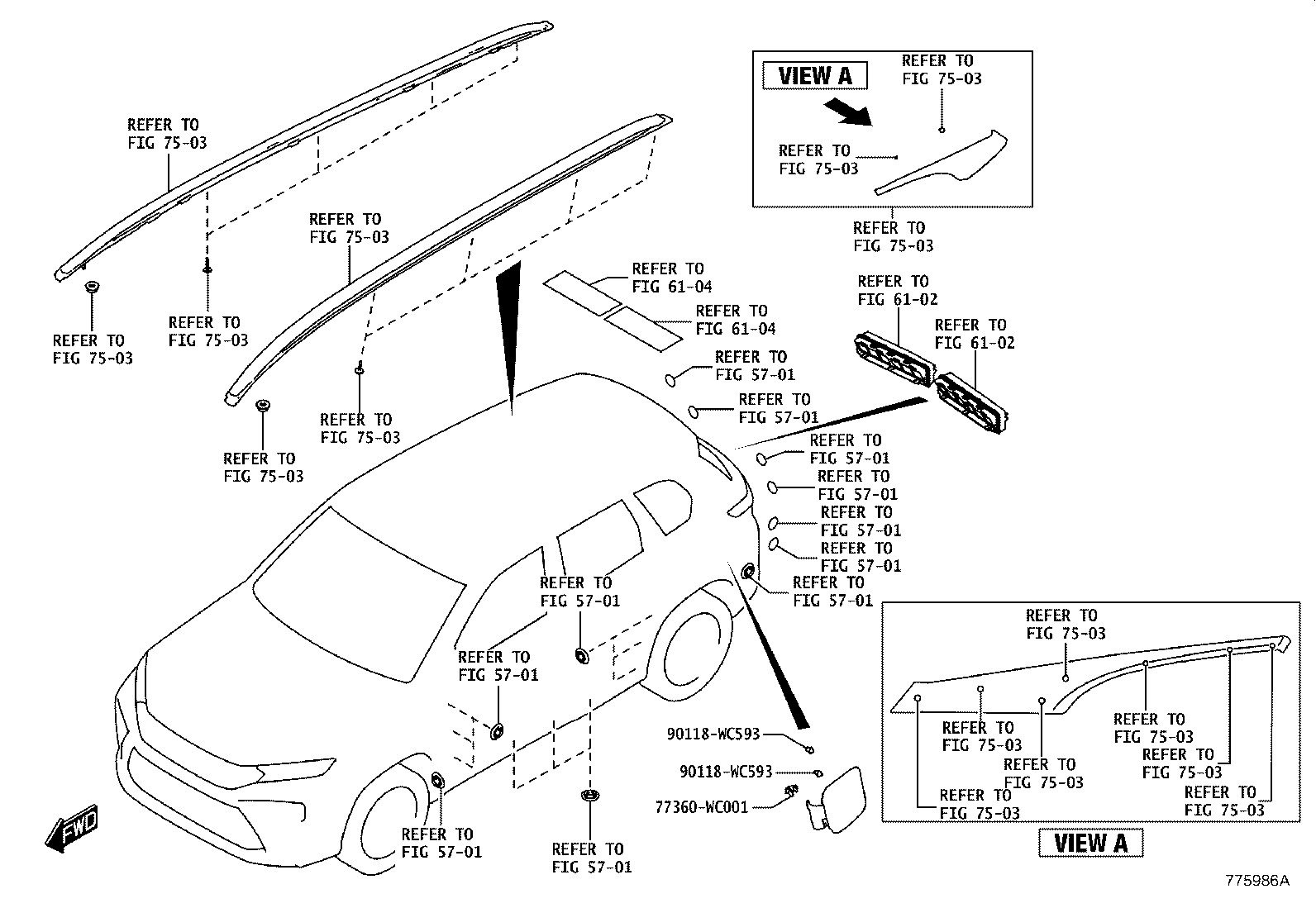

Illustrations
Part groups
| PNC | Description |
|---|---|
| 17578C | Clamp, Pipe |
| 23239A | Hose |
| 23280J | Regulator Assy, Fuel Pressure |
| 23283B | Holder, Fuel Pressure Regulator |
| 23300J | Filter Assy, Fuel |
| 23390A | Element Assy, Fuel Filter |

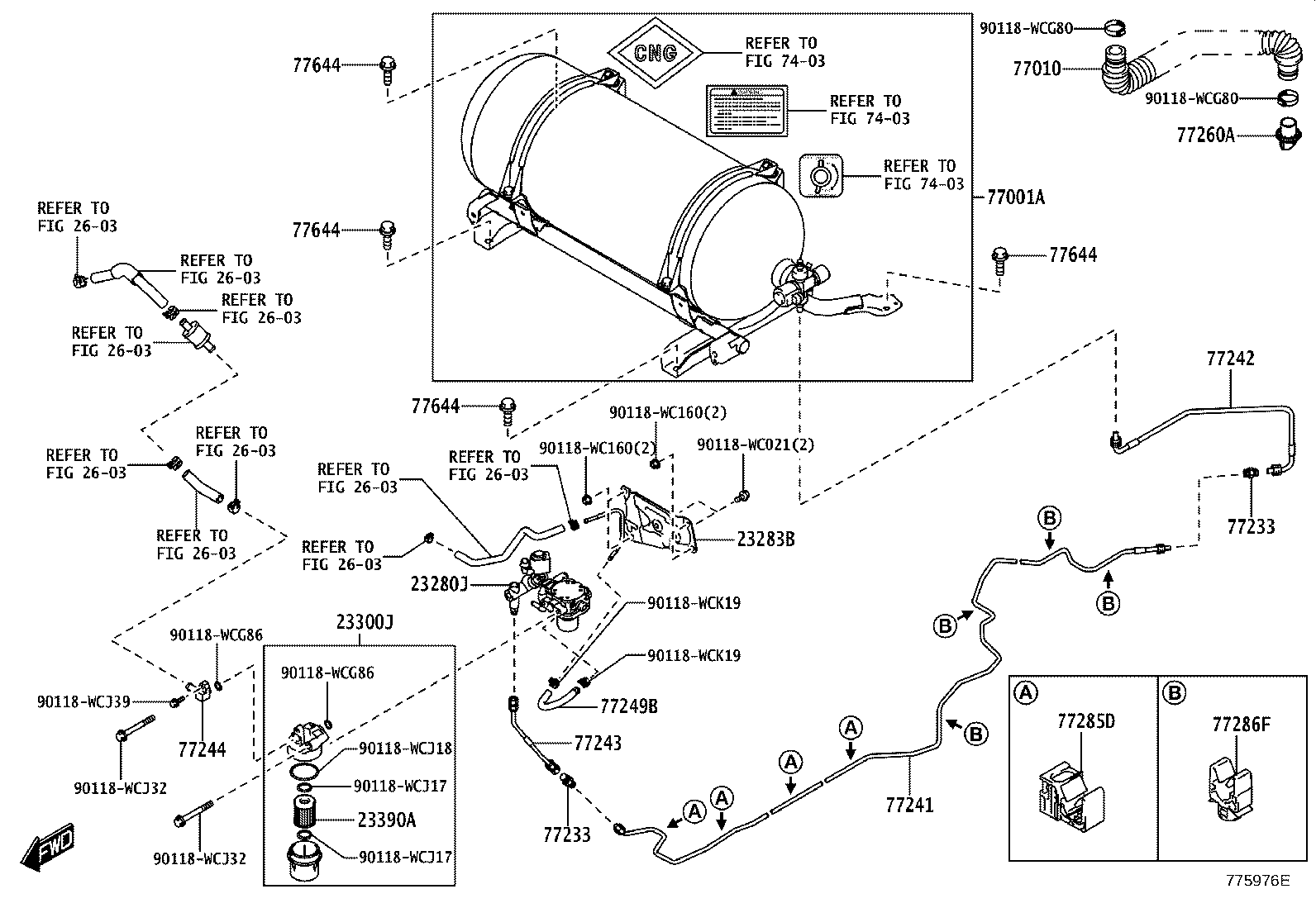

| 77001A | Tank Sub-assy, Fuel |
| 77010 | Tube Assy, Fuel Tank Vent |

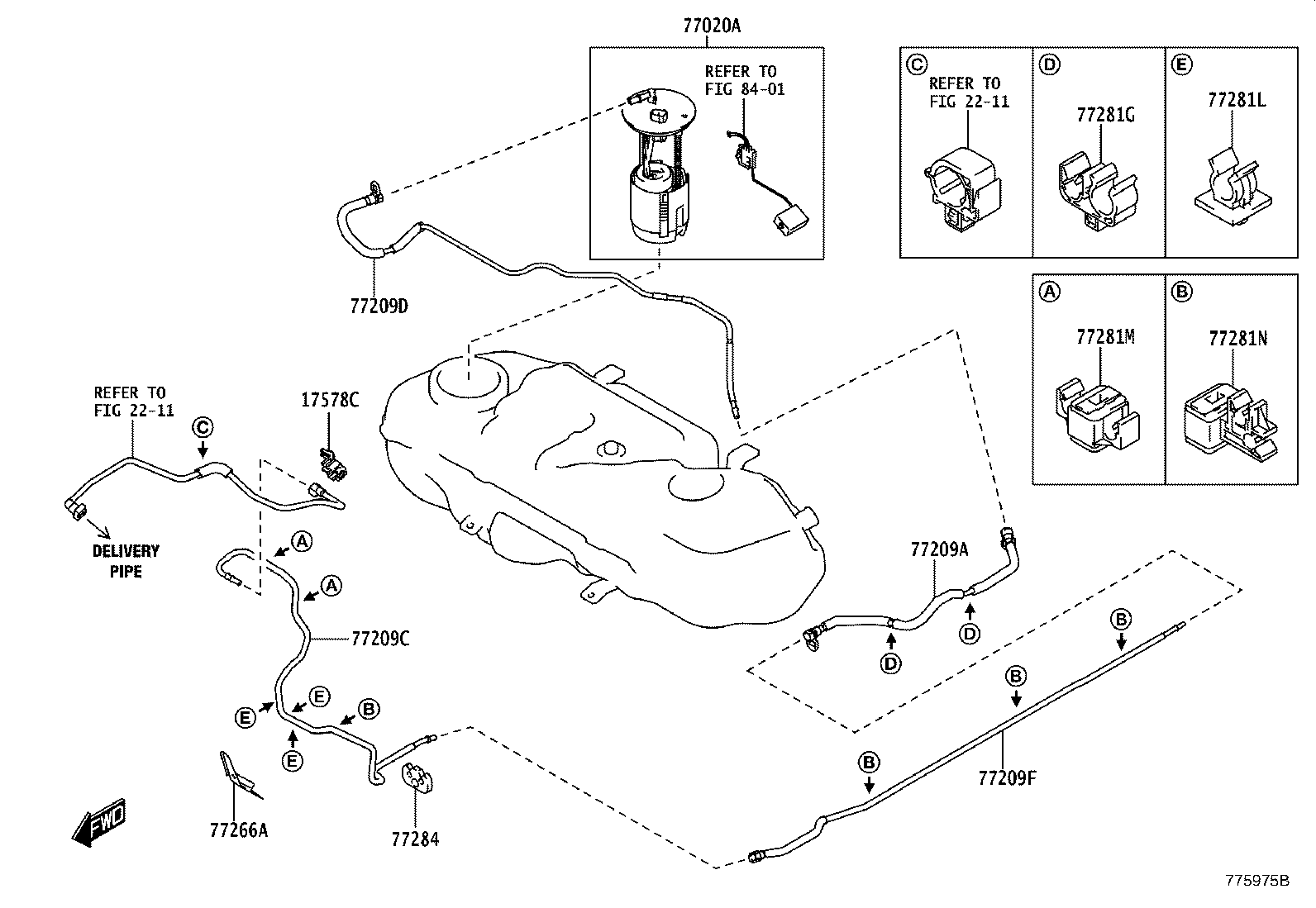

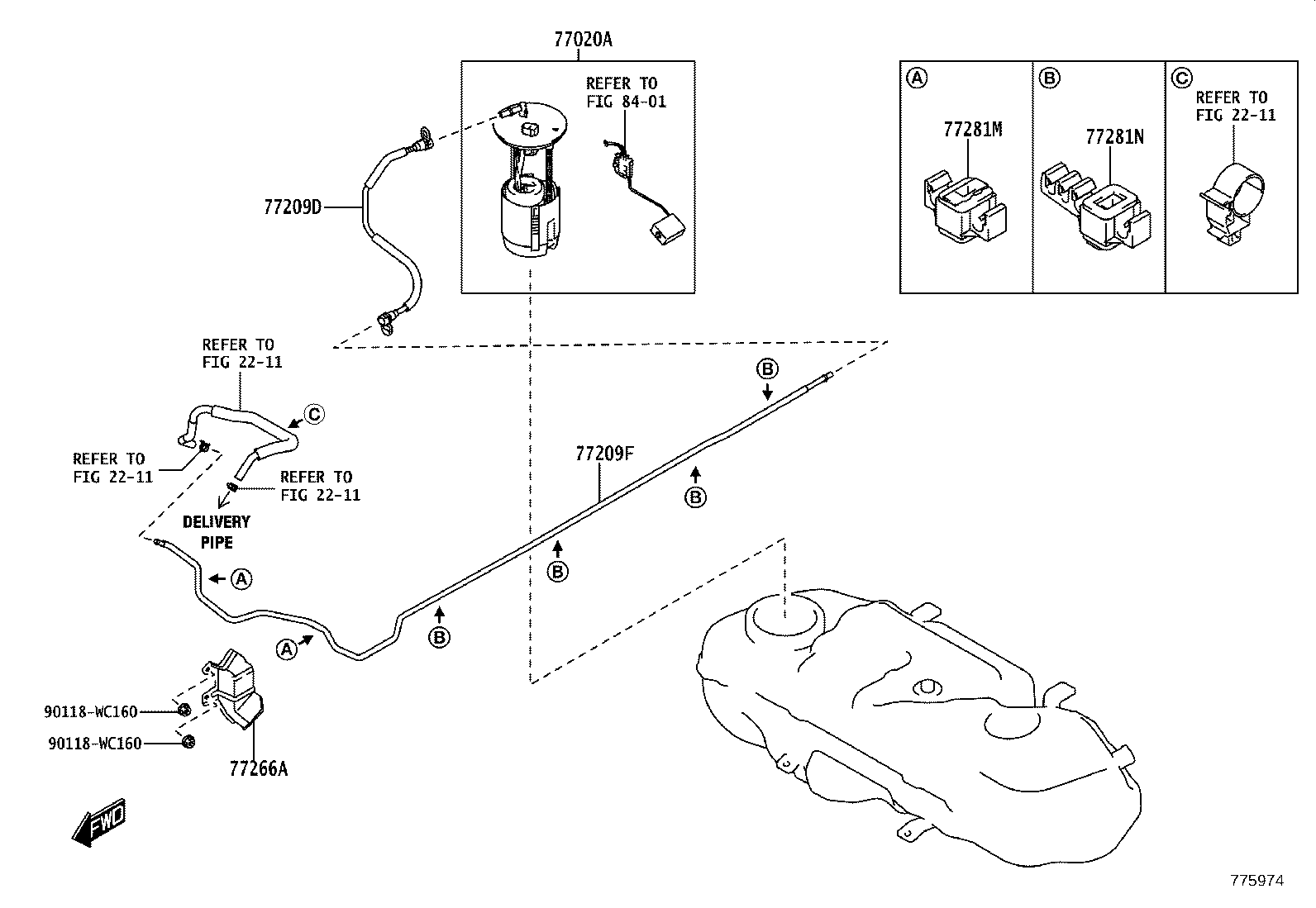

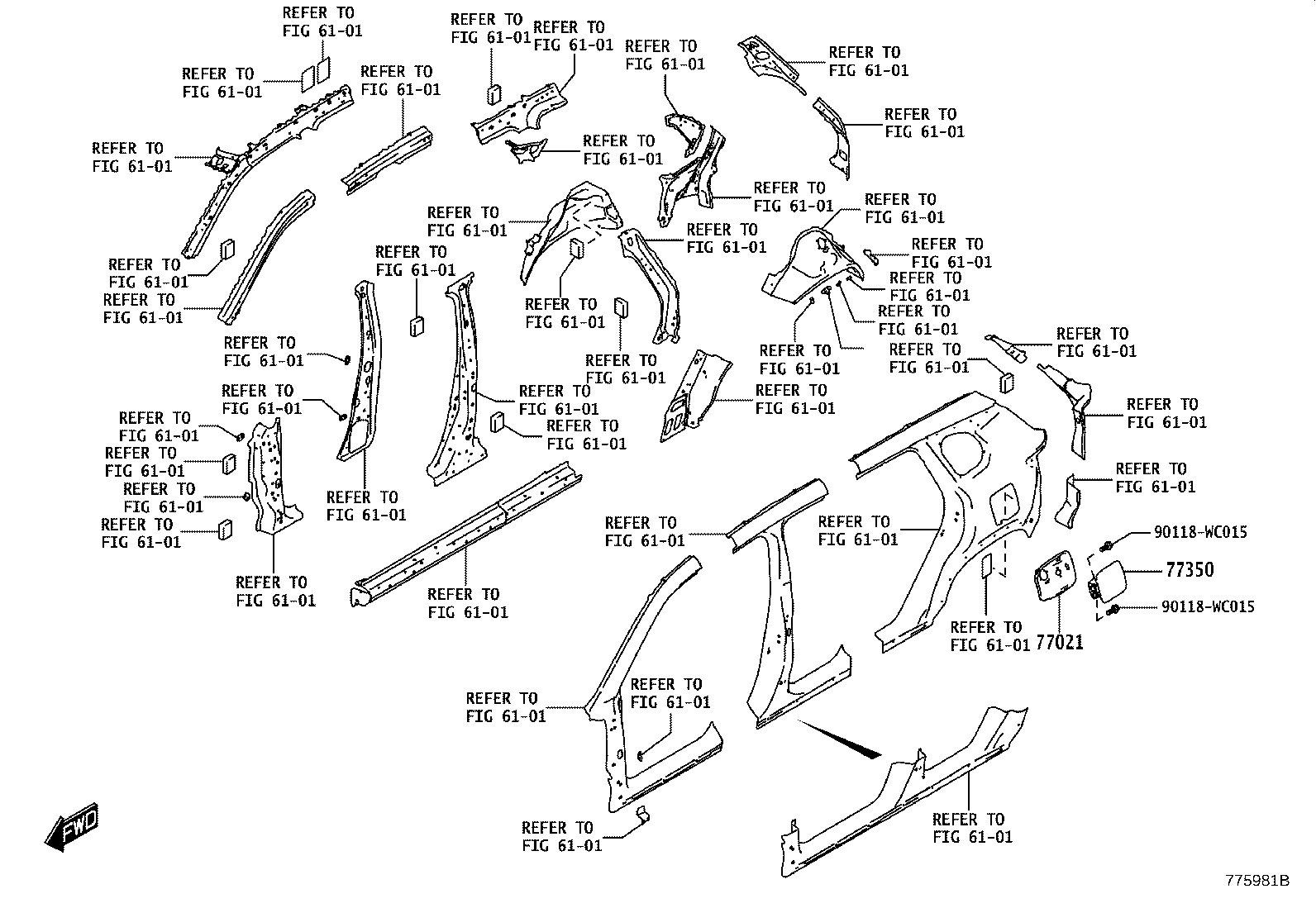

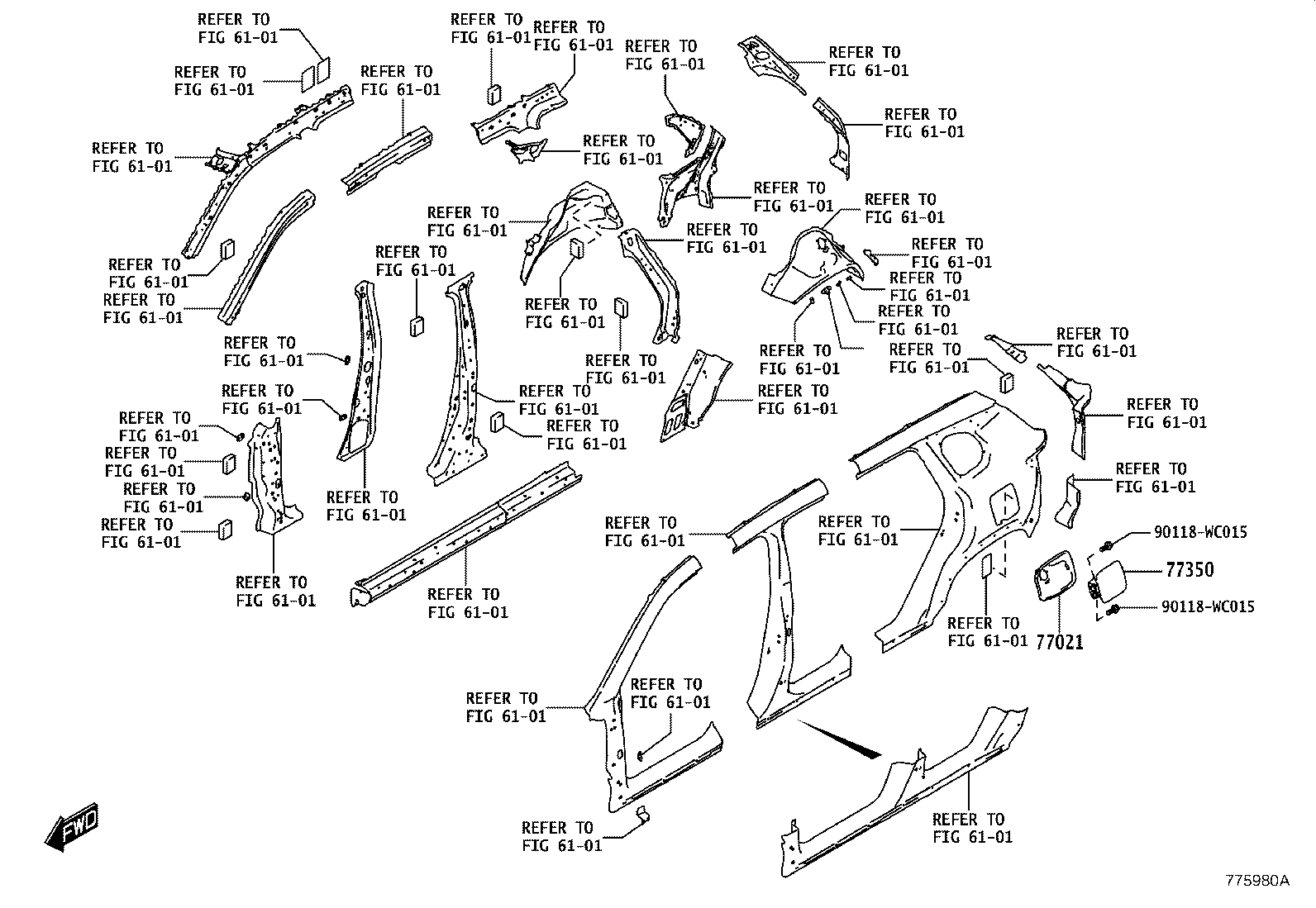

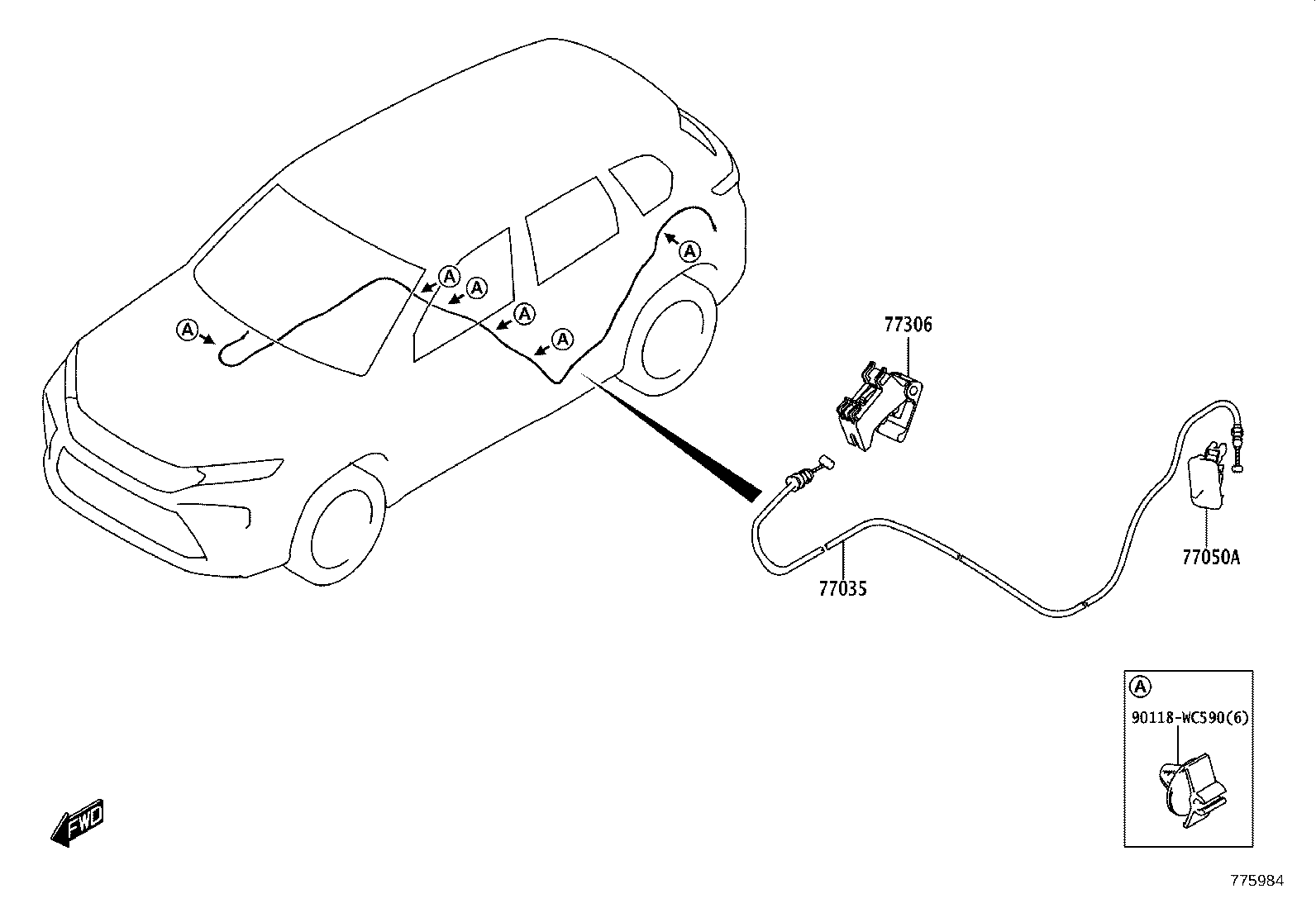

| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77021 | Box Assy, Fuel Tank Inlet |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77050A | Control Opener Assy, Fuel Lid Lock |

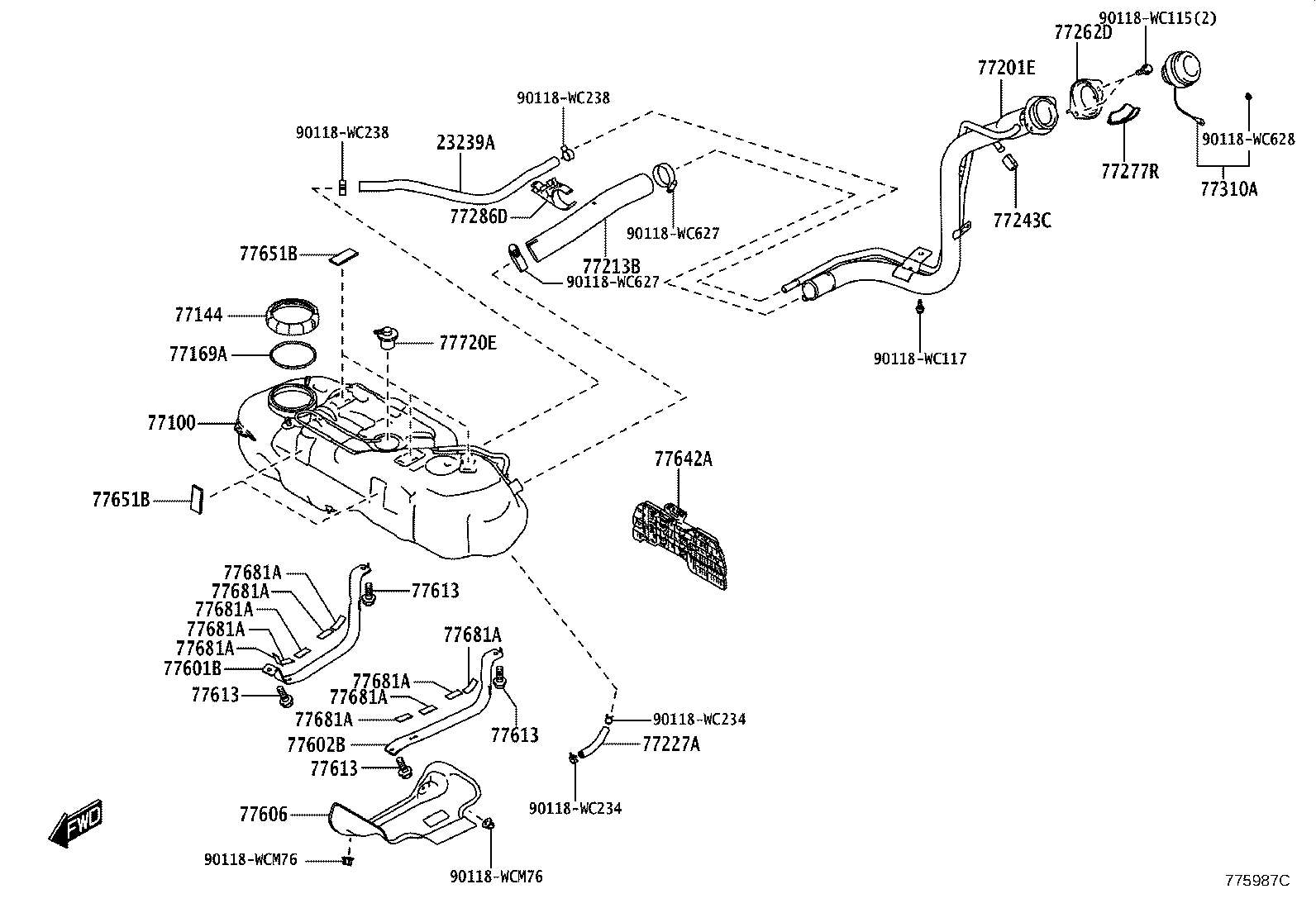

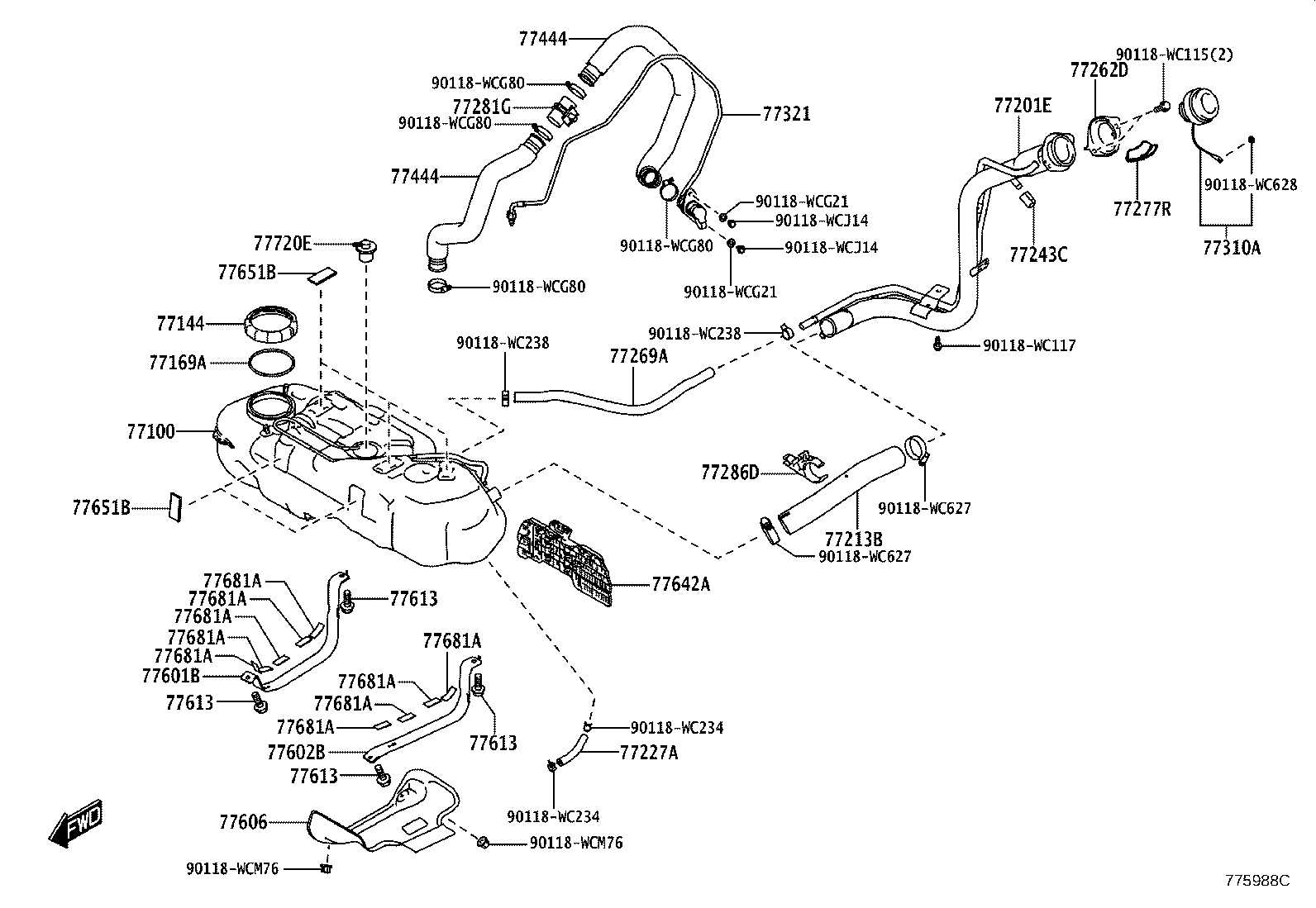

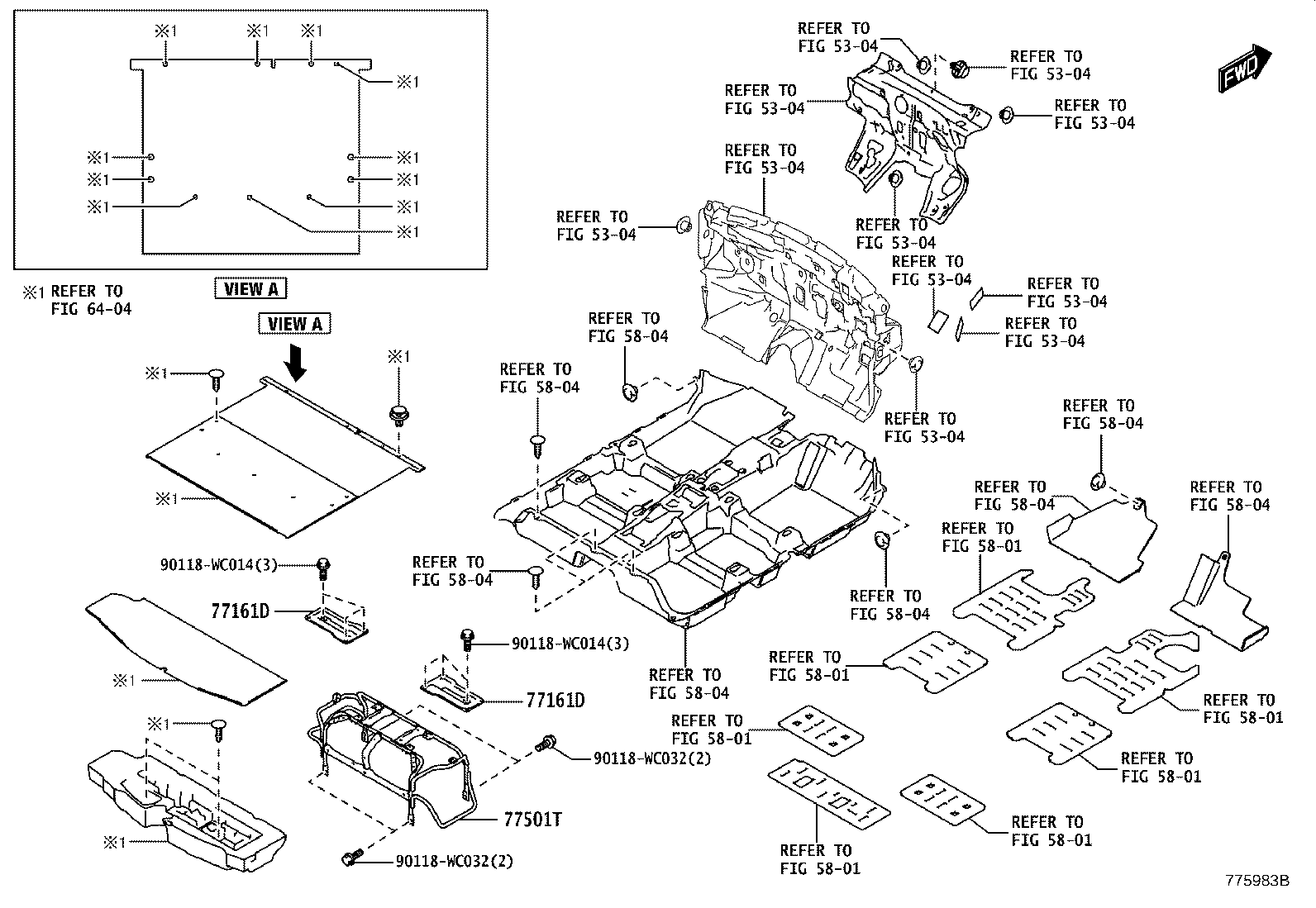

| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77161D | Plate, Fuel Tank Protector |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209A | Hose (FOR FUEL TUBE CONNECTOR) |
| 77209C | Tube Sub-assy, Fuel Tank Main |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77227A | Tube, Fuel Tank Evaporation Vent |
| 77233 | Joint, Fuel Hose |
| 77241 | Tube, Fuel Main, NO.1 |
| 77242 | Tube, Fuel Main, NO.2 |
| 77243 | Tube, Fuel Main, NO.3 |
| 77243C | Filter, Fuel Tank Breather |
| 77244 | Tube, Fuel Main, NO.4 |
| 77249B | Hose, Fuel |
| 77260A | Duct Assy, Fuel Tank Valve Cover |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77262D | Gasket, Fuel Filler Pipe |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77269A | Hose, Fuel Tank Breather |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281G | Clamp, Fuel Hose |
| 77281L | Clamp, Fuel Hose |
| 77281M | Clamp, Fuel Hose |
| 77281N | Clamp, Fuel Hose |
| 77284 | Clamp, Fuel Tube |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77321 | Coupler, Fuel Inlet |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77444 | Hose, Fuel Tank Vent |
| 77501T | Bracket Sub-assy, Fuel Tank |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77613 | Bolt, Fuel Tank Band Set |
| 77642A | Protector, Fuel Tank, NO.2 |
| 77644 | Bolt, Fuel Tank |
| 77651B | Cushion, Fuel Tank |
| 77681A | Seat, Fuel Tank Band |
| 77720E | Valve Assy, Fuel Tank Solenoid Return |

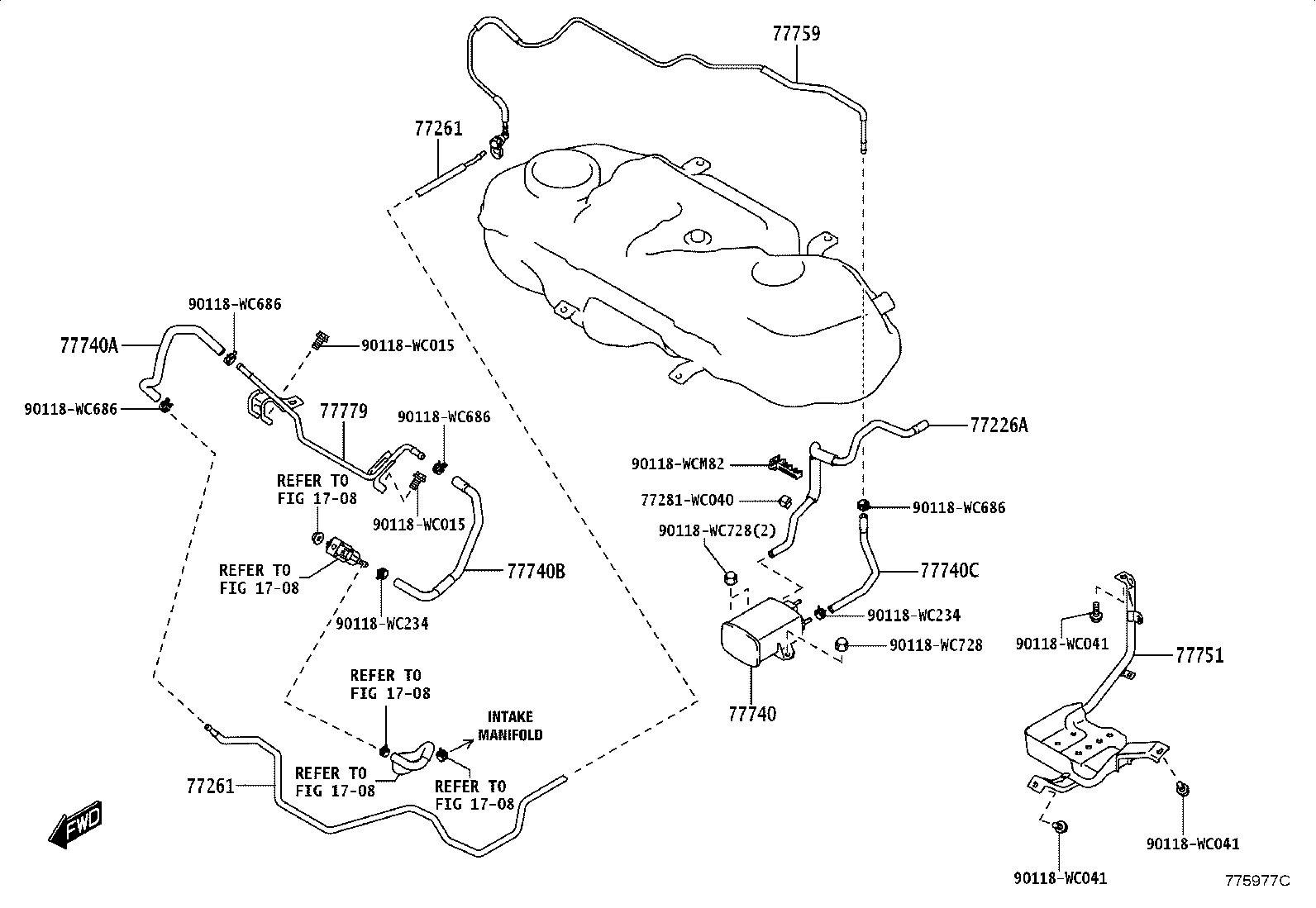

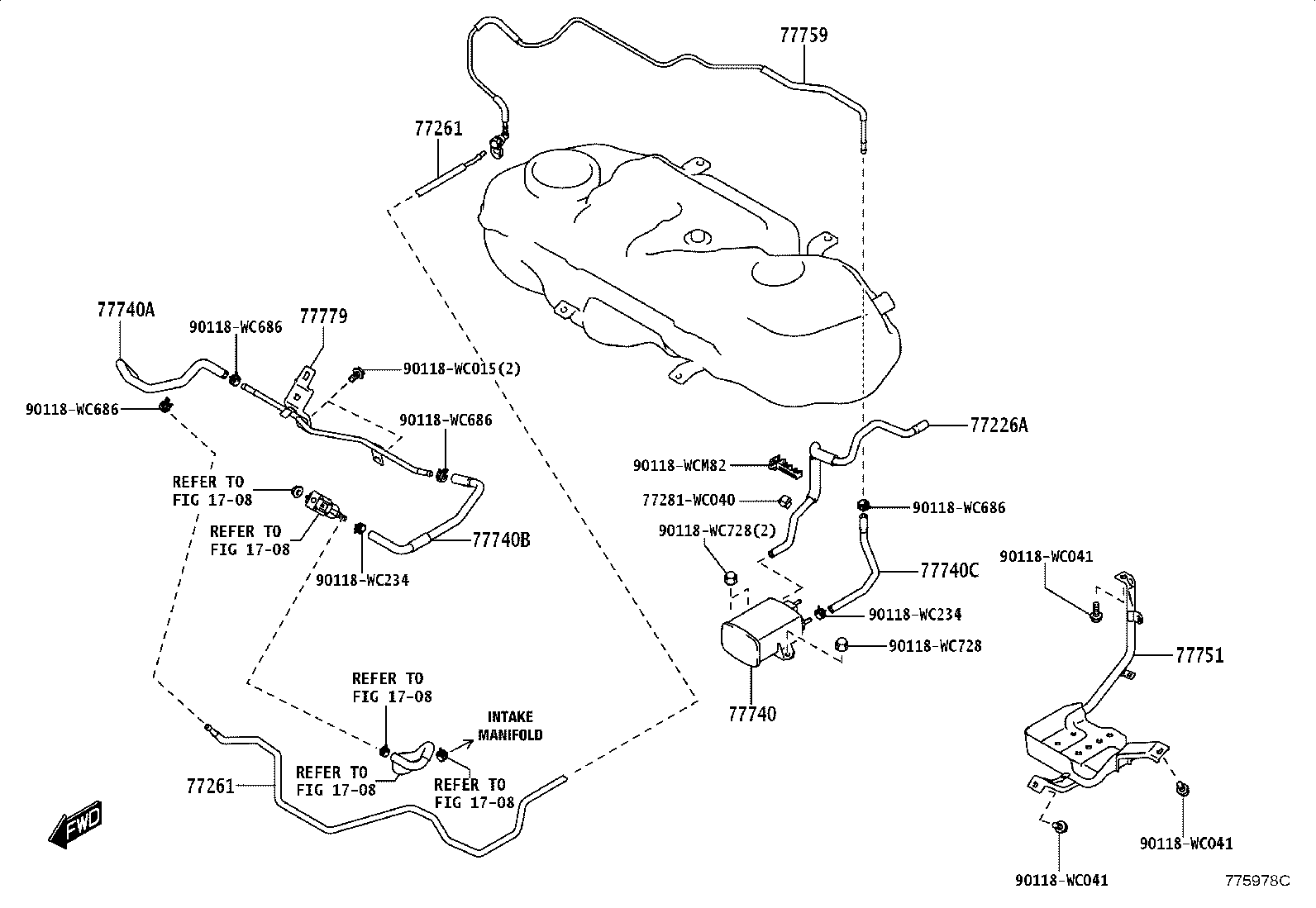

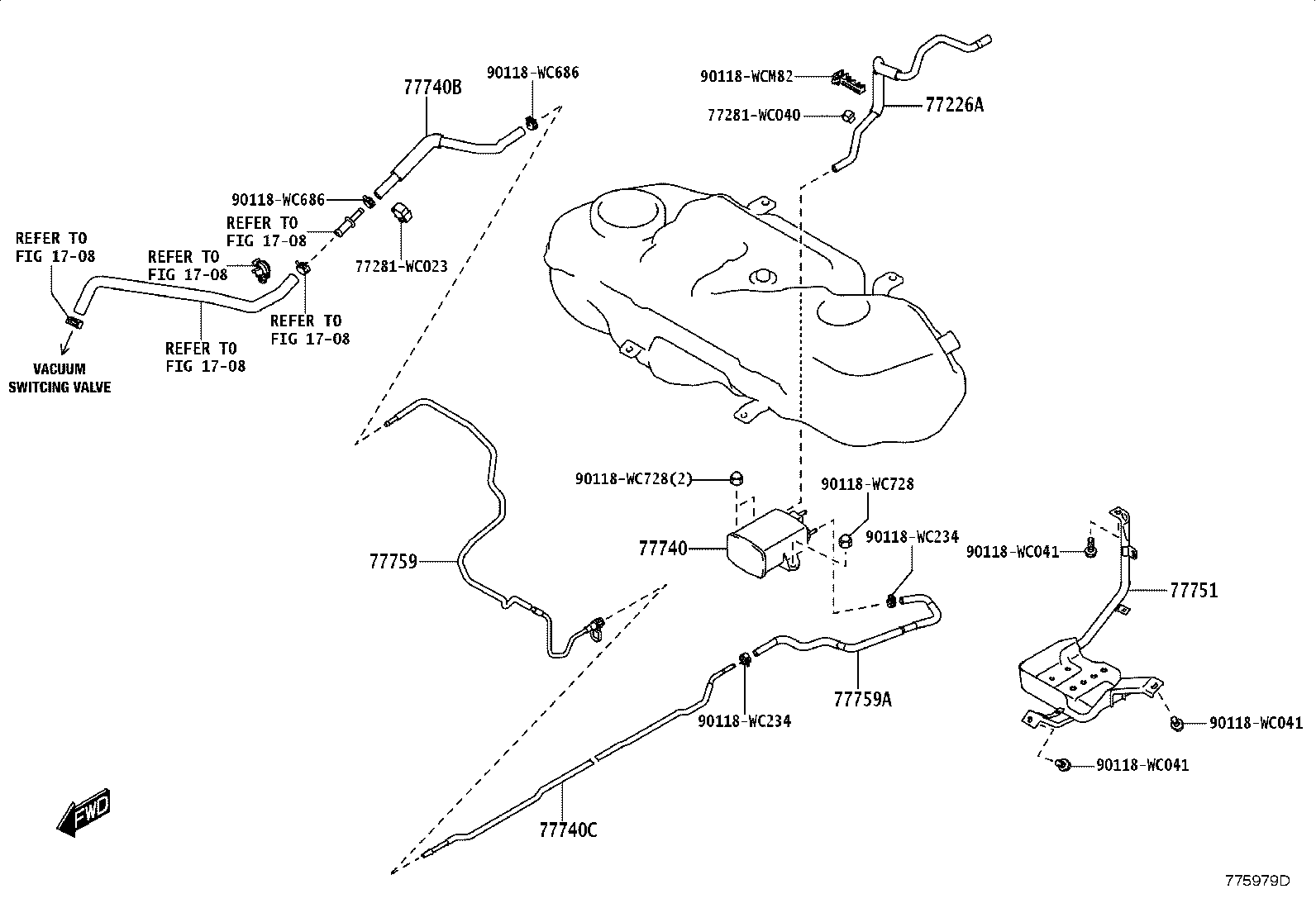

| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77759 | Hose, Charcoal Canister |
| 77759A | Hose, Charcoal Canister |
| 77779 | Tube, Charcoal Canister Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
