Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03

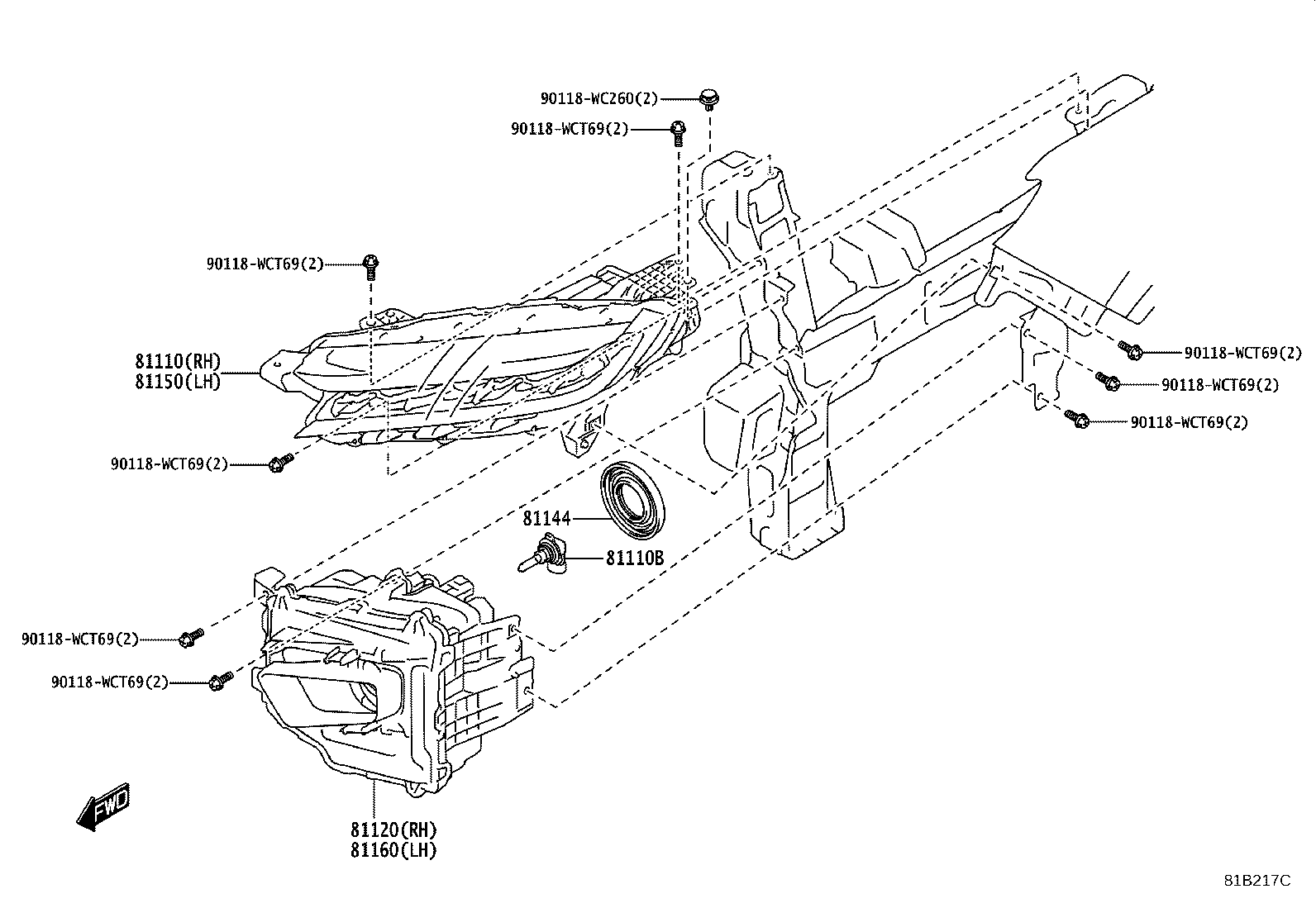

Headlamp
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81120 | Headlamp Sub-assy, RH |
| 81144 | Cover, Headlamp, NO.1 |
| 81150 | Headlamp Assy, LH |
| 81160 | Headlamp Sub-assy, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
