Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

9 part groups · 2 illustrations

Illustrations

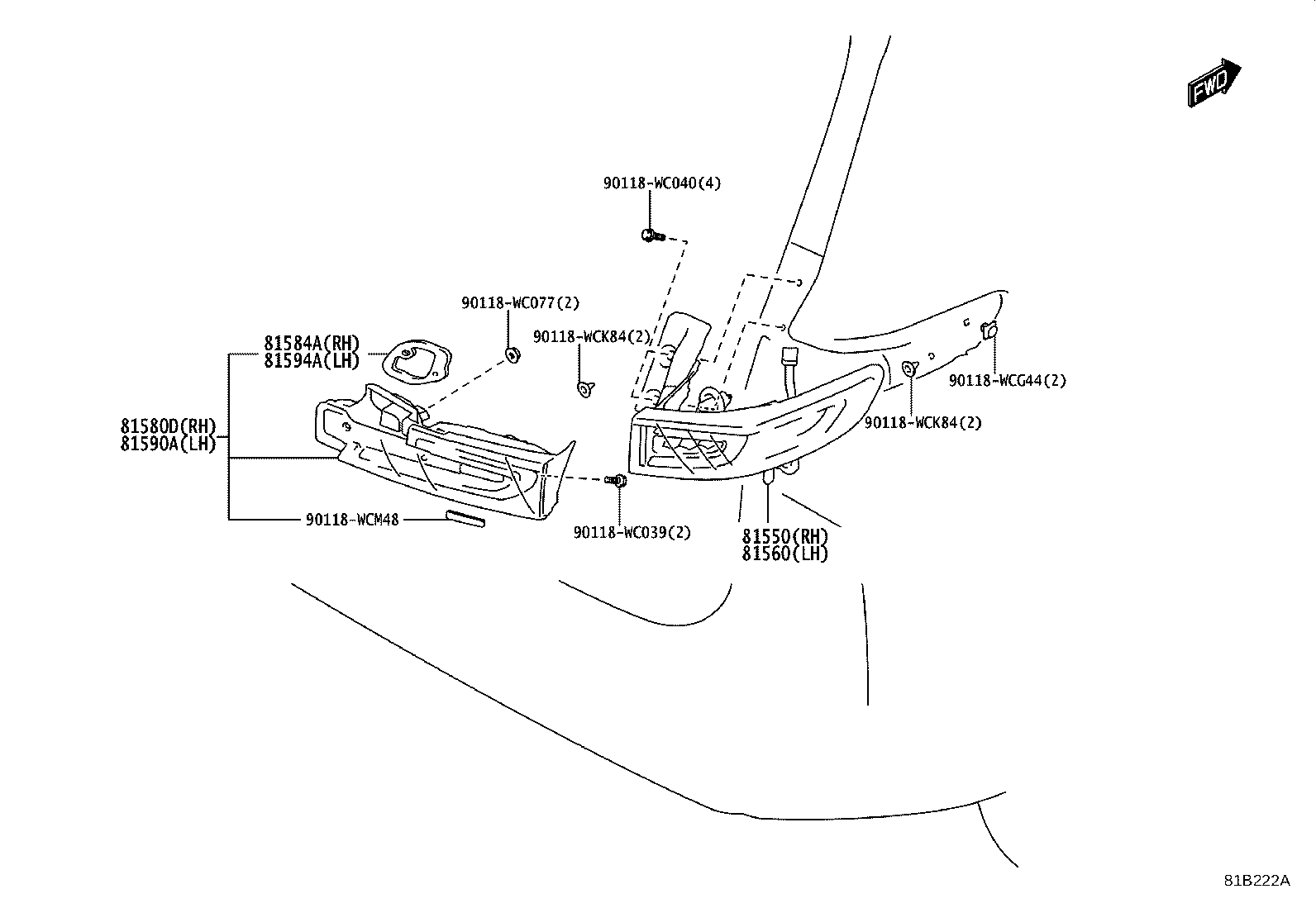

Figure 81B221A 81B221A 2024-01 → — Figure 81B222A 81B222A 2024-01 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81551D Lens & Body, Rear Combination Lamp, RH
81555H Socket & Wire, Rear Combination Lamp
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81580D Lamp Assy, Rear, RH
81584A Gasket, Rear Lamp RH
81590A Lamp Assy, Rear, LH
81594A Gasket, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
