Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03
Battery & Battery Cable
34 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

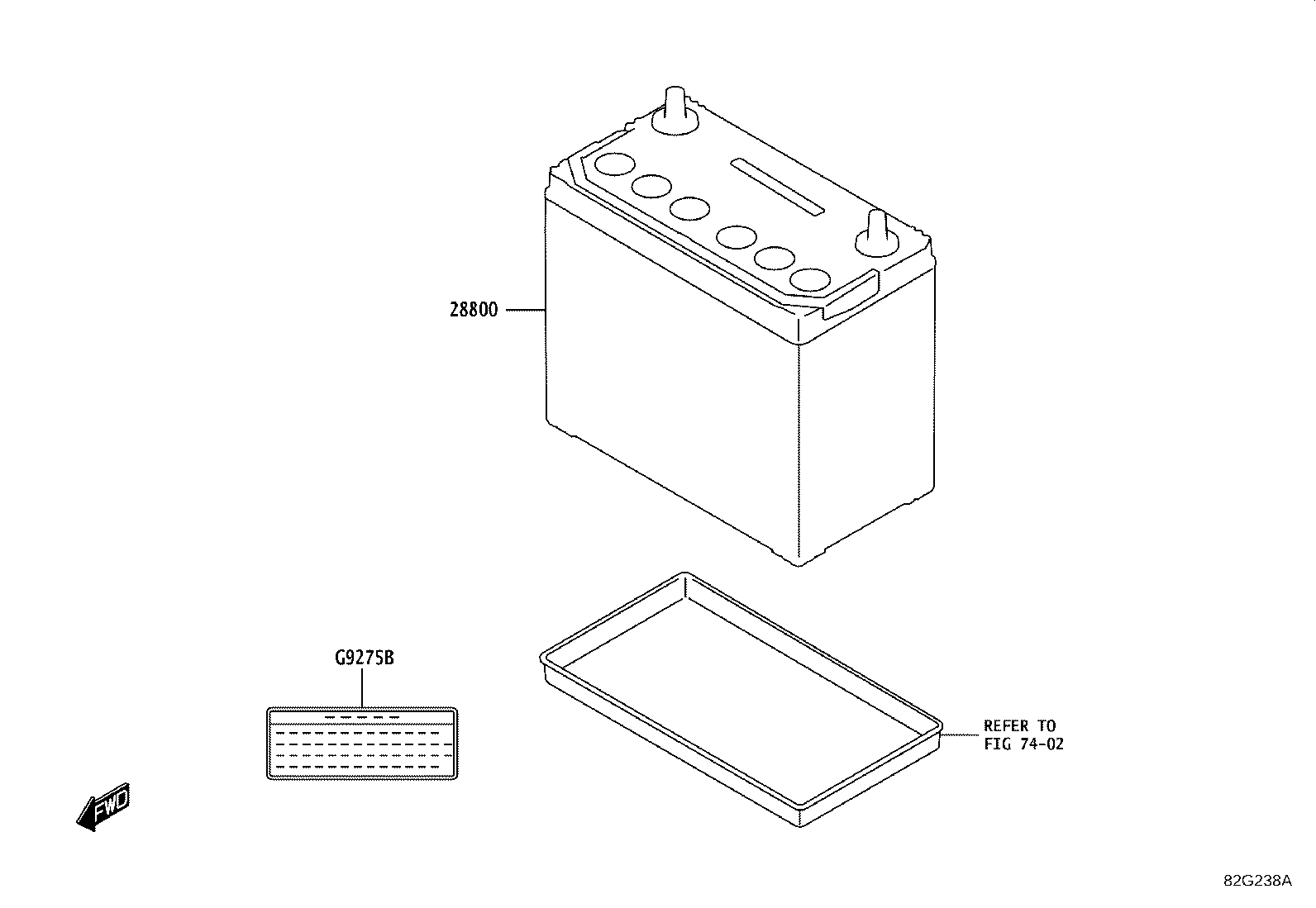

| 28800 | Battery |

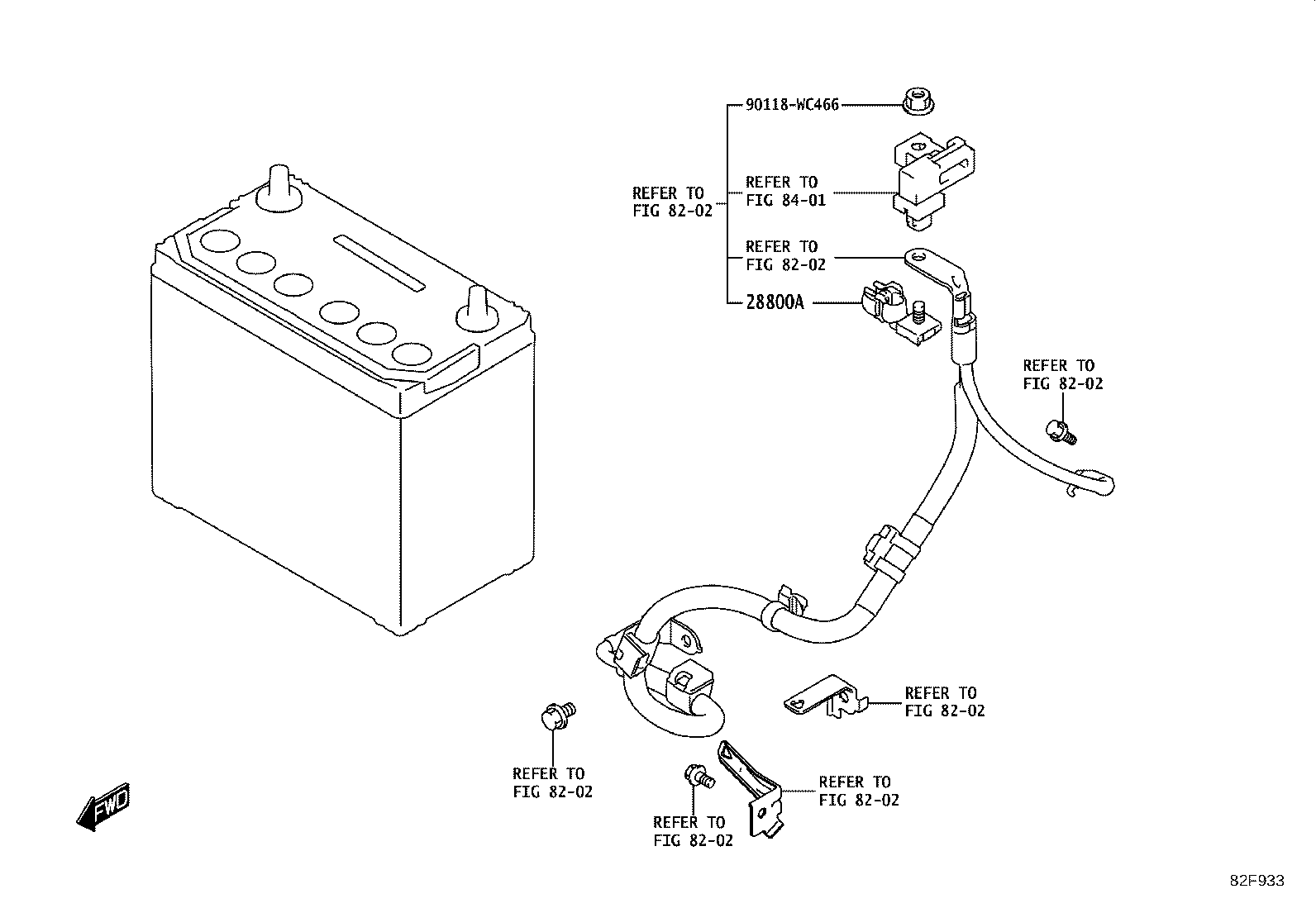

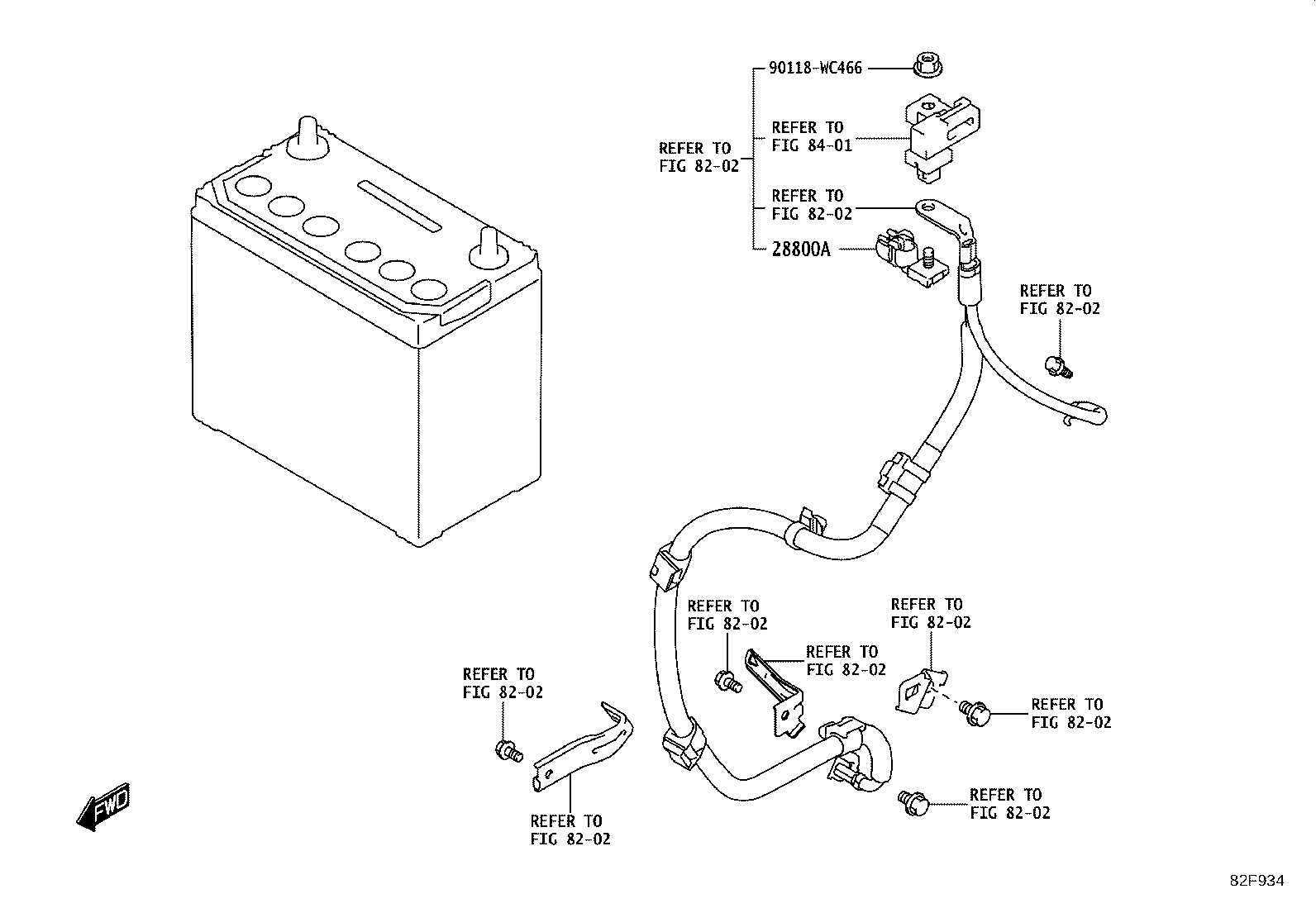

| 28800A | Terminal, Battery Positive |
| 28898F | Label, Battery Information |
| 28899 | Insulator, Battery |
| 74042A | Bracket Sub-assy, Battery |

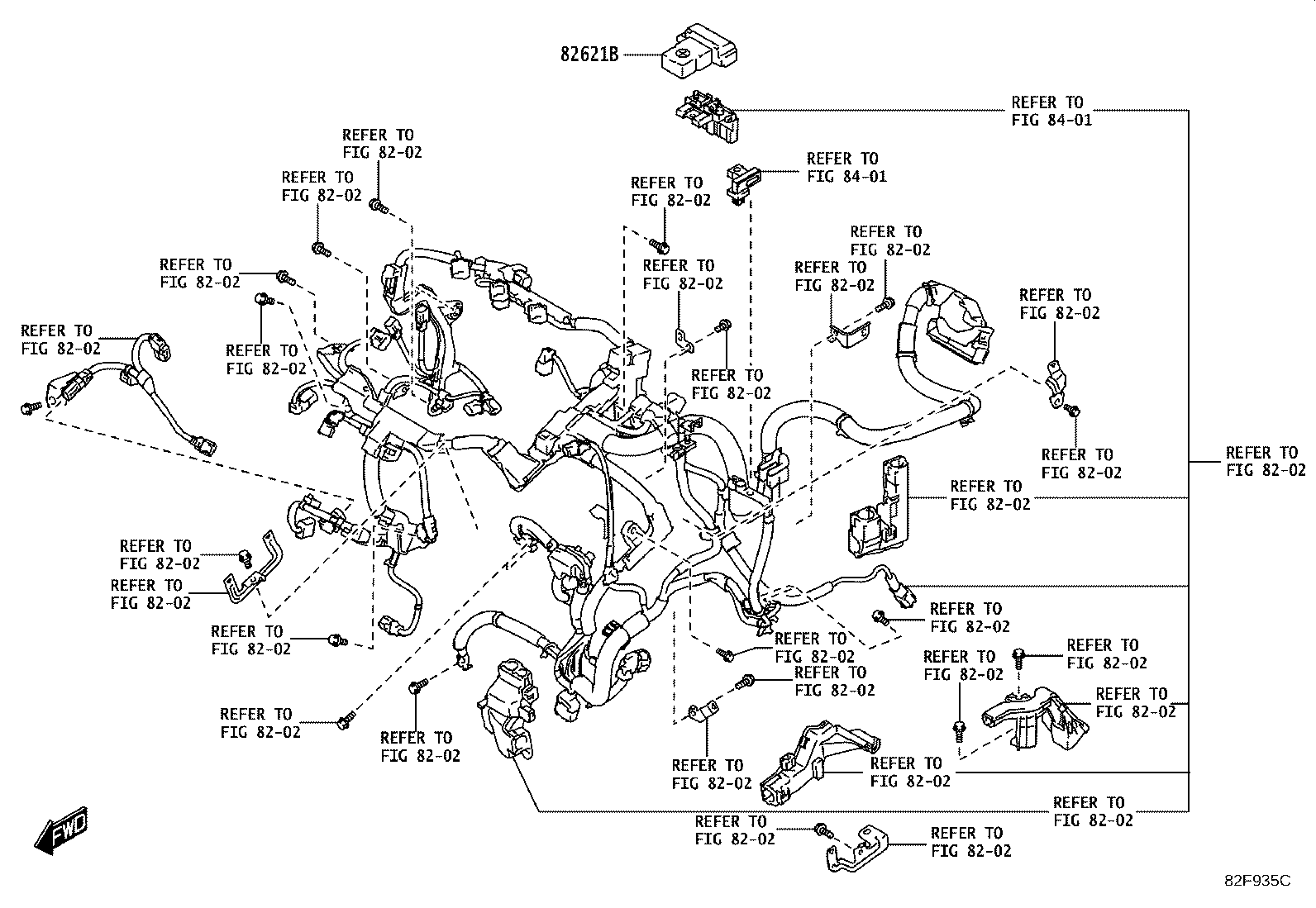

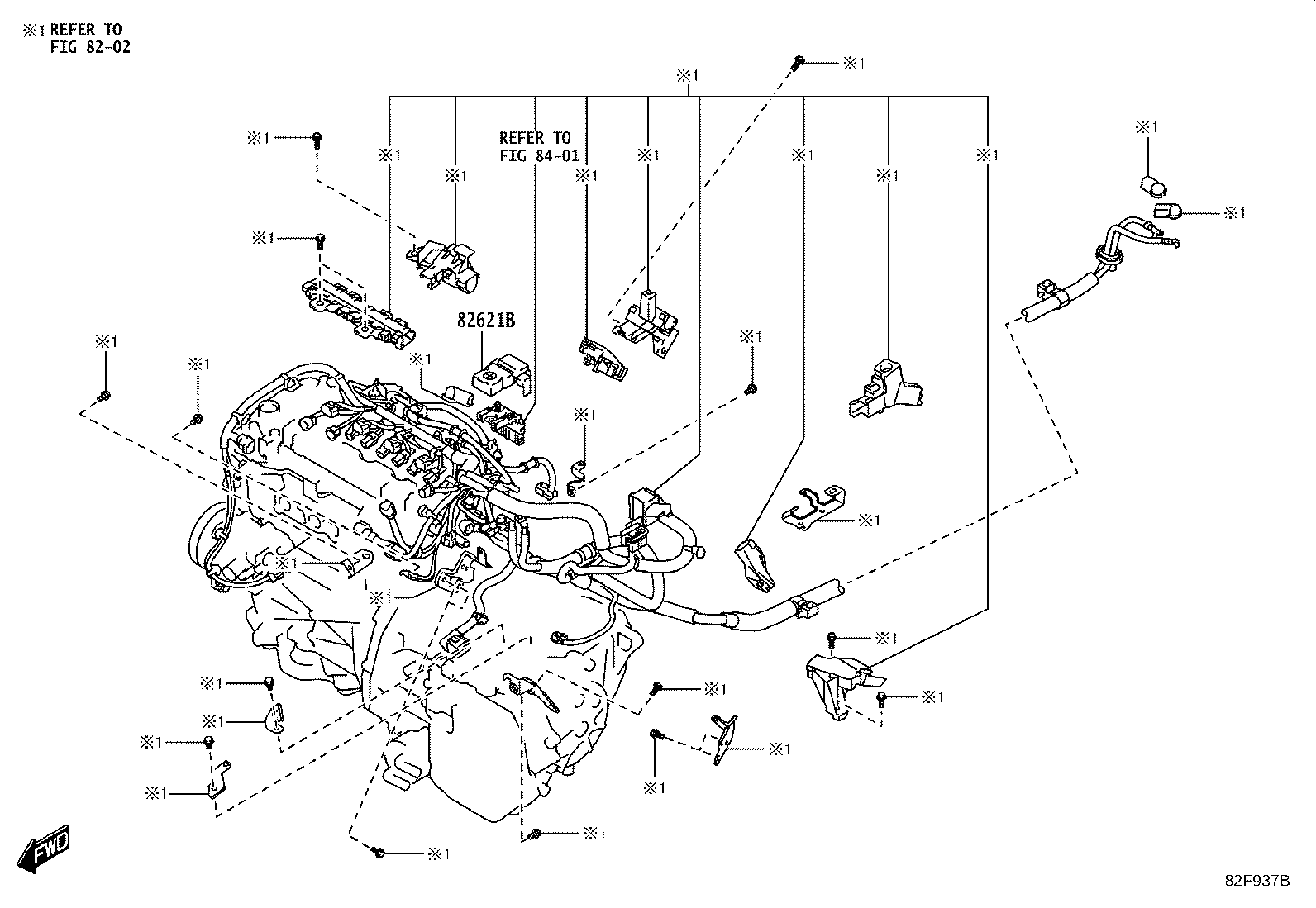

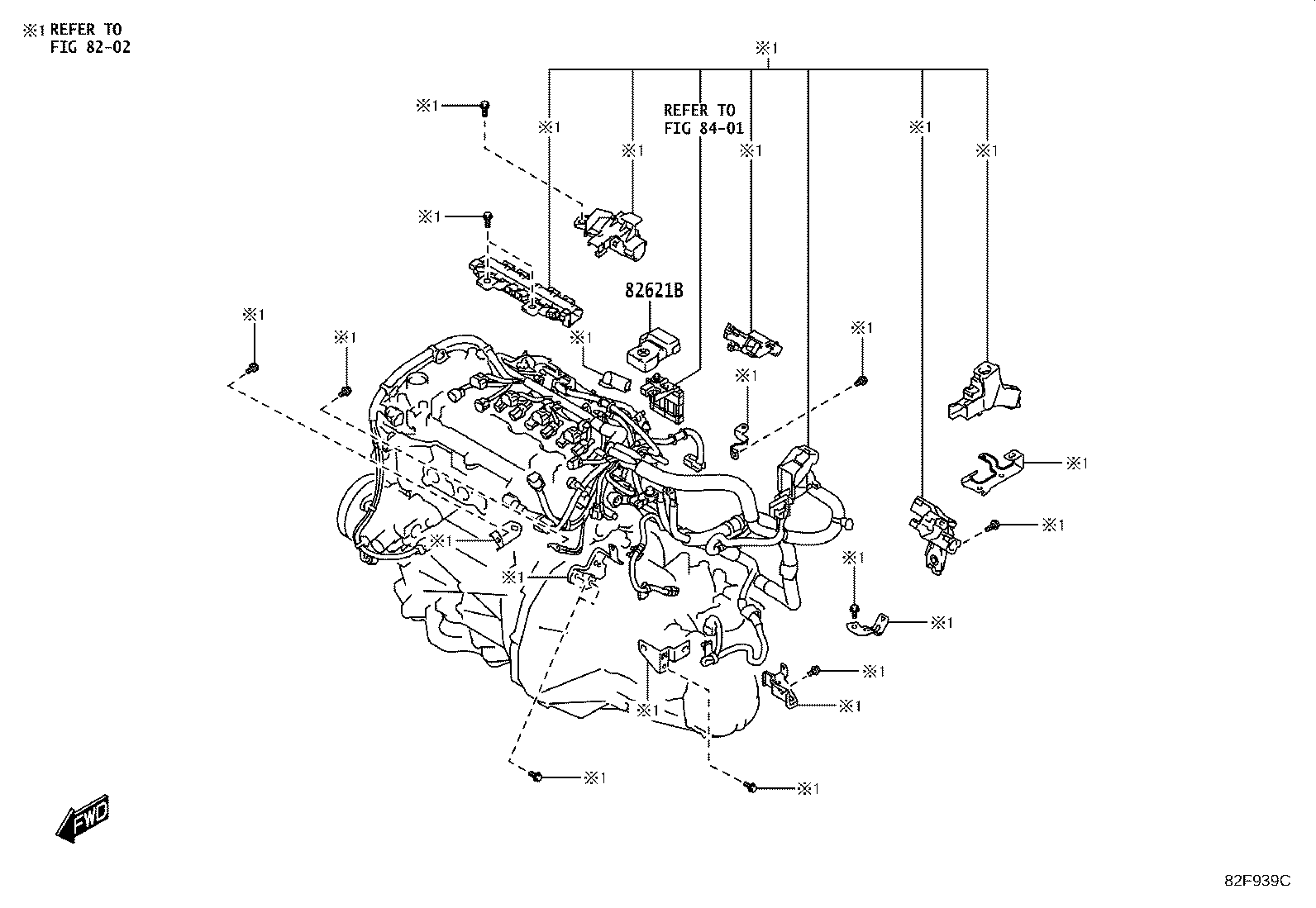

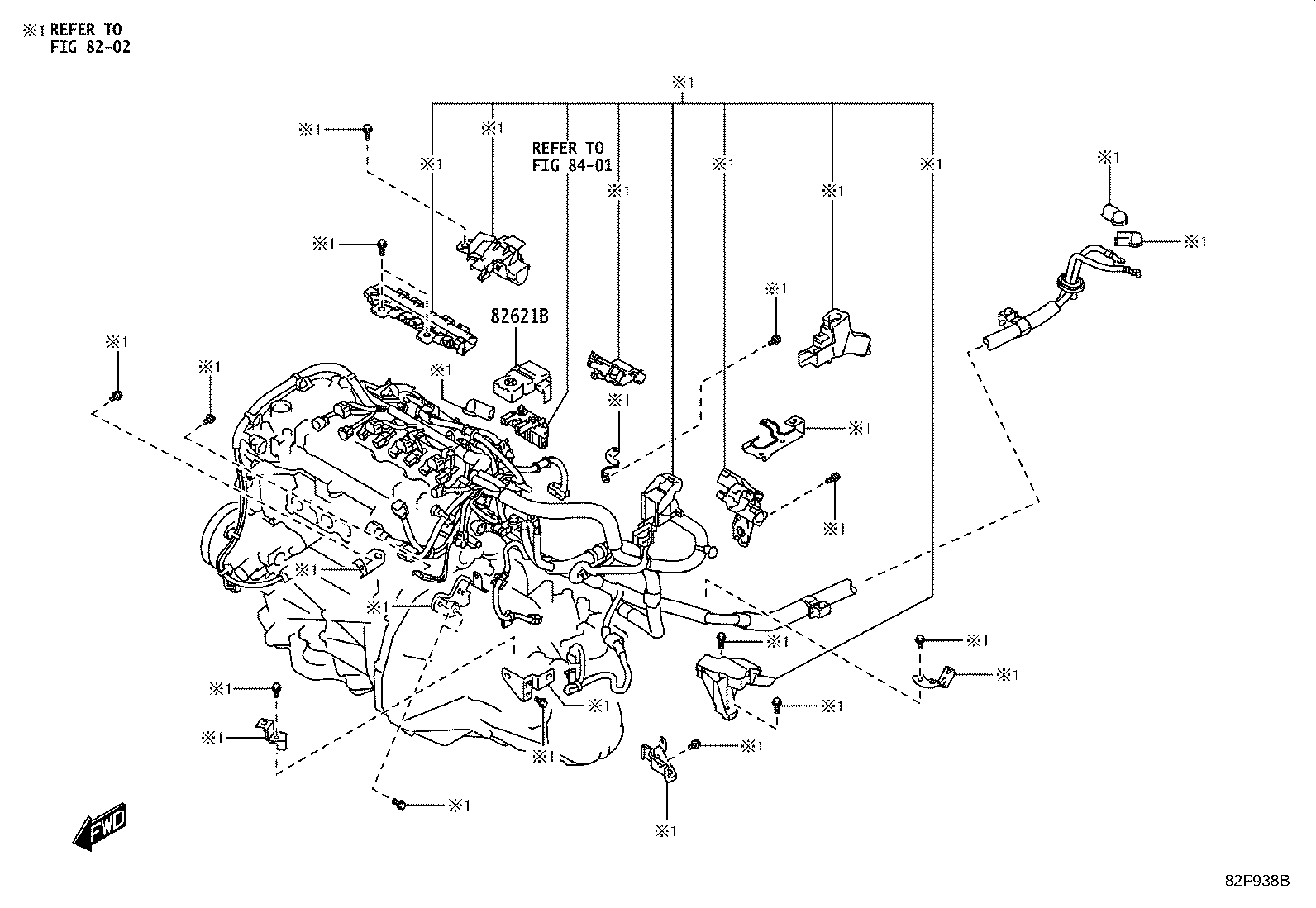

| 82621B | Cover, Fusible Link |
| 82685E | Plate, Service Plug Caution |
| 85924B | Bracket, Cooling Fan |
| 89890A | Computer Assy, Battery |
| G3834 | Grip, Service Plug |
| G3850 | Box Assy, Traction Battery Device, NO.1 |

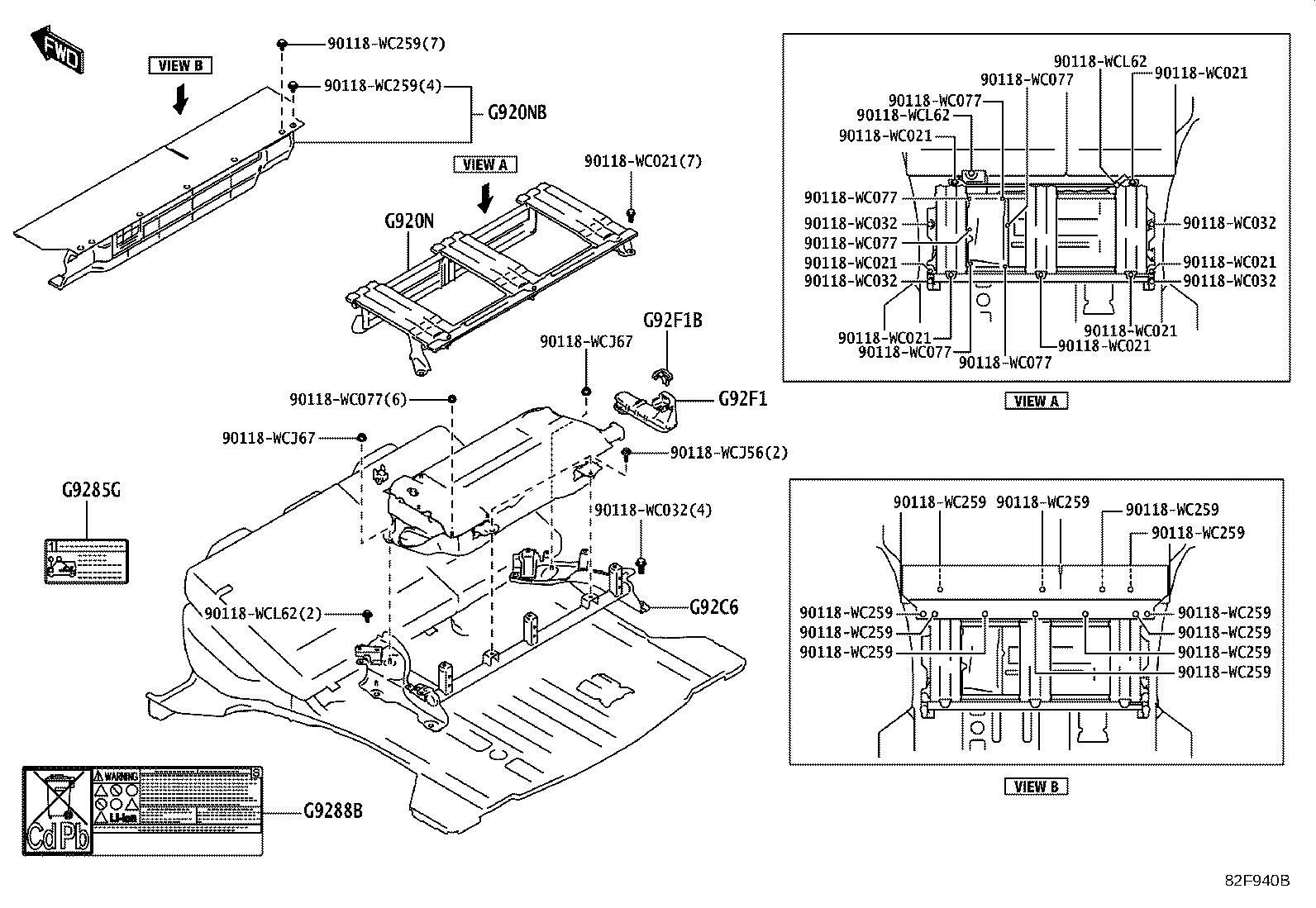

| G920N | Cover Sub-assy, HV Battery, Upper NO.2 |
| G920NB | Cover Sub-assy, HV Battery, Upper |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |

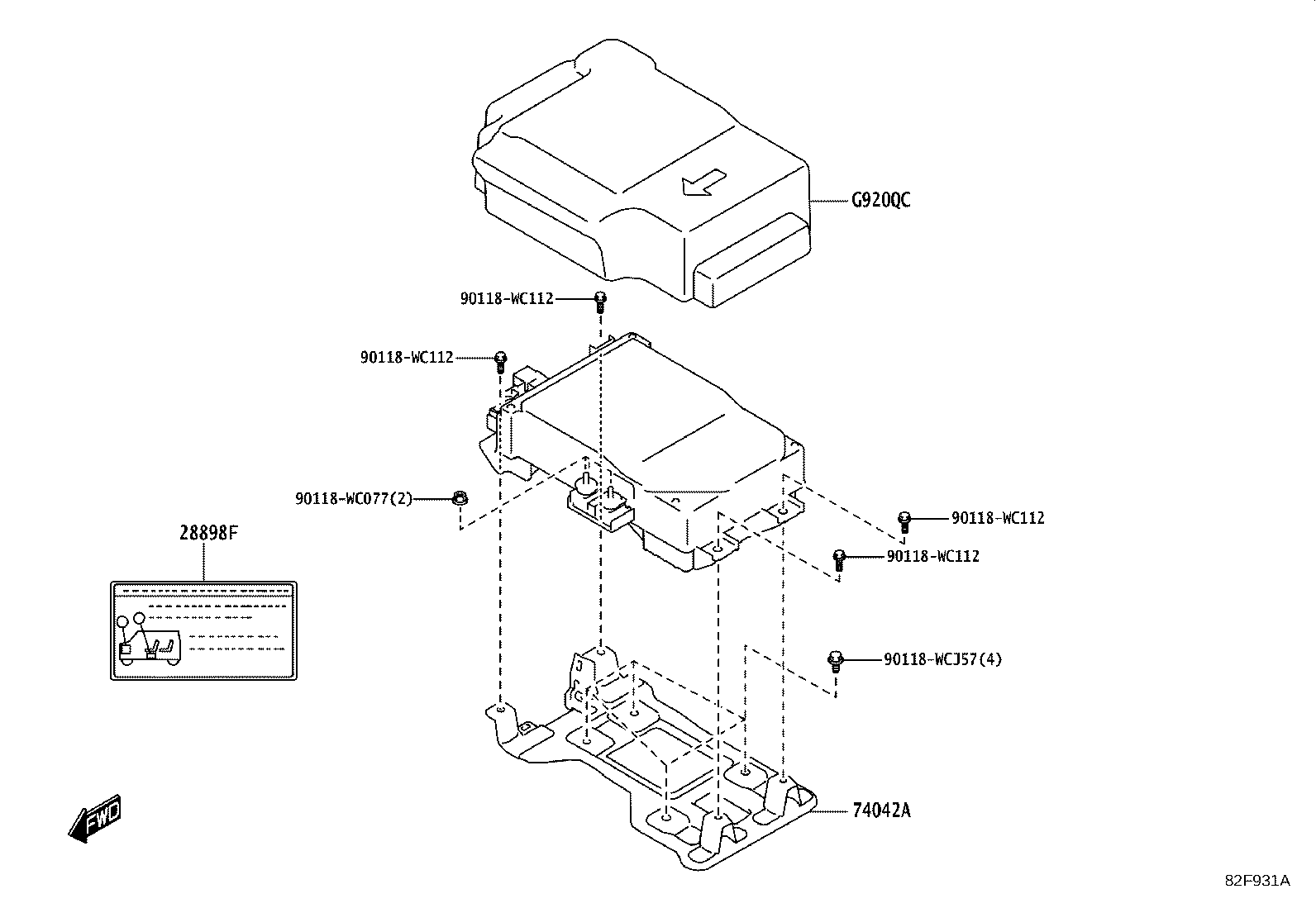

| G920QC | Cover, Battery Pack |
| G9230 | Blower Assy, Battery Cooling |
| G9275B | Label, Battery Information |
| G9285G | Label, HV Battery Information, NO.1 |
| G9286 | Label, Hybrid Battery Caution, NO.2 |
| G9288B | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G929A | Hose, HV Battery, NO.1 |
| G92C6 | Bracket, HV Battery Mount, NO.1 |

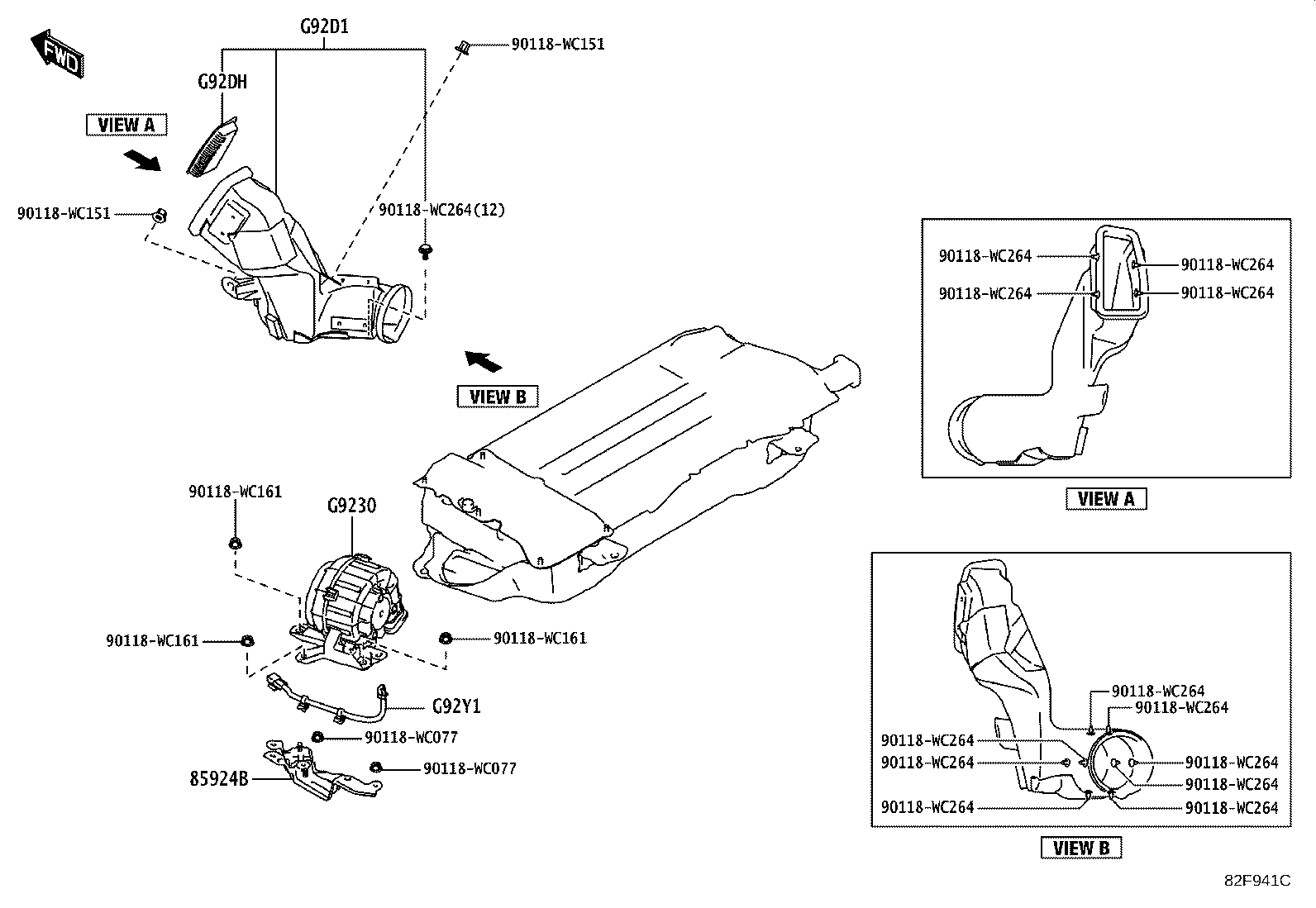

| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92E1A | Duct, HV Battery Intake, NO.1 LH |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92F1B | Cover, Hybrid Battery Exhaust Duct, NO.1 |
| G92PC | Protector, HV Battery, NO.1 |
| G92Y1 | Cable, HV Battery Pack, NO.1 |
| G92Z2 | Block, Hybrid Battery Terminal |
| G9508 | Stack Sub-assy, HV Supply, NO.1 |
| G9509 | Stack Sub-assy, HV Supply, NO.2 |

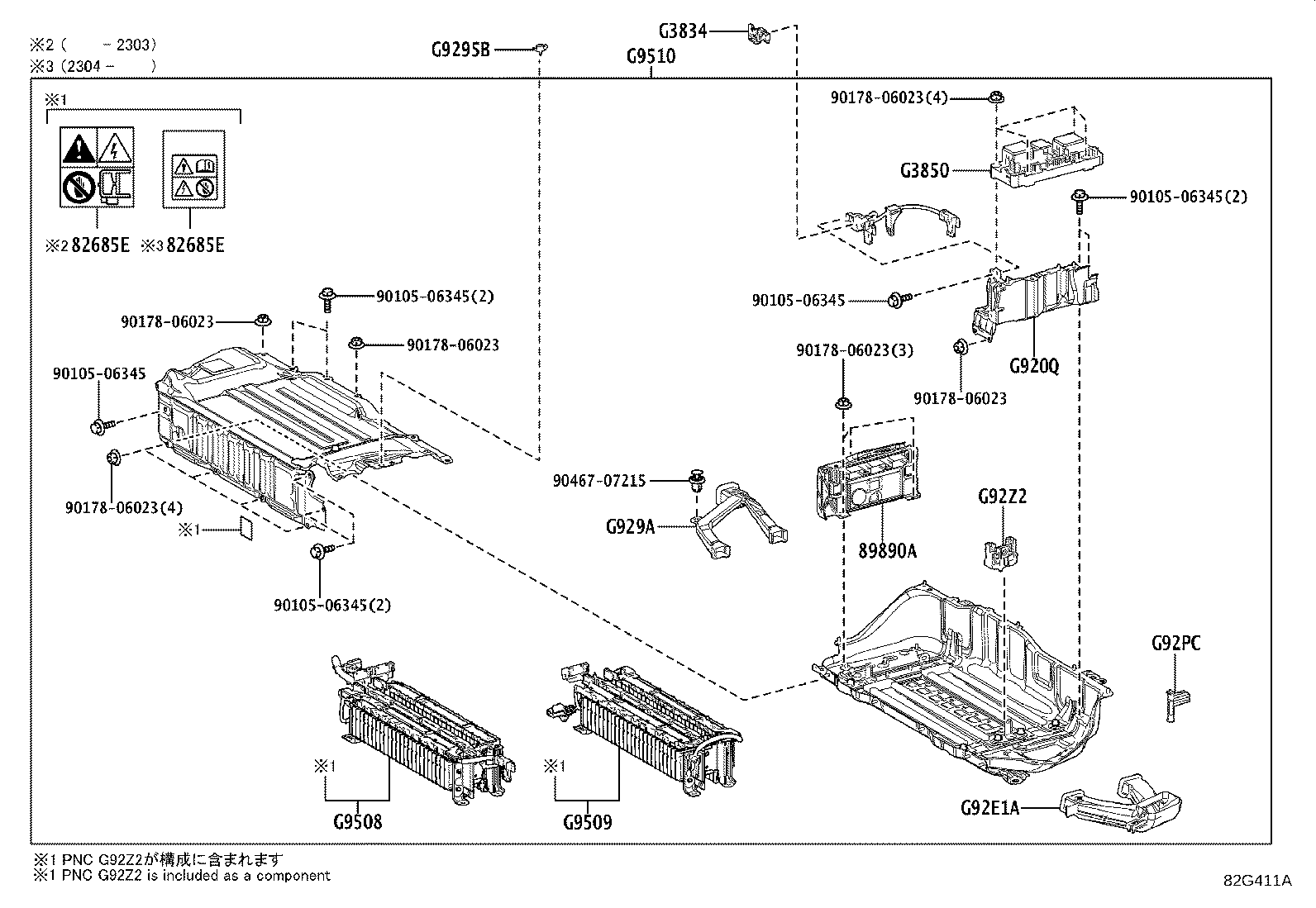

| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
