Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

41 part groups · 74 illustrations

Illustrations

Figure 82G025 82G025 2024-01 → — Figure 82G026 82G026 2024-01 → — Figure 82G027 82G027 2024-01 → — Figure 82G028 82G028 2024-01 → — Figure 82G029A 82G029A 2024-01 → — Figure 82G030A 82G030A 2024-01 → — Figure 82G031B 82G031B 2024-01 → — Figure 82G032B 82G032B 2024-01 → — Figure 82G033B 82G033B 2024-01 → — Figure 82G034A 82G034A 2024-01 → — Figure 82G035A 82G035A 2024-01 → — Figure 82G036A 82G036A 2024-01 → — Figure 82G037A 82G037A 2024-01 → — Figure 82G038A 82G038A 2024-01 → — Figure 82G039B 82G039B 2024-01 → — Figure 82G040A 82G040A 2024-01 → — Figure 82G041A 82G041A 2024-01 → — Figure 82G042A 82G042A 2024-01 → — Figure 82G043C 82G043C 2024-01 → — Figure 82G044B 82G044B 2024-01 → — Figure 82G045B 82G045B 2024-01 → — Figure 82G046B 82G046B 2024-01 → — Figure 82G047C 82G047C 2024-01 → — Figure 82G048A 82G048A 2024-01 → — Figure 82G049A 82G049A 2024-01 → — Figure 82G050 82G050 2024-01 → — Figure 82G051A 82G051A 2024-01 → — Figure 82G052 82G052 2024-01 → — Figure 82G053 82G053 2024-01 → — Figure 82G054A 82G054A 2024-01 → — Figure 82G055 82G055 2024-01 → — Figure 82G056 82G056 2024-01 → — Figure 82G057 82G057 2024-01 → — Figure 82G058 82G058 2024-01 → — Figure 82G059A 82G059A 2024-01 → — Figure 82G061B 82G061B 2024-01 → — Figure 82G412 82G412 2024-01 → — Figure 82G599 82G599 2024-01 → — Figure 82G600 82G600 2024-01 → — Figure 82G062 82G062 2024-01 → — Figure 82G063 82G063 2024-01 → — Figure 82G064 82G064 2024-01 → — Figure 82G065 82G065 2024-01 → — Figure 82G066 82G066 2024-01 → — Figure 82G067 82G067 2024-01 → — Figure 82G068 82G068 2024-01 → — Figure 82G069A 82G069A 2024-01 → — Figure 82G070A 82G070A 2024-01 → — Figure 82G413 82G413 2024-01 → — Figure 82G414 82G414 2024-01 → — Figure 82G415 82G415 2024-01 → — Figure 82G416 82G416 2024-01 → — Figure 82G071 82G071 2024-01 → — Figure 82G072 82G072 2024-01 → — Figure 82G073 82G073 2024-01 → — Figure 82G074 82G074 2024-01 → — Figure 82G075 82G075 2024-01 → — Figure 82G076 82G076 2024-01 → — Figure 82G077 82G077 2024-01 → — Figure 82G078 82G078 2024-01 → — Figure 82G079A 82G079A 2024-01 → — Figure 82G081B 82G081B 2024-01 → — Figure 82G417A 82G417A 2024-01 → — Figure 82G601 82G601 2024-01 → — Figure 82G602 82G602 2024-01 → — Figure 82G082A 82G082A 2024-01 → — Figure 82G083A 82G083A 2024-01 → — Figure 82G084A 82G084A 2024-01 → — Figure 82G085A 82G085A 2024-01 → — Figure 82G086A 82G086A 2024-01 → — Figure 82G087A 82G087A 2024-01 → — Figure 82G088 82G088 2024-01 → — Figure 82G418A 82G418A 2024-01 → — Figure 82G419C 82G419C 2024-01 → —

Part groups

PNCDescription

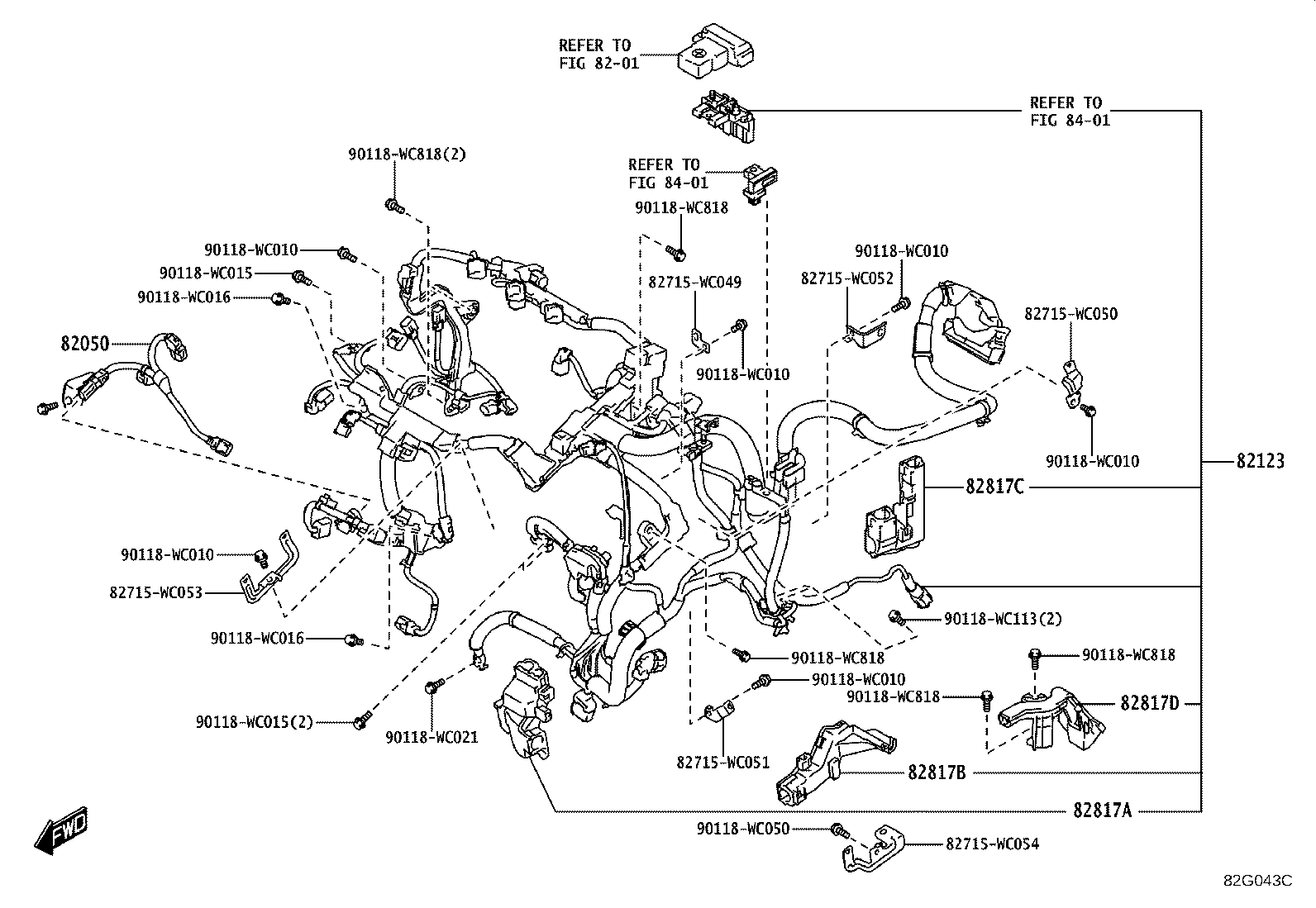

82050 Wire Assy, Engine

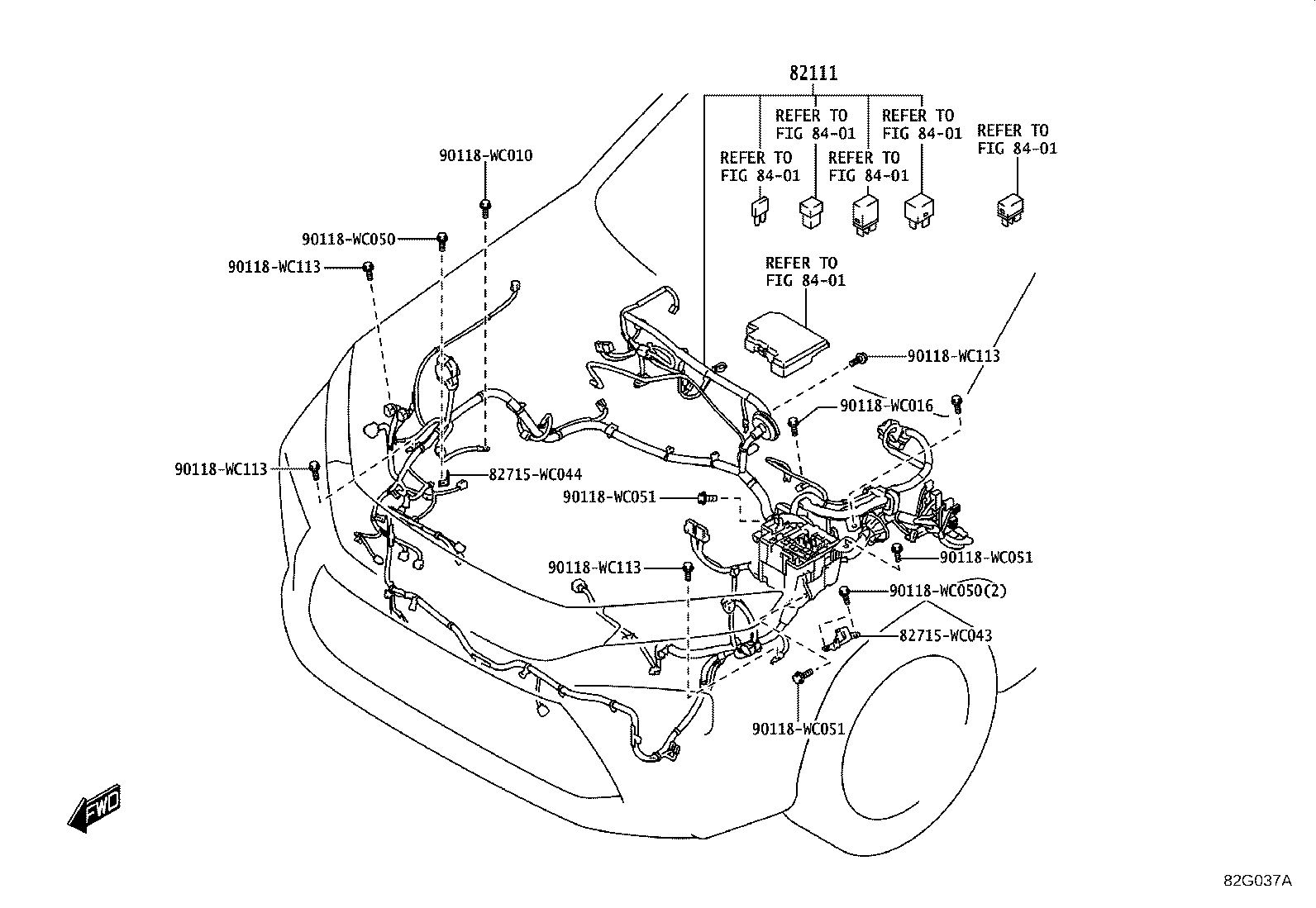

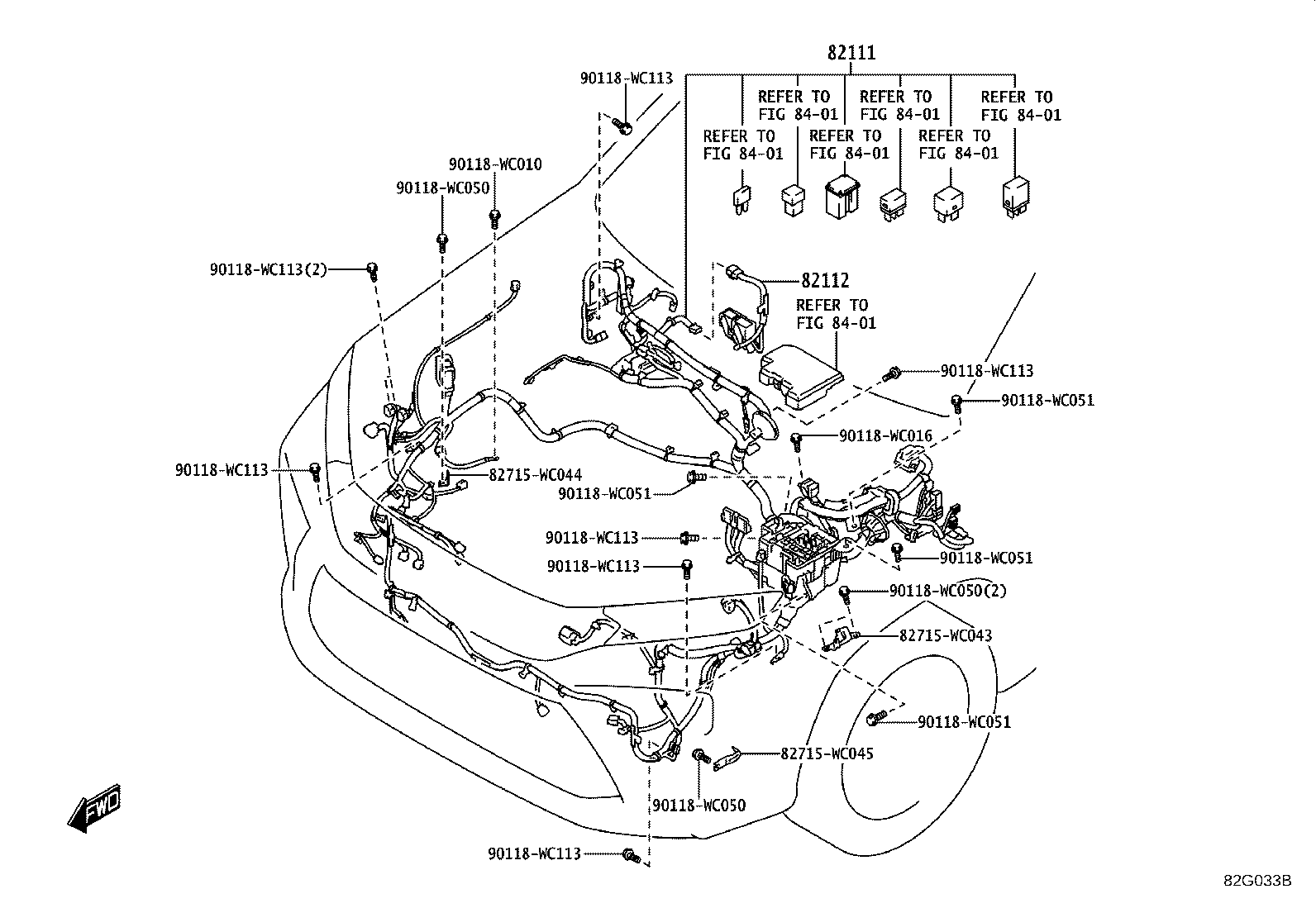

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

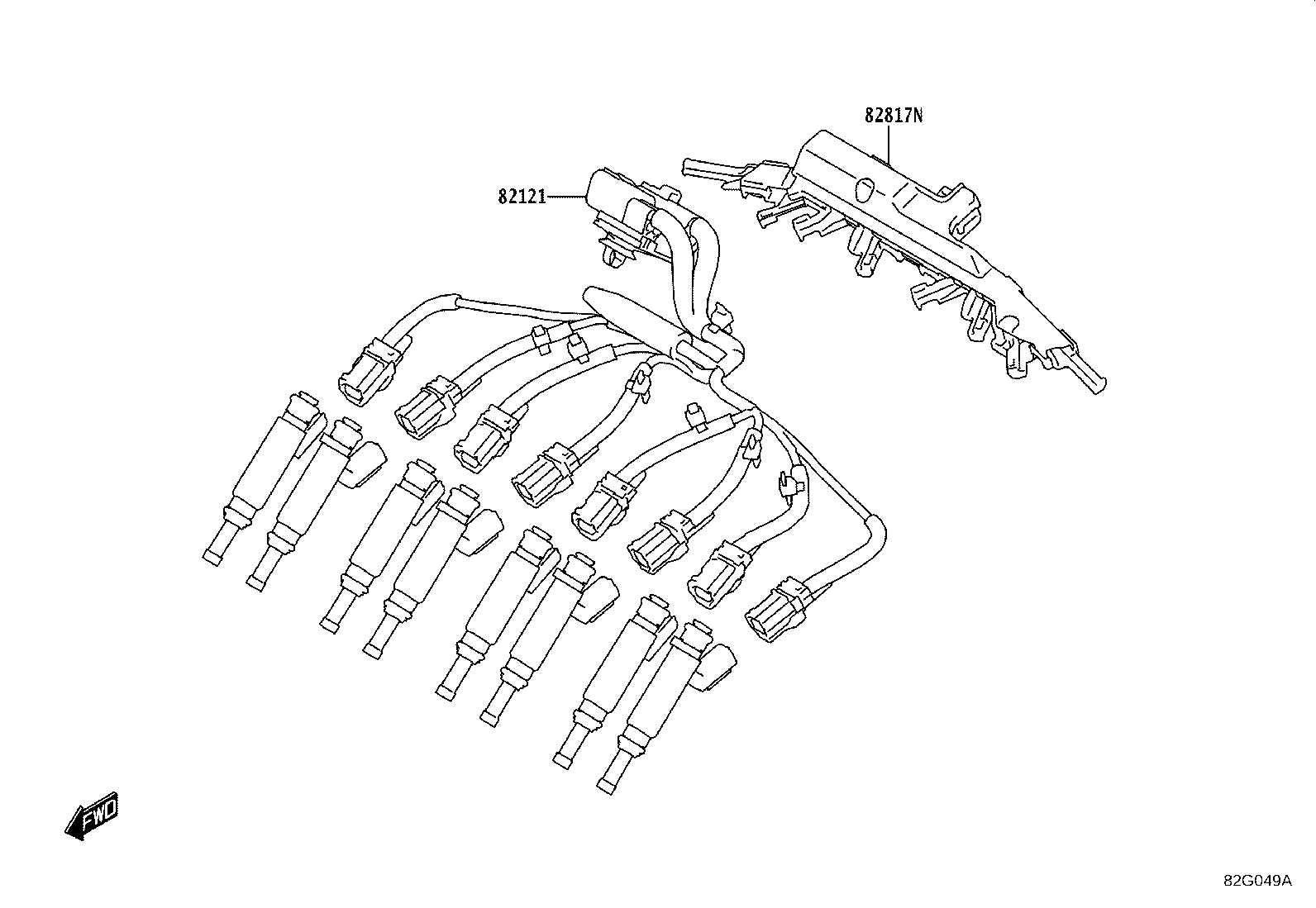

82121 Wire, Engine

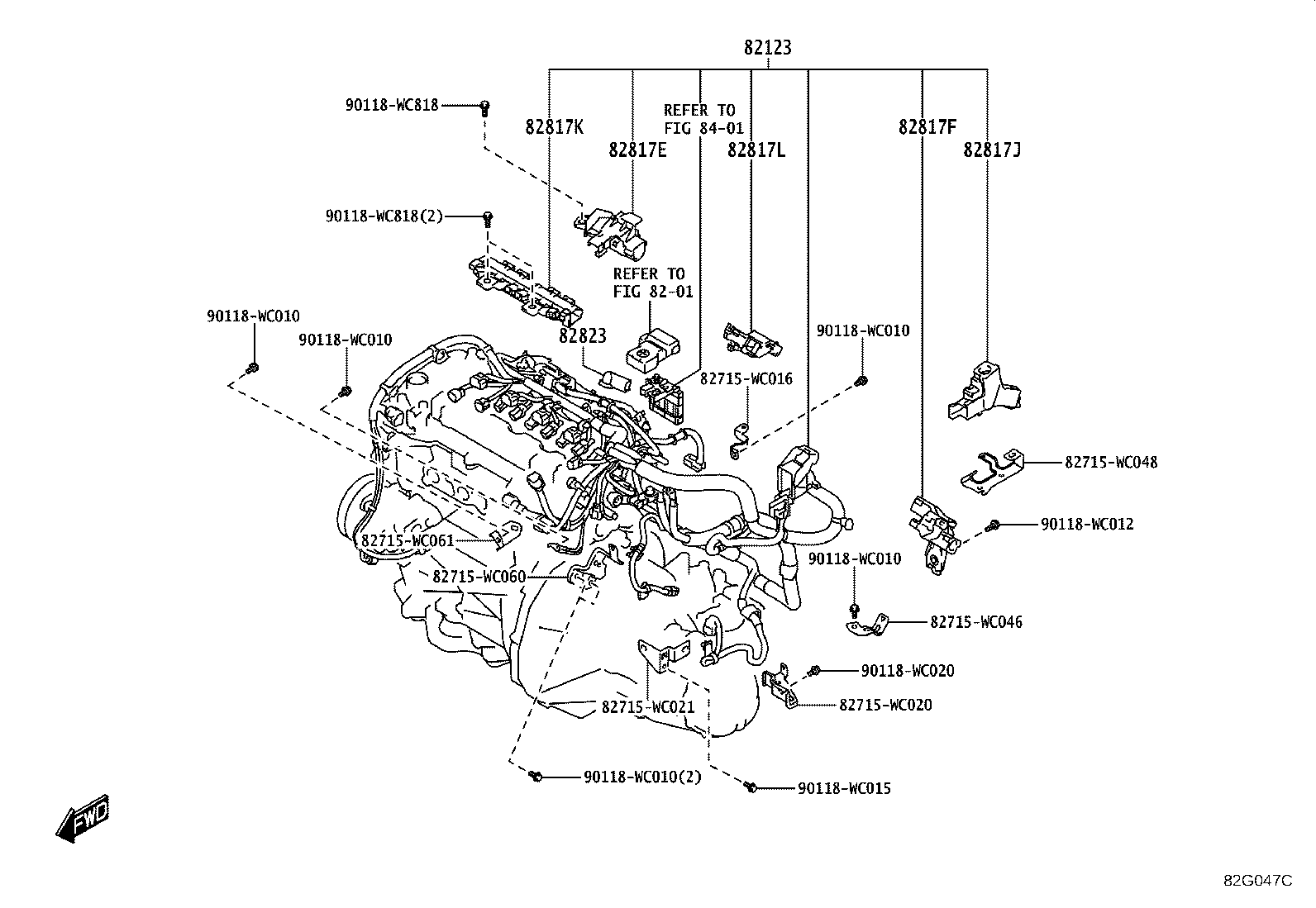

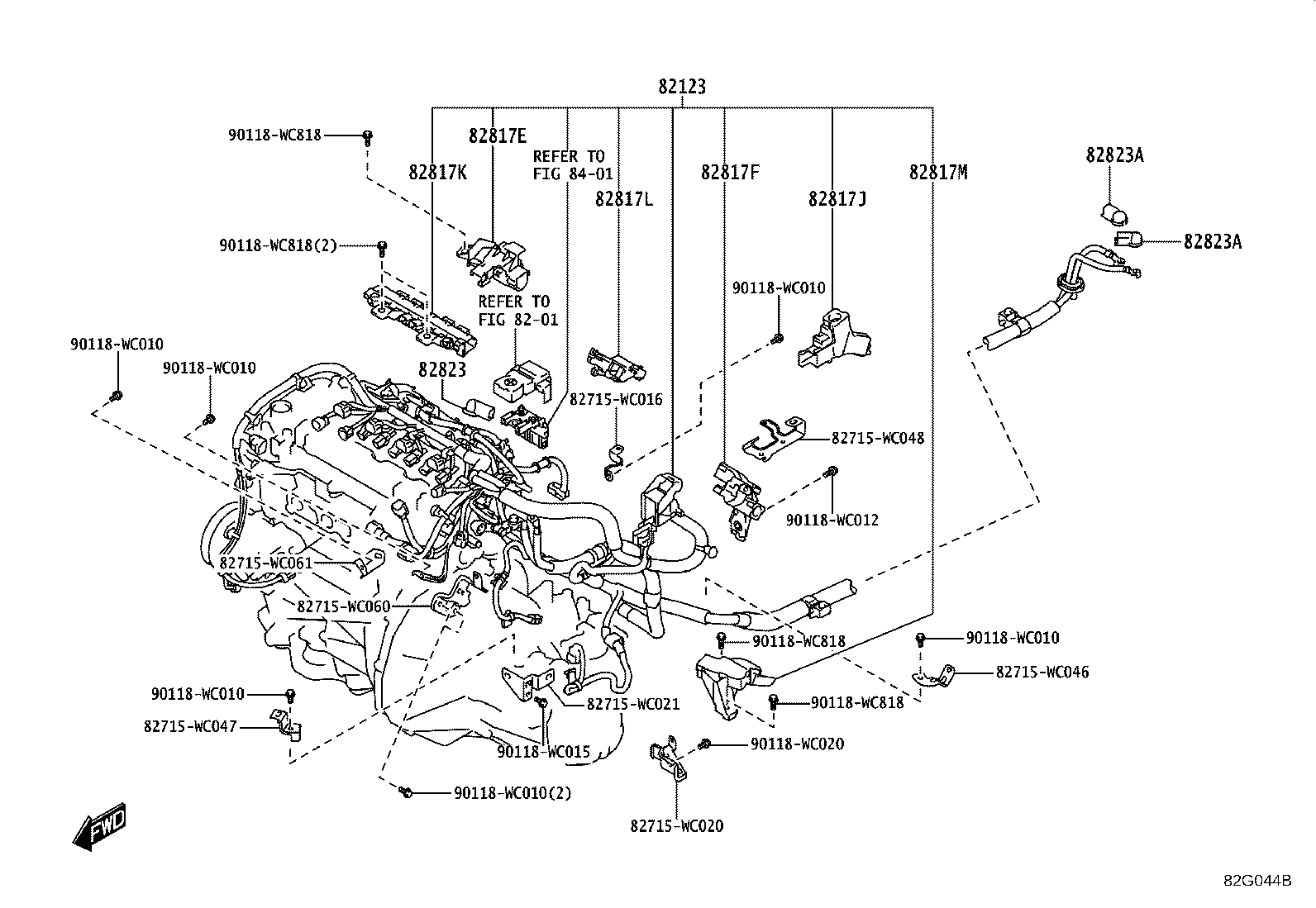

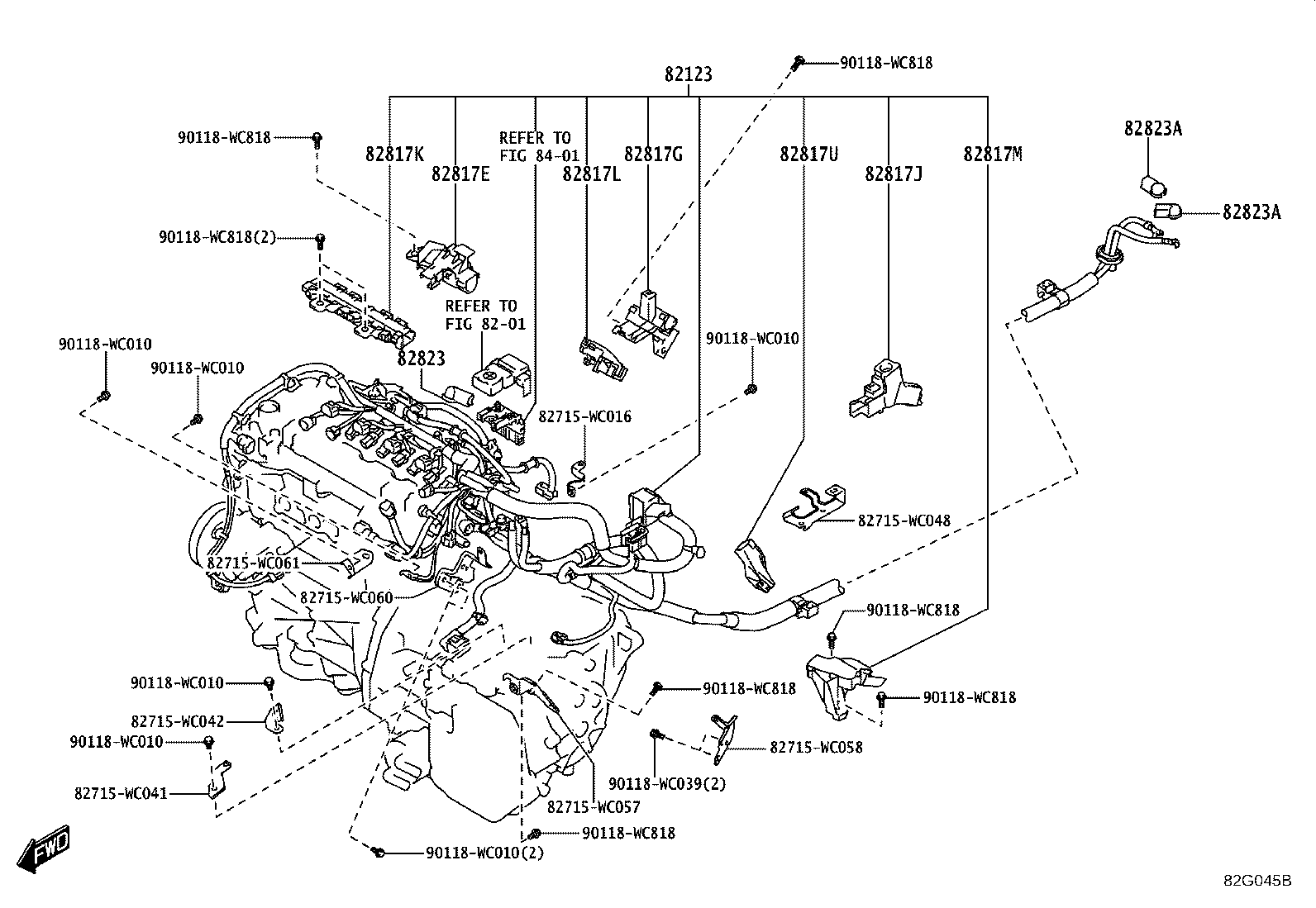

82123 Wire, Engine, NO.3

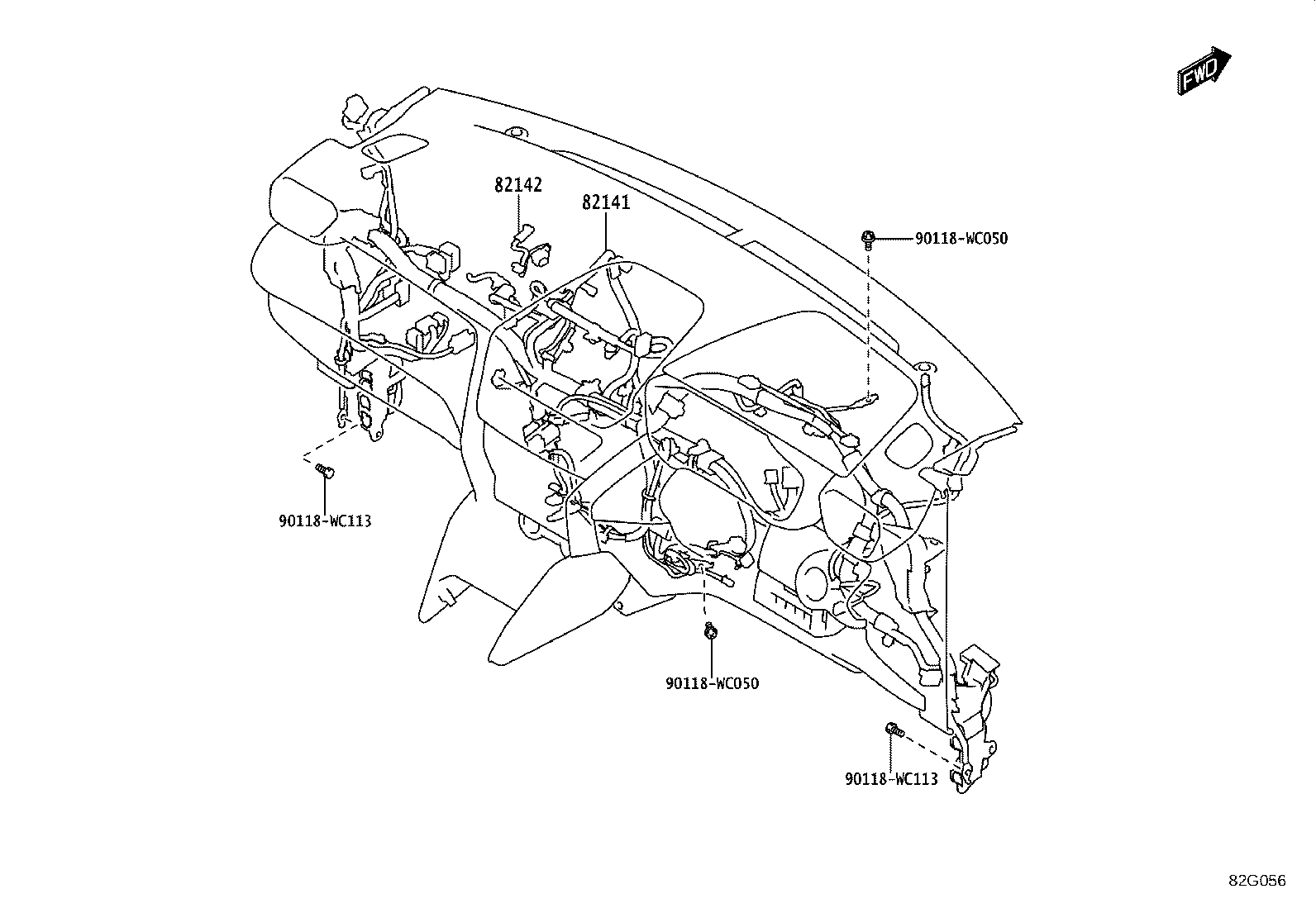

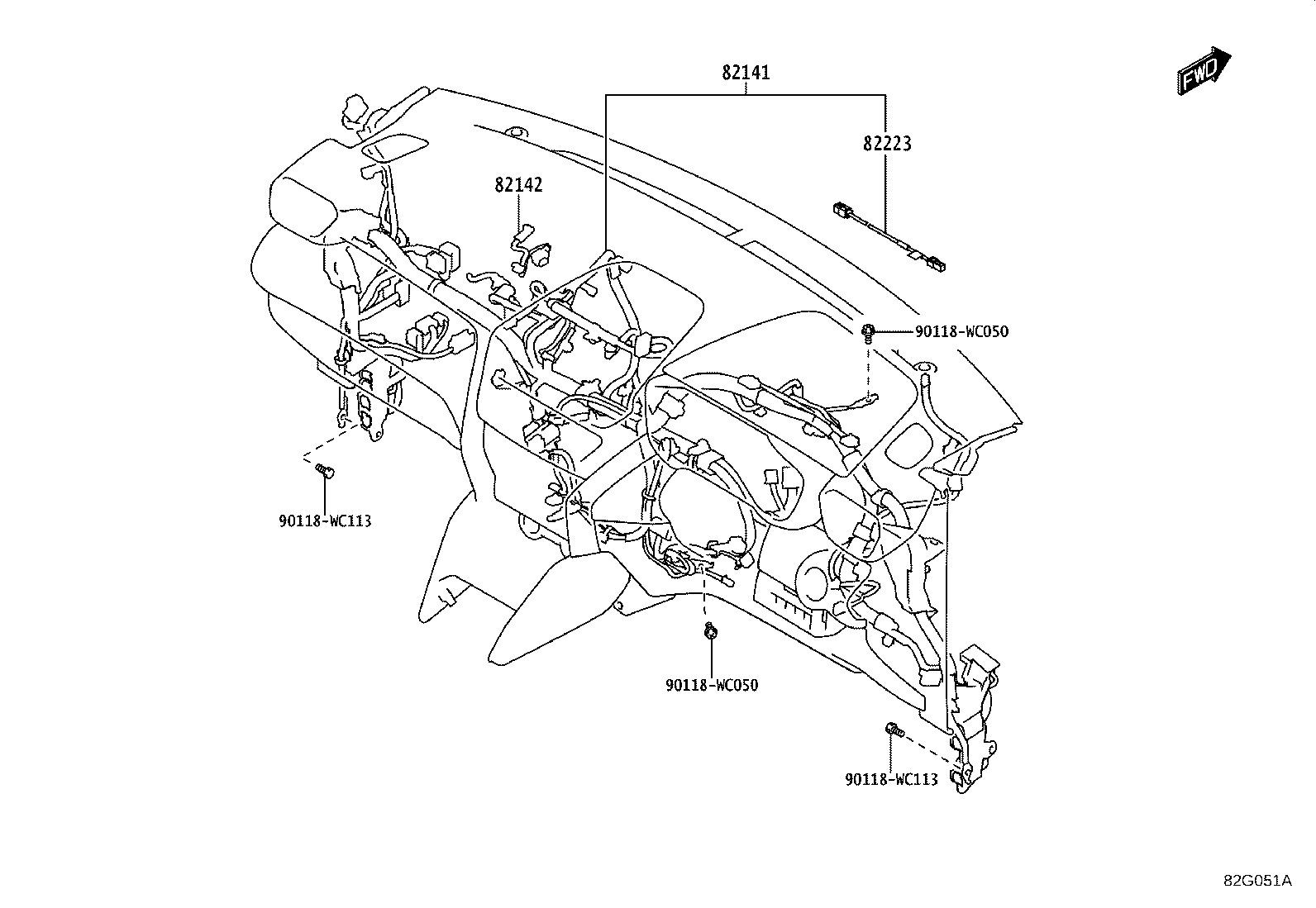

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

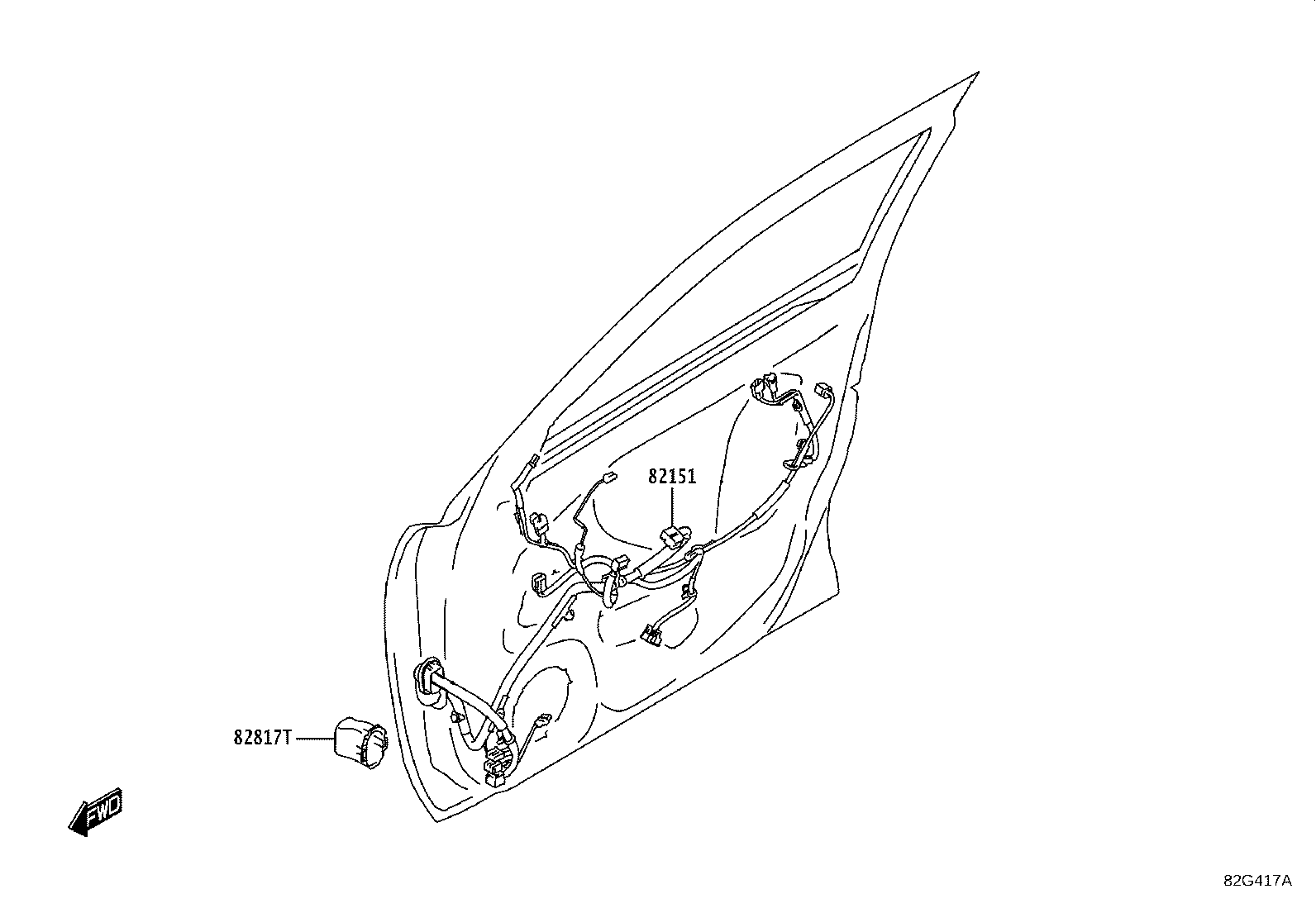

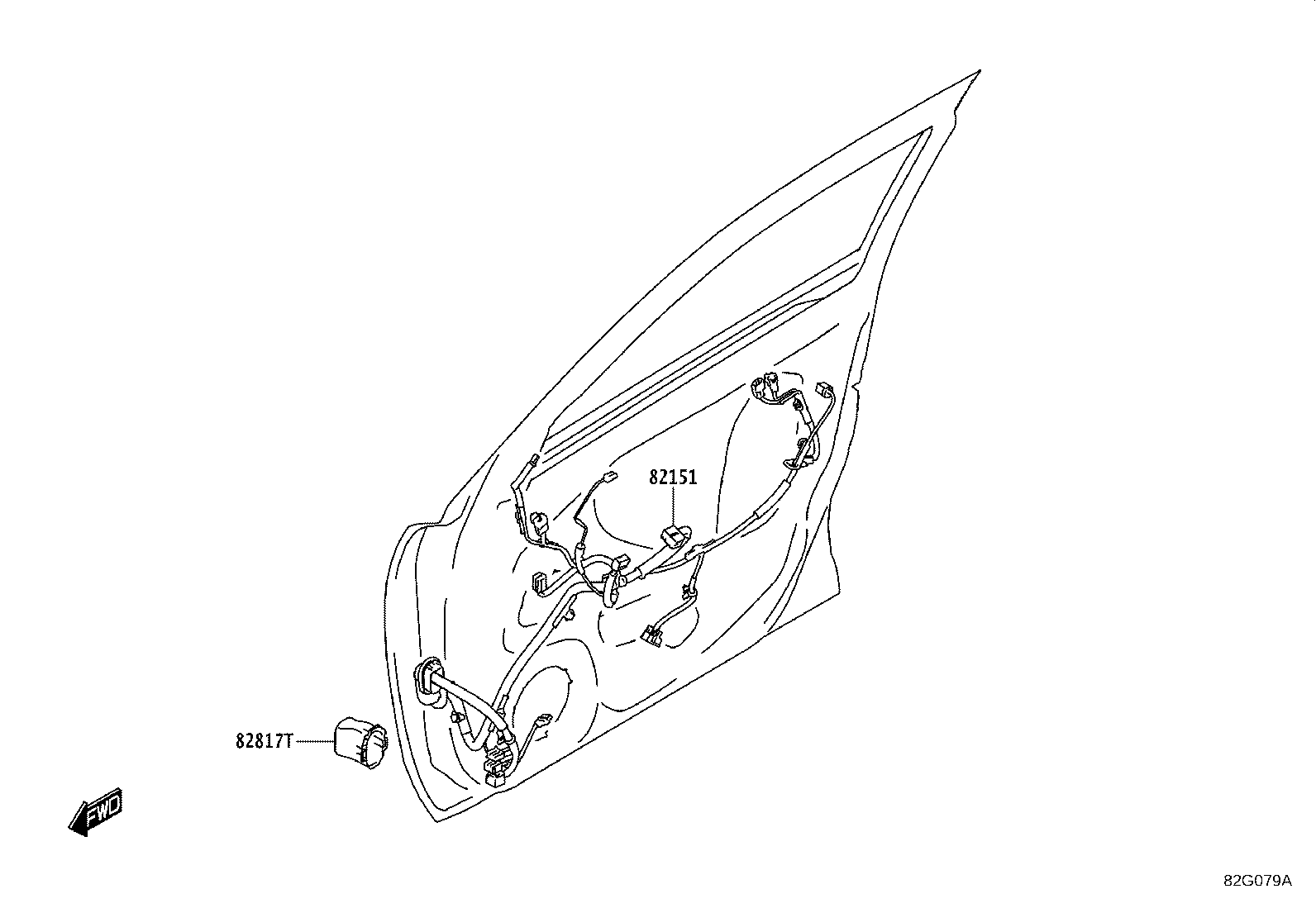

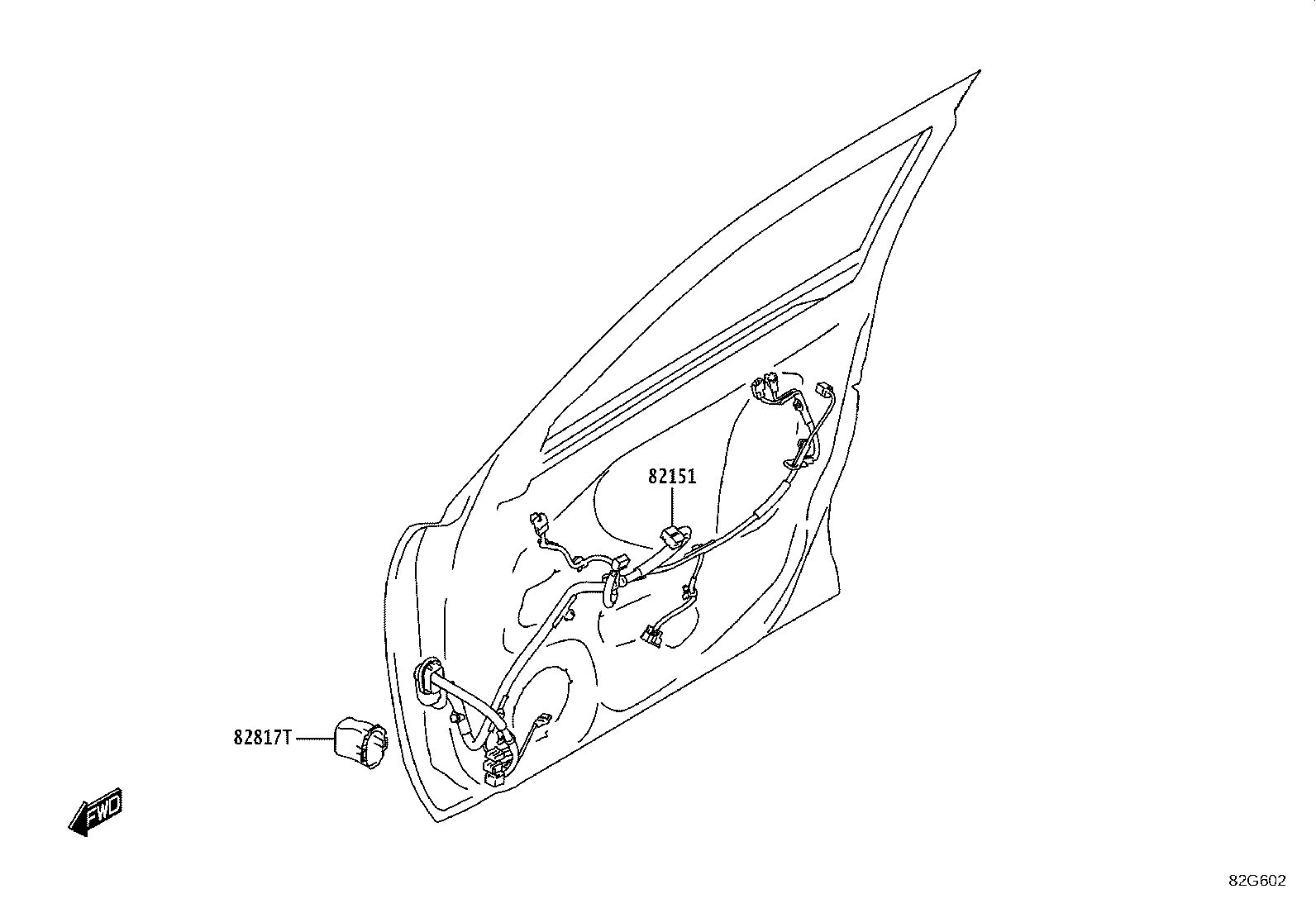

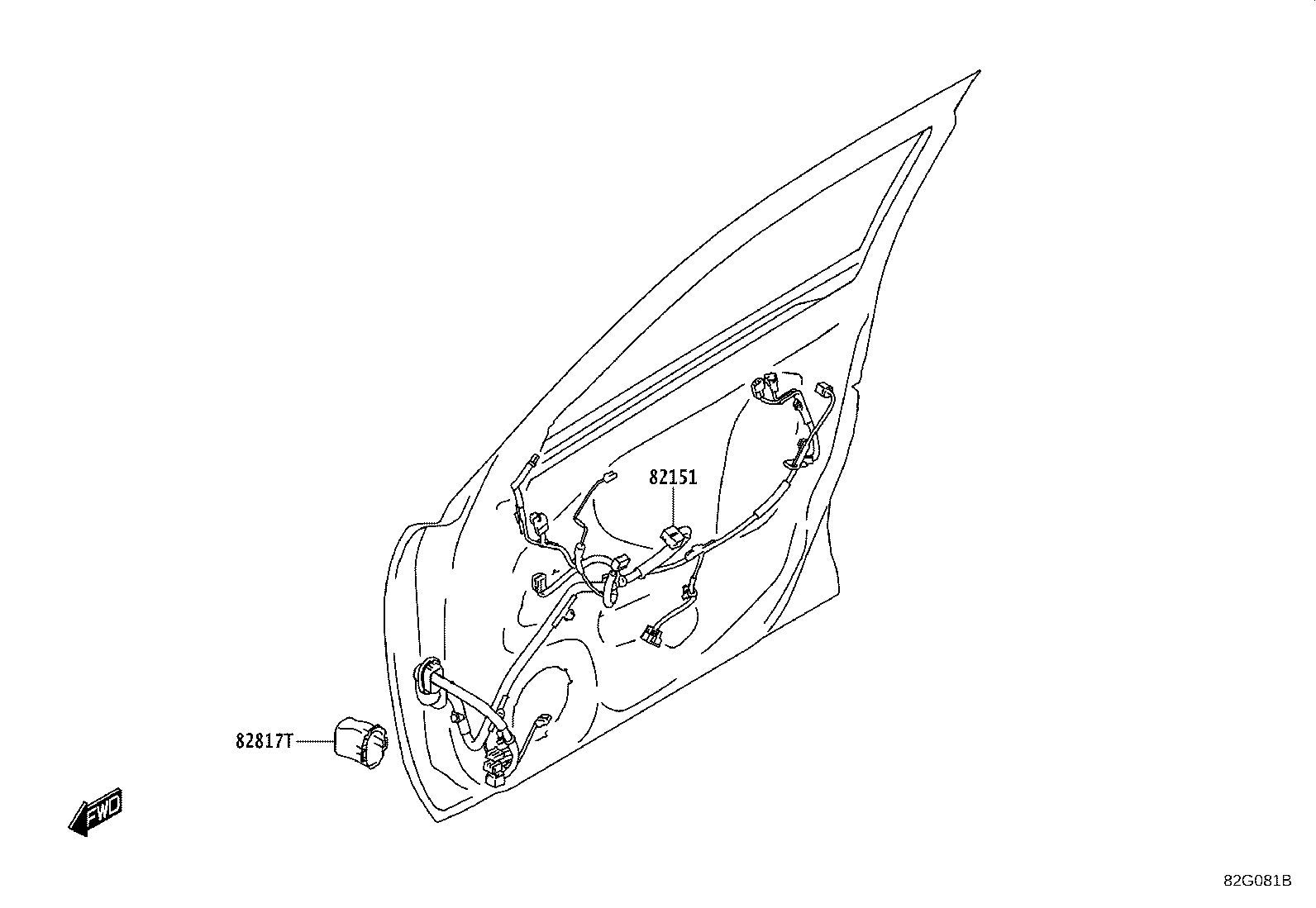

82151 Wire, Front Door, RH

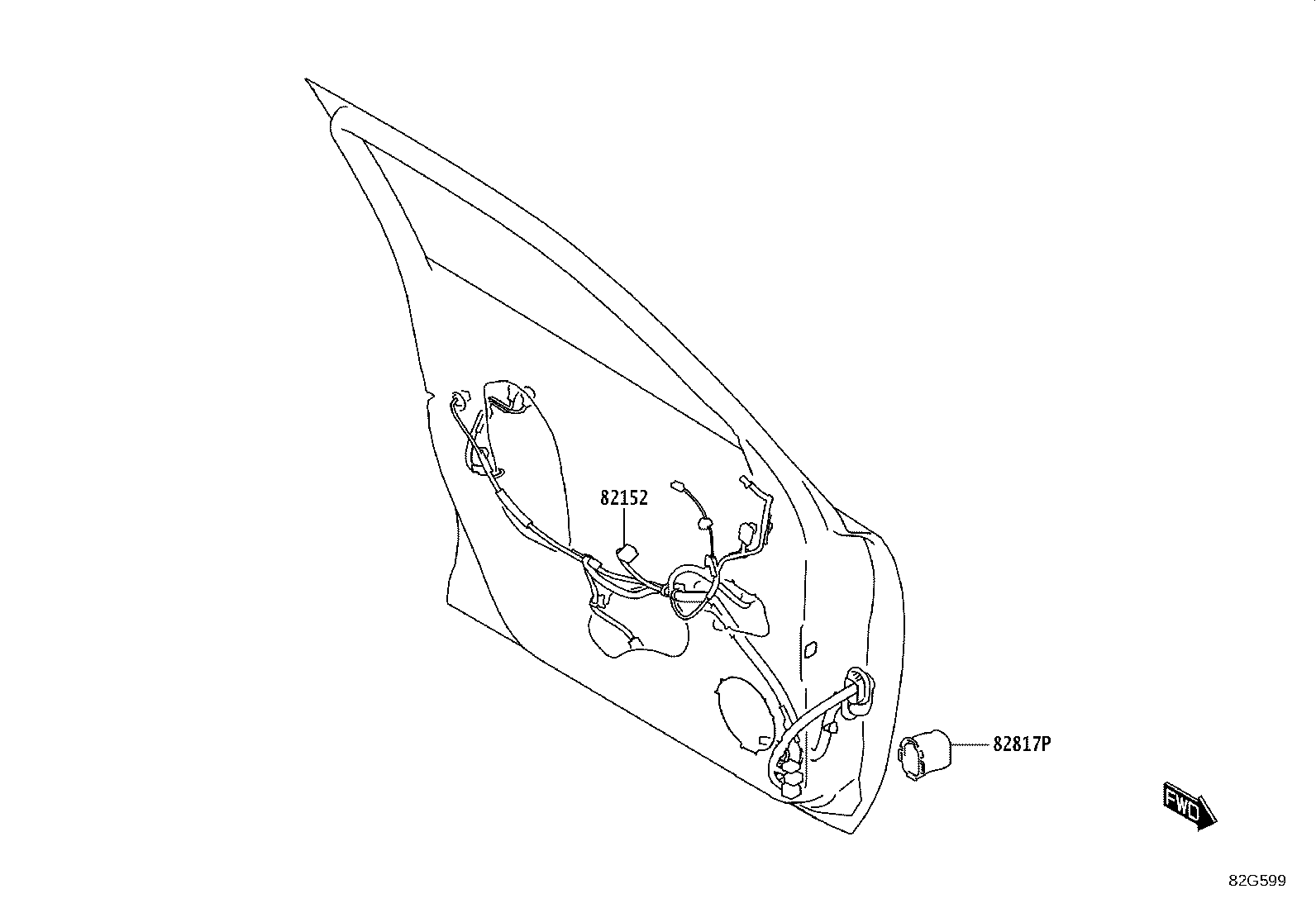

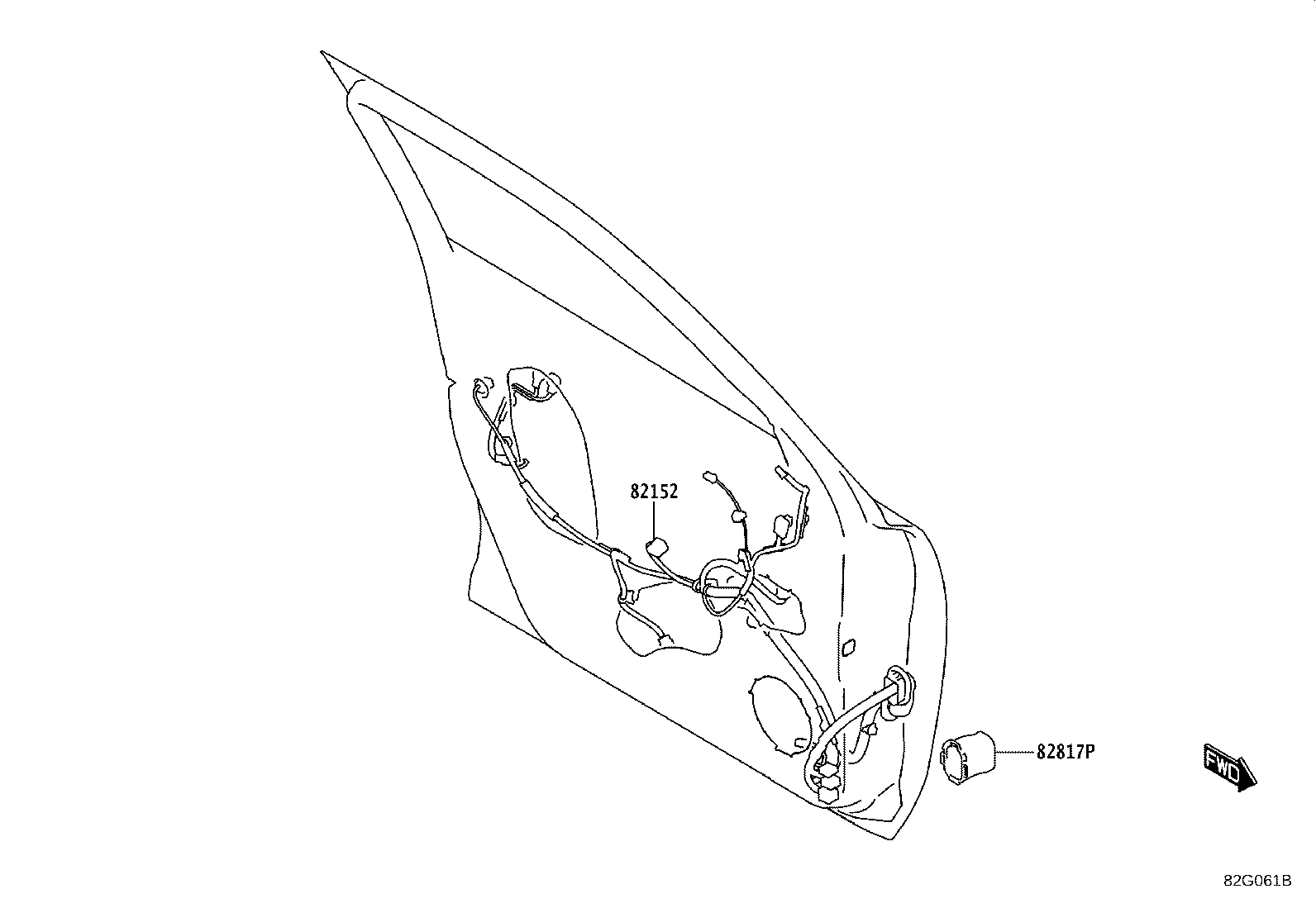

82152 Wire, Front Door, LH

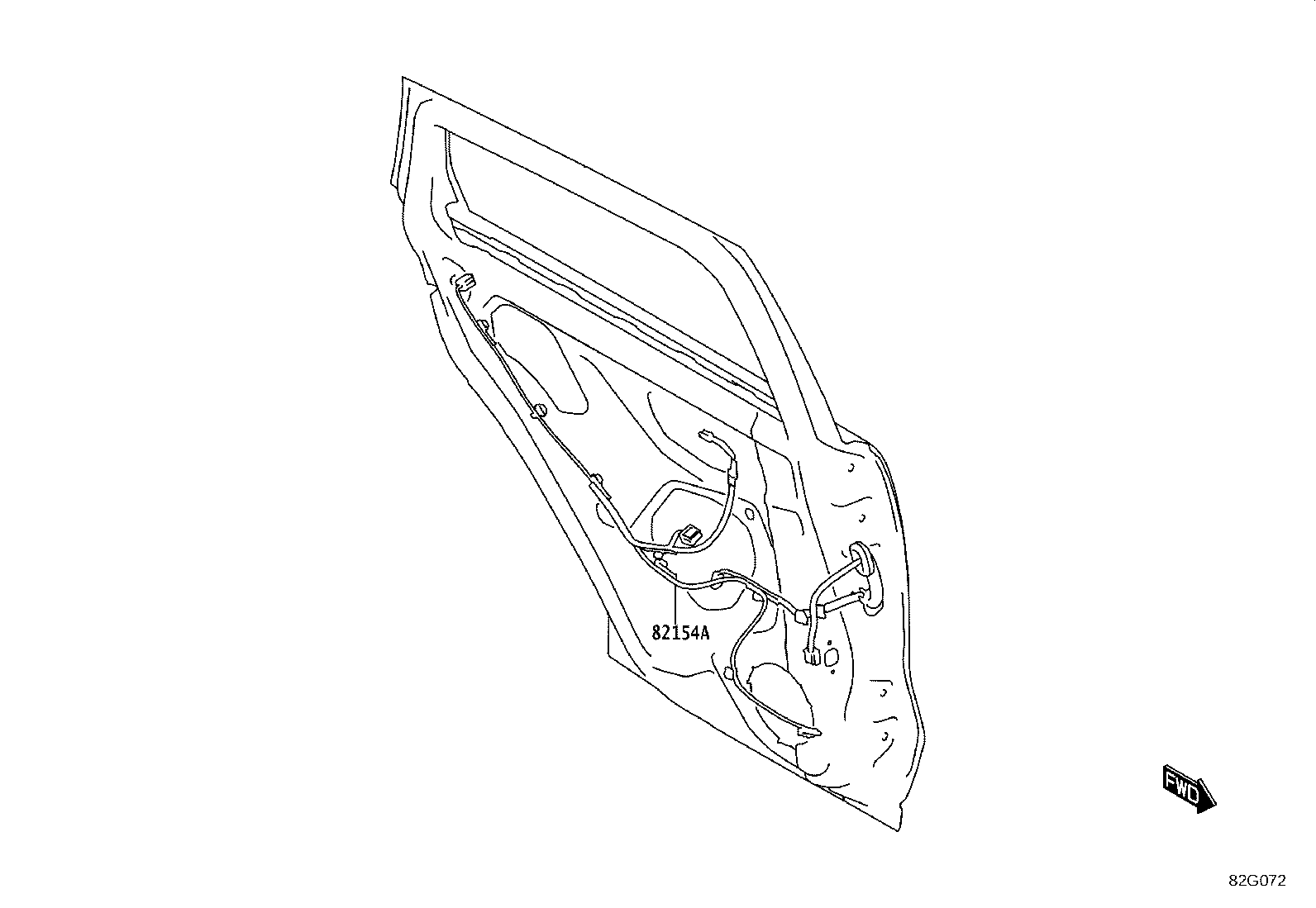

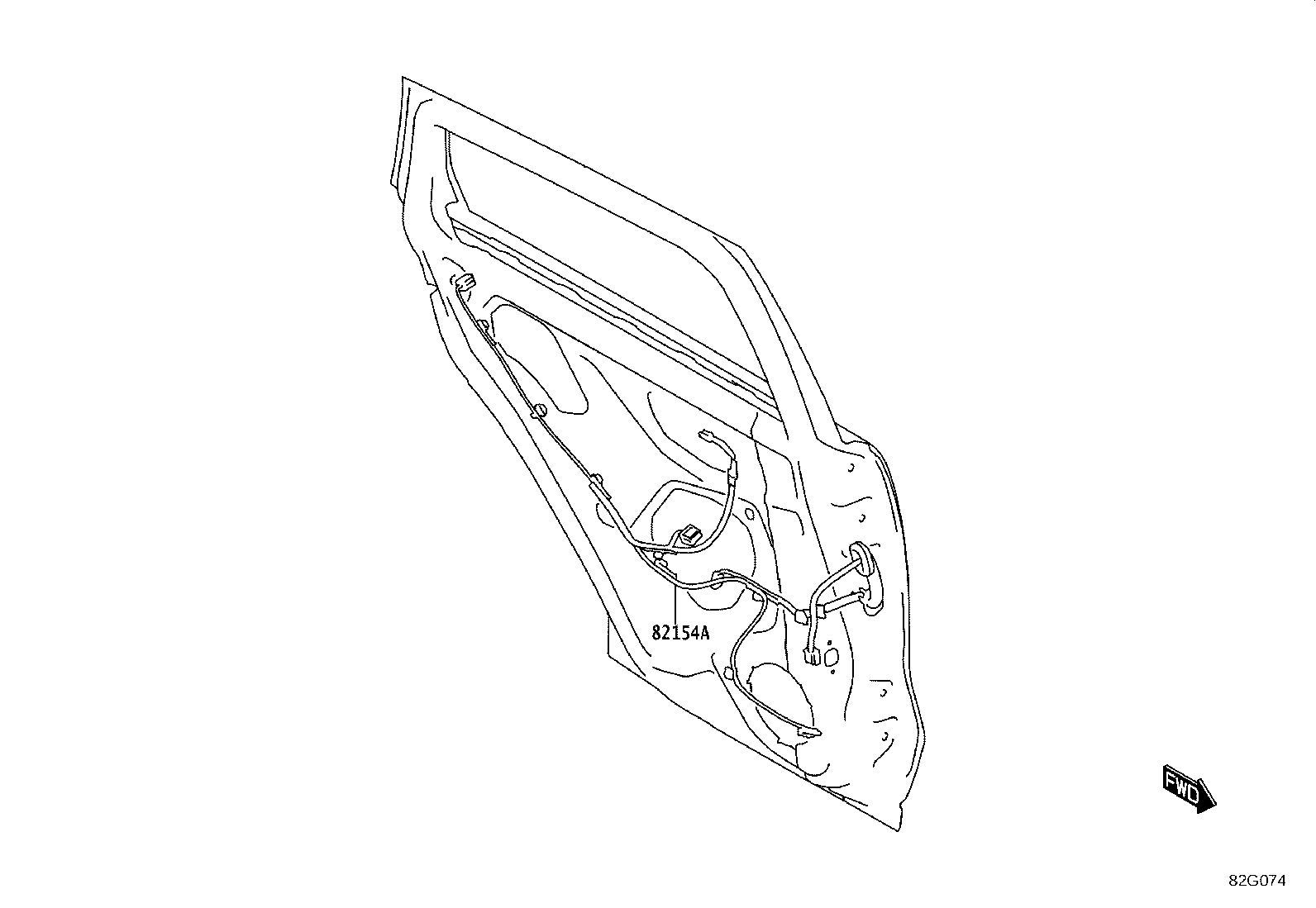

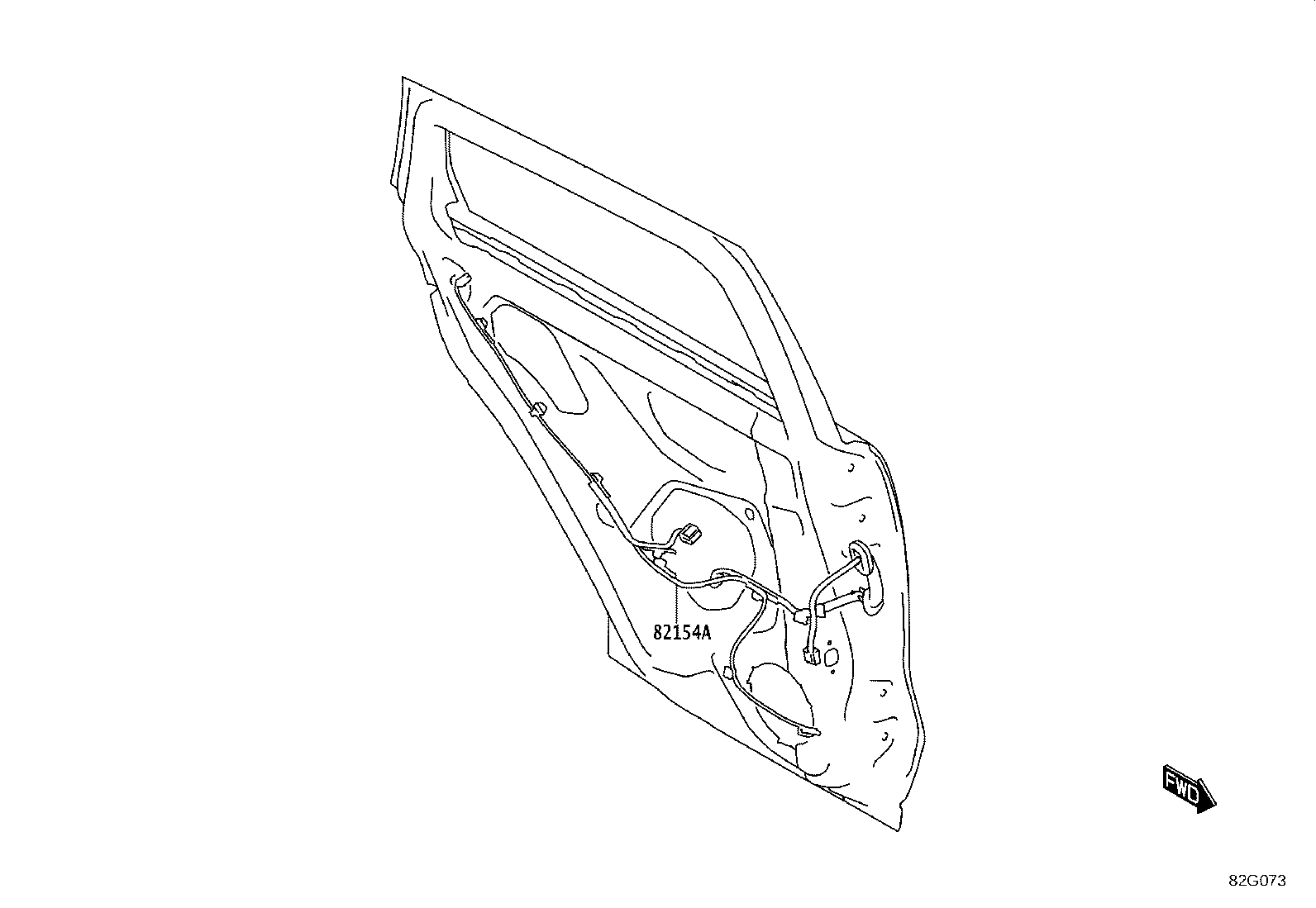

82154A Wire, Rear Door, LH

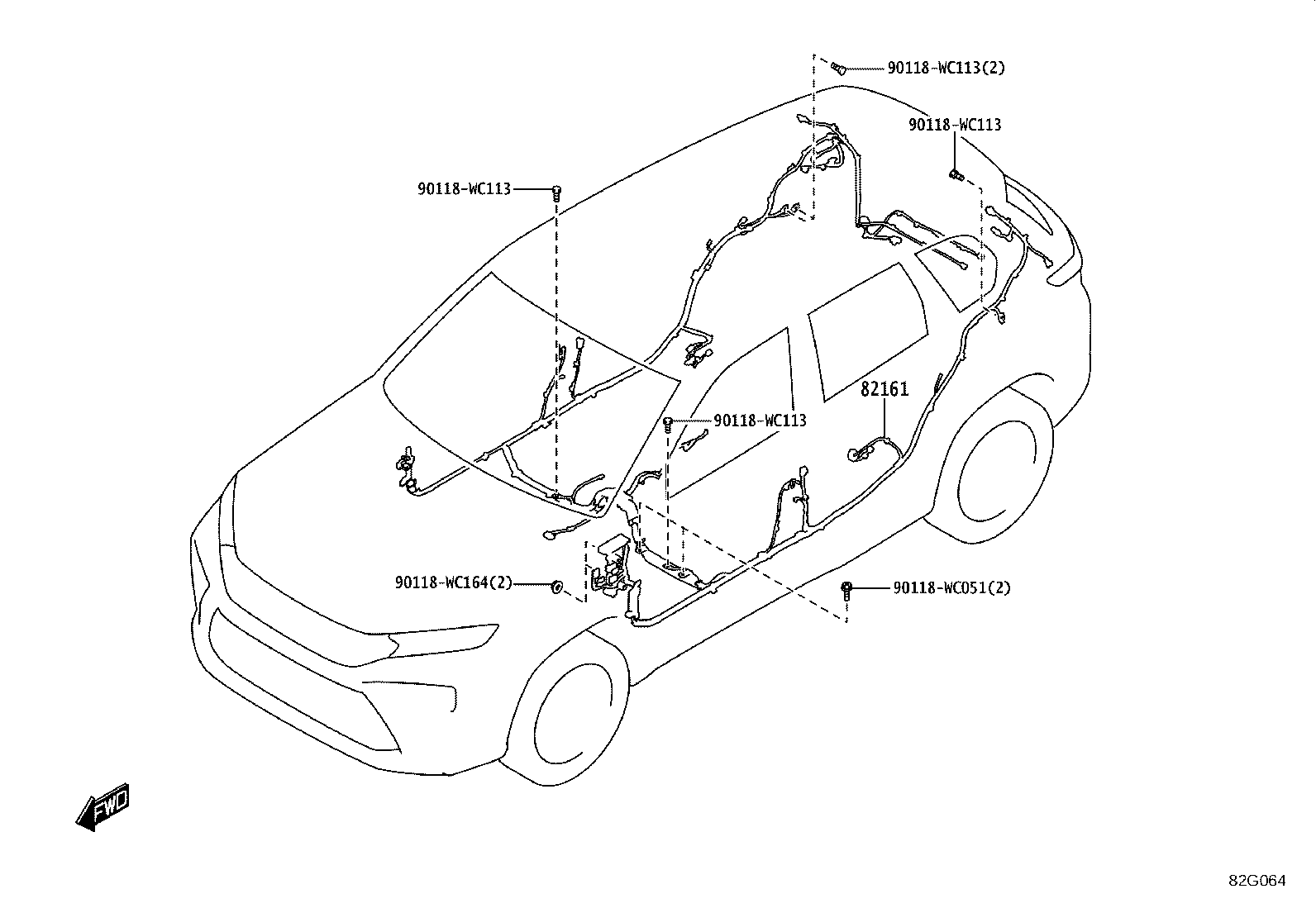

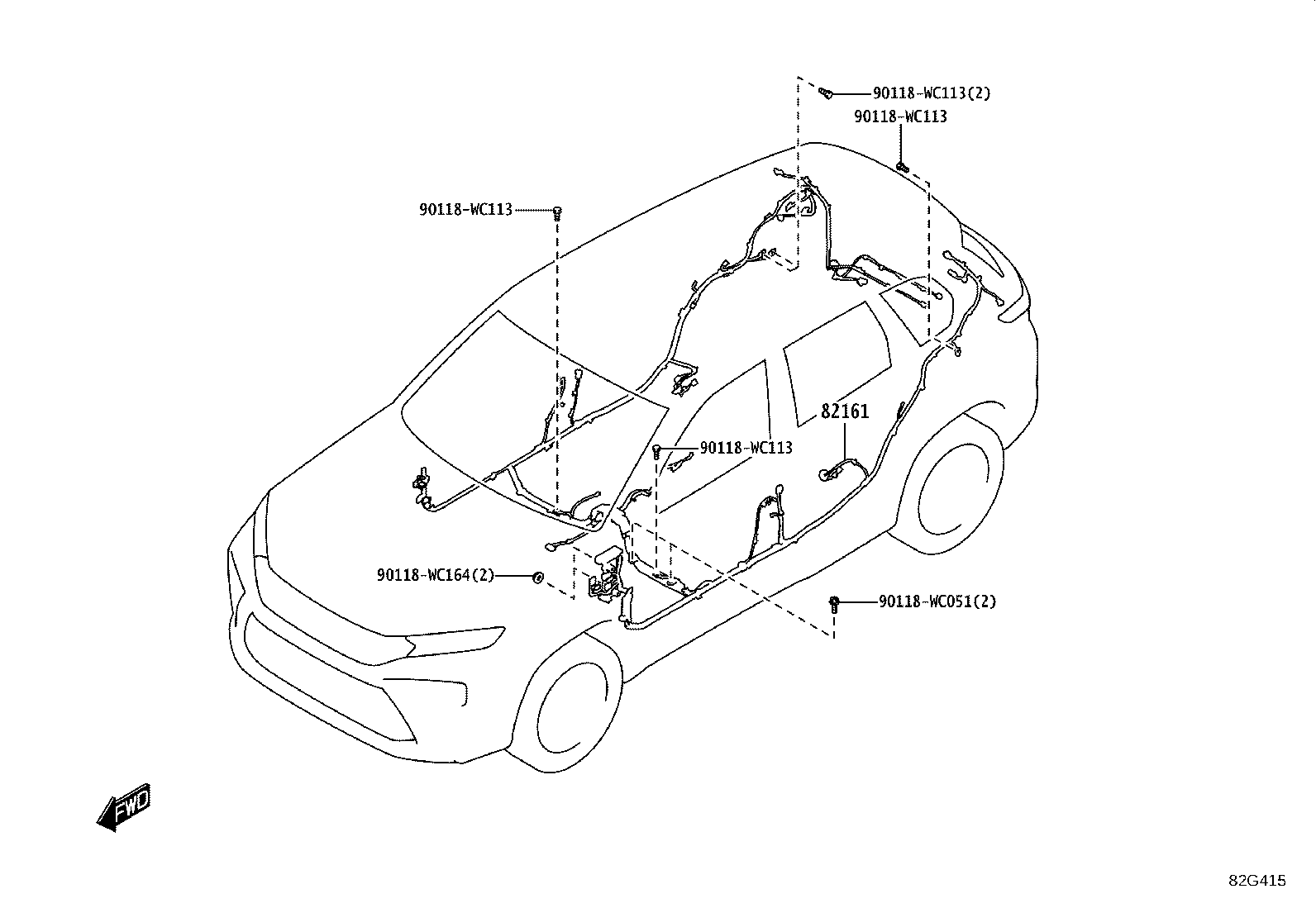

82161 Wire, Floor

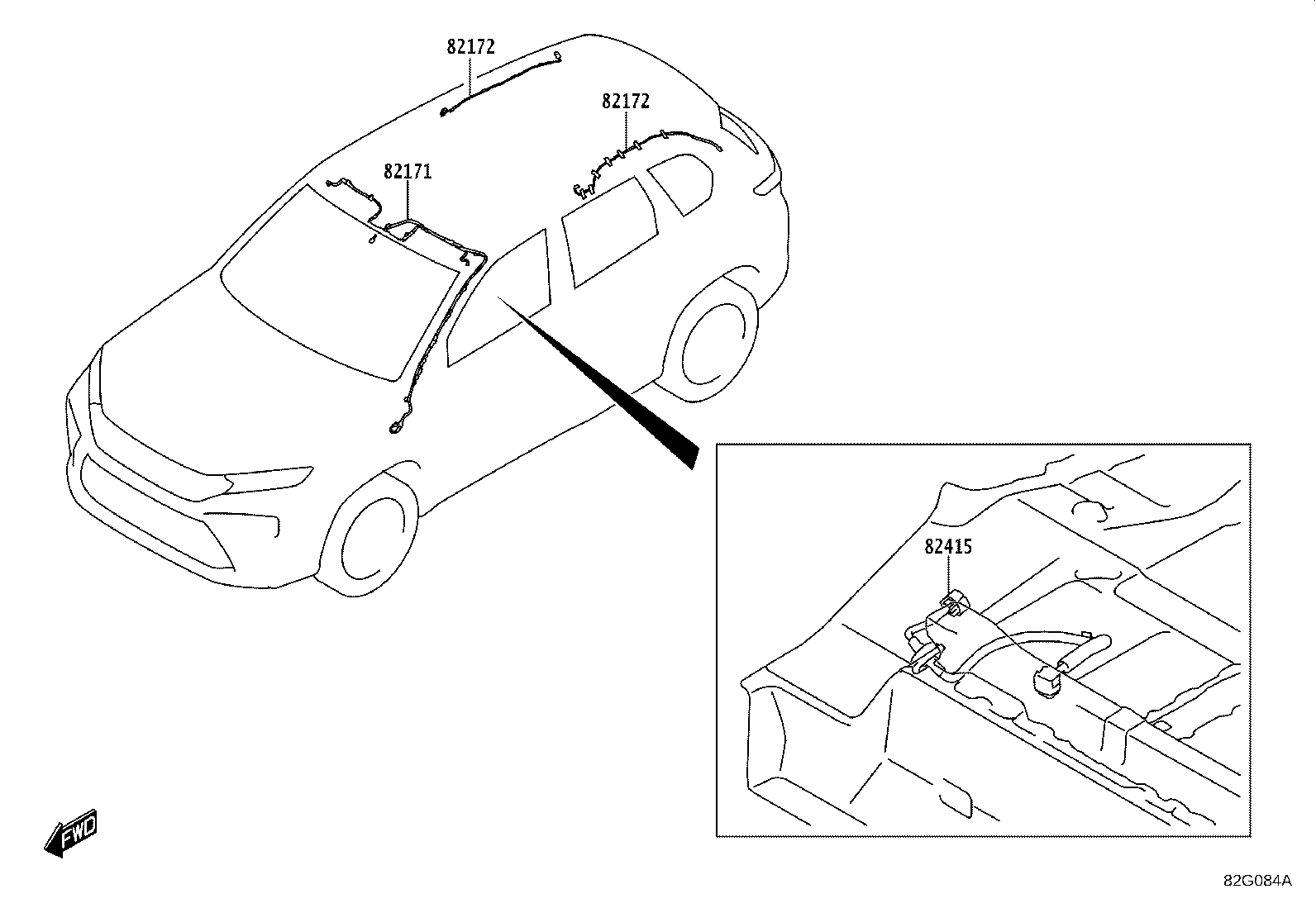

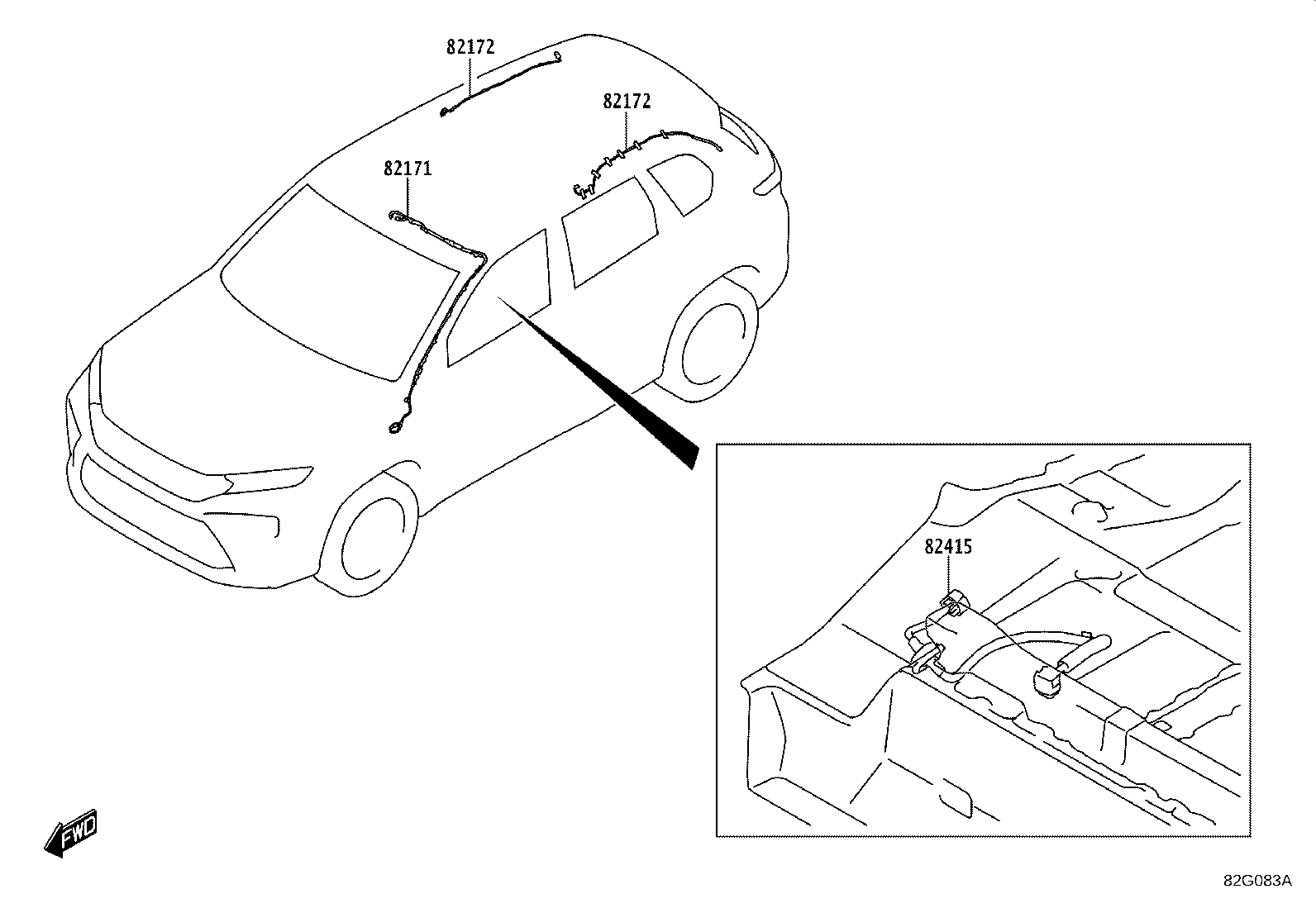

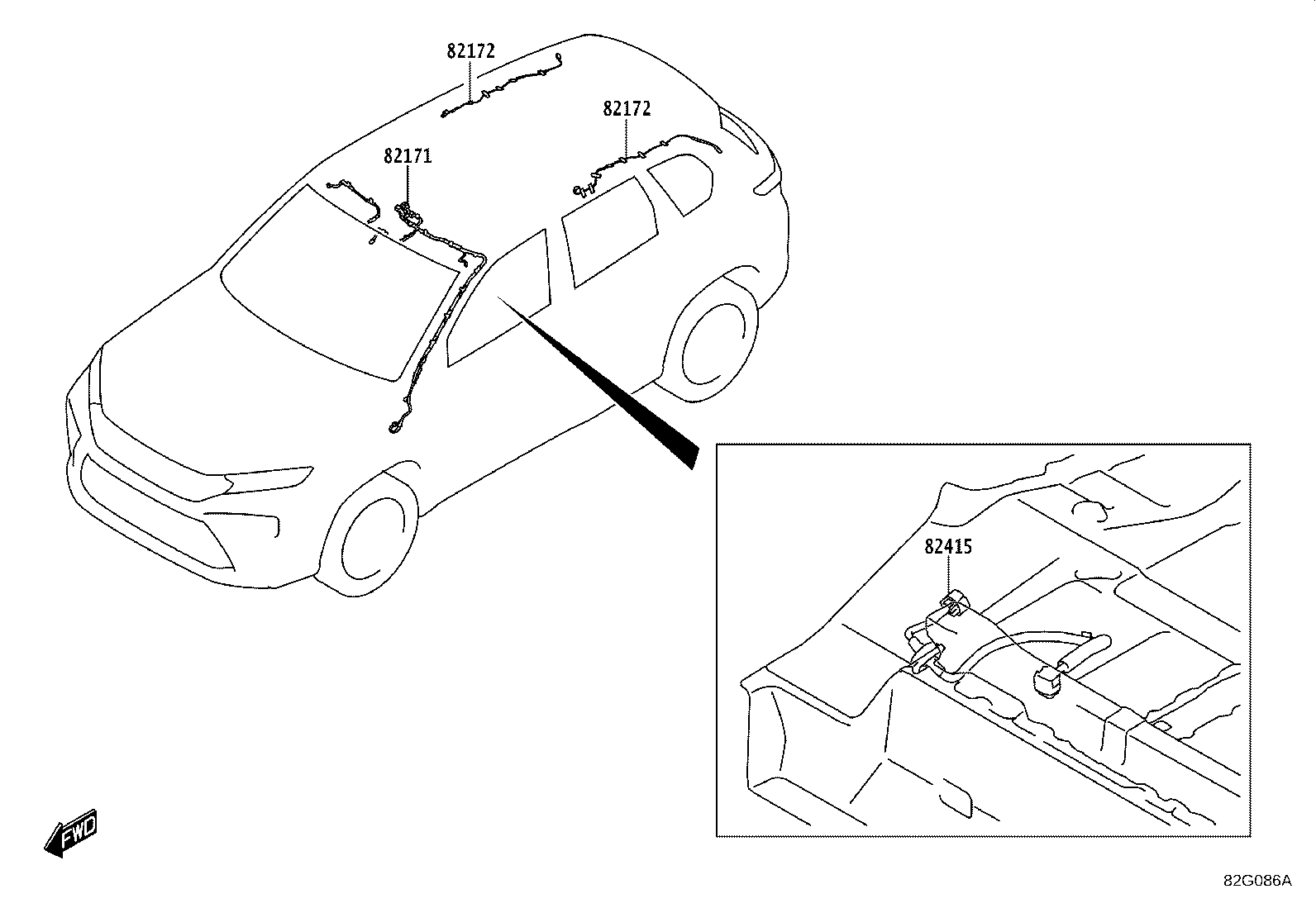

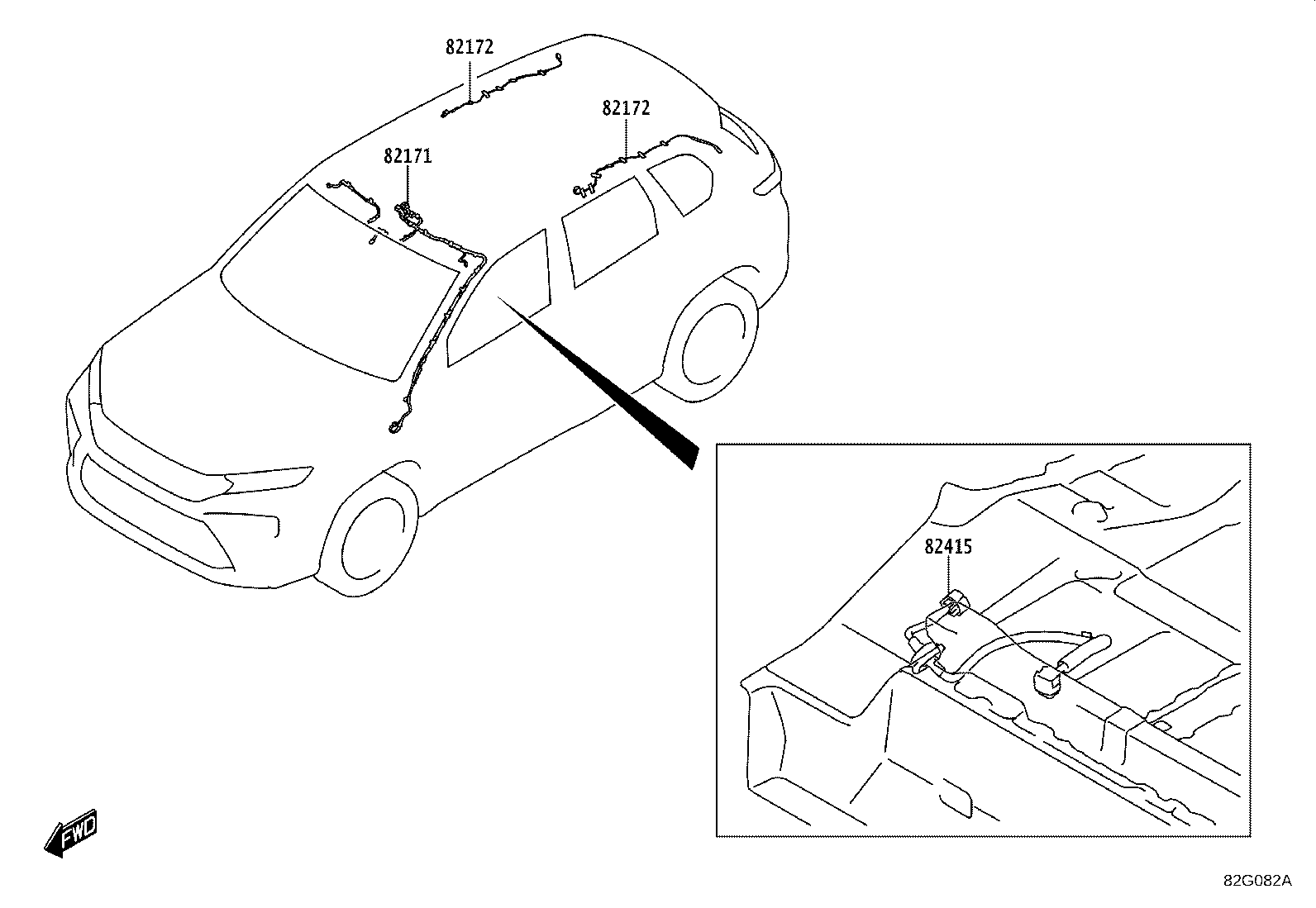

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82183A Wire, Rear Bumper

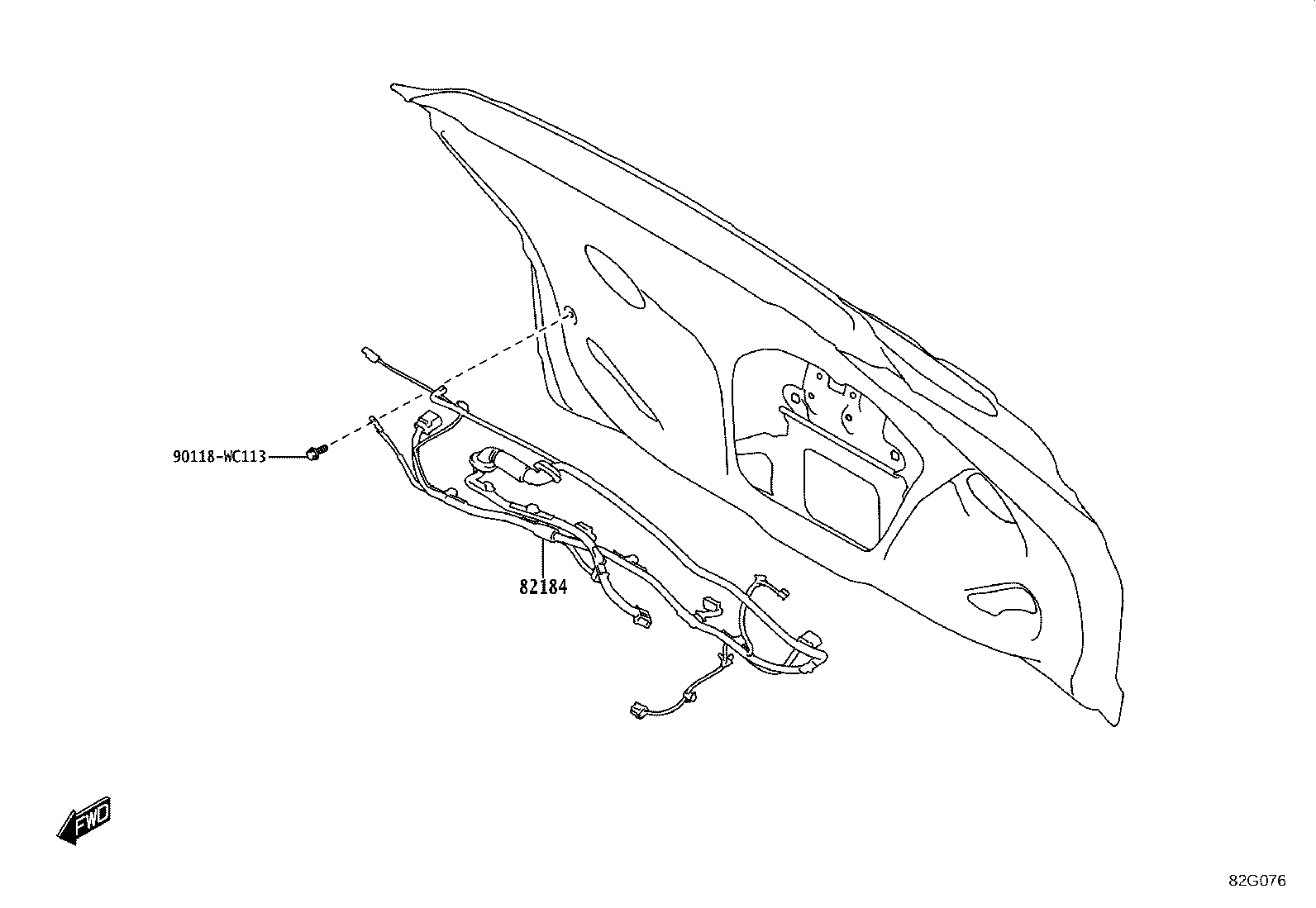

82184 Wire, Back Door, NO.1

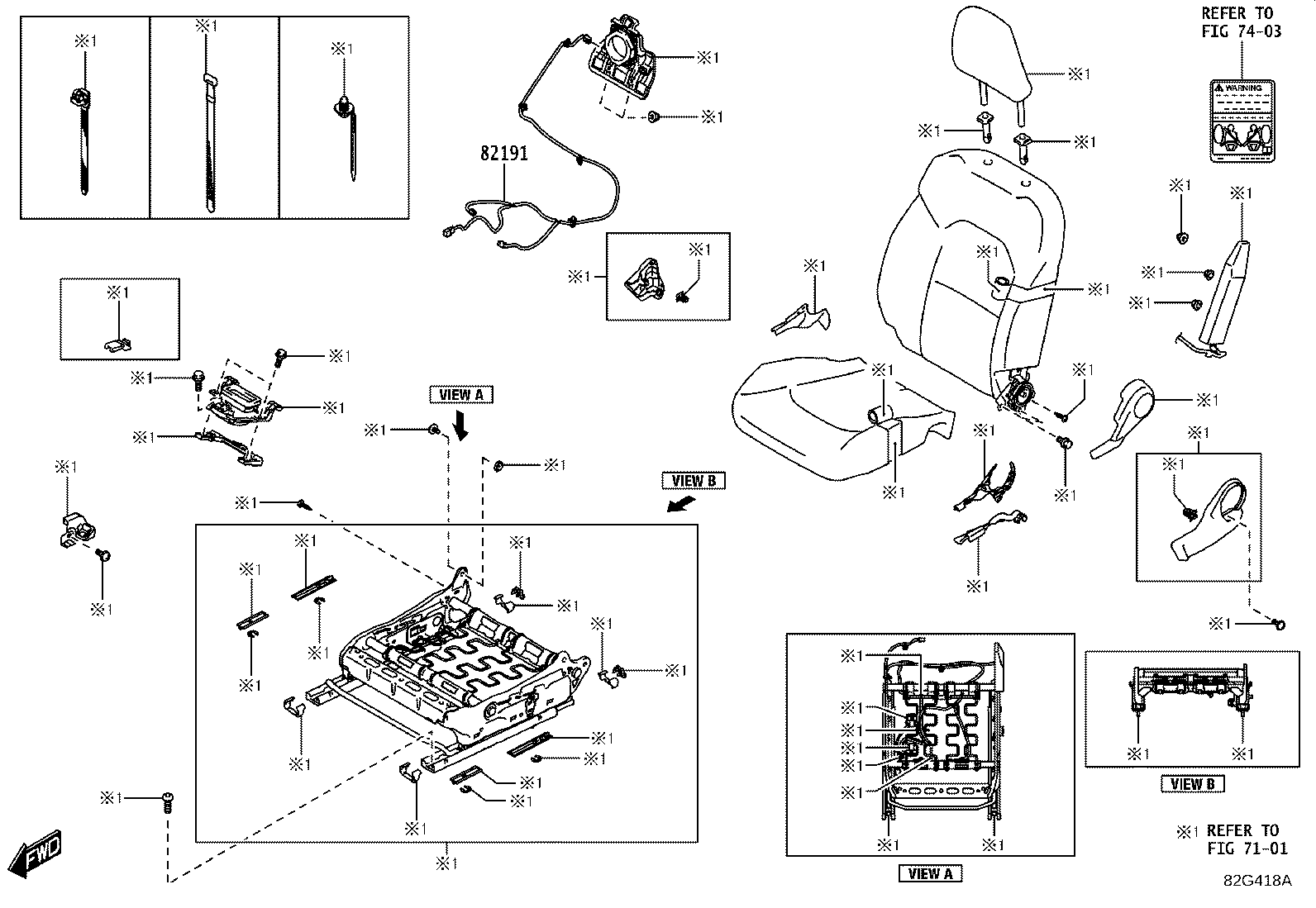

82191 Wire, Front Seat, RH

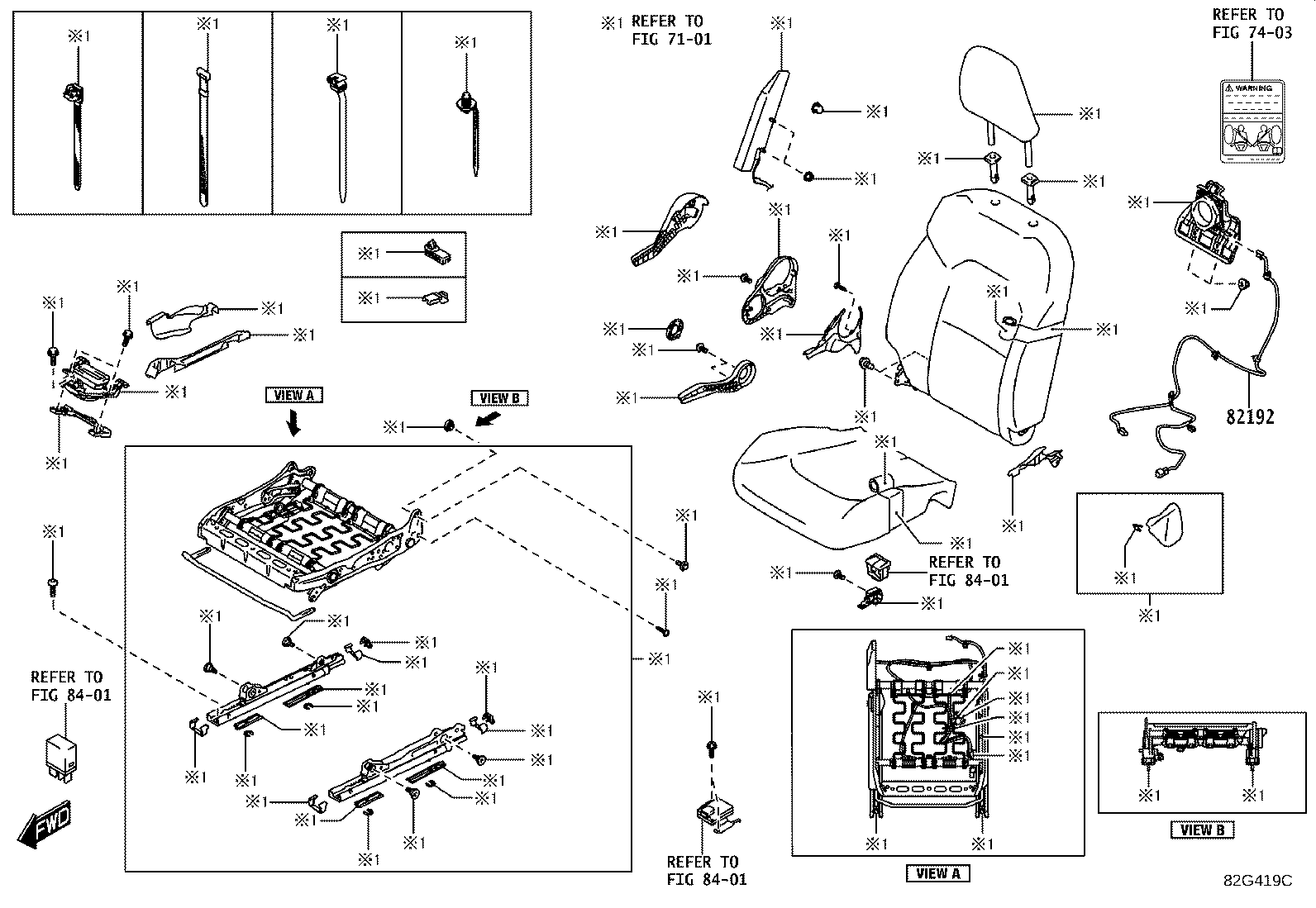

82192 Wire, Front Seat, LH

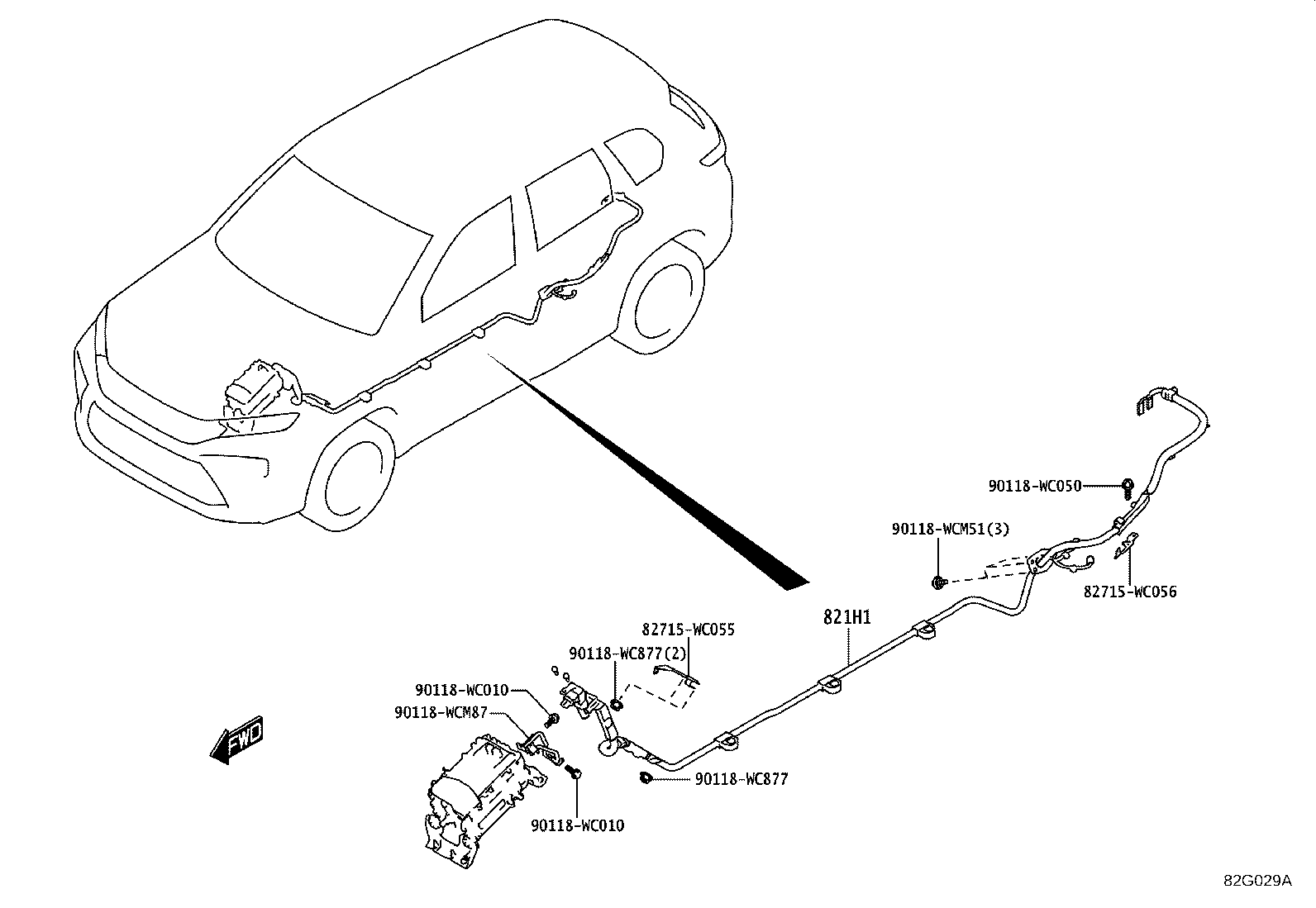

821H1 Wire, Floor Under

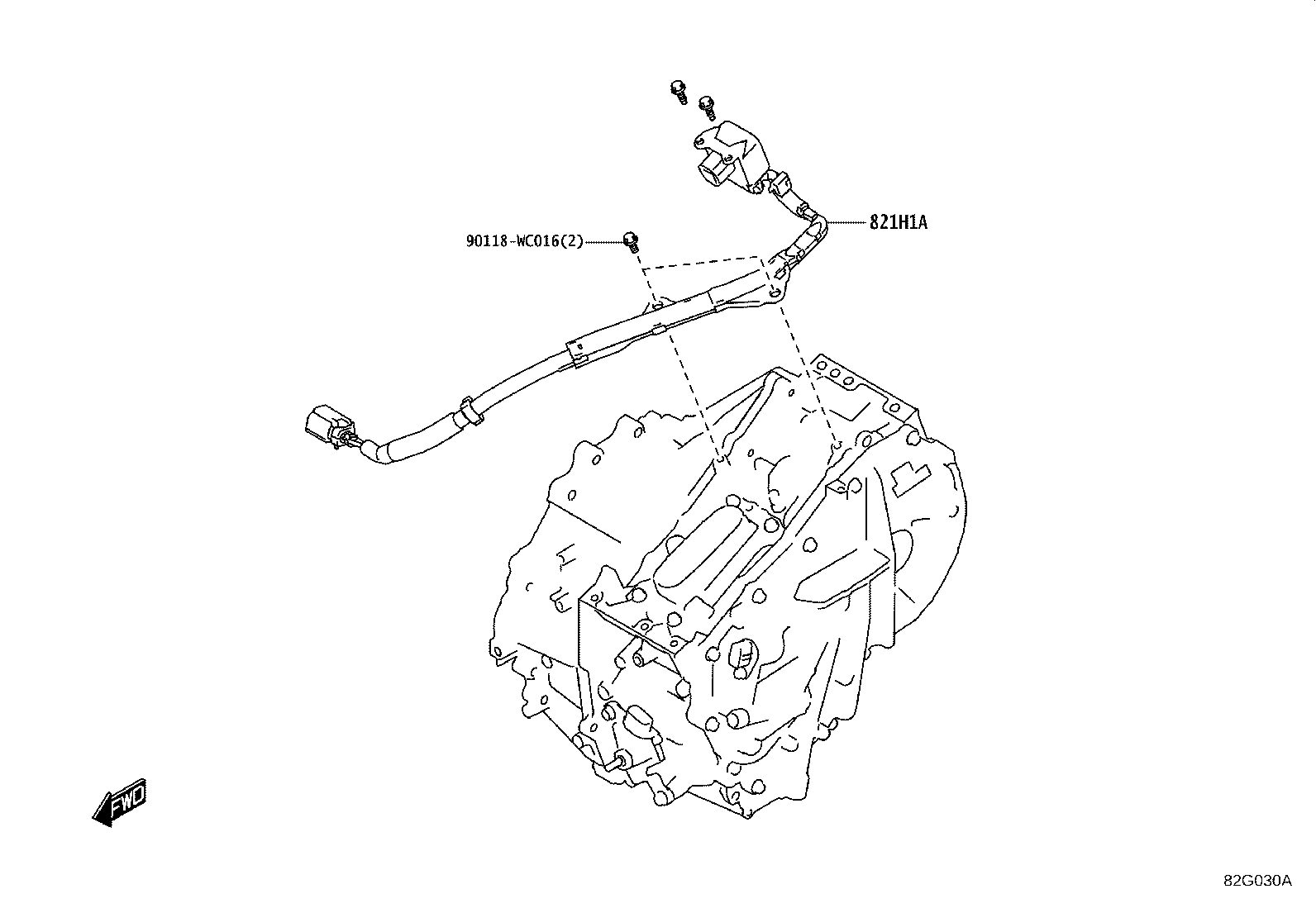

821H1A Wire, Floor Under, NO.3
82214A Wire, Lamp
82223 Wire, Switch
82415 Wire, Fuel Pump
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2

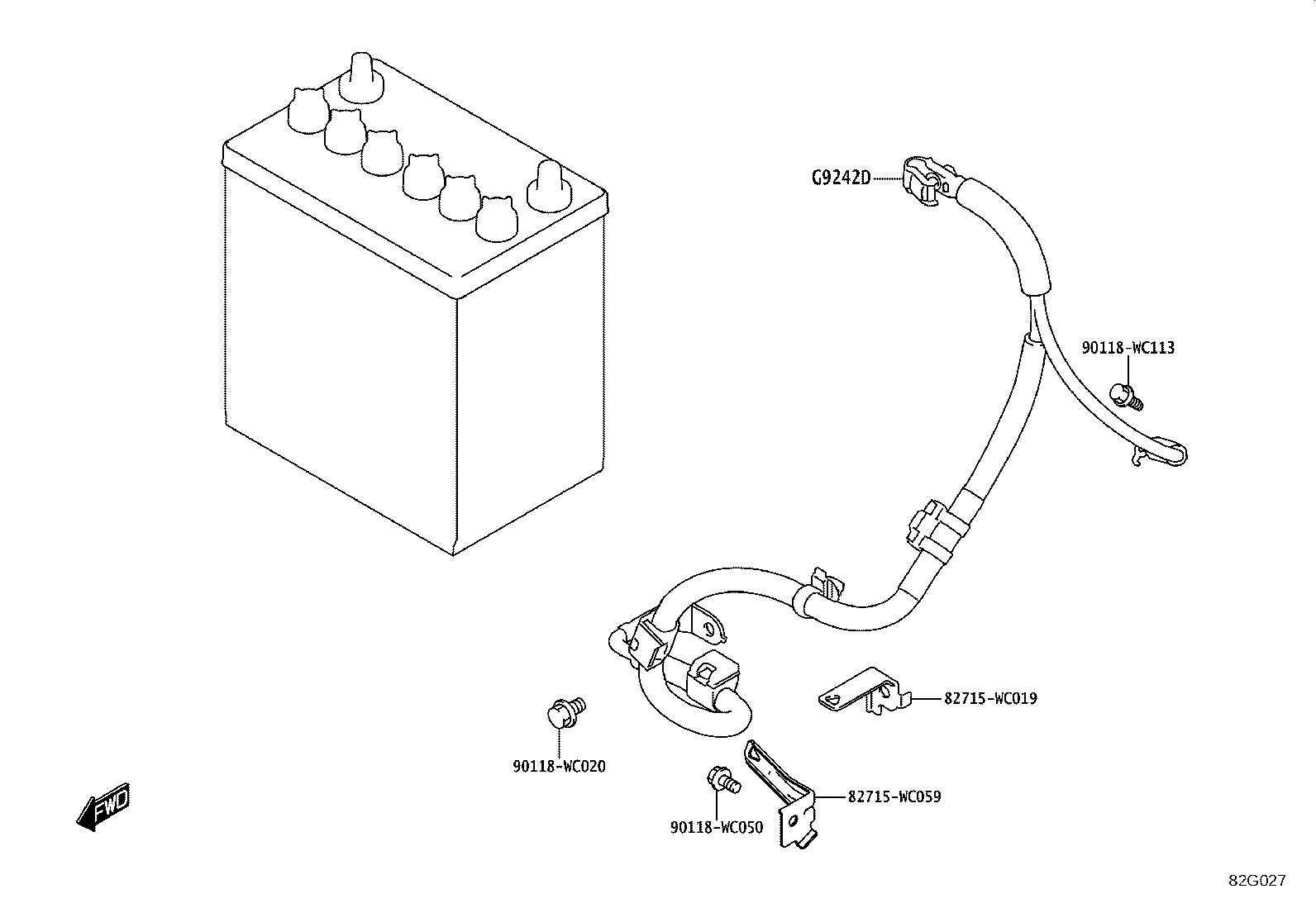

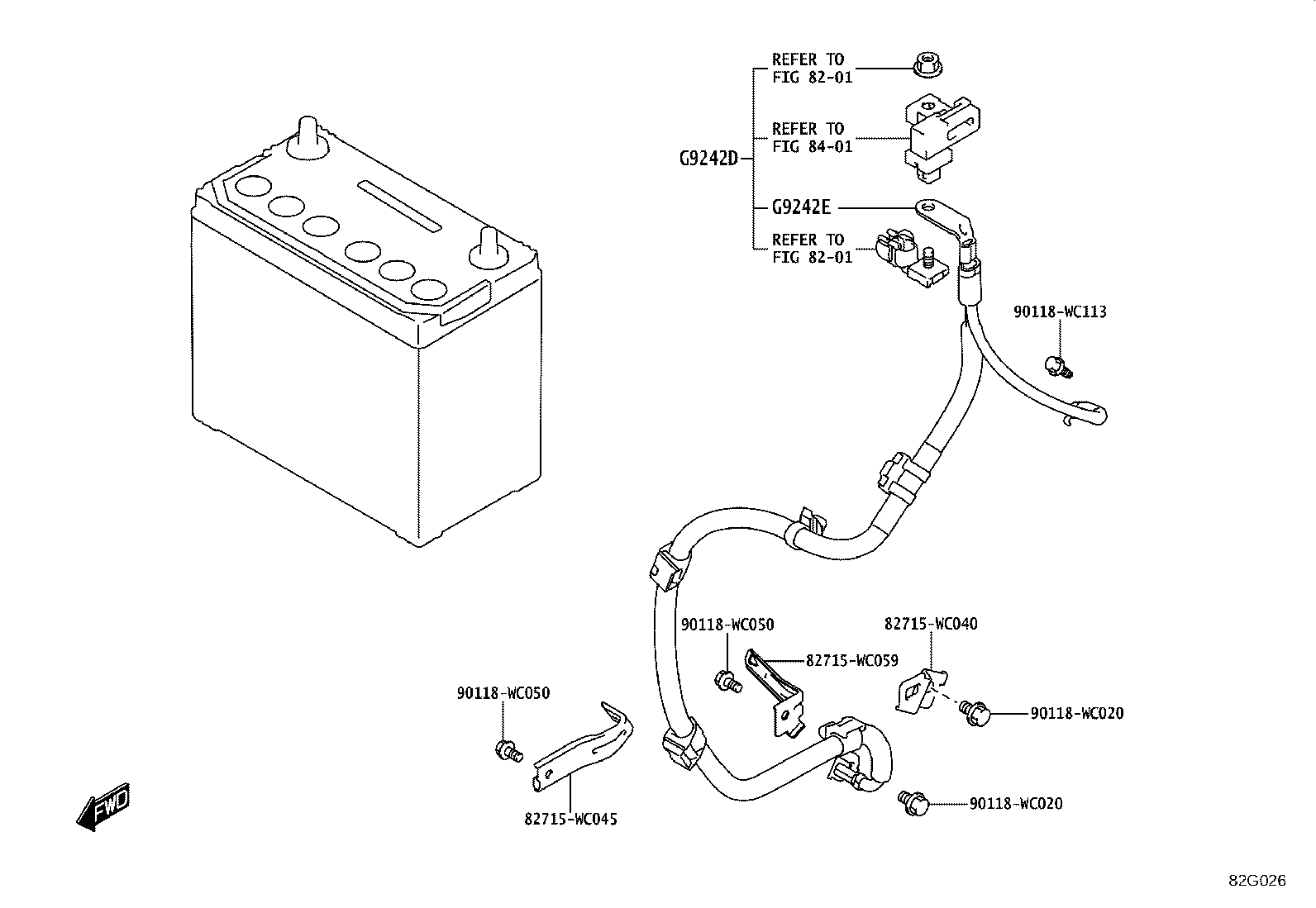

G9242D Cable, Main Battery, NO.1
G9242E Cable, Main Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
