Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

4 part groups · 9 illustrations

Illustrations

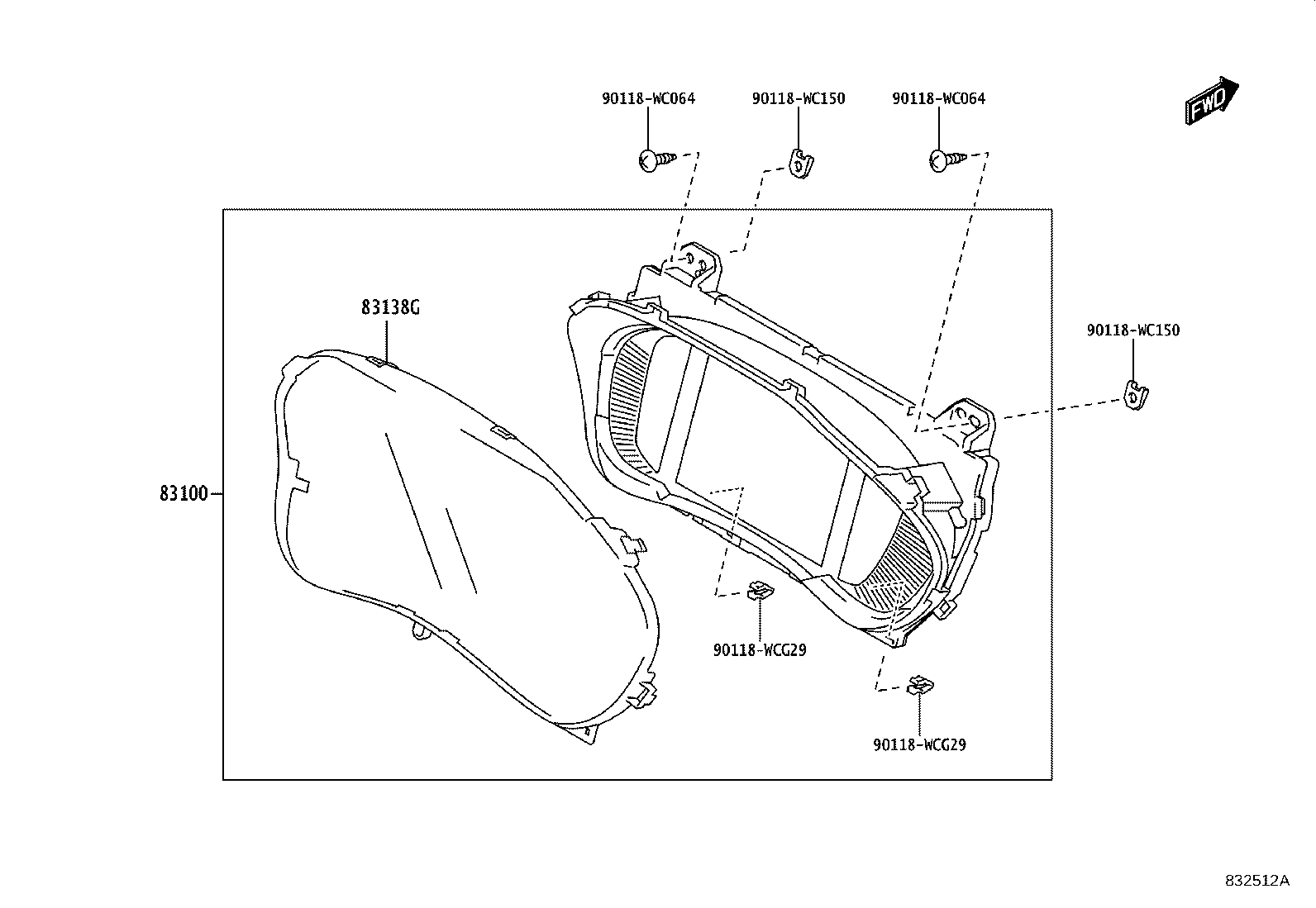

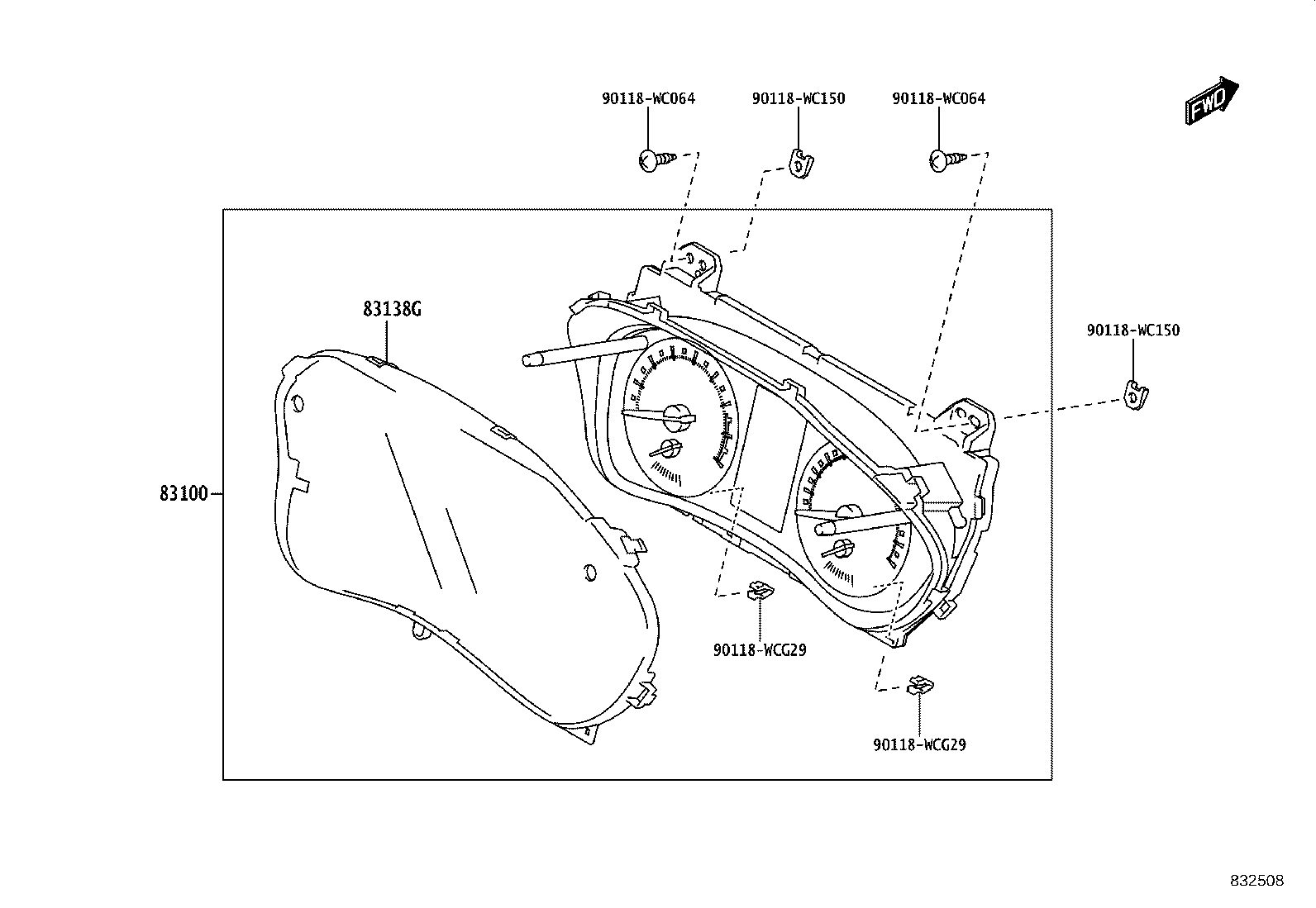

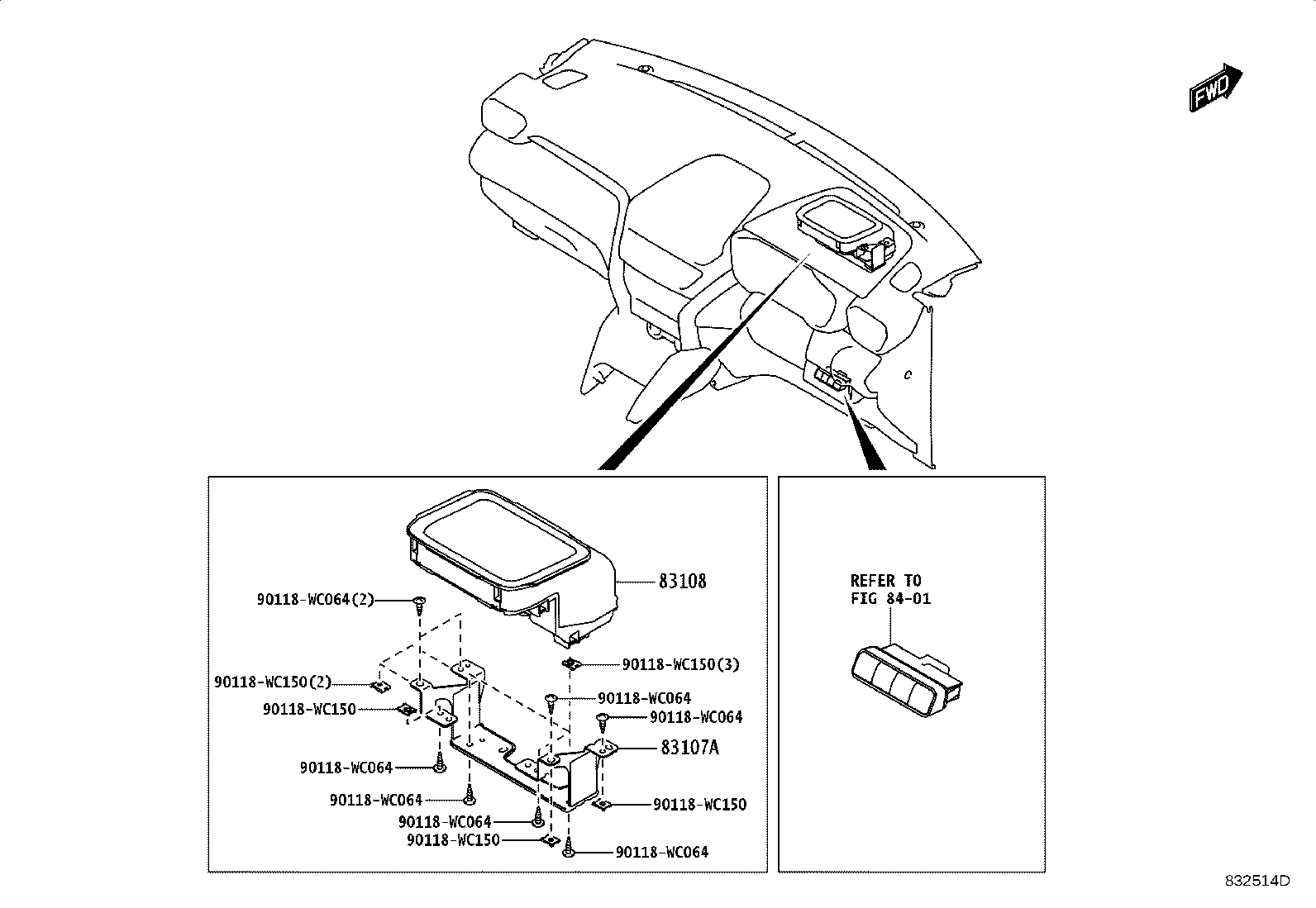

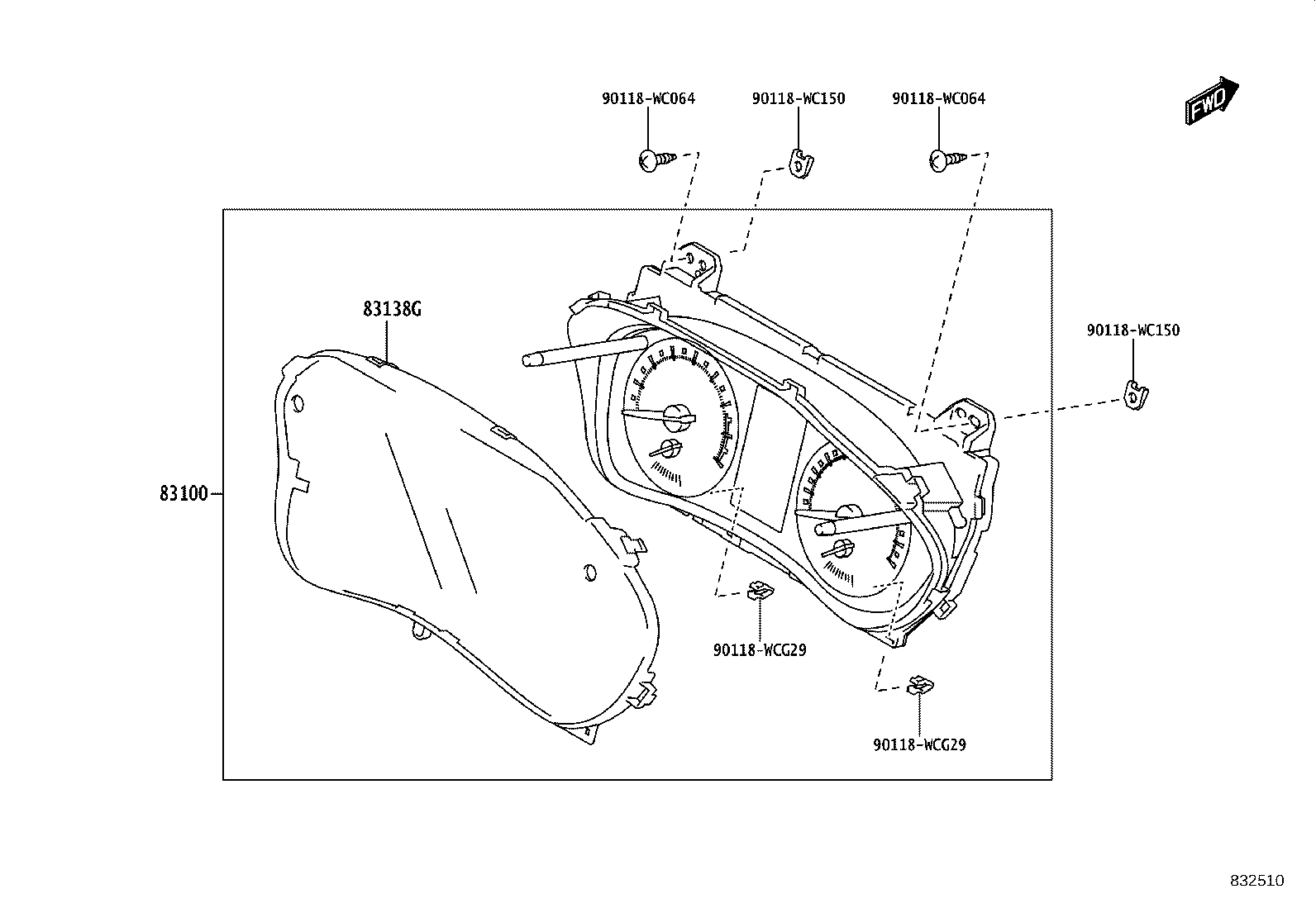

Figure 832506 832506 2024-01 → — Figure 832507 832507 2024-01 → — Figure 832508 832508 2024-01 → — Figure 832509 832509 2024-01 → — Figure 832510 832510 2024-01 → — Figure 832511A 832511A 2024-01 → — Figure 832512A 832512A 2024-01 → — Figure 832513A 832513A 2024-01 → — Figure 832514D 832514D 2024-01 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83107A Bracket Sub-assy, Meter, NO.1
83108 Mirror Sub-assy, Meter
83138G Glass, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
