Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

76 part groups · 89 illustrations

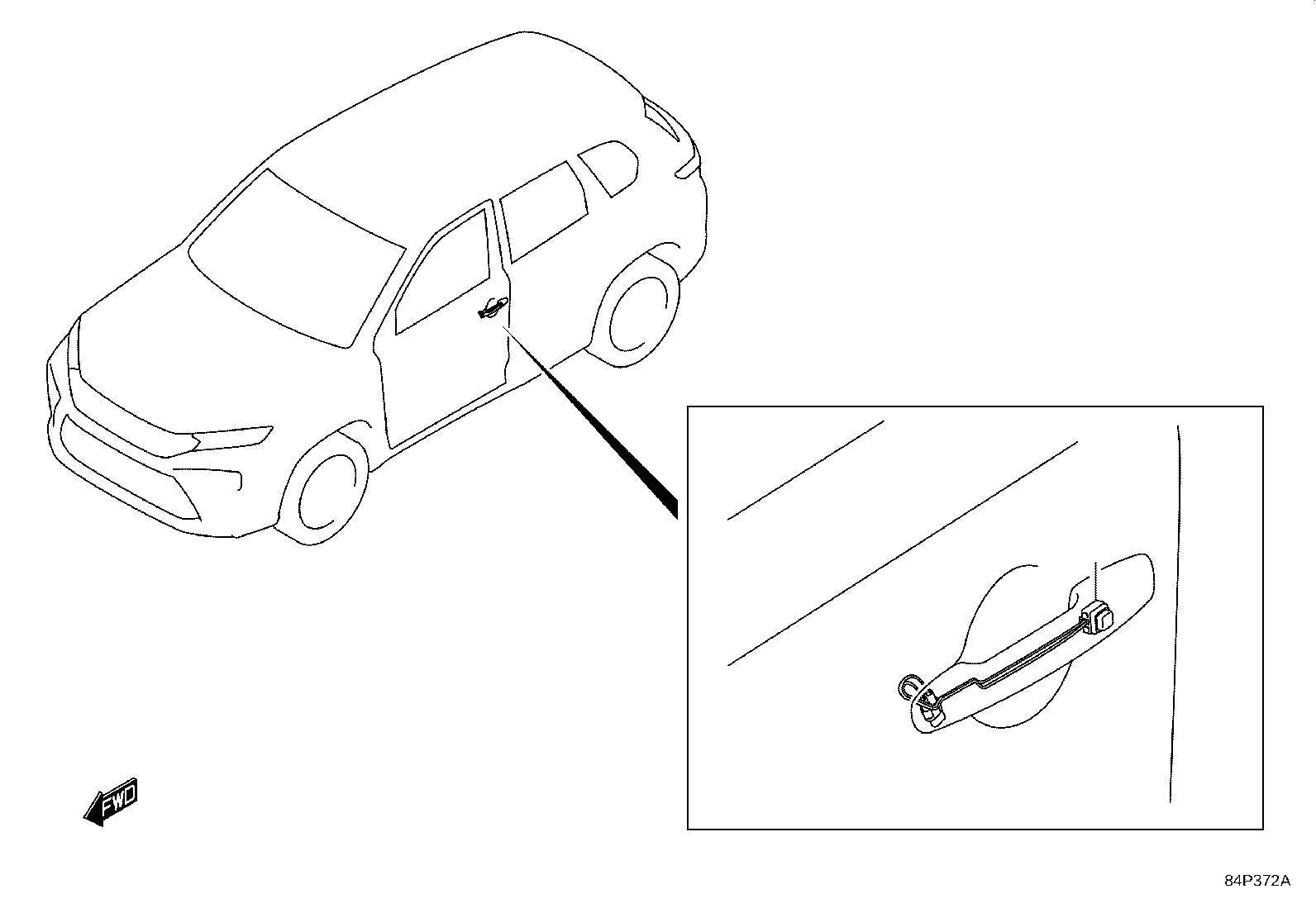

Illustrations

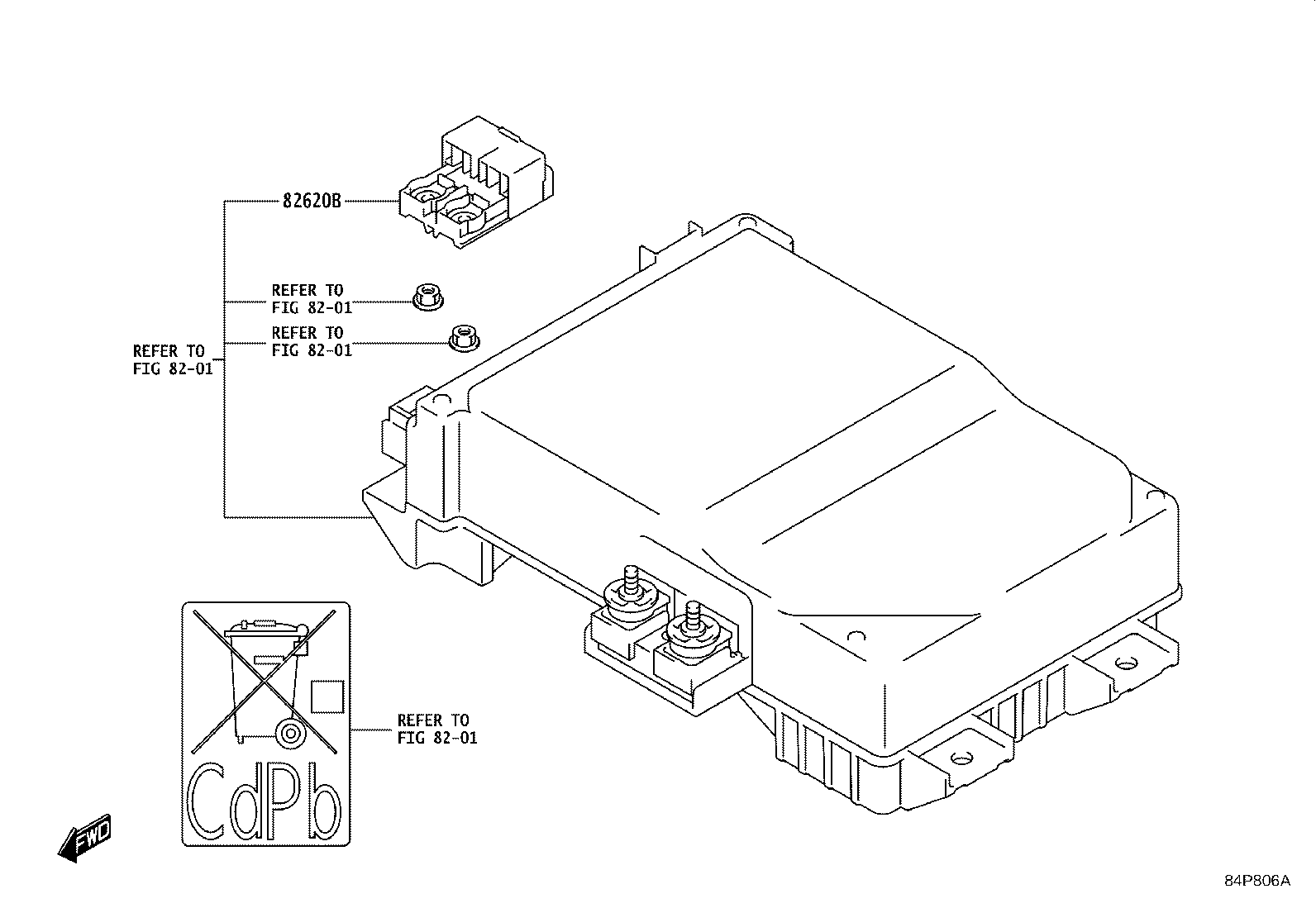

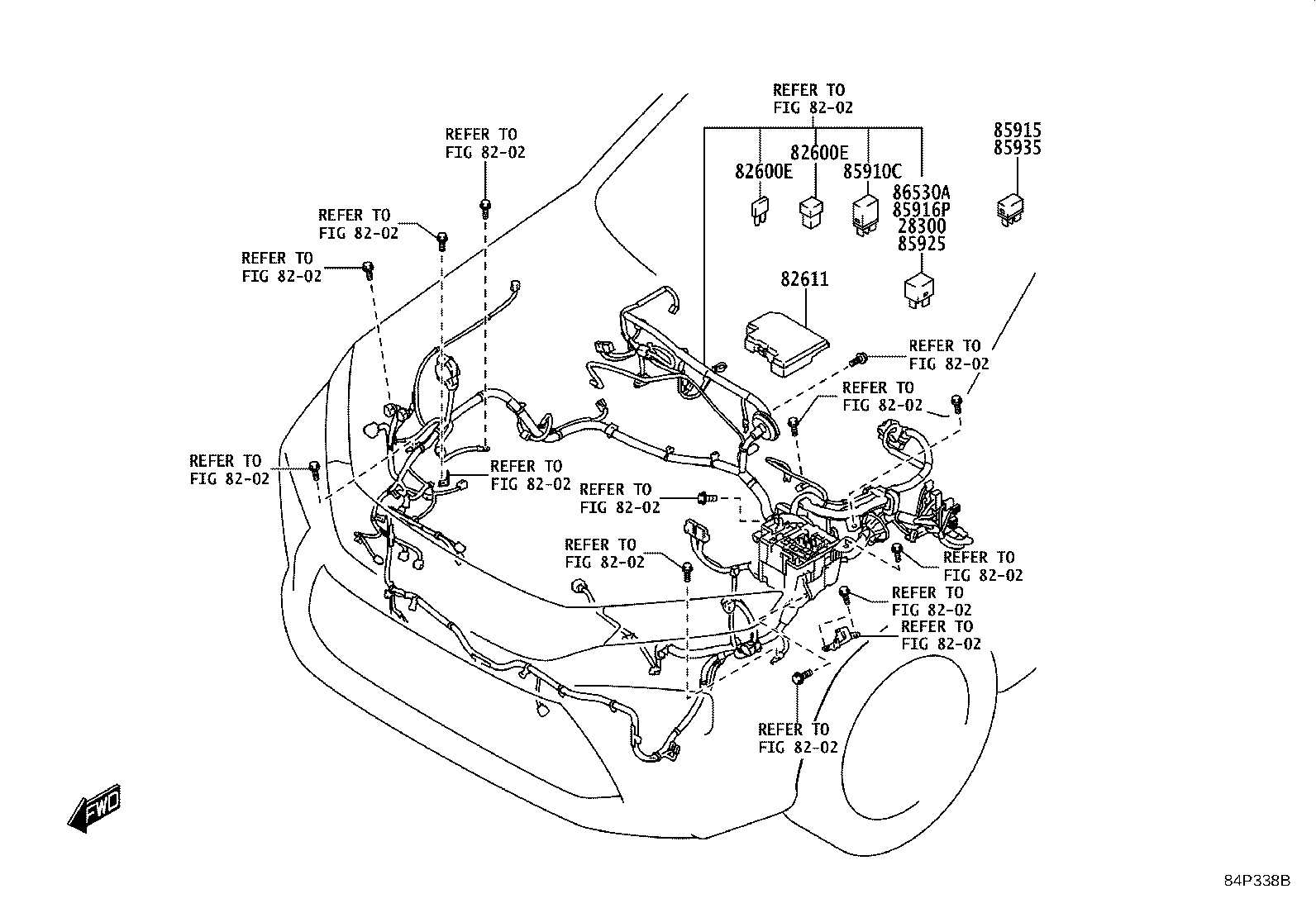

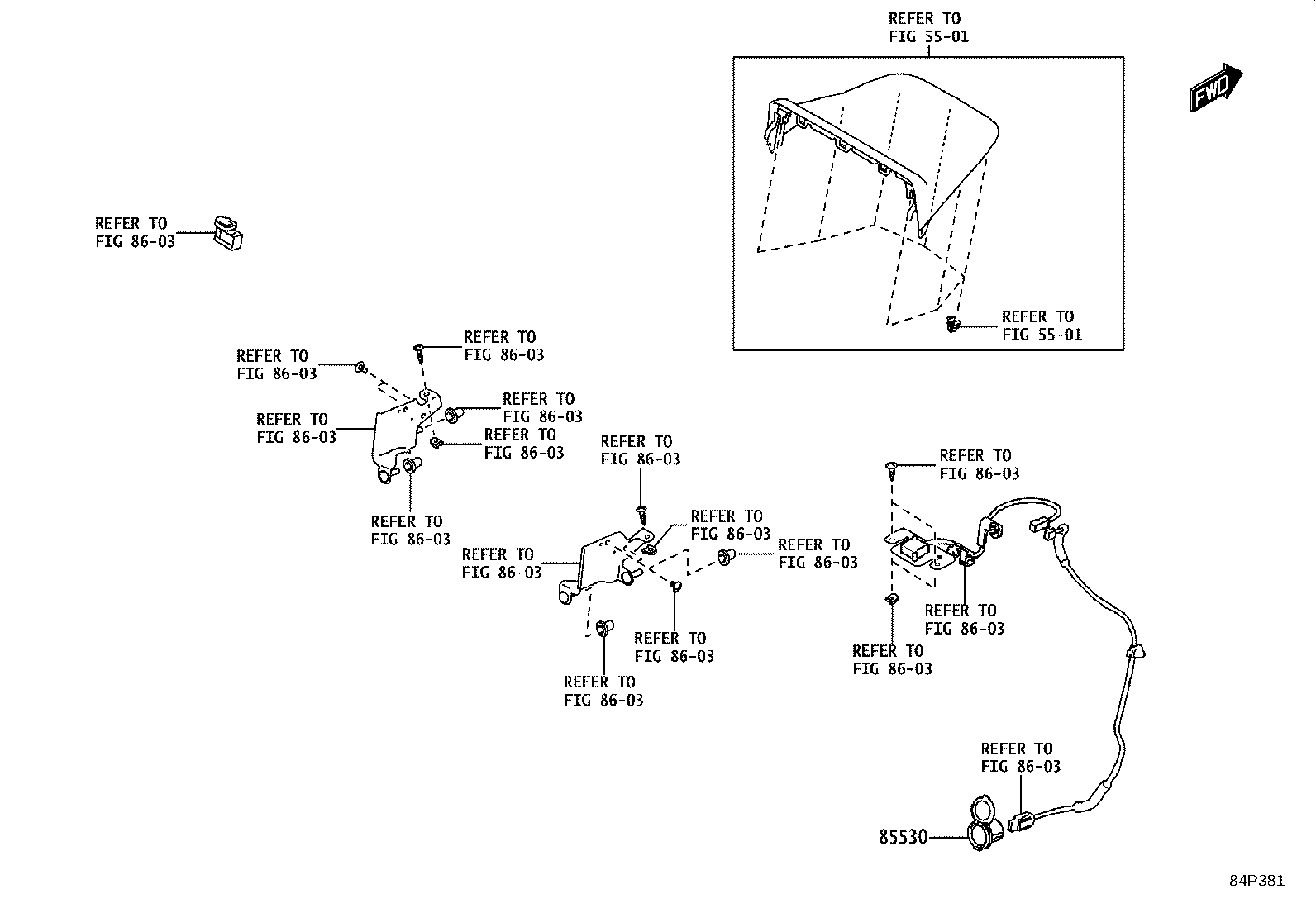

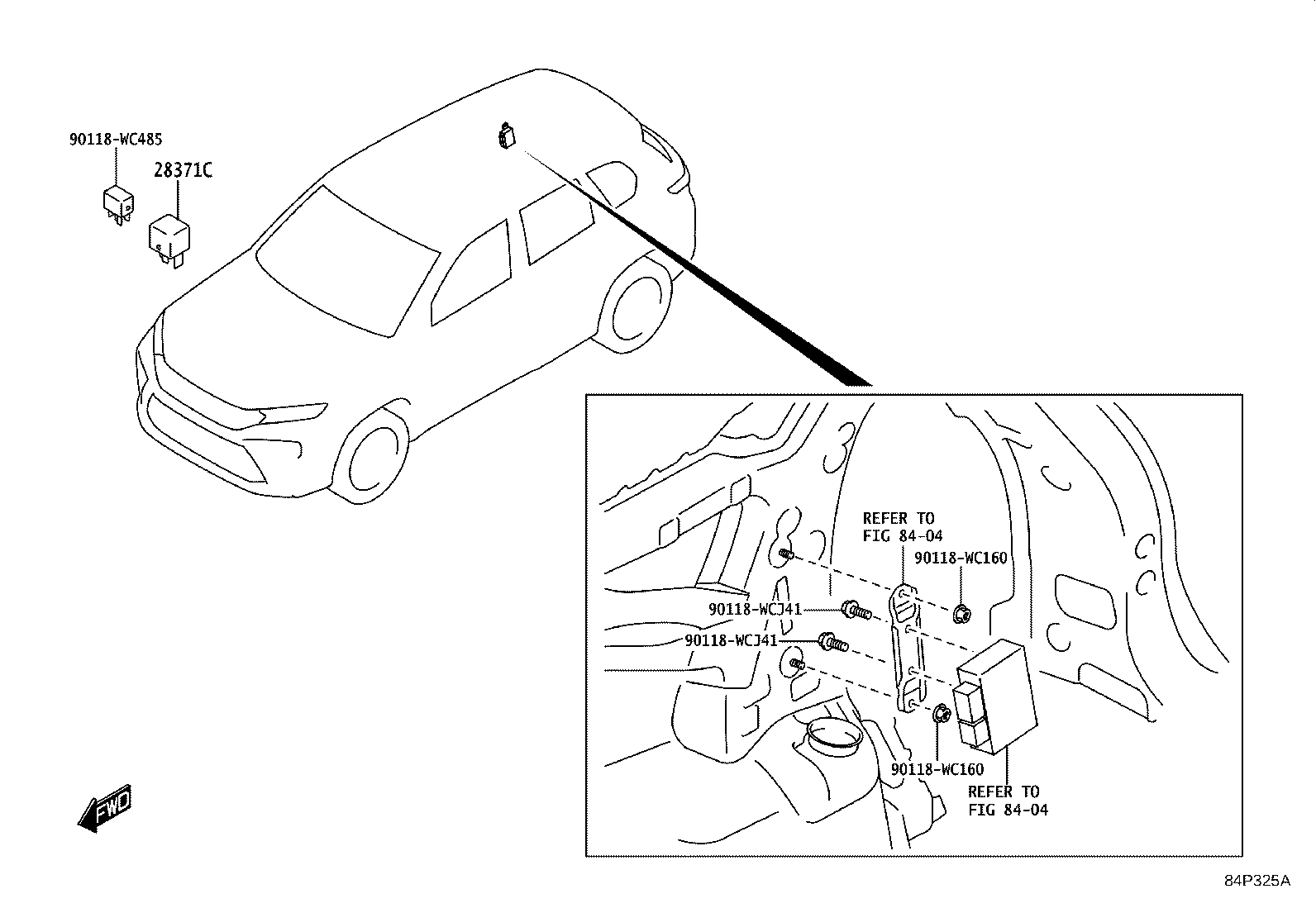

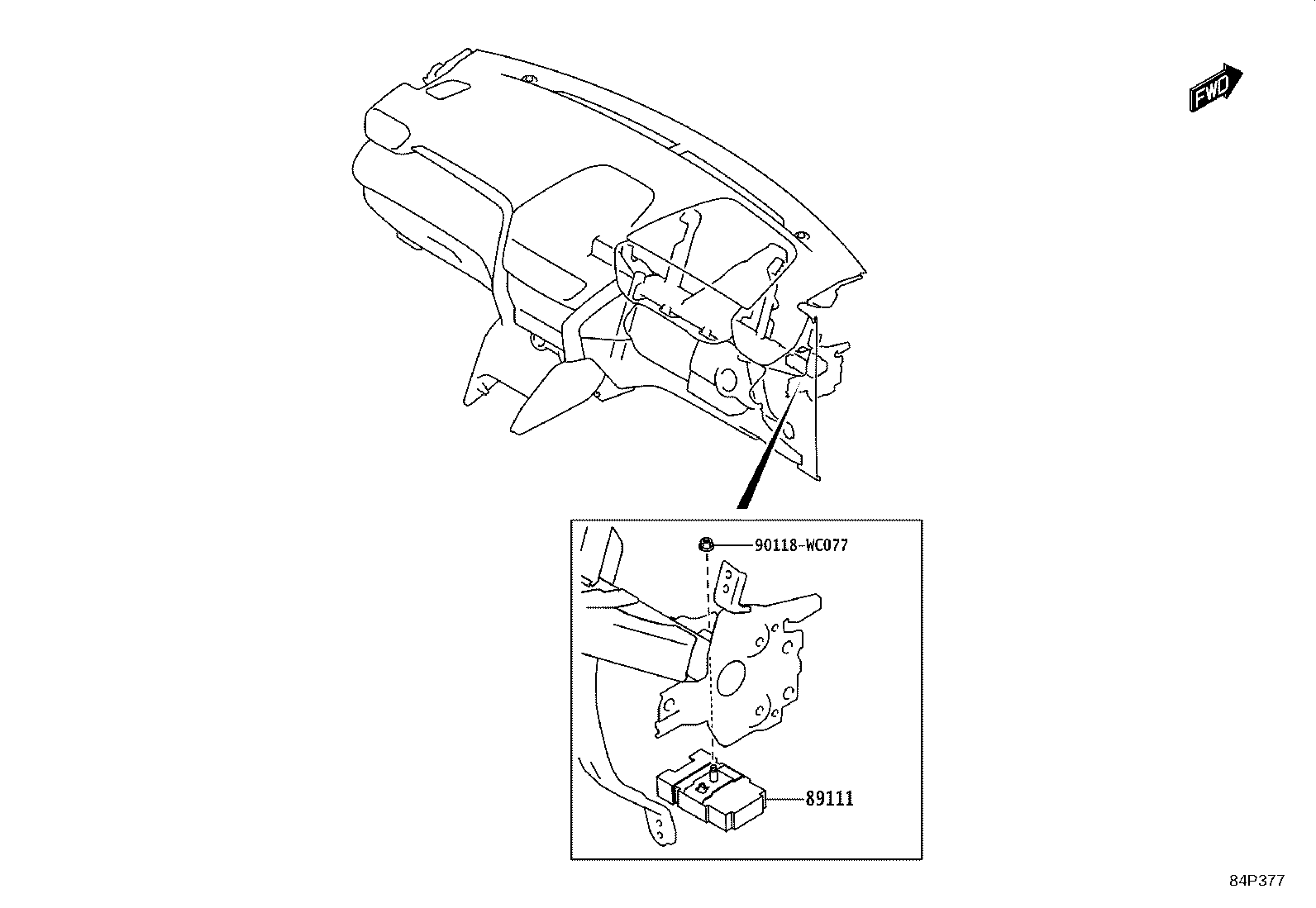

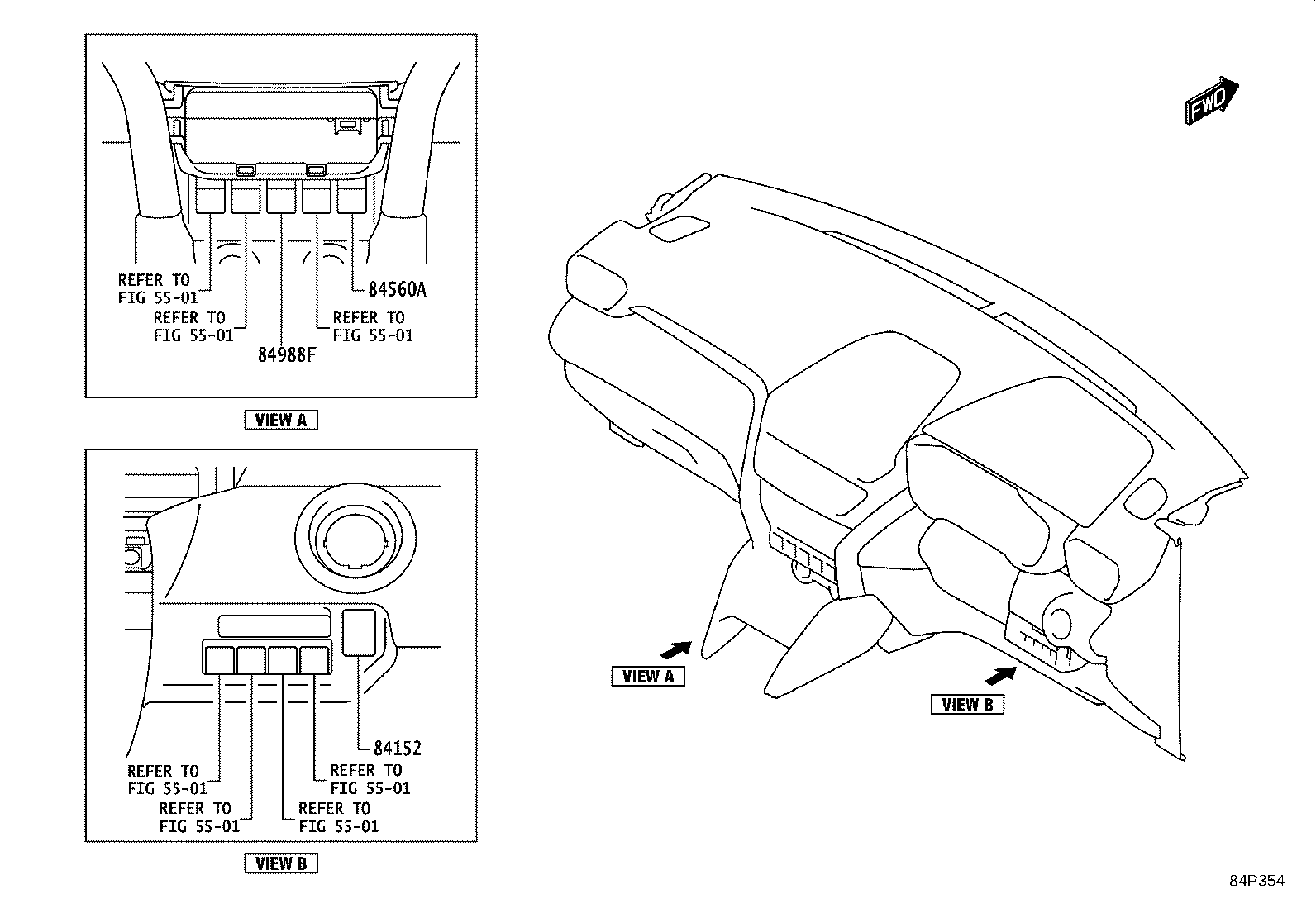

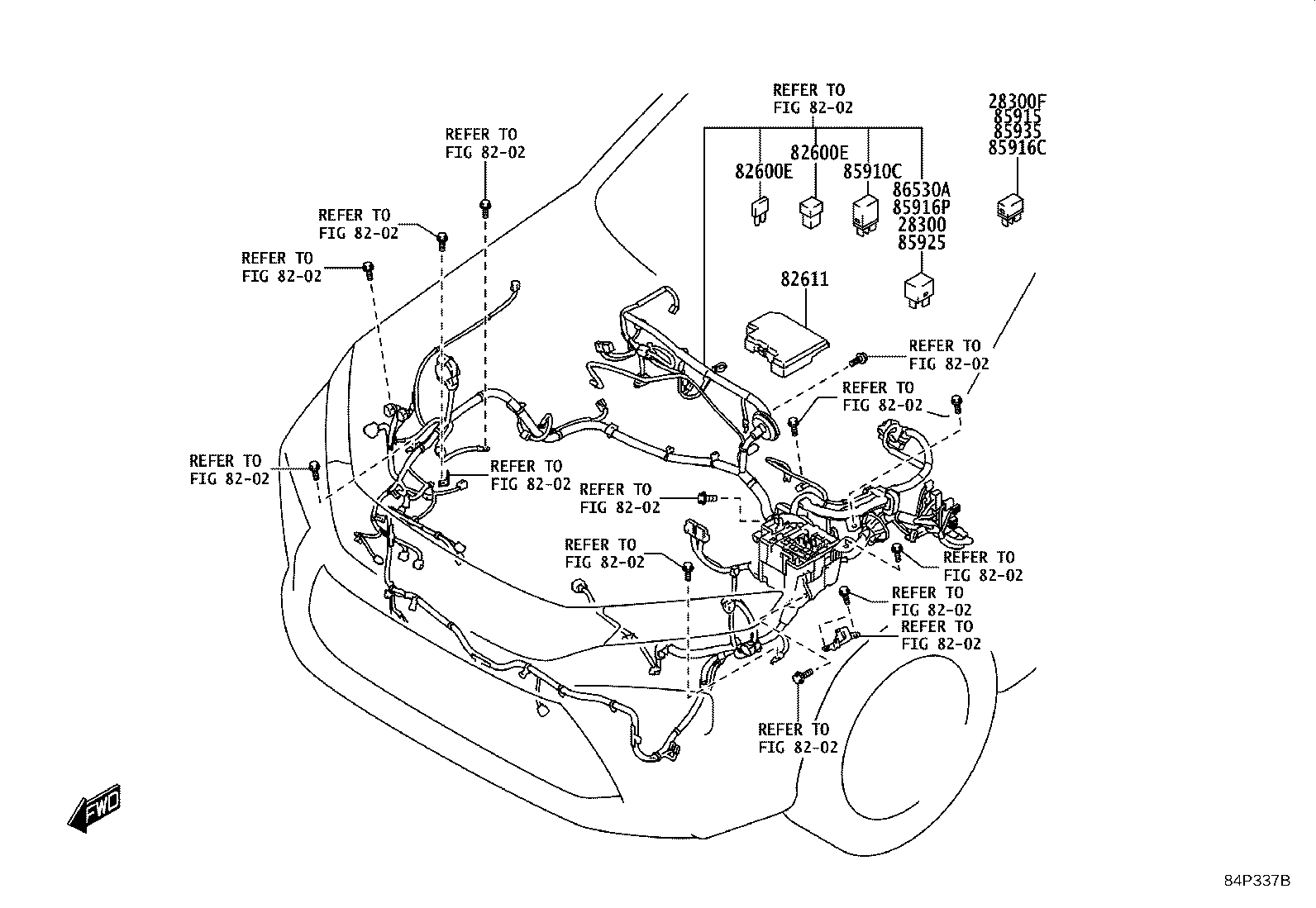

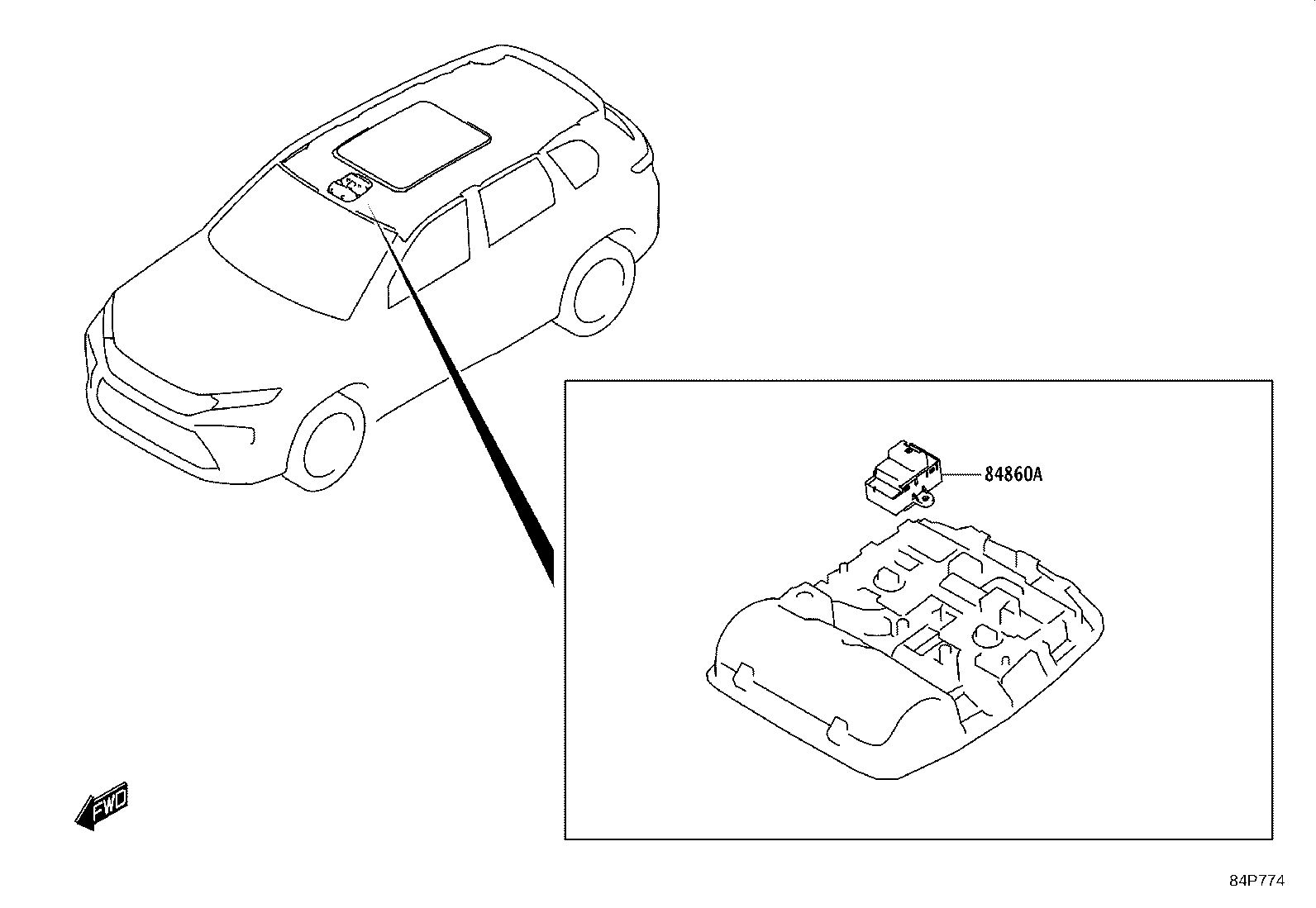

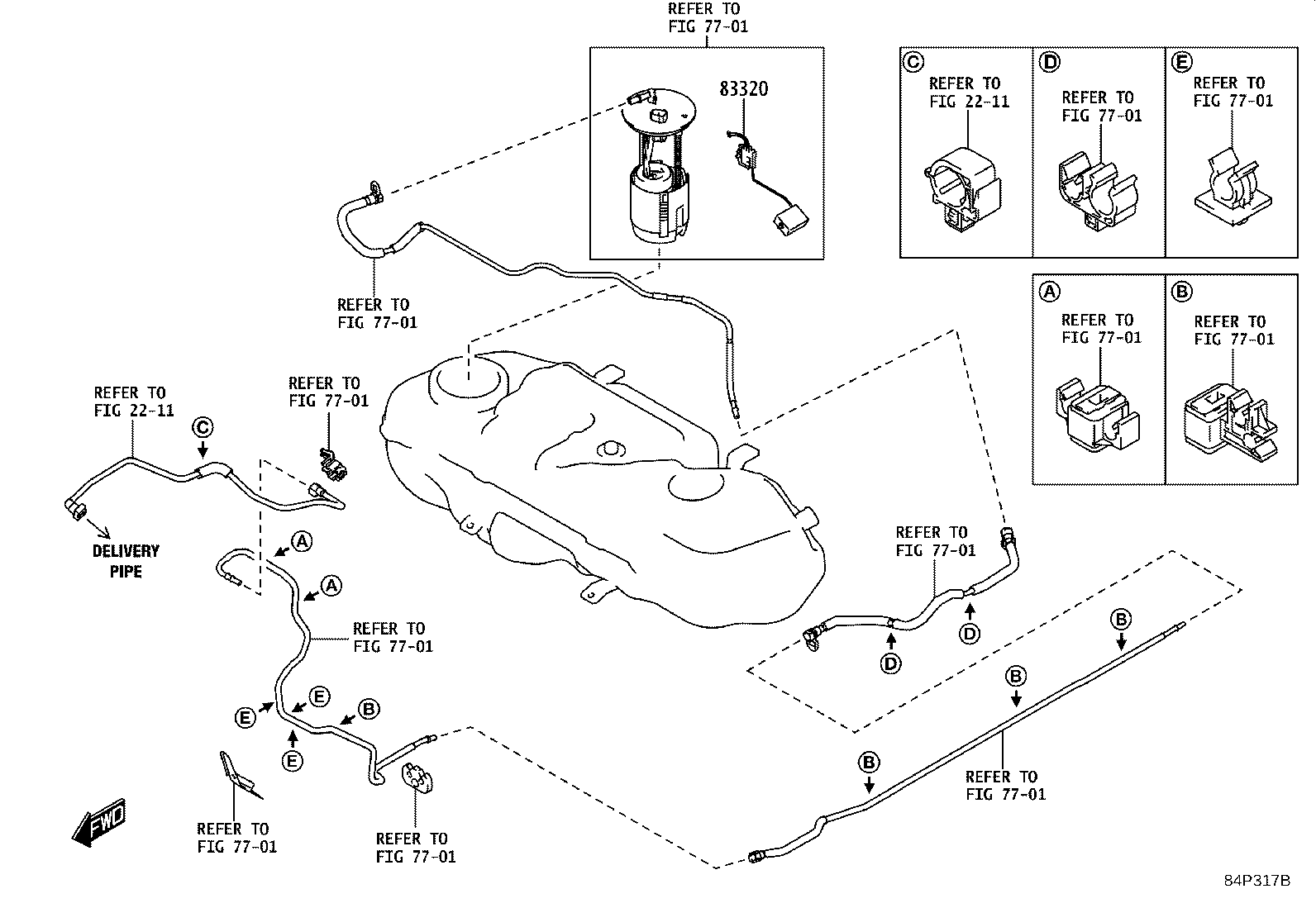

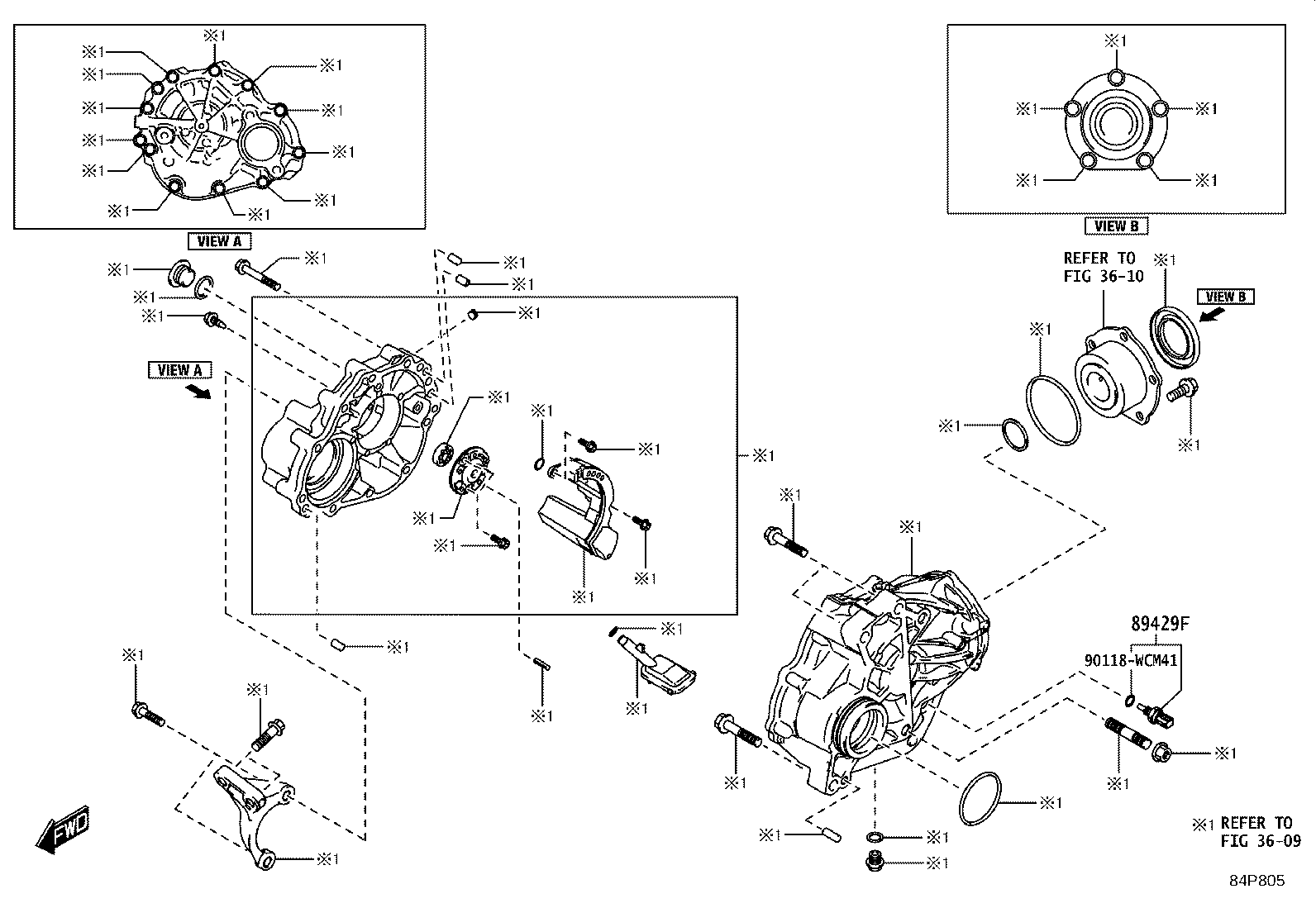

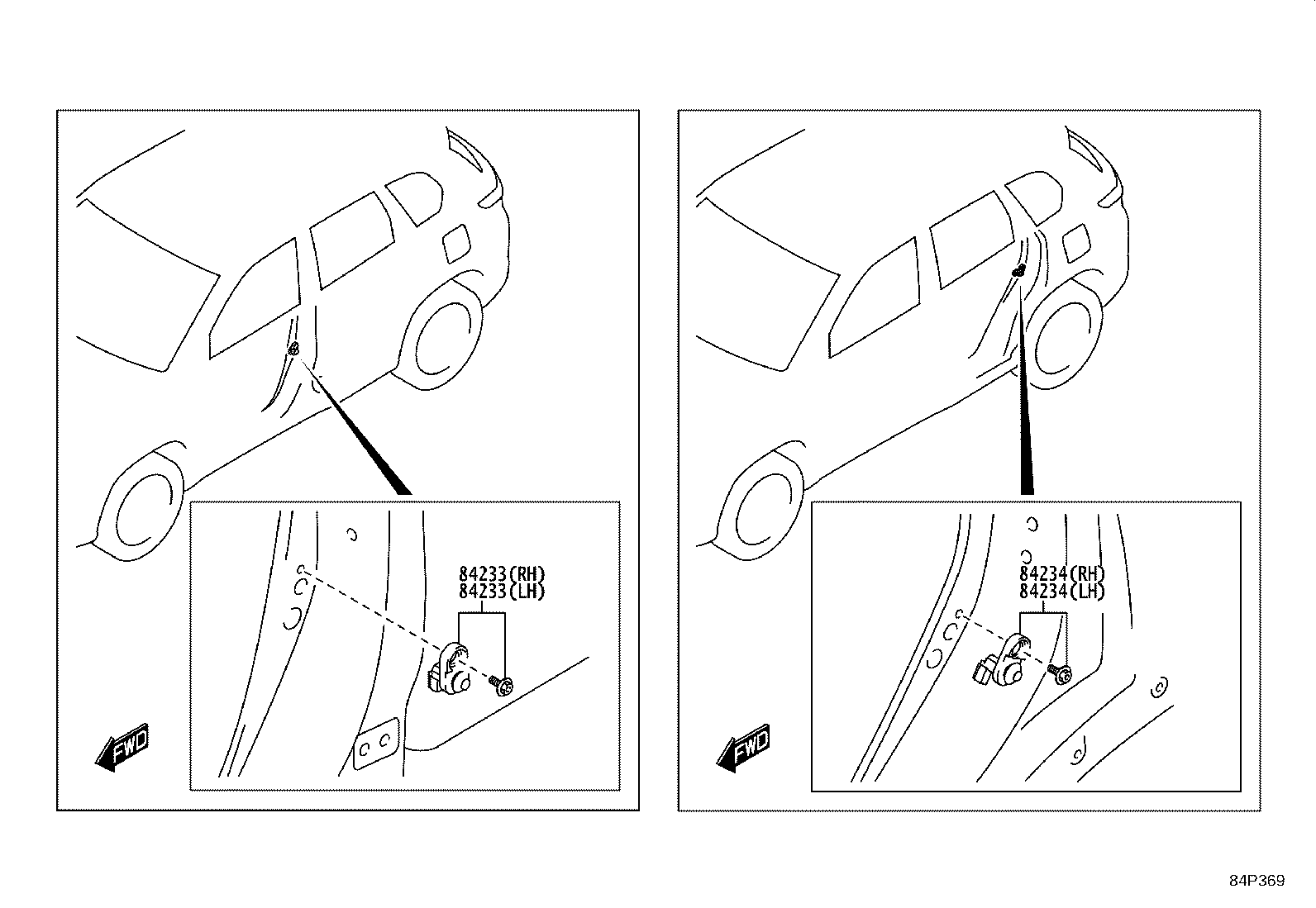

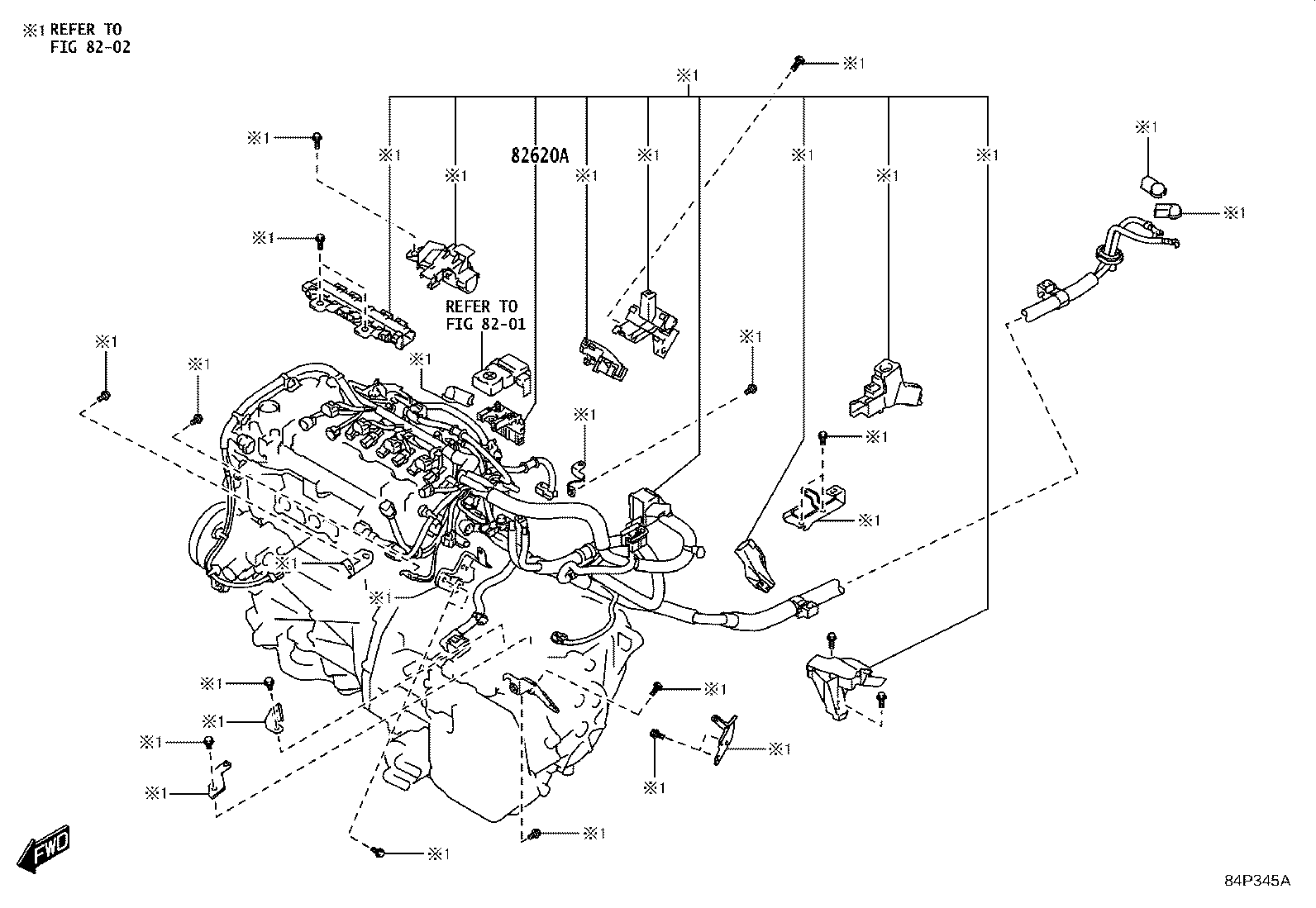

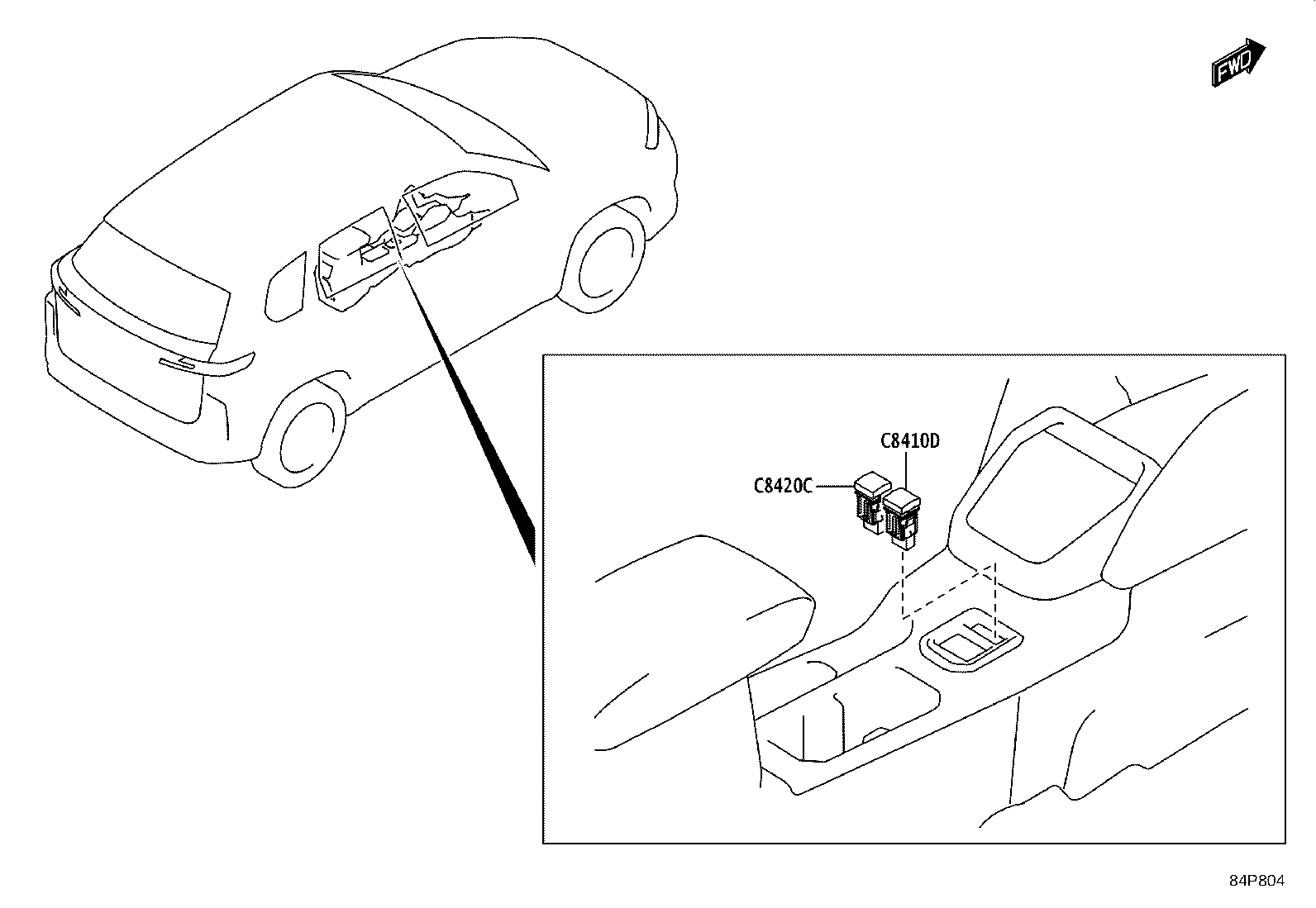

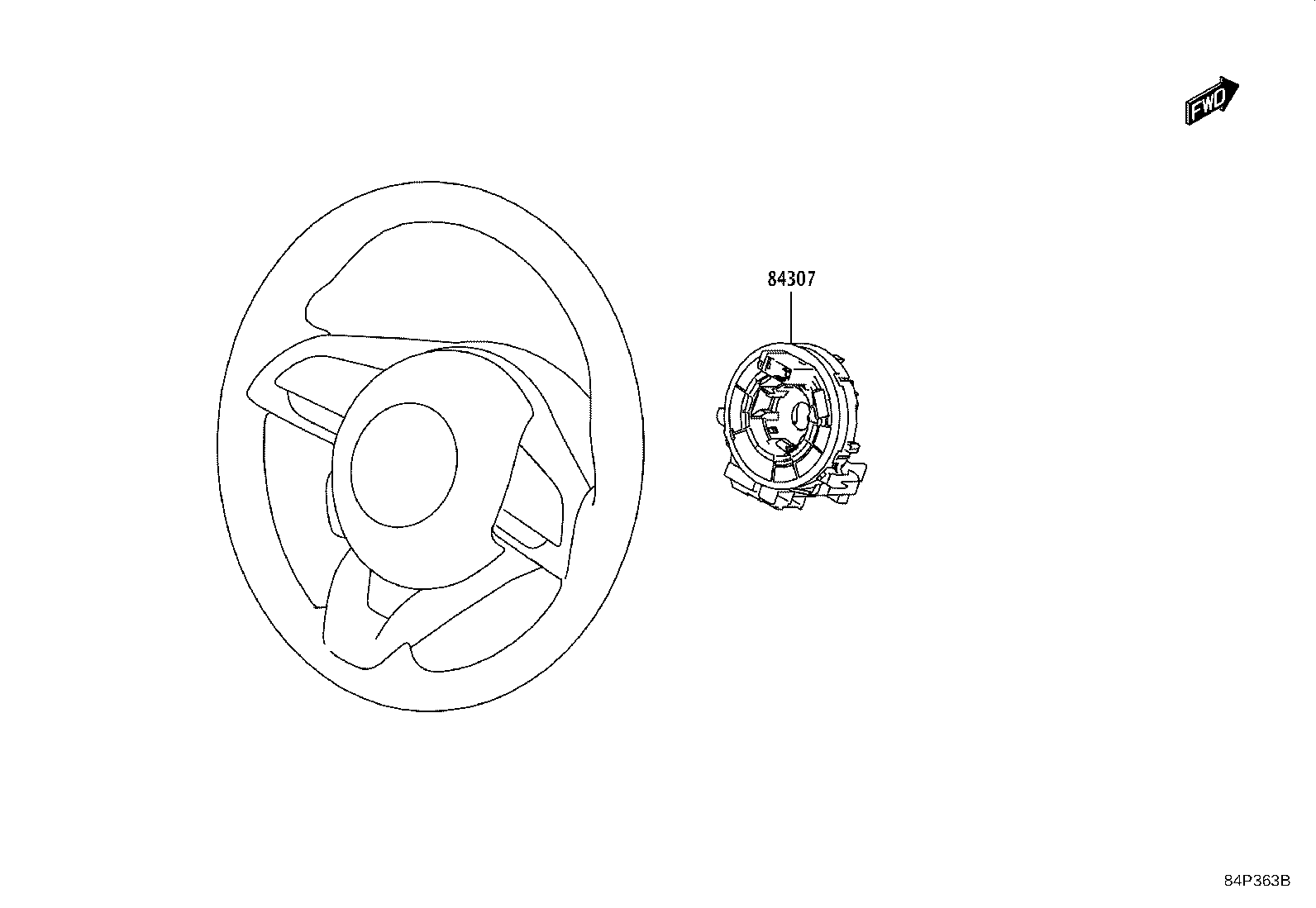

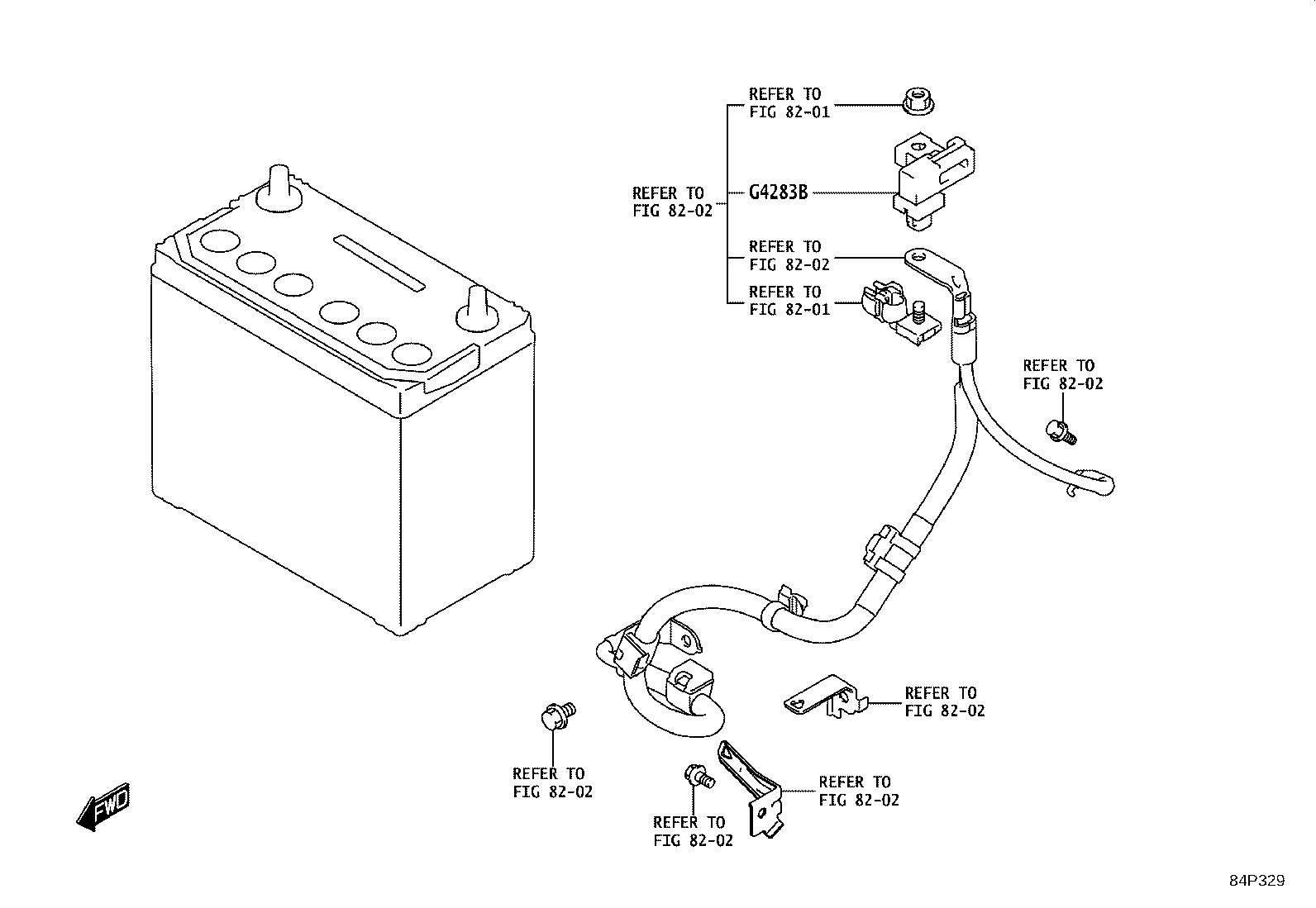

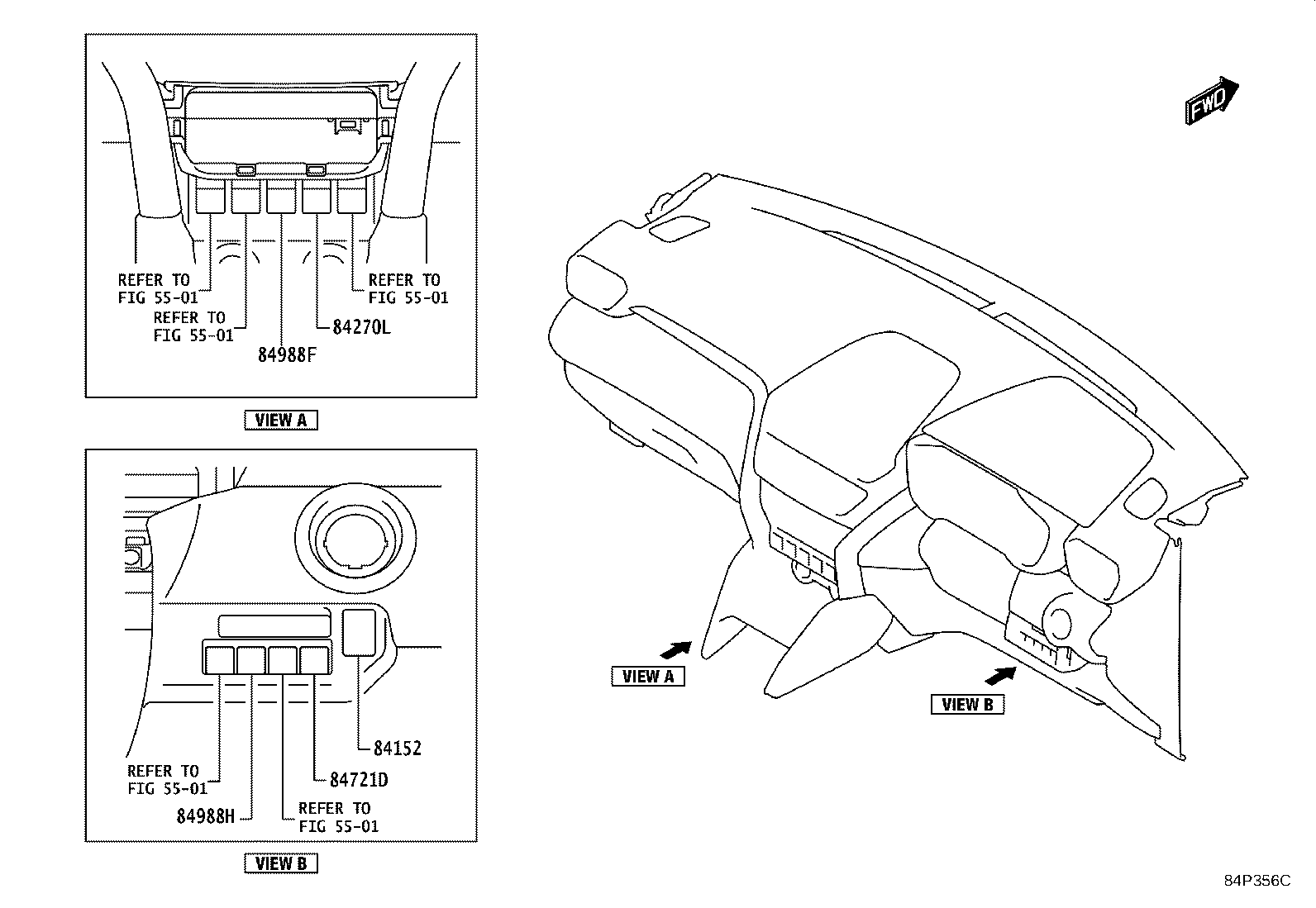

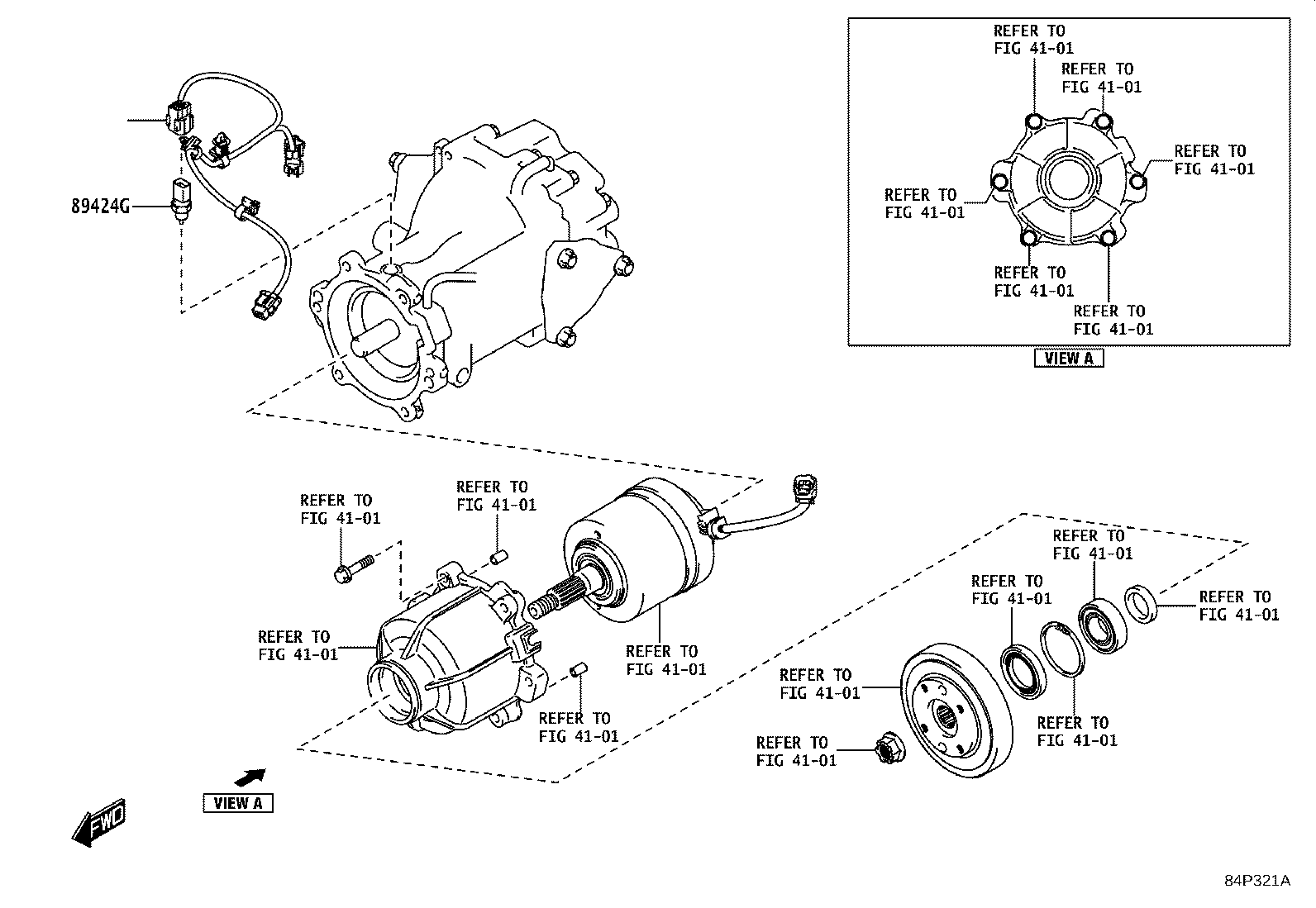

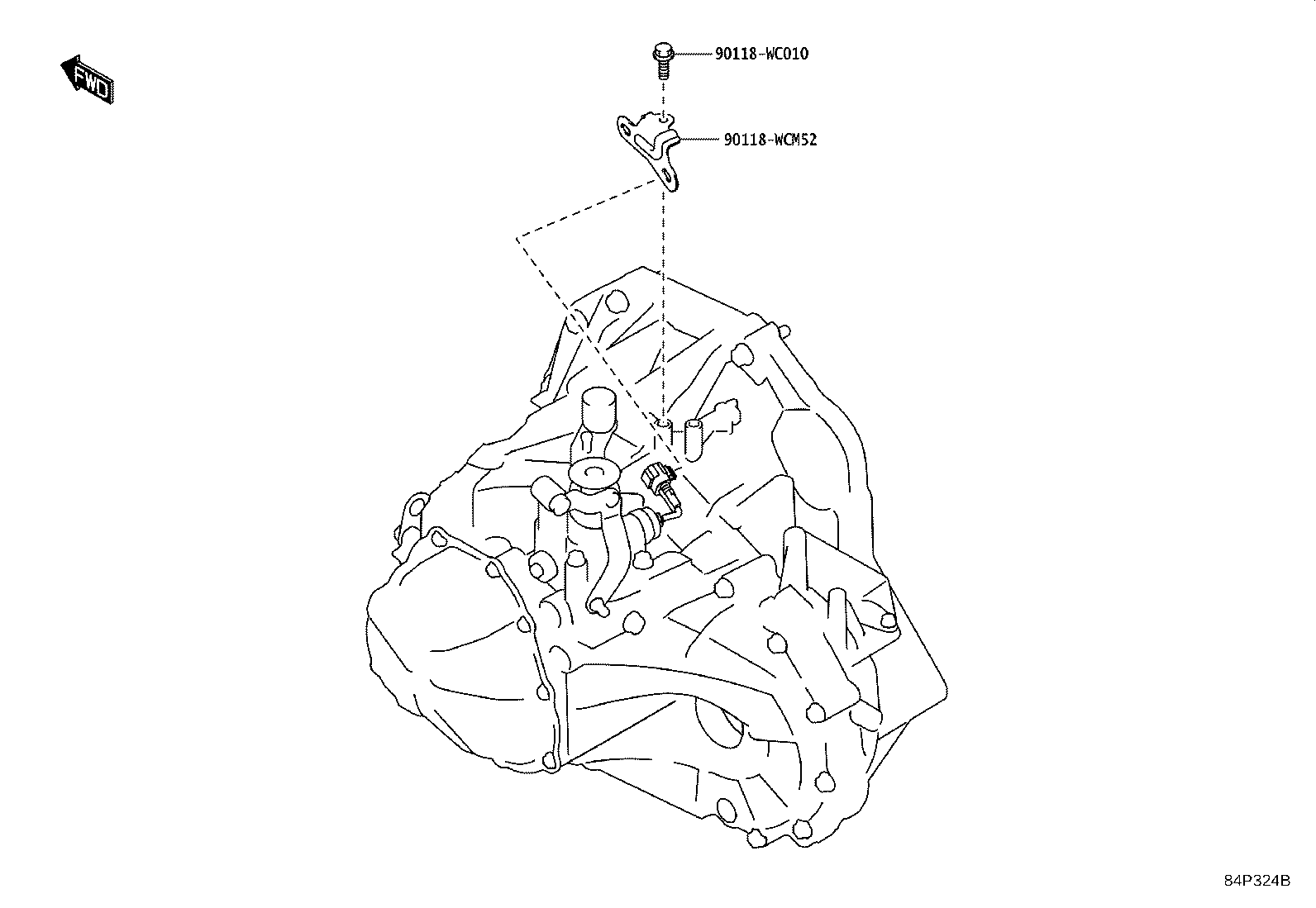

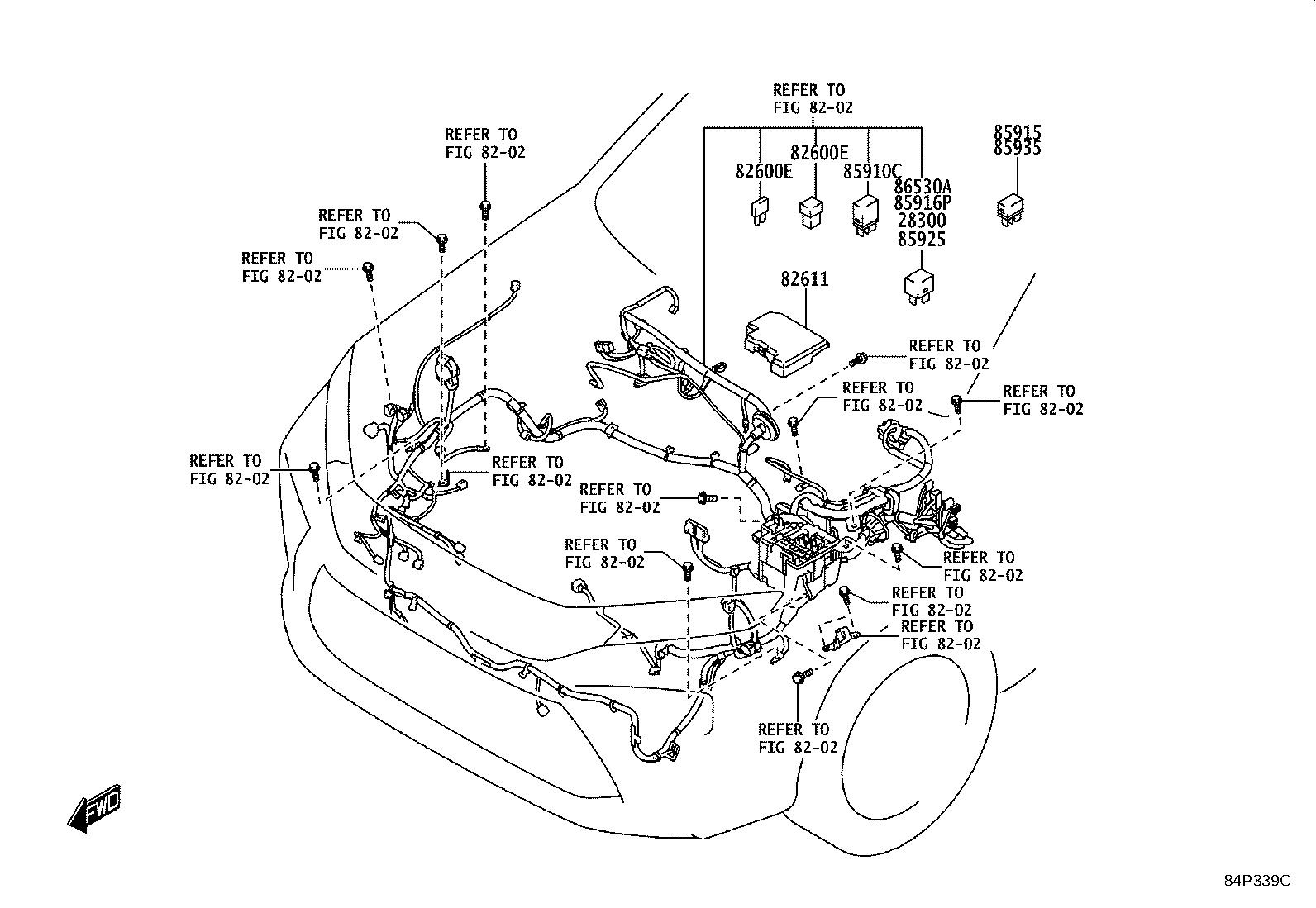

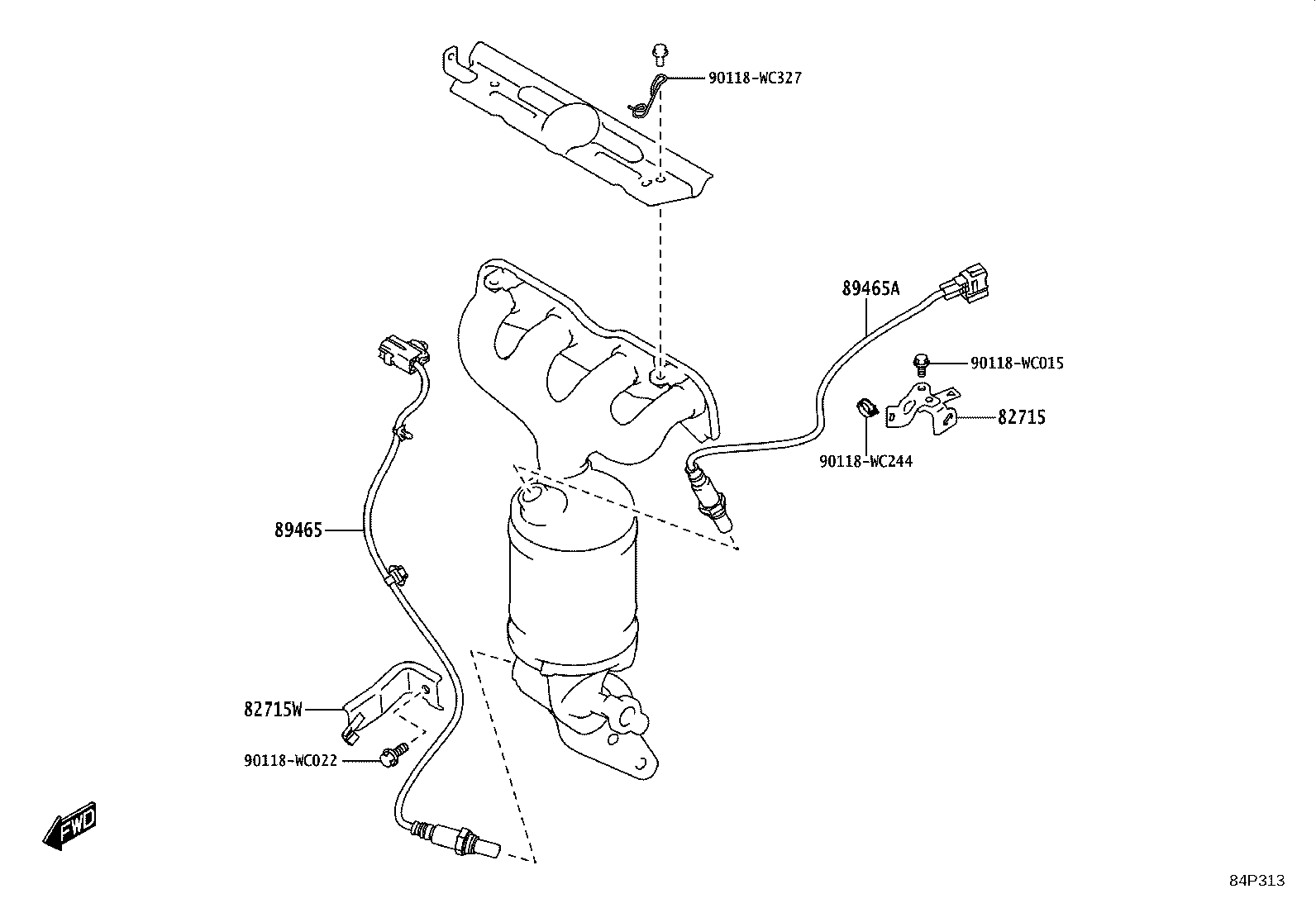

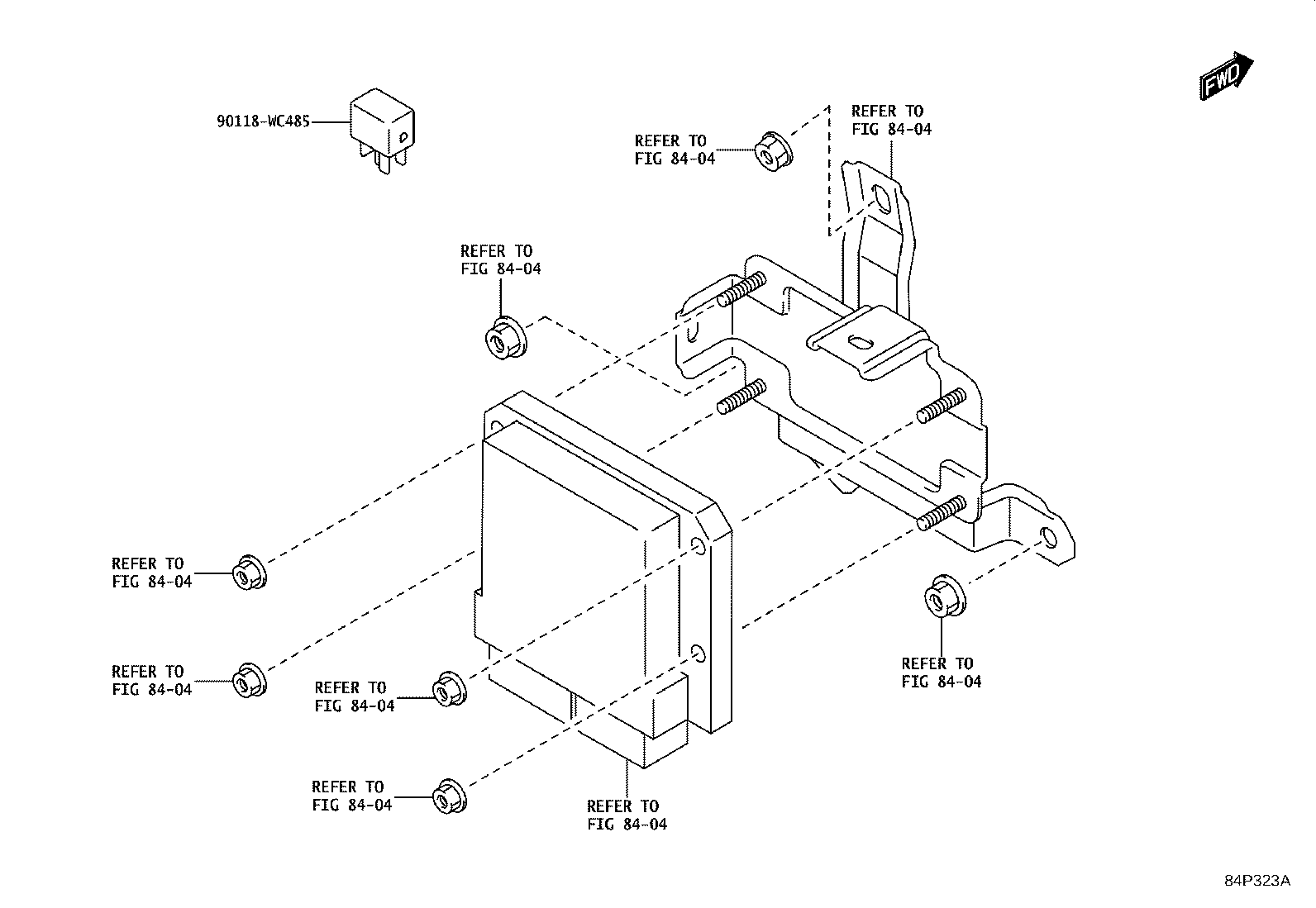

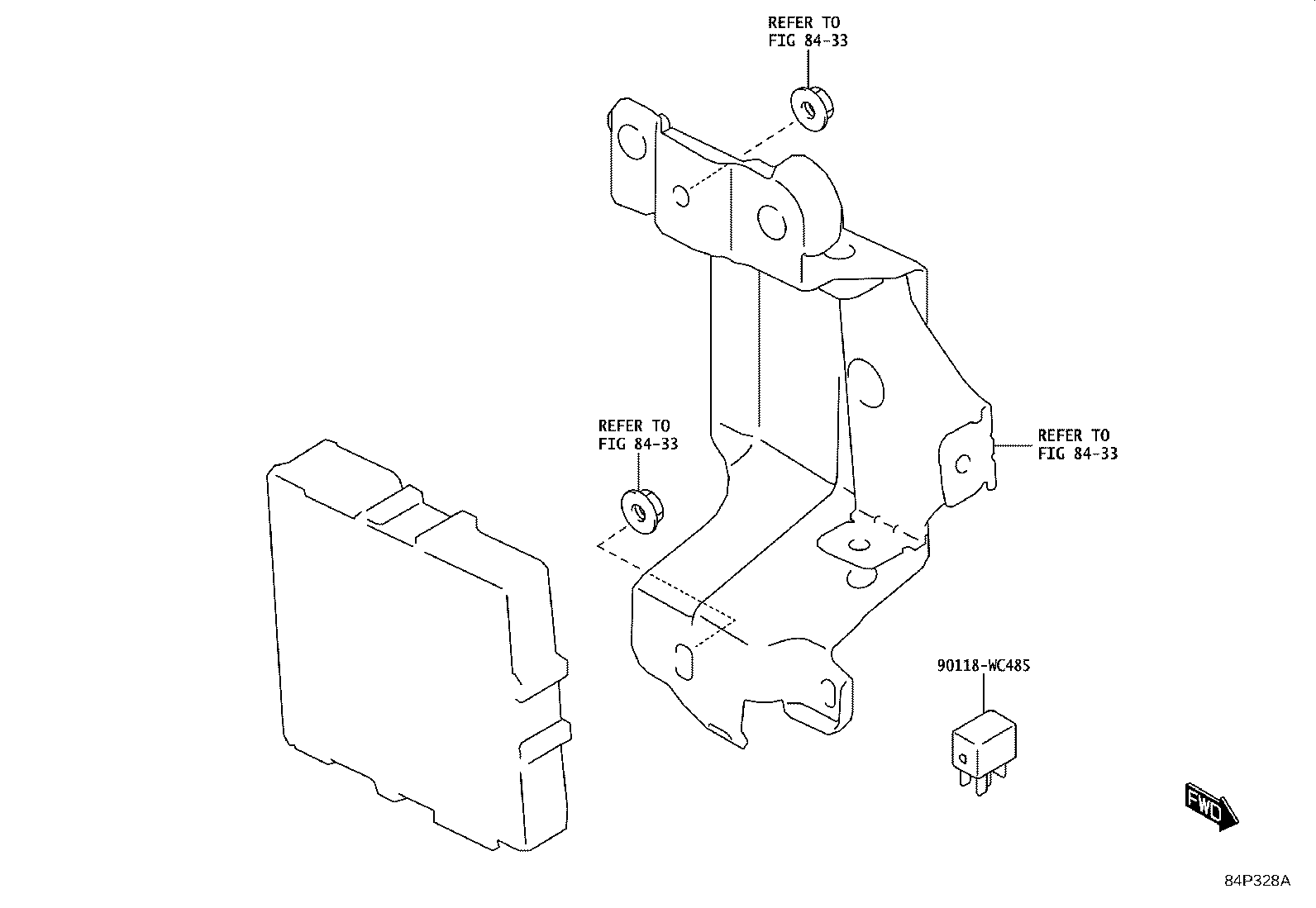

Figure 84P311A 84P311A 2024-01 → — Figure 84P312 84P312 2024-01 → — Figure 84P561A 84P561A 2024-01 → — Figure 84P313 84P313 2024-01 → — Figure 84P314 84P314 2024-01 → — Figure 84P315 84P315 2024-01 → — Figure 84P317B 84P317B 2024-01 → — Figure 84P316 84P316 2024-01 → — Figure 84P318 84P318 2024-01 → — Figure 84P319 84P319 2024-01 → — Figure 84P320C 84P320C 2024-01 → — Figure 84P321A 84P321A 2024-01 → — Figure 84P805A 84P805A 2024-01 → — Figure 84P322 84P322 2024-01 → — Figure 84P323A 84P323A 2024-01 → — Figure 84P806A 84P806A 2024-01 → — Figure 84P324B 84P324B 2024-01 → — Figure 84P325A 84P325A 2024-01 → — Figure 84P326 84P326 2024-01 → — Figure 84P327 84P327 2024-01 → — Figure 84P328A 84P328A 2024-01 → — Figure 84P329 84P329 2024-01 → — Figure 84P330 84P330 2024-01 → — Figure 84P331B 84P331B 2024-01 → — Figure 84P332B 84P332B 2024-01 → — Figure 84P333B 84P333B 2024-01 → — Figure 84P334B 84P334B 2024-01 → — Figure 84P335B 84P335B 2024-01 → — Figure 84P336B 84P336B 2024-01 → — Figure 84P337B 84P337B 2024-01 → — Figure 84P338B 84P338B 2024-01 → — Figure 84P339C 84P339C 2024-01 → — Figure 84P340B 84P340B 2024-01 → — Figure 84P341B 84P341B 2024-01 → — Figure 84P342B 84P342B 2024-01 → — Figure 84P343B 84P343B 2024-01 → — Figure 84P344A 84P344A 2024-01 → — Figure 84P345A 84P345A 2024-01 → — Figure 84P346A 84P346A 2024-01 → — Figure 84P347B 84P347B 2024-01 → — Figure 84P348 84P348 2024-01 → — Figure 84P349 84P349 2024-01 → — Figure 84P350 84P350 2024-01 → — Figure 84P351A 84P351A 2024-01 → — Figure 84P352 84P352 2024-01 → — Figure 84P353 84P353 2024-01 → — Figure 84P354 84P354 2024-01 → — Figure 84P355 84P355 2024-01 → — Figure 84P356C 84P356C 2024-01 → — Figure 84P357 84P357 2024-01 → — Figure 84P358 84P358 2024-01 → — Figure 84P359 84P359 2024-01 → — Figure 84P360 84P360 2024-01 → — Figure 84P361 84P361 2024-01 → — Figure 84P362B 84P362B 2024-01 → — Figure 84P363B 84P363B 2024-01 → — Figure 84P364 84P364 2024-01 → — Figure 84P365 84P365 2024-01 → — Figure 84P366 84P366 2024-01 → — Figure 84P367 84P367 2024-01 → — Figure 84P368 84P368 2024-01 → — Figure 84P369 84P369 2024-01 → — Figure 84P370 84P370 2024-01 → — Figure 84P371 84P371 2024-01 → — Figure 84P372A 84P372A 2024-01 → — Figure 84P373 84P373 2024-01 → — Figure 84P774 84P774 2024-01 → — Figure 84P374 84P374 2024-01 → — Figure 84P804 84P804 2024-01 → — Figure 84P375A 84P375A 2024-01 → — Figure 84P376 84P376 2024-01 → — Figure 84P809 84P809 2024-01 → — Figure 84P810 84P810 2024-01 → — Figure 84P811 84P811 2024-01 → — Figure 84P812 84P812 2024-01 → — Figure 84Q040 84Q040 2024-01 → — Figure 84Q041 84Q041 2024-01 → — Figure 84P377 84P377 2024-01 → — Figure 84P378 84P378 2024-01 → — Figure 84P379 84P379 2024-01 → — Figure 84P381 84P381 2024-01 → — Figure 84P380 84P380 2024-01 → — Figure 84P382 84P382 2024-01 → — Figure 84P383 84P383 2024-01 → — Figure 84P384A 84P384A 2024-01 → — Figure 84P385 84P385 2024-01 → — Figure 84P386B 84P386B 2024-01 → — Figure 84P387A 84P387A 2024-01 → — Figure 84P815 84P815 2024-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300F Relay Assy, Starter, NO.2
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
82600D Instrument Panel Fuse

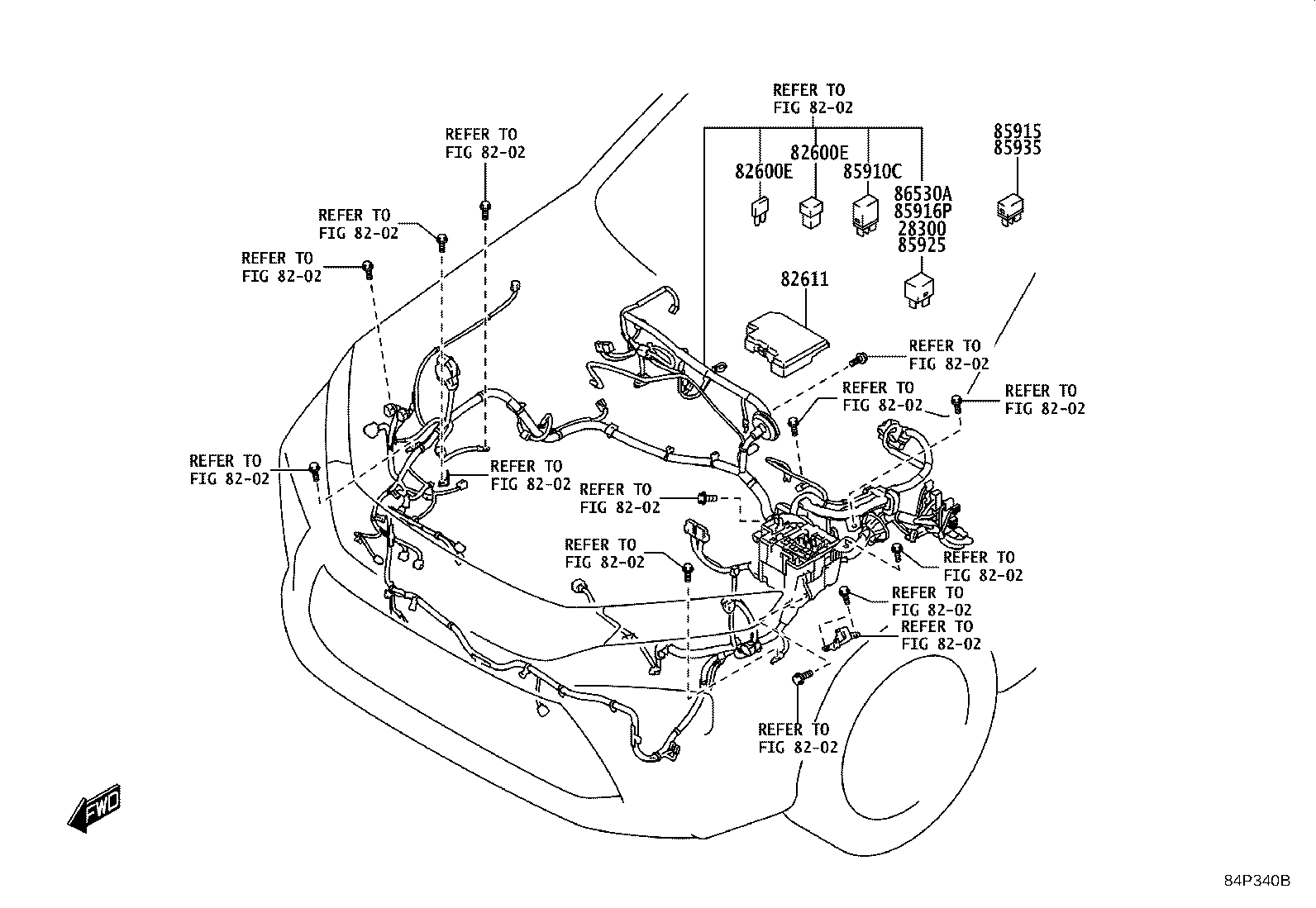

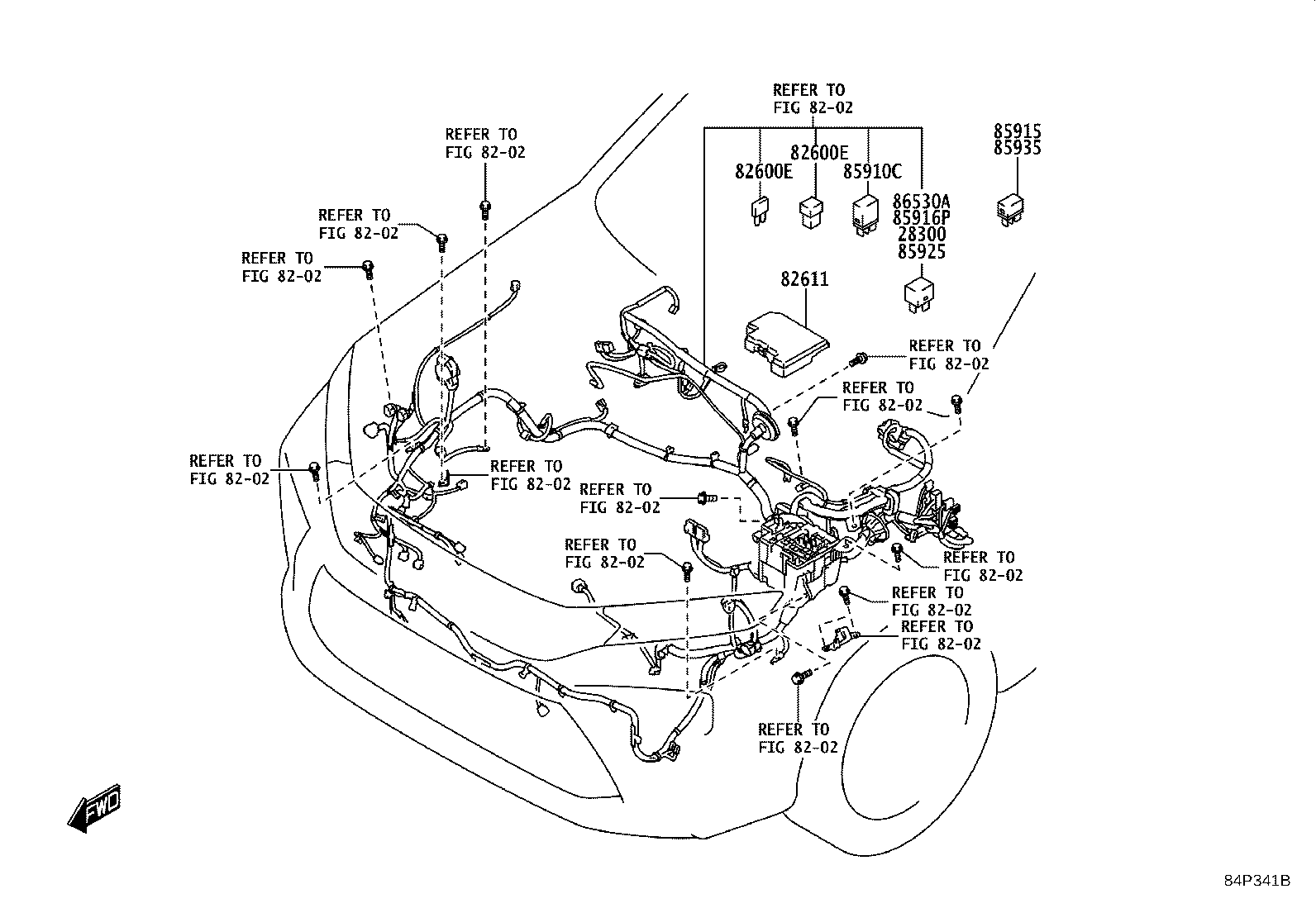

82600E Engine Room Fuse
82611 Cover, Fuse Block

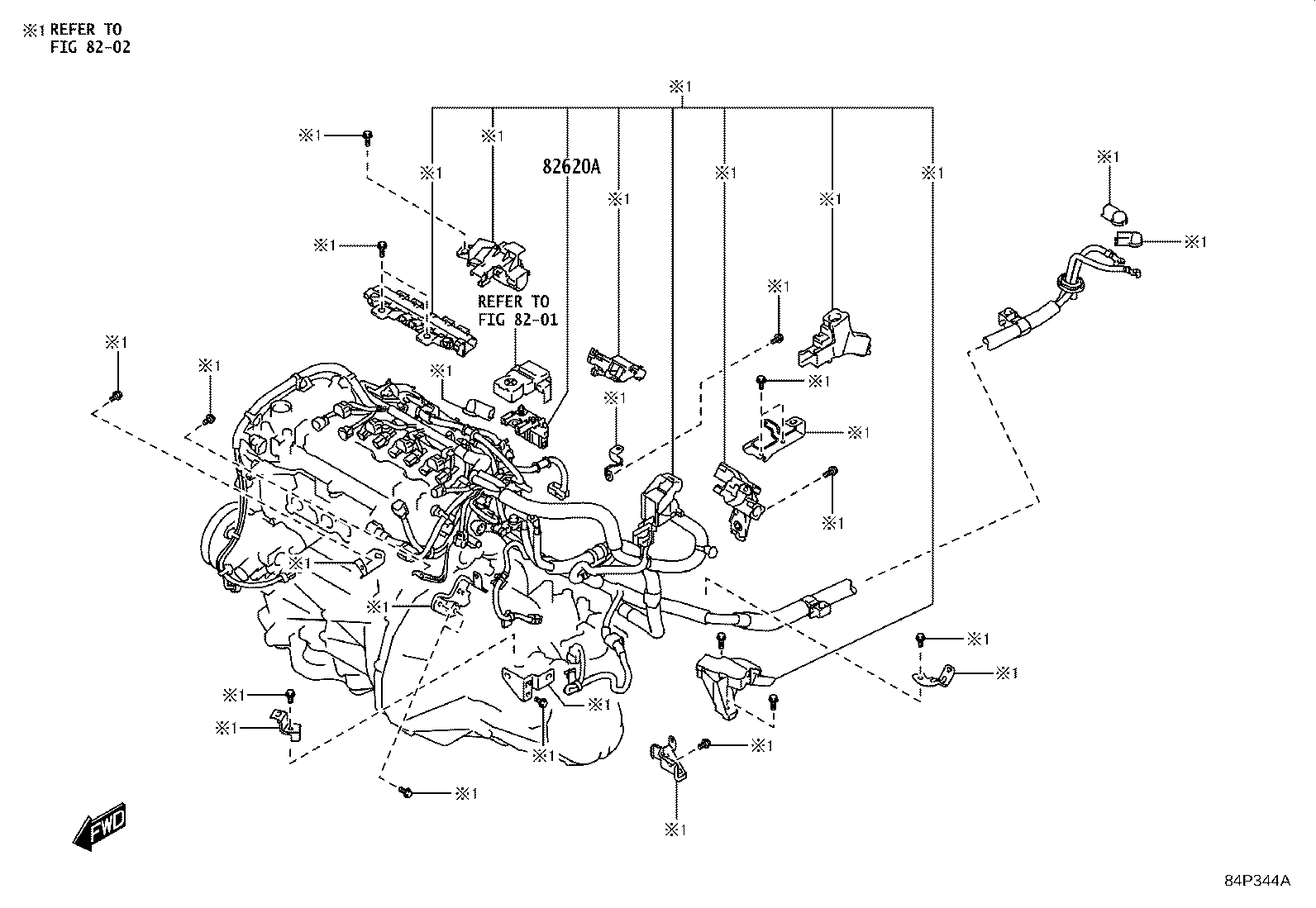

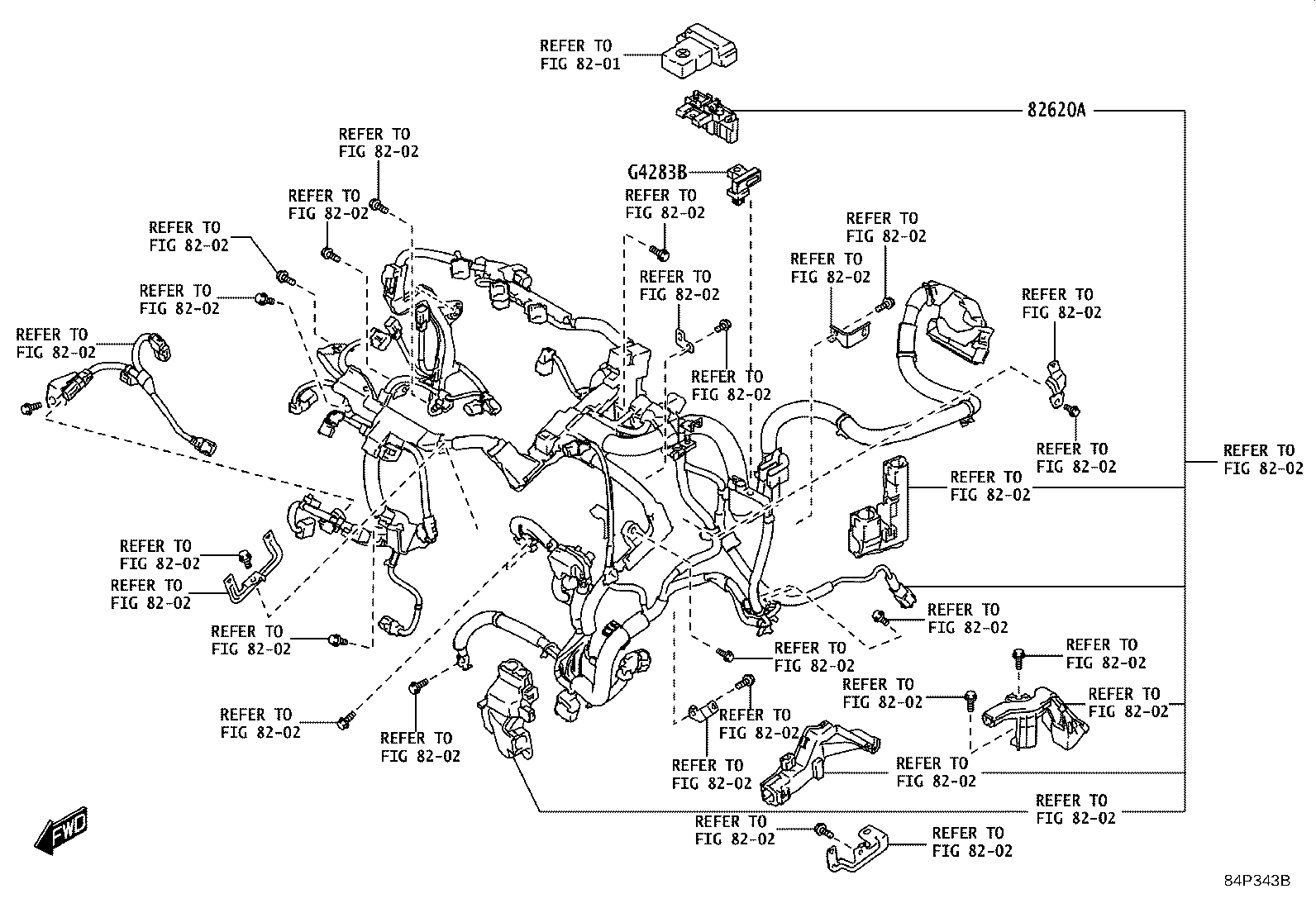

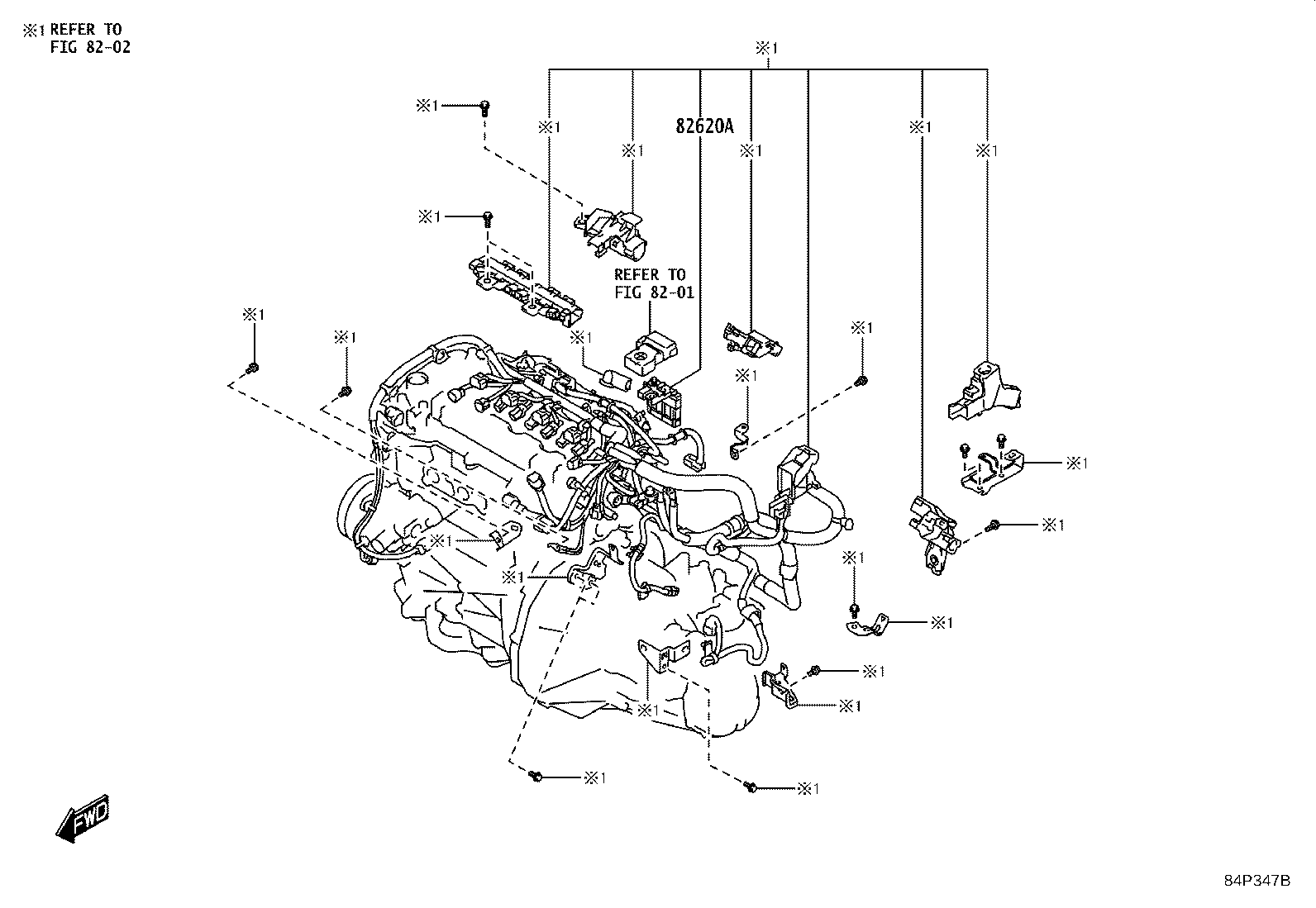

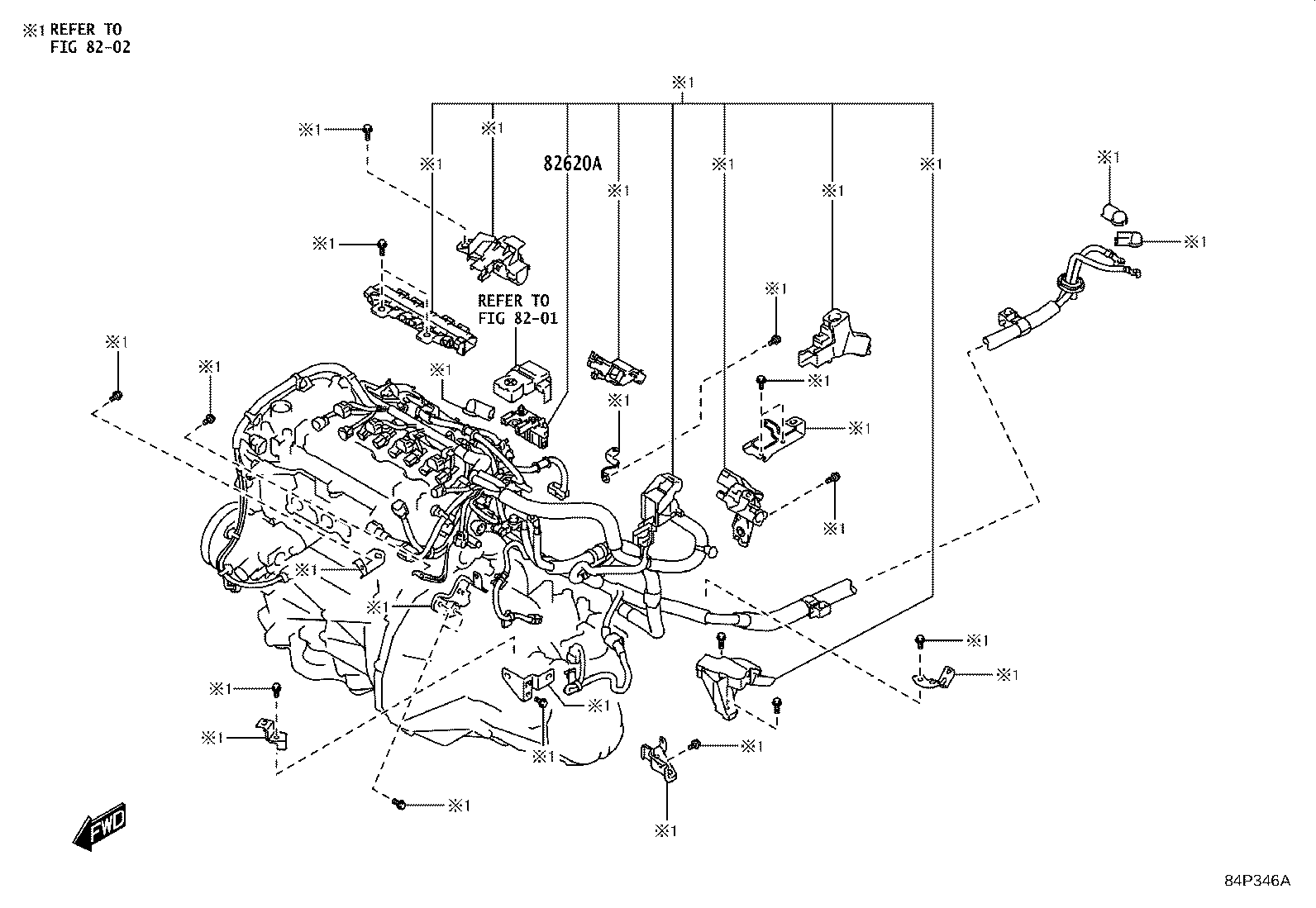

82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82672A Cover, Junction Block
82715 Bracket,Wiring Harness Clamp
82715W Bracket, Wiring Harness Clamp

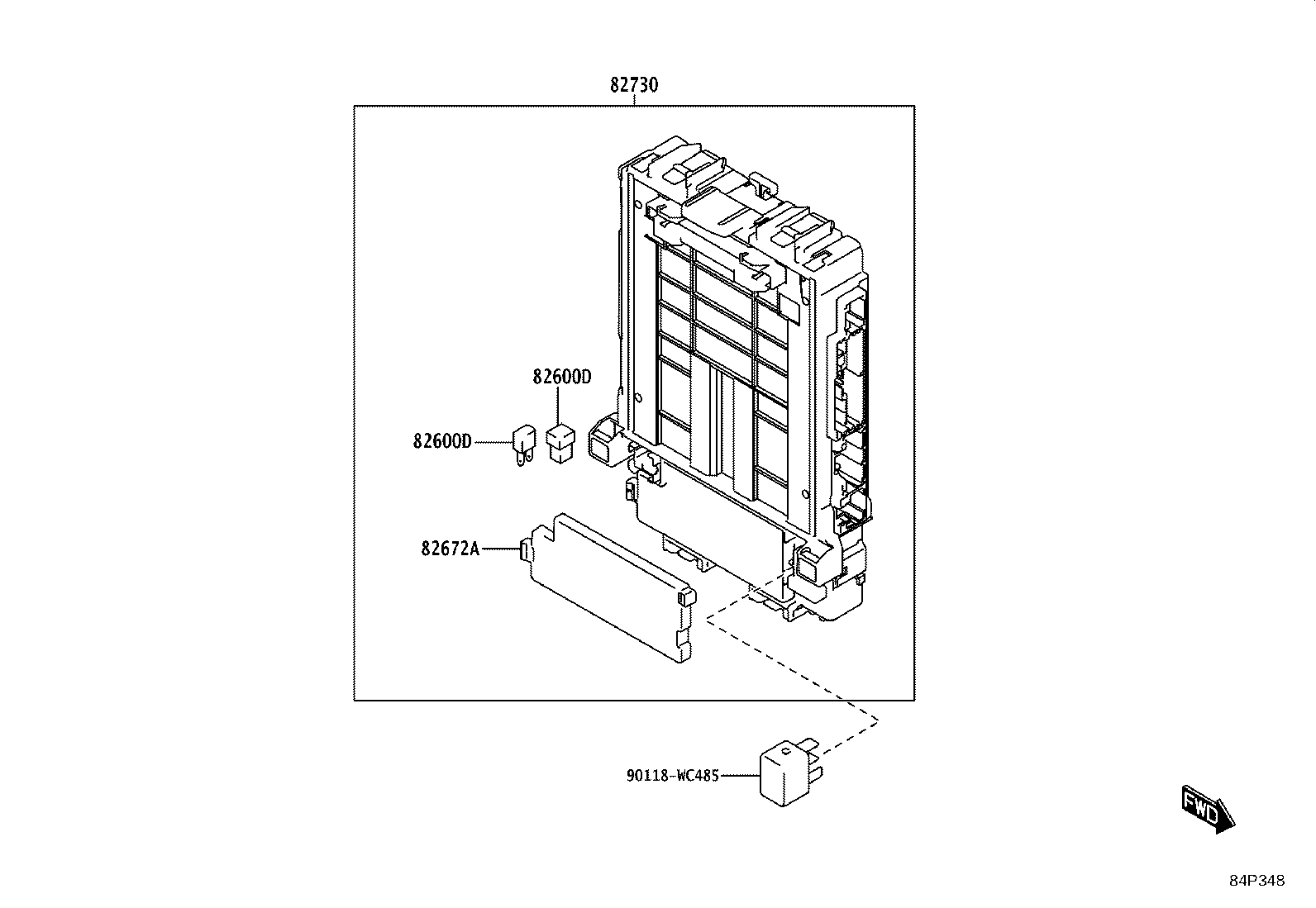

82730 Block Assy, Instrument Panel Junction

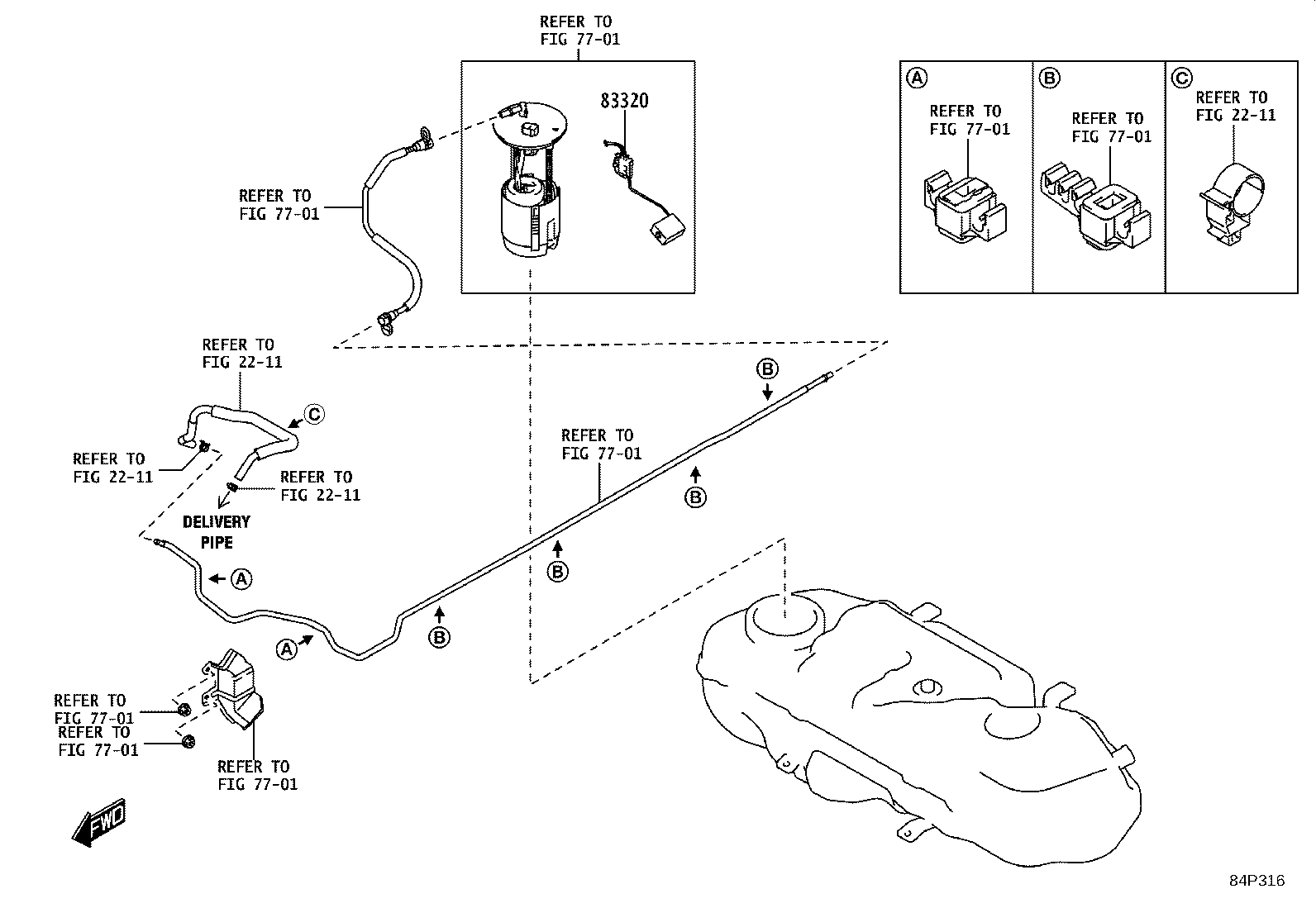

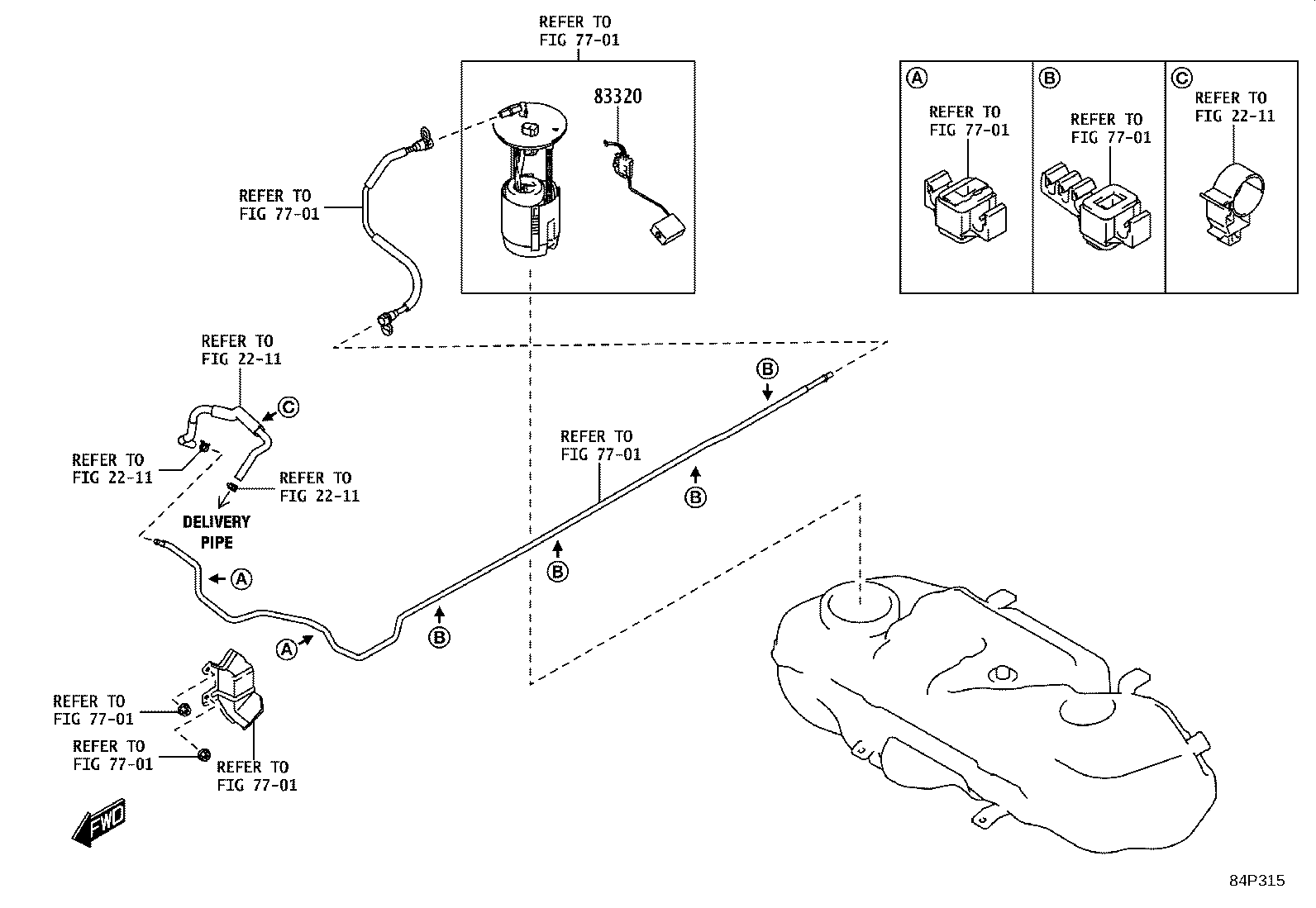

83320 Gage Assy, Fuel Sender

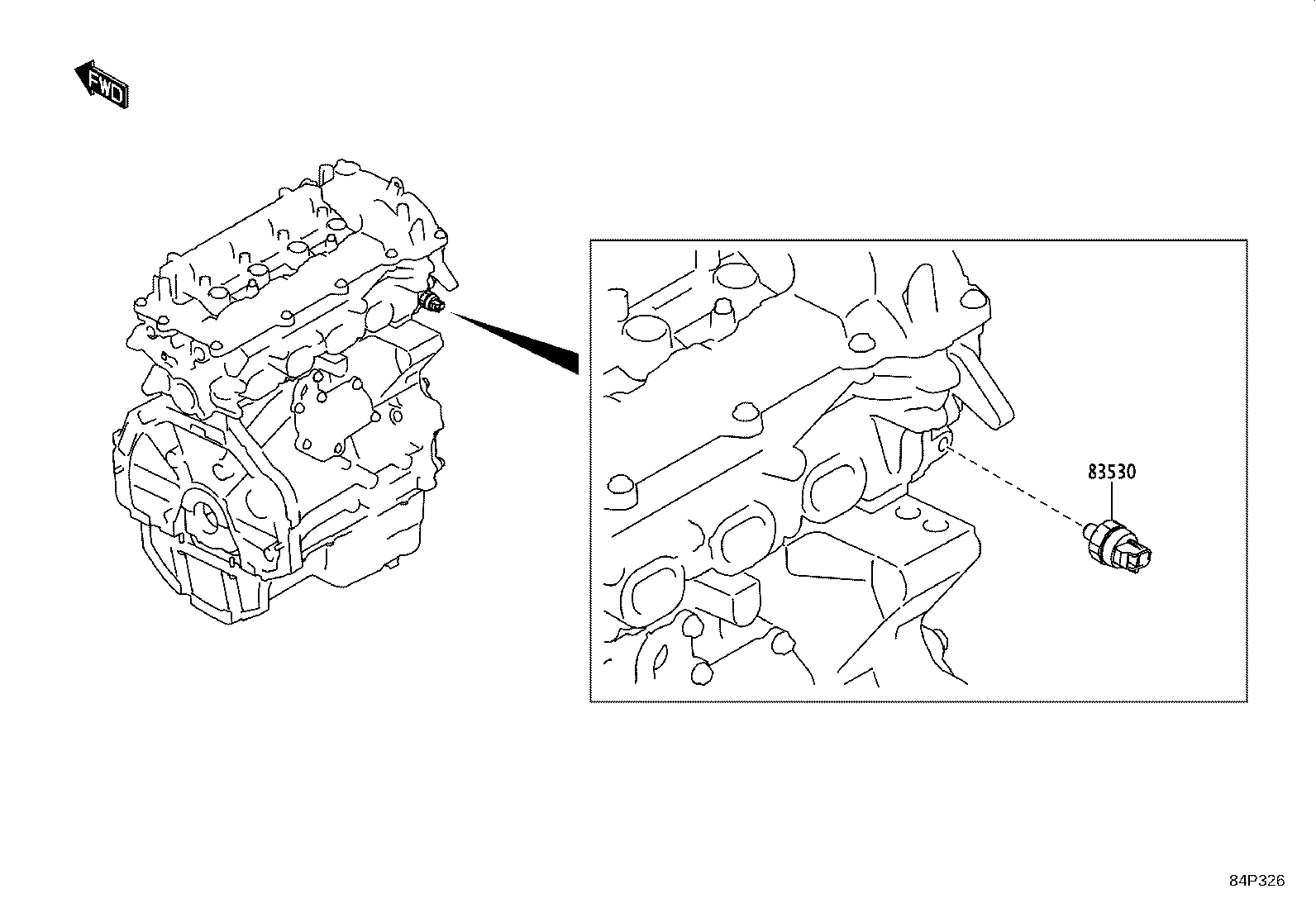

83530 Switch Assy, Oil Pressure (FOR ENGINE)

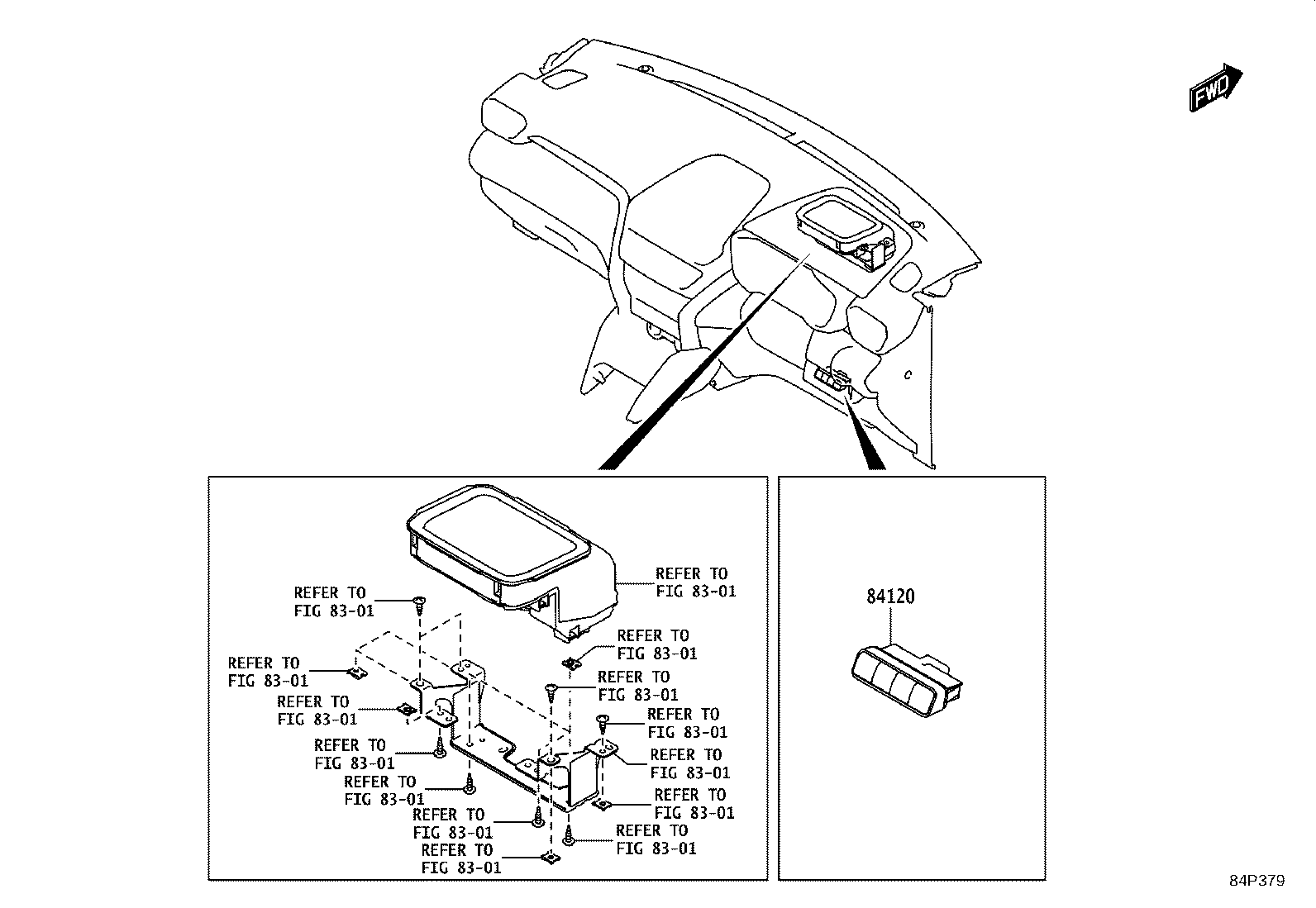

84120 Switch Assy, Head UP Display

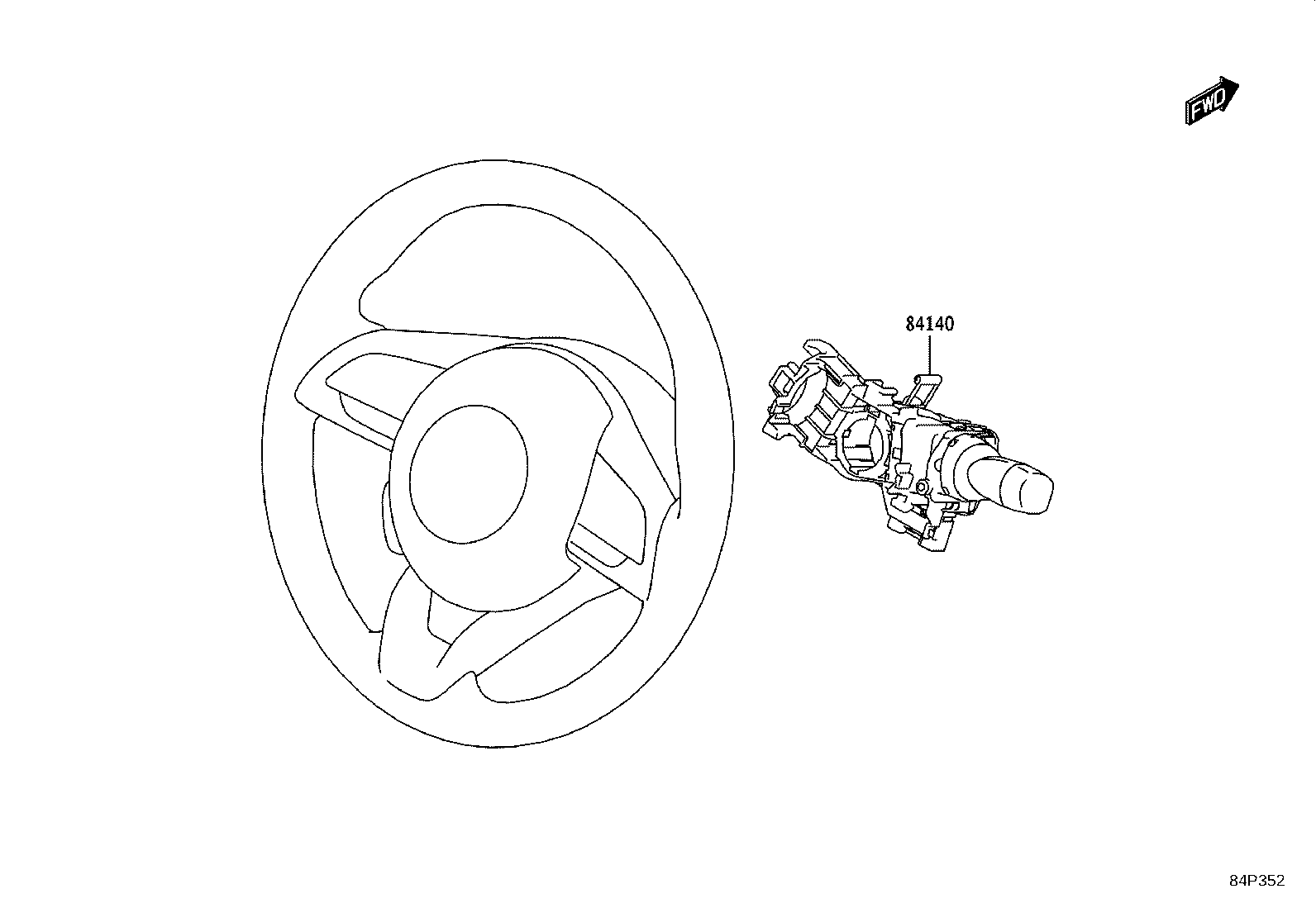

84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling

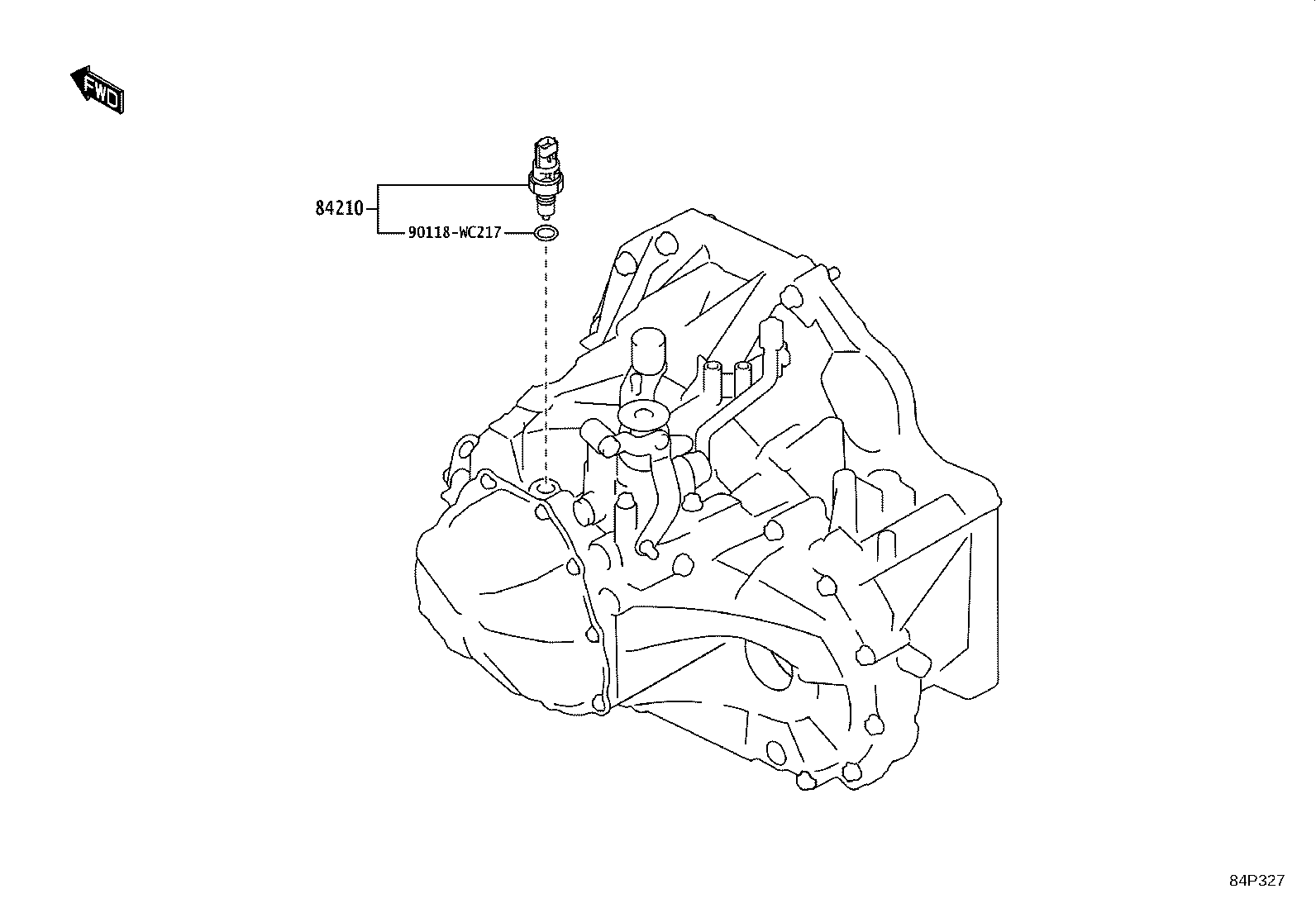

84210 Switch Assy, Back-up Lamp

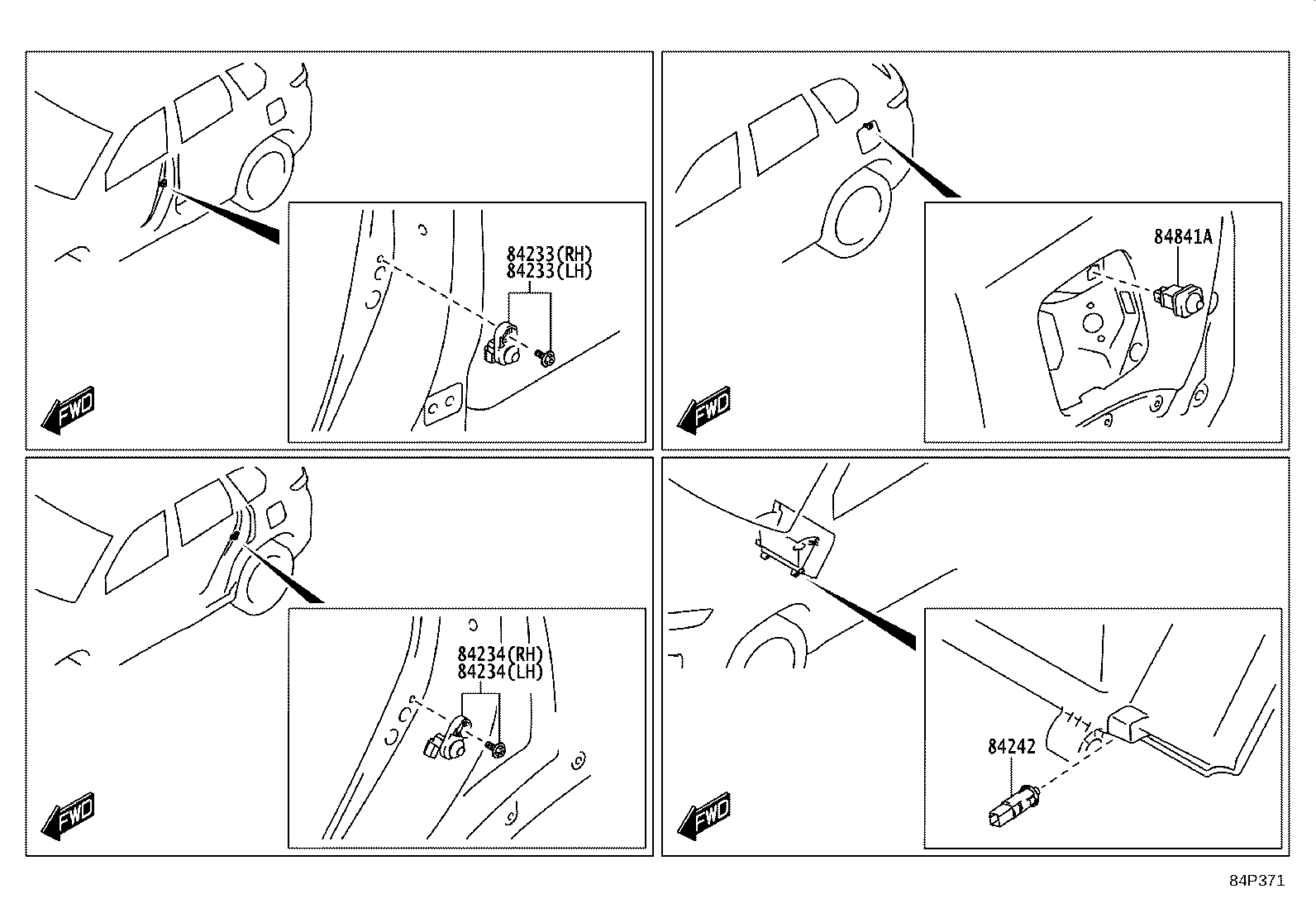

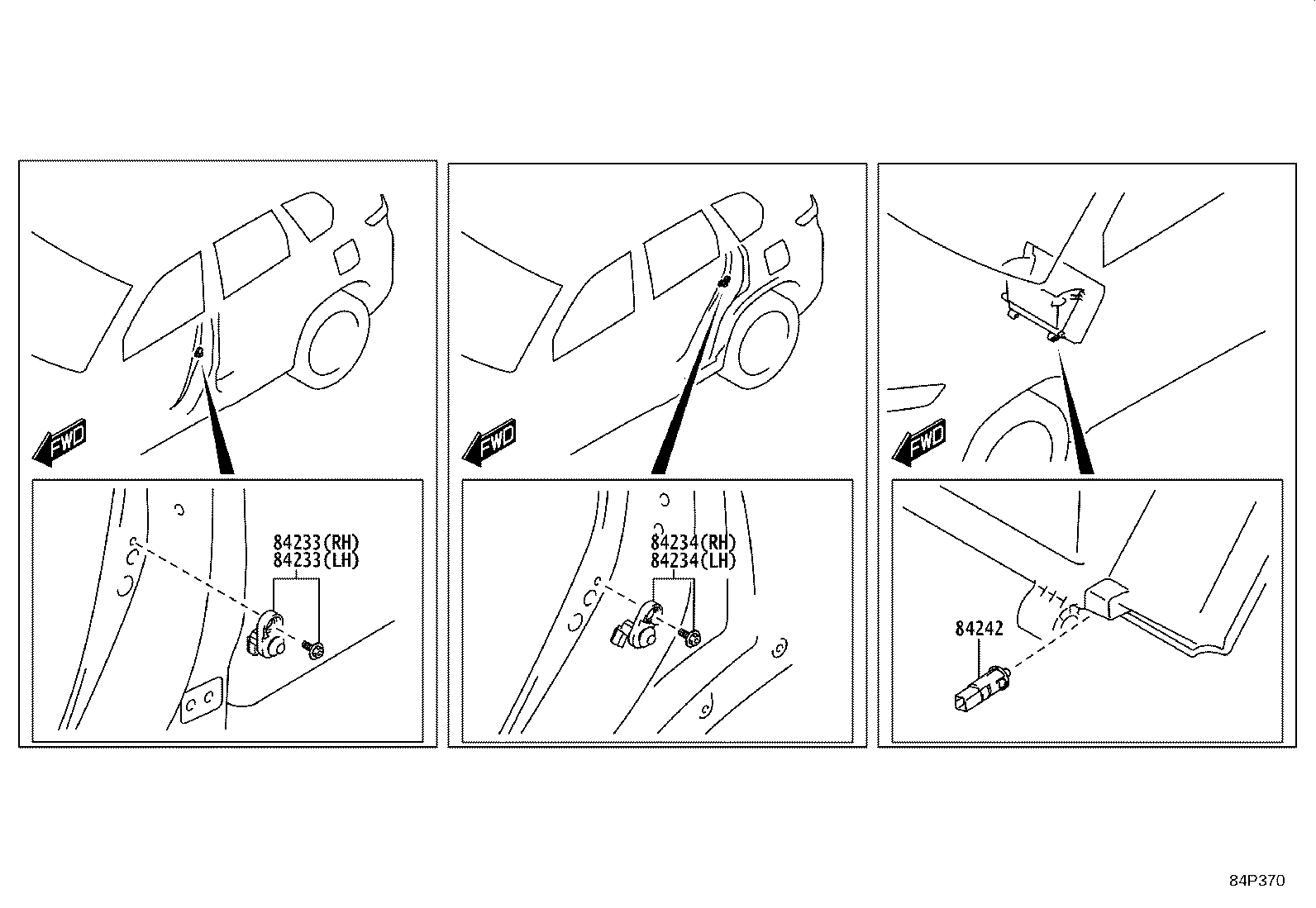

84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84242 Switch, Glove Box Lamp

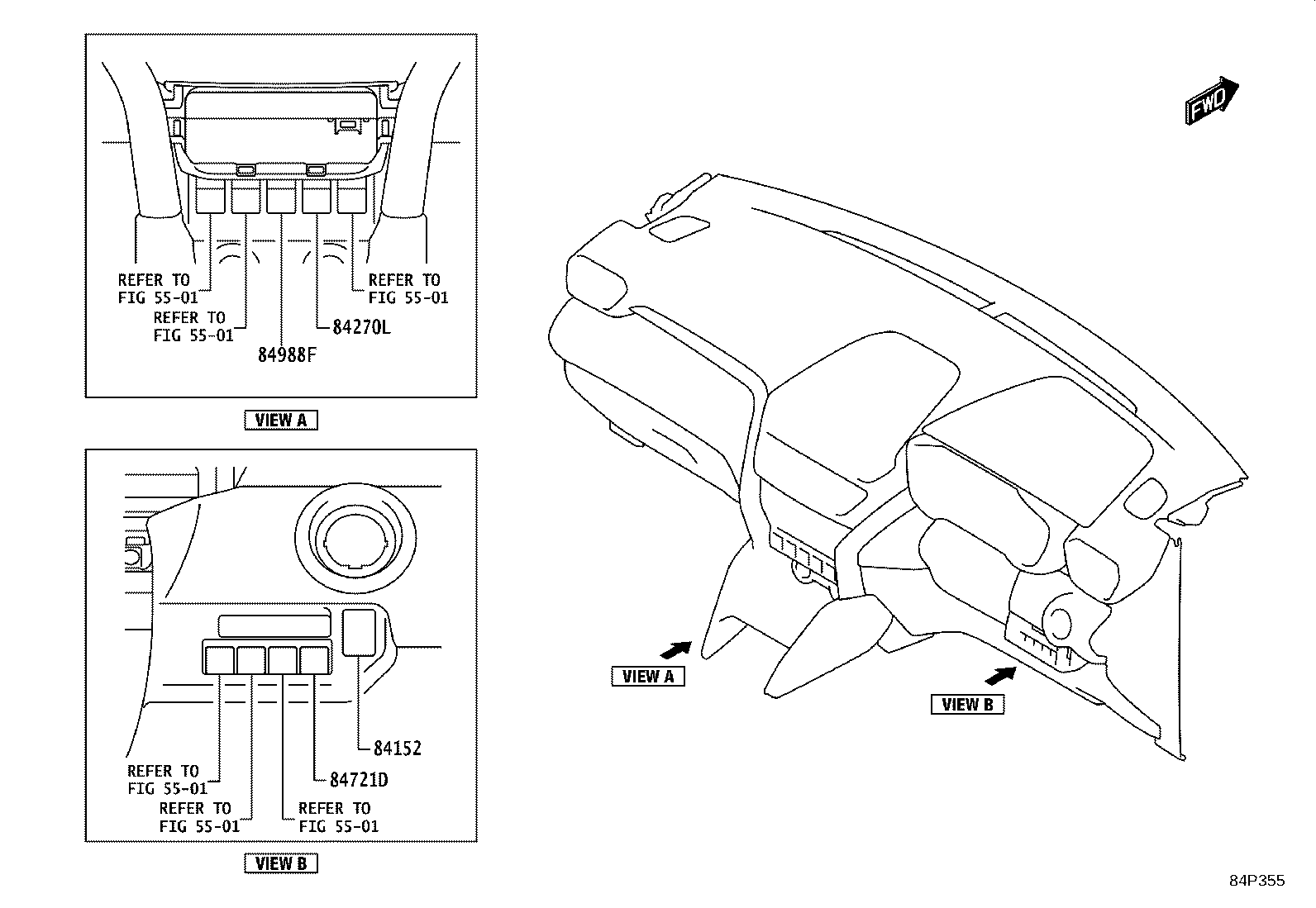

84270L Switch Assy, Idle Stop

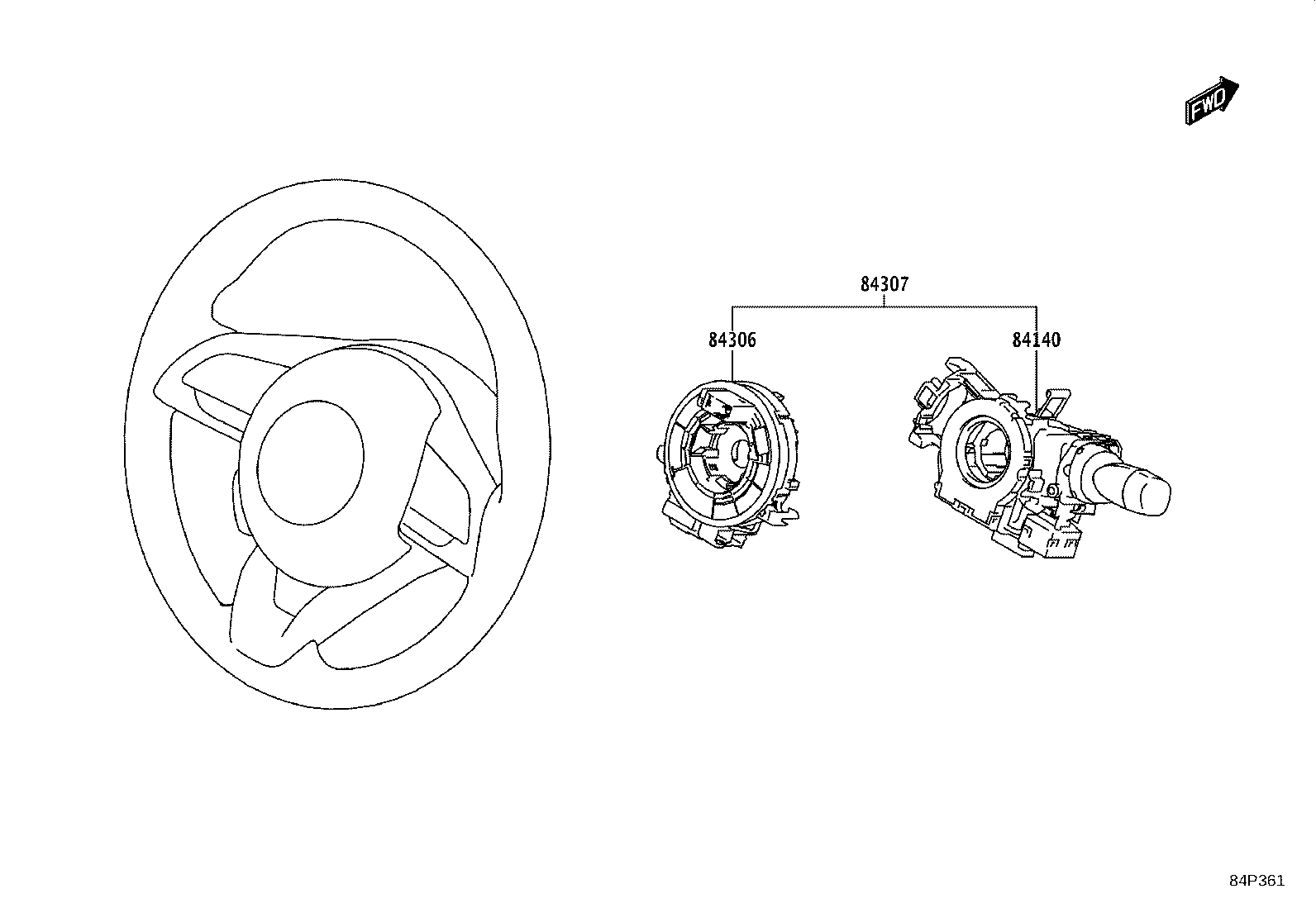

84306 Cable Sub-assy, Spiral

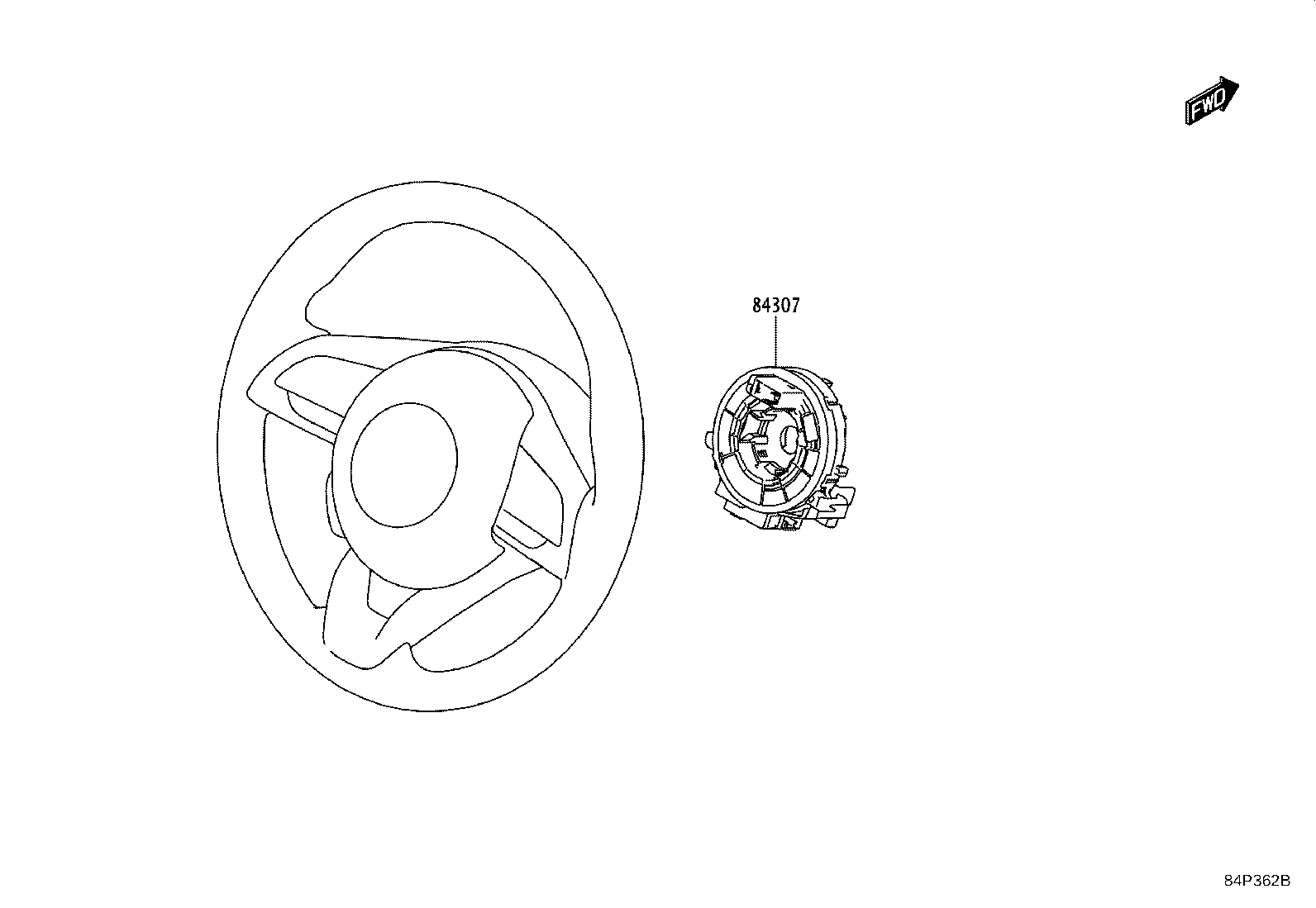

84307 Cable Sub-assy, Spiral W/Sensor

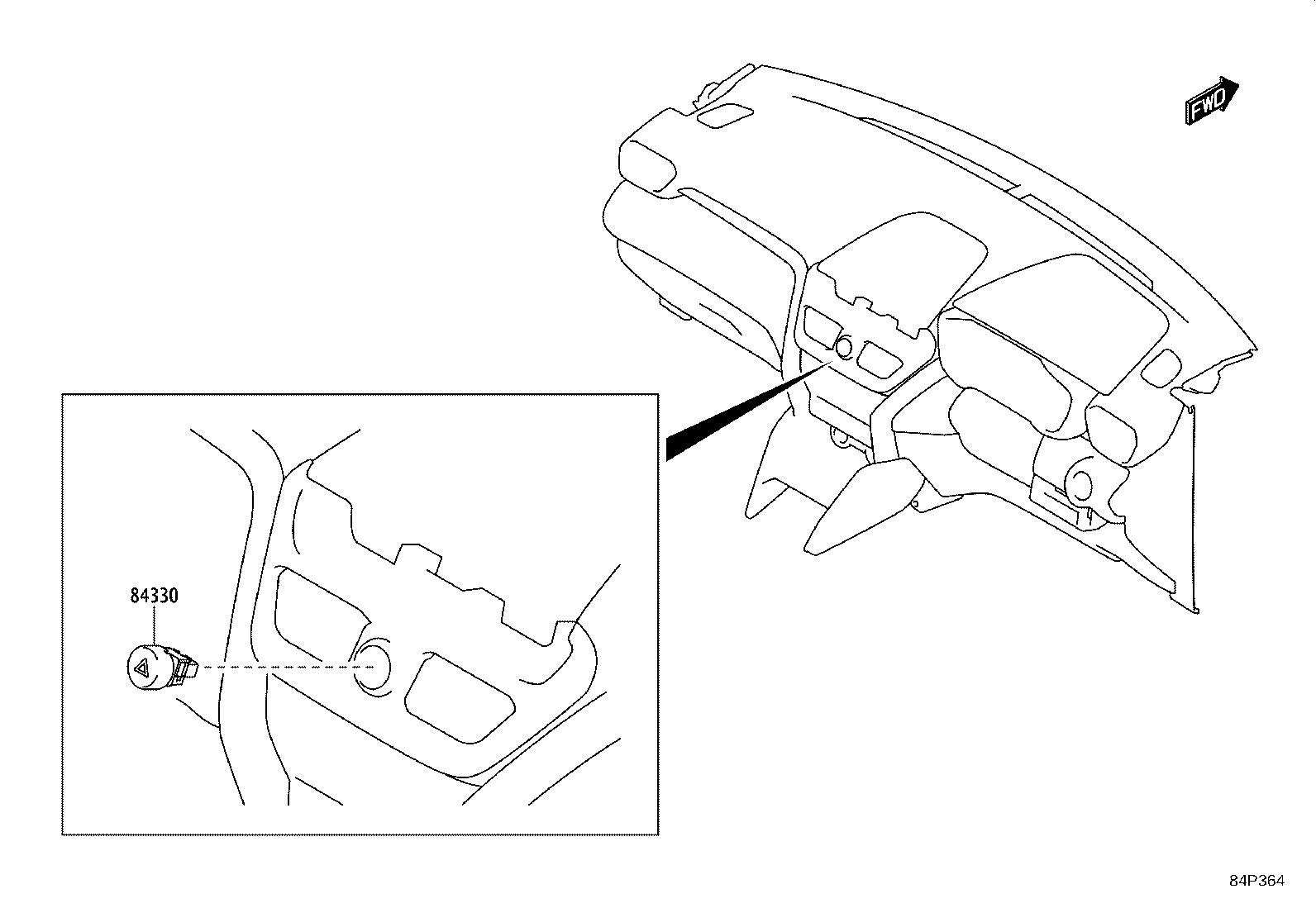

84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84520E Switch Assy, Clutch Start, NO.2

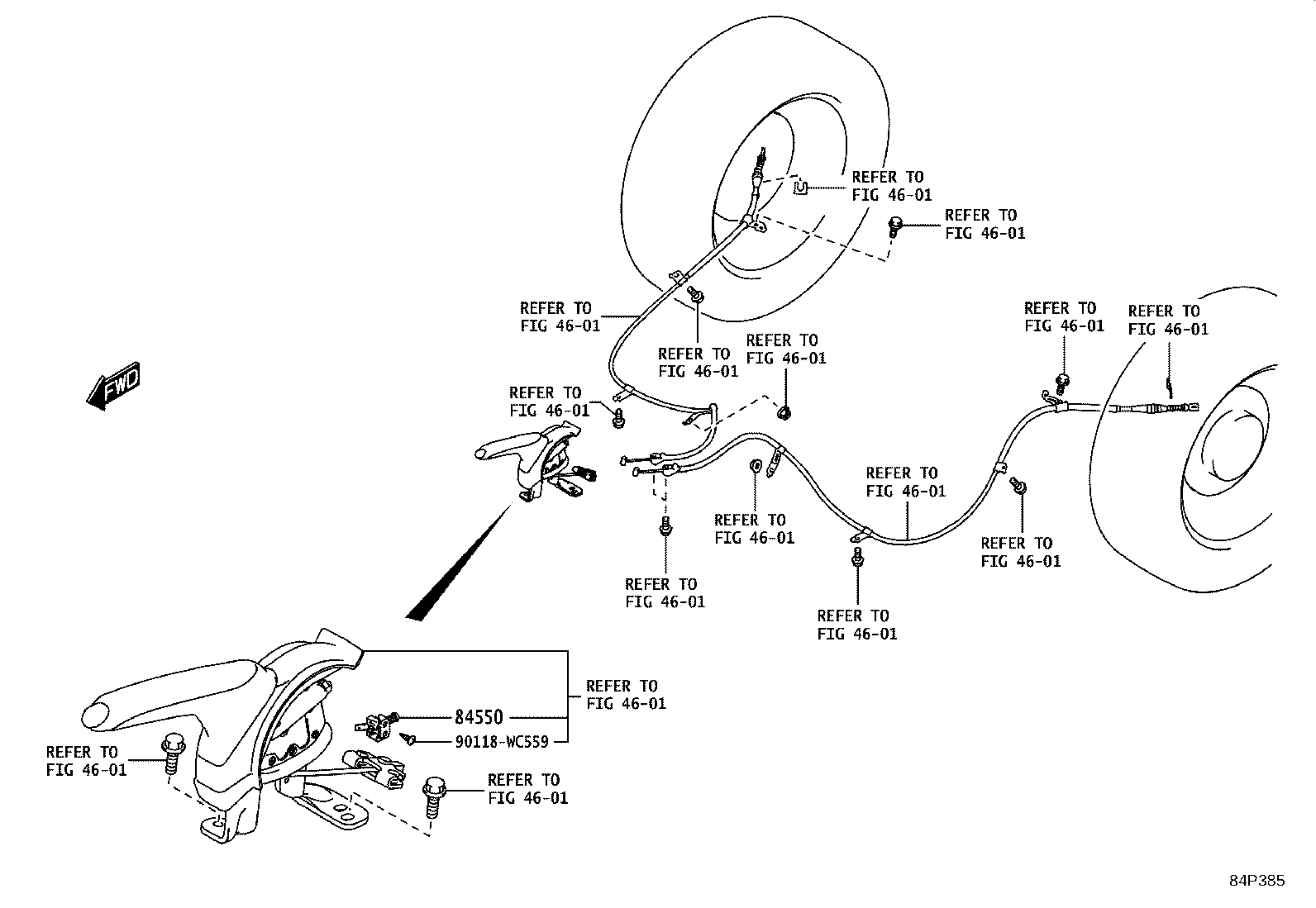

84550 Switch Assy, Parking Brake
84560A Switch Assy, Fuel Control

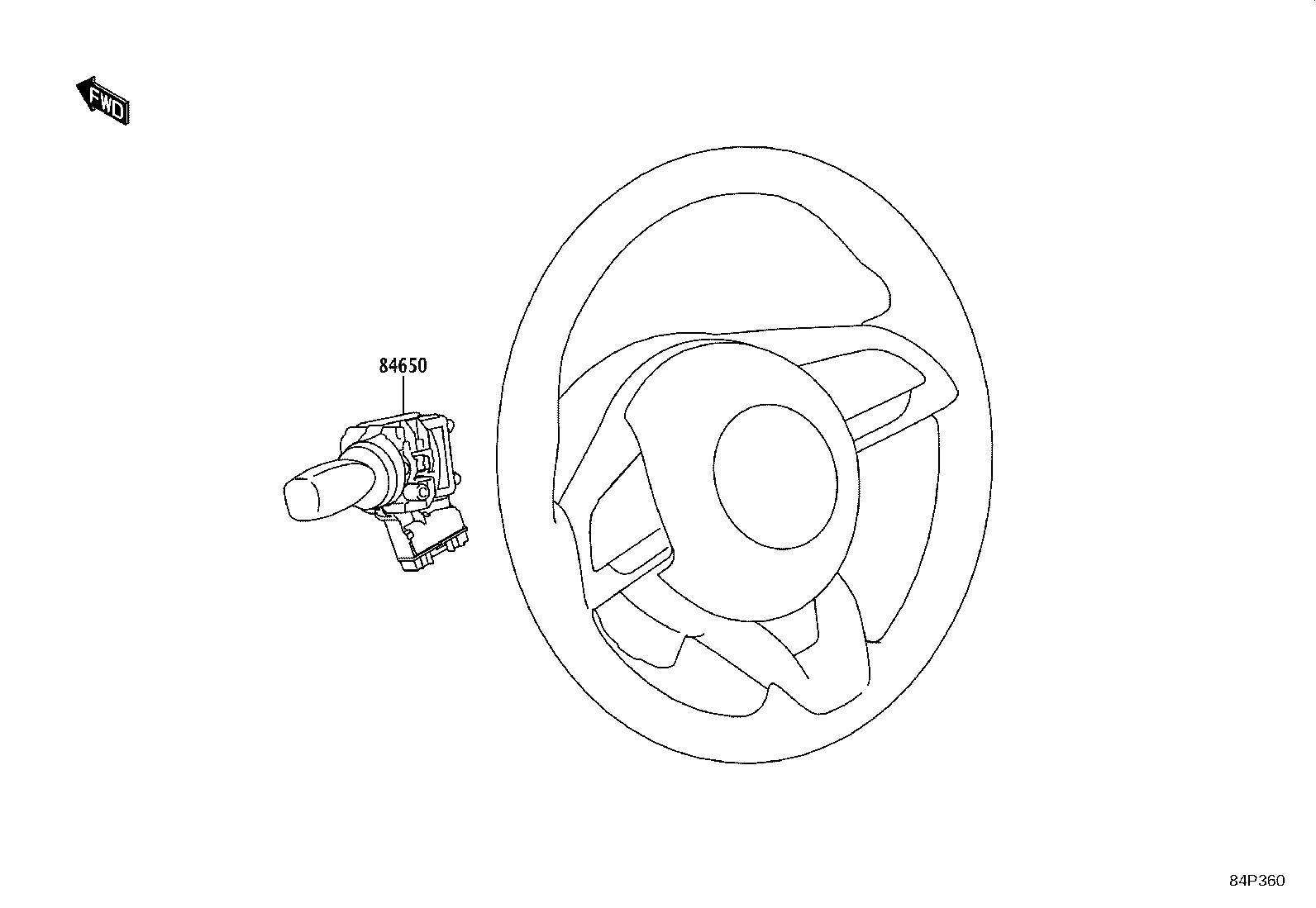

84650 Switch Assy, Windshield Wiper
84721D Switch Assy, Camera

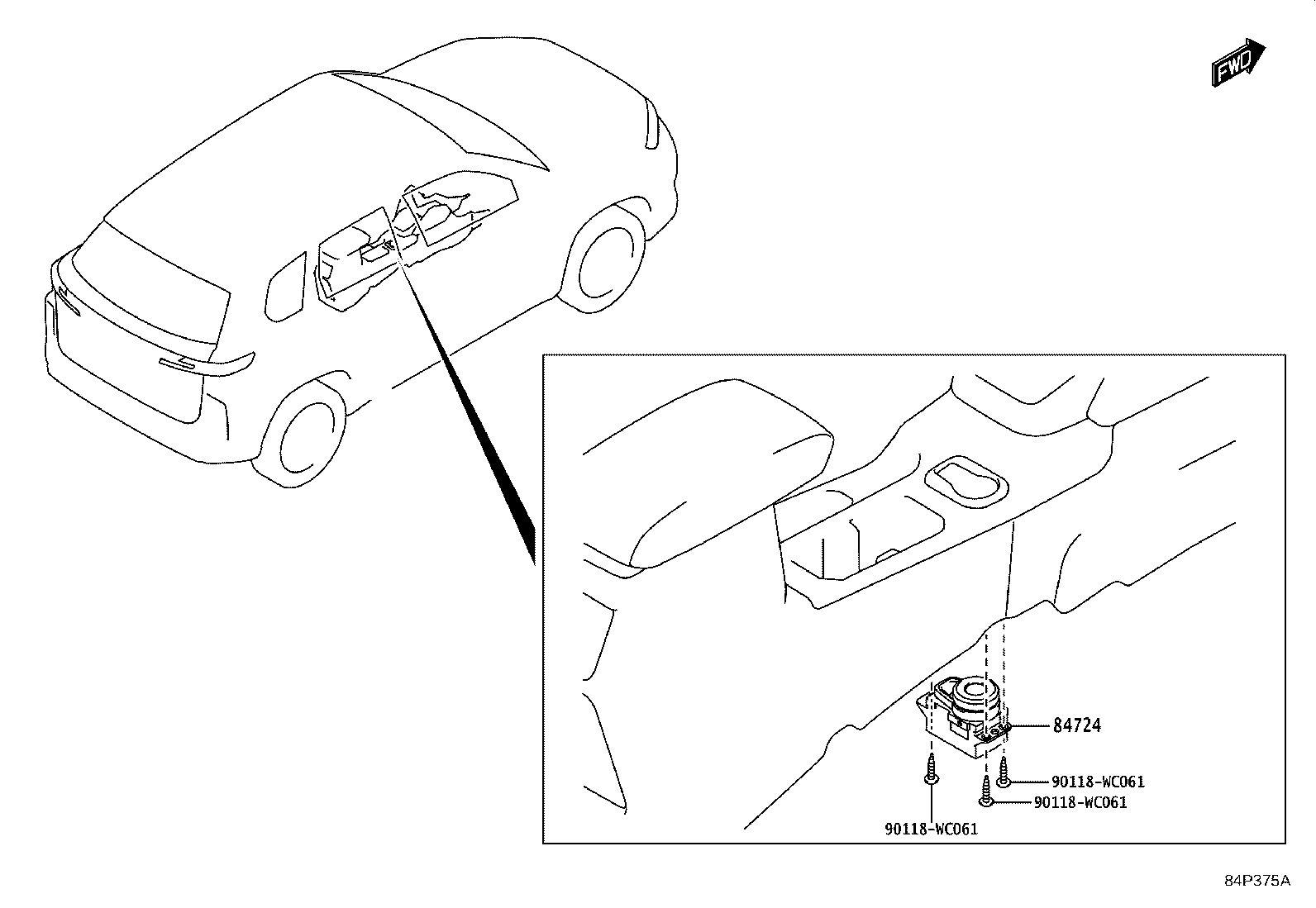

84724 Switch, 4 Wheel Drive Control

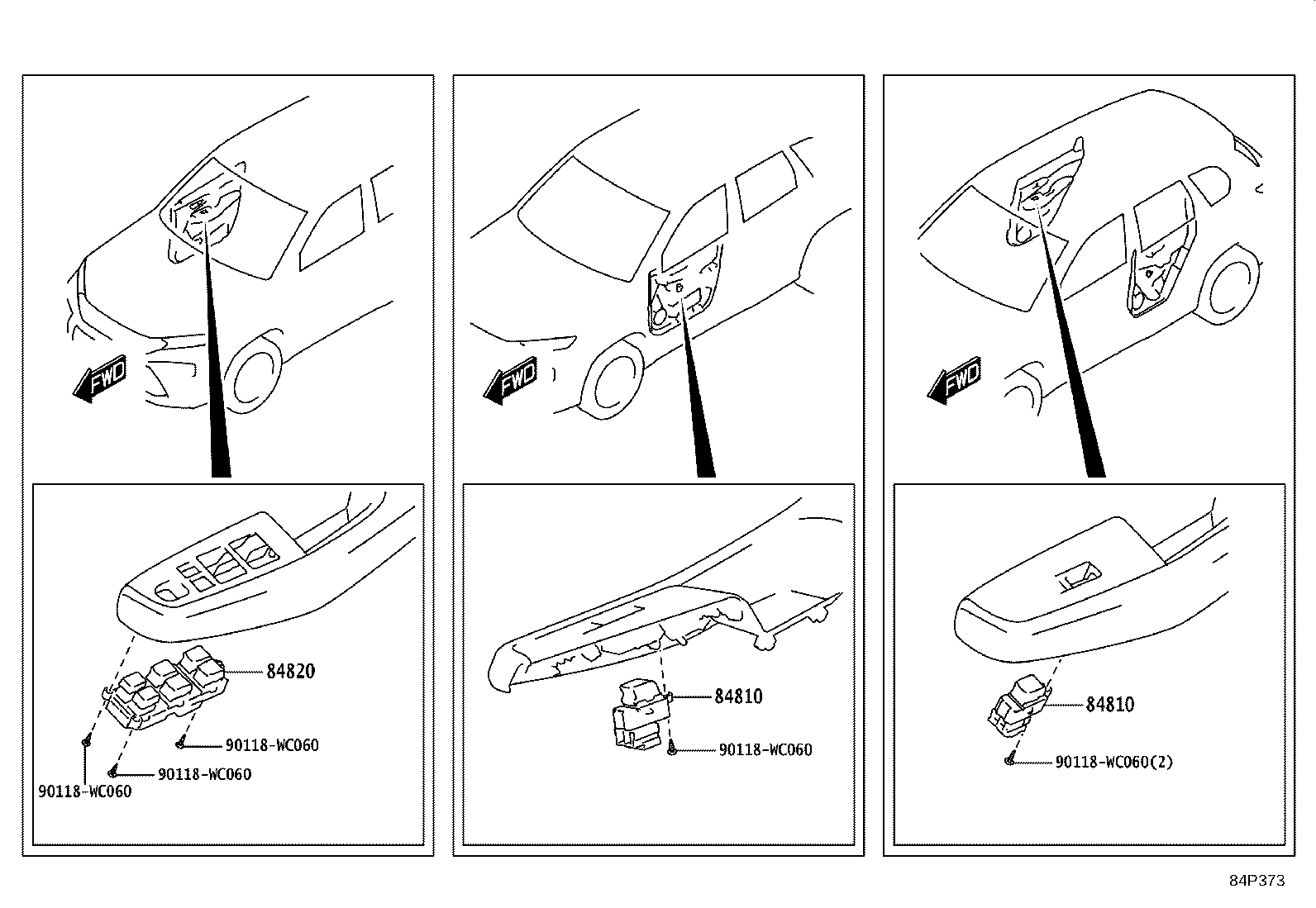

84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator

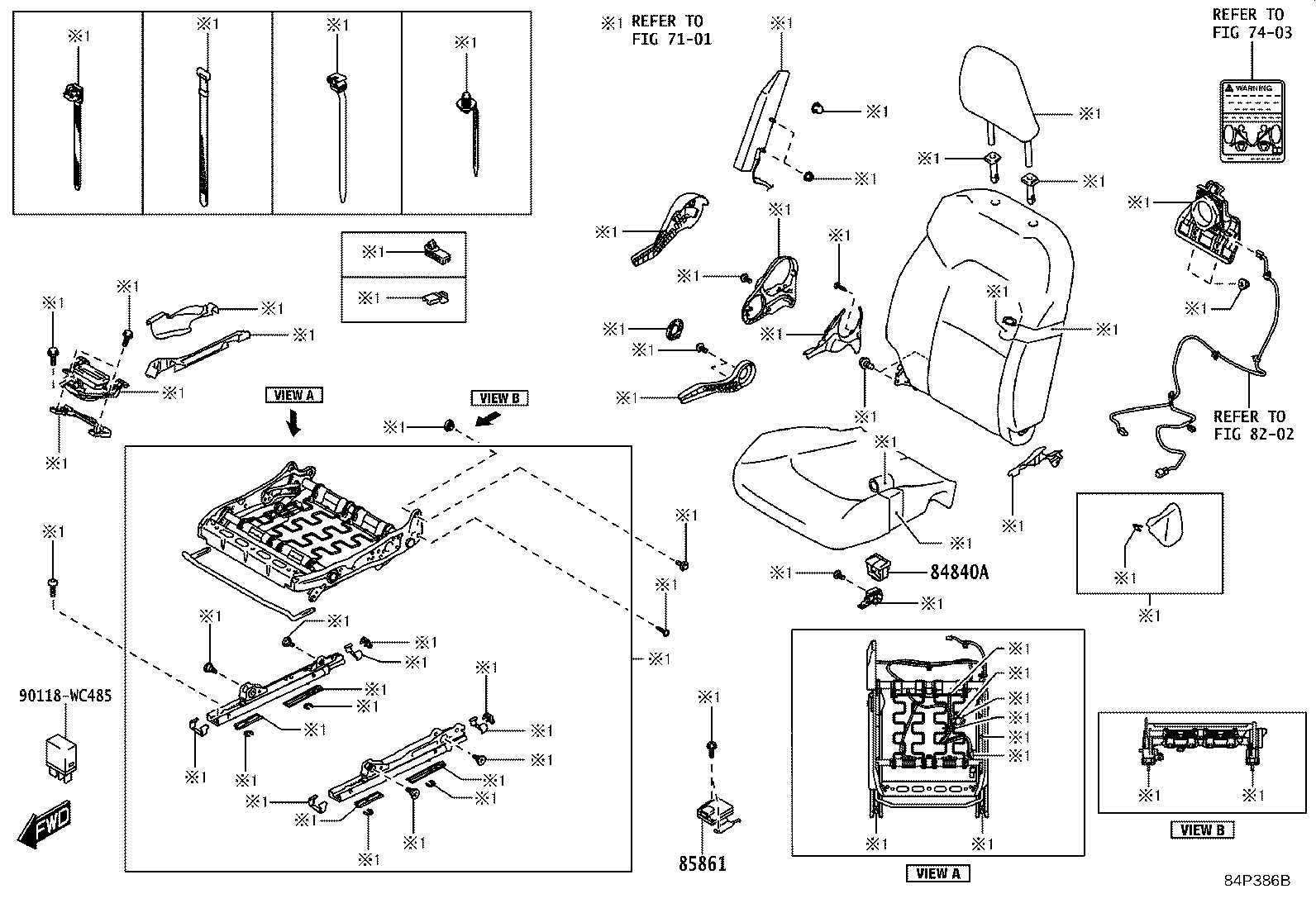

84840A Switch Assy, Ventilator
84841A Switch, Fuel Lid Opener
84860A Switch Assy, Sliding Roof

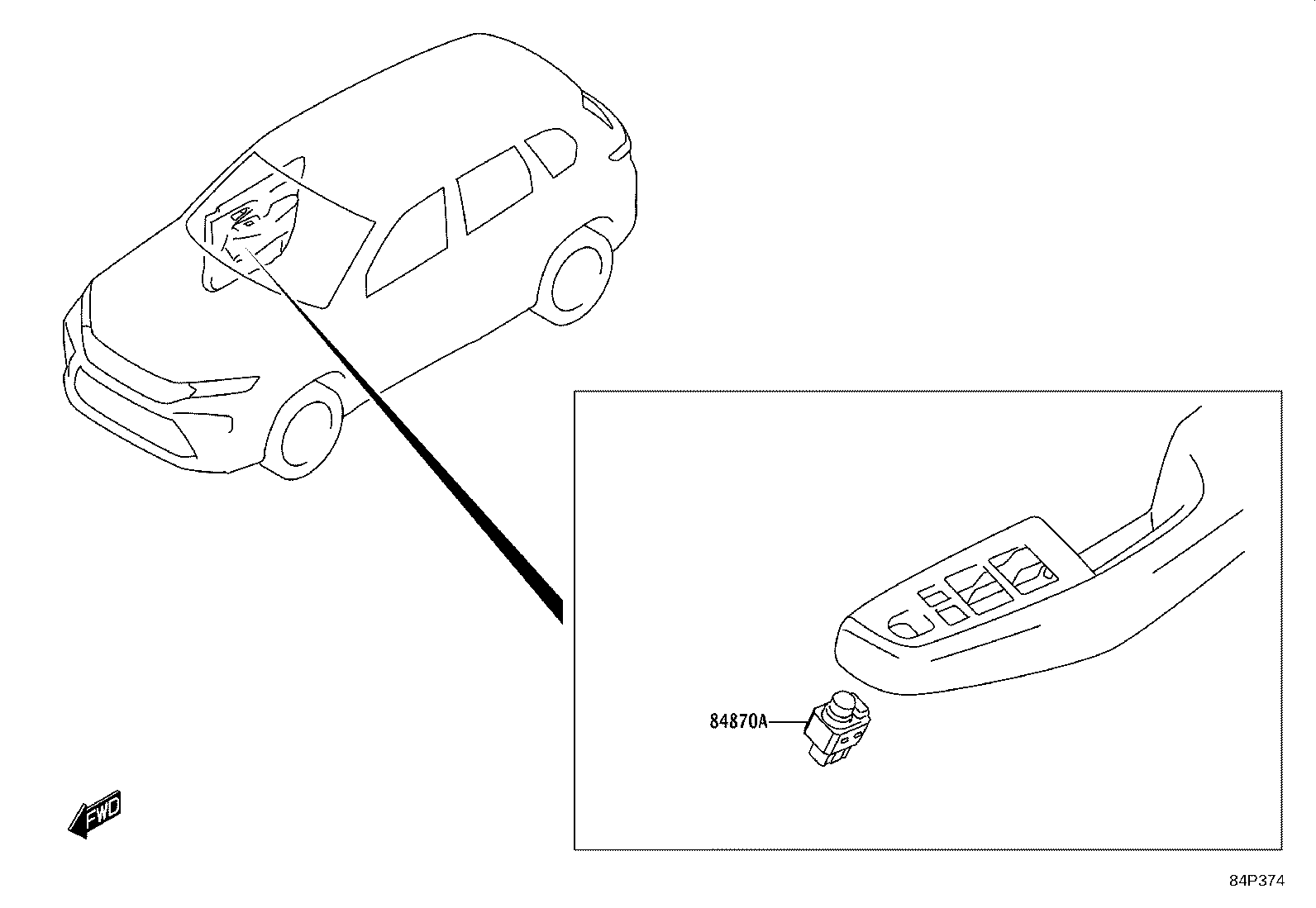

84870A Switch Assy, Outer Mirror
84988F Switch, Traction Control
84988H Switch, Downhill Assist Control

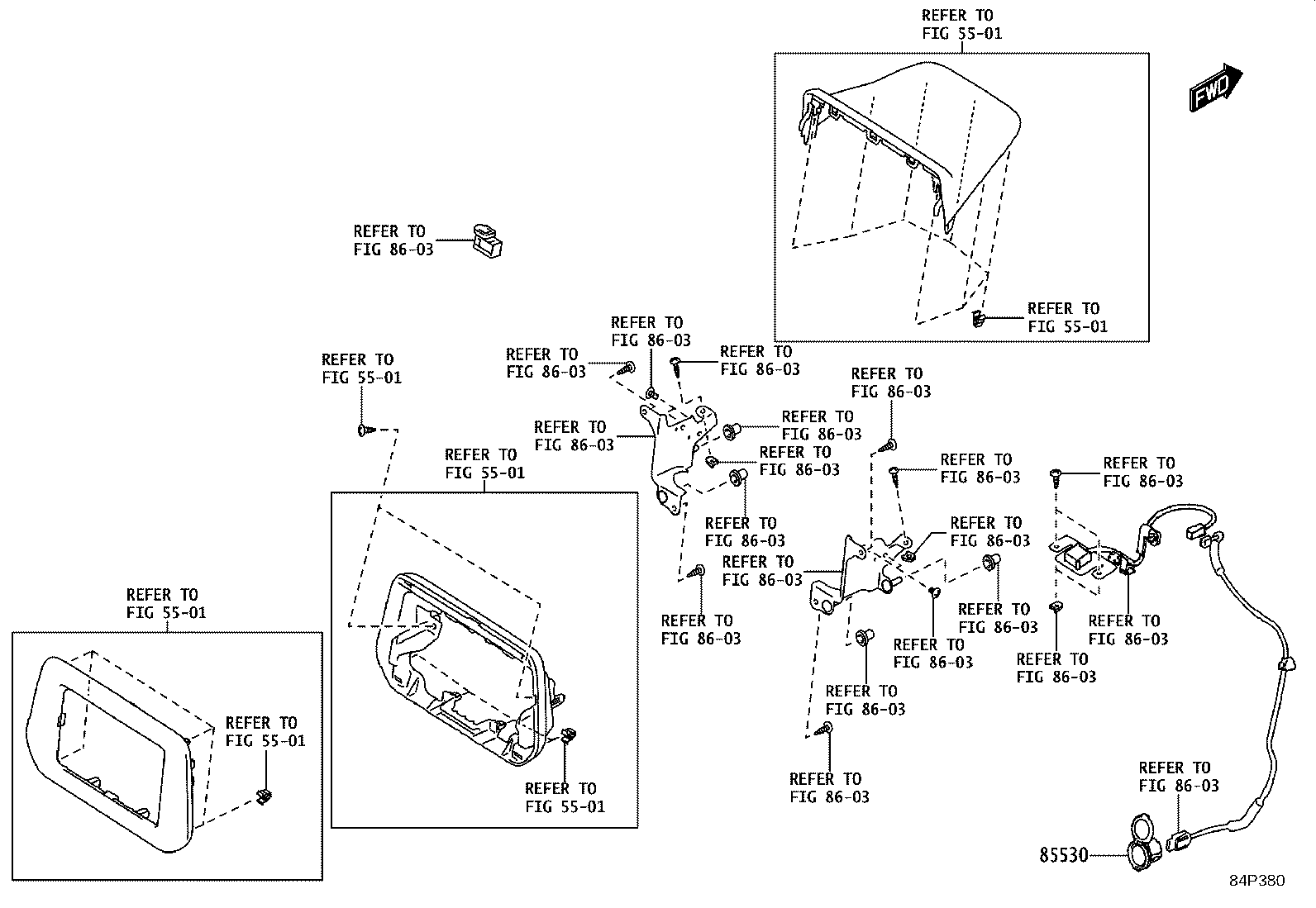

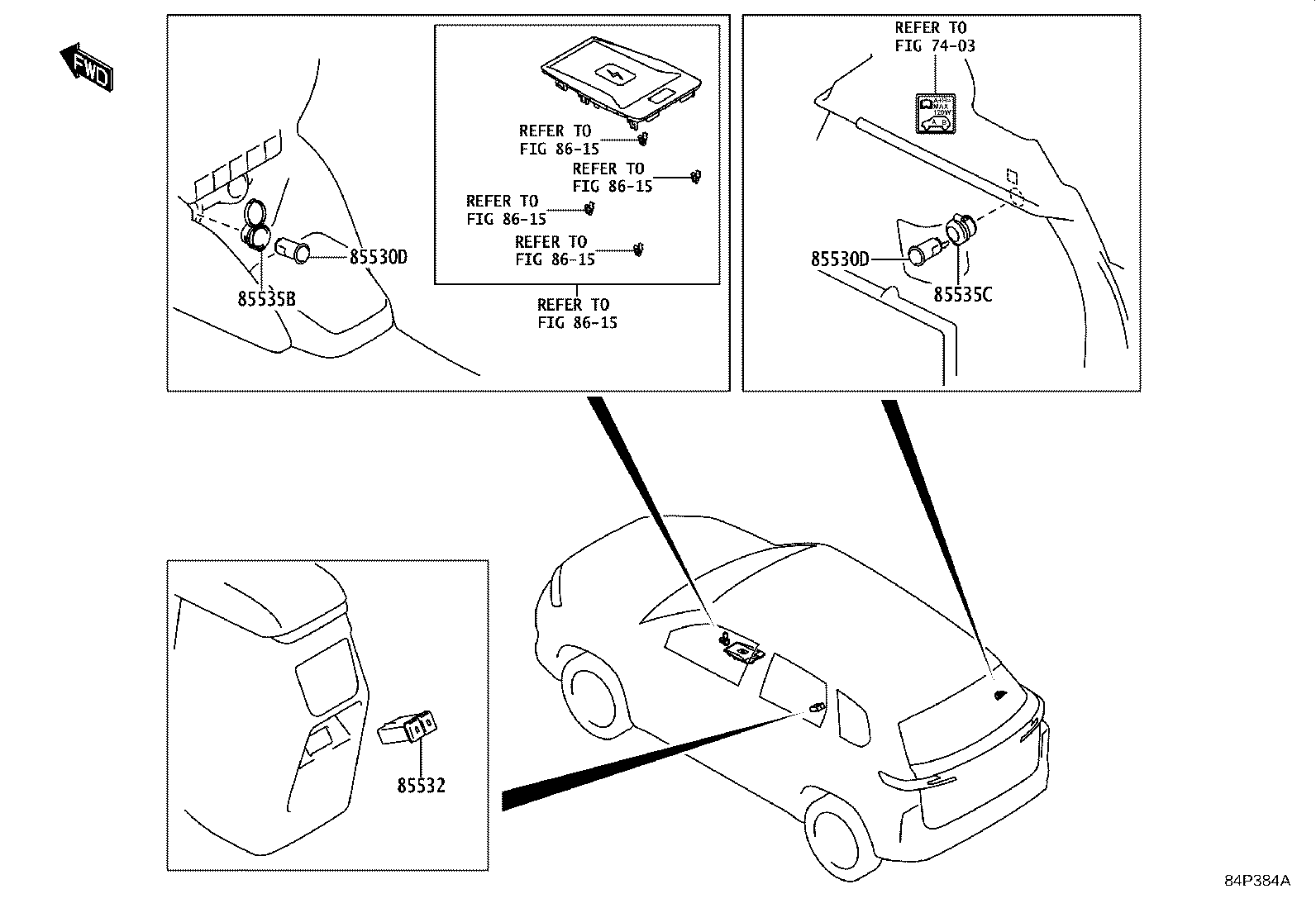

85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2

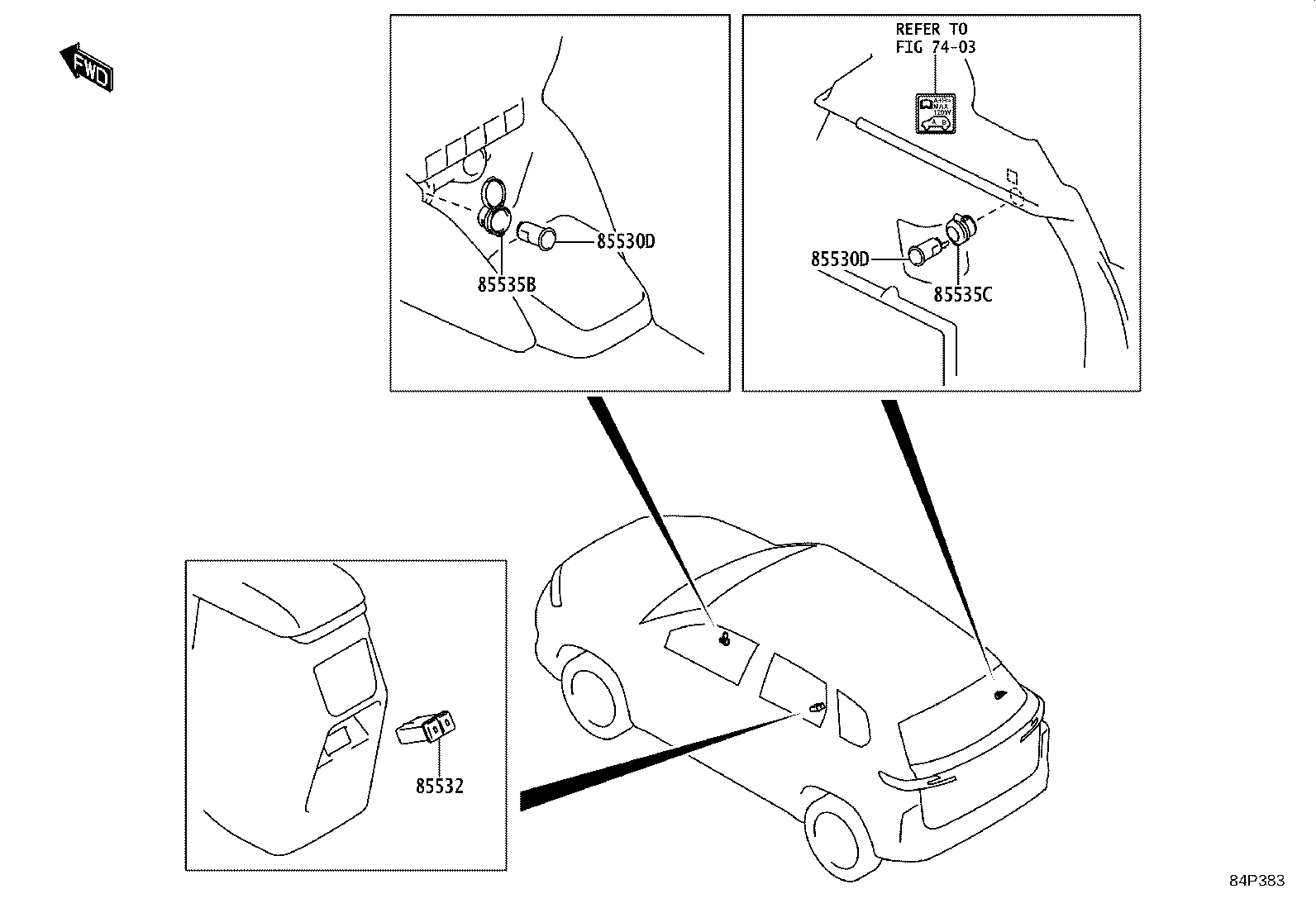

85532 Socket, Usb Charger
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85861 Computer, Seat Climate Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915 Relay, Main
85916C Relay, Back UP Lamp

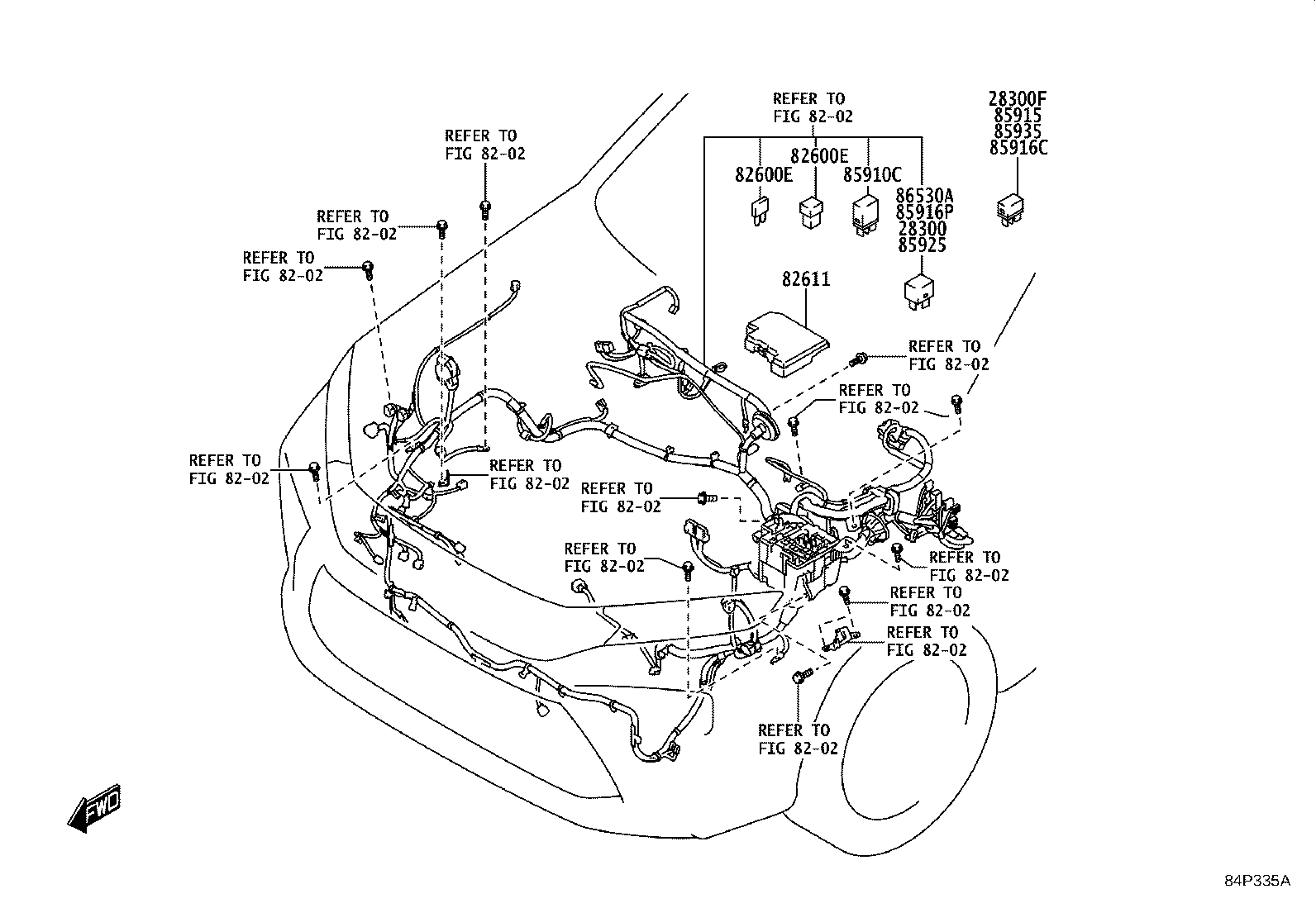

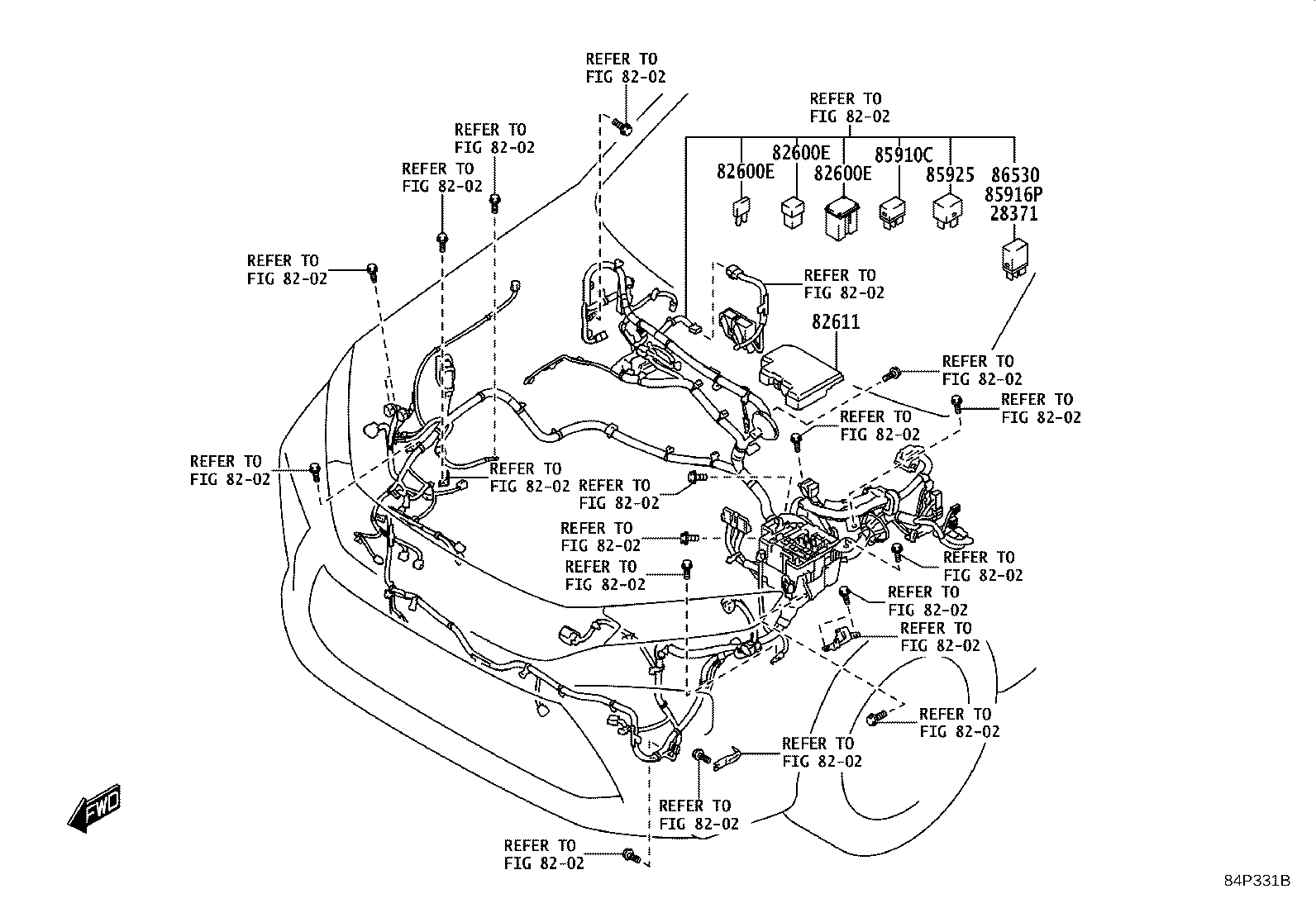

85916P Relay, Headlamp
85925 Relay, Radiator Fan
85935 Relay, Fuel Pump
86530 Relay Assy, Horn
86530A Relay, Horn
88280A Switch Assy, Clutch

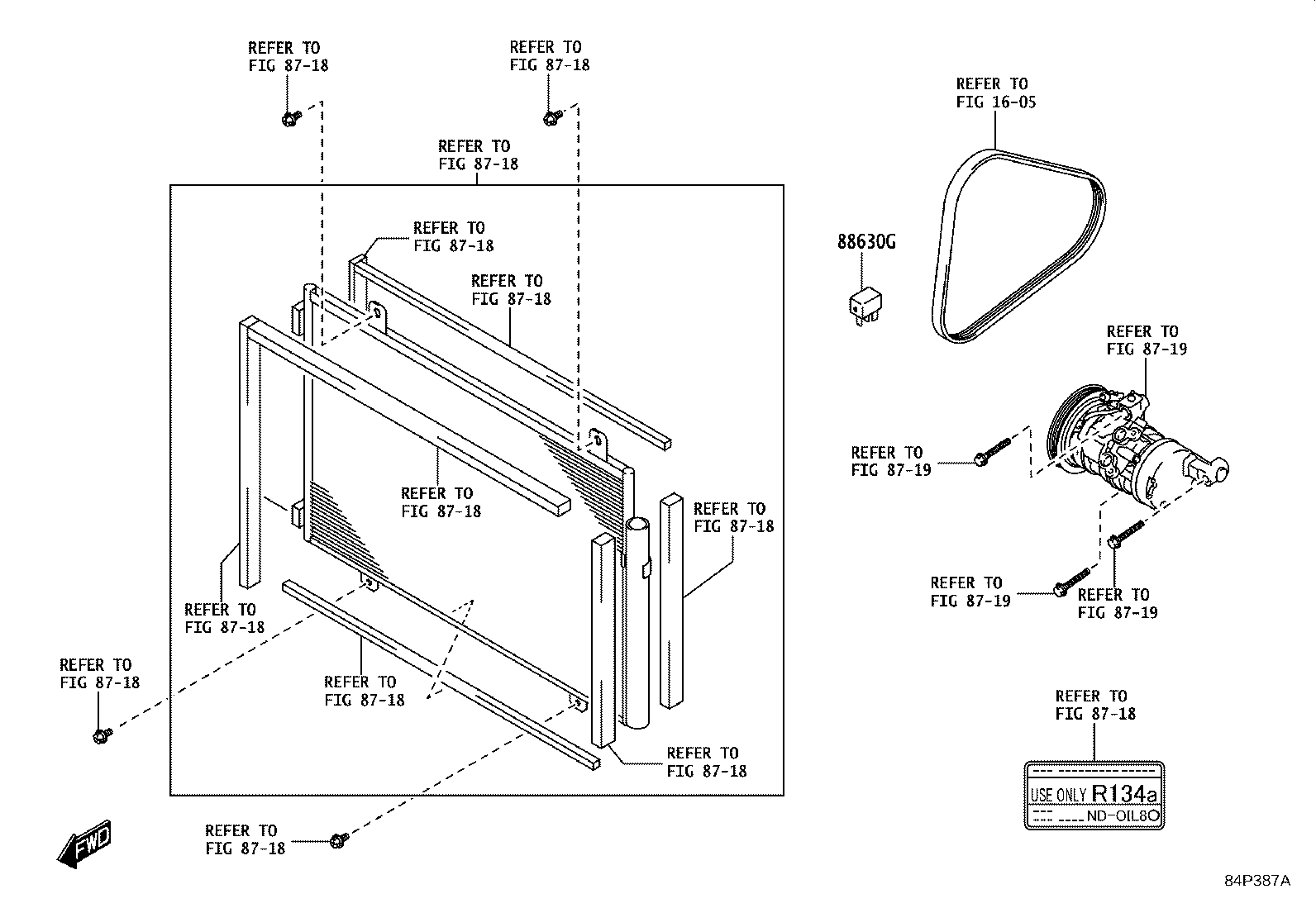

88630G Relay Assy, Cooler
89111 Computer, Network Gateway

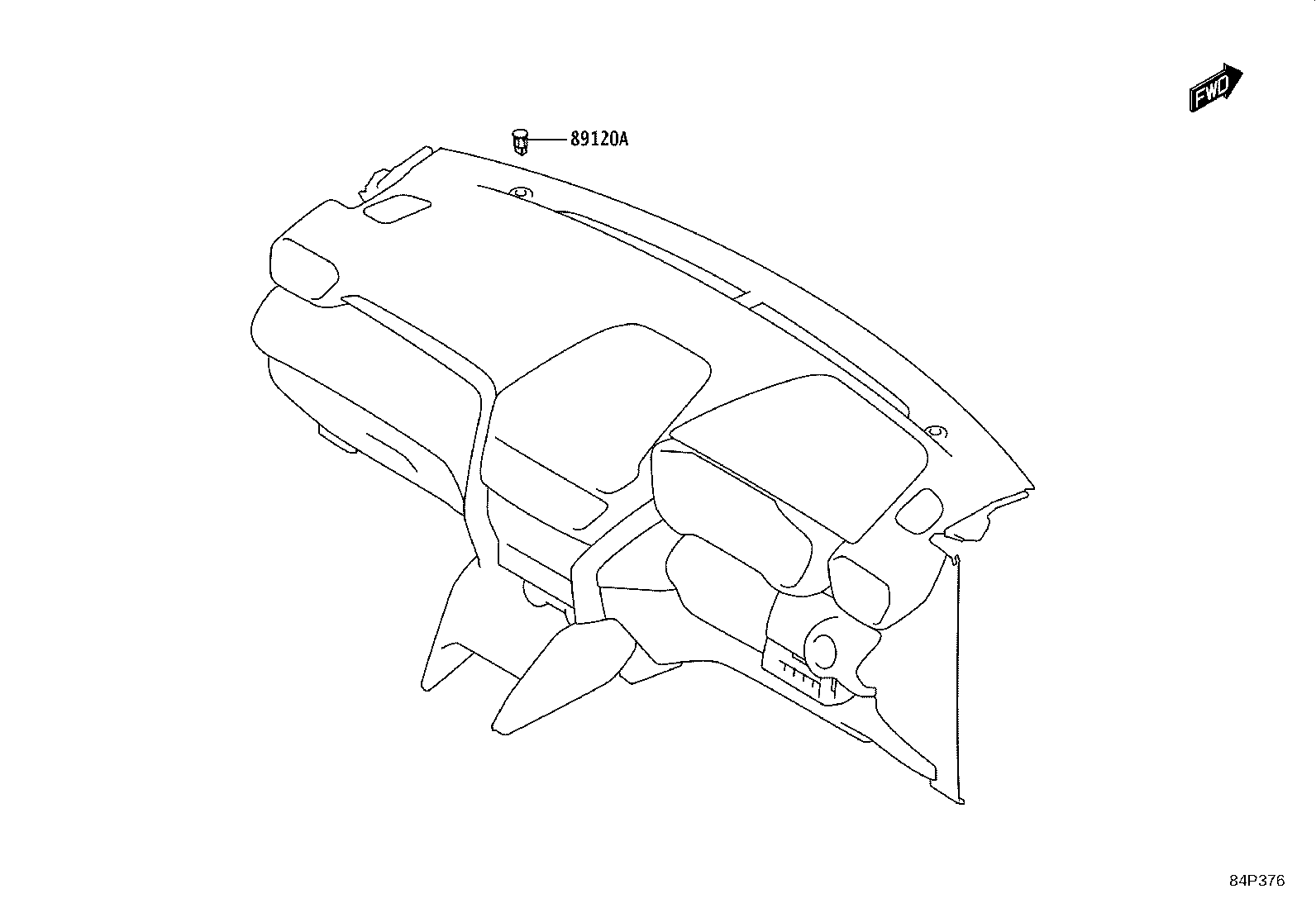

89120A Sensor, Automatic Light Control

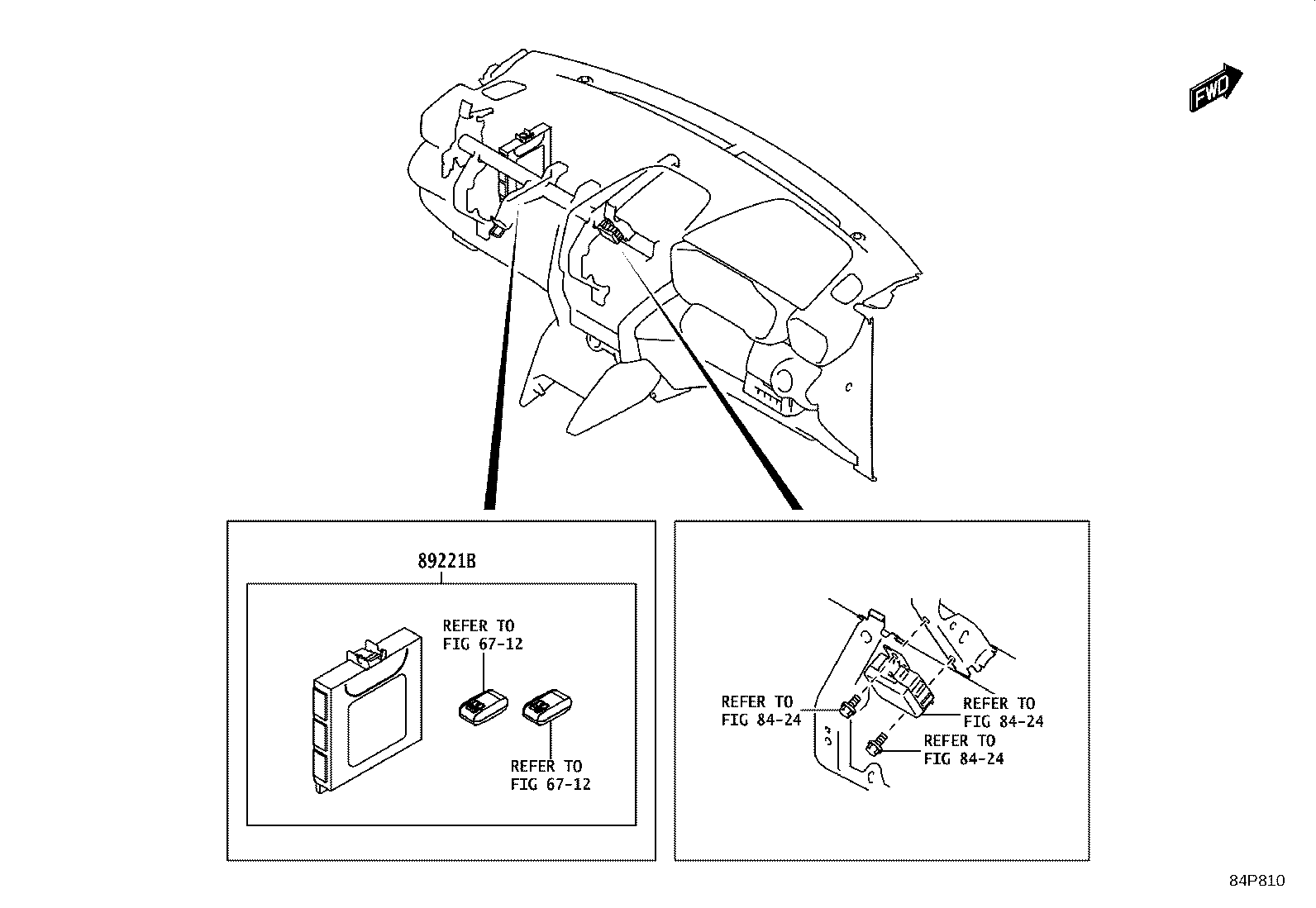

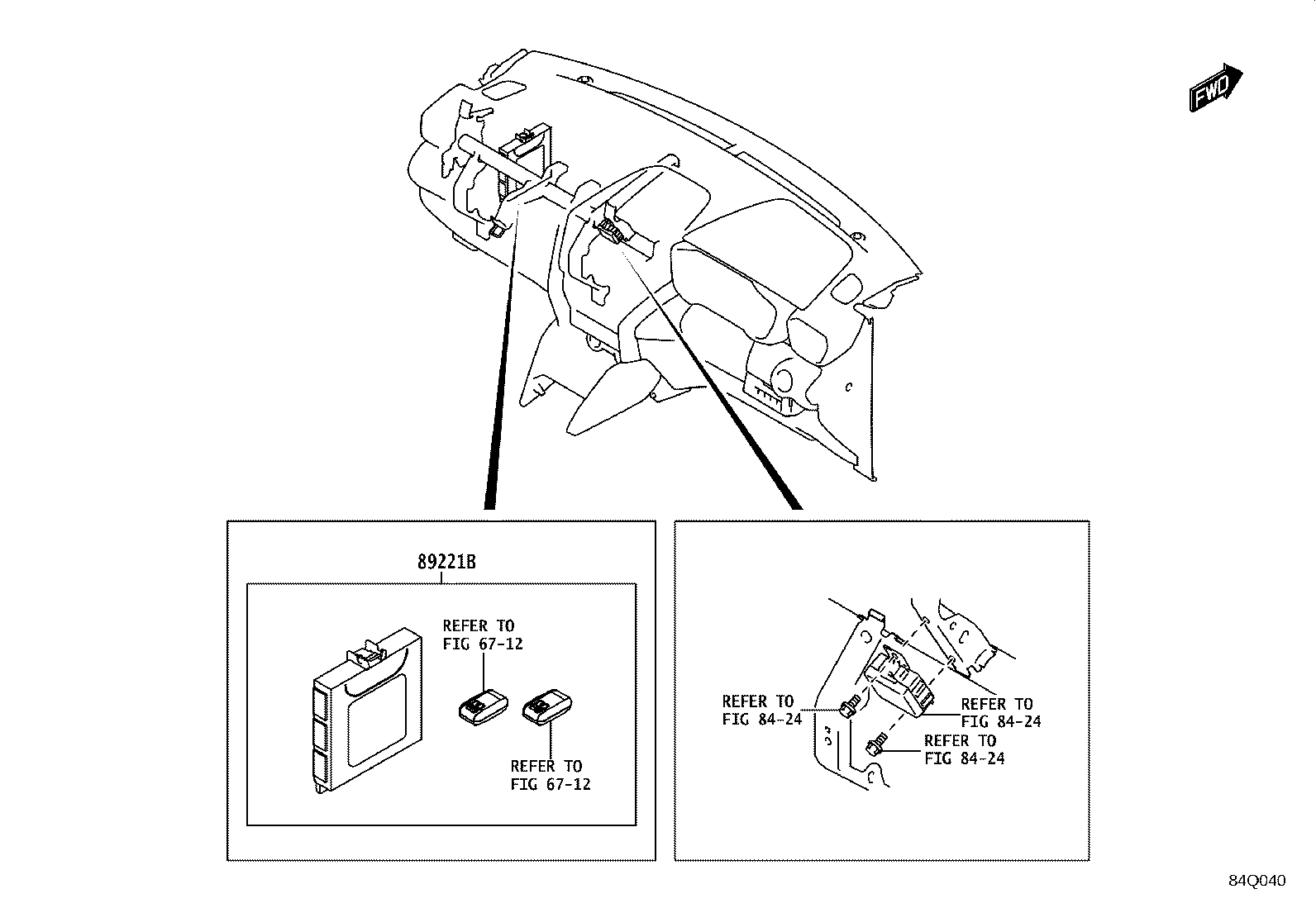

89221B Computer, Body
89411B Sensor, Speed

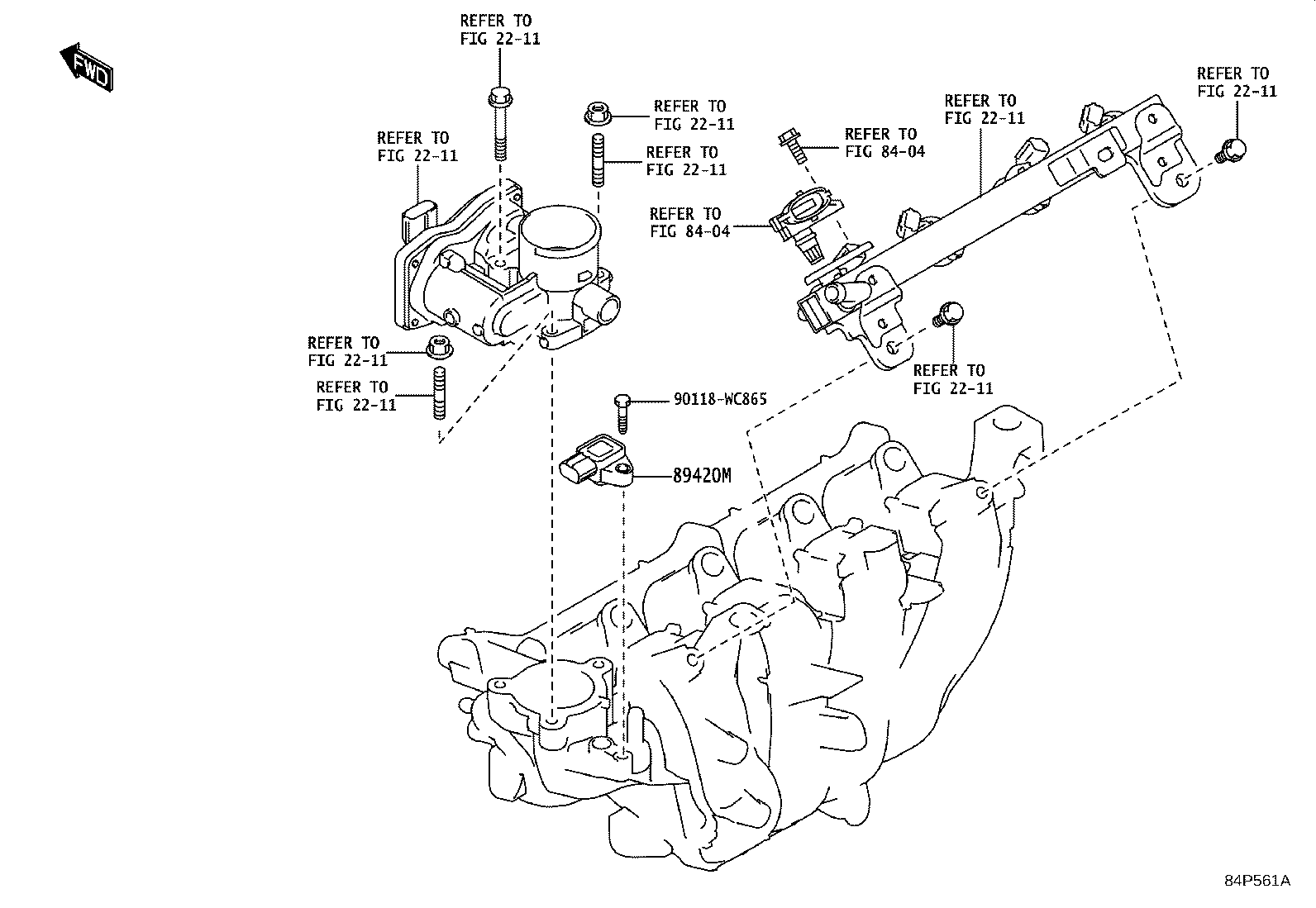

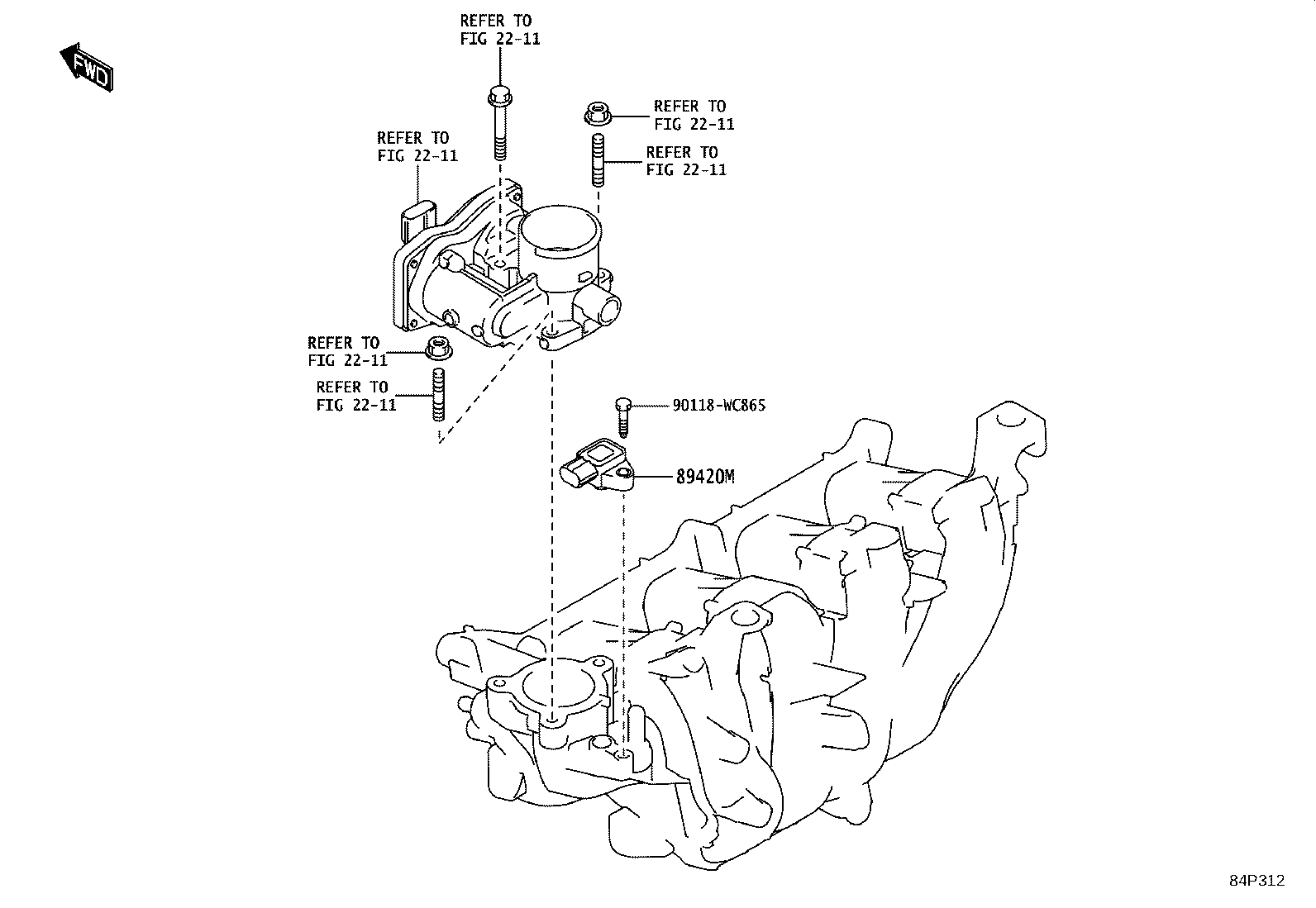

89420M Sensor Assy, Air Pressure

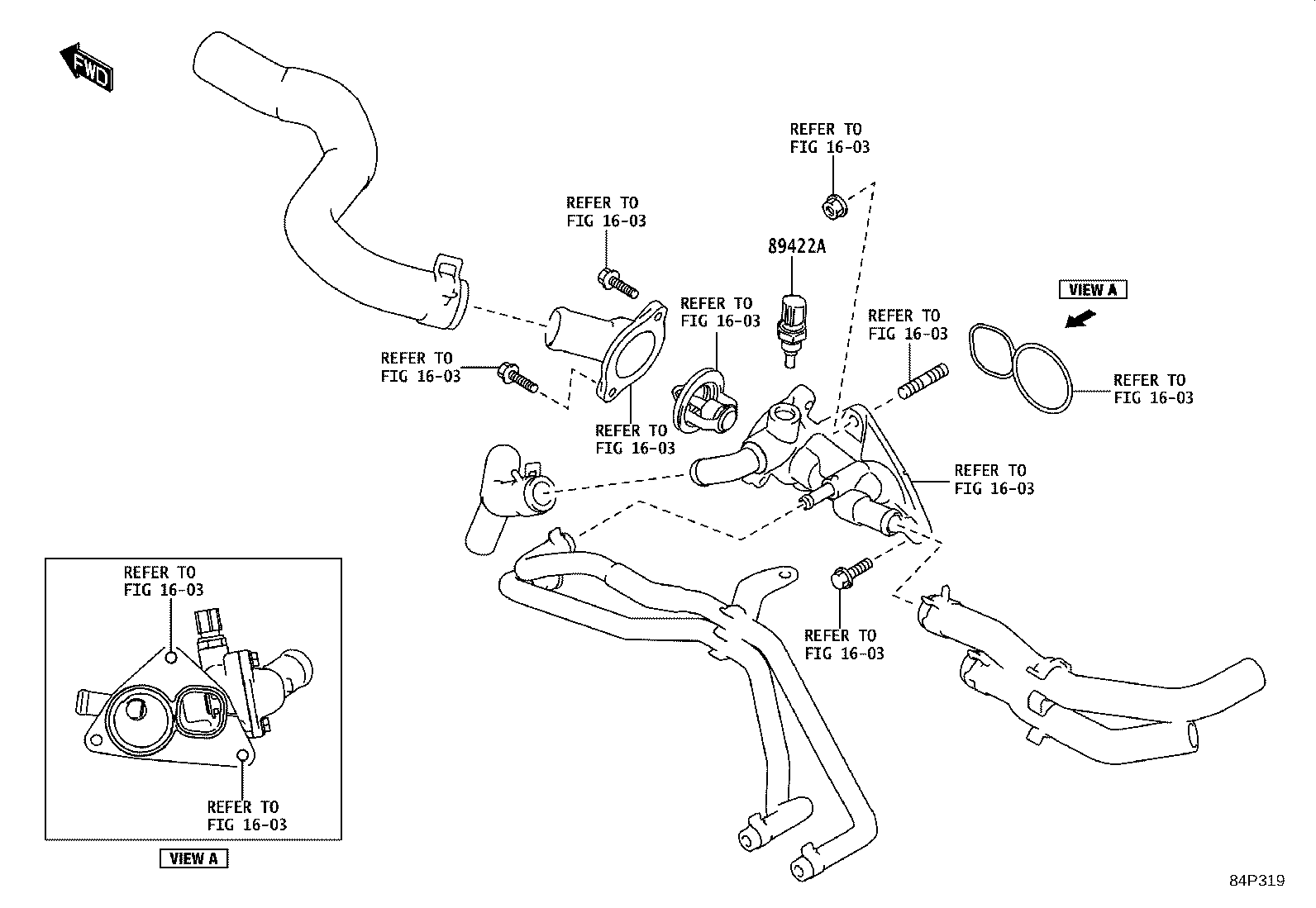

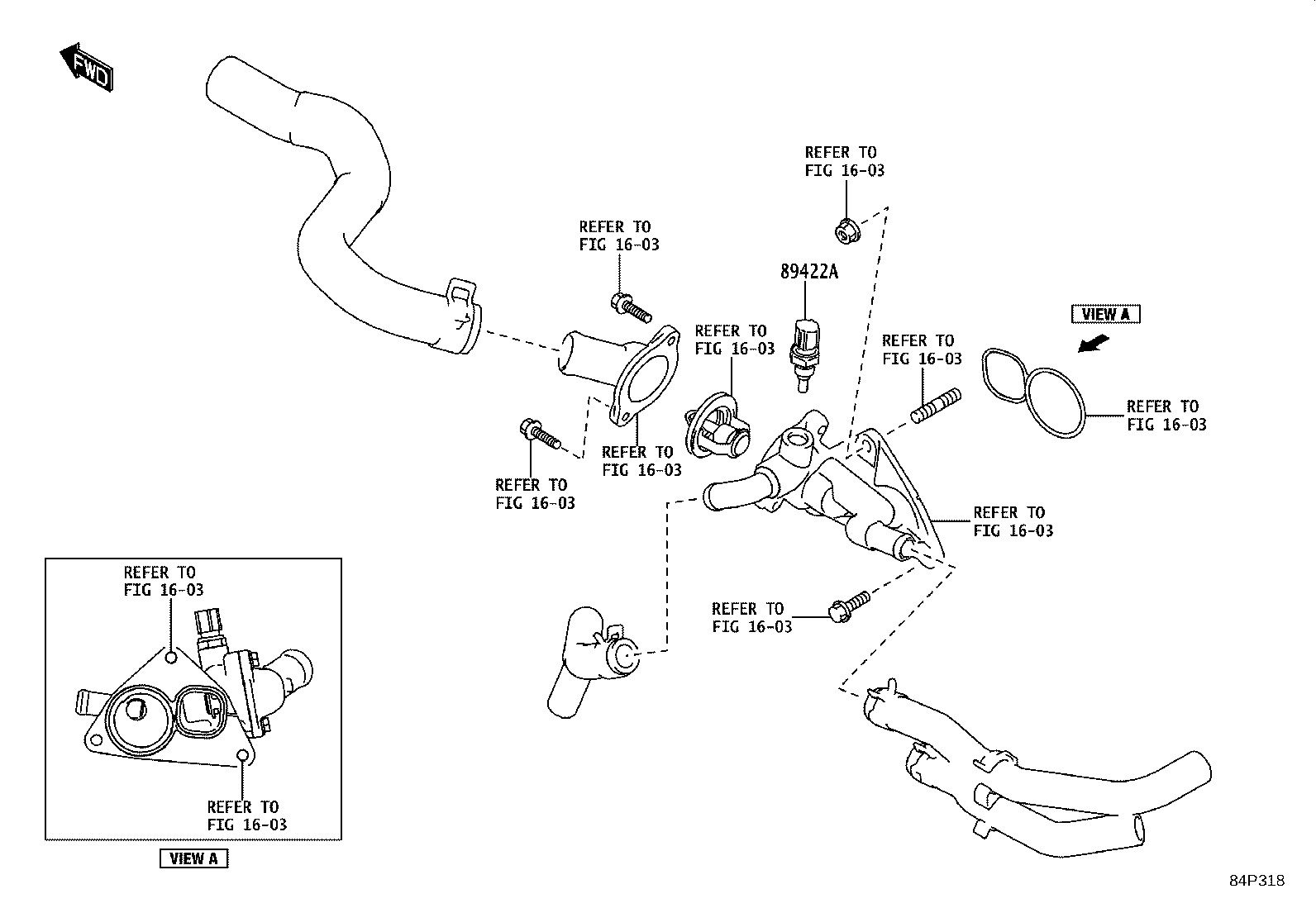

89422A Sensor, Water Temperature
89424G Sensor, Inlet Air Temperature
89429 Sensor, Oil Temperature
89429F Sensor, Temperature

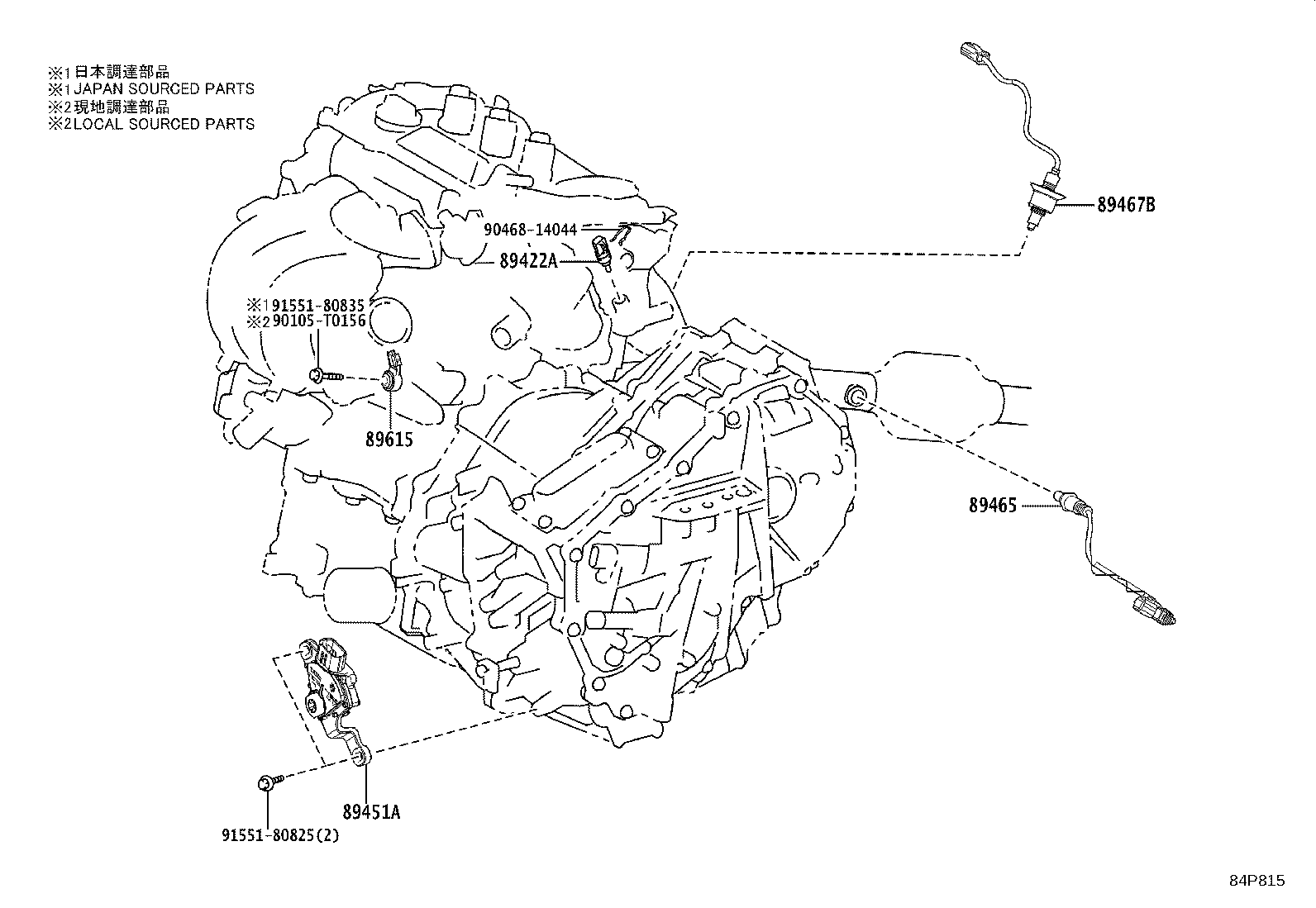

89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio

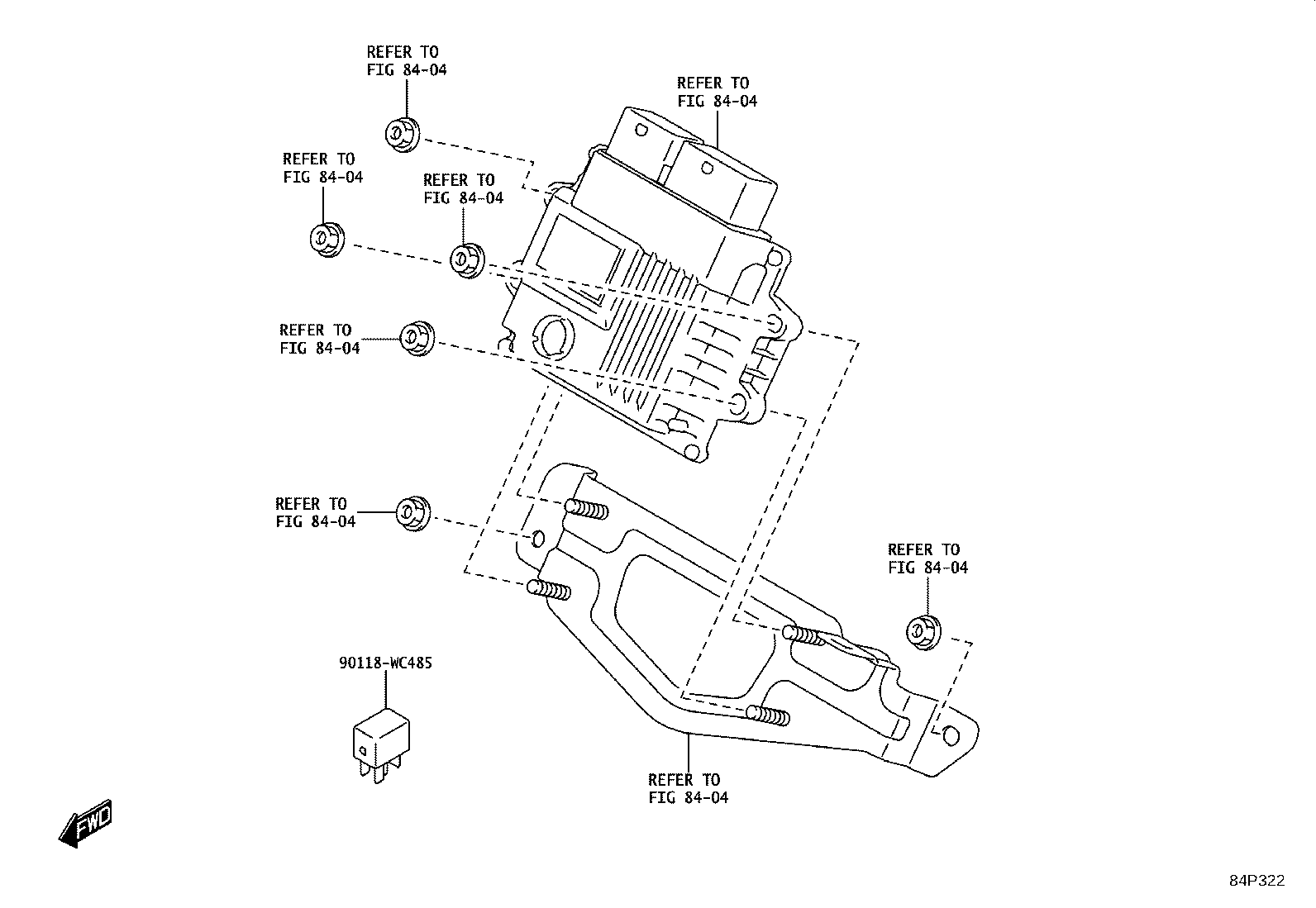

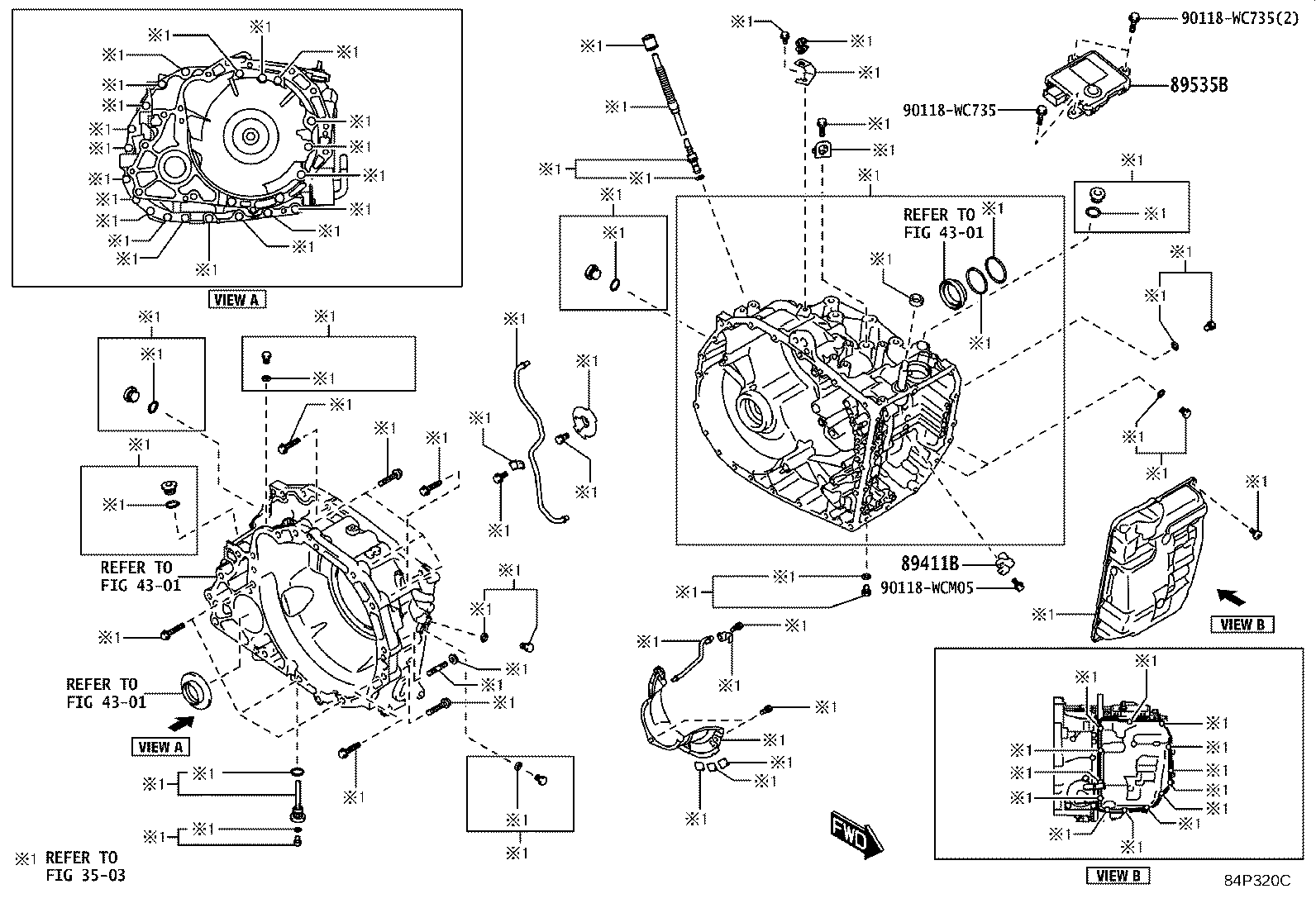

89535B Computer, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
C8410D Switch Assy, Control, NO.1
C8420C Switch Assy, Control, NO.2

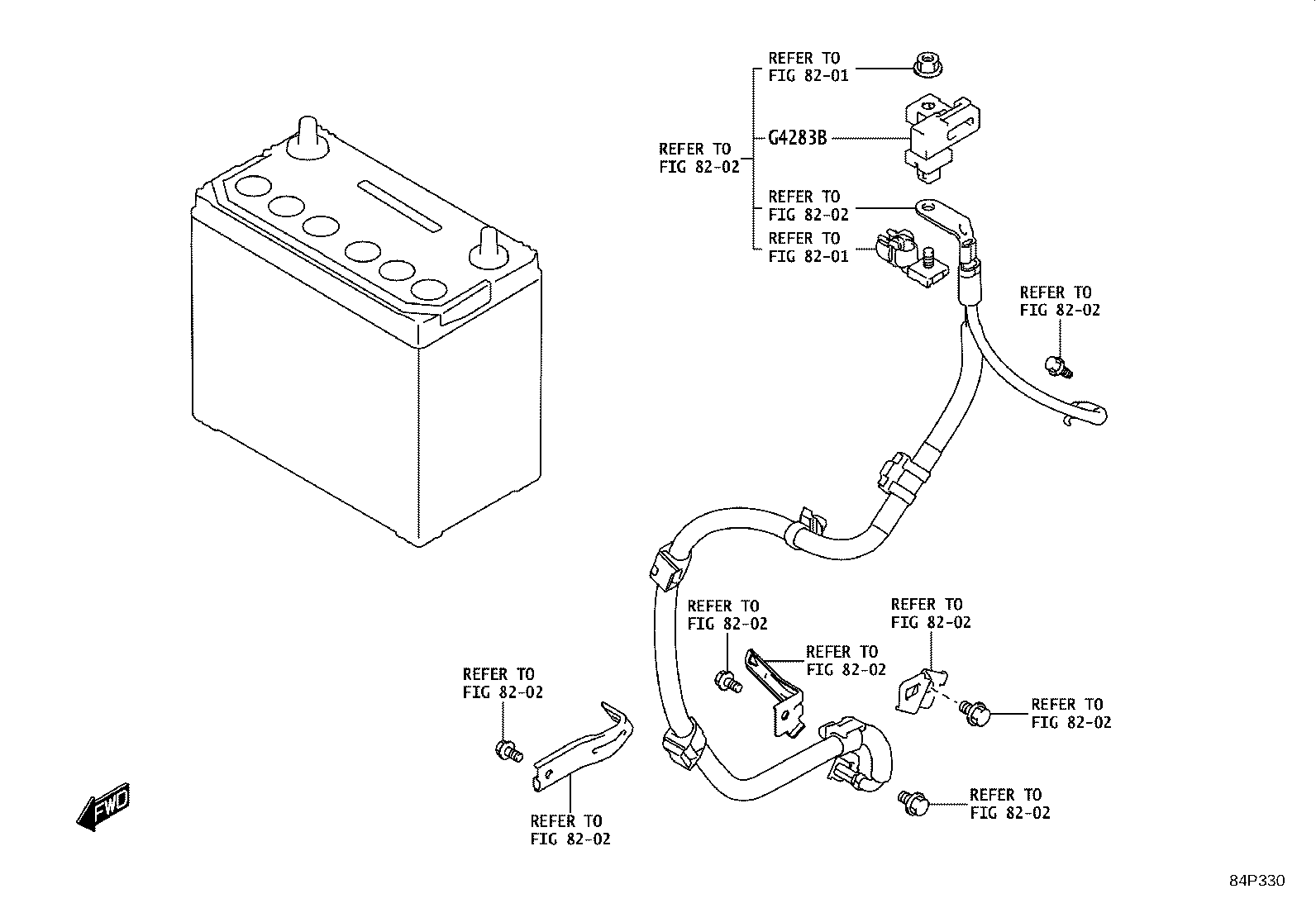

G4283B Sensor, Battery Current
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
