Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

4 part groups · 4 illustrations

Illustrations

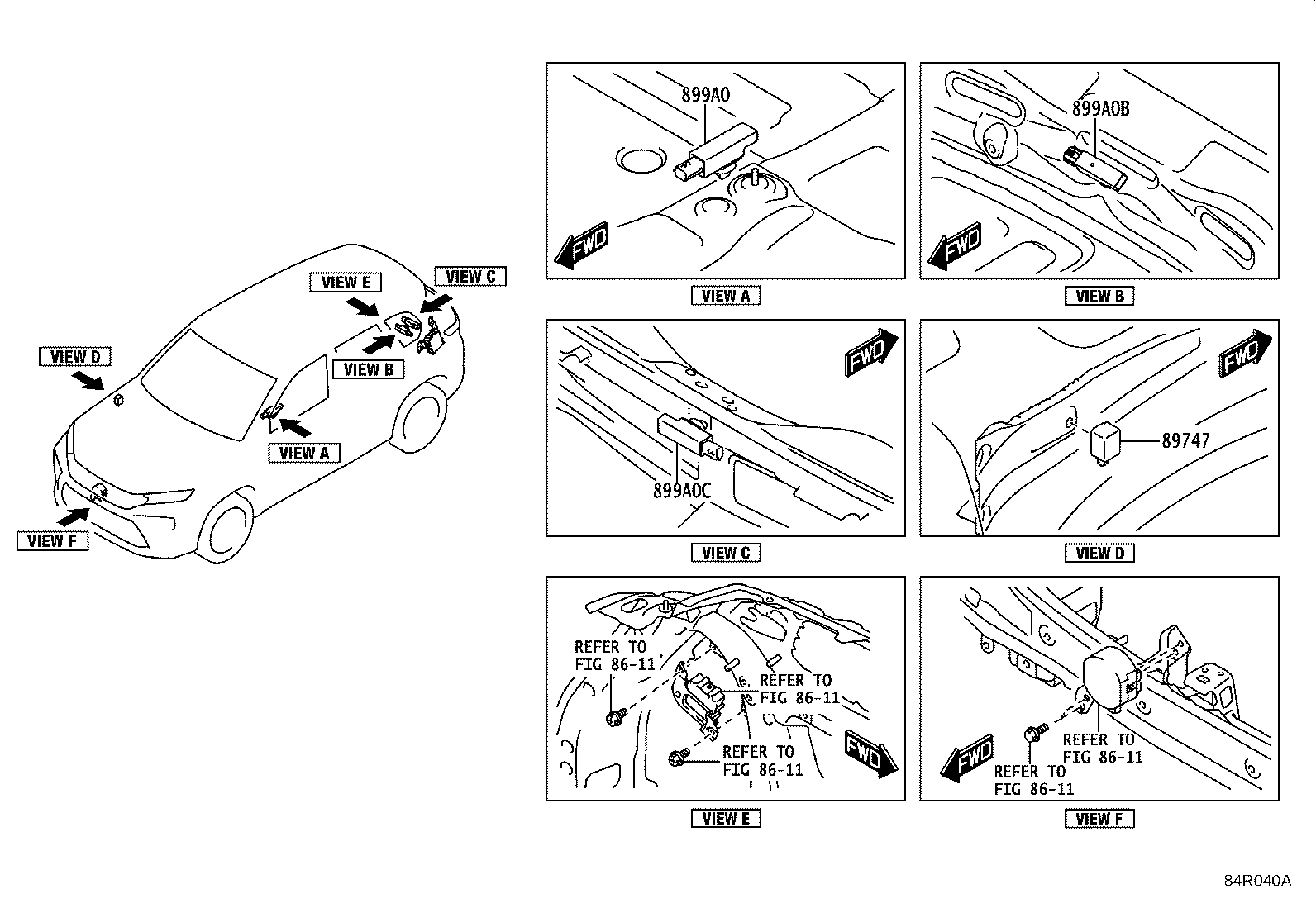

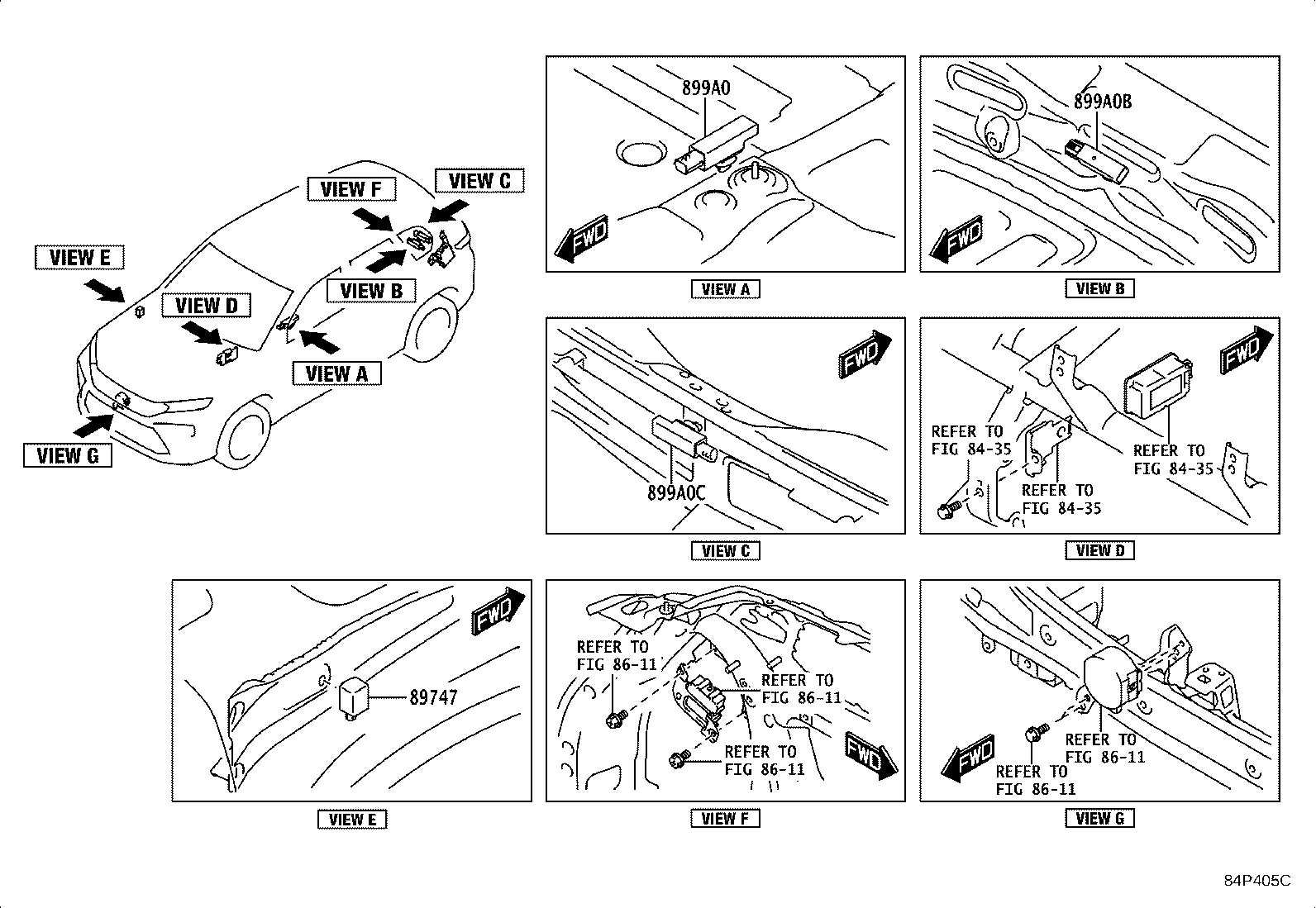

Figure 84P404D 84P404D 2024-01 → — Figure 84P405C 84P405C 2024-01 → — Figure 84R040A 84R040A 2024-01 → — Figure 84R041 84R041 2024-01 → —

Part groups

PNCDescription
89747 Buzzer, Wireless Door Lock
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0B Antenna Assy, Indoor Electrical Key, NO.3
899A0C Antenna Assy, Indoor Electrical Key, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
