Toyota Urbancruiser Hyryder

2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 8 illustrations

Illustrations

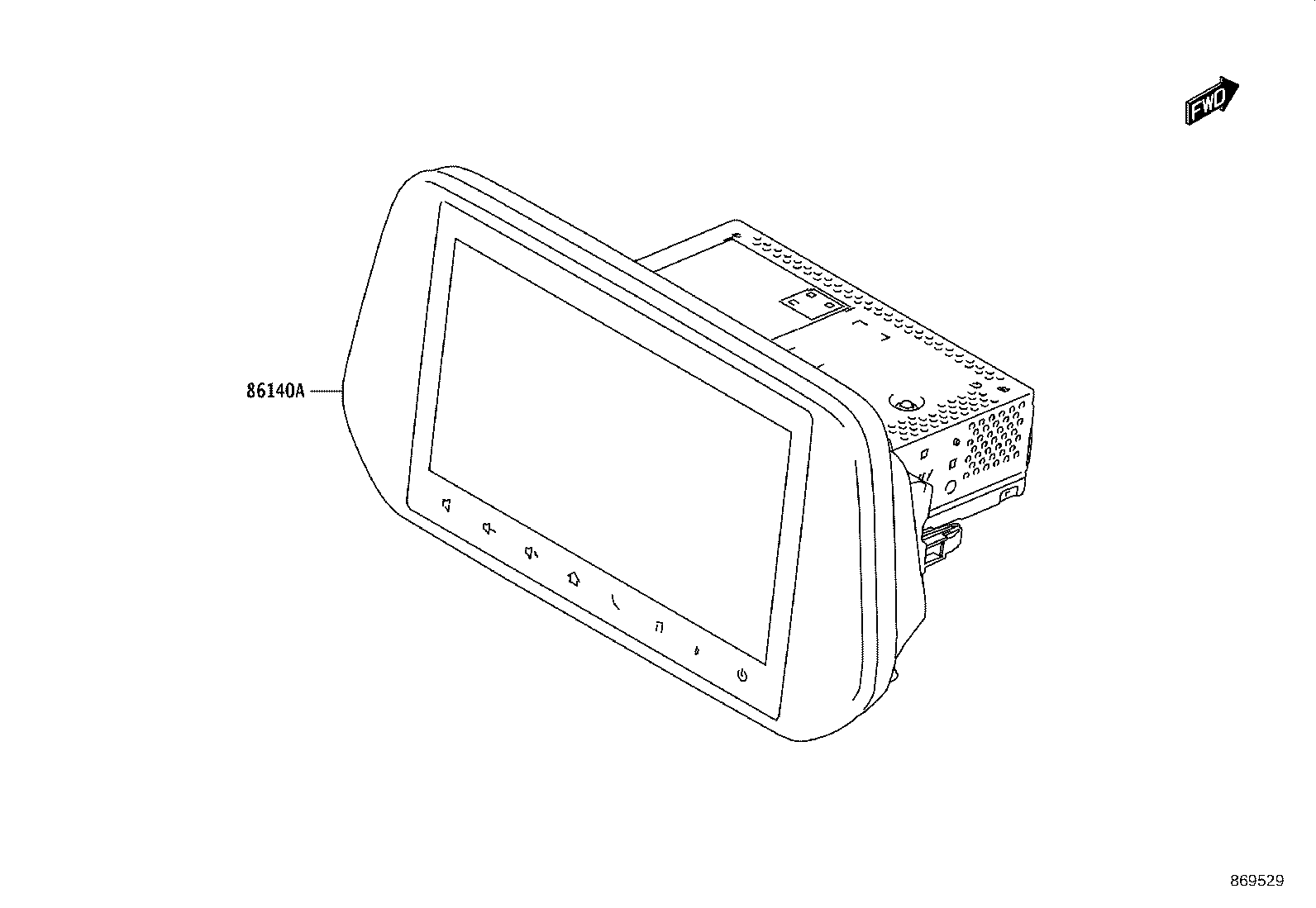

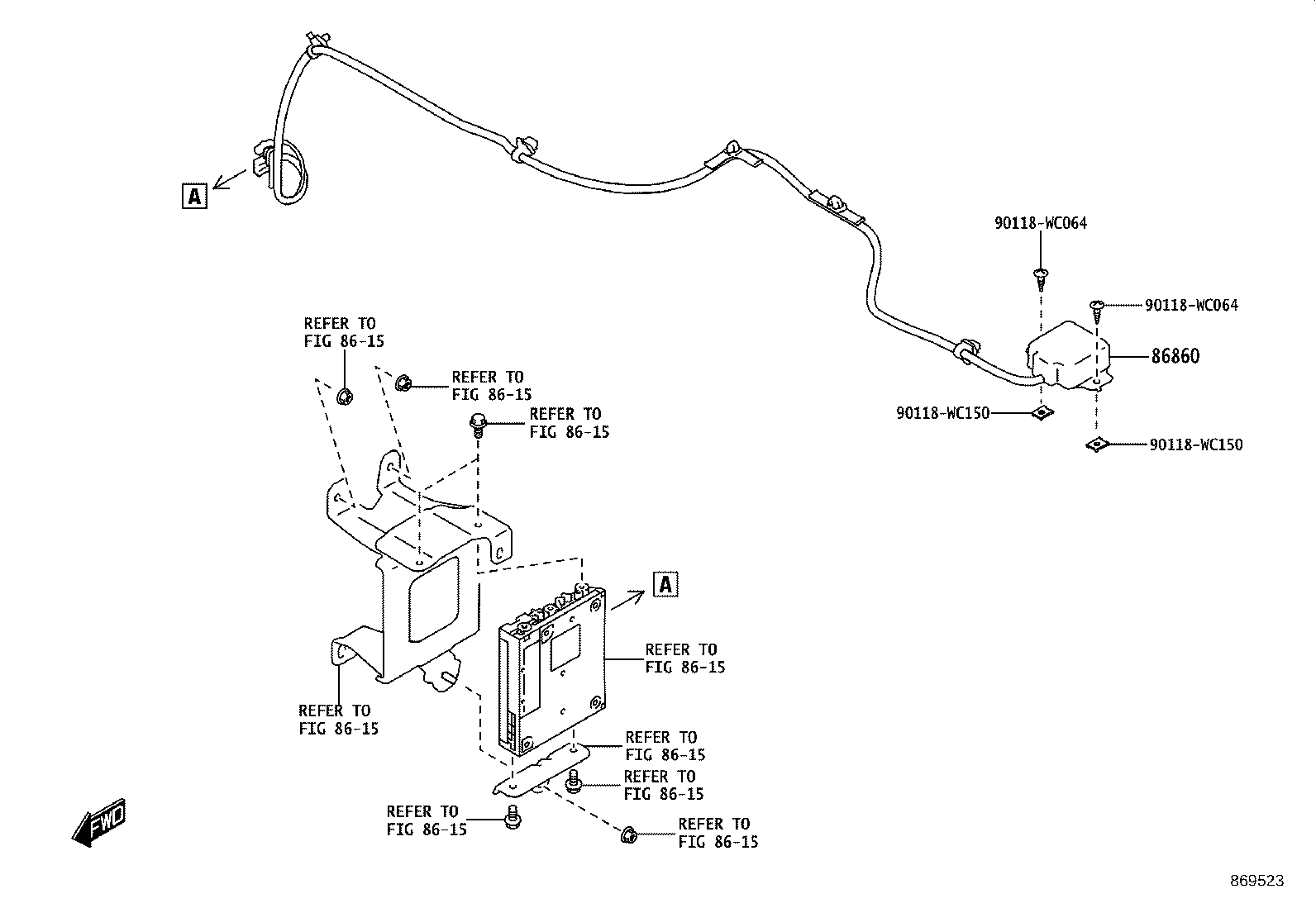

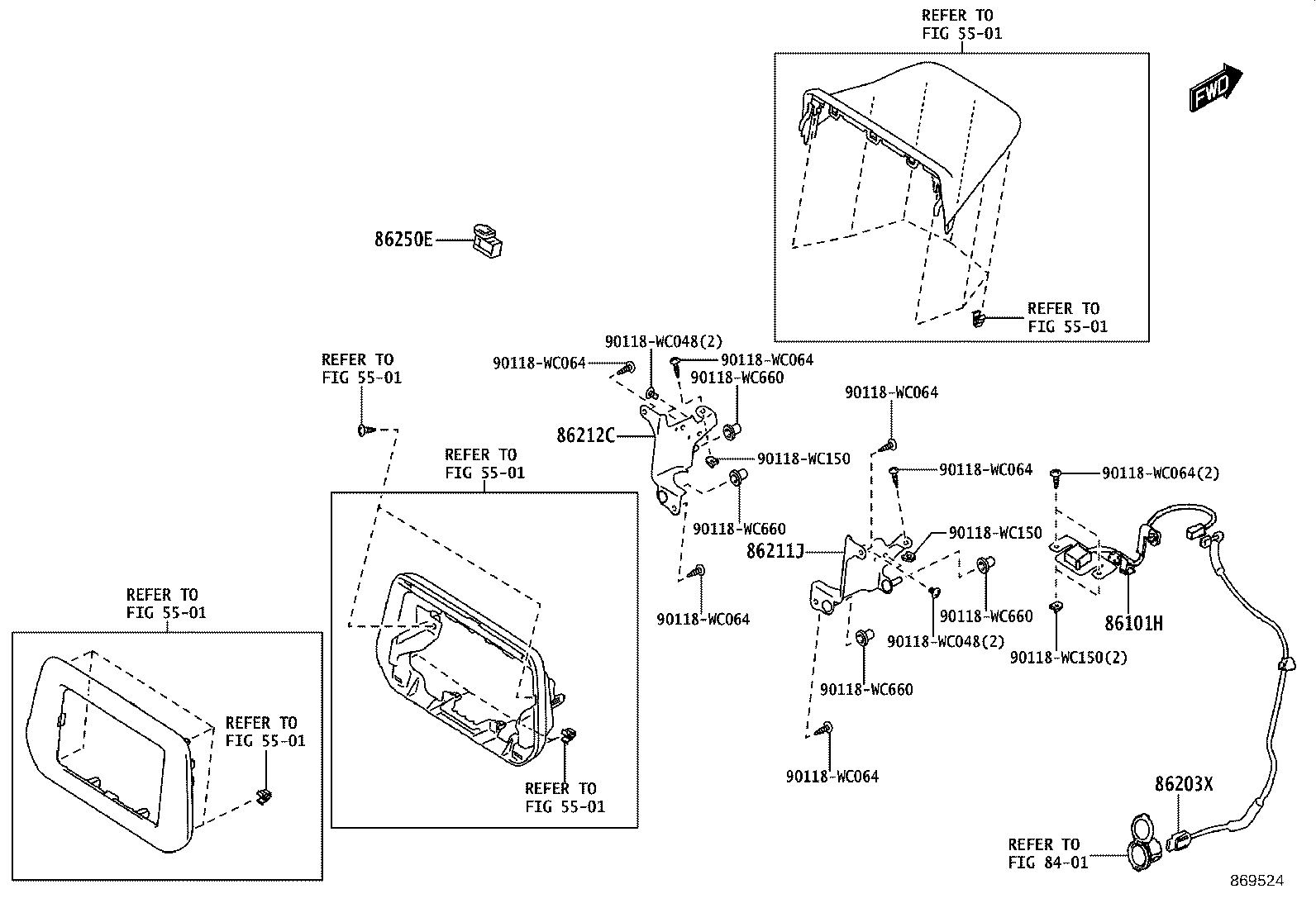

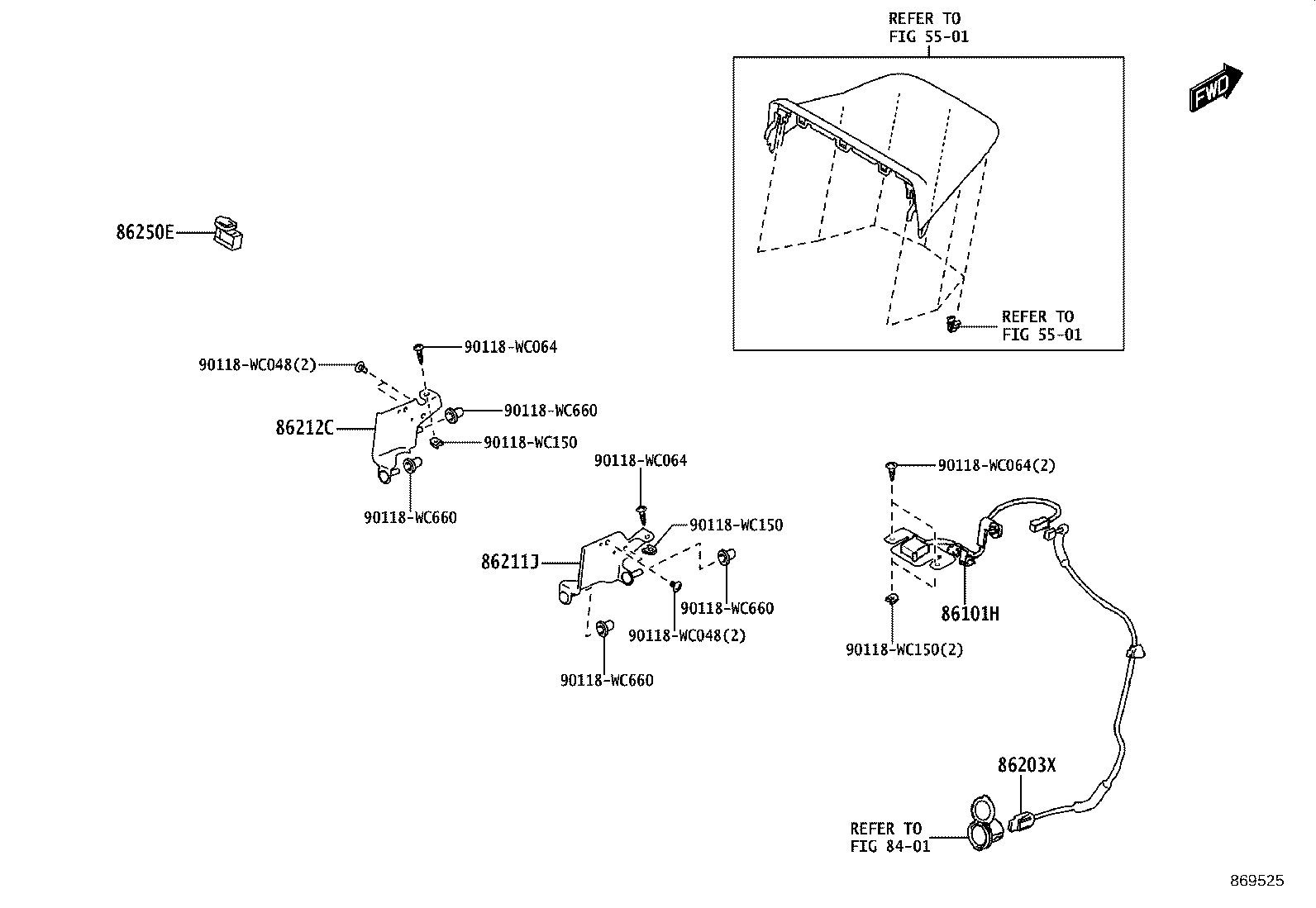

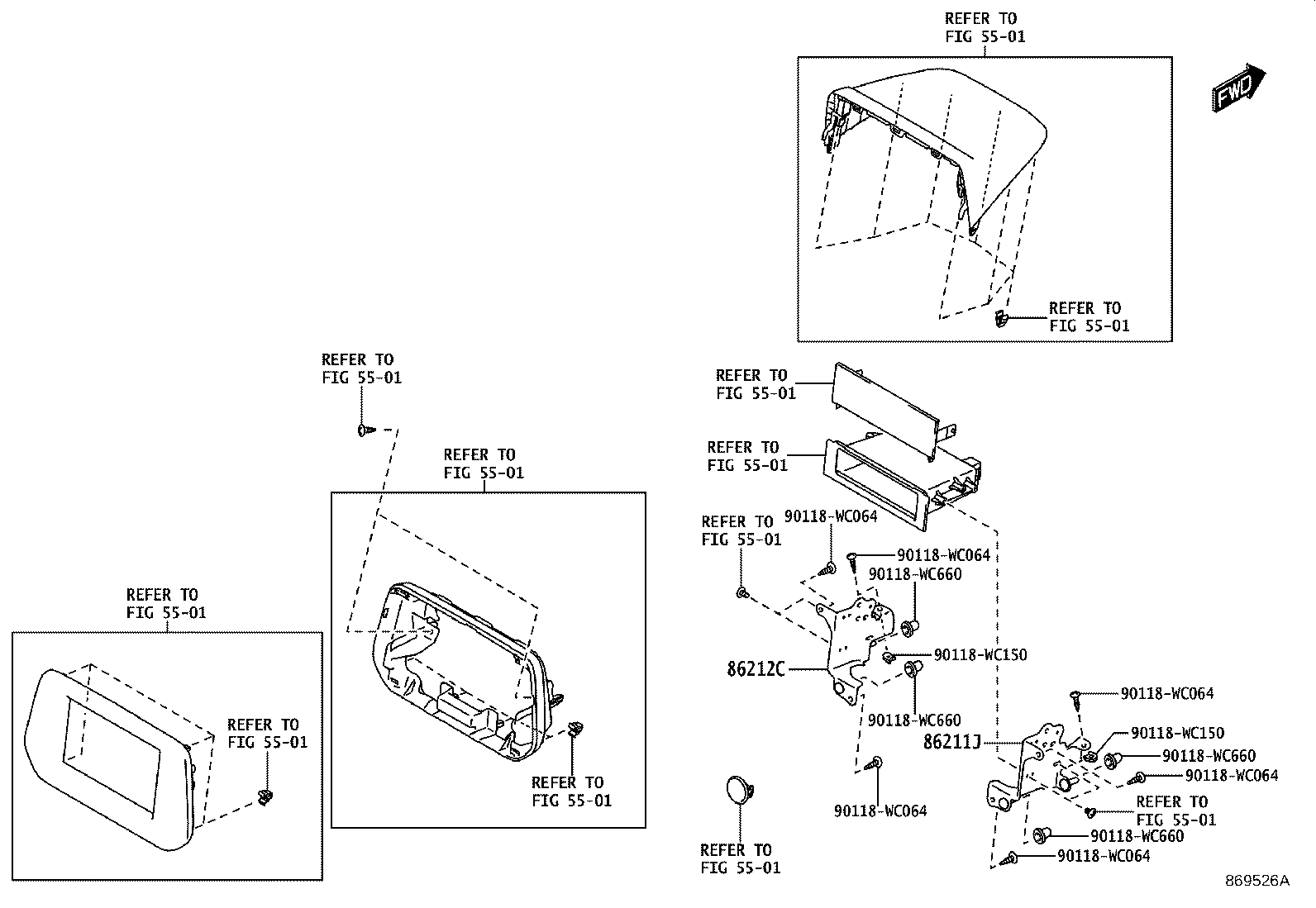

Figure 869522 869522 2024-01 → — Figure 869523 869523 2024-01 → — Figure 869524 869524 2024-01 → — Figure 869525 869525 2024-01 → — Figure 869526A 869526A 2024-01 → — Figure 869527 869527 2024-01 → — Figure 869528 869528 2024-01 → — Figure 869529 869529 2024-01 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86203X Wiring Sub-assy, Radio
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
