Toyota Urbancruiser Hyryder
2024-01 → present · chassis FG23###,4312#,FGB3### · catalogue 134340 · General
Supported model
Data version 2024-03
Heating & Air Conditioning - Compressor
7 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

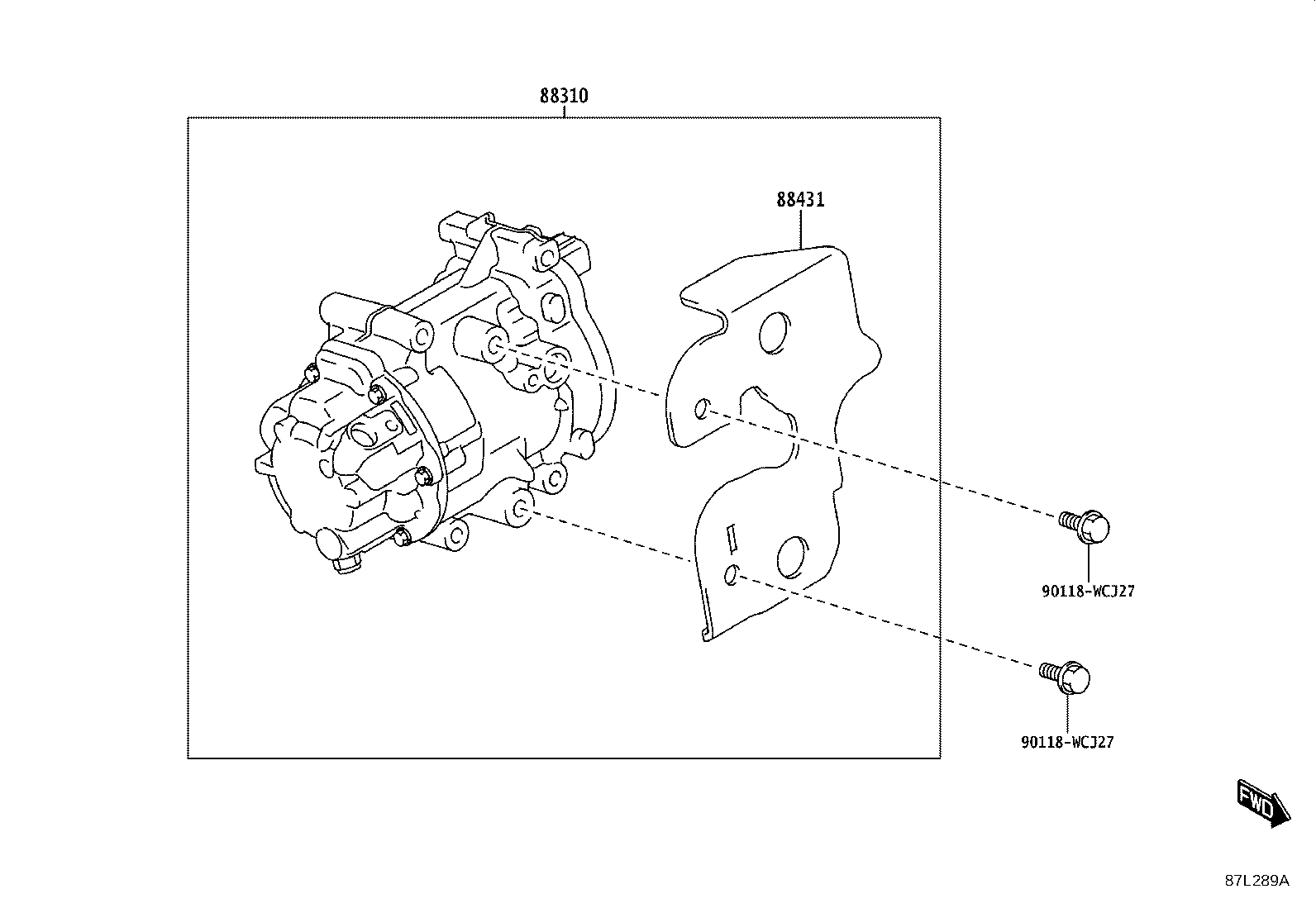

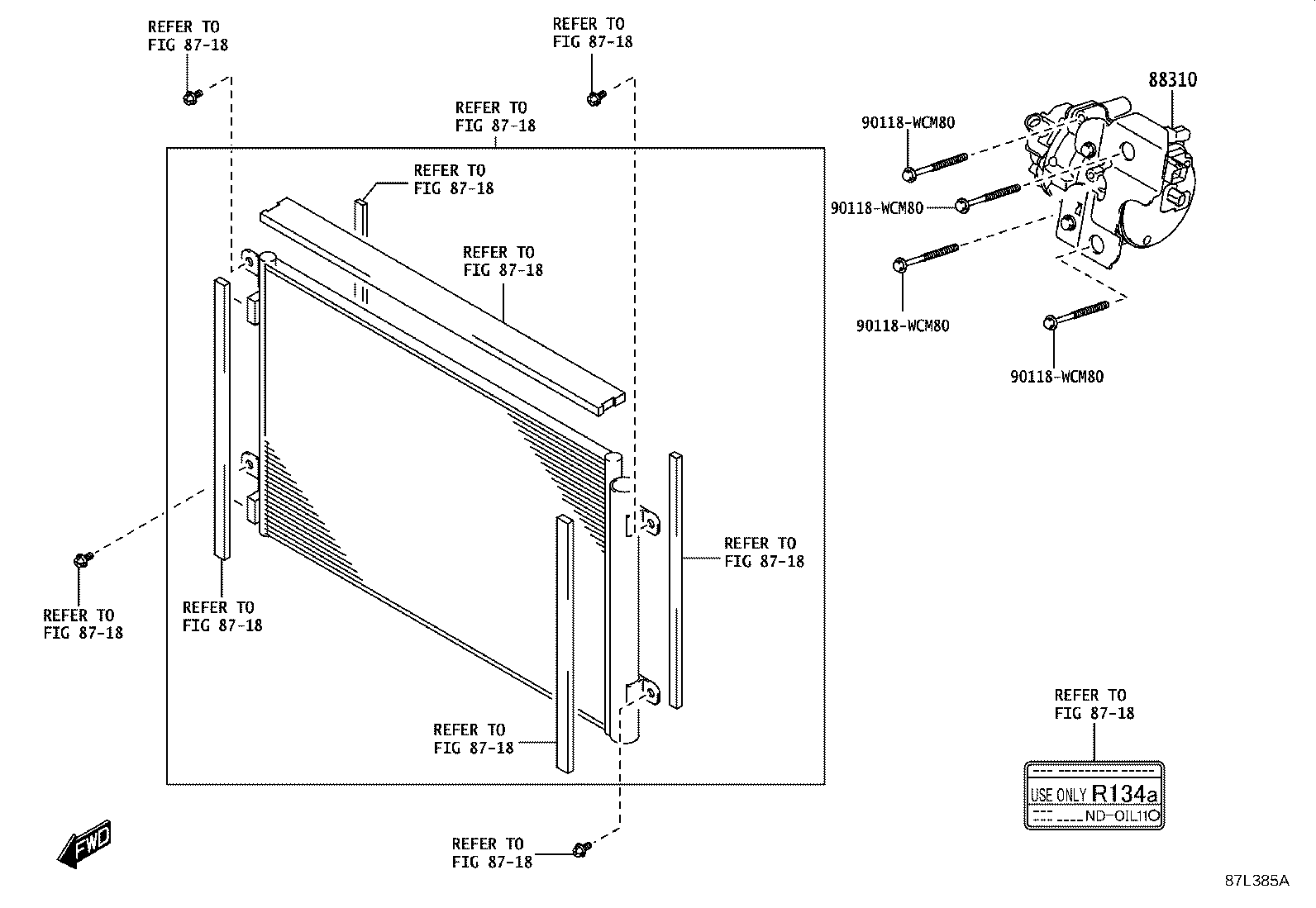

| 88310 | Compressor Assy, W/Pulley |
| 88321D | Valve, Pressure Relief |
| 88335 | Gasket Kit, Overhaul |

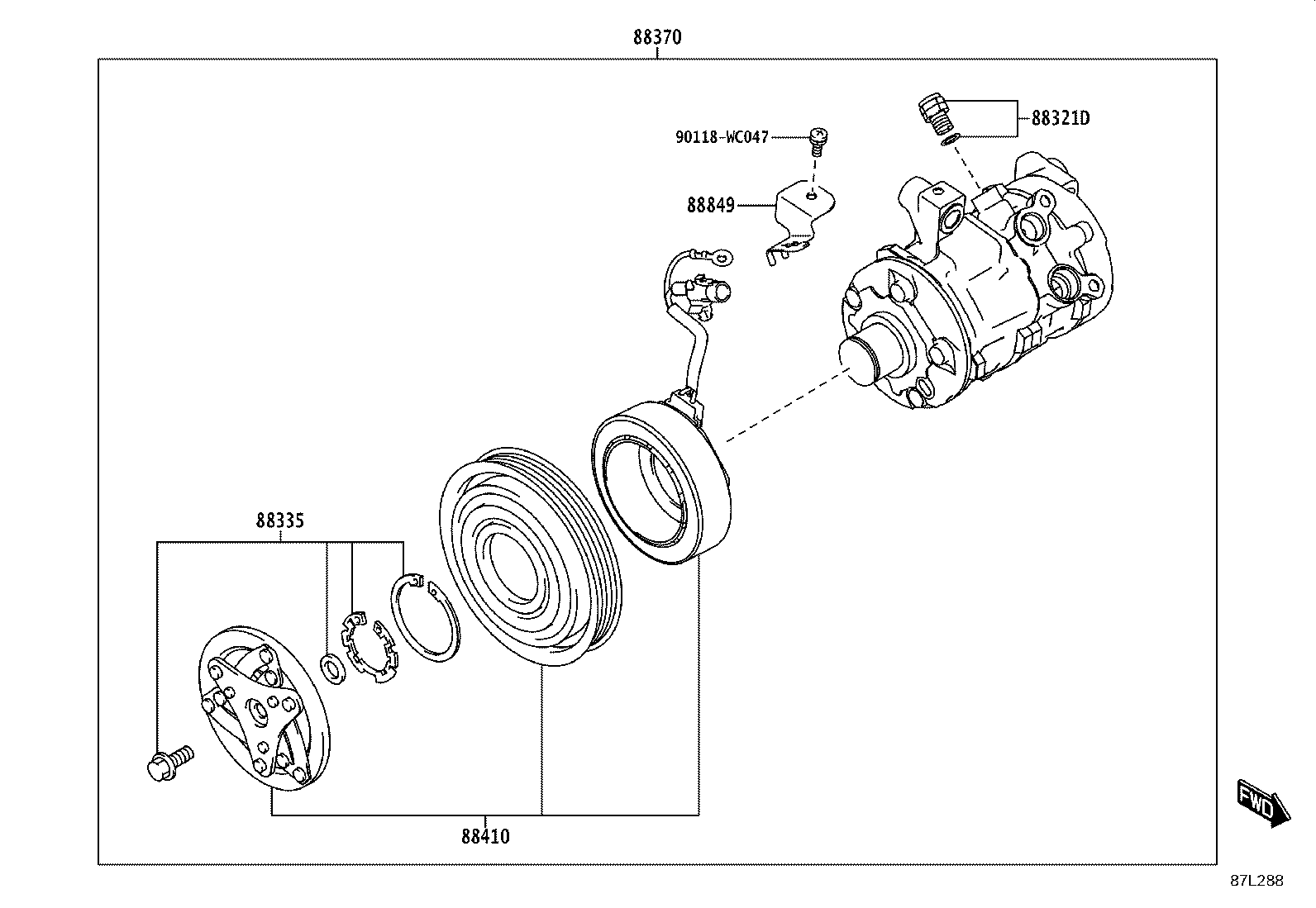

| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88849 | Bracket, Cooler Compressor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
