Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

25 part groups · 2 illustrations

Illustrations

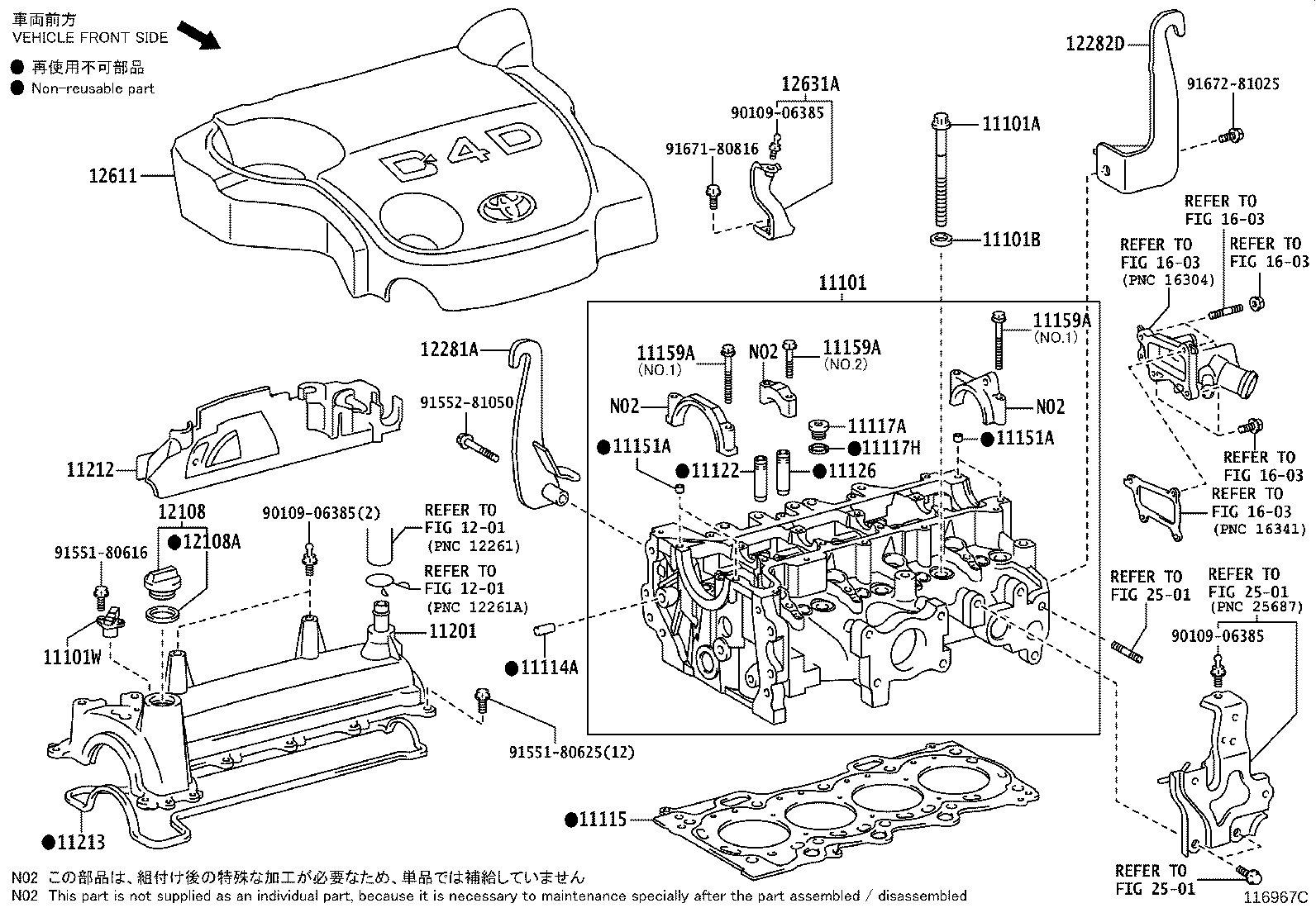

Figure 116672E 116672E 2010-12 → — Figure 116967C 116967C 2011-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101W Sensor, Crank Position, NO.1
11114A Pin, Straight
11115 Gasket, Cylinder Head
11117A Plug, W/Head Taper Screw, NO.1
11117H Gasket(FOR WATER HOLE)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11201 Cover Sub-assy, Cylinder Head
11212 Cover, Cylinder Head, NO.2
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12611 Cover, Engine, NO.1
12631A Bracket, Engine Cover
15301B Gage Sub-assy, Oil Level
