Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

6 part groups · 2 illustrations

Illustrations

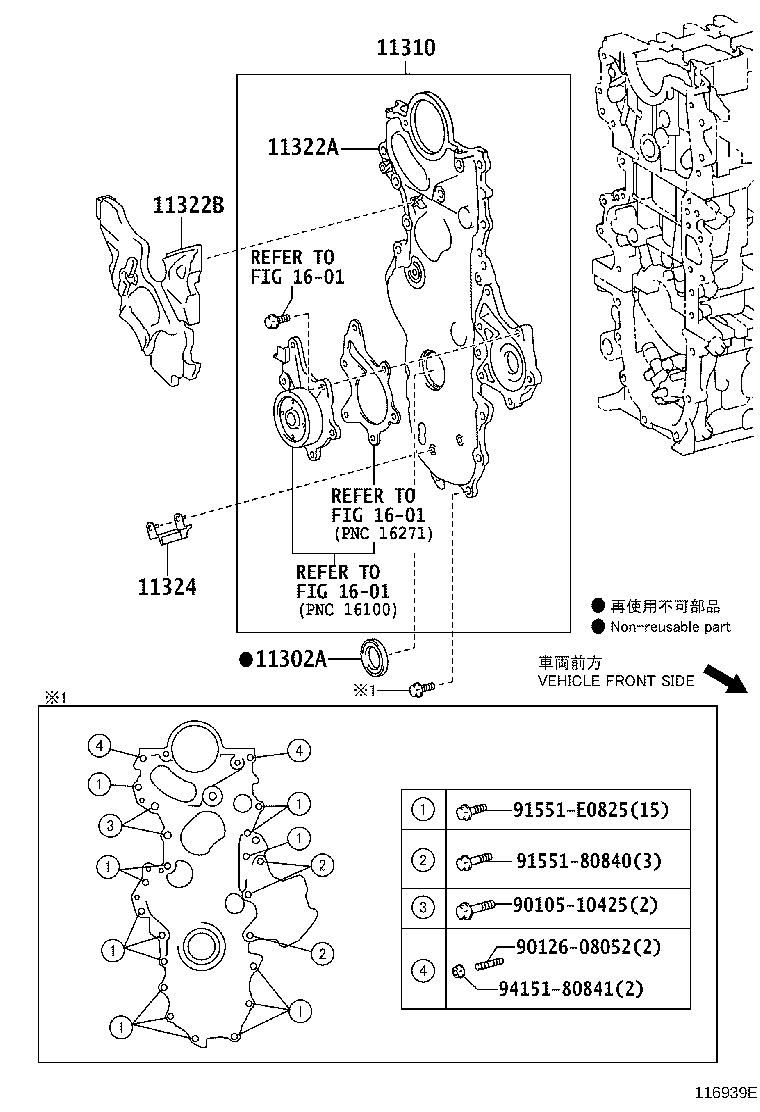

Figure 116675D 116675D 2010-12 → — Figure 116939E 116939E 2011-08 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11322A Cover, Timing Belt, NO.1
11322B Cover, Timing Belt, NO.2
11324 Plate, Timing Chain Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
