Toyota Etios/Liva/Cross
2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General
Supported model
Data version 2020-04

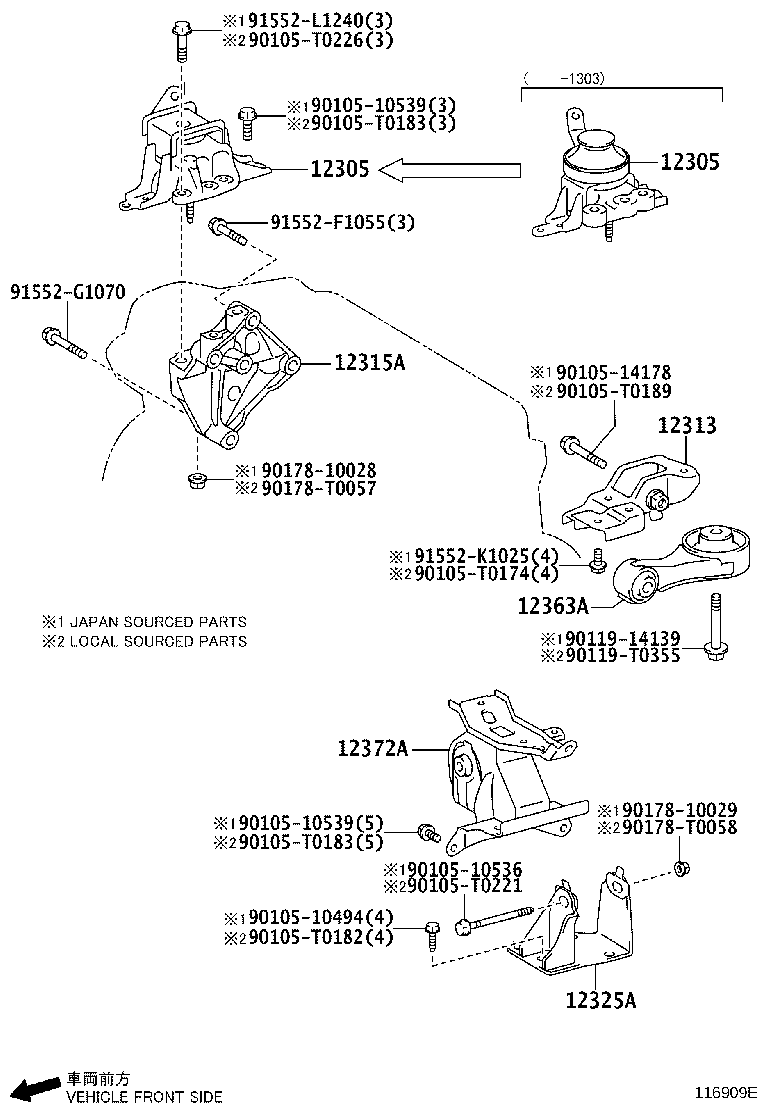

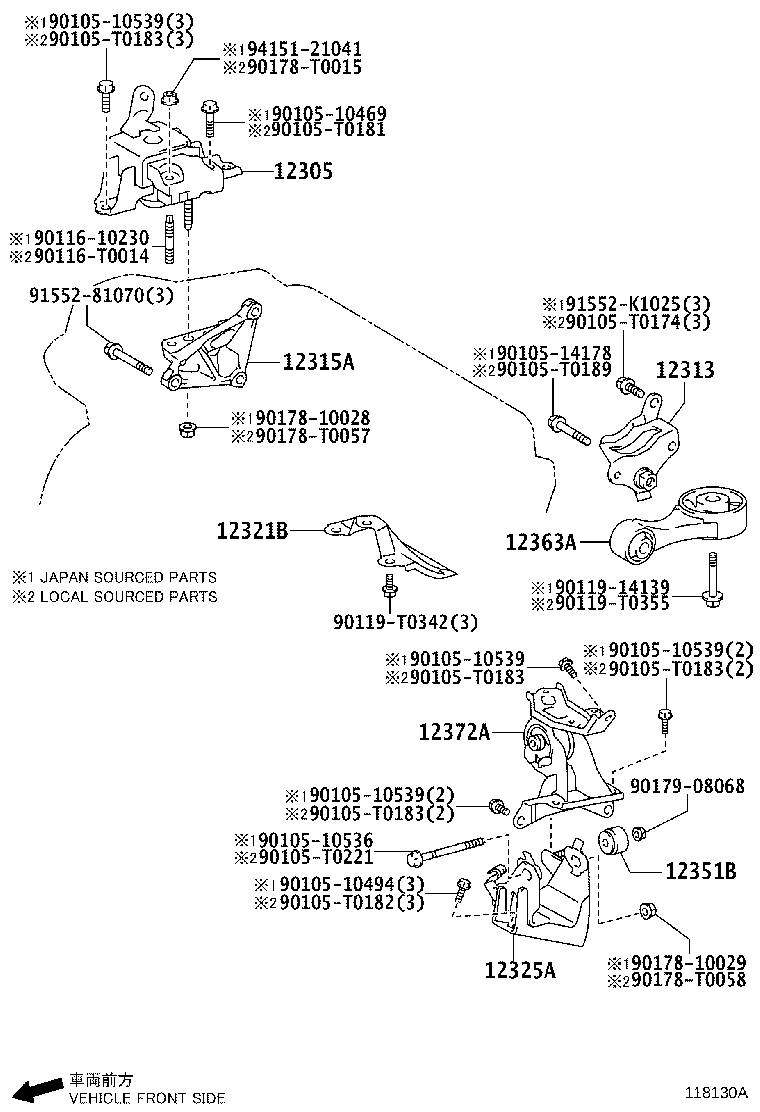

Mounting
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12313 | Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE) |
| 12315A | Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) |
| 12321B | Insulator Sub-assy, Drive Shaft Heat |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12351B | Damper, Engine Mounting |
| 12363A | Rod, Engine Moving Control |
| 12372A | Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
