Oil Filter

7 part groups · 2 illustrations

Illustrations

Figure 151779B

151779B 2010-12 → —

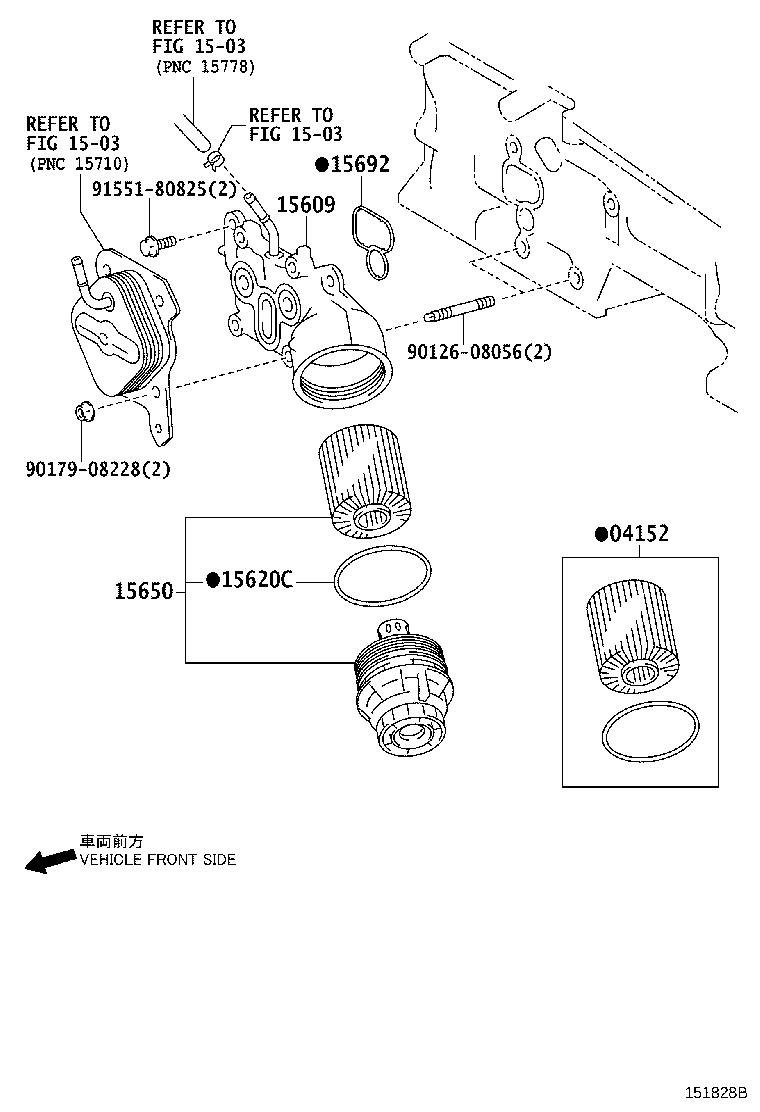

Figure 151828B

151828B 2011-08 → —

Part groups

PNC	Description
04152	Element Kit, Oil Filter
15600A	Union(FOR OIL FILTER)
15601	Filter Sub-assy, Oil
15609	Bracket Sub-assy, Oil Filter
15620C	Gasket(FOR OIL FILTER CAP)
15650	Cap Assy, Oil Filter W/Elememt
15692	Gasket, Oil Filter Bracket

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
