Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 2 illustrations

Illustrations

Figure 164316D

164316D 2010-12 → —

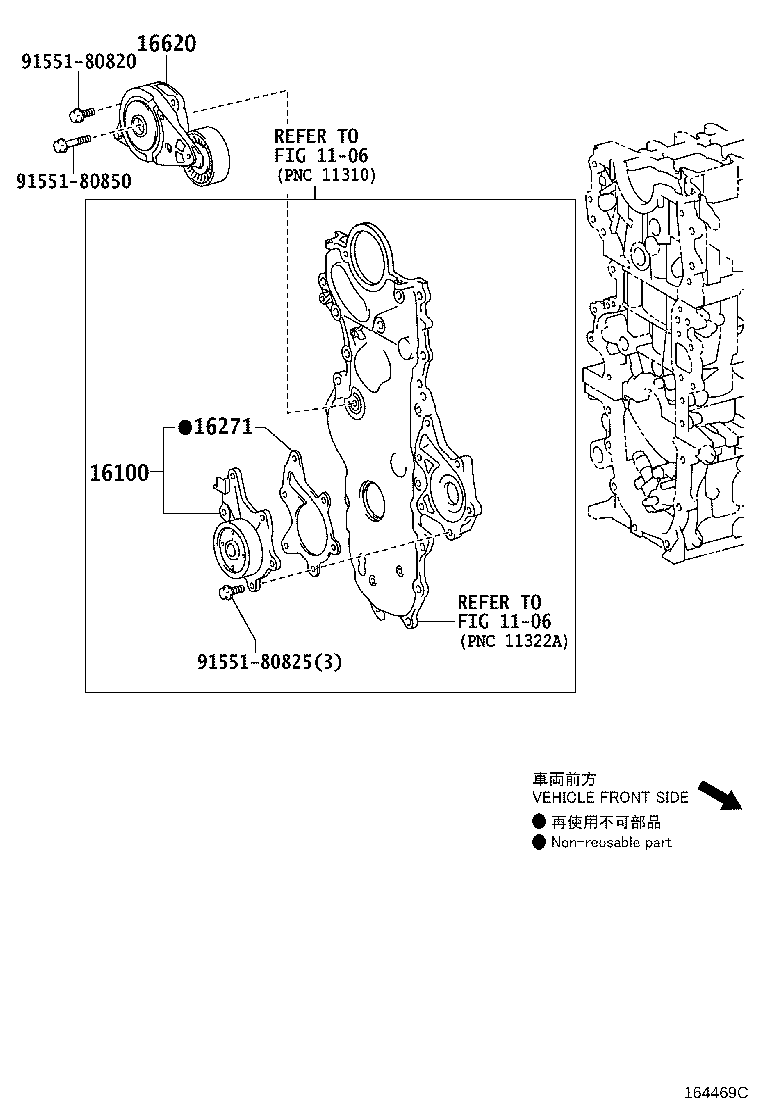

Figure 164469C

164469C 2011-08 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
