Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

4 part groups · 4 illustrations

Illustrations

Figure 176935C

176935C 2010-12 → —

Figure 176934C

176934C 2010-12 → —

Figure 177122D

177122D 2011-08 → —

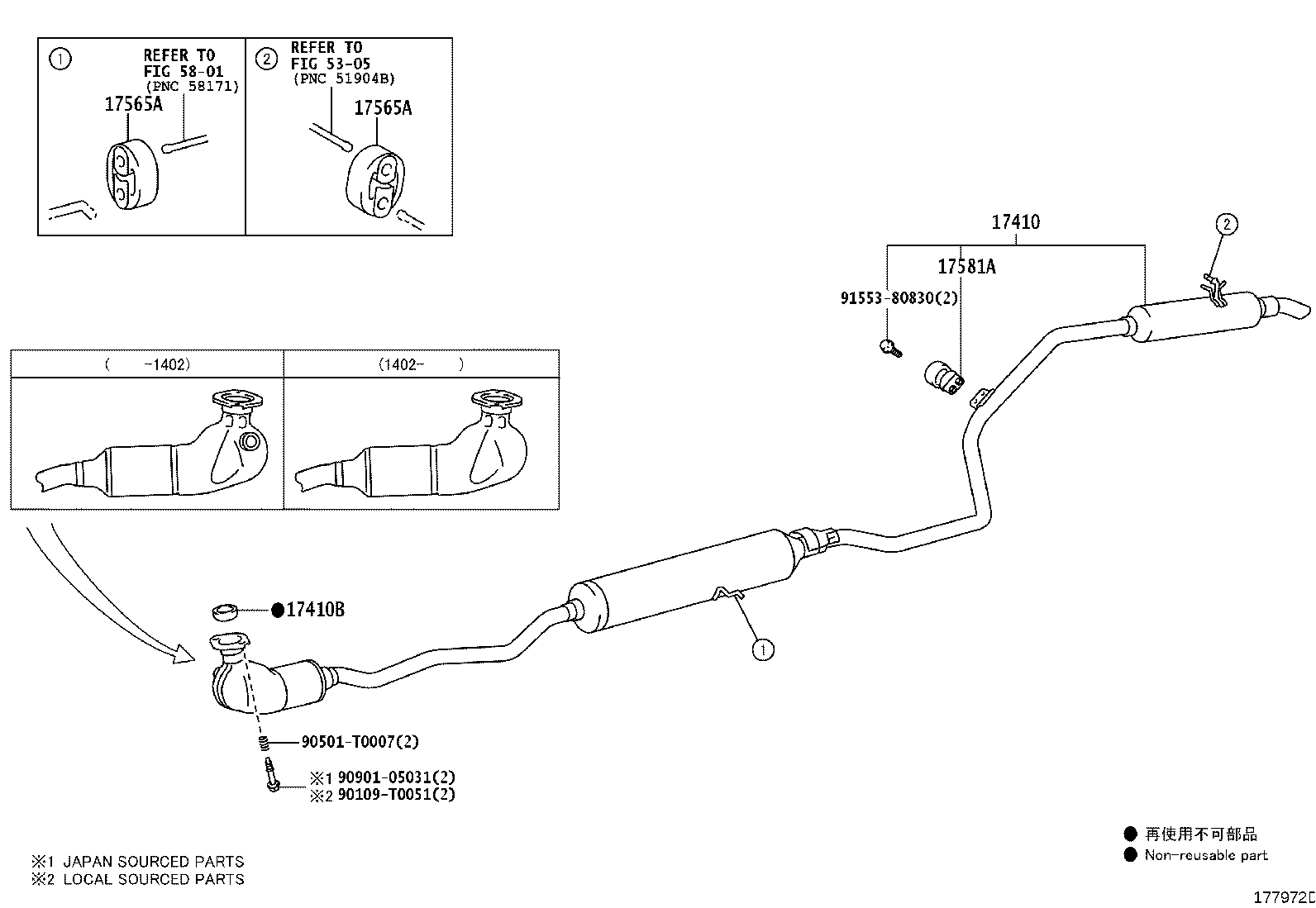

Figure 177972D

177972D 2013-03 → —

Part groups

PNC	Description
17410	Pipe Assy, Exhaust, Front
17410B	Gasket, Exhaust Pipe
17565A	Support, Exhaust Pipe, NO.4
17581A	Damper, Exhaust Pipe

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
