Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

6 part groups · 2 illustrations

Illustrations

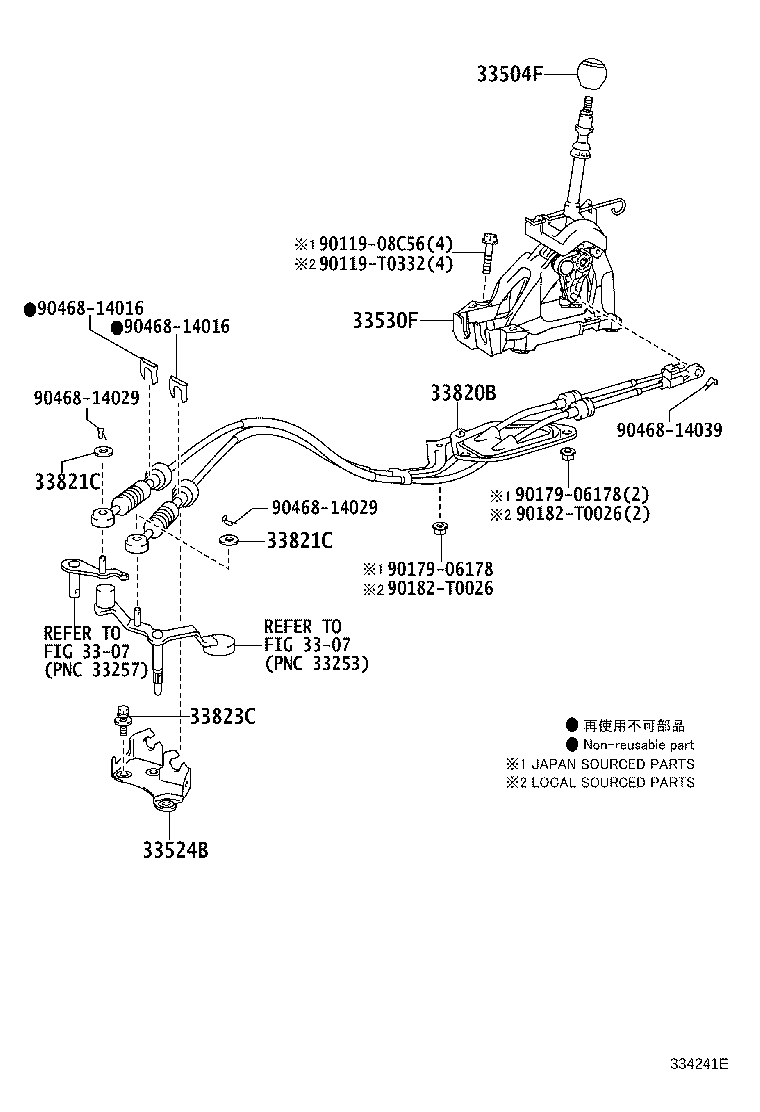

Figure 334154D 334154D 2010-12 → — Figure 334241E 334241E 2011-08 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33821C Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
