Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 6 illustrations

Illustrations

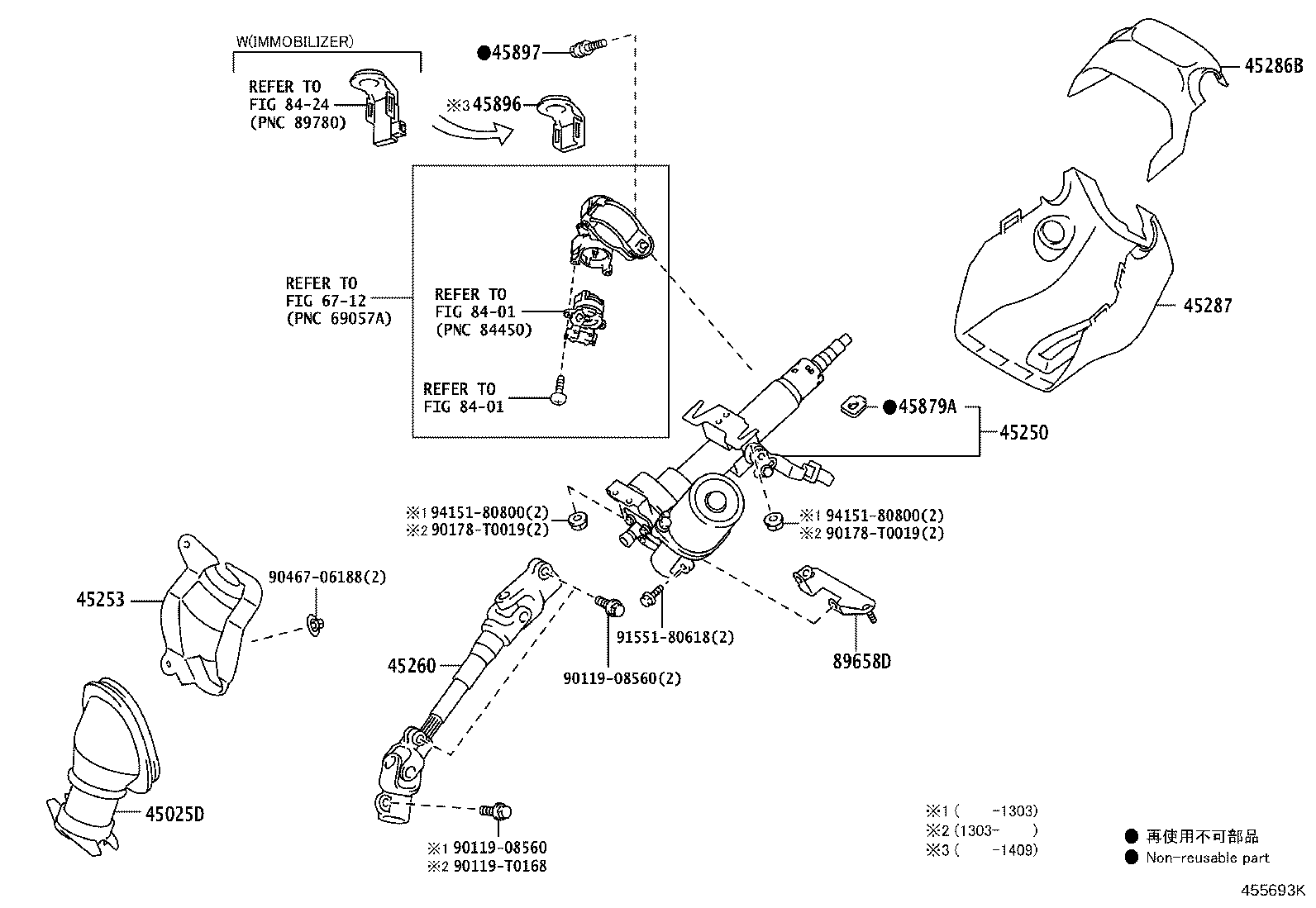

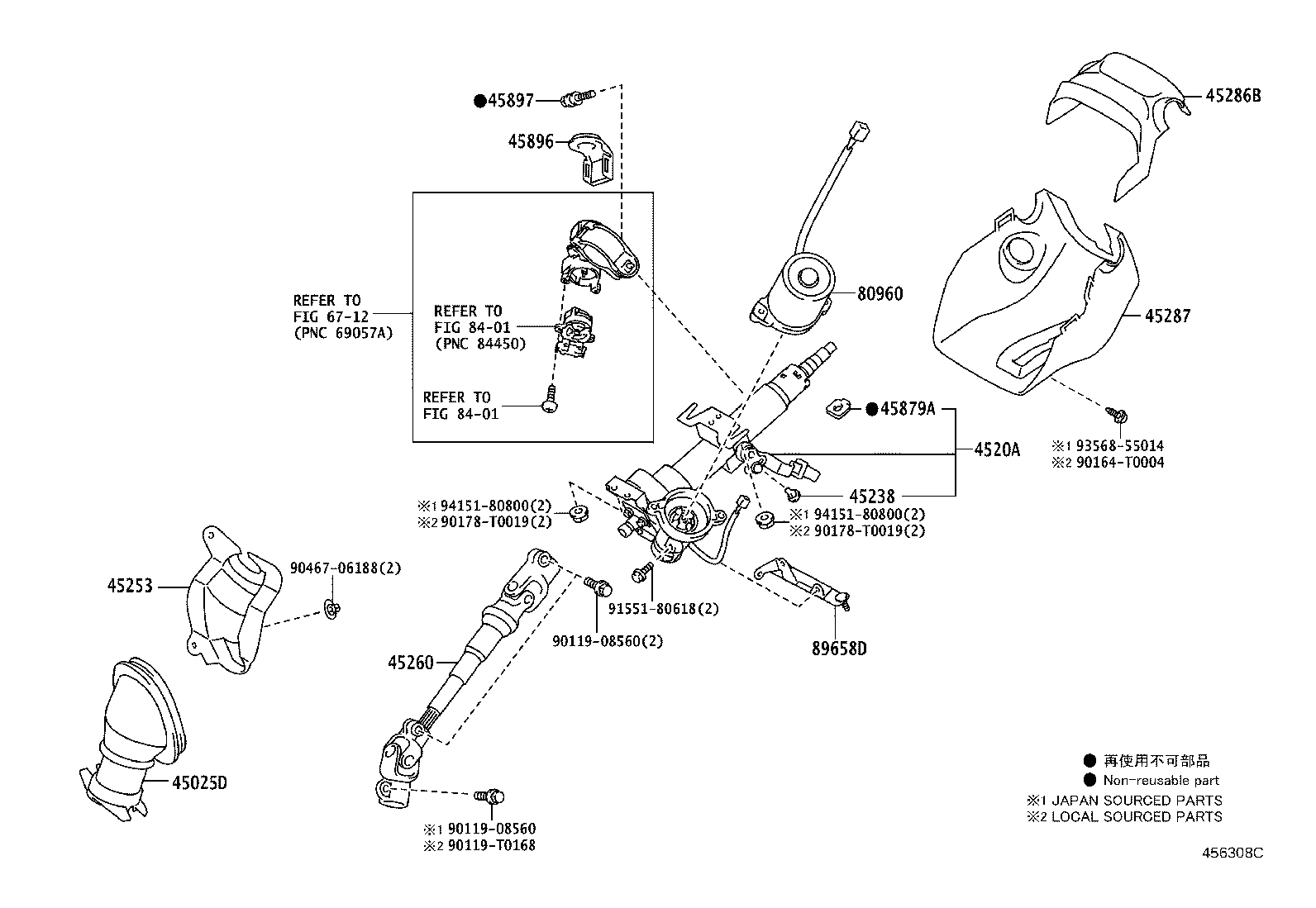

Figure 455692G 455692G 2010-12 → 2012-07 Figure 455692G 455692G 2013-03 → — Figure 455693K 455693K 2010-12 → — Figure 455693K 455693K 2012-07 → — Figure 456308C 456308C 2013-03 → — Figure 456308C 456308C 2013-10 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45200 Post Assy, Steering
4520A Column Sub-assy, Electric Power Steering
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45260 Shaft Assy, Steering Intermediate, NO.2
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45879A Capsule, Break Away
45896 Plate, Ignition Switch Attachment
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
89658D Bracket, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
