Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

29 part groups · 3 illustrations

Illustrations

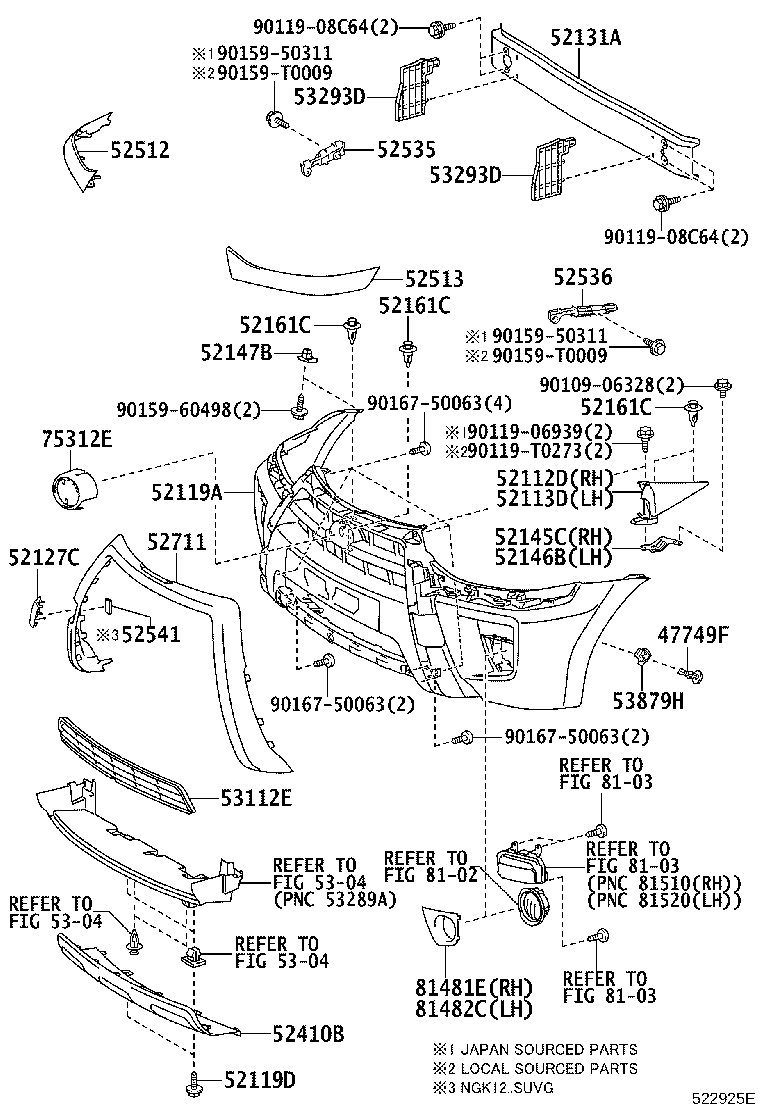

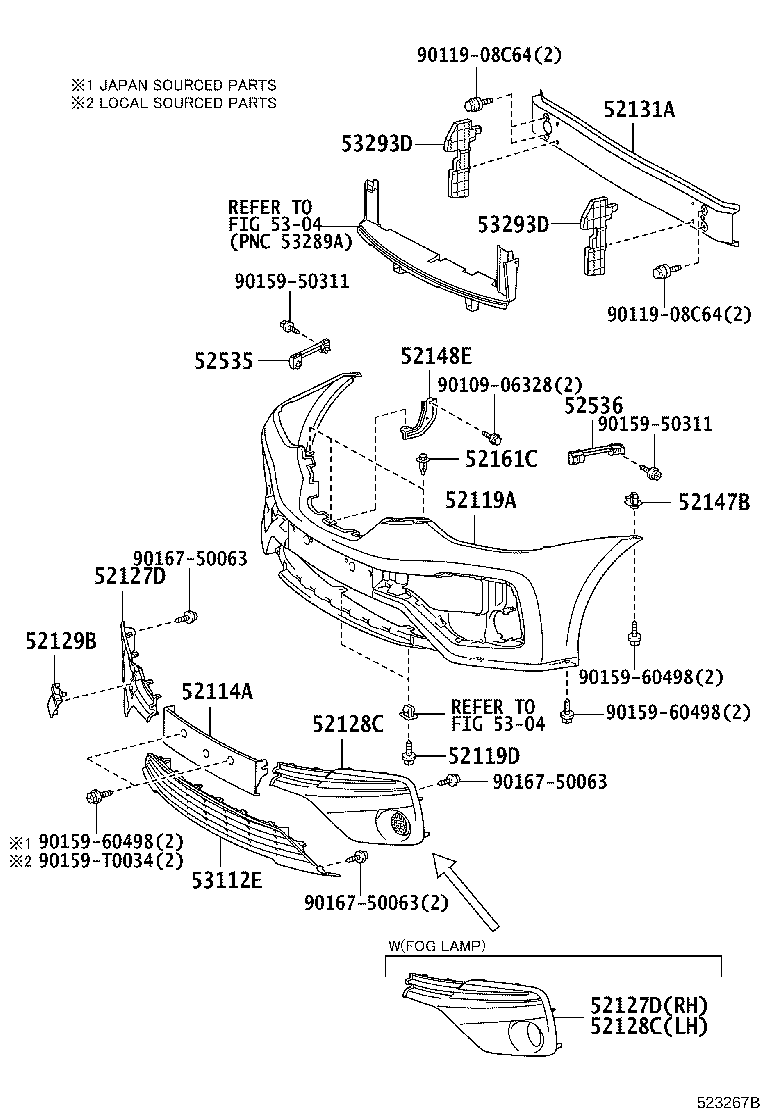

Figure 522338D 522338D 2010-12 → — Figure 522925E 522925E 2014-04 → — Figure 523267B 523267B 2016-09 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52145C Bracket, Front Bumper Side Mounting, RH
52146B Bracket, Front Bumper Side Mounting, LH
52147B Bracket, Front Bumper Mounting
52148E Bracket, Front Bumper Mounting, LH
52161C Piece, Front Bumper
52410B Guard Assy, Front Bumper
52512 Filler, Front Bumper, RH
52513 Filler, Front Bumper, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52541 Protector, Front Bumper
52711 Moulding, Front Bumper
53112E Grille, Radiator, Lower NO.1
53293D Deflector, Radiator Upper Air
53879H Retainer, Front Fender Liner
75312E Base, Radiator Grille Emblem
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
