Rear Bumper & Bumper Stay

18 part groups · 3 illustrations

Illustrations

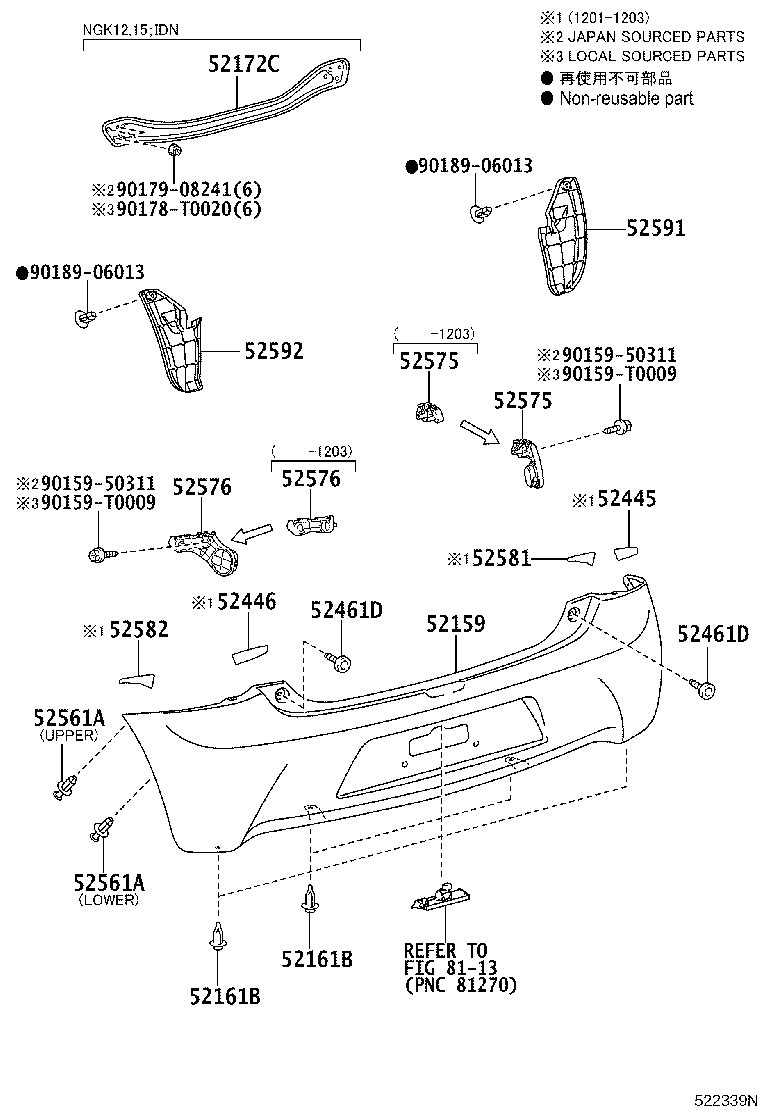

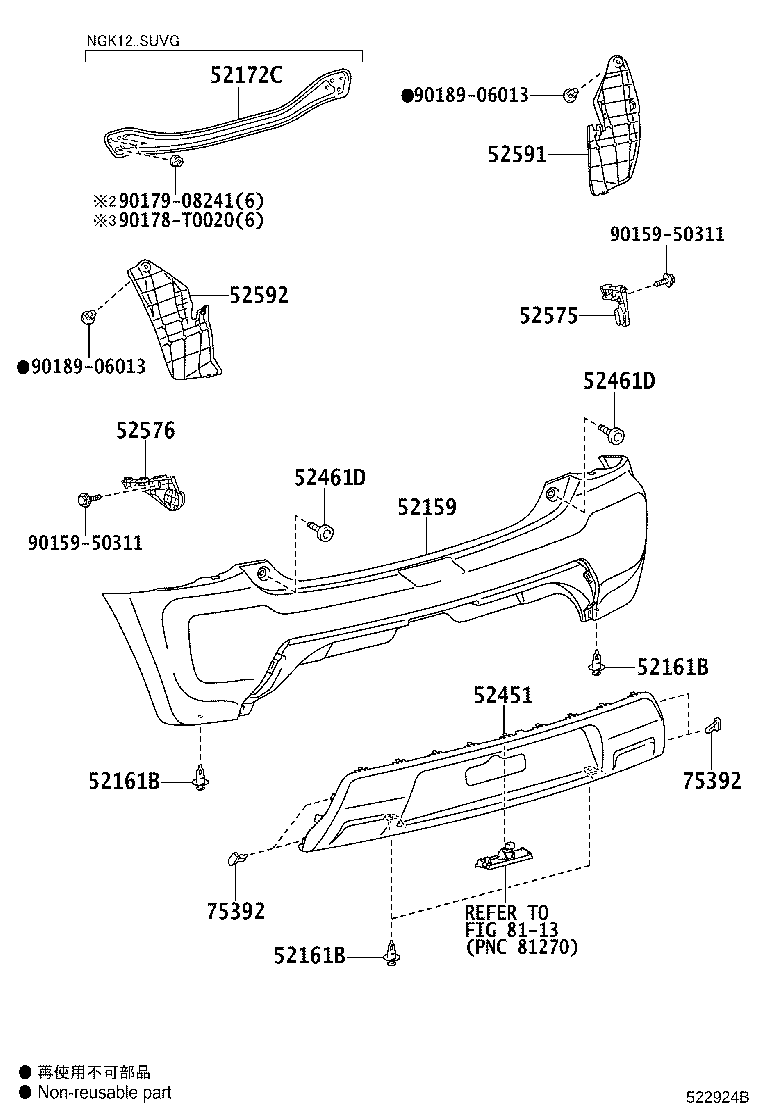

Figure 522340L 522340L 2010-12 → — Figure 522339N 522339N 2010-12 → — Figure 522924B 522924B 2014-04 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52172C Reinforcement, Rear Bumper Bar, Center
52445 Protector, Rear Bumper, RH
52446 Protector, Rear Bumper, LH
52451 Guard, Rear Bumper
52461D Cushion, Rear Bumper
52462 Pad, Rear Bumper, RH
52561A Clip(FOR REAR BUMPER RETAINER)
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
