Toyota Etios/Liva/Cross
2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General
Supported model
Data version 2020-04
Hood & Front Fender
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

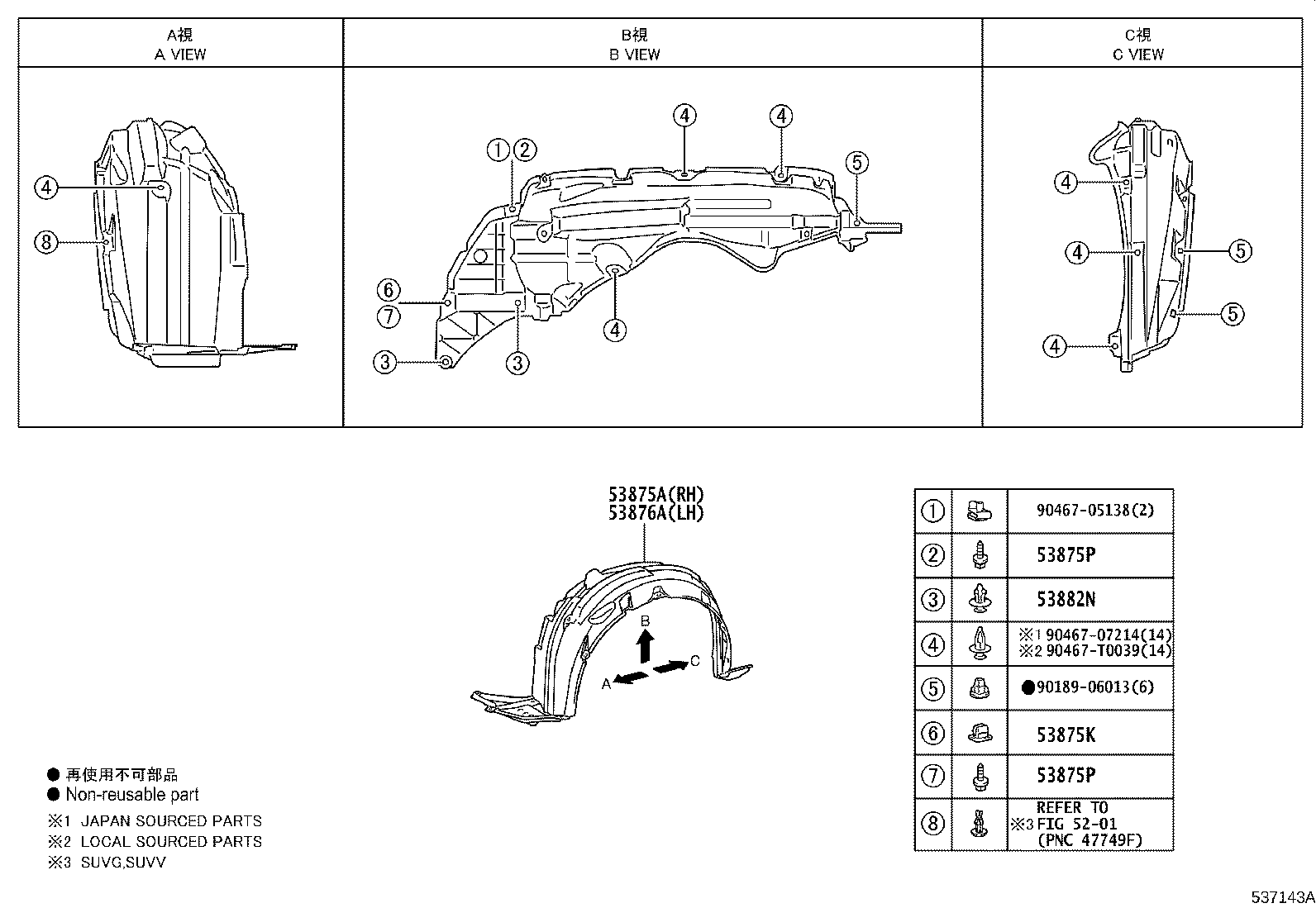

| 53875A | Liner, Front Fender, RH |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53876A | Liner, Front Fender, LH |
| 53882F | Seal, Front Fender |
| 53882N | Clip(FOR FRONT FENDER SEAL) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
