Toyota Etios/Liva/Cross
2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General
Supported model
Data version 2020-04

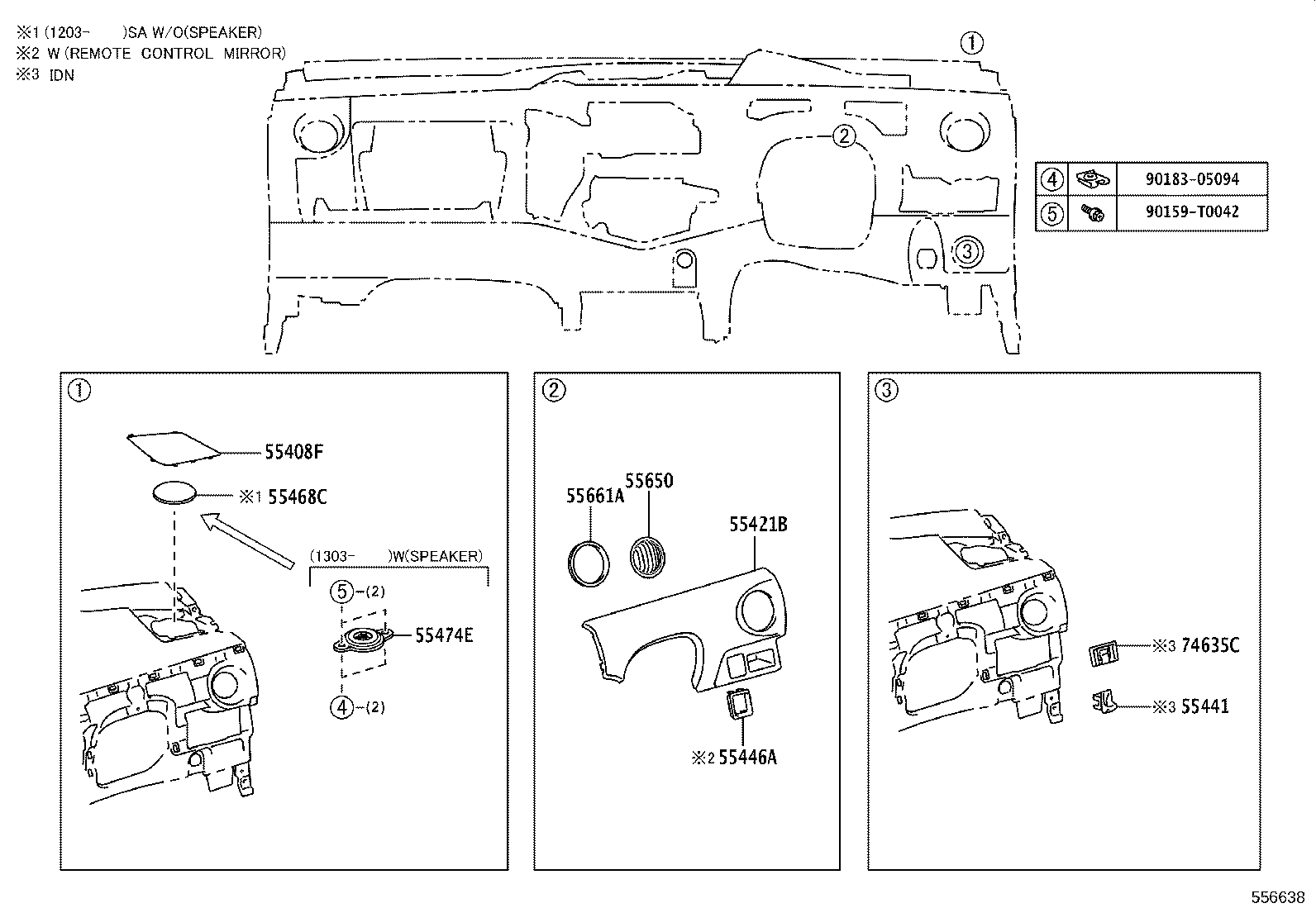

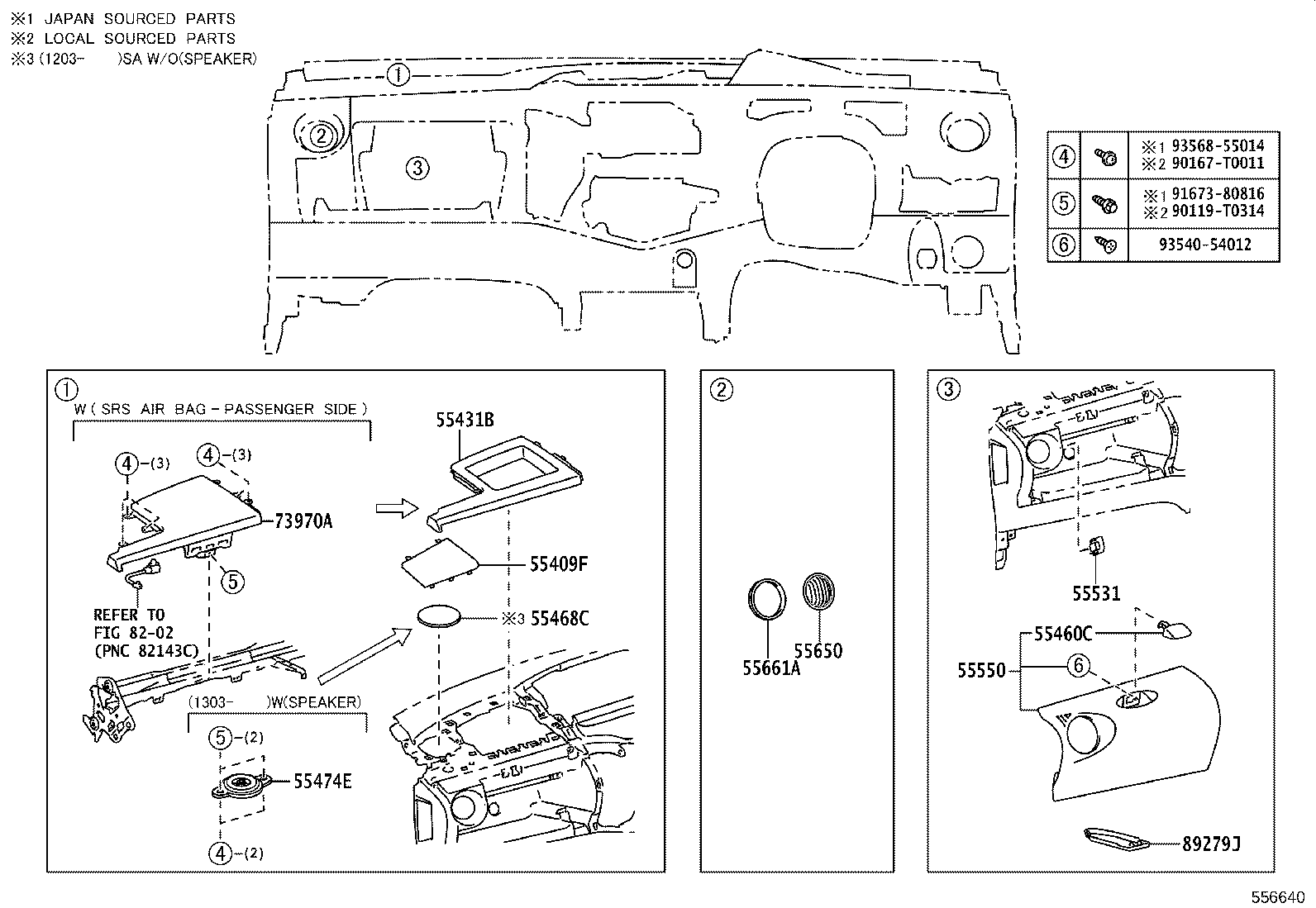

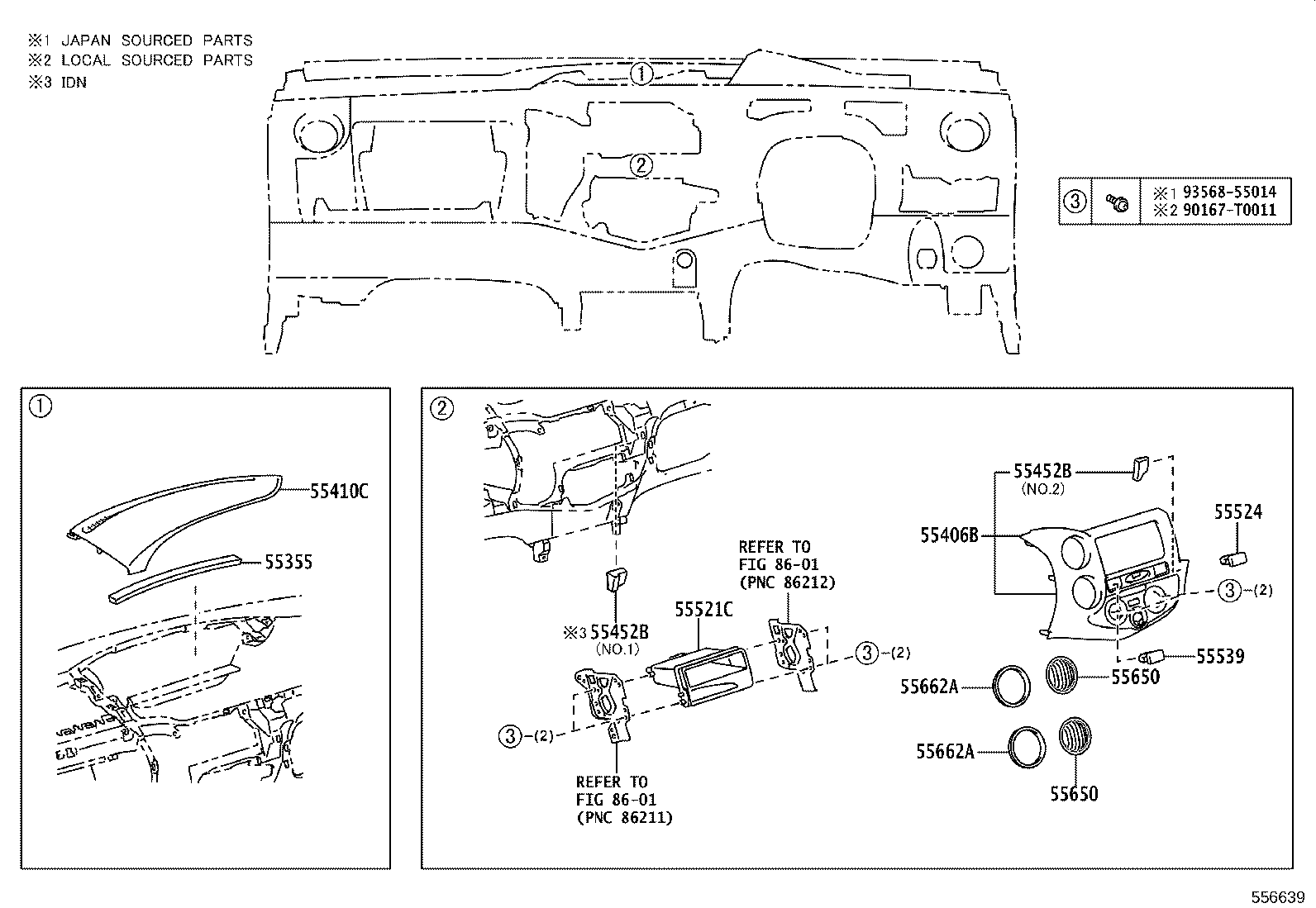

Instrument Panel & Glove Compartment
43 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55352A | Brace, Instrument Panel TO Floor, NO.2 |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55391 | Cushion, Instrument Panel, Lower NO.1 |
| 55392C | Cushion, Instrument Panel, Lower NO.2 |
| 55394B | Bolt, Instrument Panel |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55441 | Box, Instrument Panel |
| 55446A | Base, Switch Hole, NO.1 |
| 55452B | Filler, Instrument Panel Safety Pad |
| 55460C | Lock Assy, Instrument Panel Box |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55474E | Panel Sub-assy, Instrument Panel Speaker, NO.3 |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55512A | Plate, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55524 | Cover, Switch Bace Hole |
| 55531 | Panel, Glove Compartment |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74635C | Holder, Card |
| 89279J | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
