Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 2 illustrations

Illustrations

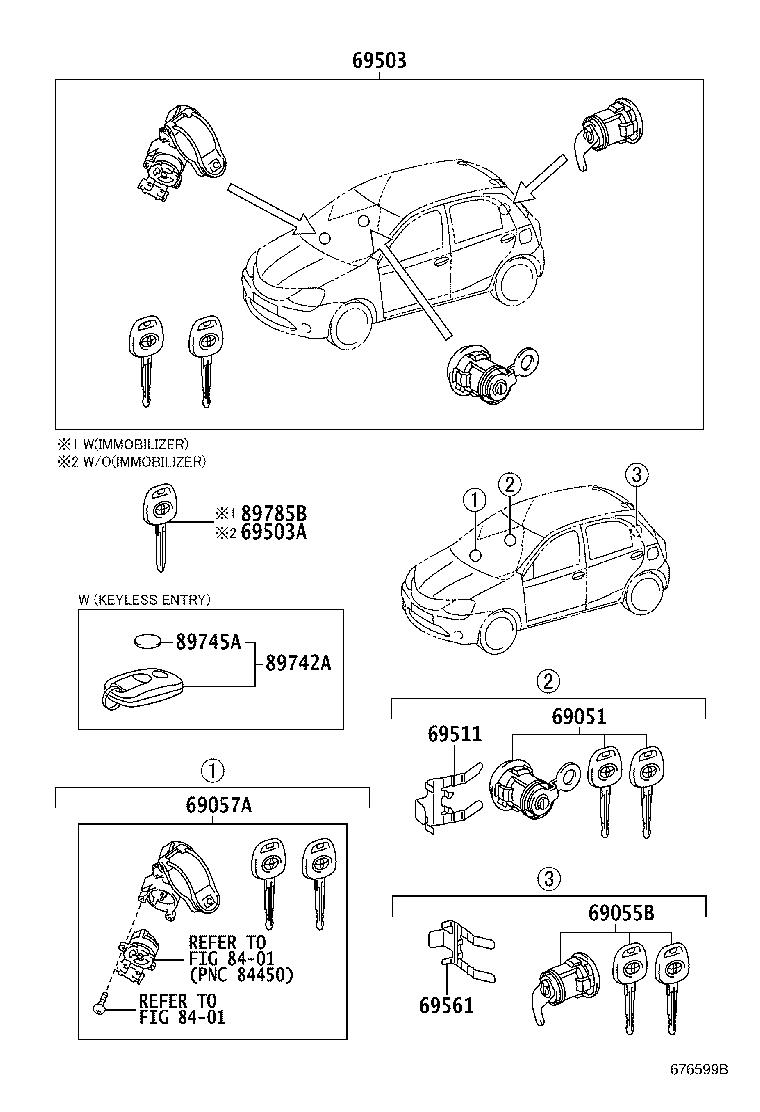

Figure 676600B 676600B 2010-12 → — Figure 676599B 676599B 2010-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69511 Retainer, Front Door Lock Cylinder
69561 Retainer, Luggage Compartment OR Back Door Lock Cylinder
89742A Transmitter, Door Control
89745A Battery, Transmitter
89785B Transmitter, Transponder Key Master
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
