Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

45 part groups · 10 illustrations

Illustrations

716911C 2010-12 → 2013-03

716911C 2013-03 → 2016-09

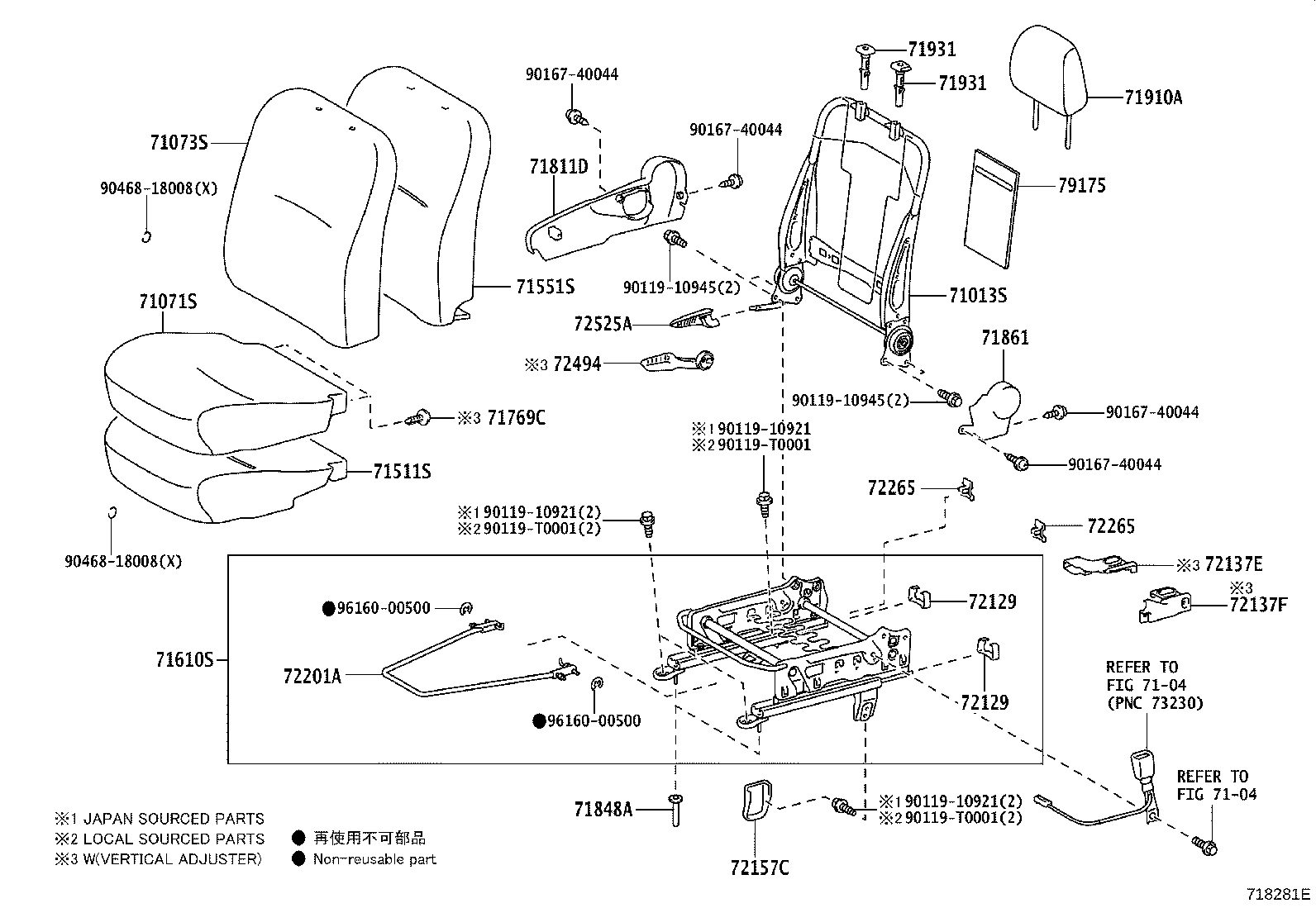

718281E 2013-03 → 2016-09

718281E 2016-09 → —

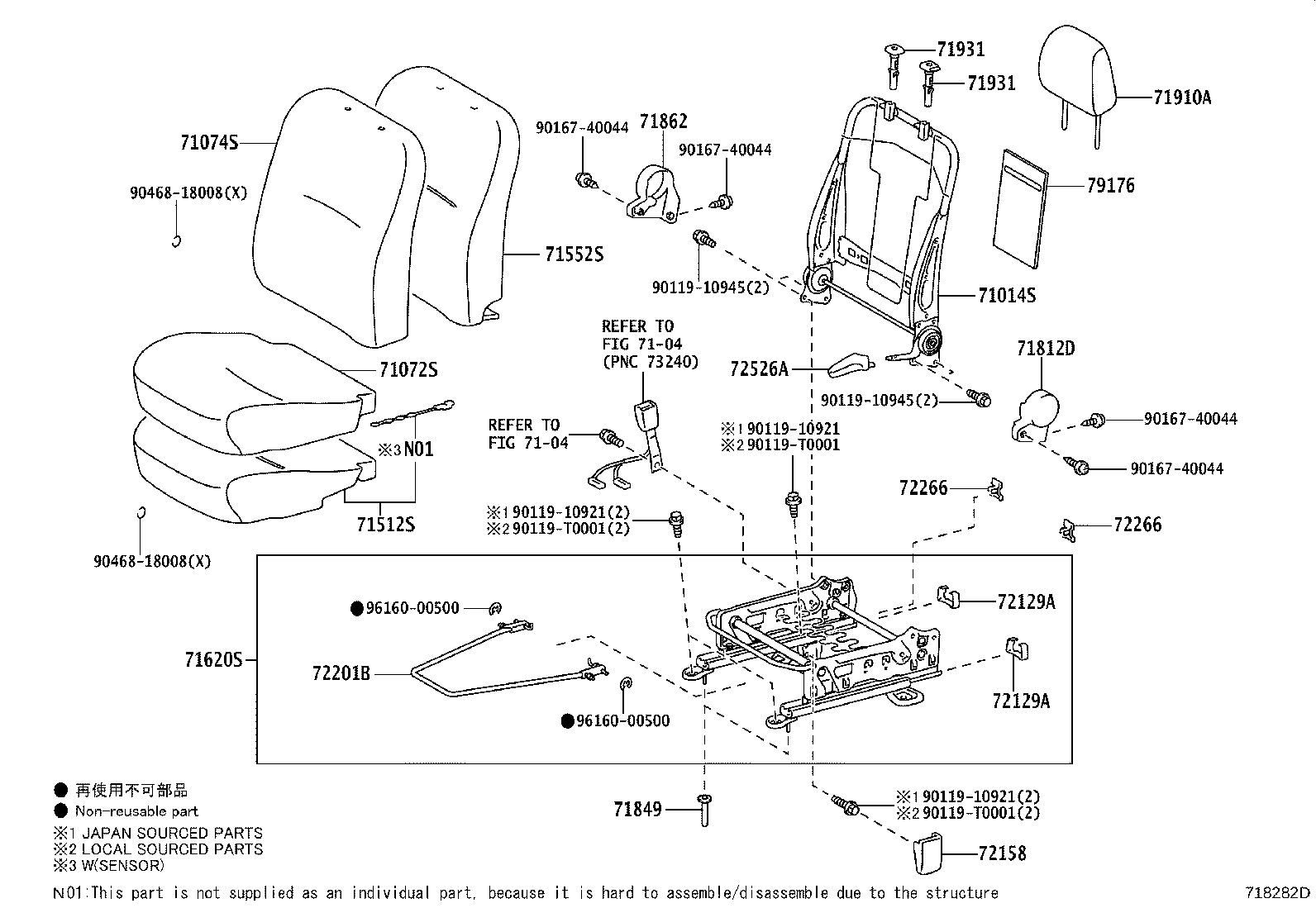

718282D 2013-03 → 2016-09

718282D 2016-09 → —

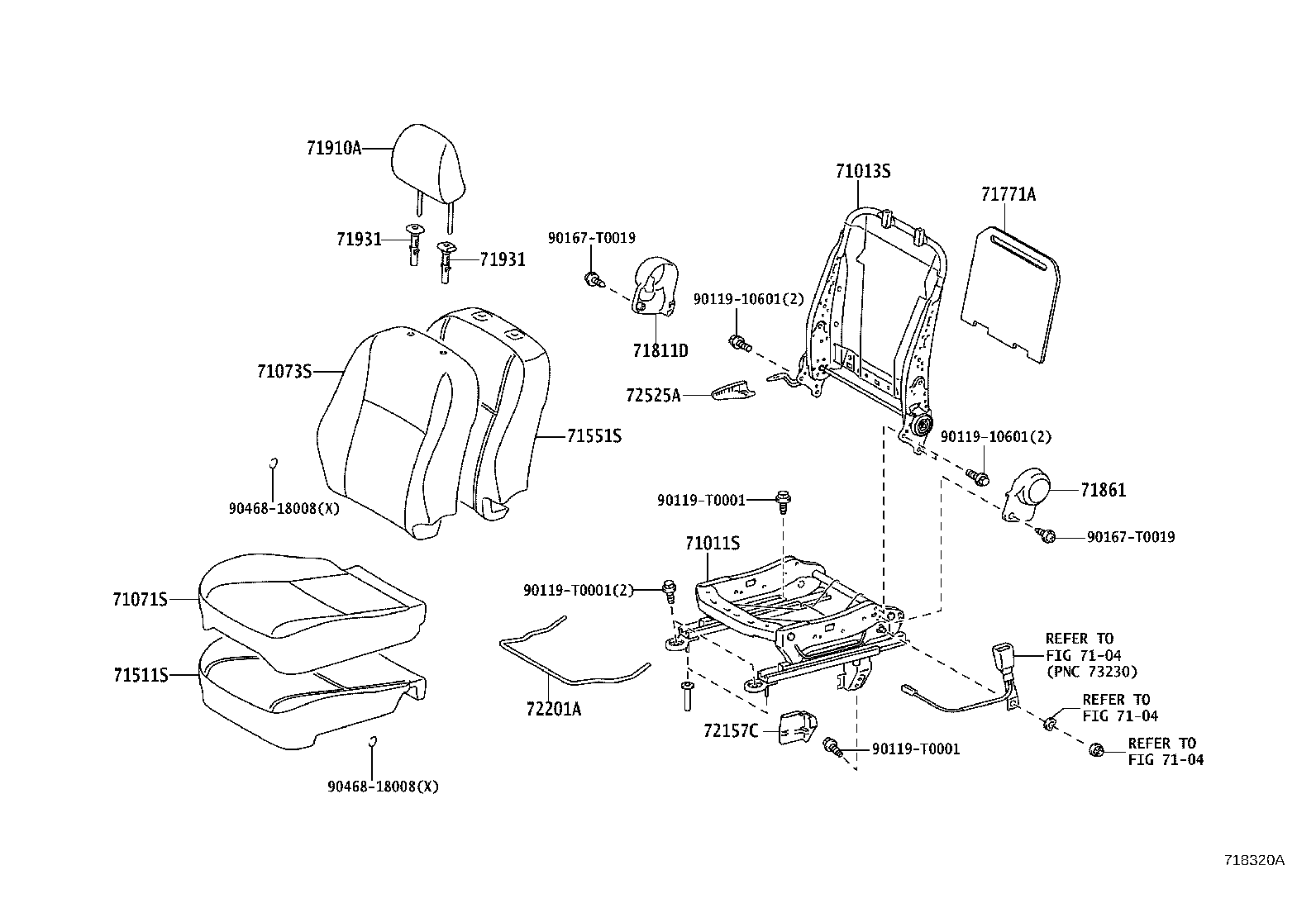

718320A 2013-03 → 2015-01

718320A 2015-01 → —

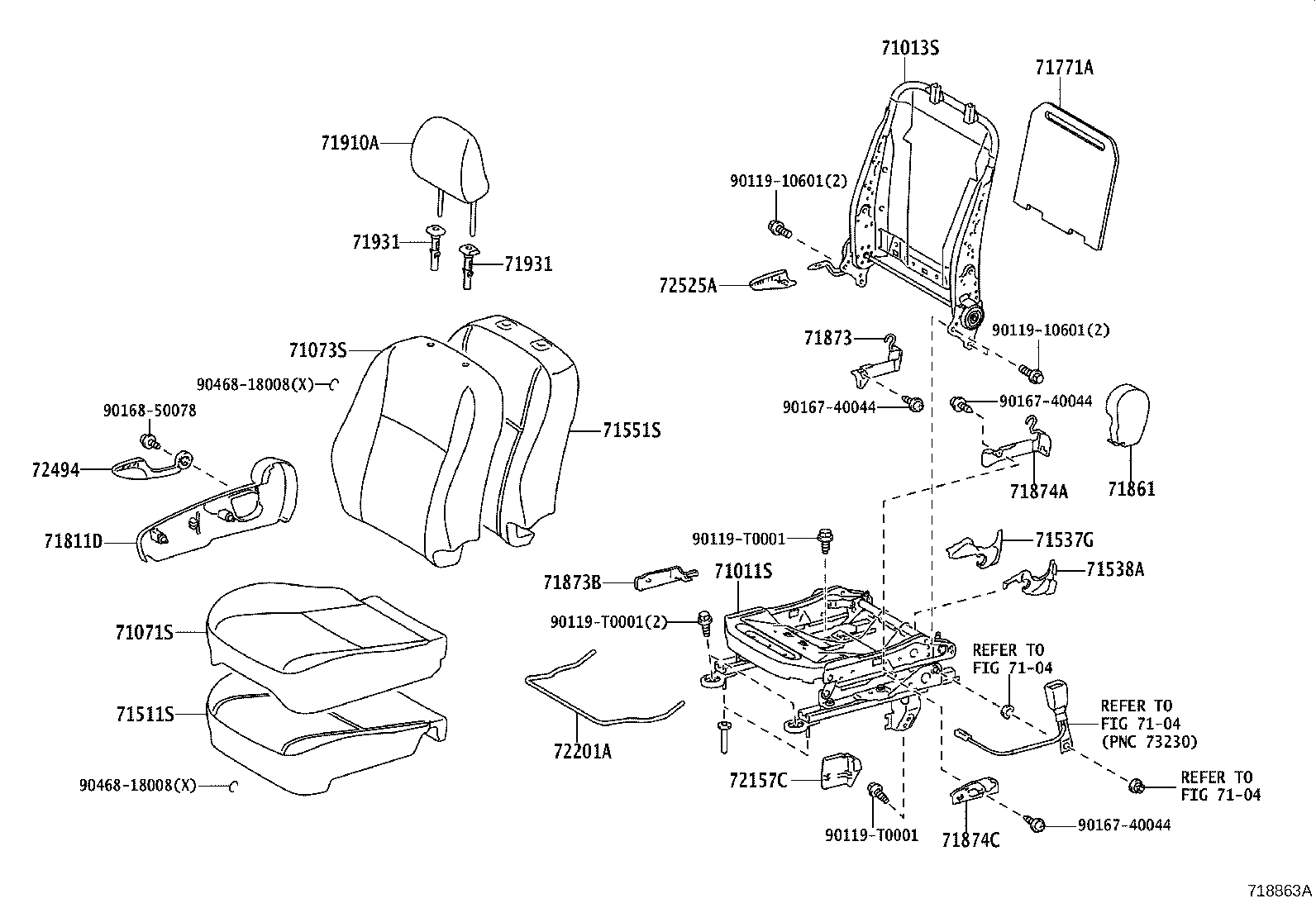

718863A 2015-01 → —

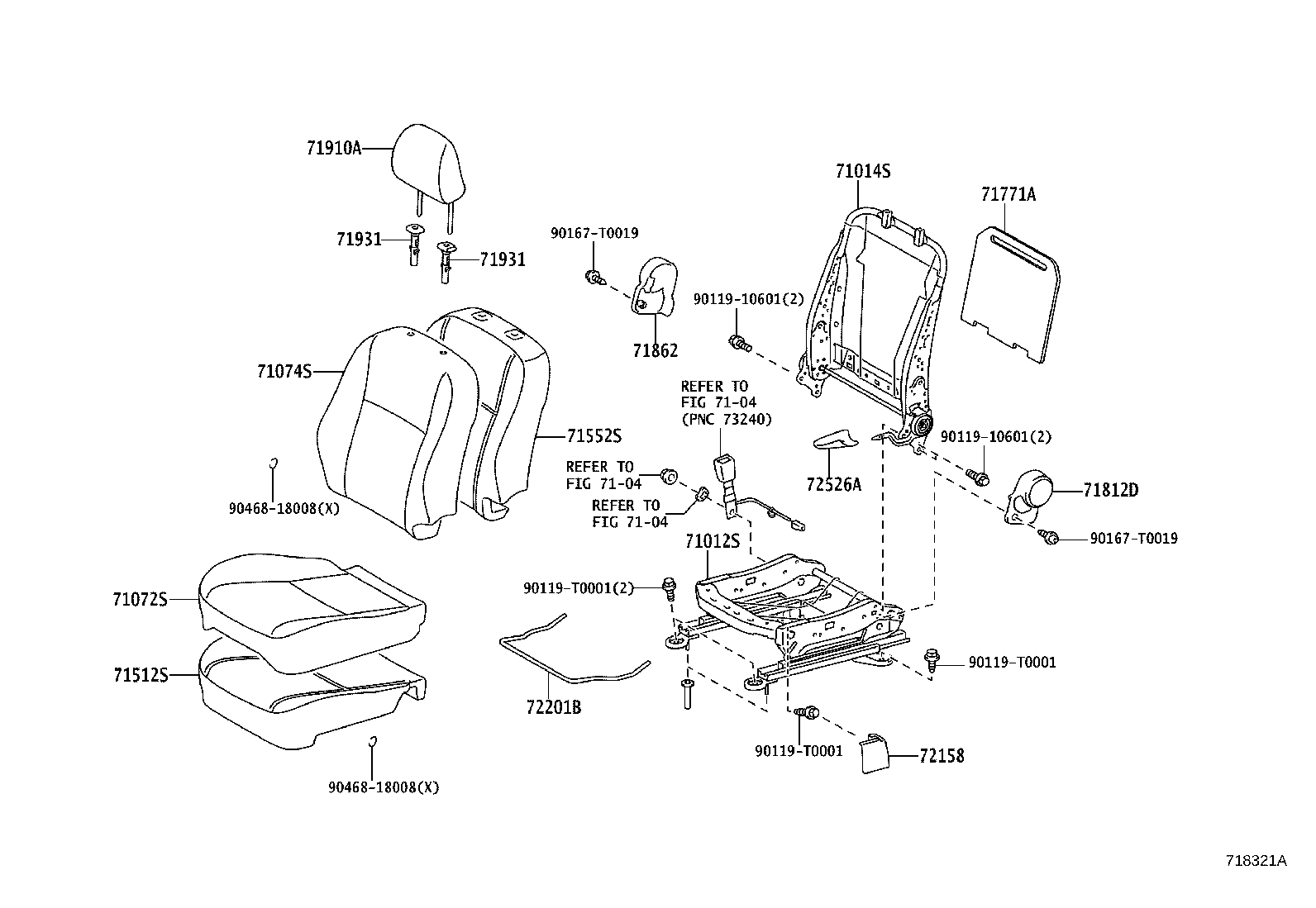

718321A 2013-03 → —

Part groups

PNC	Description
71011S	Frame Sub-assy, Front Seat Cushion, RH
71012S	Frame Sub-assy, Front Seat Cushion, LH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G	Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71769C	Clip, Front Seat Cushion Cover
71771A	Board, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71873B	Shield, Front Seat Cushion, Lower RH, NO.1
71874A	Shield, Front Seat Cushion, Lower LH
71874C	Shield, Front Seat Cushion, Lower
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72129	Protector, Seat Track Lower Rail, NO.1
72129A	Protector, Seat Track Lower Rail, NO.2
72137E	Cover, Seat Track, NO.1
72137F	Cover, Seat Track, NO.2
72157C	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72265	Cover, Seat Track Upper Rail, RH
72266	Cover, Seat Track Upper Rail, LH
72494	Handle, Vertical Adjusting, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
79175	Pad, NO.1 Seatback
79176	Pad, NO.1 Seatback, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
