Toyota Etios/Liva/Cross

2010-12 → 2020-03 · chassis NGK1#,NUK1# · catalogue 135310 · General

Supported model Data version 2020-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

15 part groups · 9 illustrations

Illustrations

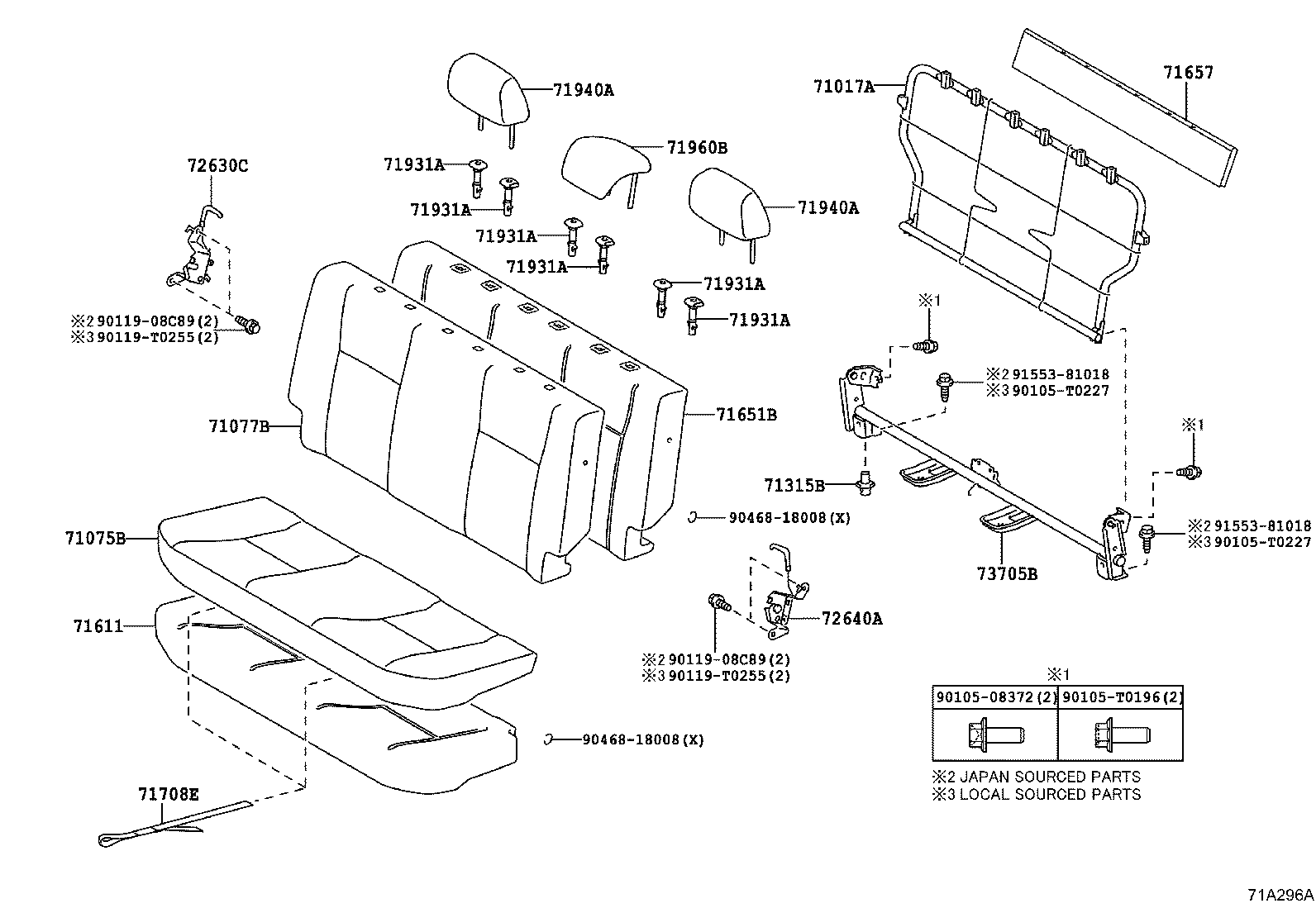

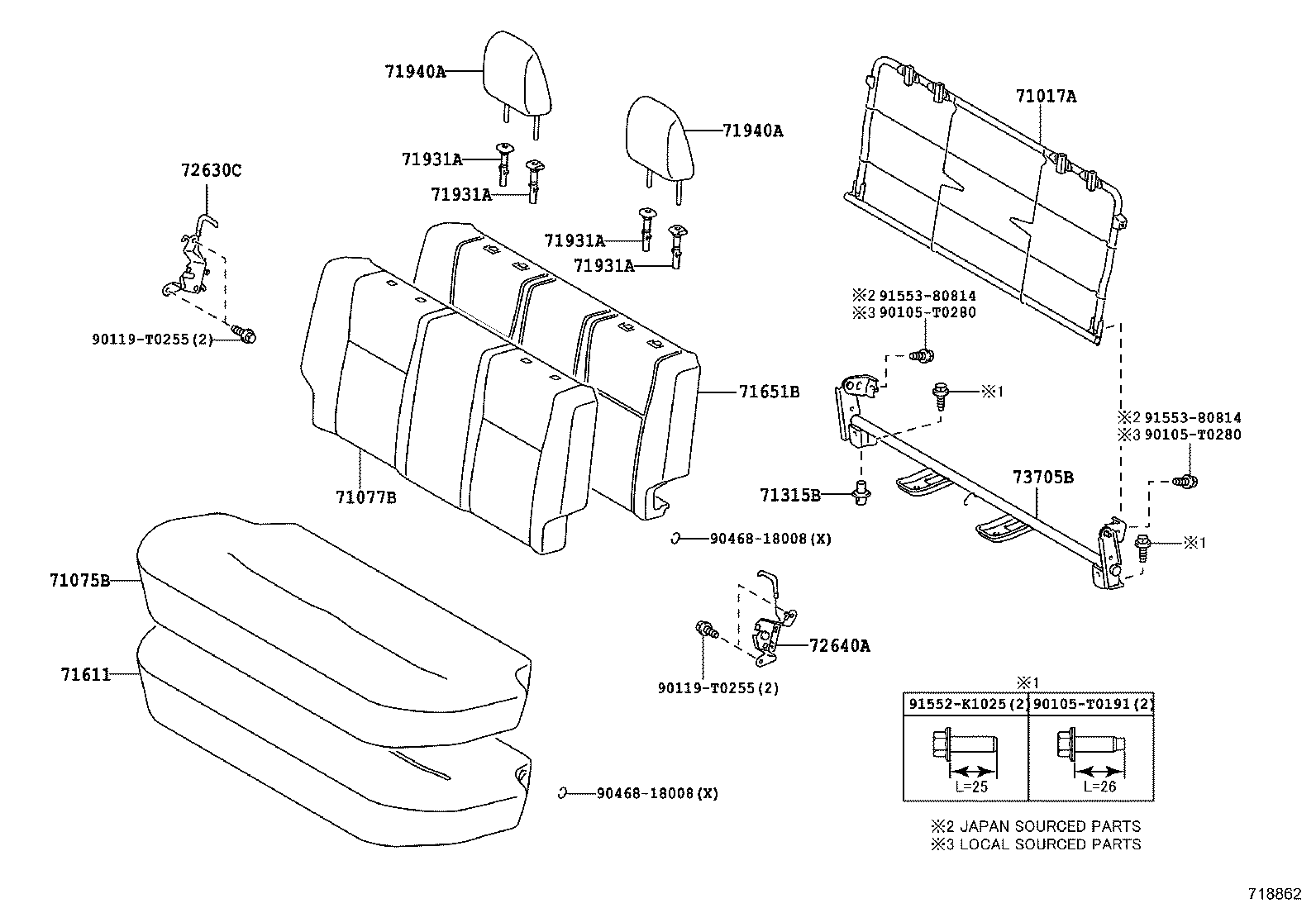

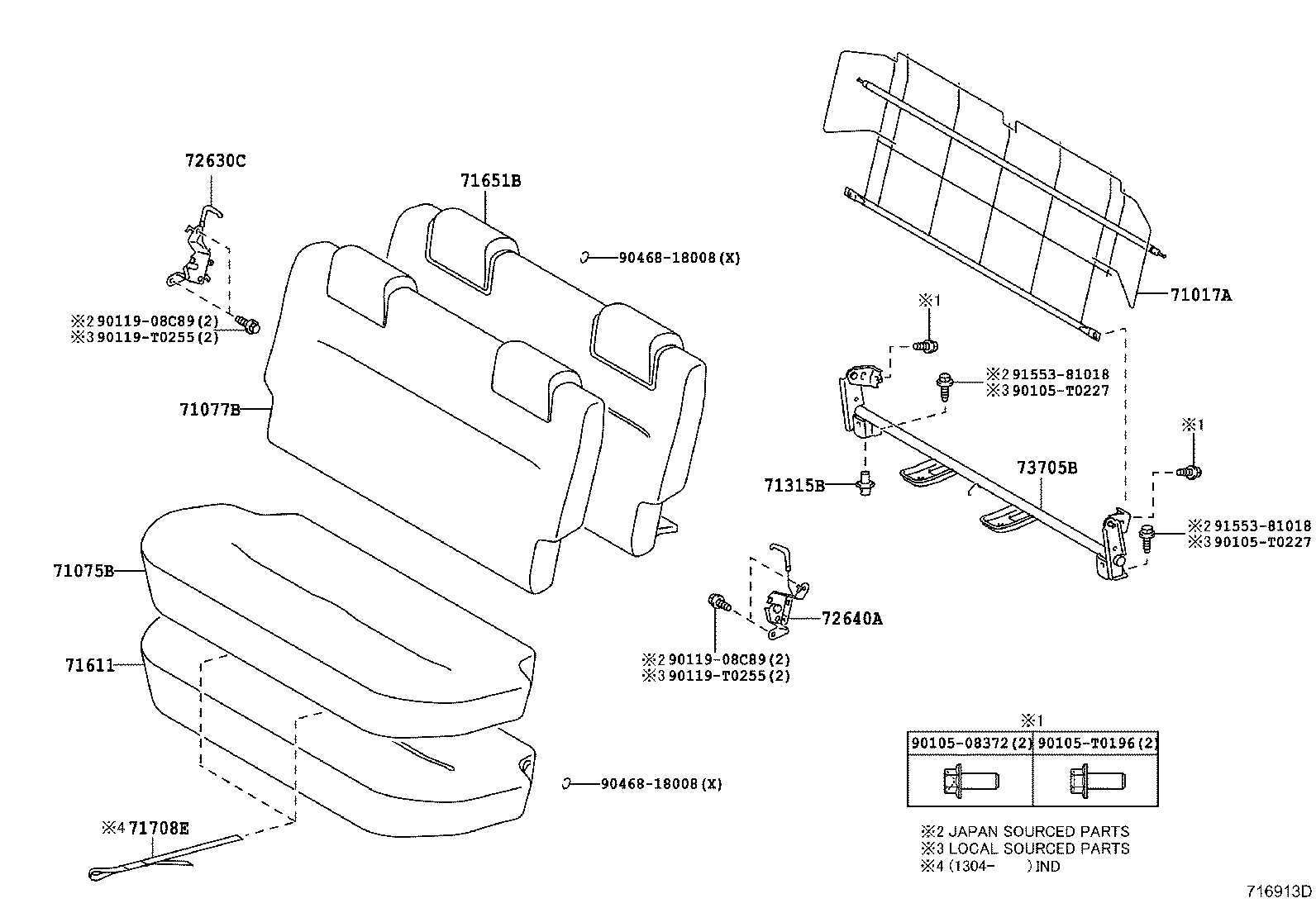

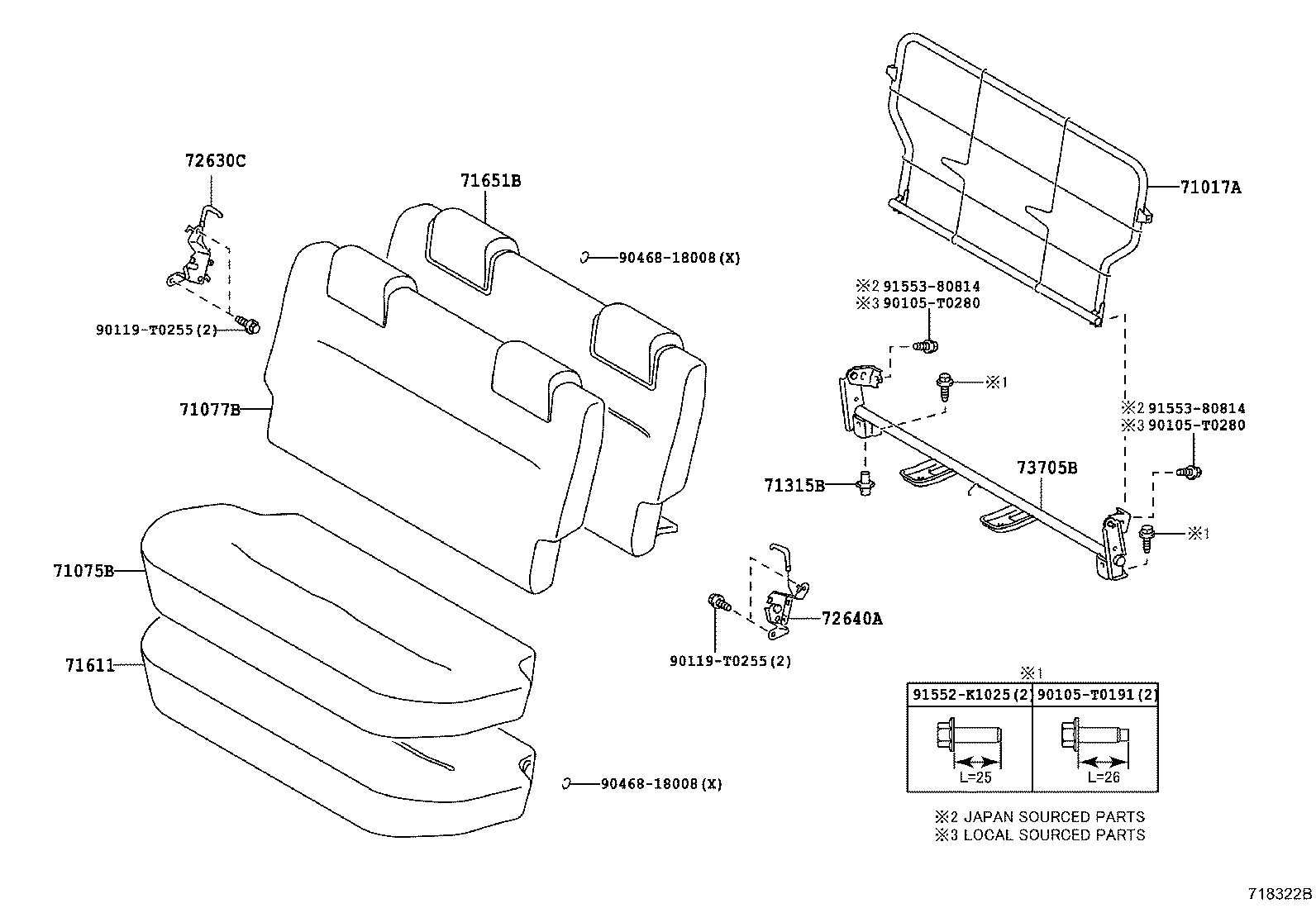

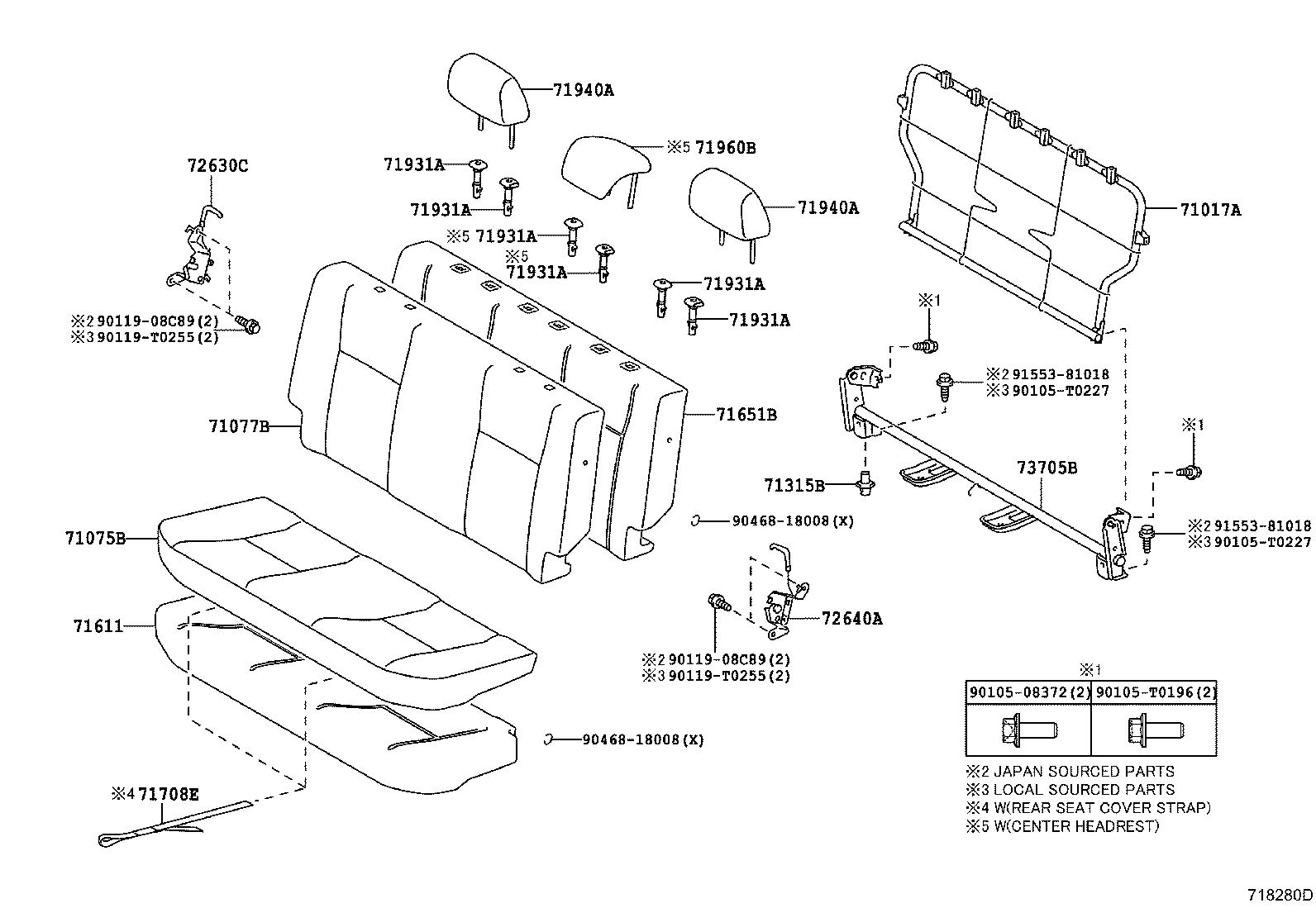

Figure 716914D 716914D 2010-12 → 2016-09 Figure 716913D 716913D 2010-12 → 2013-03 Figure 716913D 716913D 2013-03 → 2016-09 Figure 718322B 718322B 2013-03 → 2015-01 Figure 718322B 718322B 2015-01 → — Figure 718862 718862 2015-01 → 2016-09 Figure 71A296A 71A296A 2016-09 → — Figure 718280D 718280D 2013-03 → 2016-09 Figure 718280D 718280D 2016-09 → —

Part groups

PNCDescription
71017A Frame Sub-assy, Rear Seatback
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71315B Pin, Rear Seat Hinge
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71657 Cloth, Rear Seatback Under
71708E Strap Sub-assy, Rear Seat Cover
71885B Mat, Rear Seatback
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
73705B Bracket Sub-assy, Cross Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
